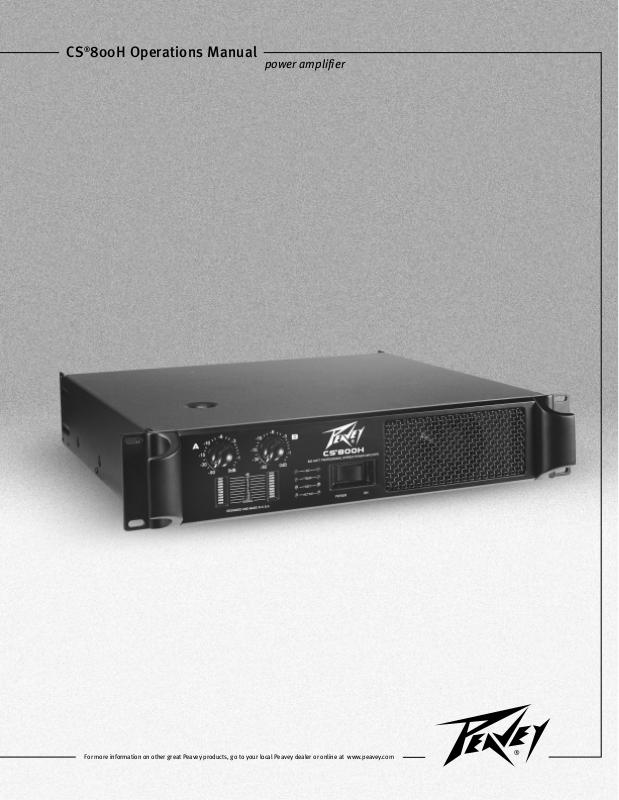

Peavey CS 800H User Manual

CS®800H Operations Manual

For more information on other great Peavey products, go to your local Peavey dealer or online at www.peavey.com

power amplifier

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CCAAUUTTIIOONN::

Risk of electrical shock — DO NOT OPEN!

CCAAUUTTIIOONN::

To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside.

Refer servicing to qualified service personnel.

WWAARRNNIINNGG::

To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture.

Before using this appliance, read the operating guide for further warnings.

Este símbolo tiene el propósito, de alertar al usuario de la presencia de “(voltaje) peligroso” sin aislamiento dentro de la caja del producto y que puede tener una magnitud suficiente como para constituir riesgo de descarga eléctrica.

Este símbolo tiene el propósito de alertar al usario de la presencia de instruccones importantes sobre la operación y mantenimiento en la información que viene con el producto.

PPRREECCAAUUCCIIOONN::

Riesgo de descarga eléctrica ¡NO ABRIR!

PPRREECCAAUUCCIIOONN::

Para disminuír el riesgo de descarga eléctrica, no abra la cubierta. No hay piezas útiles

dentro. Deje todo mantenimiento en manos del personal técnico cualificado.

AADDVVEERRTTEENNCCIIAA::

Para evitar descargas eléctricas o peligro de incendio, no deje expuesto a la lluvia o

humedad este aparato Antes de usar este aparato, Iea más advertencias en la guía de operación.

Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur la présence d’une tension dangereuse pouvant être d’amplitude suffisante pour constituer un risque de choc électrique.

Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur qu’il ou qu’elle trouvera d’importantes instructions concernant l’utilisation et l’entretien de l’appareil dans le paragraphe signalé.

AATTTTEENNTTIIOONN::

Risques de choc électrique — NE PAS OUVRIR!

AATTTTEENNTTIIOONN::

Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur Peavey agréé.

AAVVEERRTTIISSSSEEMMEENNTT

: Afin de prévenir les risques de décharge électrique ou de feu, n’exposez pas cet appareil à la pluie ou à l’humidité. Avant d’utiliser cet appareil, lisez attentivement les avertissements supplémentaires de ce manuel.

Dieses Symbol soll den Anwender vor unisolierten gefährlichen Spannungen innerhalb des Gehäuses warnen, die von Ausreichender Stärke sind, um einen elektrischen Schlag verursachen zu können.

Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam machen, die Handhabung und Wartung des Produkts betreffen.

VVOORRSSIICCHHTT::

Risiko — Elektrischer Schlag! Nicht öffnen!

VVOORRSSIICCHHTT::

Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung enfernen. Es befinden sich keine Teile darin, die vom Anwender repariert werden könnten. Reparaturen nur von qualifiziertem Fachpersonal durchführen lassen.

AACCHHTTUUNNGG::

Um einen elektrischen Schlag oder Feuergefahr zu vermeiden, sollte dieses Gerät nicht dem

Regen oder Feuchtigkeit ausgesetzt werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.

IIMMPPOORRTTAANNTT SSAAFFEETTYY IINNSSTTRRUUCCTTIIOONNSS

WWAARRNNIINNGG::

When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.

11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚ colored green or colored green and yellow.

b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

12. Only use attachments/accessories provided by the manufacturer.

13. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

16. Never break off the ground pin. Write for our free booklet “Shock Hazard and Grounding.” Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.

17. If this product is to be mounted in an equipment rack, rear support should be provided.

18. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government’s Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response

890 692 495 397 2100

1 1⁄

102

1105

⁄

110

⁄4or less 115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SSAAVVEE TTHHEESSEE IINNSSTTRRUUCCTTIIOONNSS!!

CCSS®®880000HH PPoowweerr AAmmpplliiffiieerr

Congratulations on your purchase of the CS 800H power amplifier from Peavey—designed for years of reliable, flawless operation under rigorous use. This amplifier offers the sonic superiority and unsurpassed reliability for which Peavey is famous, while remaining surprisingly compact. Advanced technology and extensive protection circuitry allow operation with greater efficiency into difficult loads and power conditions. The

DDDDTT

™

(Distortion Detection) circuit ensures trouble-free operation into loads as low as 2 Ohms. The Distortion Detection circuits protect drivers and ensure that sonic integrity is maintained, even in extreme overload conditions. Peavey’s hi-efficiency design uses patented Turbo-V cooling and variable speed DC fan. This cooling topology maintains a lower overall operating temperature, resulting in longer output transistor life.

Although the Peavey CS 800H amplifier is quite simple to operate and is housed in ultra-strong steel chassis, improper use can be dangerous. This amplifier is very high-powered and can put out high voltages and sizable currents at frequencies up to 30 kHz. Always use safe operating techniques when operating this amplifier.

FFOORR YYOOUURR SSAAFFEETTYY,, RREEAADD TTHHEE IIMMPPOORRTTAANNTT PPRREECCAAUUTTIIOONNSS SSEECCTTIIOONN,, AASS WWEELLLL AASS IINNPPUUTT,, OOUUTTPPUUTT,, AANNDD PPOOWWEERR CCOONNNNEECCTTIIOONN SSEECCTTIIOONNSS..

·· 1199"" 22--ssppaaccee‚‚ rraacckk--mmoouunnttaabbllee ddeessiiggnn

·· ppaatteenntteedd TTuurrbboo--VV ccoooolleedd hheeaatt ssiinnkkss wwiitthh vvaarriiaabbllee ssppeeeedd DDCC ffaann

·· uullttrraa--ssttrreennggtthh sstteeeell cchhaassssiiss

·· RRaammppUUpp

™™

ssiiggnnaall ccoonnttrrooll

·· sstteerreeoo oorr bbrriiddggeedd--mmoonnoo mmooddeess ooff ooppeerraattiioonn

·· ffrroonntt ppaanneell AACC ppoowweerr sswwiittcchh//cciirrccuuiitt bbrreeaakkeerr

·· aammpp ffuunnccttiioonn sswwiittcchh ffoorr ffuullll--rraannggee ooppeerraattiioonn oorr ccrroossssoovveerr hhiigghh//llooww ffrreeqquueennccyy oouuttppuuttss

·· ttwwoo iinnddeeppeennddeenntt‚‚ aaddjjuussttaabbllee ccrroossssoovveerrss

·· ttwwoo iinnddeeppeennddeenntt‚‚ llooww ffrreeqquueennccyy ffiilltteerrss

·· ffiivvee ffrroonntt ppaanneell LLEEDD iinnddiiccaattoorrss ppeerr cchhaannnneell:: AACCTTIIVVEE,, DDDDTT

™™

,, SSIIGGNNAALL‚‚ TTEEMMPP aanndd DDCC

UUnnppaacckkiinngg

Upon unpacking, inspect the amplifier. If you find any damage, notify your supplier immediately. Only the consignee may institute a claim with the carrier for damage incurred during shipping. Be sure to save the carton and all packing materials. Should you ever need to ship the unit back to Peavey Electronics, one of its offices, service centers, or the supplier, use only the original factory packing. If the shipping carton is unavailable, contact Peavey to obtain a replacement.

MMoouunnttiinngg

The CS 800H amplifier will mount in standard 19-inch racks. Rear mounting ears are also provided for additional support, which is recommended in non-permanent installations like mobile or touring sound systems. Because of the cables and connectors on the rear panel, a right angle or offset screwdriver or hex key will make it easier to fasten the rear mounting ears to the rails.

CCoooolliinngg RReeqquuiirreemmeennttss

The CS 800H amplifier uses a forced-air cooling system to maintain a low, even operating temperature. Air is drawn into the amplifier by fans on the front panel, courses through the cooling fins of the tunnel-configured channel heat sinks, and then exhausts through the rear panel slots. If either heat sink gets too hot, its sensing circuit will open the output relay, disconnecting the load from that particular channel. It is important to have an exhaust outlet at the back of the amplifier and enough space around the sides of the amplifier to allow the cooling air to escape. If the amp is rack mounted, do not use doors or covers on the front of the rack; the intake air must flow without resistance. If you are using racks with closed backs, make sure that there is one (1) standard rack space opening for every three mounted power amplifiers.

EENNGGLLIISSHH

FFeeaattuurreess

DDeessccrriippttiioonn

OOppeerraattiinngg PPrreeccaauuttiioonnss

Make sure the mains voltage is correct and is the same as that printed on the rear of the amplifier. Damage caused by connecting the amplifier to improper AC voltage is not covered by any warranty. See the Connecting Power section for more information on voltage requirements.

NNoottee:: AAllwwaayyss ttuurrnn ooff ff aanndd ddiissccoonnnneecctt tthhee aammpplliiffiiee rr ffrroomm mmaaiinn ss vvoollttaaggee bbeeffoorree mmaakkiinngg aauuddiioo ccoonnnneeccttiioo nnss.. AAllssoo,, aass aann eexxttrraa pprr eeccaauuttiioonn,, hhaavvee tt hhee aatt tteennuuaattoo rrss ttuurrnn eedd ddooww nn dduurriinngg ppoowweerr--uupp..

Although the CS 800H amplifier has

RRaammppUUpp

™

circuitry, which raises the signal level gradually after the output relay closes, it is always a good idea to have the gain controls turned down during power-up to prevent speaker damage if there is a high signal level at the inputs. Whether you buy or make them, use good-quality connections, input cables and speaker cables, along with good soldering technique, to ensure trouble-free operation. Most intermittent problems are caused by faulty cables.

Consult the Wire Gauge Chart (below) to determine proper gauges for different load impedances and cable lengths. Remember that cable resistance robs amplifier power in two ways: power lost directly to resistance (I2R loss), and by lowering the total load impedance. Also make sure the mode switch is correctly set for the desired application. See Sections on

SStteerreeoo

and

BBrriiddggeedd MMoonnoo

operation for more

information.

WIRE GAUGE CHART

Cable Length

(In Feet)

Stranded Wire Gauge

(AWG)

Power Loss into

8 Ohms (%)

Power Loss into

4 Ohms (%)

Power Loss into

2 Ohms (%)

5 18 .79 1.58 3.16

16 .50 1.00 2.00

14 .31 .62 1.24

12 .20 .40 .80

10 .125 .25 .50

10 18 1.58 3.16 6.32

16 1.00 2.00 4.00

14 .62 1.25 2.50

12 .40 .80 1.60

10 .25 .50 1.00

40 18 8.00 12.60 25.20

. 16 4.00 8.00 1.60

14 2.50 5.00 10.00

12 1.60 3.20 6.40

10 1.00 2.00 4.00

8 .625 1.25 2.50

80 16 8.00 16.00 32.00

14 5.00 10.00 20.00

12 3.20 6.40 12.80

10 2.00 4.00 8.00

CCoonnnneeccttiinngg IInnppuuttss

Input connections are made via the 3-pin XLR (pin 2+) or 6.3 mm plug “Combi” connectors on the rear panel of the amplifier. The inputs are actively balanced. Pinout and polarity of connection cables should be configured correctly (refer to the rear panel of the unit). The input overload point is high enough to accept the maximum output level of virtually any signal source.

CCoonnnneeccttiinngg OOuuttppuuttss

All models have two output (speaker) connections per channel. Cables can be connected with banana plugs, spade lugs, or bare wire to the 5-way binding posts. The preferred connection method is via the Speakon connectors. Pin connections are noted on the rear panel of the unit.

CCoonnnneeccttiinngg PPoowweerr

The CS 800H power requirements are rated at 1/8 power (typical music conditions). The maximum power current draw rating is limited only by the front panel circuit breaker. Consult the specifications in this manual for figures on the current that this amplifier will demand. Make sure the mains voltage is correct and is the same as that printed on the rear of the amplifier. Damage caused by connecting the amplifier to improper AC voltage is not covered by any warranty. Unless otherwise specified when ordered, Peavey amplifiers shipped to customers are configured as follows:

North America: 120 VAC/60 Hz

Europe, Asia, Australia: 230/240 VAC/50 Hz

South America: 120 VAC/60 Hz or 240 VAC/50 Hz

SStteerreeoo

For stereo (dual channel) operation, turn the amplifier off and set the mode select switch to the stereo position. In this mode, both channels operate independently of each other, with their input attenuators controlling their respective levels. Thus, a signal at Channel A’s input produces an amplified signal at Channel A’s output, while a signal at Channel B’s input produces an amplified signal at Channel B’s output.

BBrriiddggeedd MMoonnoo

Both amplifier channels can be bridged together to make a very powerful single-channel monaural amplifier. Use extreme caution when operating in the bridged mode; high voltage may be present at the output terminals. To bridge the amplifier, set the rear panel mode select switch to the bridge position. Apply the signal to Channel A’s input (all Channel B’s input functions are defeated) and connect the speakers across the hot outputs (the “+” binding posts of Channels A and B) or between the 1+ and 2+ pins of the Channel A Speakon®connector. The input level control for channel A will be the master control for input level, the level control for the B channel is inoperative. The active LED for the B channel will not light, which makes it easy to identify when the amp is in Bridge mode.

Unlike stereo mode, in which one side of each output is at ground, in the bridged mode both sides are hot. If an output patch panel is used, all connections must be isolated from each other and from the panel. The recommended minimum nominal load impedance in the bridged mode is 4 Ohms (equivalent to driving both channels at 2 Ohms). Driving bridged loads of less than 4 Ohms can activate the Load Fault Correction (LFC) circuitry resulting in a limiting of power, and may also cause a thermal overload.

OOppeerraattiioonn MMooddeess

AACC PPoowweerr SSwwiittcchh//CCiirrccuuiitt BBrreeaakkeerr ((11))

The CS 800H amplifier has a combination AC switch/circuit breaker on the front panel. If the switch shuts off during normal use, push it back to the ON position once. If it will not stay on, the amplifier needs servicing.

IInnppuutt AAtttteennuuaattoorrss ((22))

Whenever possible, set the attenuators fully clockwise to maintain optimum system headroom. The input attenuator controls (one for channel A, one for channel B) located at the front panel adjust gain for their respective amplifier channels in all modes. See the specifications at the end of this manual for standard voltage gain and input sensitivity information.

When operating in the bridged mode, the channel A attenuator controls the signal. See the section on BBrriiddggeedd MMoonnoo

Operation for more information and precautions.

FFrroonntt PPaanneell IInnddiiccaattoorrss

The CS 800H features four front panel discrete LED indicators per channel:

AACCTTIIVVEE, DDDDTT, TTEEMMPP

and

DDCC

. These LED indicators inform the user of each channel’s operating status and warn of possible abnormal conditions. This amplifier also features two 10-segment bar graph indicators per channel:

SSIIGGNNAALL

SSiiggnnaall LLEEDD ((33))

This LED is at the bottom of the bar graph display and lights when its channel produces an output signal of greater than 2 Volts RMS or 50 mV input with a 0 dB attenuation of the front panel knobs. It is useful in determining whether a signal is reaching and being amplified by the amplifier. The 10segment graphs indicate the level of signal present.

DDCC LLEEDD ((44))

The DC LED lights to indicate that the channel’s output relay is open, disconnecting the speaker(s) when the amplifier senses a DC voltage or subsonic high level signal at its output.

TTeemmpp LLEEDD ((55))

The Temp LED lights to indicate that the channel’s output relay is open, disconnecting the speaker(s) due to an overheating condition. Once the channel temperature has returned to safe operating conditions the LED will turn off and the speaker(s) will be reconnected.

DDDDTT AAccttiivvee LLEEDD ((66))

Illuminates when DDT Compression is taking place. With the Enable/Defeat switch in the Defeat position, the LED indicates when clipping distortion is occuring.

1 8

FFrroonntt PPaanneell

4 5 6 73

AAiirr EExxhhaauusstt VVeennttss ((99))

These vents provide an exhaust path for the hot air from the heatsinks. Any restriction or blockage could cause excessive opertion temperature and the unit could shut down.

MMooddee SSeelleecctt SSwwiittcchh ((1100))

The rear panel MODE Select Switch determines whether the amplifier is in stereo or bridged mono mode.

DDDDTT SSwwiittcchh ((1111))

This switch is used to either Enable or Defeat the DDT compressor. It is recommended to leave the DDT compression enabled at all times to protect your speakers from damage square waves.

CChhaannnneell IInnppuutt ((1122))

This input features a combo connector that will accept a standard three-pin male XLR, 1/4" (6.3 mm) TRS (Tip-Ring-Sleeve), or 1/4" (6.3 mm) mono plug. An electronically balanced input is available via XLR and 1/4" TRS use. The unit is internally wired for the following:

Input

XLR TRS

(+) Pin 2 Tip

(-) Pin 3 Ring

GND Pin 1 Sleeve

RReeaarr PPaanneell

10 11

AAccttiivvee LLEEDD ((77))

The ACTIVE LED indicates that its channel’s output relay is closed and the channel is operational. In Bridge Mode, the Channel B LED goes off.

AAiirr IInnttaakkee VVeenntt ((88))

Cool air enters the amplifier here and exhausts through the rear vents. Any restriction or blockage could cause excessive operation temperatures and the unit could shut down.

17 18 19 19 2120

17 18

CCrroossssoovveerr AAddjjuussttmmeenntt KKnnoobb ((1133))

The CS 800H is equipped with two independent‚ two-way crossovers adjustable from 40 Hz to 300 Hz. These crossover frequencies are appropriate for use with a subwoofer system. The output of these crossovers is selected by the Amp Function switch and connected to the corresponding amplifier channel. Frequencies above the knob setting will be connected to the corresponding channel when the Amp Function switch is in the HIGH PASS position. Frequencies below the knob setting will be connected to the corresponding channel when the Amp Function switch is in the LOW PASS position. The FULL RANGE position bypasses the crossover.

AAmmpp FFuunnccttiioonn SSwwiittcchh ((1144))

The rear panel Amp Function Select Switch determines whether the associated channel is connected for full range operation or to the crossover high frequency or low frequency outputs.

LLooww CCuutt SSwwiittcchh ((1155))

The LOW CUT switch is a recessed push switch used to defeat or engage the LOW CUT filter. Pushing the switch to the in position will engage the filter.

LLooww CCuutt AAddjjuussttmmeenntt KKnnoobb ((1166))

The CS 800H is equipped with two independent low frequency filters. These filters are adjustable from 20 Hz to 100 Hz and are designed to reduce frequencies below those capable of being produced by the loudspeakers, or to reduce room “rumble.” Frequencies below the knob setting of the corresponding channel will be attenuated.

HHiigghh PPaassss//FFuullll RRaannggee OOuuttppuutt CCoonnnneeccttoorr ((1177))

The HIGH PASS/FULL RANGE OUTPUT connector function is dependent on the setting of the corresponding Amp Function switch. This connector allows patching the frequencies above the crossover knob setting to a secondary amplifier. If the Amp Function switch is in the HIGH PASS position, the high frequency portion of the crossover will be present at the connector. If the Amp Function switch is in the FULL RANGE or LOW PASS position, the crossover will be bypassed and allow patching the full range signal to a secondary amplifier.

LLooww PPaassss OOuuttppuutt CCoonnnneeccttoorr ((1188))

The LOW PASS OUTPUT connector allows patching the frequencies below the crossover knob setting to a secondary amplifier. This output remains at low frequencies independent of the Amp Function switch setting.

SSppeeaakkoonn®®OOuuttppuutt CCoonnnneeccttoorr ((1199))

Each channel features a four-wire Speakon connector for the output. In both channels, the 1+ pin is the channel signal output and the 1- pin is chassis ground. On the Channel A connector, the 2+ pin carries the Channel B signal output and the 2- pin is chassis ground.

BBiinnddiinngg PPoosstt OOuuttppuutt CCoonnnneeccttoorrss ((2200))

Each channel features a pair of shock-proof binding posts connected in parallel with the Speakon connector. The red binding posts are the signal output from each channel, and the black binding posts are chassis ground. For Bridge mode operation, only the red binding posts are used. The Channel A red binding post should be considered the positive output for the system and should be connected to the positive input of the associated loudspeaker system.

AACC LLiinnee CCoorrdd CCoonnnneeccttoorr ((2211))

Provided to accept the removable (IEC) type AC line cord. Connect only to proper source (see back panel markings).

The CS 800H incorporates several circuits to protect both itself and loudspeakers under virtually any situation. Peavey has attempted to make the amplifier as foolproof as possible by making it immune to short and open circuits, mismatched loads, DC voltage, and overheating. If a channel goes into the Distortion Detection or DDT gain reduction mode, the speaker load remains connected, but clipping percentage or output power are instantly reduced. When a problem occurs that causes a channel to go into a protection mode, the TEMP LED or DC LED for that channel will glow. DC voltage on the output, excessive subsonic frequencies, or thermal overload will cause the channel’s output relay to disconnect the speaker load until the problem is corrected or the amplifier cools down.

DDDDTT

Peavey’s DDT compression system allows maximum performance of the amplifier/speaker combination by preventing the power amp from running out of headrooom (clipping). This compression system is activated by a unique circuit that senses signal conditions that might overload the amplifier and reduce the amplifier’s gain when clipping is imminent. The threshold of compression is clipping itself and no specific threshold control is used. This technique effectively utilizes every watt available for the power amplifier to reproduce the signal while at the same time minimizes clipping and distortion, and thus significantly reduces the potential of loudspeaker degradation and damage.

LLFFCC IImmppeeddaannccee SSeennssiinngg

The CS 800H features innovative circuitry that allows safe operation into any load. When an amplifier sees a load that overstresses the output stage, the Load Fault Correction circuit adjusts the channel gain to a safe level. This method of output stage protection is far superior to conventional, brute force type limiting found on other amplifiers. The LFC circuit is sonically transparent in normal use and unobtrusive when activated.

TThheerrmmaall PPrrootteeccttiioonn

The internal fan will keep the amplifier operating well within its intended temperature range under all normal conditions. If a channel’s heat sink temperature reaches sufficient temperature which may indicate an obstructed air supply, that channel will independently protect itself by disconnecting its load and shutting down until it has cooled. During this time, the channel’s TEMP LED will light. During this time, the ACTIVE LED will go out, the Temp and DDT LEDs will stay lit and the cooling fan will stay running at high speed.

SShhoorrtt CCiirrccuuiitt

If an output is shorted, the LFC circuit will automatically protect the amplifier. The LFC circuit senses the short circuit as an exteremly stressful load condition and mutes the signal, protecting the channel’s output transistors from over current stress. Approximately 1.5 seconds later, the RampUp circuit will attempt to return the amplifier to normal operation. If the short is still present, the LFC circuit will again mute the signal. This cycle of operation will continue until the short is removed from the output.

DDCC VVoollttaaggee PPrrootteeccttiioonn

If an amplifier channel detects DC voltage or subsonic frequencies at its output terminals, its output relay will immediately open to prevent loudspeaker damage. The channel’s DC LED will light.

TTuurrnn--OOnn//TTuurrnn--OOffff PPrrootteeccttiioonn

At power-up, the amplifier stays in the protect mode, with outputs disconnected, for approximately two seconds while the power supplies charge and stabilize. When power is removed, the speaker loads immediately disconnect so that no thumps or pops are heard.

PPrrootteeccttiioonn FFeeaattuurreess

RRaammppUUpp™™SSiiggnnaall CCoonnttrrooll

Whenever amplifier powers up or comes out of a protect mode, the RampUp™circuit activates. While the speakers are disconnected, the RampUp™circuit fully attenuates the signal. After the output relay closes, the signal slowly and gradually raises up to its set level. The RampUp™Signal Control circuit has some important advantages over the conventional instant-on circuits:

If a signal is present during power-up (or when coming out of protect), the speakers are spared a sudden, potentially damaging burst of audio power.

Because the gain is reduced until after the output relay closes, no arcing occurs at the contacts, thereby extending their useful life.

SSppeeaakkeerr PPrrootteeccttiioonn

All loudspeakers have electrical, thermal and physical limits that must be observed to prevent damage or failure. Too much power, low frequencies applied to high frequency drivers, severely clipped waveforms, and DC voltage can all be fatal to cone and compression drivers. The Peavey CS 800H amplifier automatically protects speakers from DC voltages and subsonic signals. For more information, see the section on Protection Features. Mid- and high-frequency speakers, especially compression drivers, are highly susceptible to damage from overpowering, clipped waveforms, or frequencies below their rated pass band. Be extremely careful that the low and mid bands of an electronic crossover are connected to the correct amplifiers and drivers and not accidentally connected to those for a lower frequency band. The amplifier’s clipping point is its maximum peak output power, and the high power Peavey CS 800H amplifier can deliver more power than many speakers can safely handle. Be sure the peak power capability of the amplifier is not excessive for your speaker system.

Fuses may also be used to limit power to speaker drivers, although as current-limiting rather than voltage-limiting devices, they are an imperfect solution, and as the weakest links, they only limit once before needing replacement. Some poor quality fuses have a significant series resistance that could degrade the amplifier’s damping of the speaker’s motion and may even deteriorate the system’s sound quality. If you elect to use fuses, check with the speaker manufacturer to determine the proper current rating and time lag required.

Do not drive any low-frequency speaker enclosure with frequencies lower than its own tuned frequency; the reduced acoustical damping could cause a ported speaker to bottom out even at moderate power. Consult the speaker system specifications to determine its frequency limits.

AAmmpplliiffiieerr MMaaiinntteennaannccee aanndd UUsseerr RReessppoonnssiibbiilliittyy

A CS 800H amplifier requires no other routine maintenance and should never need any internal adjustment during its lifetime. Your CS 800H amplifier is very powerful and can be potentially dangerous to loudspeakers and humans alike. It is your responsibility to read the Important Precautions section and to make sure that the amplifier is installed, wired and operated properly as instructed in this manual. Many loudspeakers can be easily damaged or destroyed by overpowering, especially with the high power available from a bridged amplifier. Read the Speaker Protection section and always be aware of the speaker’s continuous and peak power capabilities.

CCSS 880000HH BBlloocckk DDiiaaggrraamm

Ch-A

Input

Ch-B

Input

CS 800H Block Diagram

Ch-A

Input

Attenuator

Ch-B

Input

Attenuator

Hi Pass / Full Range Output

Ch-A

Low Cut

Switch

HI PASS

Ch-A Low Pass Output

Ch-B Hi Pass / Full Range Output

Ch-B

Low Cut

Switch

HI PASS

Ch-B Low Pass Output

Mode

Switch

Ch-A

Low Cut

Adjust

Ch-B

Low Cut

Adjust

Amplifier

Protection

DDT LFC

RampUp

Amplifier

Protection

DDT LFC

RampUp

Ch-A Power

Amplifier

400 Watts

Ch-A

Ch-B Power

Amplifier

400 Watts

Ch-B

LEDs

Ch-A

Output

Relay

Ch-B

Output

Relay

Ch-A

Output

Ch-B

Output

HI PASS

Ch-A

Crossover

LO PASS

HI PASS

Crossover

LO PASS

Adjust

Ch-B Adjust

Ch-A

Amp

Function

Switch

Ch-B

Amp

Function

Switch

GGlloossssaarryy ooff TTeerrmmss

(Used in Setup Instructions)

SStteerreeoo::

Music with two separate channels‚ usually a left and right channel.

MMoonnoo::

Music with only one channel.

CCrroossssoovveerr::

An electronic device that separates high and low frequencies and sends them to different outputs. The separate signals are usually sent to a high out and a low out.

BBii--aammpp::

The separation of high and low frequencies with a crossover‚ using separate speakers and power amps for each.

FFuullll RRaannggee::

Both high and low frequencies together in a single channel.

PPrrooggrraamm::

The signal that is plugged into the amplifier.

HHii--ppaassss::

Allows only the high frequencies to pass‚ effectively blocking the low frequencies.

LLooww--ppaassss::

Allows only the low frequencies to pass, blocking the high frequencies.

MMiidd//HHiigghh::

The speaker designed to play everything but the low frequencies.

SSuubb::

The speaker designed for low frequencies only.

PPaarraalllleell::

Both speakers or inputs having the same signal. When referring to speakers‚ this means plugging the second speaker into the first speaker and so on…

SSEETTUUPP IINNSSTTRRUUCCTTIIOONNSS

SStteerreeoo OOppeerraattiioonn

1. Set

AAMMPP MMOODDEE

switch to

SSTTEERREEOO

2. Set the A and B channel

AAMMPP FFUUNNCCTTIIOONN

switches and to

FFUULLLL RRAANNGGEE

3. Connect the Left and Right program signal to the A and B channel inputs: and .

4. Connect the A and B channel speaker outputs and to the loudspeaker full range inputs.

2 3

4 5

7 8

BBrriiddggee MMooddee OOppeerraattiioonn

1. Set

AAMMPP MMOODDEE

switch to

BBRRIIDDGGEE

2. Connect the program signal to the A channel input .

3. Connect the loudspeaker across the two RED binding posts on the amplifier outputs . The A channel is positive and the B channel is negative or between th 1+ and 2+ pins of the A channel Speakon connector (the 1+ positive and the 2+ pin is negative).

TTwwoo CChhaannnneell PPaarraalllleell OOppeerraattiioonn ((FFuullll RRaannggee))

1. Set

AAMMPP MMOODDEE

switch to

SSTTEERREEOO

2. Set the A and B channel

AAMMPP FFUUNNCCTTIIOONN

switches and to

FFuullll RRaannggee

3. Connect the program signal to the A channel input .

4. Plug a short shielded cable into the A

HHIIGGHH PPAASSSS//FFUULLLL RRAANNGGEE

output .

5. Connect the other end of the same cable to the B channel input .

6. Connect the A and B channel speaker outputs and . to the loudspeaker full range inputs.

2 3

7 8

4 2 6

87 9

1 5 3

BBii--AAmmpp OOppeerraattiioonn

(sub woofer & mid/high enclosure)

1. Set

AAMMPP MMOODDEE

switch to

SSTTEERREEOO

2. Set the A channel

AAMMPP FFUUNNCCTTIIOONN

switch to

LLOOWW PPAASSSS

3. Turn on the A channel

LLOOWW CCUUTT SSWWTTIICCHH

4. Set channel A

LLOOWW CCUUTT

frequency adjustment knob to match the low frequency cut-off or the -3 dB down point

of the sub woofer. (If you don’t know this specification‚ set it for 40 Hz.)

5. Set the channel A

CCRROOSSSSOOVVEERR

frequency adjustment knob to the desired crossover frequency (usually

100–150 Hz).

6. Set the channel B

AAMMPP FFUUNNCCTTIIOONN

switch to FULL RANGE.

7. Plug a short shielded cable into the Channel A

LLooww PPaassss

output .

8. Connect the other end of the same cable to the channel B input .

9. Connect the Mono program signal to the channel A input .

10. Connect the sub woofer(s) (in parallel) to the channel A output .

11. Connect the mid/high enclosure(s) (in parallel) to the channel B output .

5 3 4 7 1 8 6

10 11

RQ 4324

Q 215F

CS 800H

SP2X SP2X SP 218 SP 218

CEL 2a

Feedback Ferret II

Kosmos

CS 800H

BBii--aammpp HHooookkuupp DDiiaaggrraamm

Rated output power (120 VAC, 60 Hz):

Bridge mode, mono:

4 Ohms: 800 W @ 1 kHz, <0.1%

THD

8 Ohms: 650 W @ 1 kHz, <0.1%

THD

Stereo mode, both channels driven:

2 Ohms: 400 W per channel

1 kHz, <0.05% THD

4 Ohms: 325 W per channel

1 kHz, <0.05% THD

8 Ohms: 225 W per channel

1 kHz, <0.05% THD

Minimum load impedance:

Stereo mode: 2 Ohms Bridge mode: 4 Ohms

Frequency response:

10 Hz to 50 kHz; +0‚ -1 dB, 4 Ohms

@ 1 W

Power bandwidth:

15 Hz to 50 kHz; +0‚ -1 dB @

rated, 4 Ohms

Total harmonic distortion:

Stereo mode, both channels driven

<0.1% @ 500 W per channel from 20 Hz to 20 kHz

Voltage gain:

Input attenuator set @ FCW

31 dB, stereo mode, 4 Ohms, 1 kHz 38 dB, bridge mode, 8 Ohms, 1 kHz

Crosstalk:

>-75 dB @ 1 kHz @ rated power,

8 Ohms

Crossover:

Fourth order state variable filters:

24 dB/Octave

Frequency range:

40 Hz to 300 Hz

Hum and noise:

Stereo mode, both channels driven

below rated output power, 4 Ohms, >100 dB (30 kHz BW, unweighted)

Slew rate:

Stereo mode, each channel

>20V/us

Damping factor:

>250 @ 8 Ohms, 20 Hz to 1 kHz

Phase response:

Stereo mode, 4 Ohms @ rated

power

20 Hz leading waveform: <-16.5˚ 20 kHz lagging waveform: <+17.5˚

Input sensitivity:

Input attenuator set @ FCW

1.0 V @ rated power, 4 Ohms, 1 kHz

Input impedance:

Input attenuator set @ FCW

20 k Ohms, balanced

Cooling:

One front panel, temperature

dependant, variable speed DC fan

Controls:

Two front panel attenuators‚ rear

panel mode switch‚ rear panel DDT defeat switch, function switch per channel, adjustable low cut filter per channel, low cut filter bypass switch per channel, adjustable subwoofer crossover per channel

Indicator LEDs:

Two DDT, two active status, two

DC protect, two over-temperature, two ten-segment signal displays

Protection:

Clipping, short-circuit, thermal

overload, DC, turn-on burst, incorrect loads

Connectors:

Combination XLR and 1/4"

(6.3 mm) phone input, Speakon

and binding post speaker output 1/4" (6.3 mm), high pass or full range patch connector per channel, 1/4" (6.3 mm) low pass patch connector per channel, 15 amp IEC mains connectors

Construction:

16 ga. steel with cast aluminum

front panel and cast handles

Dimensions (H x W x D):

3.5" x 19" 17.5" (8.9 cm x 48.3 cm x 44.5 cm)

Net weight:

33.4 lbs (15.2 kg)

Gross Weight:

45.5 lbs (20.6 kg)

2 Ohms stereo mode and 4 Ohms bridge mode power is time limited by magnetic circuit breaker

C S®®8 0 0H

SSPPEECCIIFFIICCAATTIIOONNSS

Specifications subject to change without notice.

DDEEUUTTSSCCHH

MMeerrkkmmaallee

BBeesscchhrreeiibbuunngg

CCSS 880000HH VVeerrssttäärrkkeerr

Wir beglückwünschen Sie dazu, dass Sie sich für den CS 800H Verstärker von Peavey entschieden haben – er wurde für jahrelangen zuverlässigen und störungsfreien Einsatz unter harten Bedingungen entwickelt. Dieser Verstärker zeichnet sich durch die überragende Schallleistung und die einzigartige Zuverlässigkeit aus, für die Peavey bekannt ist. Gleichzeitig ist er überraschend kompakt. Fortschrittliche Technologie und umfassende Schutzschaltungen ermöglichen einen effizienteren Betrieb auch bei problematischen Lasten und Energiebedingungen. Die DDT™- (Distortion Detection) Schaltung gewährleistet einen störungsfreien Betrieb auch bei niedrigen Lasten bis zu 2 Ohm. Die DDT-Schaltung schützt die Treiber und sorgt dafür, das die Schallleistung selbst unter extremer Überlastung nicht beeinträchtigt wird. Peaveys Hochleistungskonstruktion arbeitet mit tunnelgekühlten Kühlkörpern und Gleichstromventilatoren mit variabler Drehzahl. Aufgrund dieser Kühlmethode wird eine niedrigere Gesamtbetriebstemperatur ermöglicht, was wiederum die Lebensdauer des Endstufen-Transistors verlängert.

Obwohl der CS 800H Verstärker von Peavey einfach im Betrieb ist und in ultrarobusten Stahlgehäusen untergebracht ist, birgt sein unsachgemäßer Einsatz Gefahren. Das Gerät ist ein Hochleistungsverstärker, der hohe Spannungen und Ströme mit Frequenzen bis zu 30 kHz abgibt. Achten Sie beim Einsatz dieses Verstärkers immer auf sichere Betriebsverfahren.

LLEESSEENN SSIIEE SSIICCHH BBIITTTTEE DDIIEE AABBSSCCHHNNIITTTTEE ÜÜBBEERR WWIICCHHTTIIGGEE SSIICCHHEERRHHEEIITTSSHHIINNWWEEIISSEE SSOOWWIIEE ÜÜBBEERR EEIINNGGAANNGG,, AAUUSSGGAANNGG UUNNDD SSTTRROOMMAANNSSCCHHLLUUSSSS DDUURRCCHH,, UUMM IIHHRREE SSIICCHHEERRHHEEIITT ZZUU GGEEWWÄÄHHRRLLEEIISSTTEENN..

·· 1199"",, zzwweeii RRaacckk--HHööhheenn,, ffüürr RRaacckk--IInnssttaallllaattiioonn ggeeeeiiggnneett

·· PPaatteennttiieerrttee TTuurrbboo--VV--ggeekküühhllttee KKüühhllkköörrppeerr mmiitt GGlleeiicchhssttrroommllüüfftteerr mmiitt vvaarriiaabblleerr DDrreehhzzaahhll

·· UUllttrraarroobbuusstteess SSttaahhllggeehhääuussee

·· RRaammppUUpp™™--SSiiggnnaallrreeggeelluunngg

·· BBeettrriieebbssaarrtteenn SStteerreeoo ooddeerr BBrriiddggeedd--MMoonnoo

·· WWeecchhsseellssttrroomm--NNeettzzsscchhaalltteerr bbzzww.. --SSiicchheerruunnggssaauuttoommaatt aauuff ddeerr VVoorrddeerrsseeiittee

·· VVeerrssttäärrkkeerrffuunnkkttiioonnsssscchhaalltteerr ffüürr FFuullll--RRaannggee--BBeettrriieebb ooddeerr FFrreeqquueennzzwweeiicchheenn--HHoocchhffrreeqquueennzz-- bbzzww.. NNiieeddeerrffrreeqquueennzz--AAuussggäännggee

·· ZZwweeii uunnaabbhhäännggiiggee jjuussttiieerrbbaarree FFrreeqquueennzzwweeiicchheenn

·· ZZwweeii uunnaabbhhäännggiiggee NNiieeddeerrffrreeqquueennzzffiilltteerr

·· FFüünnff LLEEDD--AAnnzzeeiiggeenn pprroo KKaannaall aauuff ddeerr VVoorrddeerrsseeiittee:: AACCTTIIVVEE,, DDDDTT™™,, SSIIGGNNAALL‚‚ TTEEMMPP uunndd DDCC

AAuussppaacckkeenn

Untersuchen Sie den Verstärker beim Auspacken. Sollten Sie Beschädigungen feststellen, informieren Sie unverzüglich Ihren Händler. Nur der Empfänger kann gegenüber dem Spediteur einen Anspruch aufgrund von Transportschäden geltend machen. Heben Sie den Karton und sämtliches Verpackungsmaterial bitte auf. Sollte es irgendwann einmal erforderlich sein, das Gerät zu Peavey Electronics oder zu einem unserer Büros, Service-Center oder Händler zurückzuschicken, verwenden Sie dazu bitte ausschließlich die Original-Werksverpackung. Sollte keine Versandverpackung mehr vorhanden sein, bitten Sie Peavey um Ersatz.

MMoonnttaaggee

Der CS 800H Verstärker wird in genormten 19"-Racks montiert. Zur zusätzlichen Verstärkung sind Montageösen auf der Rückseite angebracht; dies wird für vorübergehende Installationen wie etwa mobile oder Tour-Beschallungssysteme empfohlen. Aufgrund der Kabel und Anschlüsse auf der Rückseite wird die Befestigung der hinteren Montageösen an den Schienen durch einen rechtwinkligen Schraubendreher, einen Winkelschraubendreher oder einen Sechskantschlüssel erleichtert.

+ 42 hidden pages
