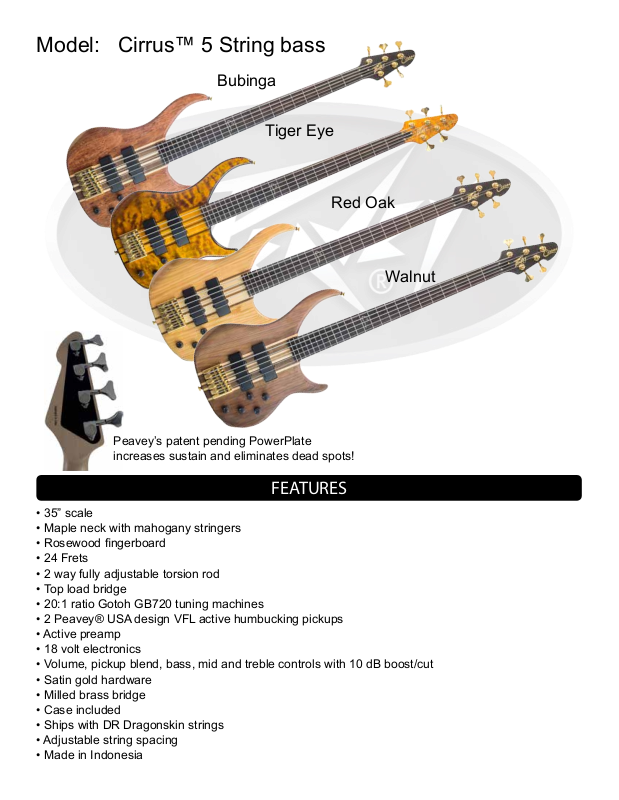

Page 1
Model: Cirrus™ 5 String bass
Bubinga
Tiger Eye
Red Oak
Walnut
Peavey’s patent pending PowerPlate
increases sustain and eliminates dead spots!
FEATURES
• 35” scale
• Maple neck with mahogany stringers
• Rosewood ngerboard
• 24 Frets
• 2 way fully adjustable torsion rod
• Top load bridge
• 20:1 ratio Gotoh GB720 tuning machines
• 2 Peavey® USA design VFL active humbucking pickups
• Active preamp
• 18 volt electronics
• Volume, pickup blend, bass, mid and treble controls with 10 dB boost/cut
• Satin gold hardware
• Milled brass bridge
• Case included
• Ships with DR Dragonskin strings
• Adjustable string spacing
• Made in Indonesia
Page 2
SPECIFICATIONS
Neck Material: Maple with mahogany Stringers
Neck Type: Neck-through the body design
Hardware Color: Satin gold
Body Wood: Depends on model.
Fingerboard: Rosewood
Inlays: 12th fret “C”
NECK DIMENSIONS
Frets: 24-frets 2.7mm wide x 1.1mm tall, 18%
nickel silver
Bridge: Milled one piece
Neck Pickup: VFL Internally active
Bridge Pickup: VFL Internally active
Scale/Length: 35”, 24 frets
a. Width at Nut: 1.77” (45mm)
b. Width at Last Fret: 2.76” (70mm)
c. Thickness at 1st Fret: .825” (20.96mm)
d. Thickness at 12th Fret: .900” (22.86mm)
Radius: 12.6”
CONTROLS
RADIUS
B
A
C
D
Trebl e
Mids Bass
Blend
Vol u m e
Page 3
BRIDGE PICKUP
Peavey® USA Design VFL Humbucking
Construction: Internally active, low impedance, extended frequency response
Magnet Type: Ceramic, extended magnetic window Description: Internally active, 18 volt powered, frequency bal-
anced for bridge position. Low impedance design allows for noise free operation, clarity and improved dynamics.
Unique VFL design enhances dynamics and sensitivity for all playing styles. Wide magnetic window allows full
string vibration and reduced magnetic damping. Adjustable height and angle. Output 1v-4.5v.
NECK PICKUP
Peavey USA Design VFL Humbucking
Construction: Internally active, low impedance, extended frequency response
Magnet Type: Ceramic, extended magnetic window Description: Internally active, 18 volt powered, frequency bal-
anced for neck position. Low impedance design allows for noise free operation, clarity and improved dynamics.
Unique VFL design enhances dynamics and sensitivity for all playing styles. Wide magnetic window allows full
string vibration and reduced magnetic damping. Adjustable height and angle. Output 1v-4.5v.
HARDWARE
Satin gold
Tuners: Gotoh GB720, 20:1 Ratio
Bridge: Gold Satin, 19 degree string pitch
Controls: 1 volume, pickup blend. Active 3 band EQ with 10dB boost/cut
AVAILABLE CASES/BAGS
Peavey Part #00487480 Rectangular Bass Case
Peavey Part #00478970 Molded Hardshell Bass Case
Peavey Part #00722790 Nylon Bass Bag
Thank you for purchasing genuine peavey® produc Ts!
