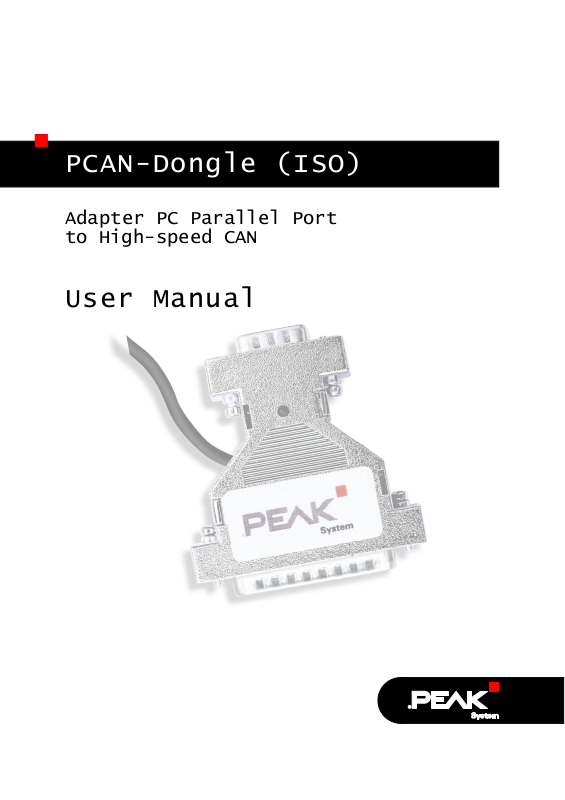

PEAK-System Technik IPEH-002019 User Manual

PCAN-Dongle (ISO)

Adapter PC Parallel Port
to High-speed CAN

User Manual

PCAN-Dongle (ISO) – User Manual

Products taken into account

Product Name Model Item Number

PCAN-Dongle PS/2 IPEH-002019

PCAN-Dongle ISO PS/2 IPEH-002020

PCAN-Dongle DIN IPEH-002015

Windows® and MS-DOS are registered trademarks of Microsoft Corporation in the
United States and other countries.
All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, "™" and "®" are not
mentioned in each case in this manual.

© 2006 PEAK-System Technik GmbH

PEAK-System Technik GmbH
Otto-Roehm-Strasse 69
D-64293 Darmstadt
Germany

Phone: [phone]
Fax: [phone]

www.peak-system.com
[e-mail]

Release date: May 3, 2006

2

PCAN-Dongle (ISO) – User Manual

Contents

1 Introduction 4

1.1 Properties at a Glance 4

1.2 System Requirements 5

1.3 Scope of Supply 5

2 Hardware Installation 6

2.1 Connecting to the PC 6

2.2 Connecting a HS-CAN 7

2.3 5-Volt Supply at the CAN Connector 7

3 Software Setup 10

3.1 Windows Operating Systems 10

3.2 DOS and Relatives 11

4 Use 12

4.1 Getting Started under Windows 13

4.2 Getting Started under DOS 15

5 Linking Own Programs with PCAN-Light 18

6 Frequently Asked Questions (FAQ) 19

7 Technical Specifications 20

Appendix A Certificates 21
A.1 CE 21

Appendix B Quick Reference 23

3

PCAN-Dongle (ISO) – User Manual

1 Introduction

Tip: At the end of this manual (Appendix B) you can find a
Quick Reference with brief information about the installation

and operation of the PCAN-Dongle.

The PCAN-Dongle allows the connection of a CAN bus to the
parallel interface of an IBM compatible PC. It is especially suitable
for use with notebook computers since these usually don't have an
ISA or PCI slot. With the help of this adapter any PC can be linked to
a High-speed CAN (HS-CAN).

The so-called ISO version of the PCAN-Dongle additionally contains
a galvanic isolation. An isolation of up to 500 V between the PC and
the CAN parts of the adapter is achieved by use of a DC/DC
converter and an optocoupler.

Note: This manual refers to both the PCAN-Dongle standard
version and the PCAN-Dongle ISO with galvanic isolation.
Differences at use and at the technical specifications are
mentioned accordingly in this manual.

1.1 Properties at a Glance

Connection of a High-speed CAN (CAN specifications 2.0A and

2.0B) to a PC

Use of a PC’s parallel port capable of interrupts

Supports all interrupt and port address settings for the parallel

interface

Supports the standard and the ECP mode of a parallel interface

Equipped with the CAN controller SJA1000T by Philips

CAN transfer rate up to 1 MBit/s

4

PCAN-Dongle (ISO) – User Manual

CAN connection 9-pin Sub-D male, pin assignment according to

CiA recommendation DS102

Galvanic isolation up to 500 V for the CAN interface (only PCAN-

Dongle ISO)

Power supply (5 V) via cable with T-piece for keyboard

connector (DIN or PS/2)

Support for operating systems Windows (98 SE, ME, 2000 SP4,

XP), Linux, and DOS

Note: This manual describes the use of the PCAN-Dongle with
Windows and DOS. You can find device drivers for Linux and
the corresponding information on PEAK-System's website
under http://www.peak-system.com/linux.

1.2 System Requirements

The following prerequisites must be given, so that the PCAN-Dongle
can be used properly:

An empty parallel port (Sub-D, 25 pins) at the PC, capable of

interrupts

Operating system Windows (98 SE, ME, 2000 SP4, XP), Linux, or

DOS

1.3 Scope of Supply

The scope of supply normally consists of the following parts:

Adapter PCAN-Dongle (case with two ports and a cable with T-

piece for DIN or PS/2 keyboard connector)

CD-ROM with software (drivers, utilities), programming

examples, and documentation

5

PCAN-Dongle (ISO) – User Manual

2 Hardware Installation

2.1 Connecting to the PC

1. Make sure that the PC is turned off.

2. Connect the PCAN-Dongle with the wider port (25 pins) to
the free parallel port at the PC.

3. Pull the keyboard connector from the corresponding port at
the PC.

4. Connect the T-piece at the cable of the PCAN-Dongle to the
keyboard port.

5. Now reconnect the keyboard to the free end of the T-piece.

A configuration of the hardware is not needed. However, you
should check the settings for the parallel interface in the PC's BIOS
setup.

If the PC has a parallel interface with EPP as well as ECP properties,
the corresponding setting in the BIOS set-up should be "ECP" (not
"EPP" and not "EPP+ECP"). Although the extended properties of the
PCAN-Dongle usually will work with the last-mentioned setting
some systems may have problems with it. Therefore the setting for
the "pure" ECP mode should be preferred.

Further information about the different operating modes of the
PCAN-Dongle can be found in chapter 4

Use

.

6

PCAN-Dongle (ISO) – User Manual

First Test

After turning on the PC the red LED at the PCAN-Dongle must be
permanently on. This indicates that the power supply for the PCAN­Dongle is correct.

Attention! Don't remove PCAN-Dongle from the PC while
powered on (red LED on PCAN-Dongle is lit). Electronic parts of
the PCAN-Dongle or the PC's parallel interface may be harmed.

2.2 Connecting a HS-CAN

A CAN is connected to the 9-pin Sub-D port on the PCAN-Dongle.
The pin assignment corresponds to the CiA recommendation DS
102-1.

Figure 1: Pin assignment HS-CAN

(view onto male connector of the PCAN-Dongle)

2.3 5-Volt Supply at the CAN Connector

A 5-Volt supply can optionally be routed to pin 1 and/or pin 9 of the
CAN connector (PCAN-Dongle ISO: pin 1 only) by setting solder
bridges on the PCAN-Dongle PCB (Dongle case opened). Thus
devices with low power consumption (external transceivers or
optocouplers, for example) can be directly supplied via the CAN
connector.

7

PCAN-Dongle (ISO) – User Manual

When using this option, the 5-Volt supply is directly connected to
the power supply of the PCAN-Dongle (coming from the PC) and is
not fused separately. The ISO version of the Dongle contains an
interconnected DC/DC converter. Therefore the current output is
limited to about 50 mA.

Attention! At this procedure a special care is indispensable
since there is a short circuit danger. The PCAN-Dongle could be
destroyed and/or the power supply or electronics of the PC or
other components connected could be damaged.

Important note: PEAK-System Technik GmbH does not give
guarantee on damages which have resulted from application of
the option described in this section.

Procedure:

1. In order to access the PCB, open the case of the PCAN­Dongle by cautiously levering the latches on both sides (risk
of breakage!), e.g. with a flat tip screwdriver.

2. Set the solder bridges on the PCAN-Dongle PCB according
to the desired settings. Figure 2 and Figure 3 show the
possible positions of a solder bridge.

8

PCAN-Dongle (ISO) – User Manual

+5 Volts at the CAN connector:

PCB PCAN-Dongle (bottom side):

Figure 2:

JP9, 2-1 (as shown) → pin 1

JP9, 2-3 → pin 9

PCB PCAN-Dongle ISO (top side):

Pos. R11 bridged → pin 1

Figure 3:

3. For reassembly place the PCB overhead onto the top part of
the case. Make sure that the cable is lying in the side cut-out
with the strain relief inside the case, and that the LED is
placed in the corresponding hole of the top part of the case.

4. Push the bottom part of the case onto the top part (the
latches click in).

9

PCAN-Dongle (ISO) – User Manual

3 Software Setup

This chapter describes the installation of the delivered software.
You get to know more about its use in the following chapter 4.

3.1 Windows Operating Systems

Under Windows a driver is needed that can access the PCAN­Dongle and that provides the interface for Windows software.
Beside the mentioned device driver the CAN monitor PCAN-View
for Windows can also set up.

Note: The following instructions are valid only for Windows
2000 and Windows XP. If you use the operating systems
Windows 98 SE or Windows ME, please contact the customer
support (address: see page 2).

Do the following to setup the driver and, if applicable, additional
software:

1. Please make sure that you are logged in as user with
administrator privileges (not needed for normal use of the
PCAN-Dongle later on).

2. Insert the supplied CD-ROM into the PC. Usually a
navigation program appears a few moments later. If not,
start the file Intro.exe from the root directory of the CD­ROM.

3. Navigate through the menus to the driver installation for the
PCAN-Dongle (English > Drivers > PCAN-Dongle). Click on
Install now afterwards. The setup program for the driver is
executed.

4. Follow the instructions of the setup program.

10

PCAN-Dongle (ISO) – User Manual

3.2 DOS and Relatives

You can find the CAN monitor PCAN-View for DOS and the
programming samples in C and Pascal on the supplied CD-ROM in
the following directories:

PCAN-View for DOS:
\Tools\PcanView\Dos

Programming samples:
\Develop\Dos\Dongle

A separate setup procedure isn't needed.

11

PCAN-Dongle (ISO) – User Manual

4 Use

The PCAN-Dongle can be used in one of four possible operating
modes:

Name of
Operating Mode

Multiplex Mode PEAK Dongle-

EPP Mode PEAK Dongle-

Multiplex PeliCAN
Mode

EPP PeliCAN
Mode

The EPP PeliCAN Mode is recommended to gain the full CAN
functionality at lowest possible PC system load. If this mode doesn't
work correctly, you can fall back to one of the other operating
modes. The Multiplex Mode should work on any system.

Tip: You can find further information about the PeliCAN Mode
in the data sheet for the CAN controller SJA1000 by Philips
obtainable at the according website, for example.

You can find information about activating an operating mode in the
following sections.

Alternative
Identifier

CAN

CAN EPP

PEAK Dongle­CAN SJA

PEAK Dongle­CAN SJA EPP

Description

Standard Parallel Port (SPP)

Extended Capability Port
(ECP)

Standard Parallel Port (SPP),
extended CAN functionality
(CAN 2.0B incl. 29-bit IDs)

Extended Capability Port
(ECP), extended CAN
functionality (CAN 2.0B incl.
29-bit IDs)

12

PCAN-Dongle (ISO) – User Manual

4.1 Getting Started under Windows

4.1.1 Information about the Parallel Interface

You need information about the used interrupt and port address of
the parallel interface. It can be gained from the Device Manager of
Windows:

1. On the desktop open the context menu of the icon "My
Computer" (right mouse click) and select the command
Properties.

2. Windows 2000, XP: Select the tab Hardware and click on the
button Device Manager afterwards.
Windows 98 SE, ME: Select the tab Device Manager.

3. Under Ports (COM & LPT) in the tree view double click on
the entry Printer Port (LPTx) or ECP Printer Port (LPTx).

4. Select the tab Resources.

You can extract the needed information from the entries
"Input/Output Range" and "Interrupt Request" in the shown list.
Write down this information for later use.

Note: Under Windows 2000 and Windows XP the use of an
interrupt for the parallel interface must explicitly be
determined. This happens on the tab Port Settings. Activate the
option Use any interrupt assigned to the port there.

4.1.2 PCAN-View for Windows

In the Start menu of the Windows desktop you can find the entry
"PCAN Hardware". From there you can execute the program PCAN­View.

A dialog for the selection of the CAN hardware as well as the setting
of the CAN parameters appears after the program start.

13

PCAN-Dongle (ISO) – User Manual

Figure 4: Selection of the CAN specific parameters

If no entry is in the list "Available CAN hardware" (for example at
the first program start), you need to add one:

1. Press the button Add. The dialog box "Add CAN hardware"
appears.

2. Select the connected hardware and the operating mode
from the list "Type of CAN hardware". If the mode of the
parallel interface is set to ECP in the PC's BIOS setup, you
can register the PCAN-Dongle as "PEAK Dongle-CAN SJA
EPP".

14

PCAN-Dongle (ISO) – User Manual

Figure 5: Selection of hardware resources

3. Enter the port address and the interrupt of the used parallel
interface established before (see section above).

4. Confirm your input with OK.

In the dialog box "Connect to CAN hardware" make further settings
(baud rate and CAN message filter) for the created hardware entry.

If you need further help after the program start, use the online help
provided with the program (key [F1]).

4.2 Getting Started under DOS

4.2.1 Information about the Parallel Interface

You need information about the used interrupt and port address of
the parallel interface. It can be determined with the MS-DOS tool
MSD (MSD.EXE in the DOS directory).
The following table gives an overview of the common port
addresses and interrupts for the parallel port at the PC.

15

PCAN-Dongle (ISO) – User Manual

Port Address Interrupt

LPT1 0x378 IRQ7

LPT2 0x278 IRQ5

LPT3 0x3BC IRQ5/7

4.2.2 PCAN-View for DOS

The program PCAN-View for DOS enclosed in the package is a CAN
monitor that supports various SJA1000/82C200 based PC hardware
extensions by PEAK-System. It is able to transmit and receive CAN
messages. As software with basic features it represents the Light
version of CANMON for DOS. With PCAN-View for DOS you can
examine existing nets and set up new ones.

Note: On PCs with processors with a clock frequency greater
than 400 MHz you should only use program versions > 3.0.

Program Initialization

1. Execute PCAN-View for DOS (file PCANVIEW.EXE).

2. Enter the port address and the interrupt of the parallel
interface.

3. Select the desired baud rate.

4. From the list of operating modes select one of those
beginning with "PEAK Dongle".
If your PC has an ECP interface and the corresponding
function is activated in the BIOS setup, you can use one of
the operating modes ending with "EPP". If you have
problems with these operating modes, select "PEAK Dongle­CAN" instead.

5. By pressing [F10] the PCAN-Dongle is configured and linked
to the CAN.

16

PCAN-Dongle (ISO) – User Manual

If the error message "CAN Controller 82C200 not found" is
displayed, then double-check the used interrupt and port address as
well as the selected hardware type.

You can access the online help any time by pressing [F1].

Figure 6: Screenshot PCAN-View for DOS

17

PCAN-Dongle (ISO) – User Manual

5 Linking Own Programs with

PCAN-Light

On the supplied CD-ROM you can find files that are provided for
software development. You can access them with the navigation
program (button Programming). The files exclusively serve the
linking of own programs to hardware by PEAK-System with the help
of the installed device driver under Windows.

Further more the CD-ROM contains header files and examples for
creating own applications in conjunction with the Light drivers.
Please read the detailed documentation of the interface (API) in
each header file.

Tip: You can find further information in the file
PCANLight_enu.chm (Windows Help file) on the CD-ROM.

Notes about the License

Device drivers, the interface DLL and further files needed for linking
are property of the PEAK-System Technik GmbH (PEAK-System)
and may be used only in connection with a hardware component
purchased from PEAK-System or one of its partners. If a CAN
hardware component of third party suppliers should be compatible
to one of PEAK-System, then you are not allowed to use or to pass
on the driver software of PEAK-System.

PEAK-System assumes no liability and no support for the PCAN­Light driver software and the necessary interface files. If third party
suppliers develop software based on the PCAN Light driver and
problems occur during use of this software, please, consult the
software provider. To obtain development support, you need to
own a PCAN Developer or PCAN Evaluation version.

18

PCAN-Dongle (ISO) – User Manual

6 Frequently Asked Questions

(FAQ)

Question Answer

In the PC's BIOS setup the
parallel port setting shows
ECP but the PCAN-Dongle
works with the EPP mode.
Is this correct?

Can a printer still be
connected to the PCAN­Dongle?

Is it possible to supply the
PCAN-Dongle PS/2 also via
the computer's mouse
connector?

I have problems running
the PCAN-Dongle under
Windows 2000/XP.

Yes, it is. The naming of the
operating mode EPP of the PCAN­Dongle has historical causes. The
parallel interface at the PC went
through various developments in the
nineties. Only the EPP extension
existed during the time, when the
PCAN-Dongle arose. With version 1.9
the EPP extension already had
similarities to the ECP extension,
which is usually used in PCs today.
The name of the operating mode EPP
was kept for the PCAN-Dongle.

No. The PCAN-Dongle doesn't offer
any possibility to connect through the
parallel interface for the printer. The
PCAN-Dongle Pro, having this
functionality integrated, isn't sold by
PEAK-System anymore.

Yes.

The driver files PEAKCAN.SYS and
PCAN_DNG.SYS must be available at
least in version 2.30. You can
determine the currently used driver
version e.g. with the About dialog
box in PCAN-View (menu command
Help | About).

19

PCAN-Dongle (ISO) – User Manual

7 Technical Specifications

Supply

Supply voltage +5 V DC

Current consumption max. 80 mA, PCAN-Dongle ISO max. 140 mA

Connectors

Supply Cable to the keyboard jack of the PC, length about 50

PC Sub-D (m), 25 pins (to standard parallel port)

CAN Sub-D (m), 9 pins

CAN

Specification ISO 11898

Controller Philips SJA1000T

Transceiver Philips PCA82C251

Environment

Operating temperature 0 – 60 °C (32 – 140 °F)

Storage temperature -20 – +80 °C (-4 – 176 °F)

Relative humidity 15 – 90 %, not condensing

EMC EN 61000-6-3:2001

Measures

Size 56 x 18 x 62 mm

Weight max. 70 g (2.5 oz.)

cm/20 inches

Pin assignment according to CiA recommendation DS
102-1
PCAN-Dongle ISO: galvanic isolation up to 500 V

High-speed CAN (up to 1 MBit/s)

2.0A (standard format) and 2.0B (extended format)

EN 61000-6-1:2001
EN 61000-6-4:2001 (only PCAN-Dongle ISO)
EN 61000-6-2:2001 (only PCAN-Dongle ISO)
EC directive 89/336/EEC

2 3/16 x 11/16 x 2 7/16 Inches

Design and specifications are subject to change without notice.

20

PCAN-Dongle (ISO) – User Manual

Appendix A Certificates

A.1 CE

21

PCAN-Dongle (ISO) – User Manual

22

PCAN-Dongle (ISO) – User Manual

Appendix B Quick Reference

Hardware Installation

Connect the PCAN-Dongle to the PC's parallel port, insert the T­piece at the cable's end between the keyboard port at the PC and
the keyboard connector (for power supply). When the PC is turned
on, the red LED indicates an existing power supply.

Software installation and startup under Windows

Execute the driver installation program from the supplied CD-ROM.
Restart Windows after the installation procedure.
Run the CAN monitor PCAN-View for Windows from the Start menu
as a sample application for accessing the PCAN-Dongle. Get the
parameters of the parallel interface (I/O address, interrupt) needed
for initialization of the PCAN-Dongle from Windows' Device
Manager.

HS-CAN connector (Sub-D, 9 pins)

23
