PD Technology BigBot Assembly Instructions Manual

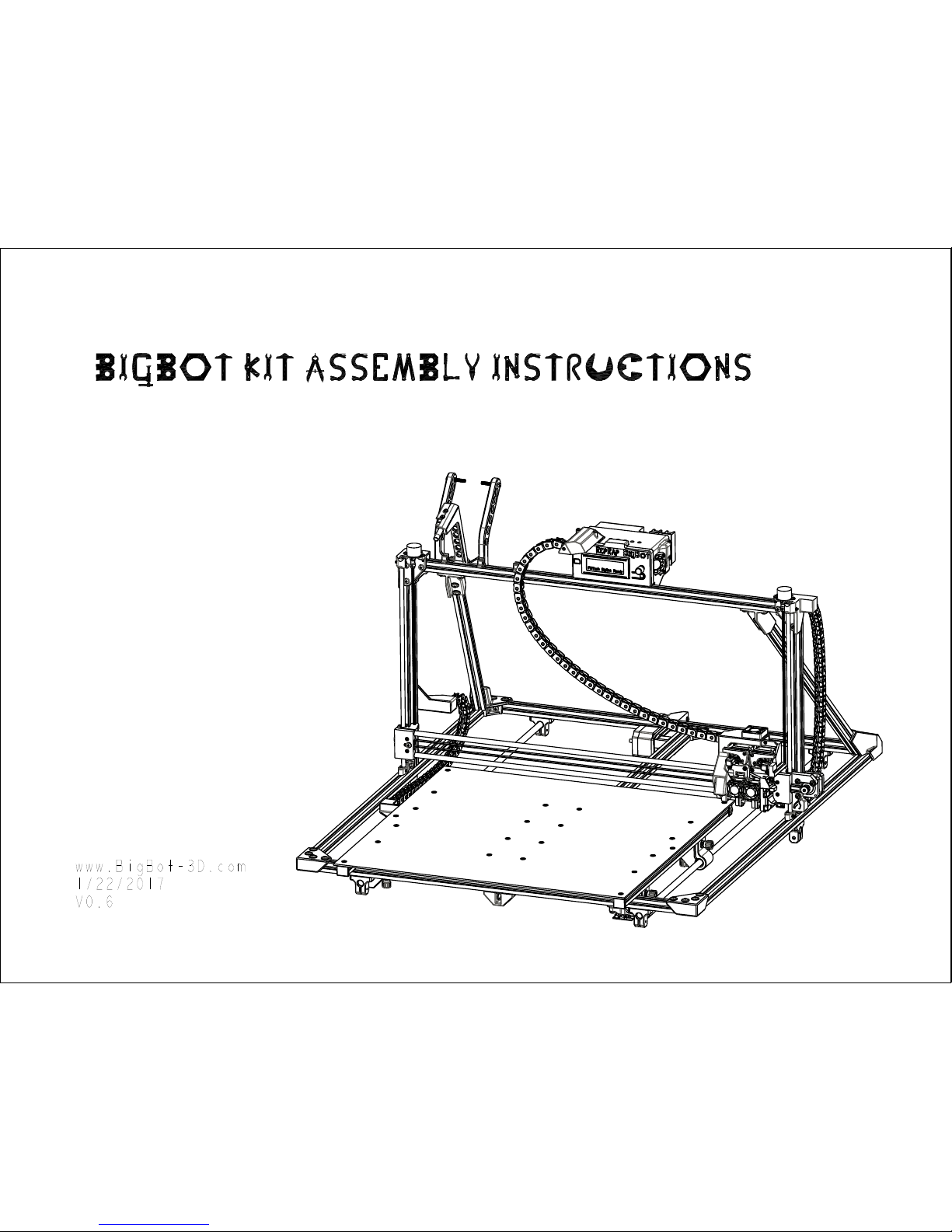

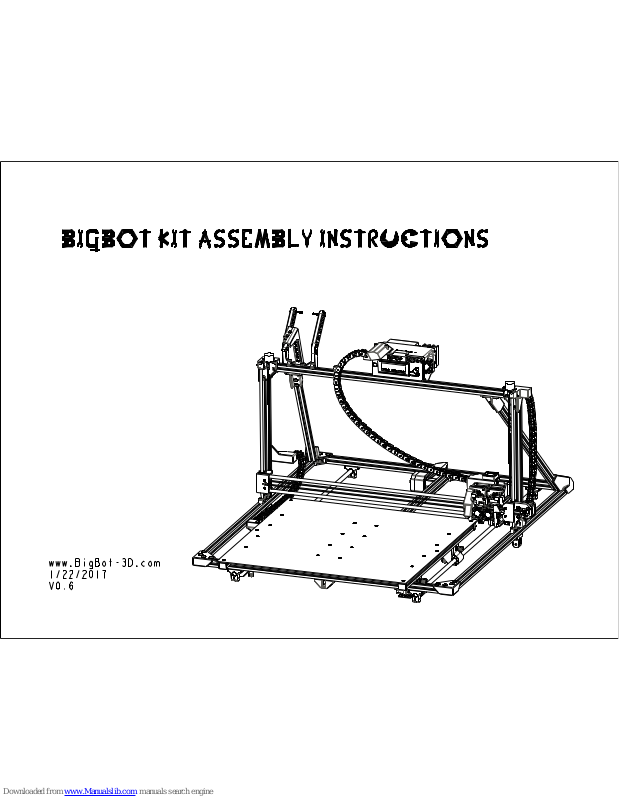

BIGBOT KIT ASSEMBLY INSTRUCTIONS

www.BigBot-3D.com
1/22/2017
V0.6

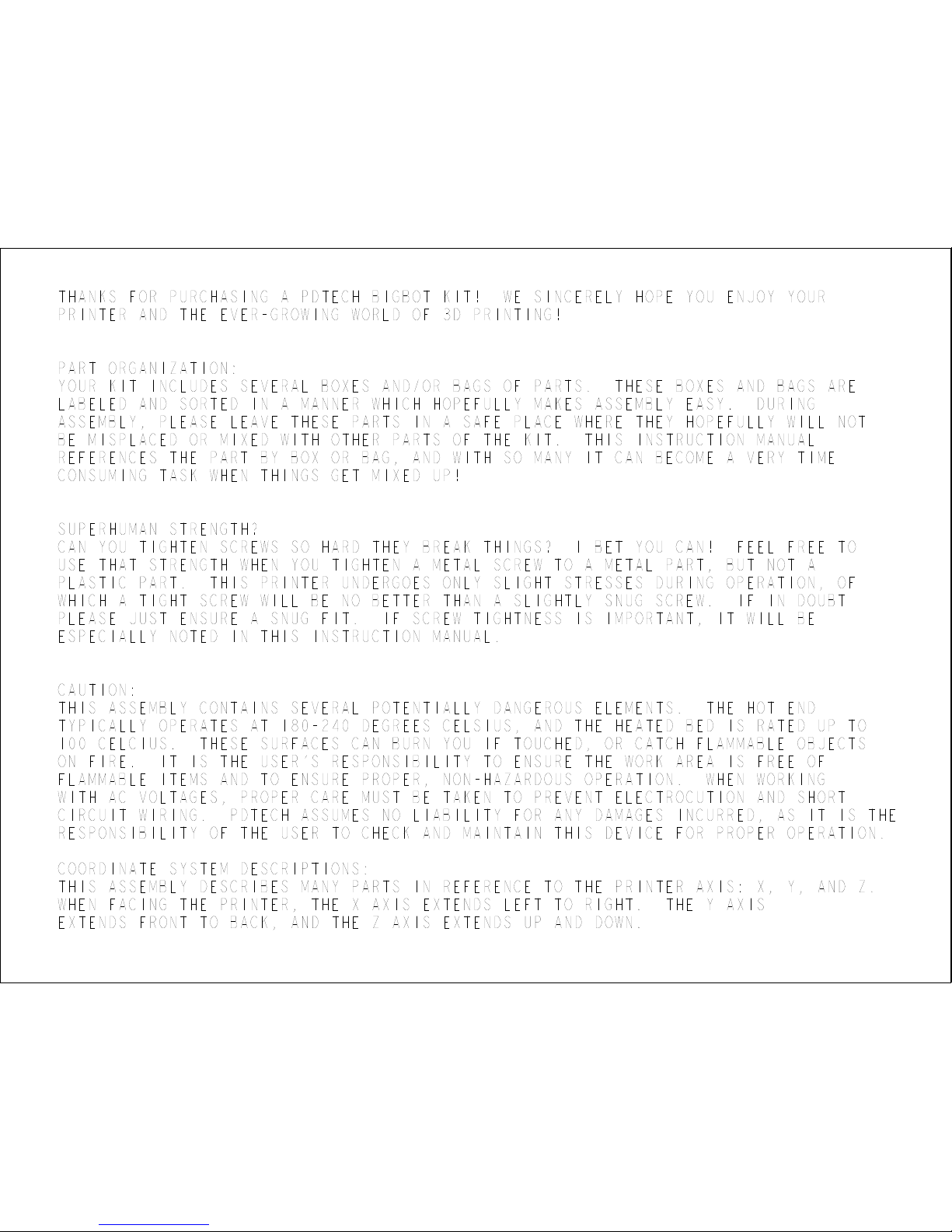

THANKS FOR PURCHASING A PDTECH BIGBOT KIT! WE SINCERELY HOPE YOU ENJOY YOUR
PRINTER AND THE EVER-GROWING WORLD OF 3D PRINTING!

PART ORGANIZATION:
YOUR KIT INCLUDES SEVERAL BOXES AND/OR BAGS OF PARTS. THESE BOXES AND BAGS ARE
LABELED AND SORTED IN A MANNER WHICH HOPEFULLY MAKES ASSEMBLY EASY. DURING
ASSEMBLY, PLEASE LEAVE THESE PARTS IN A SAFE PLACE WHERE THEY HOPEFULLY WILL NOT
BE MISPLACED OR MIXED WITH OTHER PARTS OF THE KIT. THIS INSTRUCTION MANUAL
REFERENCES THE PART BY BOX OR BAG, AND WITH SO MANY IT CAN BECOME A VERY TIME
CONSUMING TASK WHEN THINGS GET MIXED UP!

SUPERHUMAN STRENGTH?
CAN YOU TIGHTEN SCREWS SO HARD THEY BREAK THINGS? I BET YOU CAN! FEEL FREE TO
USE THAT STRENGTH WHEN YOU TIGHTEN A METAL SCREW TO A METAL PART, BUT NOT A
PLASTIC PART. THIS PRINTER UNDERGOES ONLY SLIGHT STRESSES DURING OPERATION, OF
WHICH A TIGHT SCREW WILL BE NO BETTER THAN A SLIGHTLY SNUG SCREW. IF IN DOUBT
PLEASE JUST ENSURE A SNUG FIT. IF SCREW TIGHTNESS IS IMPORTANT, IT WILL BE
ESPECIALLY NOTED IN THIS INSTRUCTION MANUAL.

CAUTION:
THIS ASSEMBLY CONTAINS SEVERAL POTENTIALLY DANGEROUS ELEMENTS. THE HOT END
TYPICALLY OPERATES AT 180-240 DEGREES CELSIUS, AND THE HEATED BED IS RATED UP TO
100 CELCIUS. THESE SURFACES CAN BURN YOU IF TOUCHED, OR CATCH FLAMMABLE OBJECTS
ON FIRE. IT IS THE USER'S RESPONSIBILITY TO ENSURE THE WORK AREA IS FREE OF
FLAMMABLE ITEMS AND TO ENSURE PROPER, NON-HAZARDOUS OPERATION. WHEN WORKING
WITH AC VOLTAGES, PROPER CARE MUST BE TAKEN TO PREVENT ELECTROCUTION AND SHORT
CIRCUIT WIRING. PDTECH ASSUMES NO LIABILITY FOR ANY DAMAGES INCURRED, AS IT IS THE
RESPONSIBILITY OF THE USER TO CHECK AND MAINTAIN THIS DEVICE FOR PROPER OPERATION.

COORDINATE SYSTEM DESCRIPTIONS:
THIS ASSEMBLY DESCRIBES MANY PARTS IN REFERENCE TO THE PRINTER AXIS: X, Y, AND Z.
WHEN FACING THE PRINTER, THE X AXIS EXTENDS LEFT TO RIGHT. THE Y AXIS
EXTENDS FRONT TO BACK, AND THE Z AXIS EXTENDS UP AND DOWN.

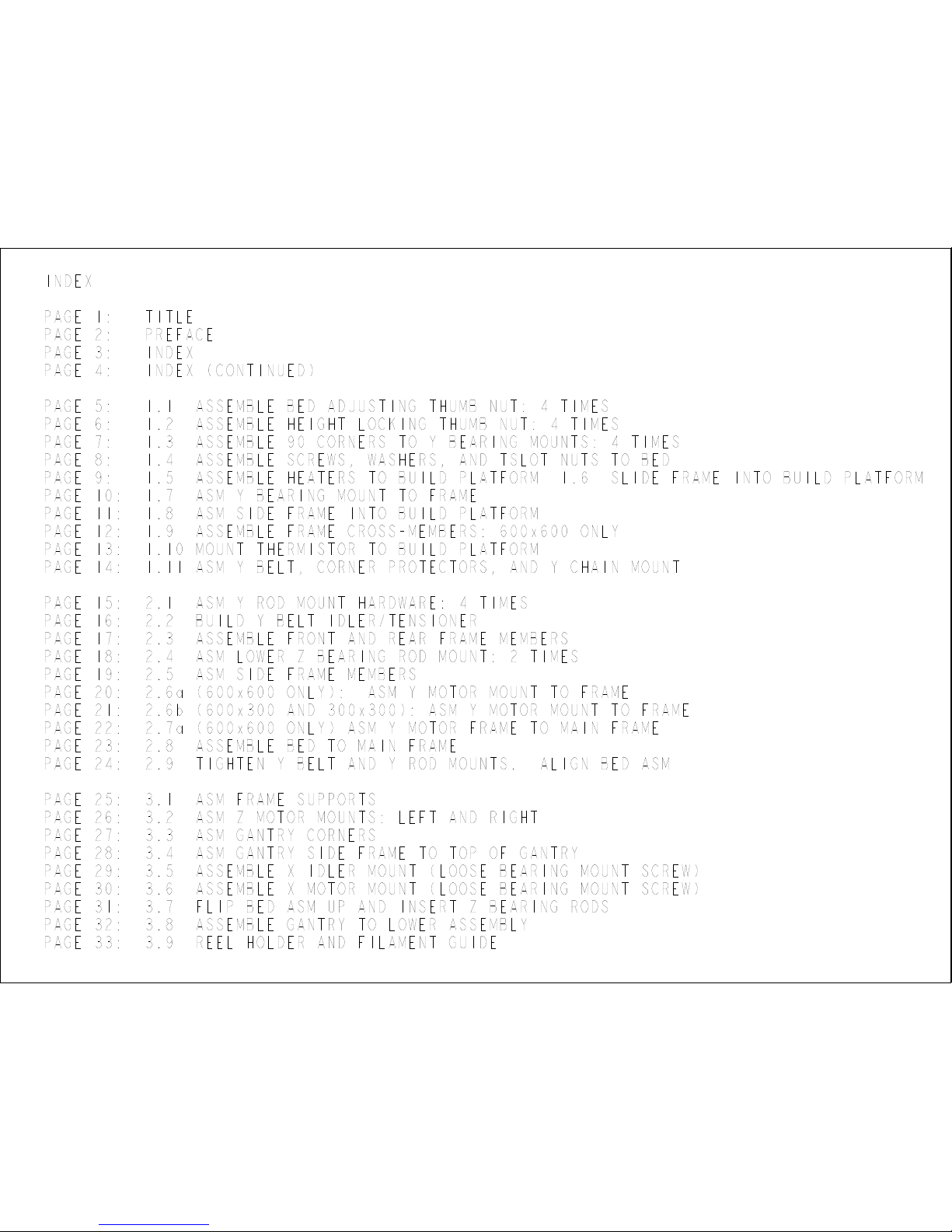

INDEX

PAGE 1: TITLE
PAGE 2: PREFACE
PAGE 3: INDEX
PAGE 4: INDEX (CONTINUED)

PAGE 5: 1.1 ASSEMBLE BED ADJUSTING THUMB NUT: 4 TIMES
PAGE 6: 1.2 ASSEMBLE HEIGHT LOCKING THUMB NUT: 4 TIMES
PAGE 7: 1.3 ASSEMBLE 90 CORNERS TO Y BEARING MOUNTS: 4 TIMES
PAGE 8: 1.4 ASSEMBLE SCREWS, WASHERS, AND TSLOT NUTS TO BED
PAGE 9: 1.5 ASSEMBLE HEATERS TO BUILD PLATFORM 1.6 SLIDE FRAME INTO BUILD PLATFORM
PAGE 10: 1.7 ASM Y BEARING MOUNT TO FRAME
PAGE 11: 1.8 ASM SIDE FRAME INTO BUILD PLATFORM
PAGE 12: 1.9 ASSEMBLE FRAME CROSS-MEMBERS: 600x600 ONLY
PAGE 13: 1.10 MOUNT THERMISTOR TO BUILD PLATFORM
PAGE 14: 1.11 ASM Y BELT, CORNER PROTECTORS, AND Y CHAIN MOUNT

PAGE 15: 2.1 ASM Y ROD MOUNT HARDWARE: 4 TIMES
PAGE 16: 2.2 BUILD Y BELT IDLER/TENSIONER
PAGE 17: 2.3 ASSEMBLE FRONT AND REAR FRAME MEMBERS
PAGE 18: 2.4 ASM LOWER Z BEARING ROD MOUNT: 2 TIMES
PAGE 19: 2.5 ASM SIDE FRAME MEMBERS
PAGE 20: 2.6a (600x600 ONLY): ASM Y MOTOR MOUNT TO FRAME
PAGE 21: 2.6b (600x300 AND 300x300): ASM Y MOTOR MOUNT TO FRAME

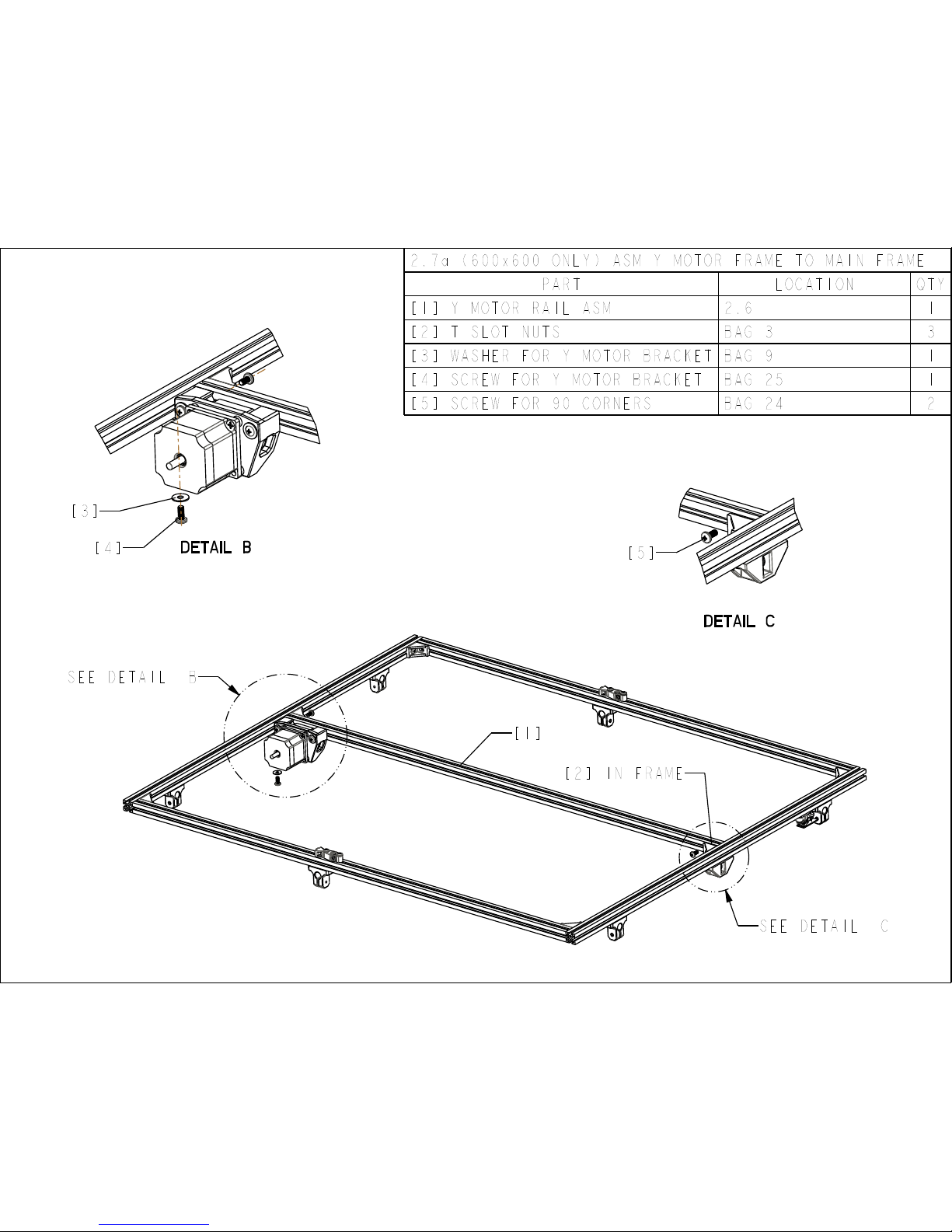

PAGE 22: 2.7a (600x600 ONLY) ASM Y MOTOR FRAME TO MAIN FRAME

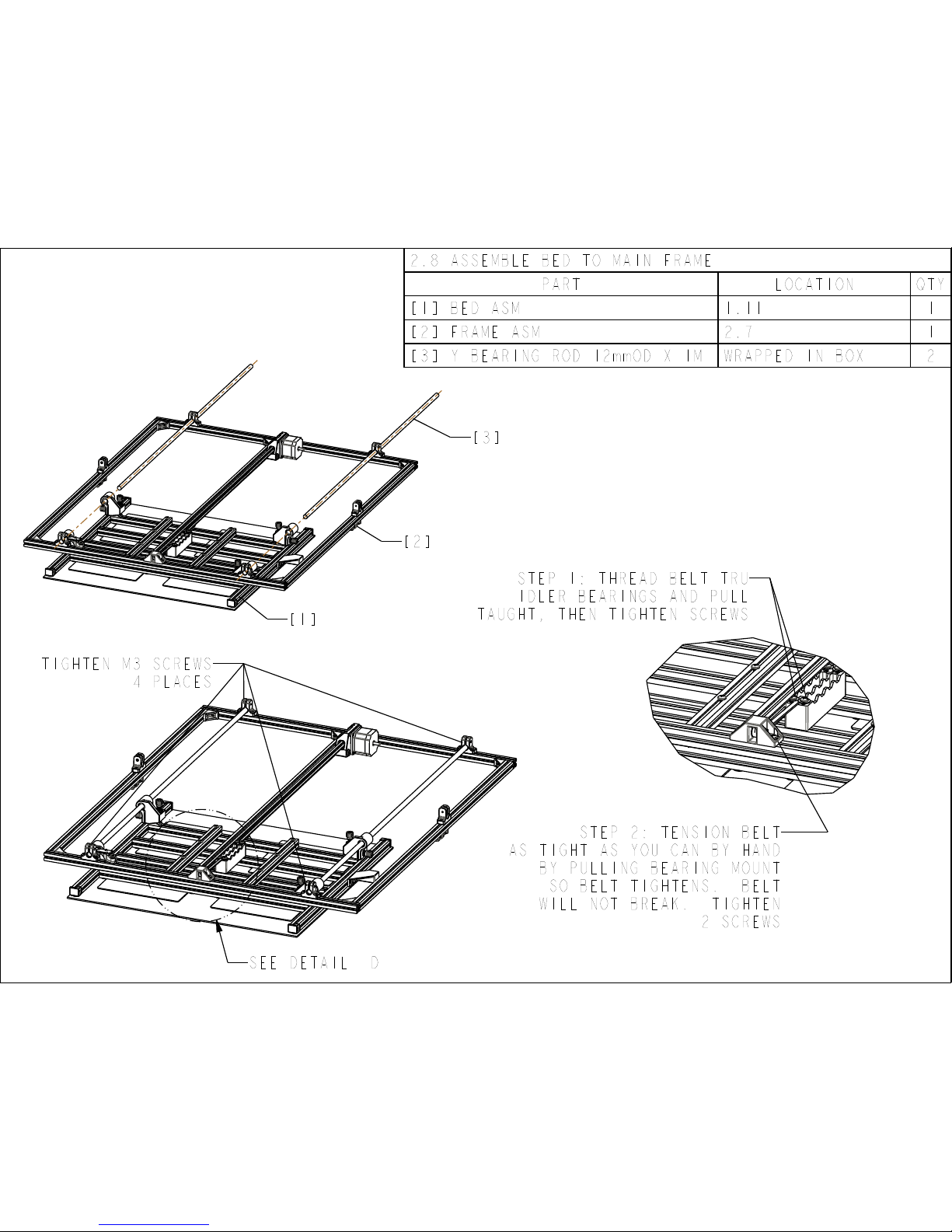

PAGE 23: 2.8 ASSEMBLE BED TO MAIN FRAME

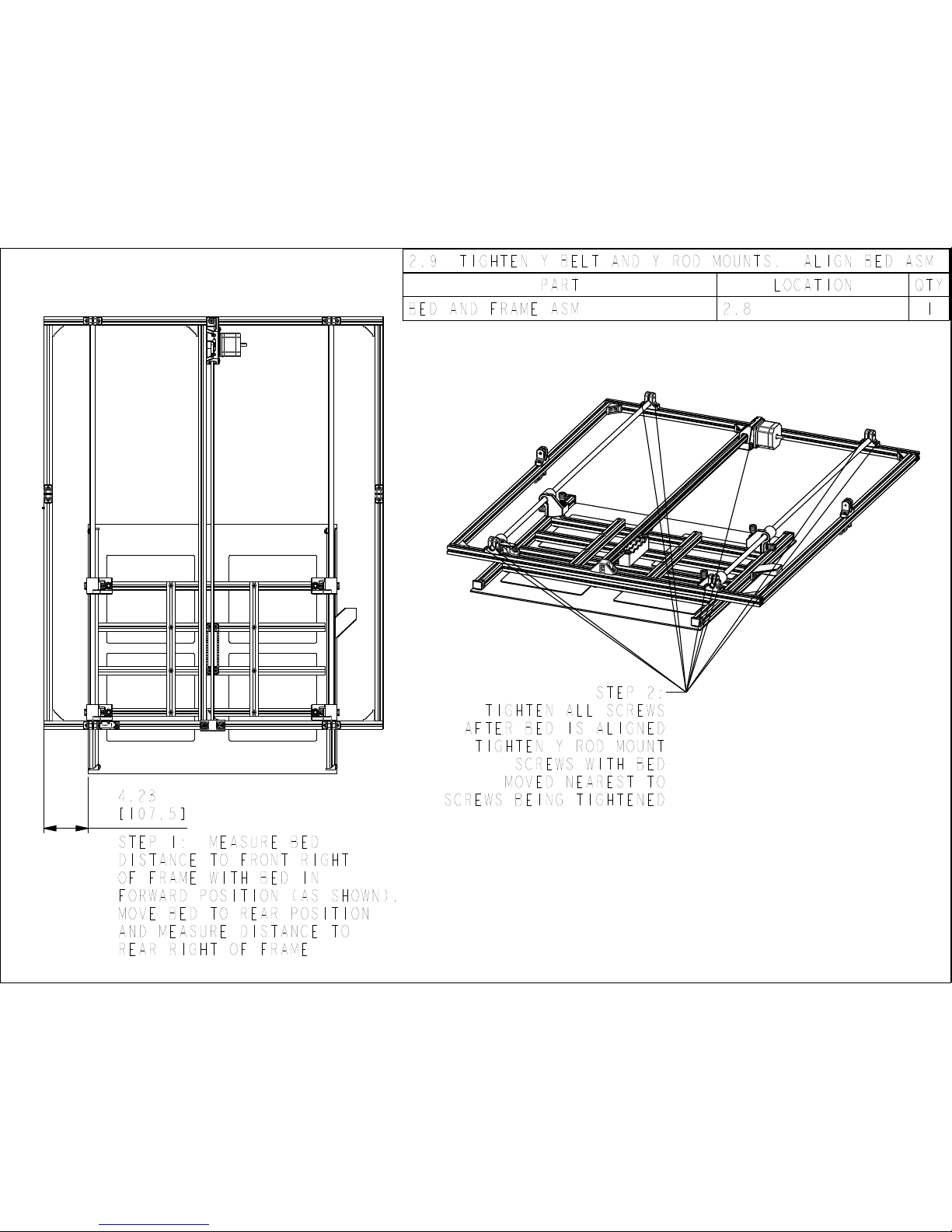

PAGE 24: 2.9 TIGHTEN Y BELT AND Y ROD MOUNTS. ALIGN BED ASM

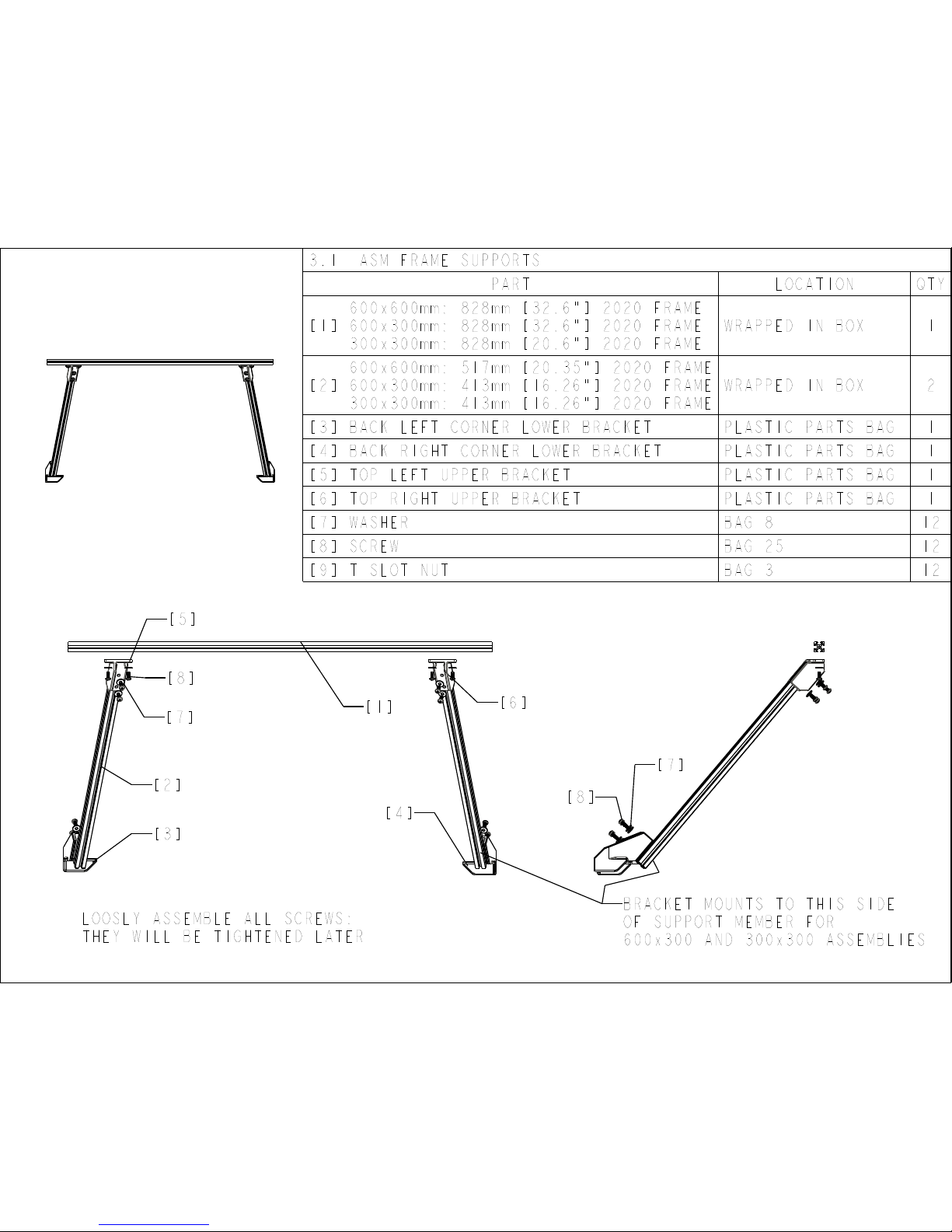

PAGE 25: 3.1 ASM FRAME SUPPORTS
PAGE 26: 3.2 ASM Z MOTOR MOUNTS: LEFT AND RIGHT

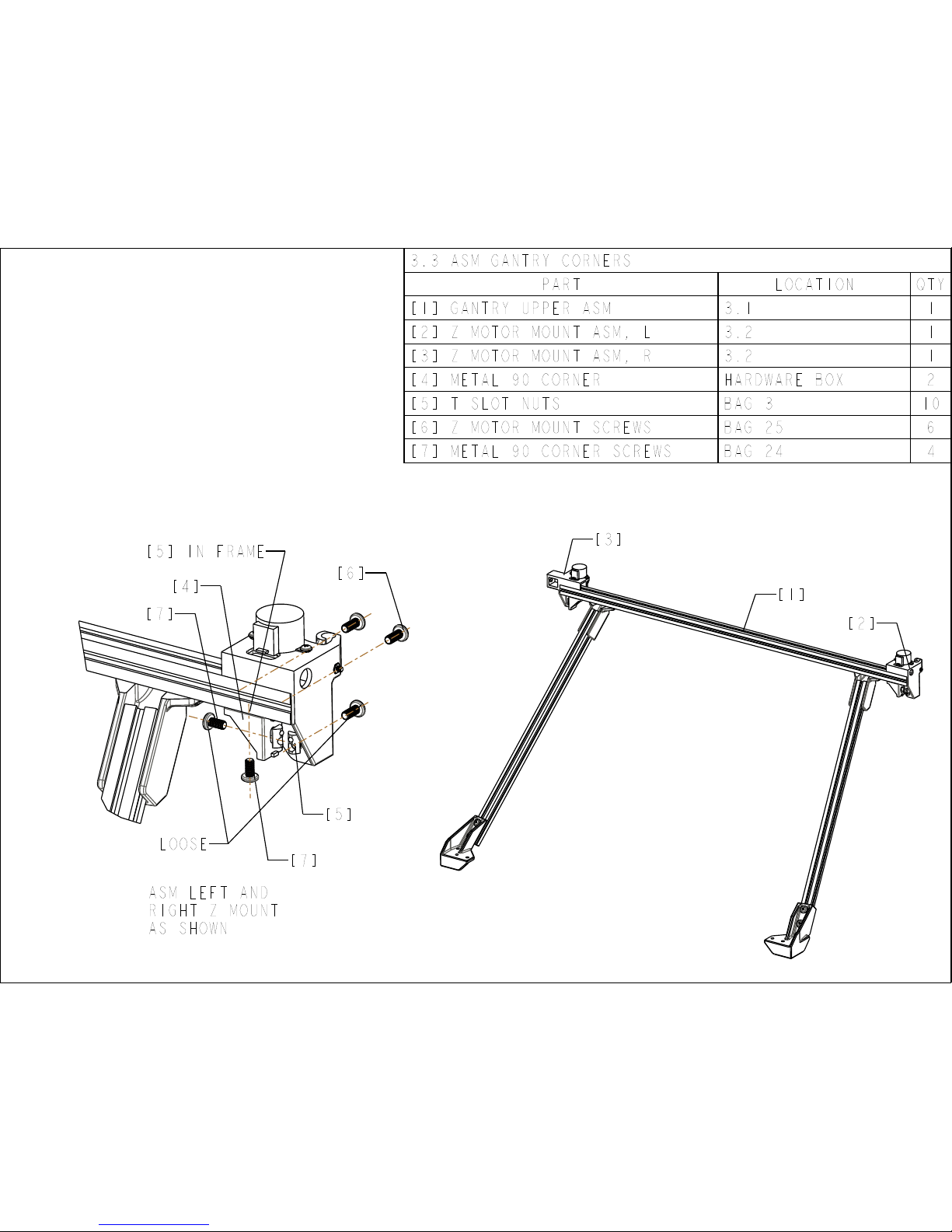

PAGE 27: 3.3 ASM GANTRY CORNERS
PAGE 28: 3.4 ASM GANTRY SIDE FRAME TO TOP OF GANTRY

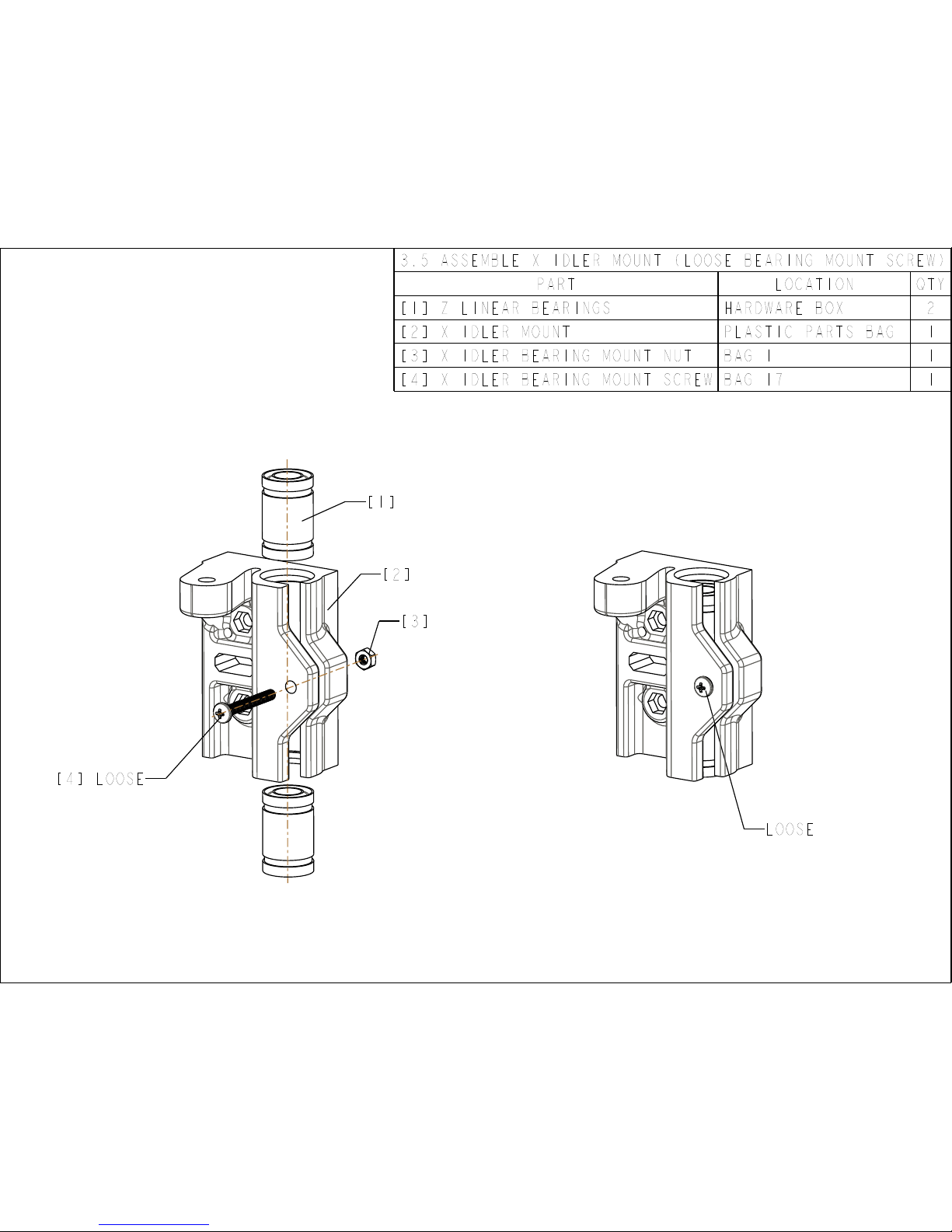

PAGE 29: 3.5 ASSEMBLE X IDLER MOUNT (LOOSE BEARING MOUNT SCREW)

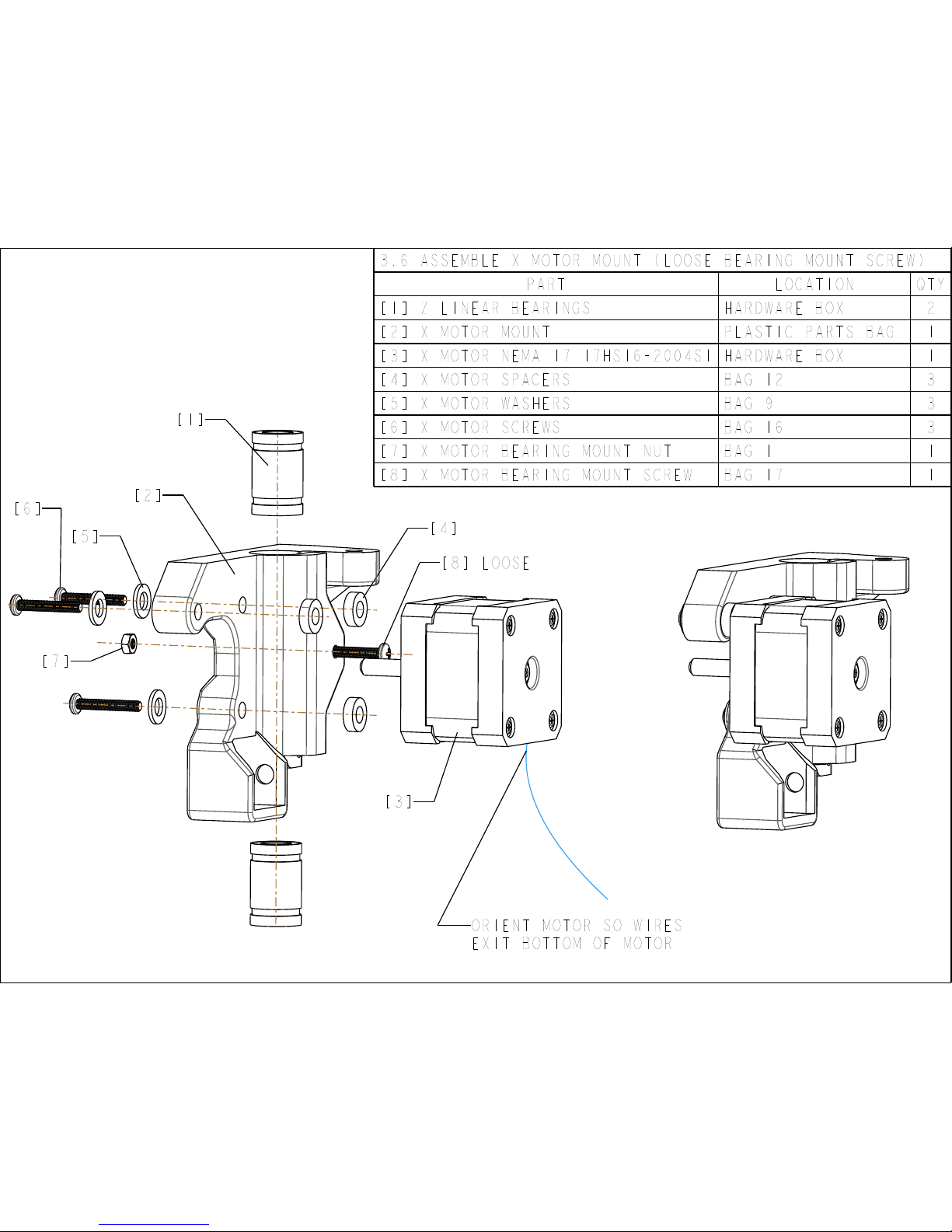

PAGE 30: 3.6 ASSEMBLE X MOTOR MOUNT (LOOSE BEARING MOUNT SCREW)

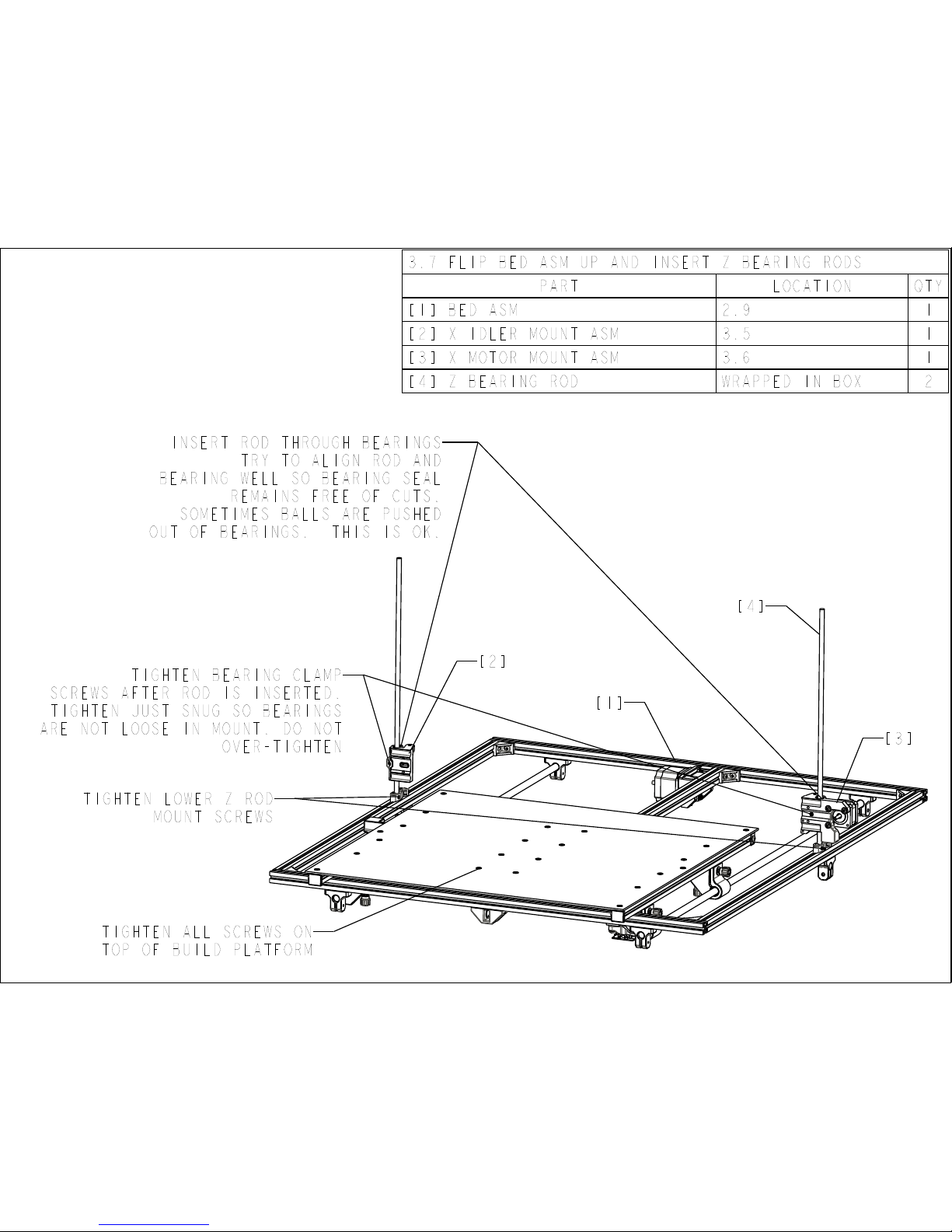

PAGE 31: 3.7 FLIP BED ASM UP AND INSERT Z BEARING RODS
PAGE 32: 3.8 ASSEMBLE GANTRY TO LOWER ASSEMBLY

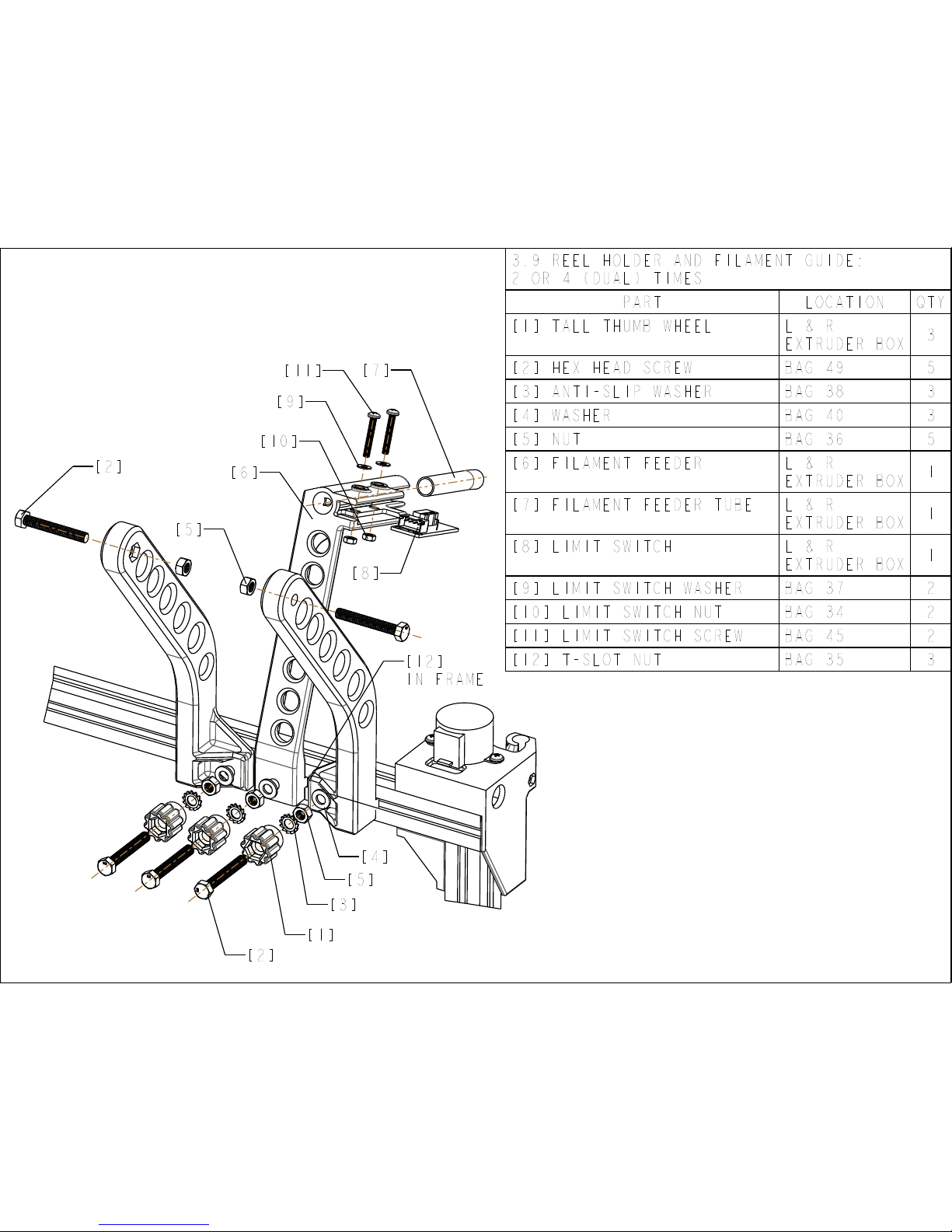

PAGE 33: 3.9 REEL HOLDER AND FILAMENT GUIDE

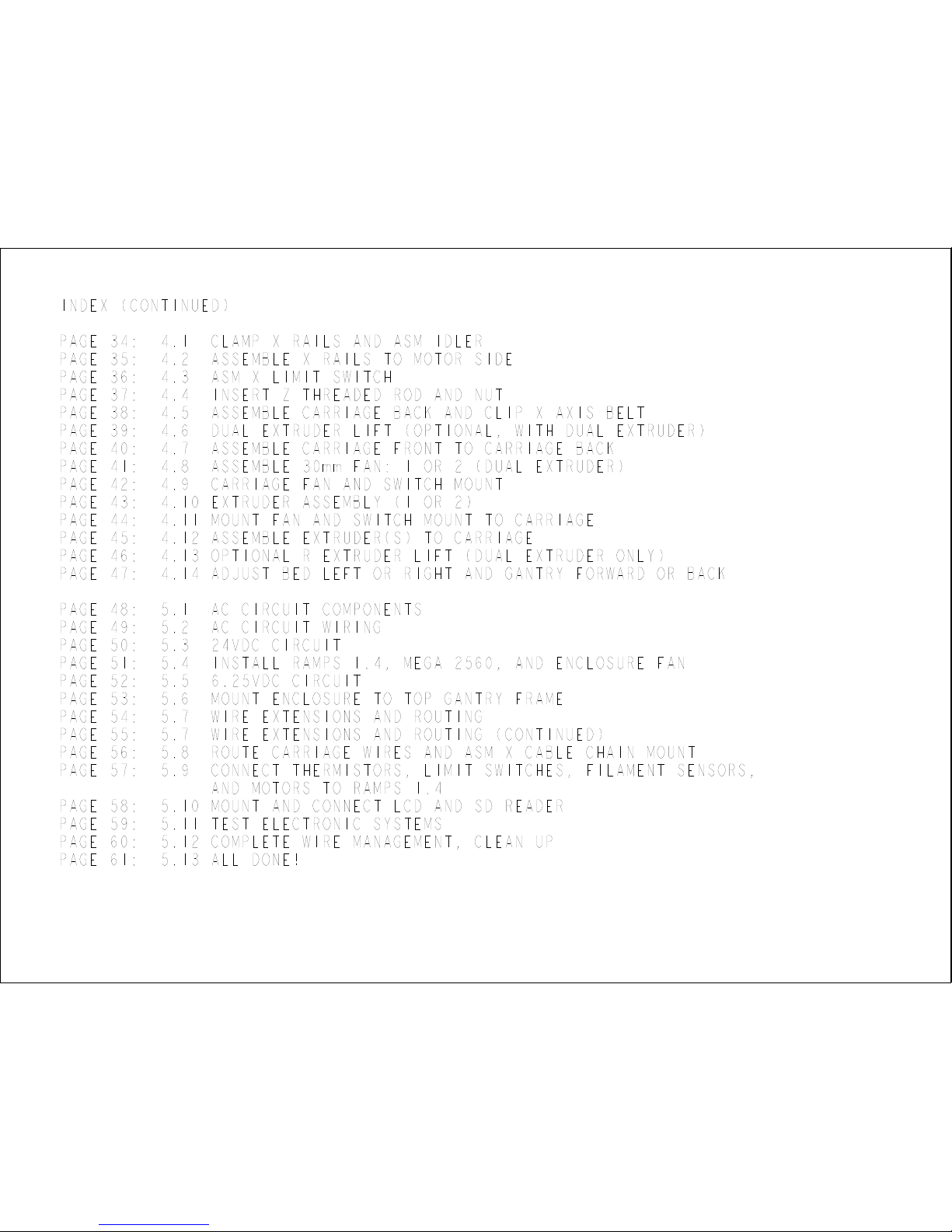

INDEX (CONTINUED)

PAGE 34: 4.1 CLAMP X RAILS AND ASM IDLER
PAGE 35: 4.2 ASSEMBLE X RAILS TO MOTOR SIDE

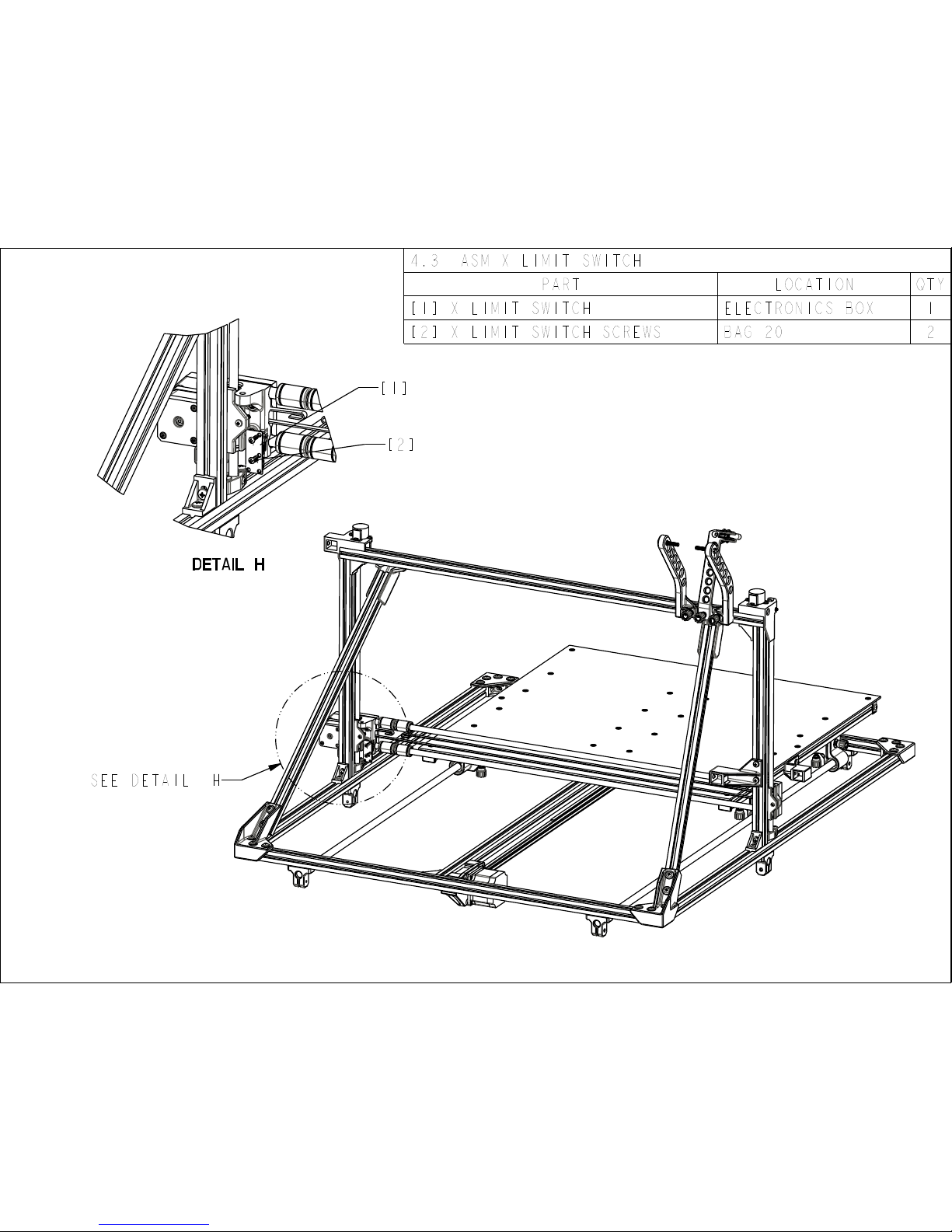

PAGE 36: 4.3 ASM X LIMIT SWITCH

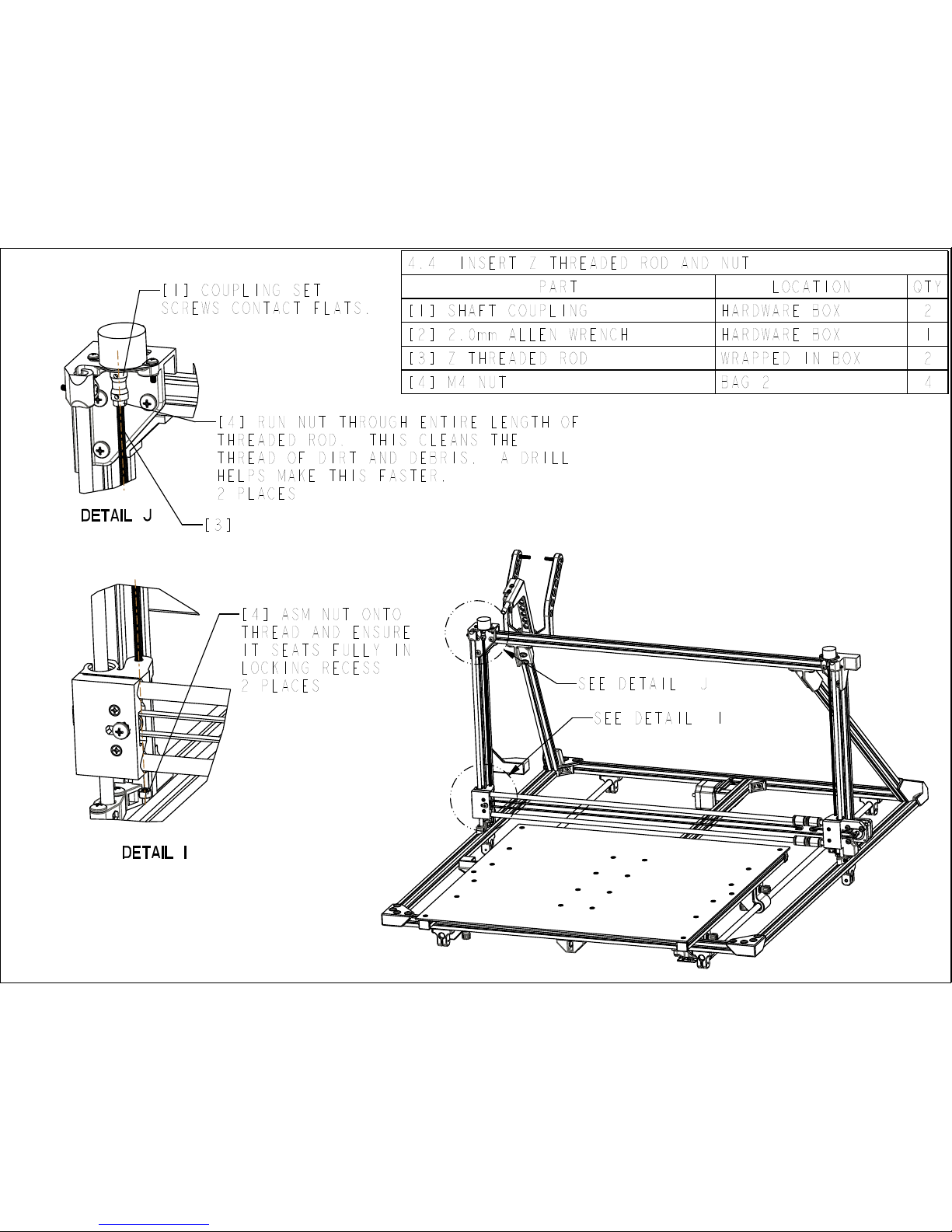

PAGE 37: 4.4 INSERT Z THREADED ROD AND NUT

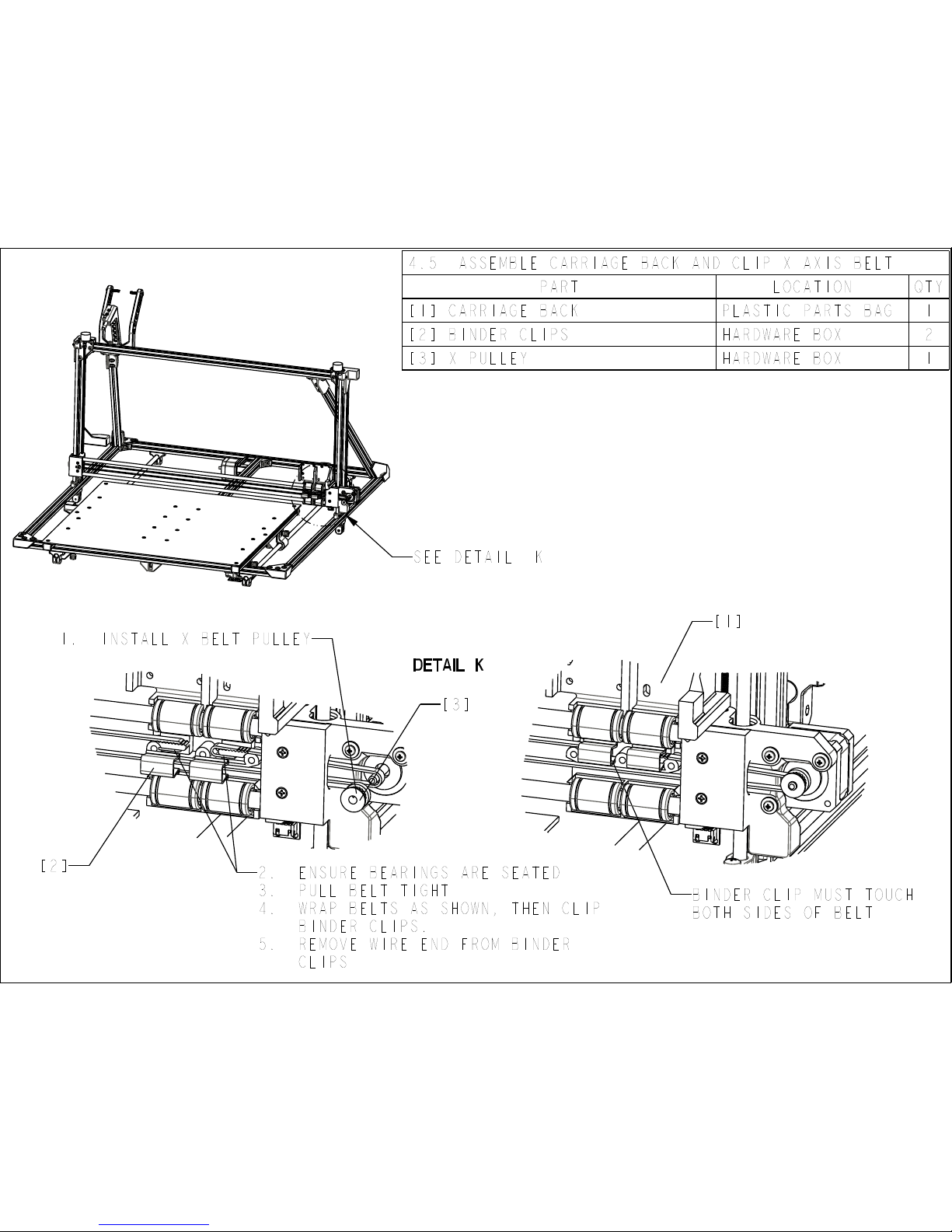

PAGE 38: 4.5 ASSEMBLE CARRIAGE BACK AND CLIP X AXIS BELT
PAGE 39: 4.6 DUAL EXTRUDER LIFT (OPTIONAL, WITH DUAL EXTRUDER)
PAGE 40: 4.7 ASSEMBLE CARRIAGE FRONT TO CARRIAGE BACK

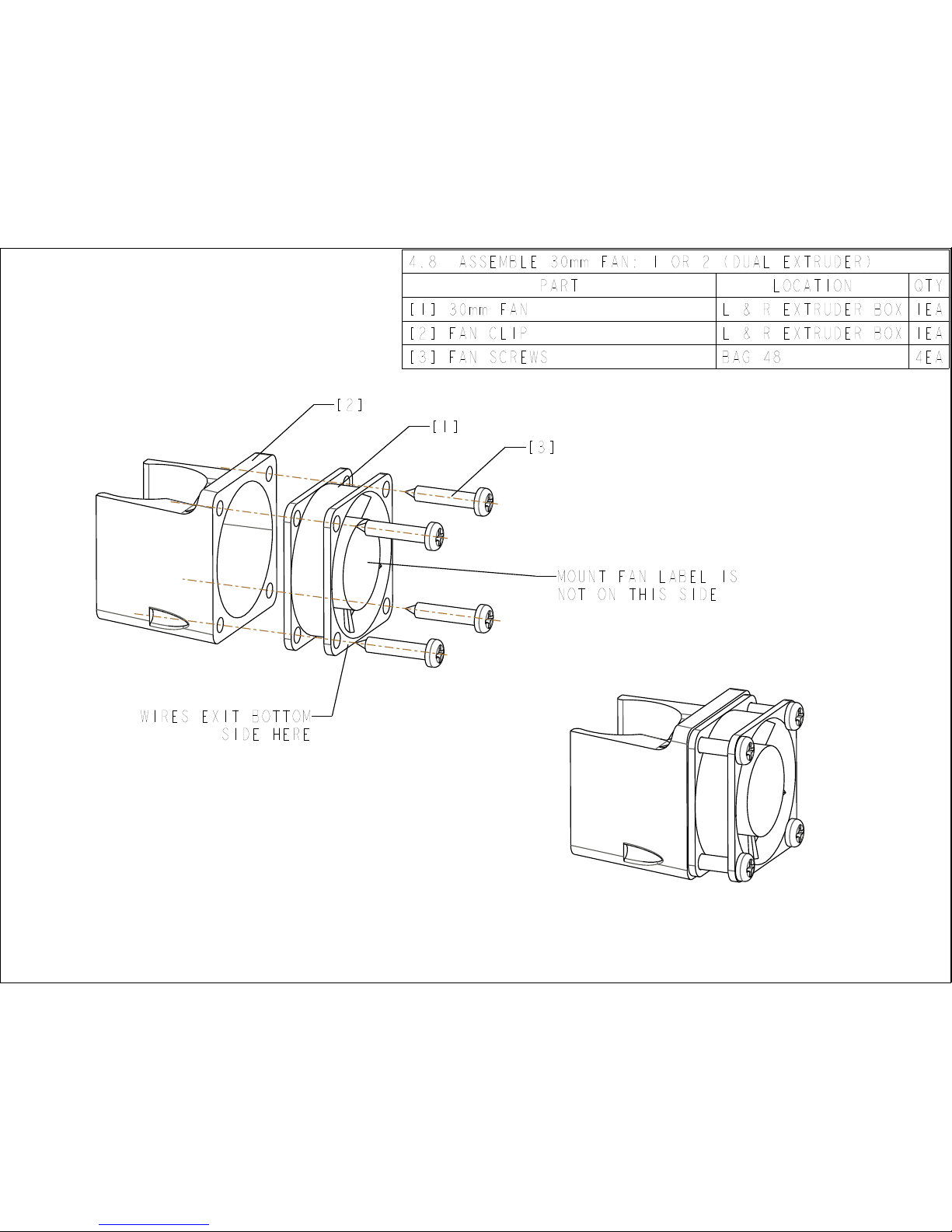

PAGE 41: 4.8 ASSEMBLE 30mm FAN: 1 OR 2 (DUAL EXTRUDER)

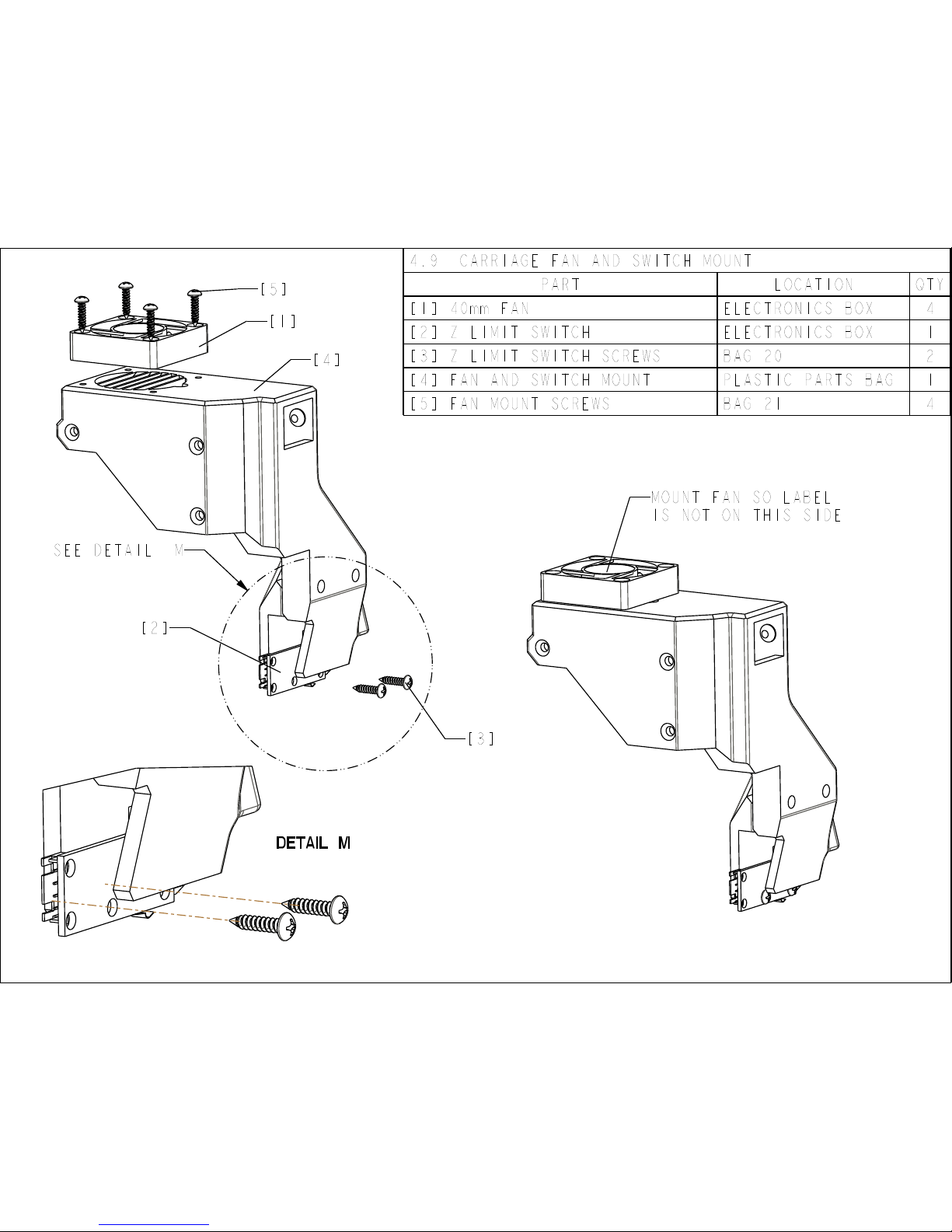

PAGE 42: 4.9 CARRIAGE FAN AND SWITCH MOUNT
PAGE 43: 4.10 EXTRUDER ASSEMBLY (1 OR 2)
PAGE 44: 4.11 MOUNT FAN AND SWITCH MOUNT TO CARRIAGE
PAGE 45: 4.12 ASSEMBLE EXTRUDER(S) TO CARRIAGE
PAGE 46: 4.13 OPTIONAL R EXTRUDER LIFT (DUAL EXTRUDER ONLY)

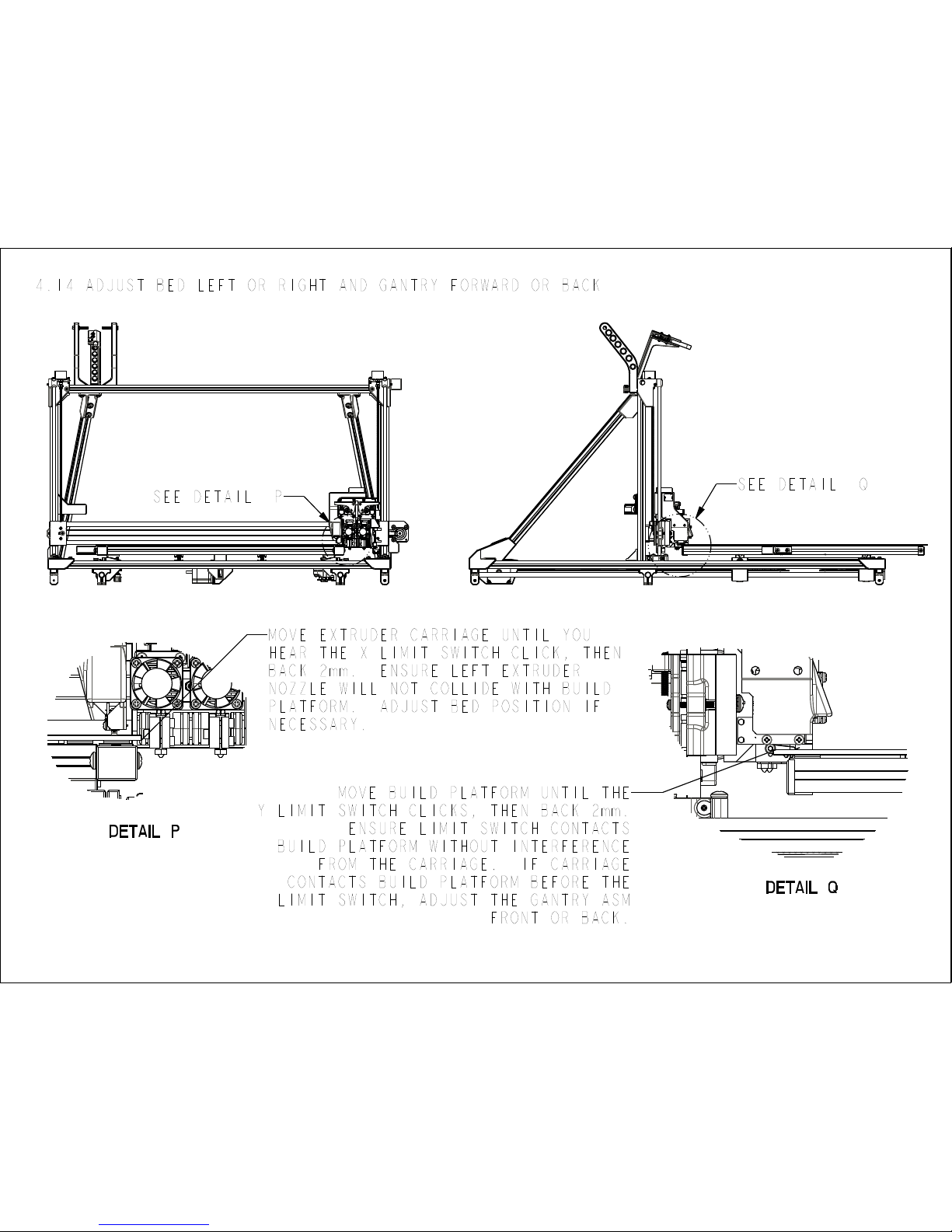

PAGE 47: 4.14 ADJUST BED LEFT OR RIGHT AND GANTRY FORWARD OR BACK

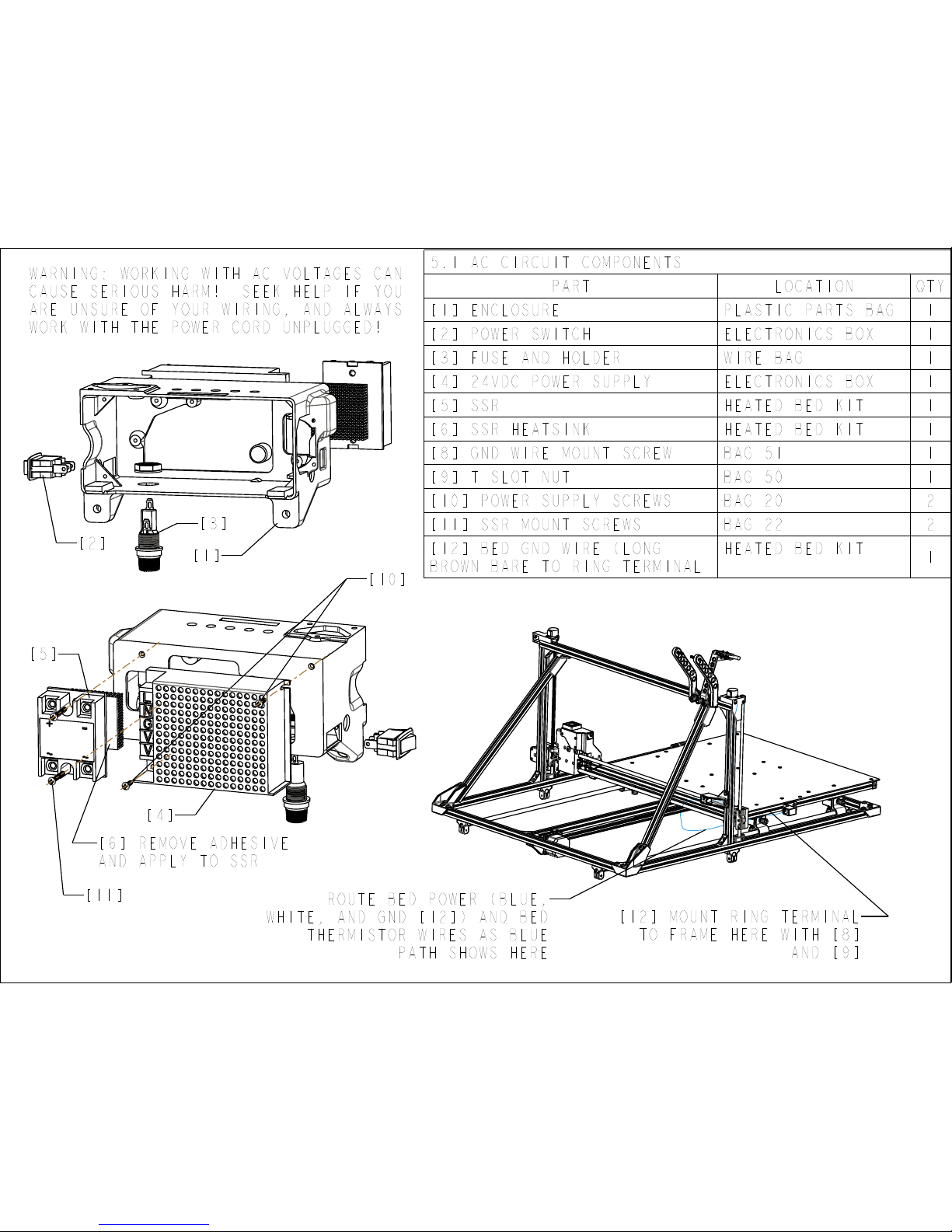

PAGE 48: 5.1 AC CIRCUIT COMPONENTS
PAGE 49: 5.2 AC CIRCUIT WIRING
PAGE 50: 5.3 24VDC CIRCUIT
PAGE 51: 5.4 INSTALL RAMPS 1.4, MEGA 2560, AND ENCLOSURE FAN
PAGE 52: 5.5 6.25VDC CIRCUIT

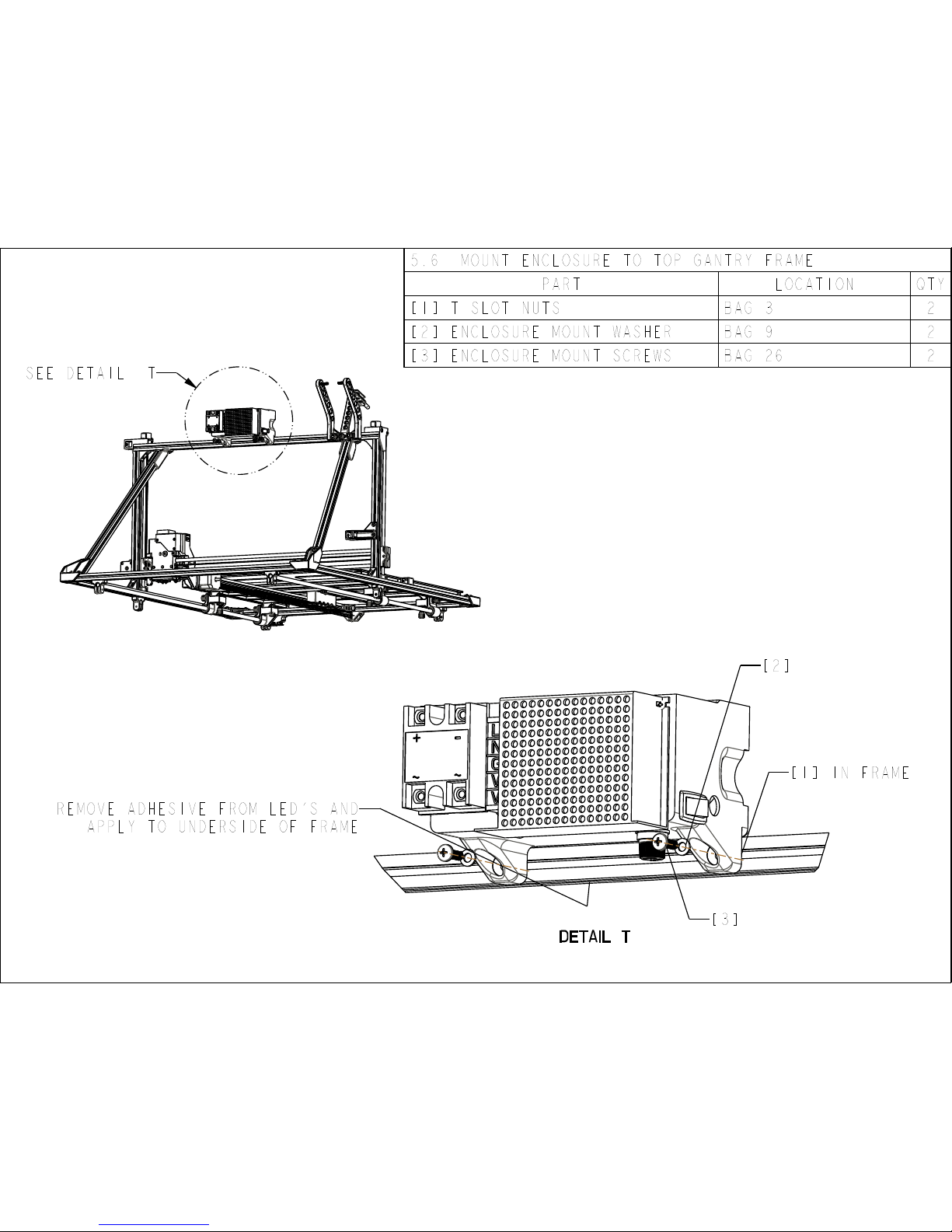

PAGE 53: 5.6 MOUNT ENCLOSURE TO TOP GANTRY FRAME

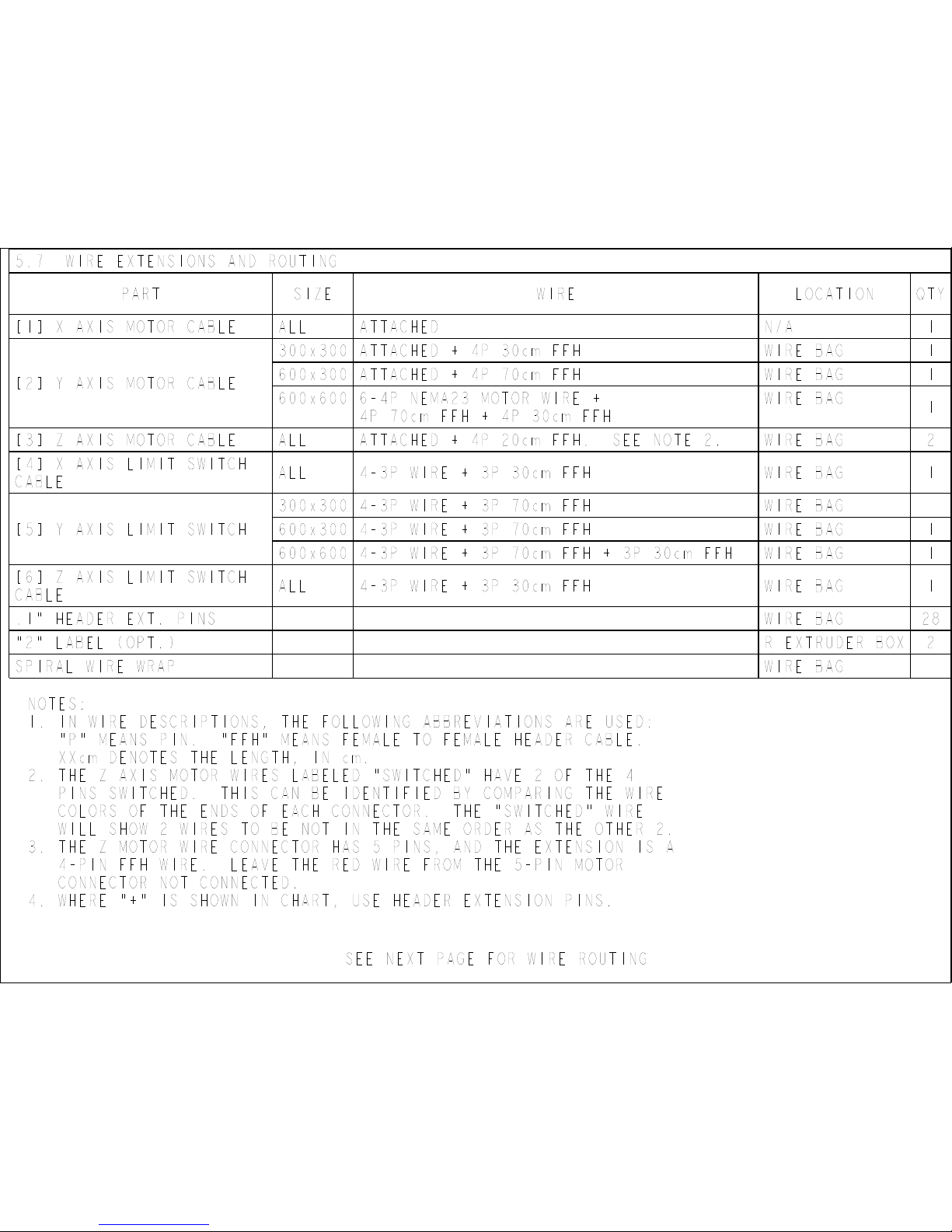

PAGE 54: 5.7 WIRE EXTENSIONS AND ROUTING
PAGE 55: 5.7 WIRE EXTENSIONS AND ROUTING (CONTINUED)
PAGE 56: 5.8 ROUTE CARRIAGE WIRES AND ASM X CABLE CHAIN MOUNT
PAGE 57: 5.9 CONNECT THERMISTORS, LIMIT SWITCHES, FILAMENT SENSORS,
AND MOTORS TO RAMPS 1.4

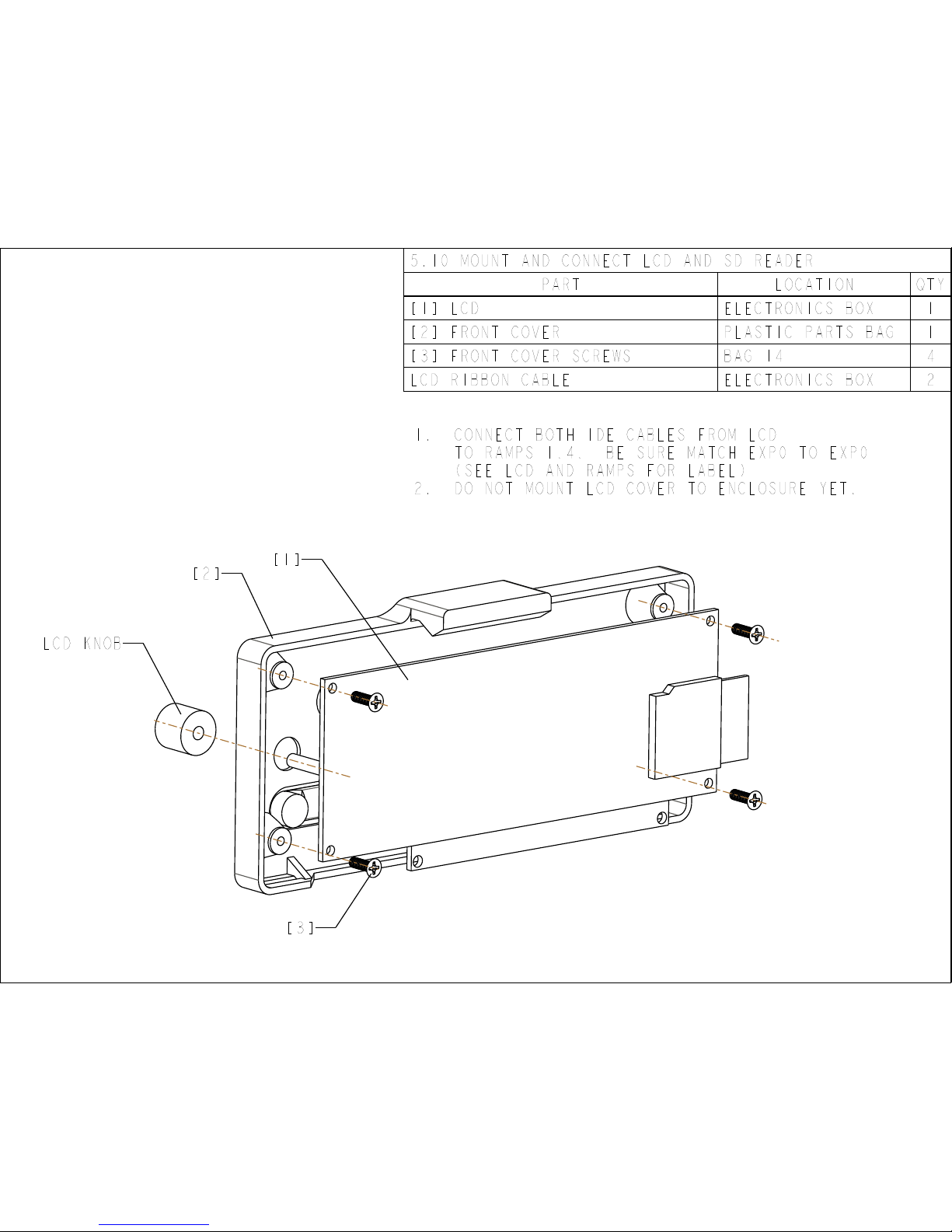

PAGE 58: 5.10 MOUNT AND CONNECT LCD AND SD READER
PAGE 59: 5.11 TEST ELECTRONIC SYSTEMS
PAGE 60: 5.12 COMPLETE WIRE MANAGEMENT, CLEAN UP

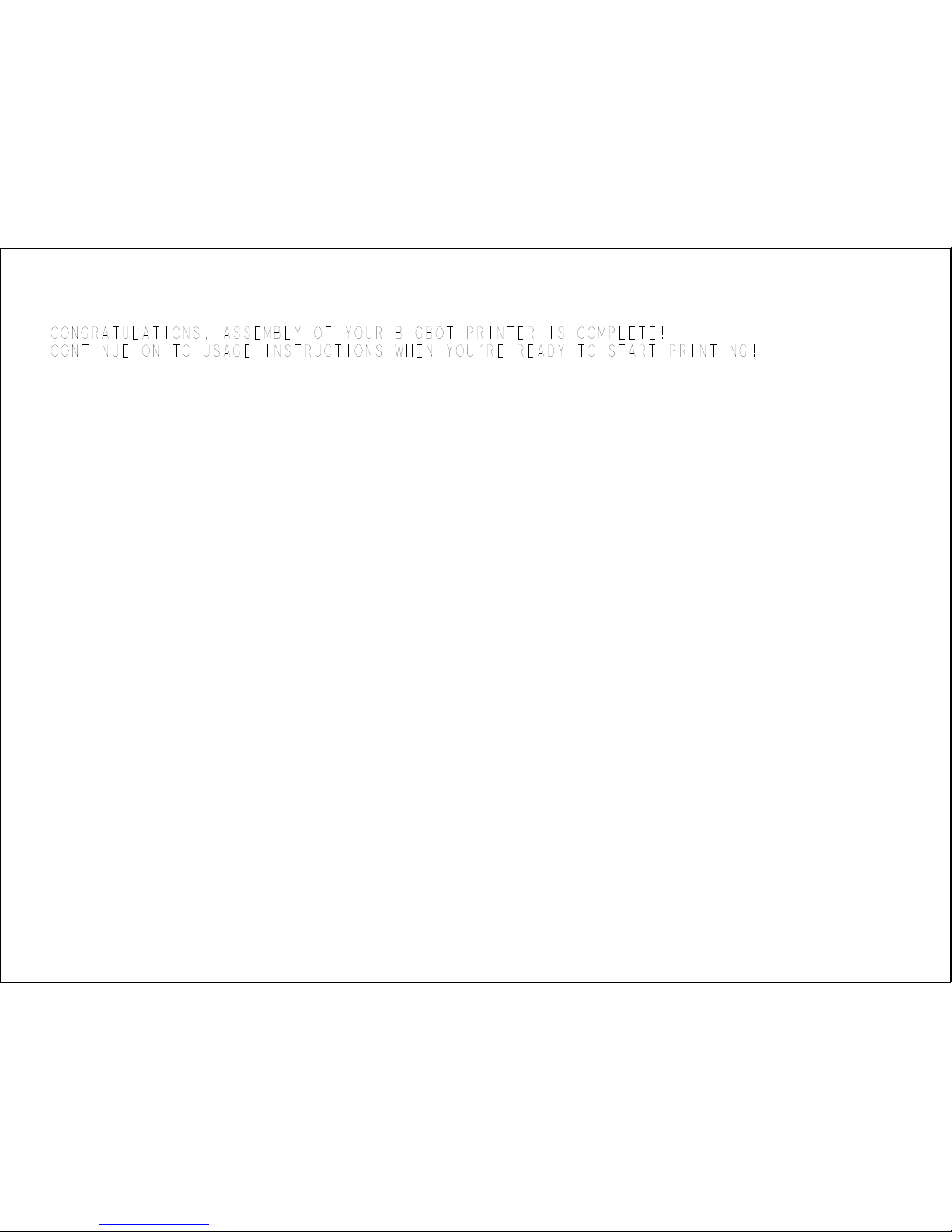

PAGE 61: 5.13 ALL DONE!

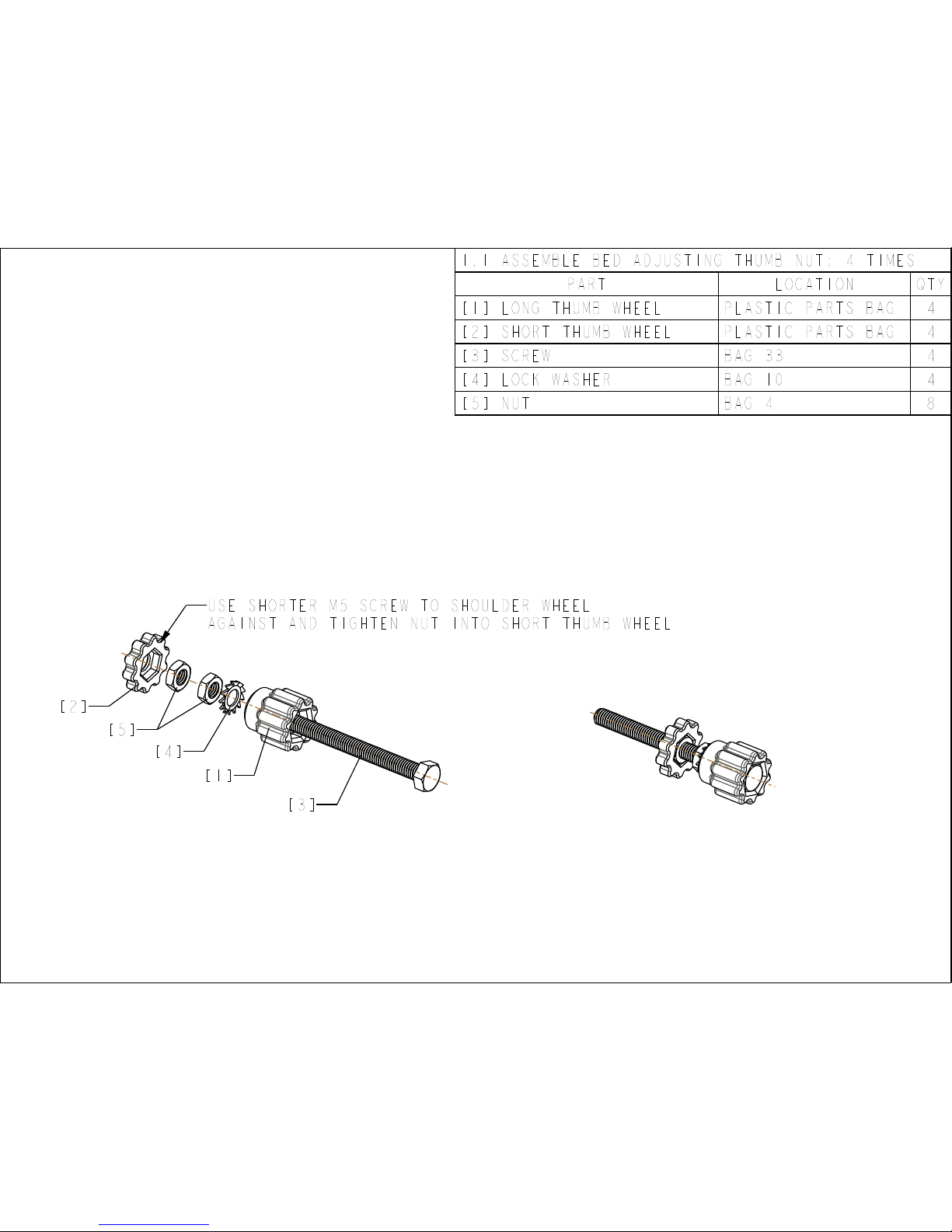

1.1 ASSEMBLE BED ADJUSTING THUMB NUT: 4 TIMES

PART LOCATION QTY

[1] LONG THUMB WHEEL PLASTIC PARTS BAG 4

[2] SHORT THUMB WHEEL PLASTIC PARTS BAG 4

[3] SCREW BAG 33 4

[4] LOCK WASHER BAG 10 4

[5] NUT BAG 4 8

USE SHORTER M5 SCREW TO SHOULDER WHEEL
AGAINST AND TIGHTEN NUT INTO SHORT THUMB WHEEL

[2]

[5]

[4]

[1]

[3]

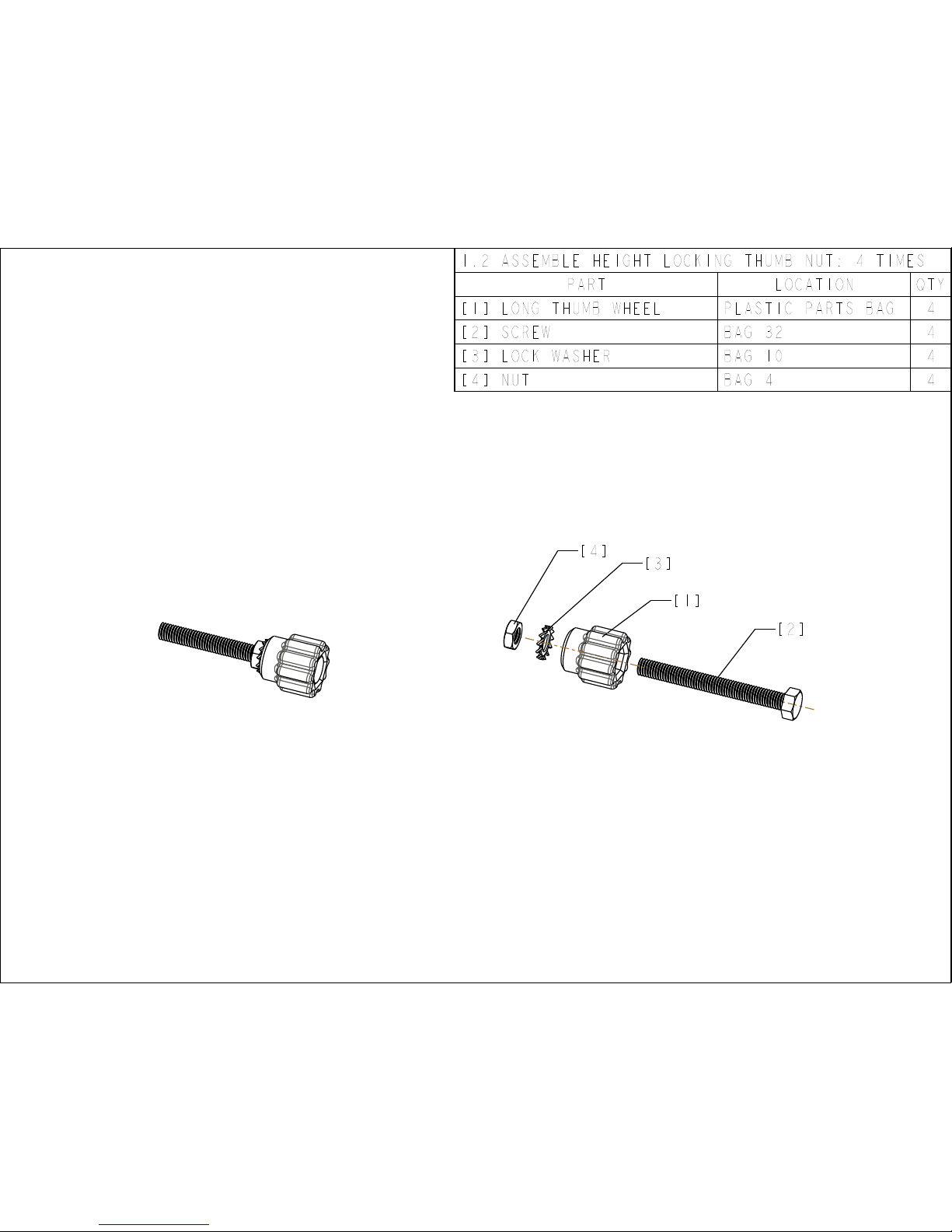

1.2 ASSEMBLE HEIGHT LOCKING THUMB NUT: 4 TIMES

PART LOCATION QTY

[1] LONG THUMB WHEEL PLASTIC PARTS BAG 4

[2] SCREW BAG 32 4

[3] LOCK WASHER BAG 10 4

[4] NUT BAG 4 4

[2]

[1]

[3]

[4]

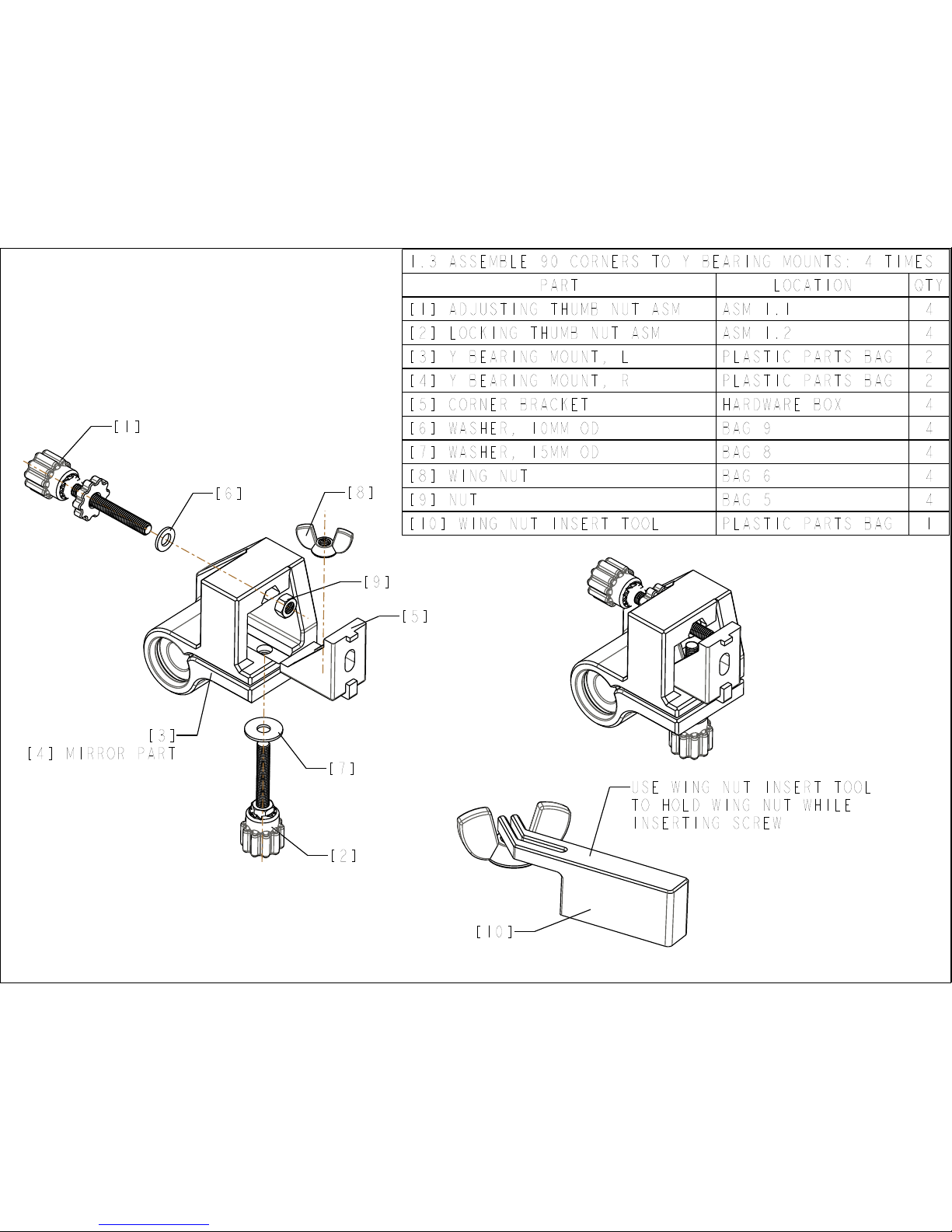

1.3 ASSEMBLE 90 CORNERS TO Y BEARING MOUNTS: 4 TIMES

PART LOCATION QTY

[1] ADJUSTING THUMB NUT ASM ASM 1.1 4

[2] LOCKING THUMB NUT ASM ASM 1.2 4

[3] Y BEARING MOUNT, L PLASTIC PARTS BAG 2

[4] Y BEARING MOUNT, R PLASTIC PARTS BAG 2

[5] CORNER BRACKET HARDWARE BOX 4

[6] WASHER, 10MM OD BAG 9 4

[7] WASHER, 15MM OD BAG 8 4

[8] WING NUT BAG 6 4

[9] NUT BAG 5 4

[10] WING NUT INSERT TOOL PLASTIC PARTS BAG 1

[1]

[6]

[3]

[4] MIRROR PART

[8]

[9]

[5]

[7]

[2]

USE WING NUT INSERT TOOL
TO HOLD WING NUT WHILE
INSERTING SCREW

[10]

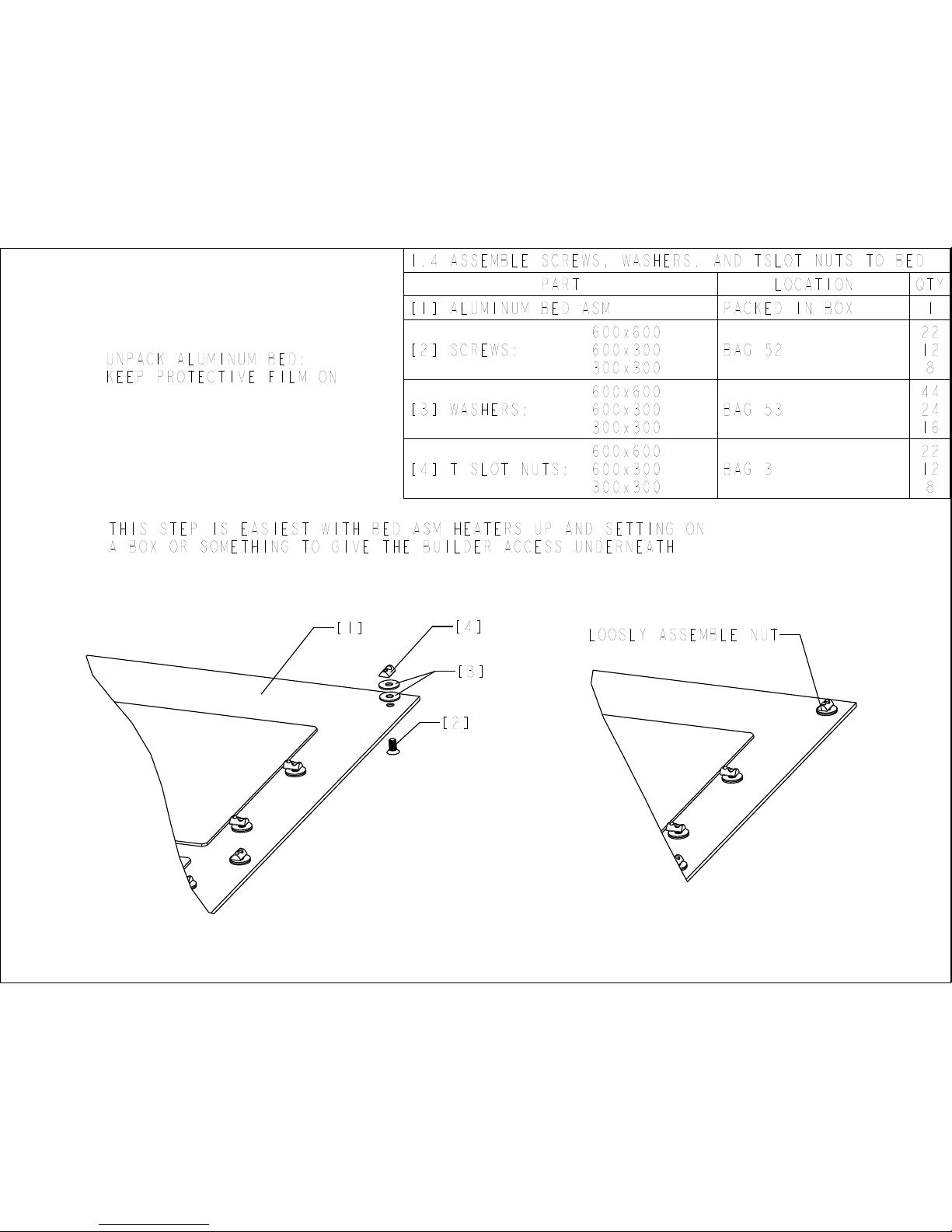

1.4 ASSEMBLE SCREWS, WASHERS, AND TSLOT NUTS TO BED

PART LOCATION QTY

[1] ALUMINUM BED ASM PACKED IN BOX 1

600x600
[2] SCREWS: 600x300
300x300

BAG 52

22
12

8

600x600
[3] WASHERS: 600x300
300x300

BAG 53

44
24
16

600x600
[4] T SLOT NUTS: 600x300
300x300

BAG 3

22
12

8

UNPACK ALUMINUM BED:
KEEP PROTECTIVE FILM ON

THIS STEP IS EASIEST WITH BED ASM HEATERS UP AND SETTING ON
A BOX OR SOMETHING TO GIVE THE BUILDER ACCESS UNDERNEATH

[4]

[3]

[2]

[1]

LOOSLY ASSEMBLE NUT

1.6 SLIDE FRAME INTO BUILD PLATFORM

PART LOCATION QTY

[1] ALUMINUM BED ASM 1.5 1

600x600: 555mm [21.85"] 2020 FRAME
[2] 600x300: 555mm [21.85"] 2020 FRAME
300x300: 250mm [9.85"] 2020 FRAME

WRAPPED IN BOX42

2

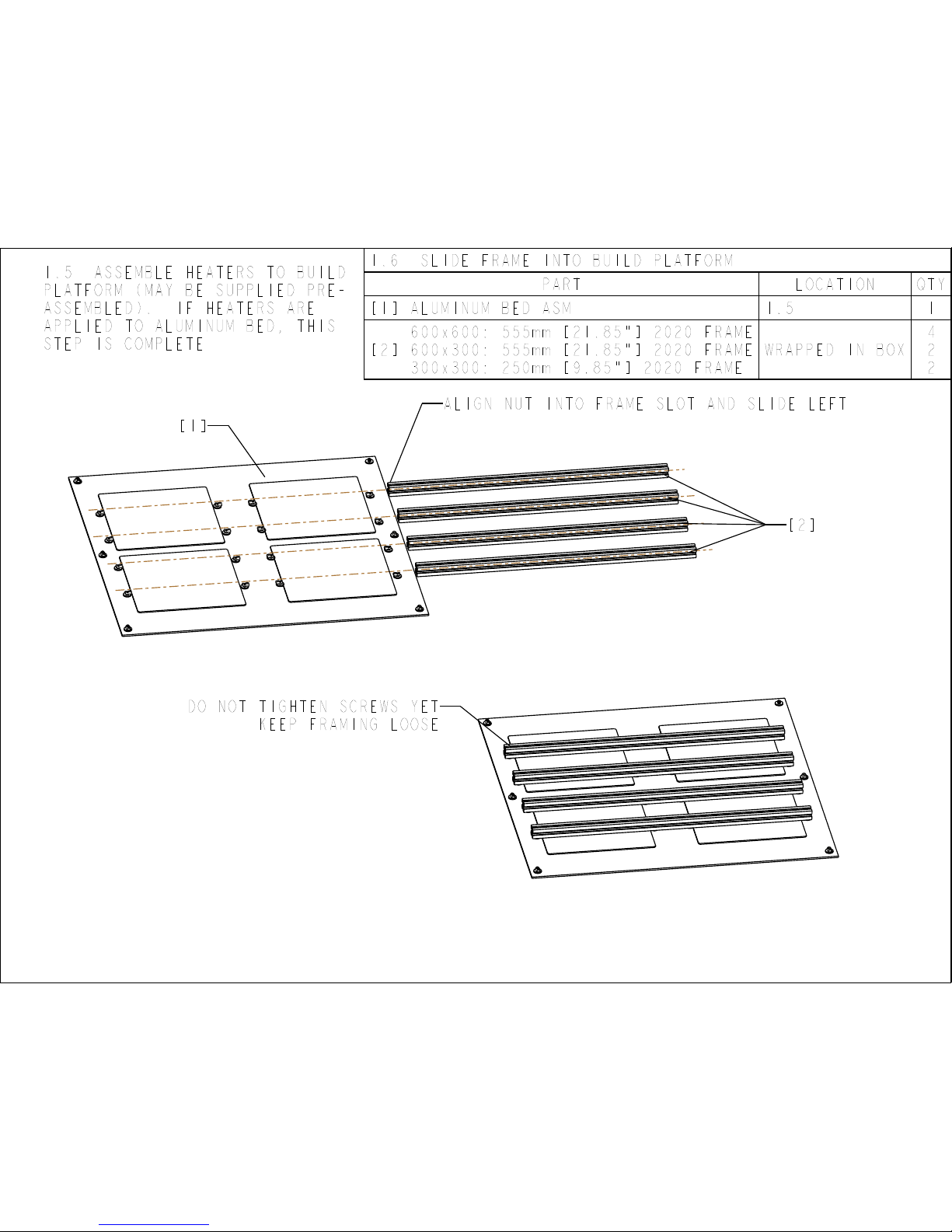

1.5 ASSEMBLE HEATERS TO BUILD
PLATFORM (MAY BE SUPPLIED PRE­ASSEMBLED). IF HEATERS ARE
APPLIED TO ALUMINUM BED, THIS
STEP IS COMPLETE

ALIGN NUT INTO FRAME SLOT AND SLIDE LEFT

[1]

[2]

DO NOT TIGHTEN SCREWS YET

KEEP FRAMING LOOSE

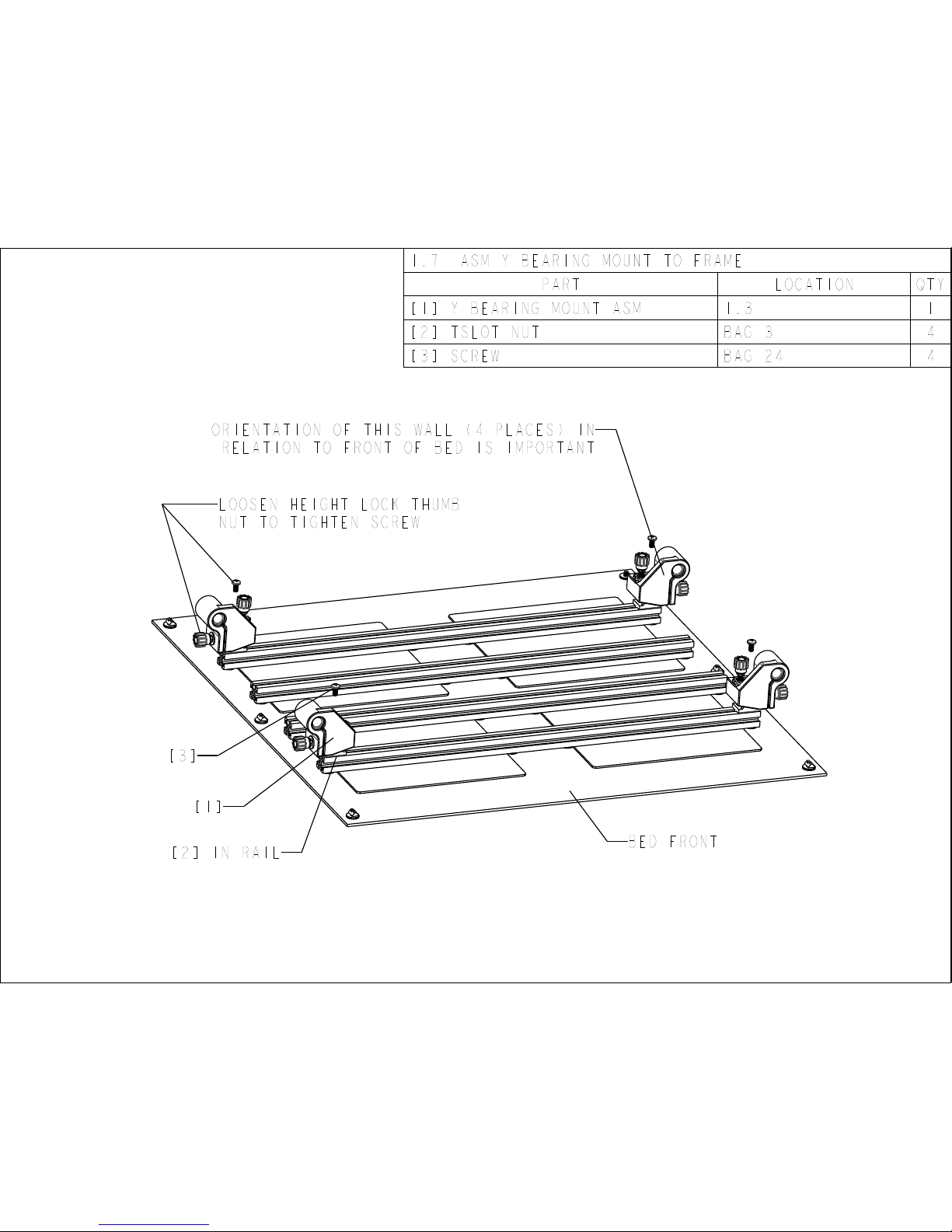

1.7 ASM Y BEARING MOUNT TO FRAME

PART LOCATION QTY

[1] Y BEARING MOUNT ASM 1.3 1

[2] TSLOT NUT BAG 3 4

[3] SCREW BAG 24 4

LOOSEN HEIGHT LOCK THUMB
NUT TO TIGHTEN SCREW

ORIENTATION OF THIS WALL (4 PLACES) IN

RELATION TO FRONT OF BED IS IMPORTANT

BED FRONT

[1]

[3]

[2] IN RAIL

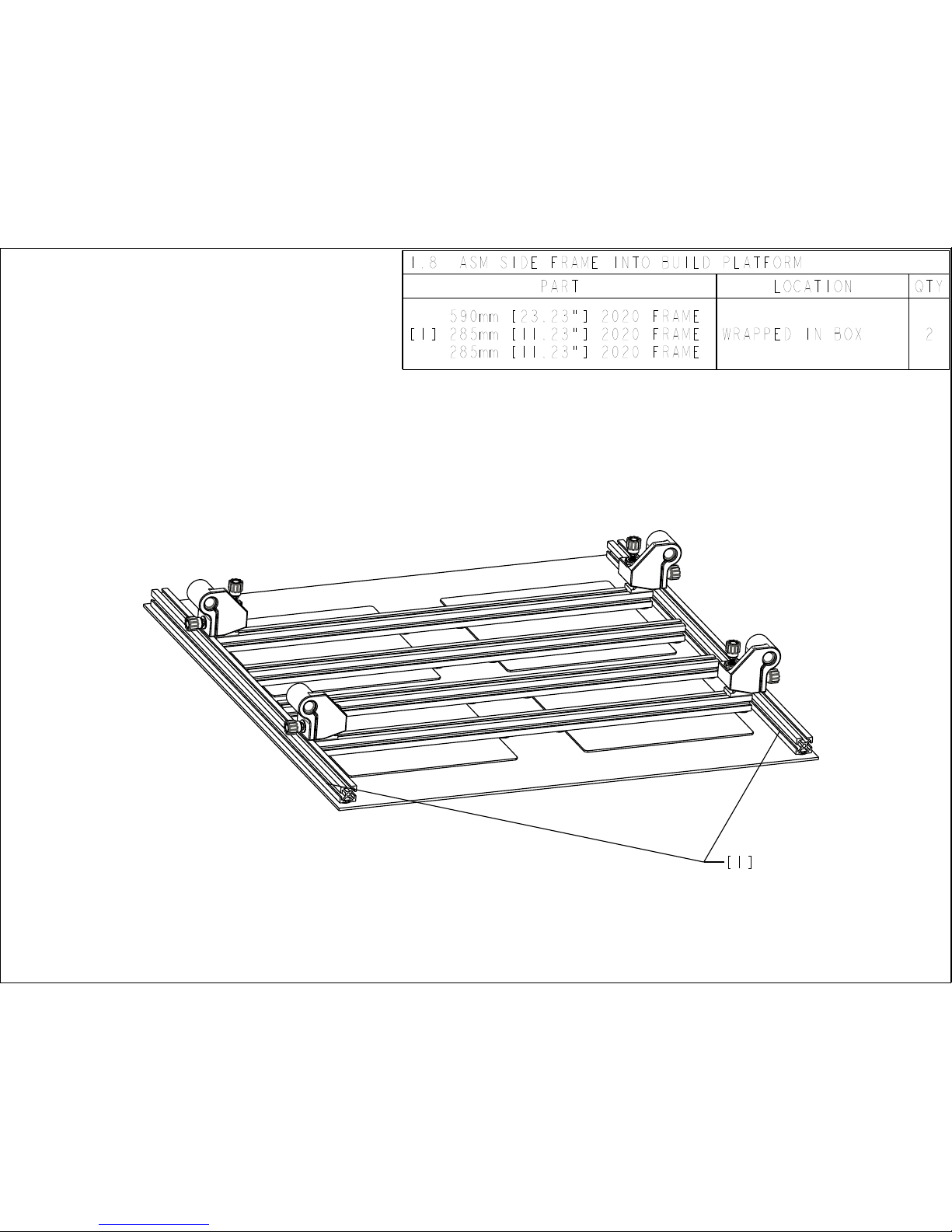

1.8 ASM SIDE FRAME INTO BUILD PLATFORM

PART LOCATION QTY

590mm [23.23"] 2020 FRAME
[1] 285mm [11.23"] 2020 FRAME
285mm [11.23"] 2020 FRAME

WRAPPED IN BOX 2

[1]

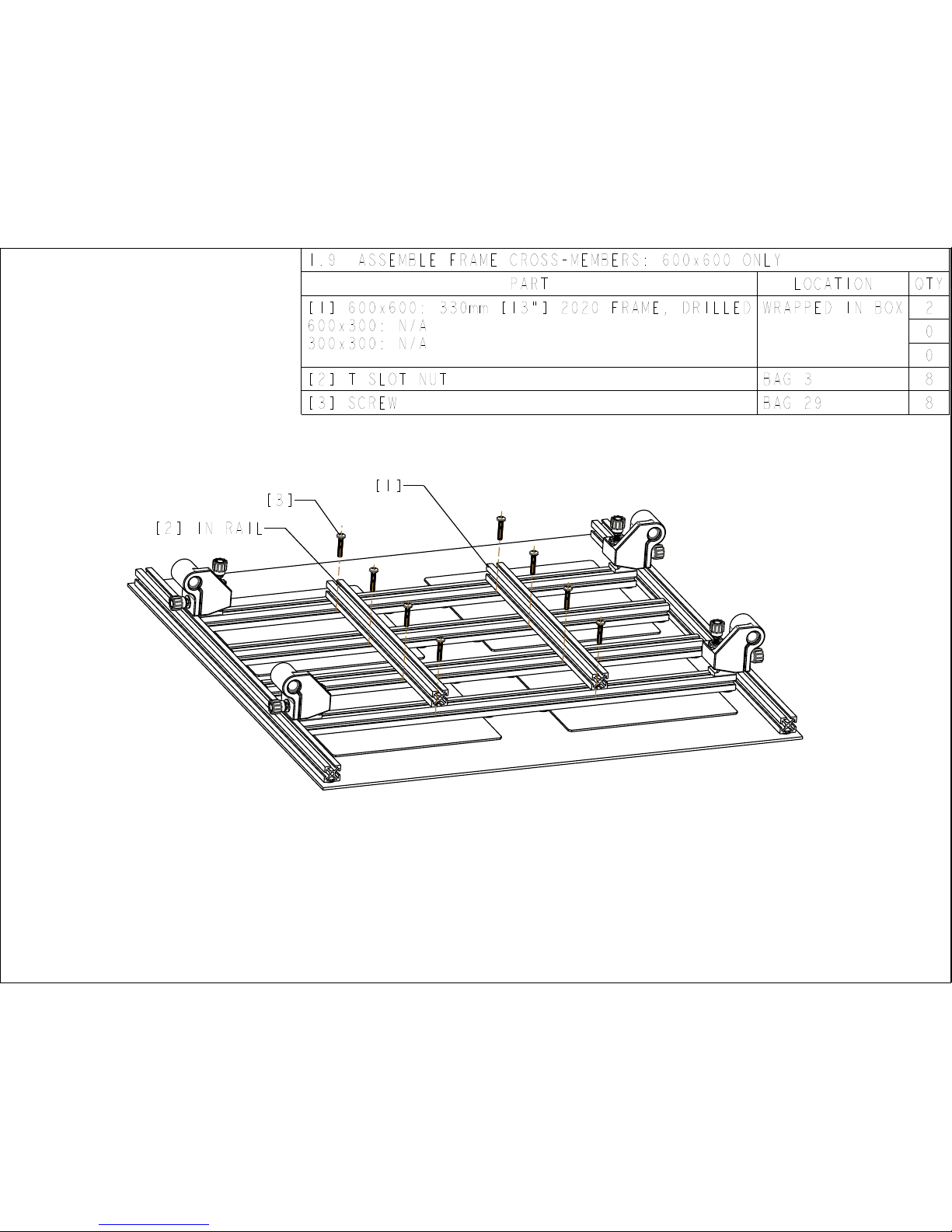

1.9 ASSEMBLE FRAME CROSS-MEMBERS: 600x600 ONLY

PART LOCATION QTY

[1] 600x600: 330mm [13"] 2020 FRAME, DRILLED
600x300: N/A
300x300: N/A

WRAPPED IN BOX 2

0

0

[2] T SLOT NUT BAG 3 8

[3] SCREW BAG 29 8

[2] IN RAIL

[3]

[1]

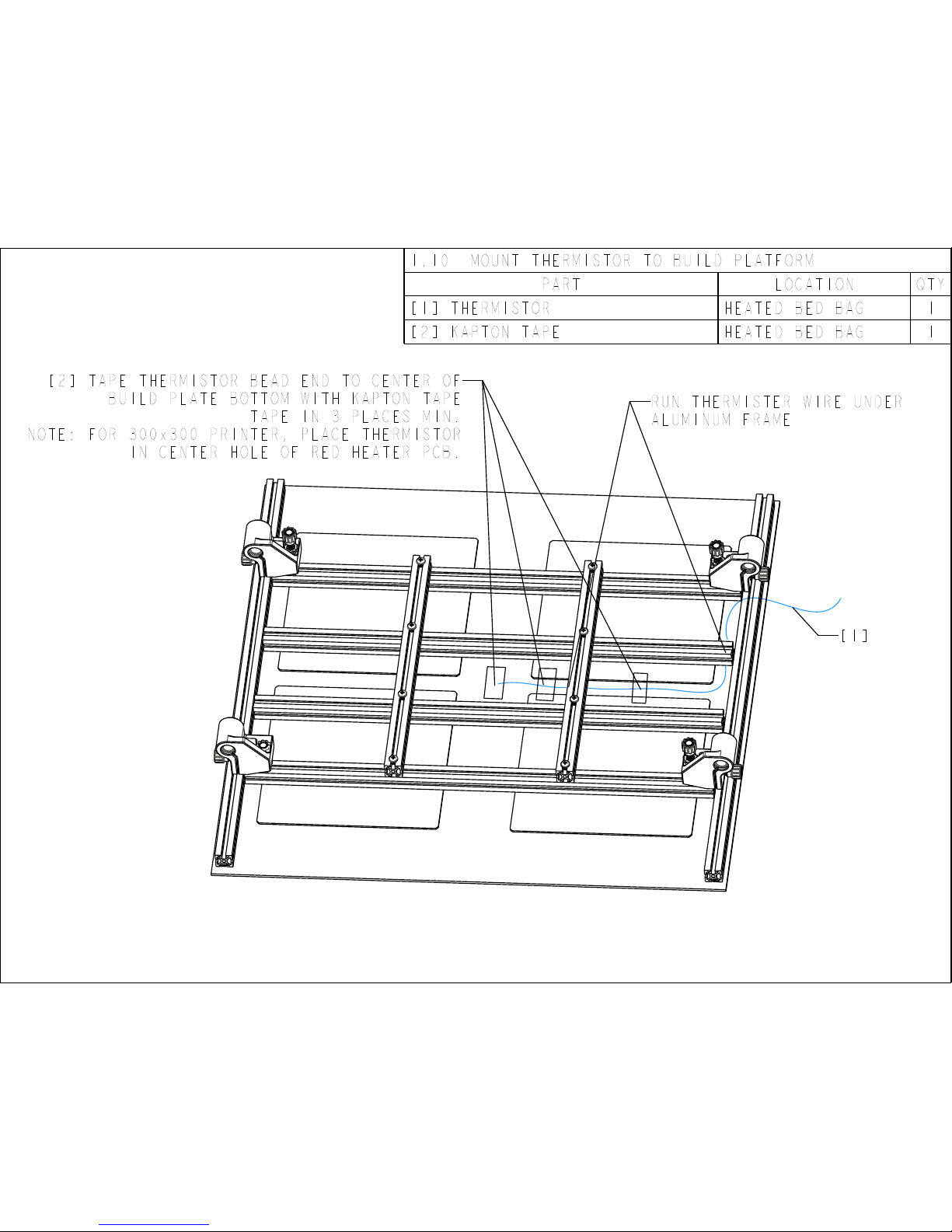

1.10 MOUNT THERMISTOR TO BUILD PLATFORM

PART LOCATION QTY

[1] THERMISTOR HEATED BED BAG 1

[2] KAPTON TAPE HEATED BED BAG 1

[1]

[2] TAPE THERMISTOR BEAD END TO CENTER OF

BUILD PLATE BOTTOM WITH KAPTON TAPE

TAPE IN 3 PLACES MIN.

NOTE: FOR 300x300 PRINTER, PLACE THERMISTOR

IN CENTER HOLE OF RED HEATER PCB.

RUN THERMISTER WIRE UNDER
ALUMINUM FRAME

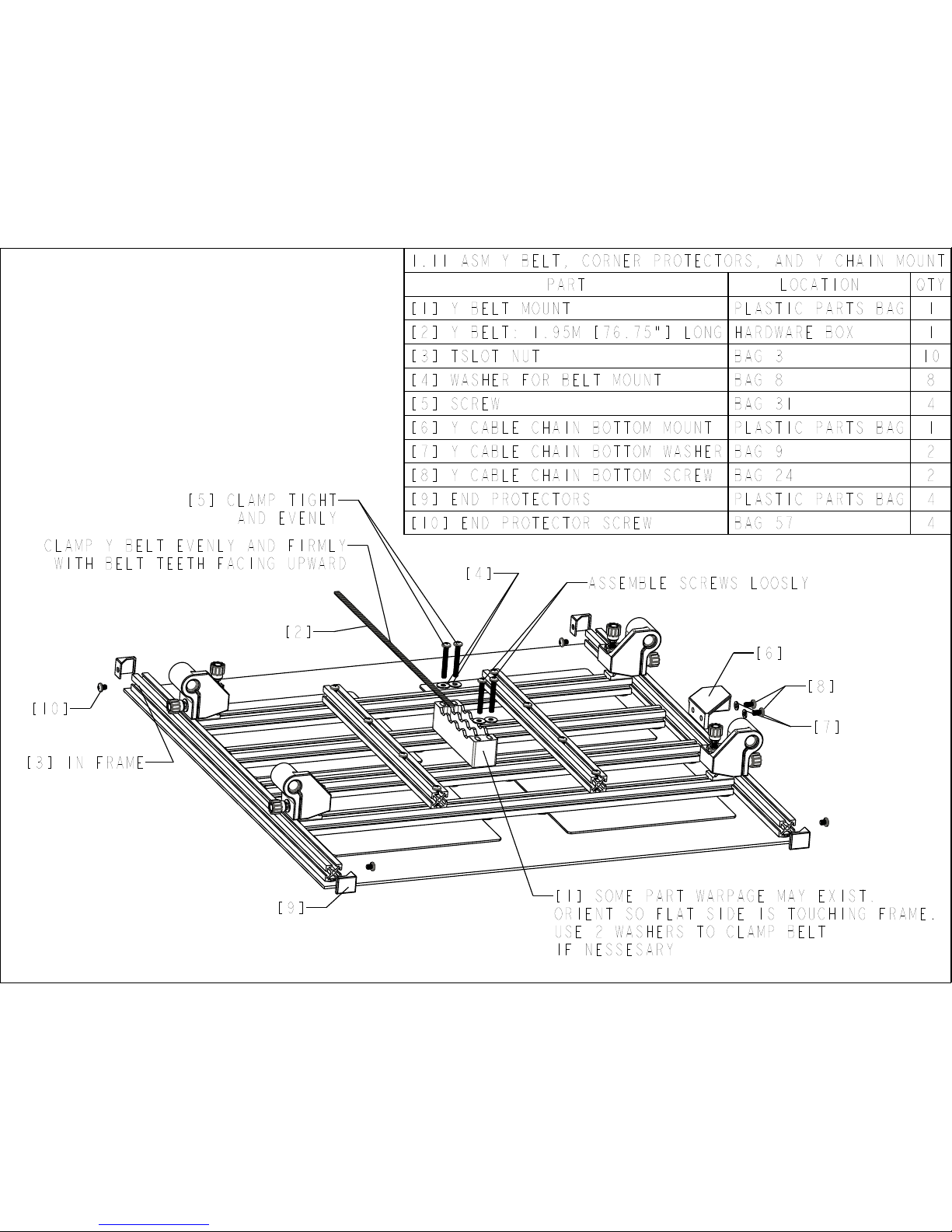

1.11 ASM Y BELT, CORNER PROTECTORS, AND Y CHAIN MOUNT

PART LOCATION QTY

[1] Y BELT MOUNT PLASTIC PARTS BAG 1

[2] Y BELT: 1.95M [76.75"] LONG HARDWARE BOX 1

[3] TSLOT NUT BAG 3 10

[4] WASHER FOR BELT MOUNT BAG 8 8

[5] SCREW BAG 31 4

[6] Y CABLE CHAIN BOTTOM MOUNT PLASTIC PARTS BAG 1

[7] Y CABLE CHAIN BOTTOM WASHER BAG 9 2

[8] Y CABLE CHAIN BOTTOM SCREW BAG 24 2

[9] END PROTECTORS PLASTIC PARTS BAG 4

[10] END PROTECTOR SCREW BAG 57 4

ASSEMBLE SCREWS LOOSLY

CLAMP Y BELT EVENLY AND FIRMLY

WITH BELT TEETH FACING UPWARD

[1] SOME PART WARPAGE MAY EXIST.
ORIENT SO FLAT SIDE IS TOUCHING FRAME.
USE 2 WASHERS TO CLAMP BELT
IF NESSESARY

[6]

[9]

[10]

[2]

[5] CLAMP TIGHT

AND EVENLY

[4]

[7]

[8]

[3] IN FRAME

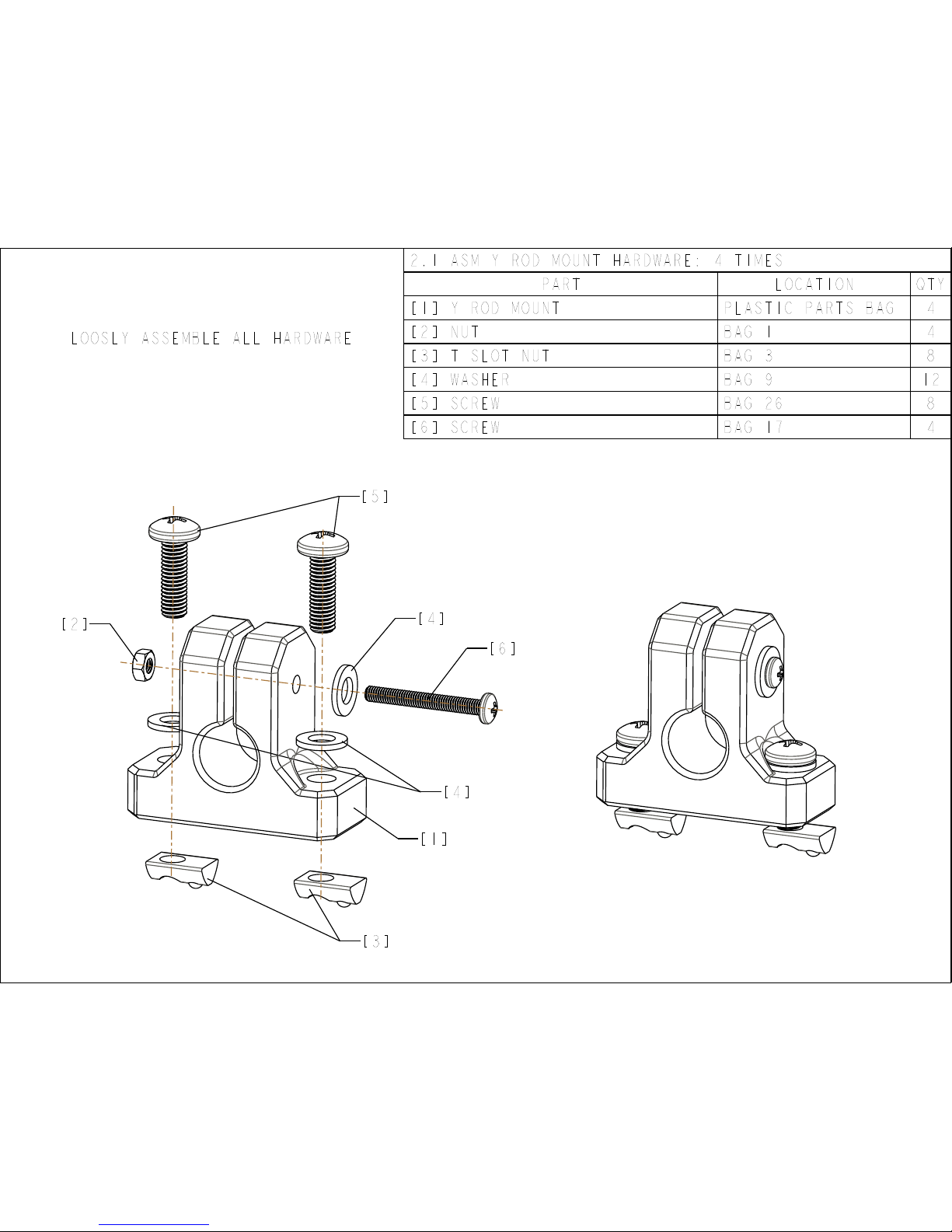

2.1 ASM Y ROD MOUNT HARDWARE: 4 TIMES

PART LOCATION QTY

[1] Y ROD MOUNT PLASTIC PARTS BAG 4

[2] NUT BAG 1 4

[3] T SLOT NUT BAG 3 8

[4] WASHER BAG 9 12

[5] SCREW BAG 26 8

[6] SCREW BAG 17 4

LOOSLY ASSEMBLE ALL HARDWARE

[5]

[4]

[6]

[2]

[4]

[3]

[1]

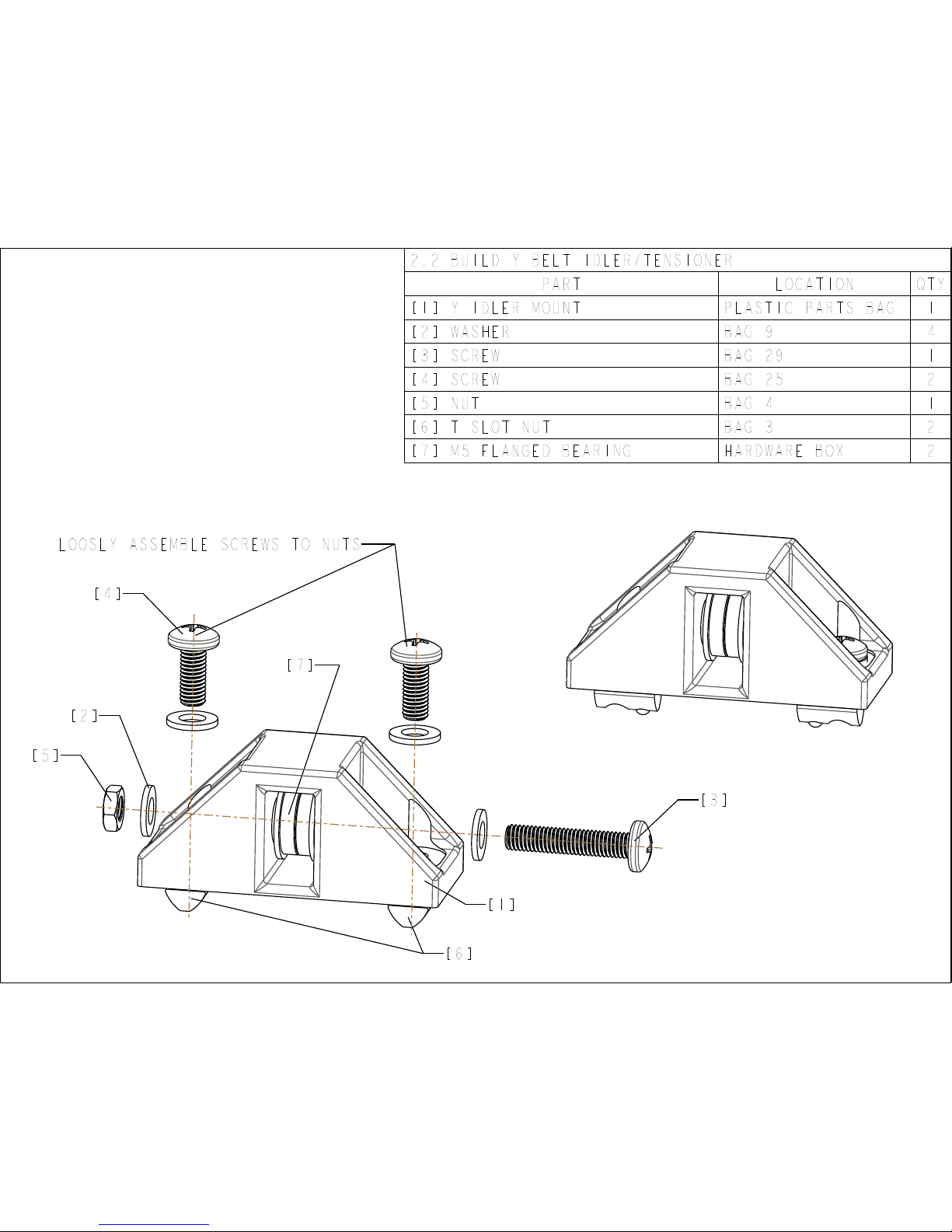

2.2 BUILD Y BELT IDLER/TENSIONER

PART LOCATION QTY

[1] Y IDLER MOUNT PLASTIC PARTS BAG 1

[2] WASHER BAG 9 4

[3] SCREW BAG 29 1

[4] SCREW BAG 25 2

[5] NUT BAG 4 1

[6] T SLOT NUT BAG 3 2

[7] M5 FLANGED BEARING HARDWARE BOX 2

LOOSLY ASSEMBLE SCREWS TO NUTS

[5]

[2]

[4]

[3]

[1]

[6]

[7]

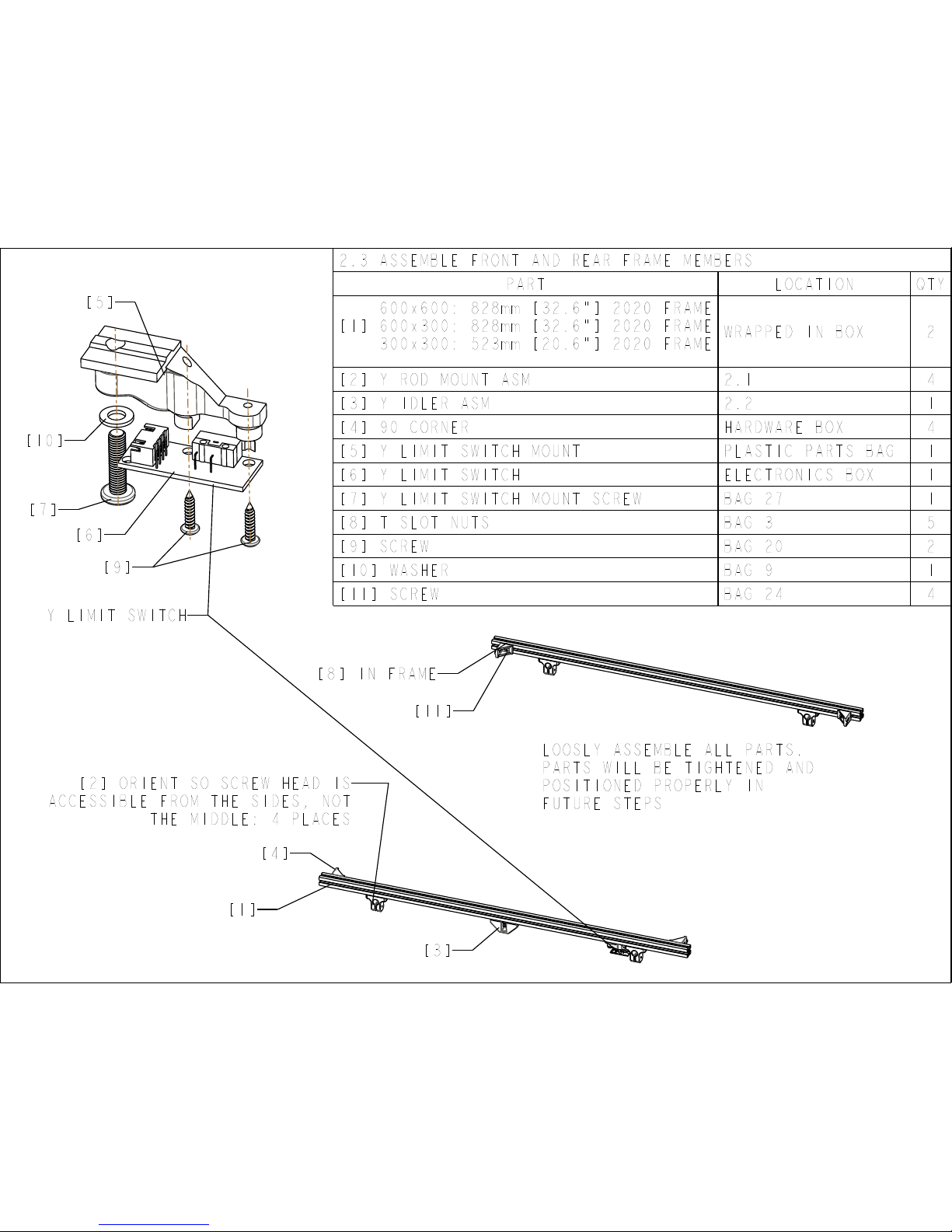

2.3 ASSEMBLE FRONT AND REAR FRAME MEMBERS

PART LOCATION QTY

600x600: 828mm [32.6"] 2020 FRAME
[1] 600x300: 828mm [32.6"] 2020 FRAME
300x300: 523mm [20.6"] 2020 FRAME

WRAPPED IN BOX 2

[2] Y ROD MOUNT ASM 2.1 4

[3] Y IDLER ASM 2.2 1

[4] 90 CORNER HARDWARE BOX 4

[5] Y LIMIT SWITCH MOUNT PLASTIC PARTS BAG 1

[6] Y LIMIT SWITCH ELECTRONICS BOX 1

[7] Y LIMIT SWITCH MOUNT SCREW BAG 27 1

[8] T SLOT NUTS BAG 3 5

[9] SCREW BAG 20 2

[10] WASHER BAG 9 1

[11] SCREW BAG 24 4

Y LIMIT SWITCH

LOOSLY ASSEMBLE ALL PARTS.
PARTS WILL BE TIGHTENED AND
POSITIONED PROPERLY IN
FUTURE STEPS

[2] ORIENT SO SCREW HEAD IS

ACCESSIBLE FROM THE SIDES, NOT

THE MIDDLE: 4 PLACES

[1]

[4]

[3]

[11]

[8] IN FRAME

[10]

[7]

[9]

[6]

[5]

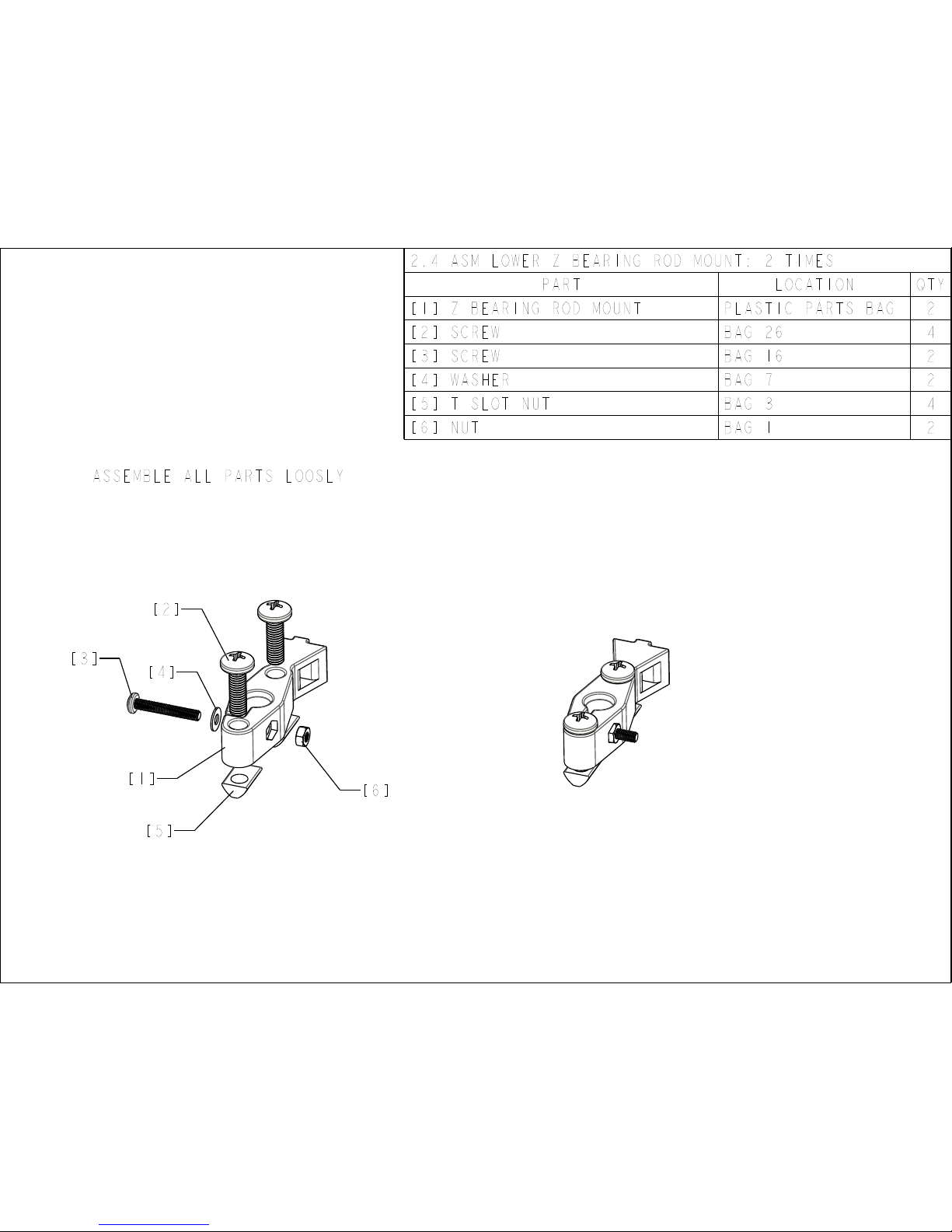

2.4 ASM LOWER Z BEARING ROD MOUNT: 2 TIMES

PART LOCATION QTY

[1] Z BEARING ROD MOUNT PLASTIC PARTS BAG 2

[2] SCREW BAG 26 4

[3] SCREW BAG 16 2

[4] WASHER BAG 7 2

[5] T SLOT NUT BAG 3 4

[6] NUT BAG 1 2

ASSEMBLE ALL PARTS LOOSLY

[3]

[4]

[2]

[1]

[5]

[6]

600x600: 16.85 [428]

OTHER: 6.80 [173]

2 PLACES

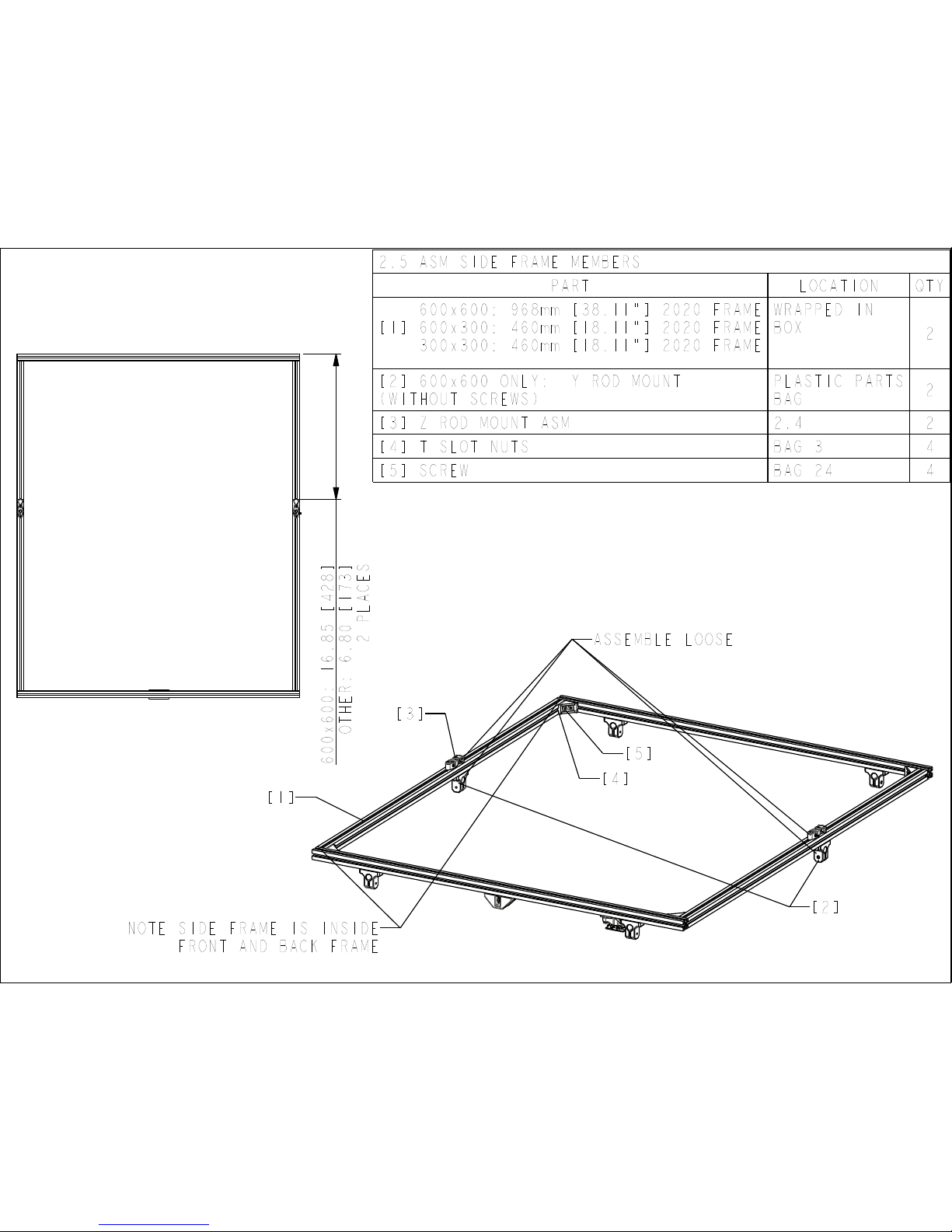

2.5 ASM SIDE FRAME MEMBERS

PART LOCATION QTY

600x600: 968mm [38.11"] 2020 FRAME
[1] 600x300: 460mm [18.11"] 2020 FRAME
300x300: 460mm [18.11"] 2020 FRAME

WRAPPED IN
BOX

2

[2] 600x600 ONLY: Y ROD MOUNT
(WITHOUT SCREWS)

PLASTIC PARTS
BAG

2

[3] Z ROD MOUNT ASM 2.4 2

[4] T SLOT NUTS BAG 3 4

[5] SCREW BAG 24 4

NOTE SIDE FRAME IS INSIDE

FRONT AND BACK FRAME

ASSEMBLE LOOSE

[1]

[3]

[2]

[4]

[5]

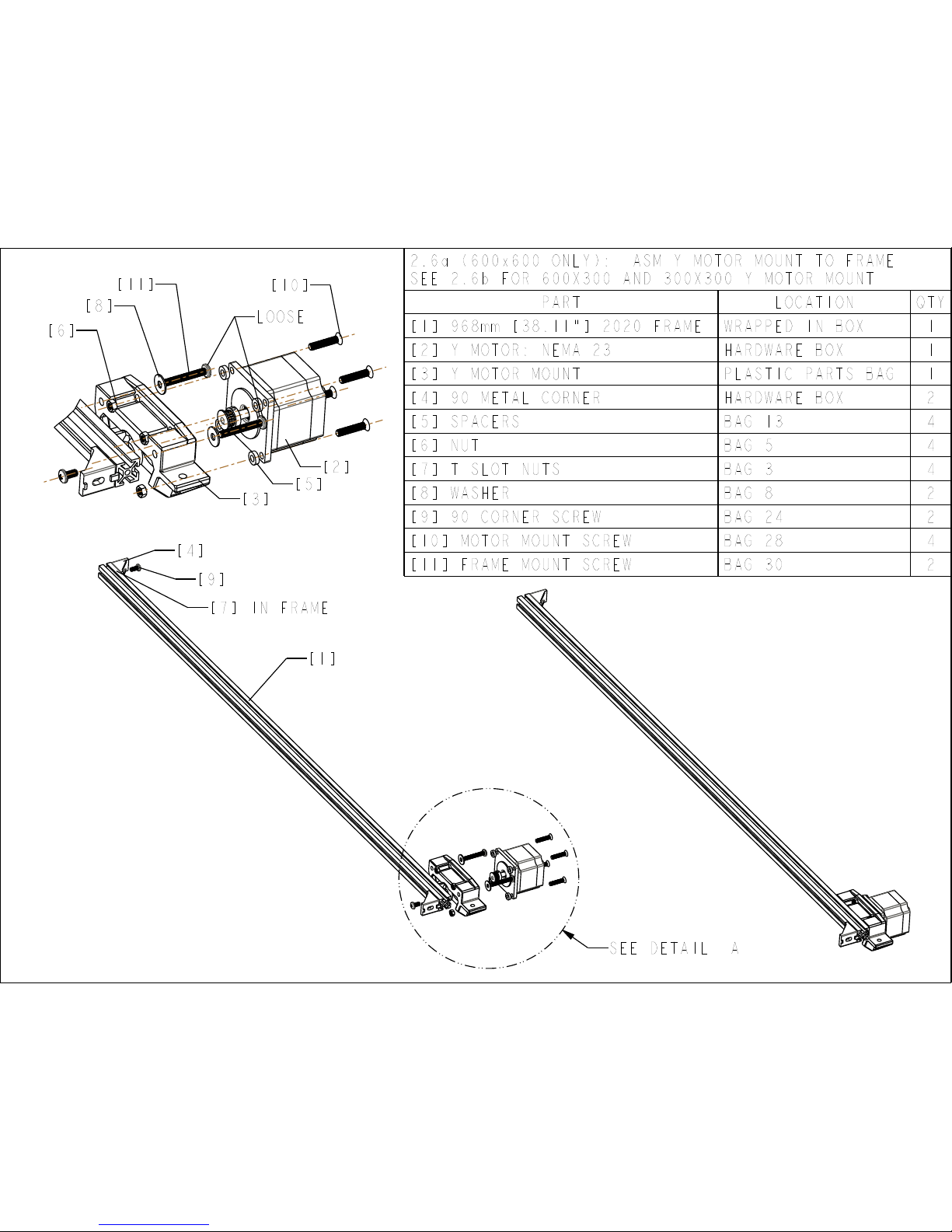

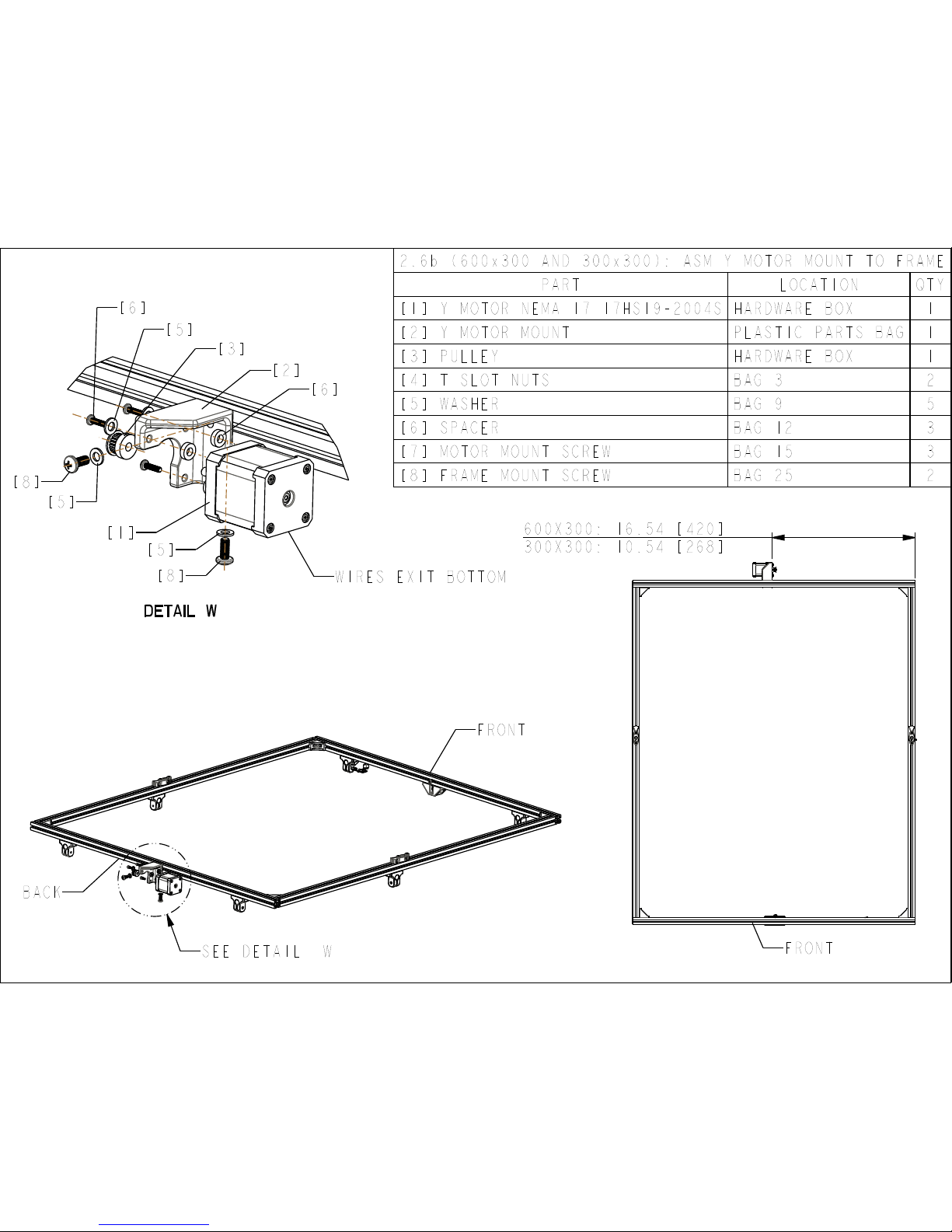

2.6a (600x600 ONLY): ASM Y MOTOR MOUNT TO FRAME
SEE 2.6b FOR 600X300 AND 300X300 Y MOTOR MOUNT

PART LOCATION QTY

[1] 968mm [38.11"] 2020 FRAME WRAPPED IN BOX 1

[2] Y MOTOR: NEMA 23 HARDWARE BOX 1

[3] Y MOTOR MOUNT PLASTIC PARTS BAG 1

[4] 90 METAL CORNER HARDWARE BOX 2

[5] SPACERS BAG 13 4

[6] NUT BAG 5 4

[7] T SLOT NUTS BAG 3 4

[8] WASHER BAG 8 2

[9] 90 CORNER SCREW BAG 24 2

[10] MOTOR MOUNT SCREW BAG 28 4

[11] FRAME MOUNT SCREW BAG 30 2

SEE DETAIL A

[9]

[4]

[1]

[7] IN FRAME

LOOSE

[3]

[6]

[8]

[11]

[2]

[5]

[10]

600X300: 16.54 [420]
300X300: 10.54 [268]

2.6b (600x300 AND 300x300): ASM Y MOTOR MOUNT TO FRAME

PART LOCATION QTY

[1] Y MOTOR NEMA 17 17HS19-2004S1 HARDWARE BOX 1

[2] Y MOTOR MOUNT PLASTIC PARTS BAG 1

[3] PULLEY HARDWARE BOX 1

[4] T SLOT NUTS BAG 3 2

[5] WASHER BAG 9 5

[6] SPACER BAG 12 3

[7] MOTOR MOUNT SCREW BAG 15 3

[8] FRAME MOUNT SCREW BAG 25 2

FRONT

BACK

SEE DETAIL W

DETAIL W

WIRES EXIT BOTTOM

[6]

[3]

[5]

[8]

[1]

[5]

[8]

[6]

[5]

[2]

FRONT

2.7a (600x600 ONLY) ASM Y MOTOR FRAME TO MAIN FRAME

PART LOCATION QTY

[1] Y MOTOR RAIL ASM 2.6 1

[2] T SLOT NUTS BAG 3 3

[3] WASHER FOR Y MOTOR BRACKET BAG 9 1

[4] SCREW FOR Y MOTOR BRACKET BAG 25 1

[5] SCREW FOR 90 CORNERS BAG 24 2

SEE DETAIL B

SEE DETAIL C

[1]

[2] IN FRAME

DETAIL B

[3]

[4]

DETAIL C

[5]

2.8 ASSEMBLE BED TO MAIN FRAME

PART LOCATION QTY

[1] BED ASM 1.11 1

[2] FRAME ASM 2.7 1

[3] Y BEARING ROD 12mmOD X 1M WRAPPED IN BOX 2

[3]

[2]

[1]

TIGHTEN M3 SCREWS

4 PLACES

SEE DETAIL D

STEP 1: THREAD BELT TRU
IDLER BEARINGS AND PULL

TAUGHT, THEN TIGHTEN SCREWS

STEP 2: TENSION BELT

AS TIGHT AS YOU CAN BY HAND

BY PULLING BEARING MOUNT

SO BELT TIGHTENS. BELT

WILL NOT BREAK. TIGHTEN

2 SCREWS

4.23
[107.5 ]

2.9 TIGHTEN Y BELT AND Y ROD MOUNTS. ALIGN BED ASM

PART LOCATION QTY

BED AND FRAME ASM 2.8 1

STEP 1: MEASURE BED
DISTANCE TO FRONT RIGHT
OF FRAME WITH BED IN
FORWARD POSITION (AS SHOWN).
MOVE BED TO REAR POSITION
AND MEASURE DISTANCE TO
REAR RIGHT OF FRAME

STEP 2:

TIGHTEN ALL SCREWS

AFTER BED IS ALIGNED

TIGHTEN Y ROD MOUNT

SCREWS WITH BED

MOVED NEAREST TO

SCREWS BEING TIGHTENED

3.1 ASM FRAME SUPPORTS

PART LOCATION QTY

600x600mm: 828mm [32.6"] 2020 FRAME
[1] 600x300mm: 828mm [32.6"] 2020 FRAME
300x300mm: 828mm [20.6"] 2020 FRAME

WRAPPED IN BOX 1

600x600mm: 517mm [20.35"] 2020 FRAME
[2] 600x300mm: 413mm [16.26"] 2020 FRAME
300x300mm: 413mm [16.26"] 2020 FRAME

WRAPPED IN BOX 2

[3] BACK LEFT CORNER LOWER BRACKET PLASTIC PARTS BAG 1

[4] BACK RIGHT CORNER LOWER BRACKET PLASTIC PARTS BAG 1

[5] TOP LEFT UPPER BRACKET PLASTIC PARTS BAG 1

[6] TOP RIGHT UPPER BRACKET PLASTIC PARTS BAG 1

[7] WASHER BAG 8 12

[8] SCREW BAG 25 12

[9] T SLOT NUT BAG 3 12

BRACKET MOUNTS TO THIS SIDE
OF SUPPORT MEMBER FOR
600x300 AND 300x300 ASSEMBLIES

LOOSLY ASSEMBLE ALL SCREWS:
THEY WILL BE TIGHTENED LATER

[1]

[2]

[8]

[5]

[7]

[6]

[3]

[4]

[8]

[7]

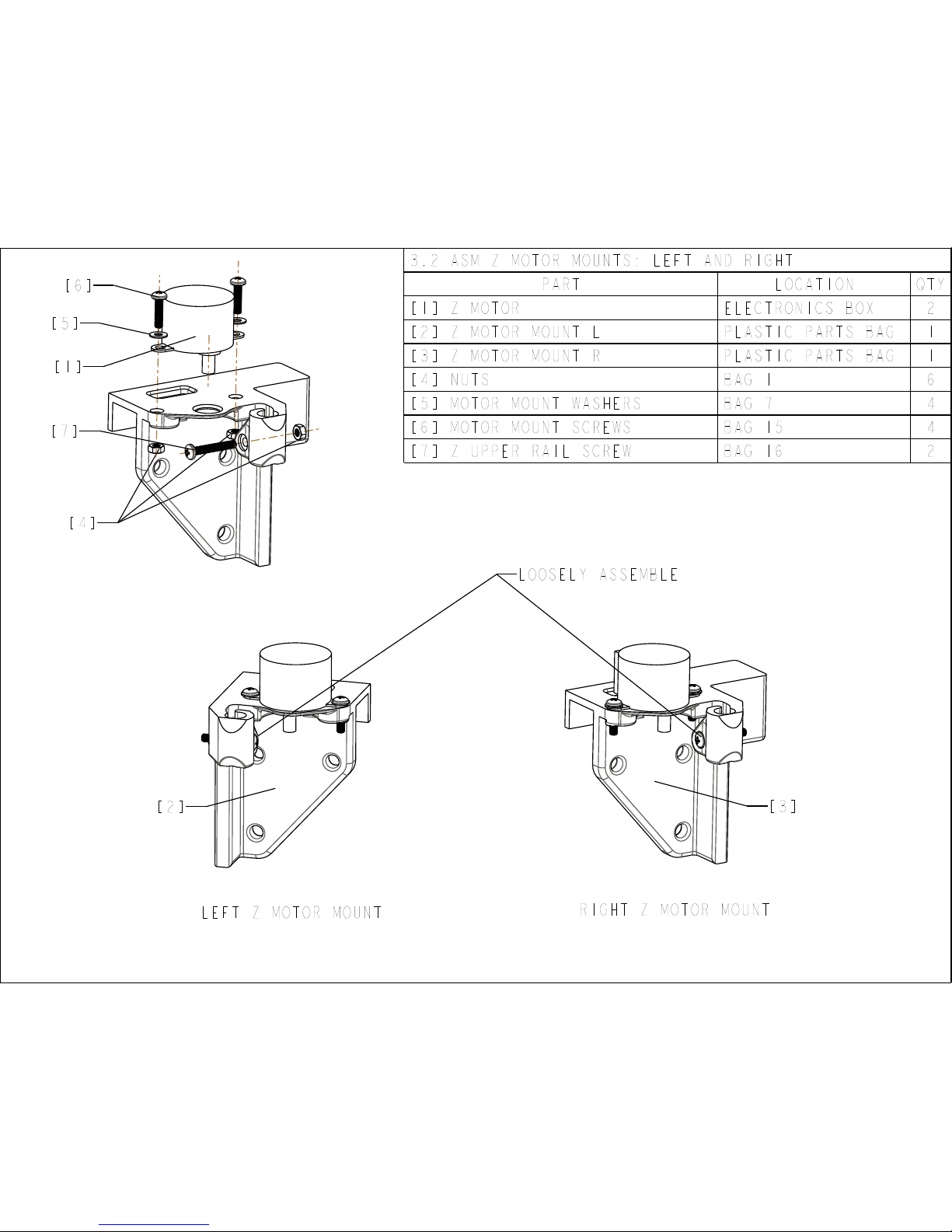

3.2 ASM Z MOTOR MOUNTS: LEFT AND RIGHT

PART LOCATION QTY

[1] Z MOTOR ELECTRONICS BOX 2

[2] Z MOTOR MOUNT L PLASTIC PARTS BAG 1

[3] Z MOTOR MOUNT R PLASTIC PARTS BAG 1

[4] NUTS BAG 1 6

[5] MOTOR MOUNT WASHERS BAG 7 4

[6] MOTOR MOUNT SCREWS BAG 15 4

[7] Z UPPER RAIL SCREW BAG 16 2

LOOSELY ASSEMBLE

LEFT Z MOTOR MOUNT

RIGHT Z MOTOR MOUNT

[1]

[4]

[5]

[6]

[7]

[3]

[2]

3.3 ASM GANTRY CORNERS

PART LOCATION QTY

[1] GANTRY UPPER ASM 3.1 1

[2] Z MOTOR MOUNT ASM, L 3.2 1

[3] Z MOTOR MOUNT ASM, R 3.2 1

[4] METAL 90 CORNER HARDWARE BOX 2

[5] T SLOT NUTS BAG 3 10

[6] Z MOTOR MOUNT SCREWS BAG 25 6

[7] METAL 90 CORNER SCREWS BAG 24 4

ASM LEFT AND
RIGHT Z MOUNT
AS SHOWN

LOOSE

[6]

[7]

[7]

[4]

[5] IN FRAME

[5]

[1]

[3]

[2]

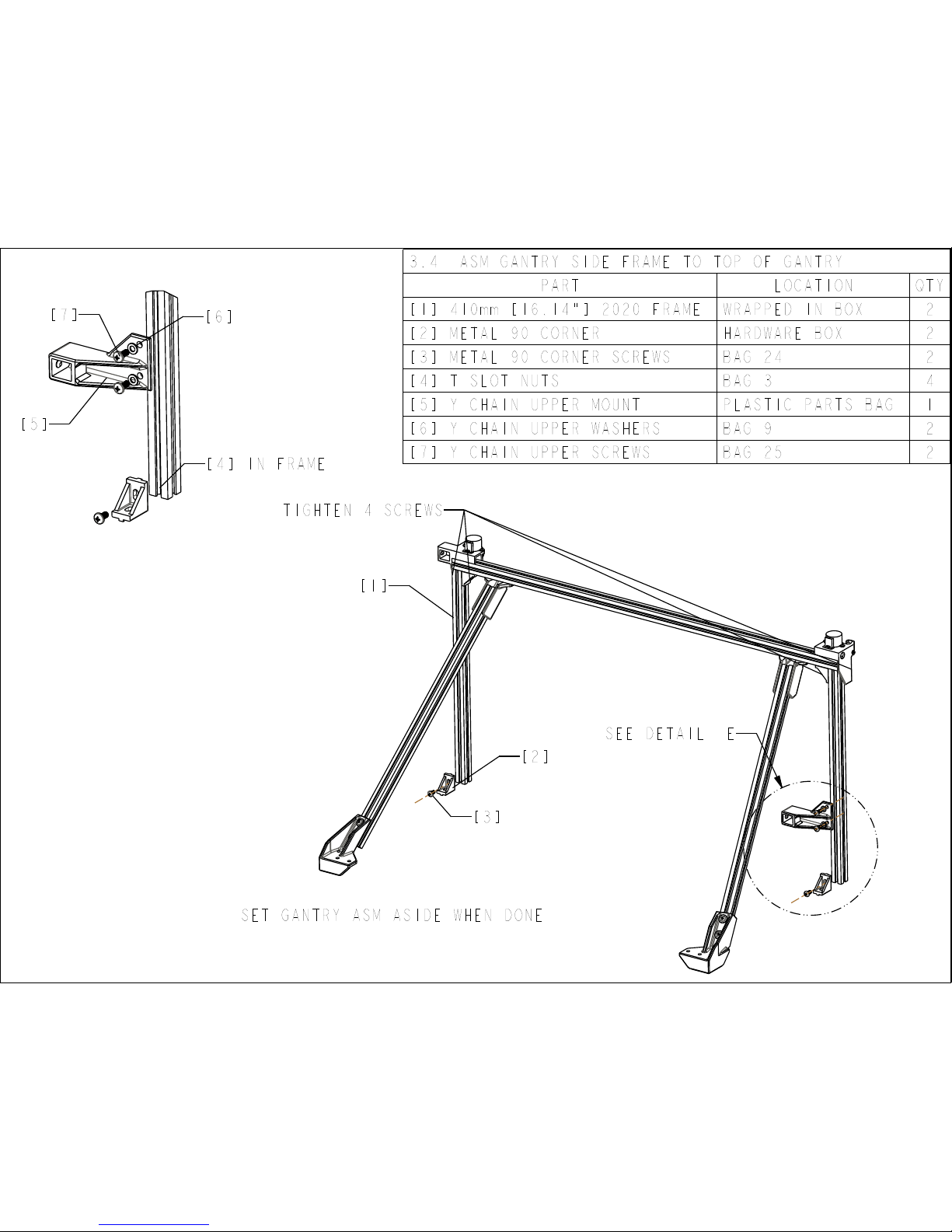

3.4 ASM GANTRY SIDE FRAME TO TOP OF GANTRY

PART LOCATION QTY

[1] 410mm [16.14"] 2020 FRAME WRAPPED IN BOX 2

[2] METAL 90 CORNER HARDWARE BOX 2

[3] METAL 90 CORNER SCREWS BAG 24 2

[4] T SLOT NUTS BAG 3 4

[5] Y CHAIN UPPER MOUNT PLASTIC PARTS BAG 1

[6] Y CHAIN UPPER WASHERS BAG 9 2

[7] Y CHAIN UPPER SCREWS BAG 25 2

SET GANTRY ASM ASIDE WHEN DONE

TIGHTEN 4 SCREWS

SEE DETAIL E

[1]

[2]

[3]

[4] IN FRAME

[5]

[6]

[7]

3.5 ASSEMBLE X IDLER MOUNT (LOOSE BEARING MOUNT SCREW)

PART LOCATION QTY

[1] Z LINEAR BEARINGS HARDWARE BOX 2

[2] X IDLER MOUNT PLASTIC PARTS BAG 1

[3] X IDLER BEARING MOUNT NUT BAG 1 1

[4] X IDLER BEARING MOUNT SCREW BAG 17 1

[4] LOOSE

[1]

[2]

[3]

LOOSE

3.6 ASSEMBLE X MOTOR MOUNT (LOOSE BEARING MOUNT SCREW)

PART LOCATION QTY

[1] Z LINEAR BEARINGS HARDWARE BOX 2

[2] X MOTOR MOUNT PLASTIC PARTS BAG 1

[3] X MOTOR NEMA 17 17HS16-2004S1 HARDWARE BOX 1

[4] X MOTOR SPACERS BAG 12 3

[5] X MOTOR WASHERS BAG 9 3

[6] X MOTOR SCREWS BAG 16 3

[7] X MOTOR BEARING MOUNT NUT BAG 1 1

[8] X MOTOR BEARING MOUNT SCREW BAG 17 1

ORIENT MOTOR SO WIRES
EXIT BOTTOM OF MOTOR

[3]

[2]

[1]

[5]

[6]

[7]

[8] LOOSE

[4]

3.7 FLIP BED ASM UP AND INSERT Z BEARING RODS

PART LOCATION QTY

[1] BED ASM 2.9 1

[2] X IDLER MOUNT ASM 3.5 1

[3] X MOTOR MOUNT ASM 3.6 1

[4] Z BEARING ROD WRAPPED IN BOX 2

INSERT ROD THROUGH BEARINGS

TRY TO ALIGN ROD AND

BEARING WELL SO BEARING SEAL

REMAINS FREE OF CUTS.

SOMETIMES BALLS ARE PUSHED

OUT OF BEARINGS. THIS IS OK.

TIGHTEN BEARING CLAMP
SCREWS AFTER ROD IS INSERTED.
TIGHTEN JUST SNUG SO BEARINGS

ARE NOT LOOSE IN MOUNT. DO NOT

OVER-TIGHTEN

TIGHTEN LOWER Z ROD

MOUNT SCREWS

TIGHTEN ALL SCREWS ON
TOP OF BUILD PLATFORM

[1]

[2]

[3]

[4]

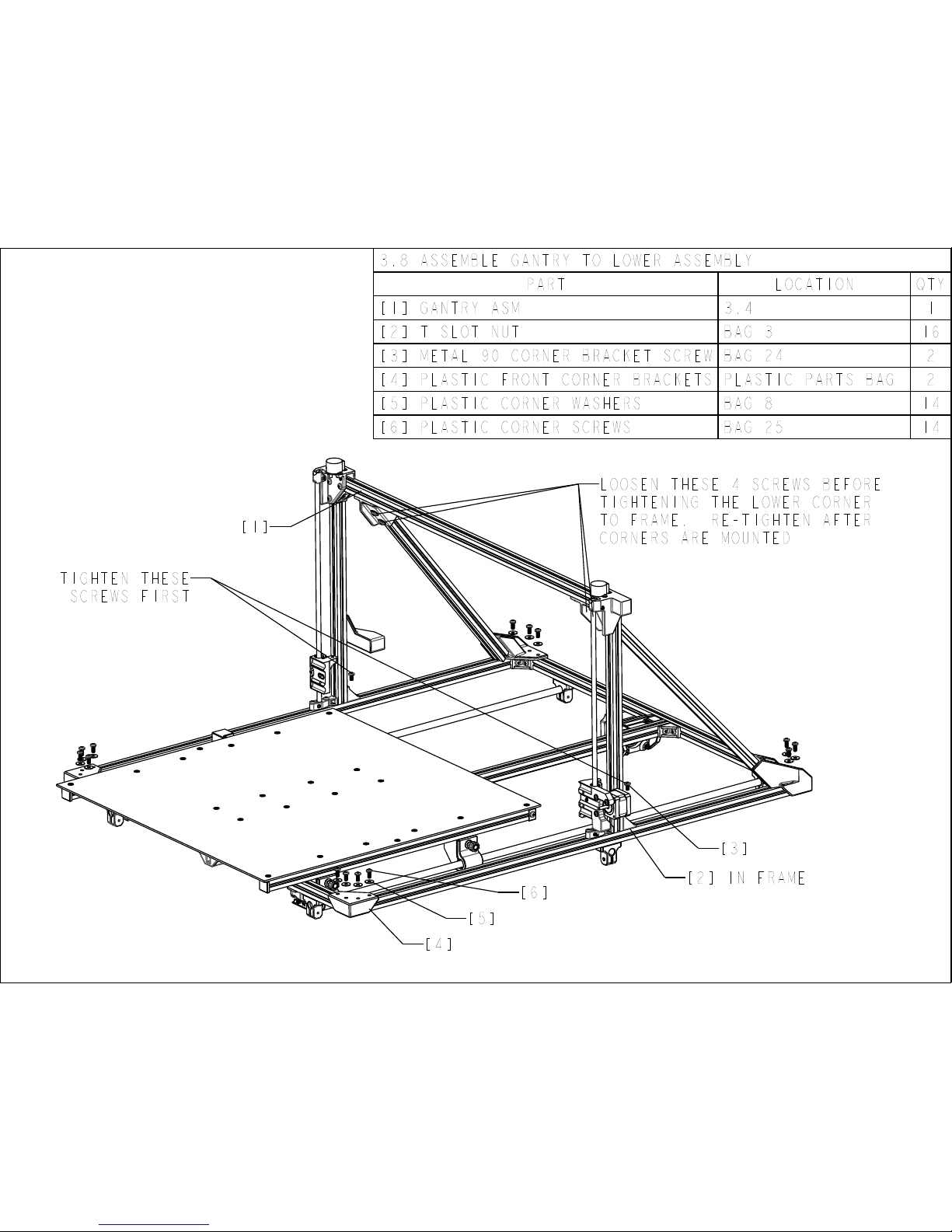

3.8 ASSEMBLE GANTRY TO LOWER ASSEMBLY

PART LOCATION QTY

[1] GANTRY ASM 3.4 1

[2] T SLOT NUT BAG 3 16

[3] METAL 90 CORNER BRACKET SCREW BAG 24 2

[4] PLASTIC FRONT CORNER BRACKETS PLASTIC PARTS BAG 2

[5] PLASTIC CORNER WASHERS BAG 8 14

[6] PLASTIC CORNER SCREWS BAG 25 14

TIGHTEN THESE

SCREWS FIRST

LOOSEN THESE 4 SCREWS BEFORE
TIGHTENING THE LOWER CORNER
TO FRAME. RE-TIGHTEN AFTER
CORNERS ARE MOUNTED

[1]

[2] IN FRAME

[3]

[4]

[5]

[6]

3.9 REEL HOLDER AND FILAMENT GUIDE:
2 OR 4 (DUAL) TIMES

PART LOCATION QTY

[1] TALL THUMB WHEEL L & R

EXTRUDER BOX

3

[2] HEX HEAD SCREW BAG 49 5

[3] ANTI-SLIP WASHER BAG 38 3

[4] WASHER BAG 40 3

[5] NUT BAG 36 5

[6] FILAMENT FEEDER L & R

EXTRUDER BOX

1

[7] FILAMENT FEEDER TUBE L & R

EXTRUDER BOX

1

[8] LIMIT SWITCH L & R

EXTRUDER BOX

1

[9] LIMIT SWITCH WASHER BAG 37 2

[10] LIMIT SWITCH NUT BAG 34 2

[11] LIMIT SWITCH SCREW BAG 45 2

[12] T-SLOT NUT BAG 35 3

[1]

[2]

[3]

[4]

[5]

[5]

[2]

[6]

[7]

[8]

[9]

[10]

[11]

[12]
IN FRAME

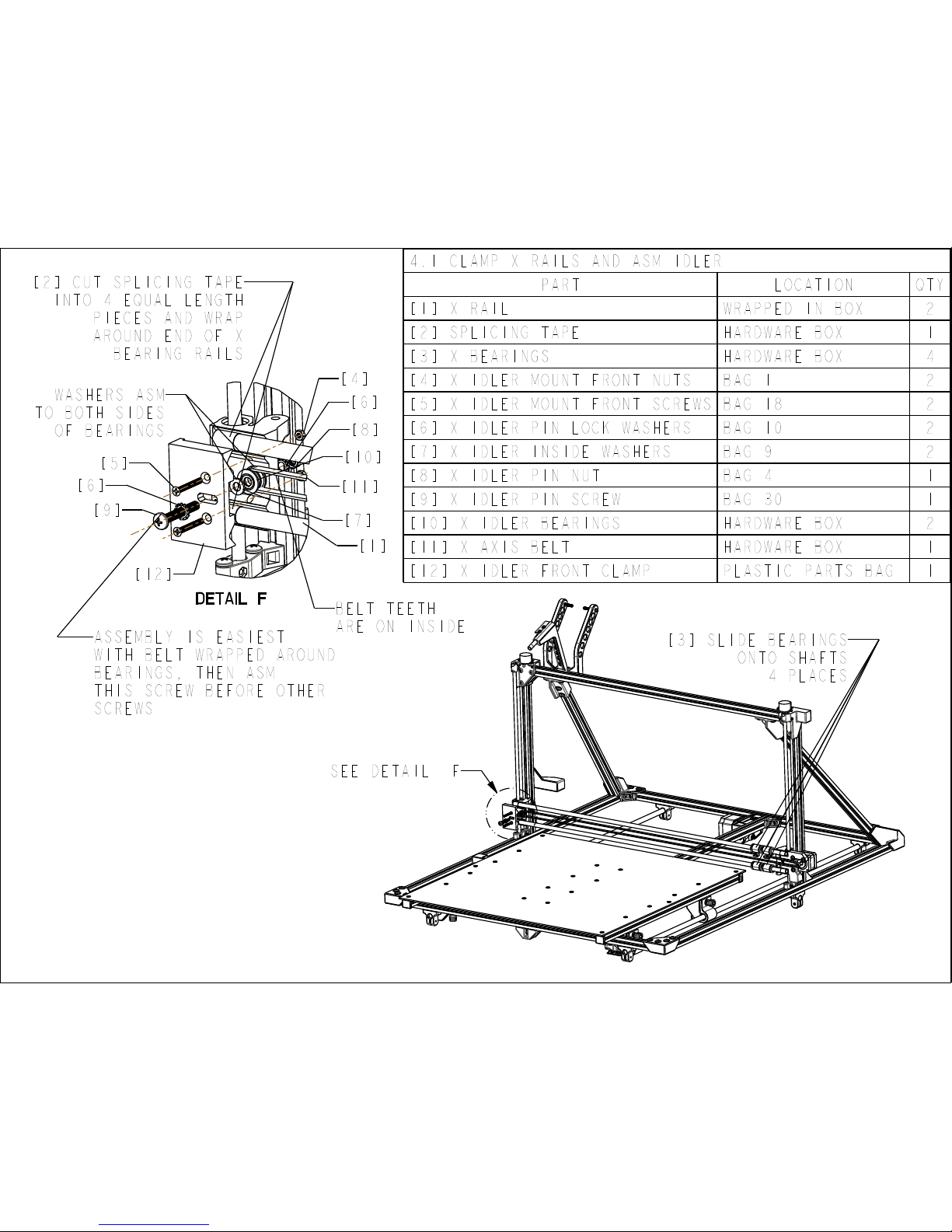

4.1 CLAMP X RAILS AND ASM IDLER

PART LOCATION QTY

[1] X RAIL WRAPPED IN BOX 2

[2] SPLICING TAPE HARDWARE BOX 1

[3] X BEARINGS HARDWARE BOX 4

[4] X IDLER MOUNT FRONT NUTS BAG 1 2

[5] X IDLER MOUNT FRONT SCREWS BAG 18 2

[6] X IDLER PIN LOCK WASHERS BAG 10 2

[7] X IDLER INSIDE WASHERS BAG 9 2

[8] X IDLER PIN NUT BAG 4 1

[9] X IDLER PIN SCREW BAG 30 1

[10] X IDLER BEARINGS HARDWARE BOX 2

[11] X AXIS BELT HARDWARE BOX 1

[12] X IDLER FRONT CLAMP PLASTIC PARTS BAG 1

DETAIL F

SEE DETAIL F

[3] SLIDE BEARINGS

ONTO SHAFTS

4 PLACES

BELT TEETH
ARE ON INSIDE

ASSEMBLY IS EASIEST
WITH BELT WRAPPED AROUND
BEARINGS, THEN ASM
THIS SCREW BEFORE OTHER
SCREWS

[2] CUT SPLICING TAPE

INTO 4 EQUAL LENGTH

PIECES AND WRAP
AROUND END OF X

BEARING RAILS

WASHERS ASM

TO BOTH SIDES

OF BEARINGS

[9]

[6]

[5]

[12]

[7]

[10]

[6]

[8]

[4]

[11]

[1]

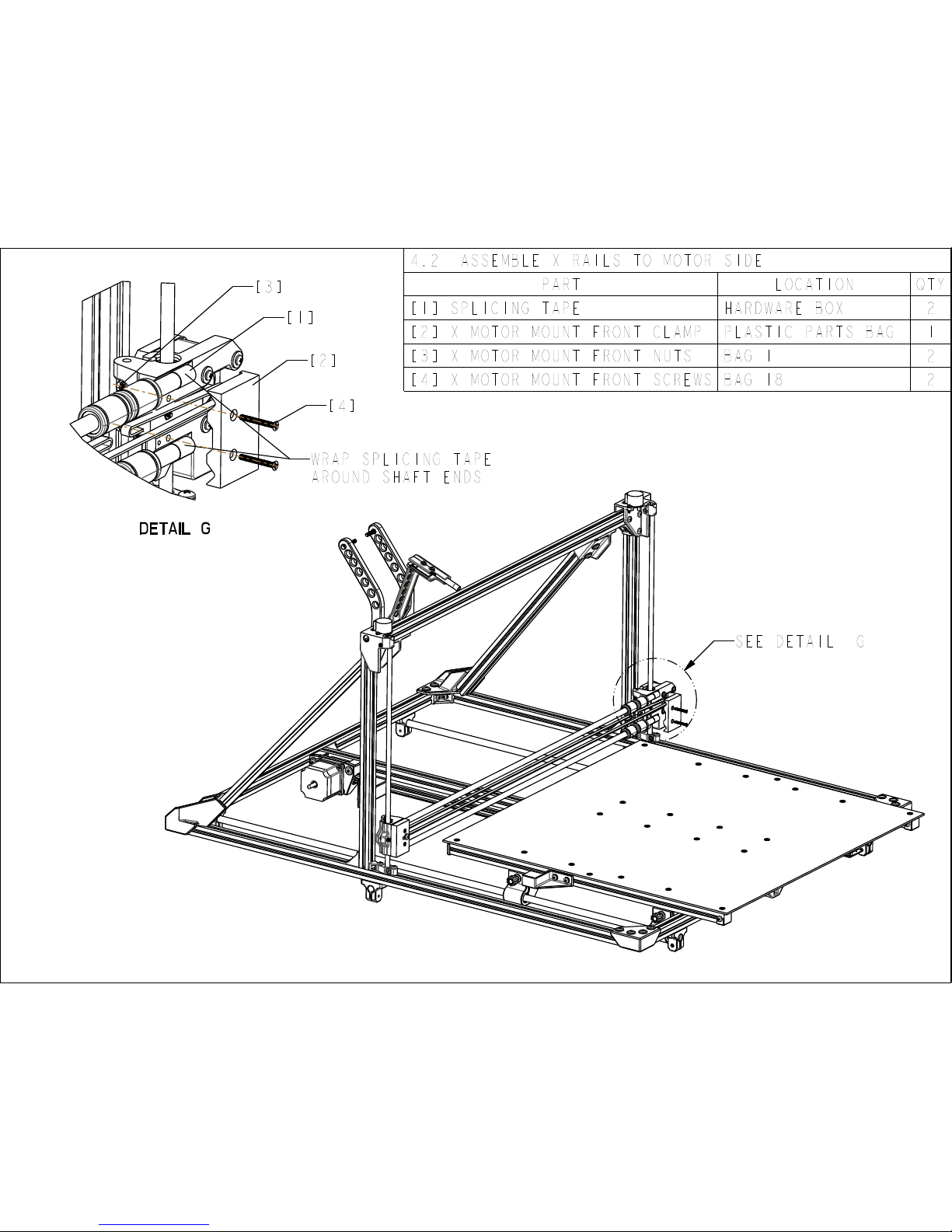

4.2 ASSEMBLE X RAILS TO MOTOR SIDE

PART LOCATION QTY

[1] SPLICING TAPE HARDWARE BOX 2

[2] X MOTOR MOUNT FRONT CLAMP PLASTIC PARTS BAG 1

[3] X MOTOR MOUNT FRONT NUTS BAG 1 2

[4] X MOTOR MOUNT FRONT SCREWS BAG 18 2

DETAIL G

SEE DETAIL G

WRAP SPLICING TAPE
AROUND SHAFT ENDS

[1]

[2]

[3]

[4]

4.3 ASM X LIMIT SWITCH

PART LOCATION QTY

[1] X LIMIT SWITCH ELECTRONICS BOX 1

[2] X LIMIT SWITCH SCREWS BAG 20 2

DETAIL H

SEE DETAIL H

[1]

[2]

4.4 INSERT Z THREADED ROD AND NUT

PART LOCATION QTY

[1] SHAFT COUPLING HARDWARE BOX 2

[2] 2.0mm ALLEN WRENCH HARDWARE BOX 1

[3] Z THREADED ROD WRAPPED IN BOX 2

[4] M4 NUT BAG 2 4

DETAIL I

SEE DETAIL I

SEE DETAIL J

[4] ASM NUT ONTO
THREAD AND ENSURE
IT SEATS FULLY IN
LOCKING RECESS
2 PLACES

DETAIL J

[4] RUN NUT THROUGH ENTIRE LENGTH OF
THREADED ROD. THIS CLEANS THE
THREAD OF DIRT AND DEBRIS. A DRILL
HELPS MAKE THIS FASTER.
2 PLACES

[1] COUPLING SET
SCREWS CONTACT FLATS.

[3]

4.5 ASSEMBLE CARRIAGE BACK AND CLIP X AXIS BELT

PART LOCATION QTY

[1] CARRIAGE BACK PLASTIC PARTS BAG 1

[2] BINDER CLIPS HARDWARE BOX 2

[3] X PULLEY HARDWARE BOX 1

DETAIL K

SEE DETAIL K

2. ENSURE BEARINGS ARE SEATED

3. PULL BELT TIGHT

4. WRAP BELTS AS SHOWN, THEN CLIP
BINDER CLIPS.

5. REMOVE WIRE END FROM BINDER
CLIPS

1. INSTALL X BELT PULLEY

[2]

[3]

BINDER CLIP MUST TOUCH
BOTH SIDES OF BELT

[1]

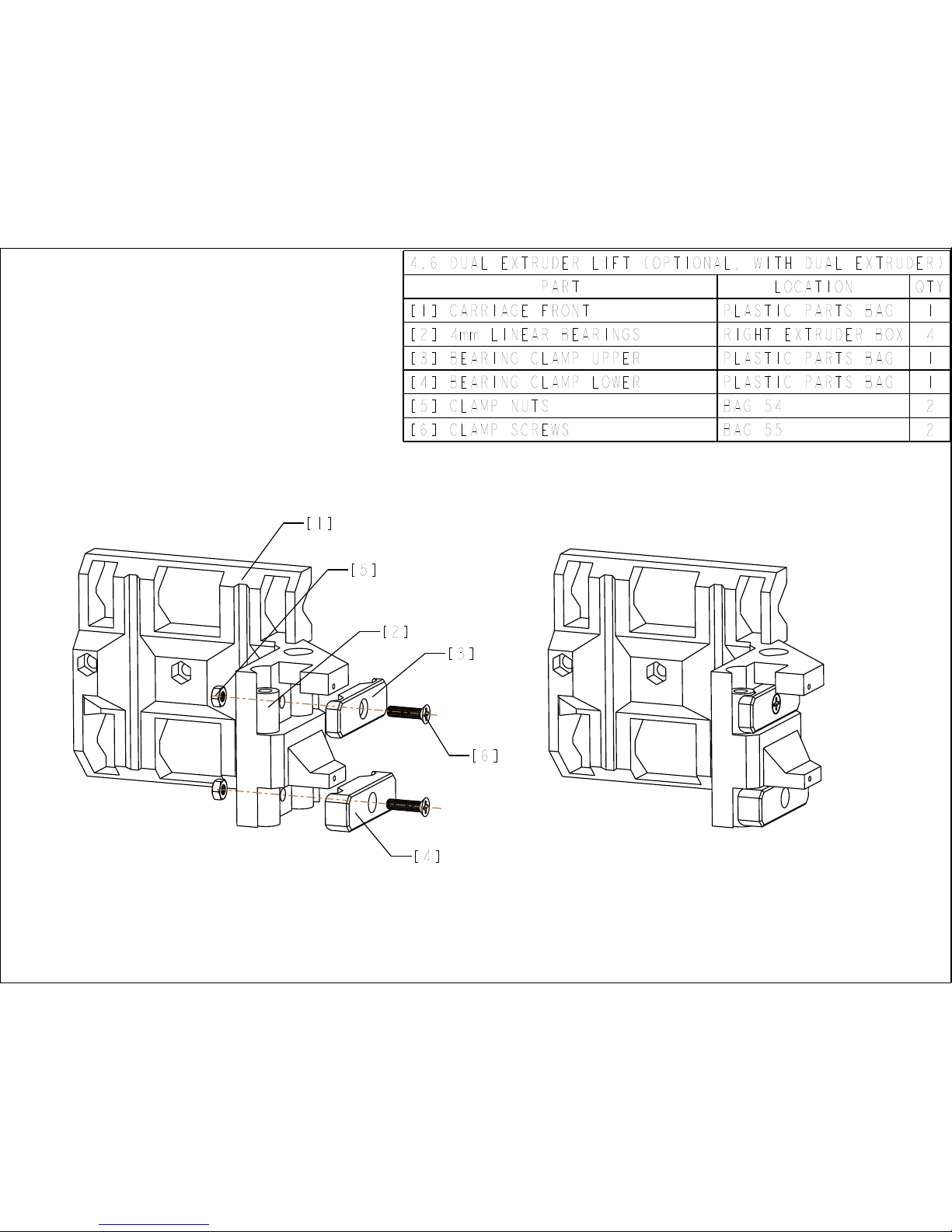

4.6 DUAL EXTRUDER LIFT (OPTIONAL, WITH DUAL EXTRUDER)

PART LOCATION QTY

[1] CARRIAGE FRONT PLASTIC PARTS BAG 1

[2] 4mm LINEAR BEARINGS RIGHT EXTRUDER BOX 4

[3] BEARING CLAMP UPPER PLASTIC PARTS BAG 1

[4] BEARING CLAMP LOWER PLASTIC PARTS BAG 1

[5] CLAMP NUTS BAG 54 2

[6] CLAMP SCREWS BAG 55 2

[1]

[2]

[3]

[4]

[5]

[6]

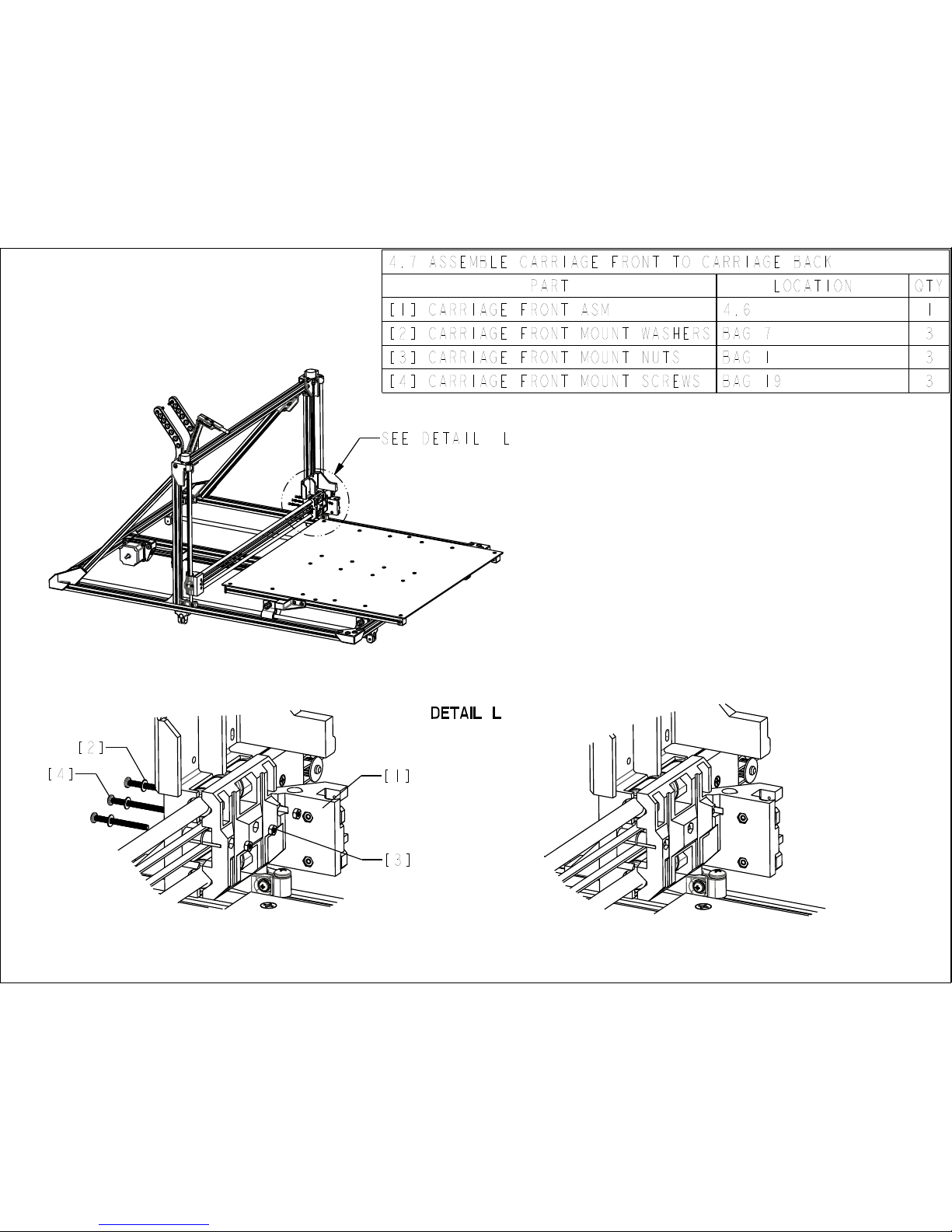

4.7 ASSEMBLE CARRIAGE FRONT TO CARRIAGE BACK

PART LOCATION QTY

[1] CARRIAGE FRONT ASM 4.6 1

[2] CARRIAGE FRONT MOUNT WASHERS BAG 7 3

[3] CARRIAGE FRONT MOUNT NUTS BAG 1 3

[4] CARRIAGE FRONT MOUNT SCREWS BAG 19 3

DETAIL L

SEE DETAIL L

[1]

[2]

[4]

[3]

4.8 ASSEMBLE 30mm FAN: 1 OR 2 (DUAL EXTRUDER)

PART LOCATION QTY

[1] 30mm FAN L & R EXTRUDER BOX 1EA

[2] FAN CLIP L & R EXTRUDER BOX 1EA

[3] FAN SCREWS BAG 48 4EA

[3]

[1]

[2]

WIRES EXIT BOTTOM

SIDE HERE

MOUNT FAN LABEL IS
NOT ON THIS SIDE

4.9 CARRIAGE FAN AND SWITCH MOUNT

PART LOCATION QTY

[1] 40mm FAN ELECTRONICS BOX 4

[2] Z LIMIT SWITCH ELECTRONICS BOX 1

[3] Z LIMIT SWITCH SCREWS BAG 20 2

[4] FAN AND SWITCH MOUNT PLASTIC PARTS BAG 1

[5] FAN MOUNT SCREWS BAG 21 4

DETAIL M

SEE DETAIL M

[1]

[5]

[4]

[3]

[2]

MOUNT FAN SO LABEL
IS NOT ON THIS SIDE

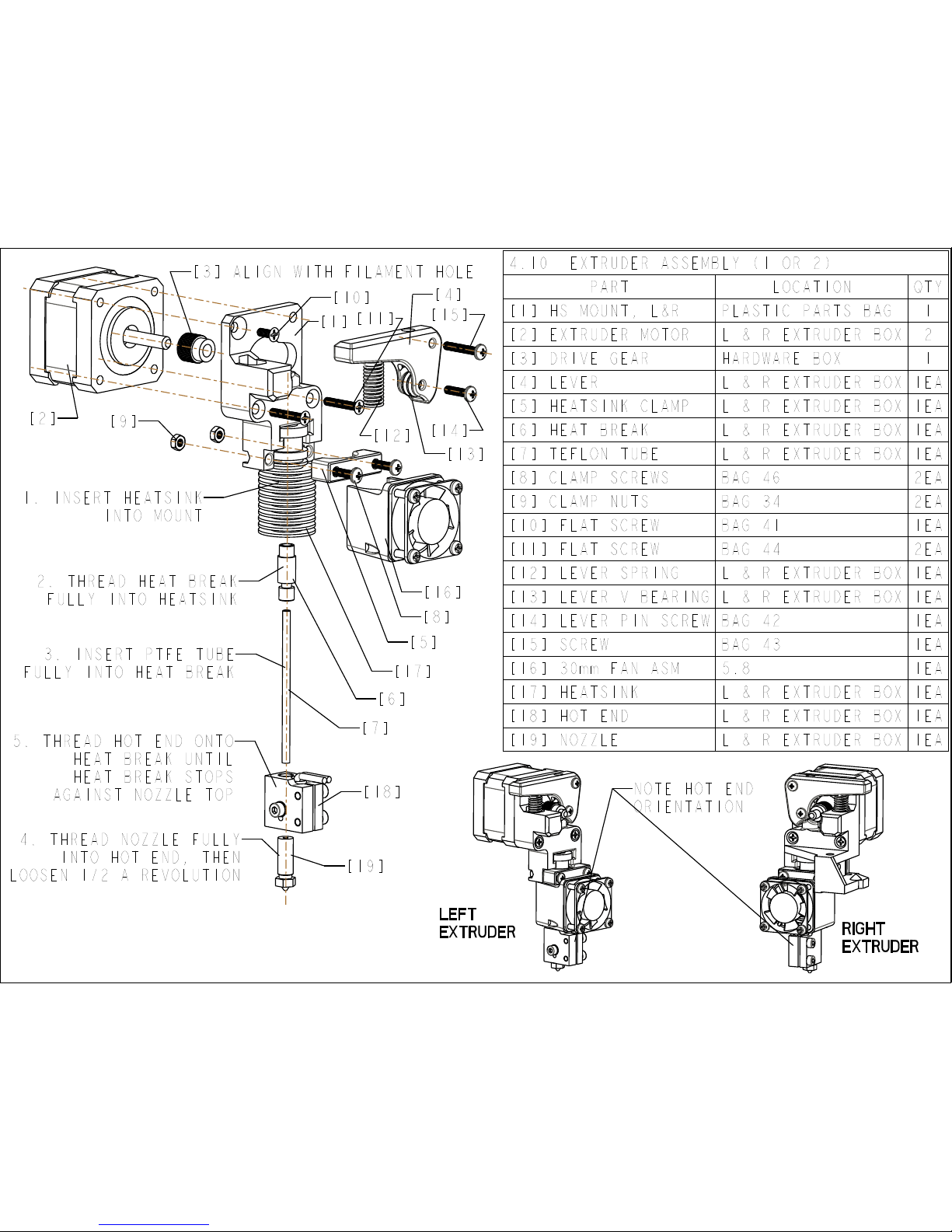

4.10 EXTRUDER ASSEMBLY (1 OR 2)

PART LOCATION QTY

[1] HS MOUNT, L &R PLASTIC PARTS BAG 1

[2] EXTRUDER MOTOR L & R EXTRUDER BOX 2

[3] DRIVE GEAR HARDWARE BOX 1

[4] LEVER L & R EXTRUDER BOX 1EA

[5] HEATSINK CLAMP L & R EXTRUDER BOX 1EA

[6] HEAT BREAK L & R EXTRUDER BOX 1EA

[7] TEFLON TUBE L & R EXTRUDER BOX 1EA

[8] CLAMP SCREWS BAG 46 2EA

[9] CLAMP NUTS BAG 34 2EA

[10] FLAT SCREW BAG 41 1EA

[11] FLAT SCREW BAG 44 2EA

[12] LEVER SPRING L & R EXTRUDER BOX 1EA

[13] LEVER V BEARING L & R EXTRUDER BOX 1EA

[14] LEVER PIN SCREW BAG 42 1EA

[15] SCREW BAG 43 1EA

[16] 30mm FAN ASM 5.8 1EA

[17] HEATSINK L & R EXTRUDER BOX 1EA

[18] HOT END L & R EXTRUDER BOX 1EA

[19] NOZZLE L & R EXTRUDER BOX 1EA

NOTE HOT END
ORIENTATION

LEFT
EXTRUDER

RIGHT
EXTRUDER

2. THREAD HEAT BREAK
FULLY INTO HEATSINK

3. INSERT PTFE TUBE

FULLY INTO HEAT BREAK

4. THREAD NOZZLE FULLY
INTO HOT END, THEN

LOOSEN 1/2 A REVOLUTION

5. THREAD HOT END ONTO
HEAT BREAK UNTIL
HEAT BREAK STOPS

AGAINST NOZZLE TOP

1. INSERT HEATSINK
INTO MOUNT

[3] ALIGN WITH FILAMENT HOLE

[2]

[9]

[1]

[10]

[11]

[4]

[12]

[14]

[13]

[15]

[5]

[17]

[8]

[16]

[6]

[7]

[18]

[19]

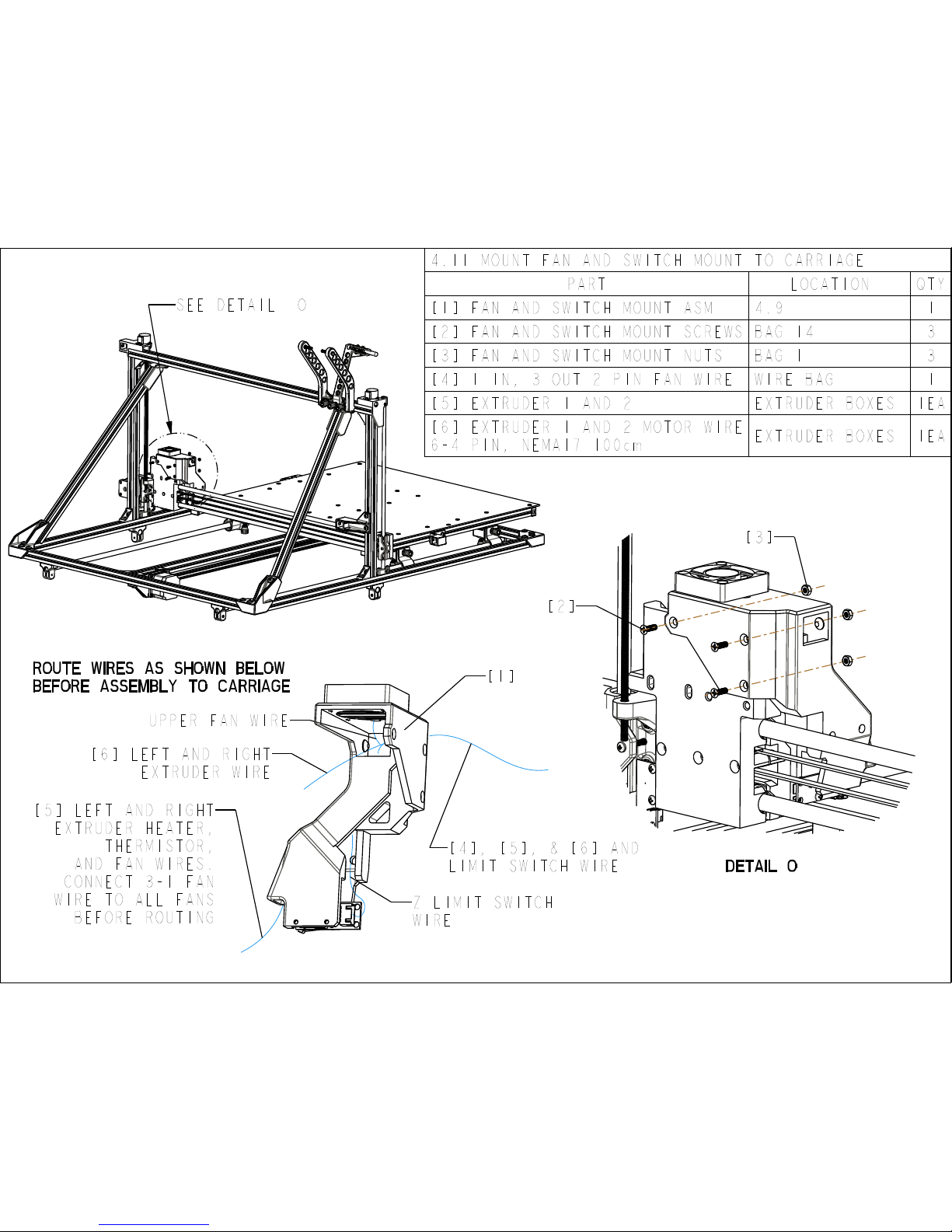

4.11 MOUNT FAN AND SWITCH MOUNT TO CARRIAGE

PART LOCATION QTY

[1] FAN AND SWITCH MOUNT ASM 4.9 1

[2] FAN AND SWITCH MOUNT SCREWS BAG 14 3

[3] FAN AND SWITCH MOUNT NUTS BAG 1 3

[4] 1 IN, 3 OUT 2 PIN FAN WIRE WIRE BAG 1

[5] EXTRUDER 1 AND 2 EXTRUDER BOXES 1EA

[6] EXTRUDER 1 AND 2 MOTOR WIRE
6-4 PIN, NEMA17 100cm

EXTRUDER BOXES 1EA

DETAIL O

ROUTE WIRES AS SHOWN BELOW
BEFORE ASSEMBLY TO CARRIAGE

SEE DETAIL O

[2]

[3]

[5] LEFT AND RIGHT

EXTRUDER HEATER,

THERMISTOR,

AND FAN WIRES.

CONNECT 3-1 FAN

WIRE TO ALL FANS

BEFORE ROUTING

Z LIMIT SWITCH
WIRE

UPPER FAN WIRE

[4], [5], & [6] AND
LIMIT SWITCH WIRE

[6] LEFT AND RIGHT

EXTRUDER WIRE

[1]

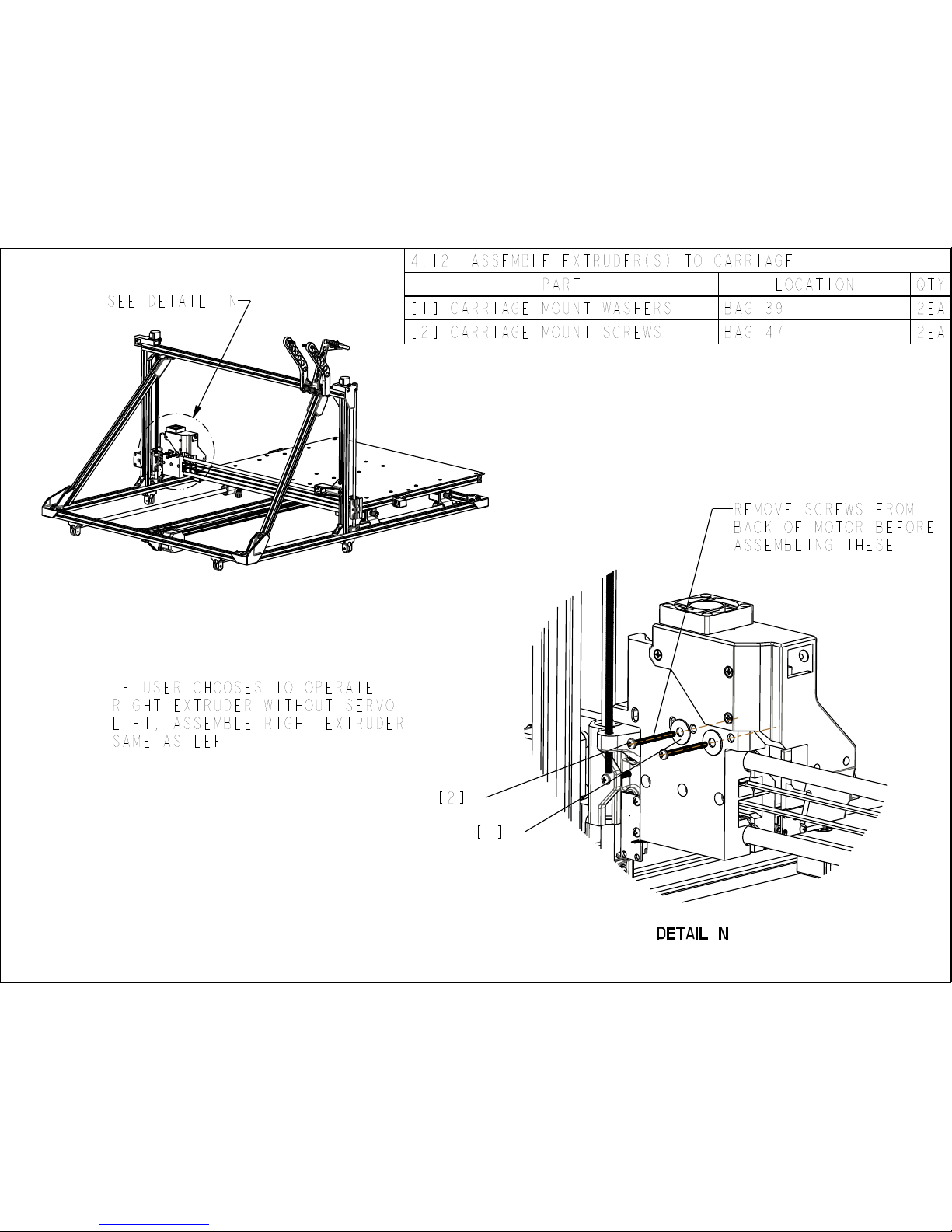

4.12 ASSEMBLE EXTRUDER(S) TO CARRIAGE

PART LOCATION QTY

[1] CARRIAGE MOUNT WASHERS BAG 39 2EA

[2] CARRIAGE MOUNT SCREWS BAG 47 2EA

DETAIL N

IF USER CHOOSES TO OPERATE
RIGHT EXTRUDER WITHOUT SERVO
LIFT, ASSEMBLE RIGHT EXTRUDER
SAME AS LEFT

SEE DETAIL N

REMOVE SCREWS FROM
BACK OF MOTOR BEFORE
ASSEMBLING THESE

[2]

[1]

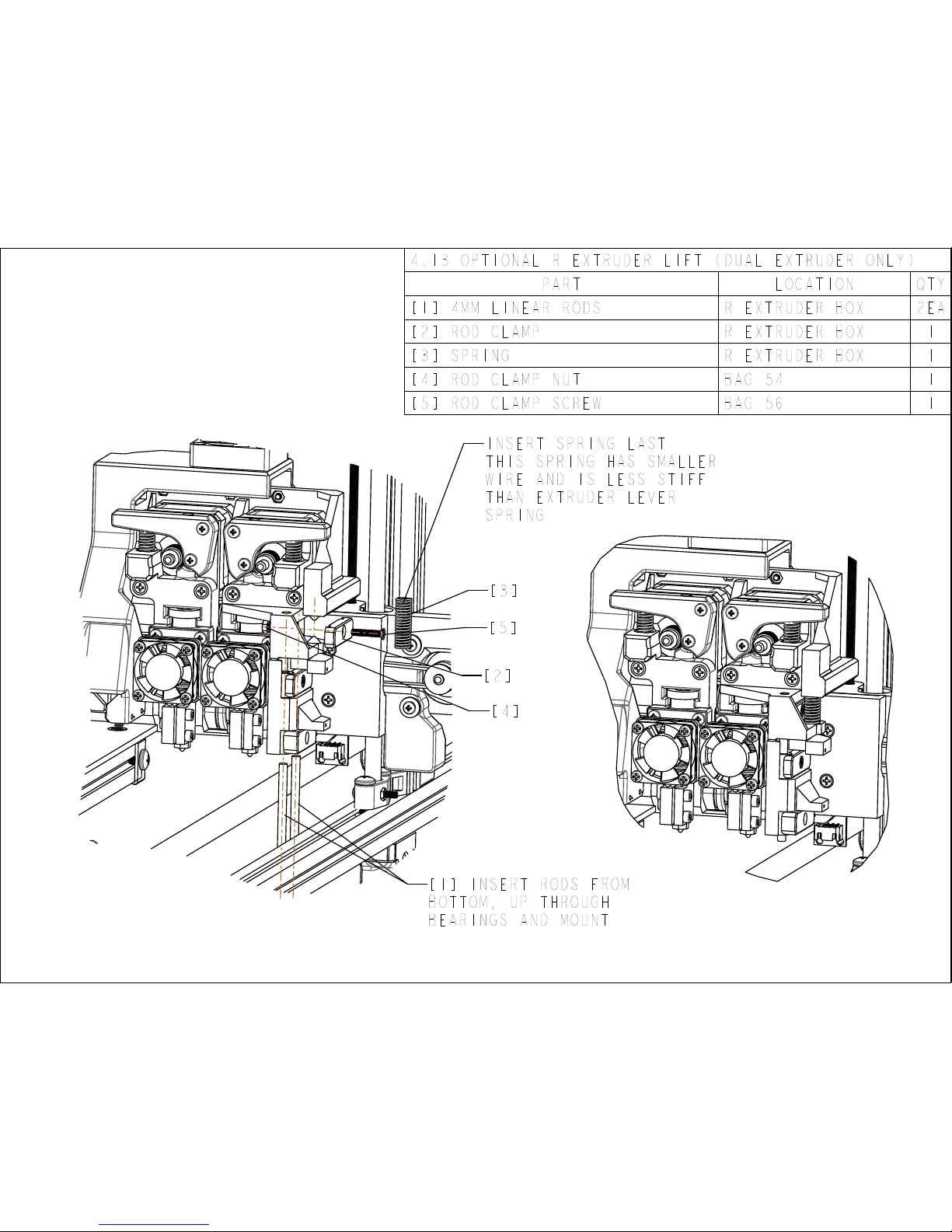

4.13 OPTIONAL R EXTRUDER LIFT (DUAL EXTRUDER ONLY)

PART LOCATION QTY

[1] 4MM LINEAR RODS R EXTRUDER BOX 2EA

[2] ROD CLAMP R EXTRUDER BOX 1

[3] SPRING R EXTRUDER BOX 1

[4] ROD CLAMP NUT BAG 54 1

[5] ROD CLAMP SCREW BAG 56 1

[1] INSERT RODS FROM
BOTTOM, UP THROUGH
BEARINGS AND MOUNT

INSERT SPRING LAST
THIS SPRING HAS SMALLER
WIRE AND IS LESS STIFF
THAN EXTRUDER LEVER
SPRING

[2]

[3]

[4]

[5]

4.14 ADJUST BED LEFT OR RIGHT AND GANTRY FORWARD OR BACK

DETAIL Q

DETAIL P

SEE DETAIL P

SEE DETAIL Q

MOVE EXTRUDER CARRIAGE UNTIL YOU
HEAR THE X LIMIT SWITCH CLICK, THEN
BACK 2mm. ENSURE LEFT EXTRUDER
NOZZLE WILL NOT COLLIDE WITH BUILD
PLATFORM. ADJUST BED POSITION IF
NECESSARY.

MOVE BUILD PLATFORM UNTIL THE

Y LIMIT SWITCH CLICKS, THEN BACK 2mm.

ENSURE LIMIT SWITCH CONTACTS

BUILD PLATFORM WITHOUT INTERFERENCE

FROM THE CARRIAGE. IF CARRIAGE

CONTACTS BUILD PLATFORM BEFORE THE

LIMIT SWITCH, ADJUST THE GANTRY ASM

FRONT OR BACK.

5.1 AC CIRCUIT COMPONENTS

PART LOCATION QTY

[1] ENCLOSURE PLASTIC PARTS BAG 1

[2] POWER SWITCH ELECTRONICS BOX 1

[3] FUSE AND HOLDER WIRE BAG 1

[4] 24VDC POWER SUPPLY ELECTRONICS BOX 1

[5] SSR HEATED BED KIT 1

[6] SSR HEATSINK HEATED BED KIT 1

[8] GND WIRE MOUNT SCREW BAG 51 1

[9] T SLOT NUT BAG 50 1

[10] POWER SUPPLY SCREWS BAG 20 2

[11] SSR MOUNT SCREWS BAG 22 2

[12] BED GND WIRE (LONG
BROWN BARE TO RING TERMINAL

HEATED BED KIT

1

WARNING: WORKING WITH AC VOLTAGES CAN
CAUSE SERIOUS HARM! SEEK HELP IF YOU
ARE UNSURE OF YOUR WIRING, AND ALWAYS
WORK WITH THE POWER CORD UNPLUGGED!

[2]

[3]

[1]

[4]

[5]

[6] REMOVE ADHESIVE
AND APPLY TO SSR

[11]

[10]

[12] MOUNT RING TERMINAL

TO FRAME HERE WITH [8]

AND [9]

ROUTE BED POWER (BLUE,

WHITE, AND GND [12]) AND BED

THERMISTOR WIRES AS BLUE

PATH SHOWS HERE

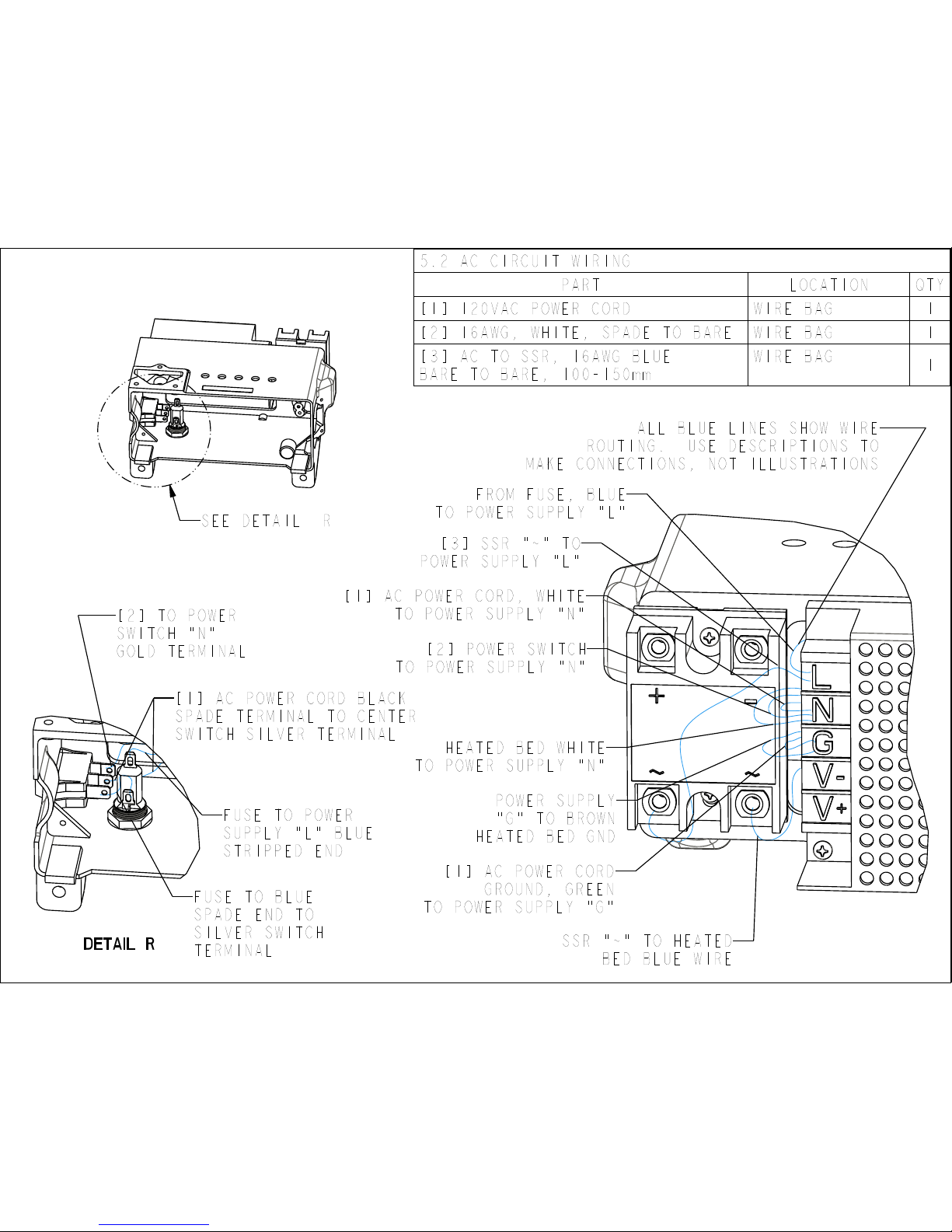

5.2 AC CIRCUIT WIRING

PART LOCATION QTY

[1] 120VAC POWER CORD WIRE BAG 1

[2] 16AWG, WHITE, SPADE TO BARE WIRE BAG 1

[3] AC TO SSR, 16AWG BLUE
BARE TO BARE, 100-150mm

WIRE BAG

1

DETAIL R

SEE DETAIL R

FUSE TO BLUE
SPADE END TO
SILVER SWITCH
TERMINAL

FUSE TO POWER
SUPPLY "L" BLUE
STRIPPED END

[1] AC POWER CORD BLACK
SPADE TERMINAL TO CENTER
SWITCH SILVER TERMINAL

[2] TO POWER
SWITCH "N"
GOLD TERMINAL

[3] SSR "~" TO

POWER SUPPLY "L"

FROM FUSE, BLUE

TO POWER SUPPLY "L"

HEATED BED WHITE

TO POWER SUPPLY "N"

[2] POWER SWITCH

TO POWER SUPPLY "N"

[1] AC POWER CORD, WHITE

TO POWER SUPPLY "N"

POWER SUPPLY
"G" TO BROWN

HEATED BED GND

[1] AC POWER CORD

GROUND, GREEN

TO POWER SUPPLY "G"

SSR "~" TO HEATED

BED BLUE WIRE

ALL BLUE LINES SHOW WIRE

ROUTING. USE DESCRIPTIONS TO

MAKE CONNECTIONS, NOT ILLUSTRATIONS

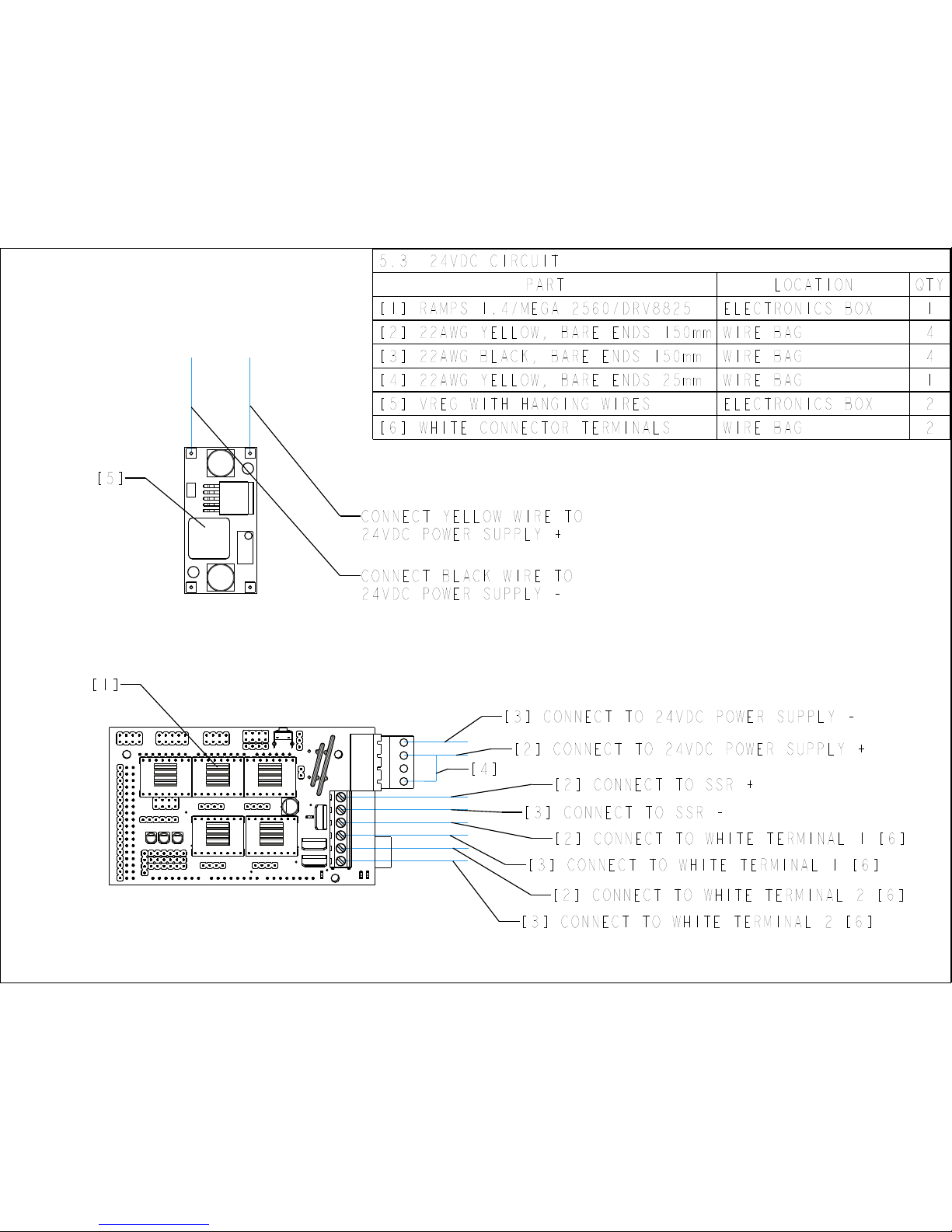

5.3 24VDC CIRCUIT

PART LOCATION QTY

[1] RAMPS 1.4/MEGA 2560/DRV8825 ELECTRONICS BOX 1

[2] 22AWG YELLOW, BARE ENDS 150mm WIRE BAG 4

[3] 22AWG BLACK, BARE ENDS 150mm WIRE BAG 4

[4] 22AWG YELLOW, BARE ENDS 25mm WIRE BAG 1

[5] VREG WITH HANGING WIRES ELECTRONICS BOX 2

[6] WHITE CONNECTOR TERMINALS WIRE BAG 2

[4]

[2] CONNECT TO 24VDC POWER SUPPLY +

[3] CONNECT TO 24VDC POWER SUPPLY -

[2] CONNECT TO SSR +

[3] CONNECT TO SSR -

[2] CONNECT TO WHITE TERMINAL 1 [6]

[3] CONNECT TO WHITE TERMINAL 1 [6]

[2] CONNECT TO WHITE TERMINAL 2 [6]

[3] CONNECT TO WHITE TERMINAL 2 [6]

[1]

CONNECT YELLOW WIRE TO
24VDC POWER SUPPLY +

CONNECT BLACK WIRE TO
24VDC POWER SUPPLY -

[5]

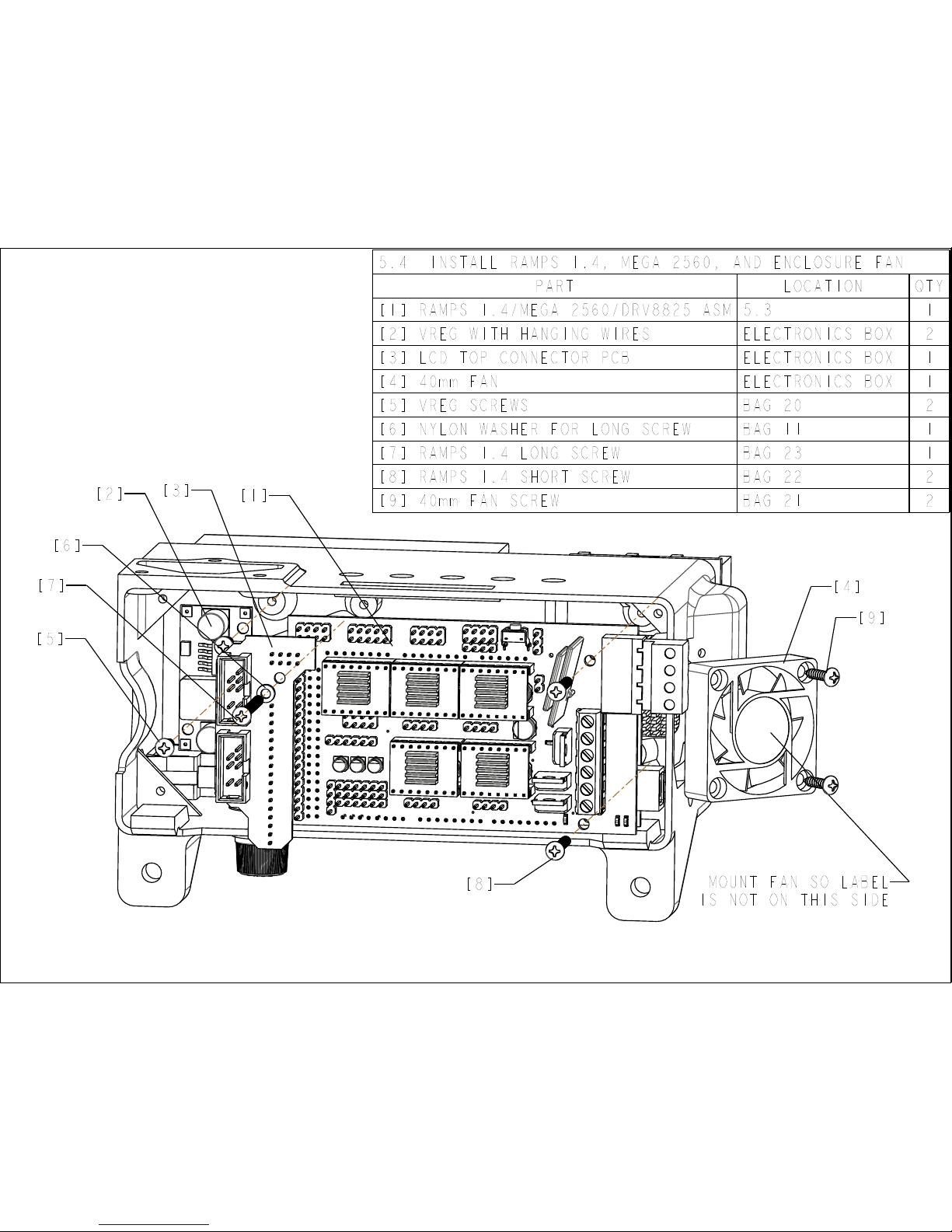

5.4 INSTALL RAMPS 1.4, MEGA 2560, AND ENCLOSURE FAN

PART LOCATION QTY

[1] RAMPS 1.4/MEGA 2560/DRV8825 ASM 5.3 1

[2] VREG WITH HANGING WIRES ELECTRONICS BOX 2

[3] LCD TOP CONNECTOR PCB ELECTRONICS BOX 1

[4] 40mm FAN ELECTRONICS BOX 1

[5] VREG SCREWS BAG 20 2

[6] NYLON WASHER FOR LONG SCREW BAG 11 1

[7] RAMPS 1.4 LONG SCREW BAG 23 1

[8] RAMPS 1.4 SHORT SCREW BAG 22 2

[9] 40mm FAN SCREW BAG 21 2

MOUNT FAN SO LABEL

IS NOT ON THIS SIDE

[9]

[4]

[1]

[2]

[3]

[7]

[6]

[5]

[8]

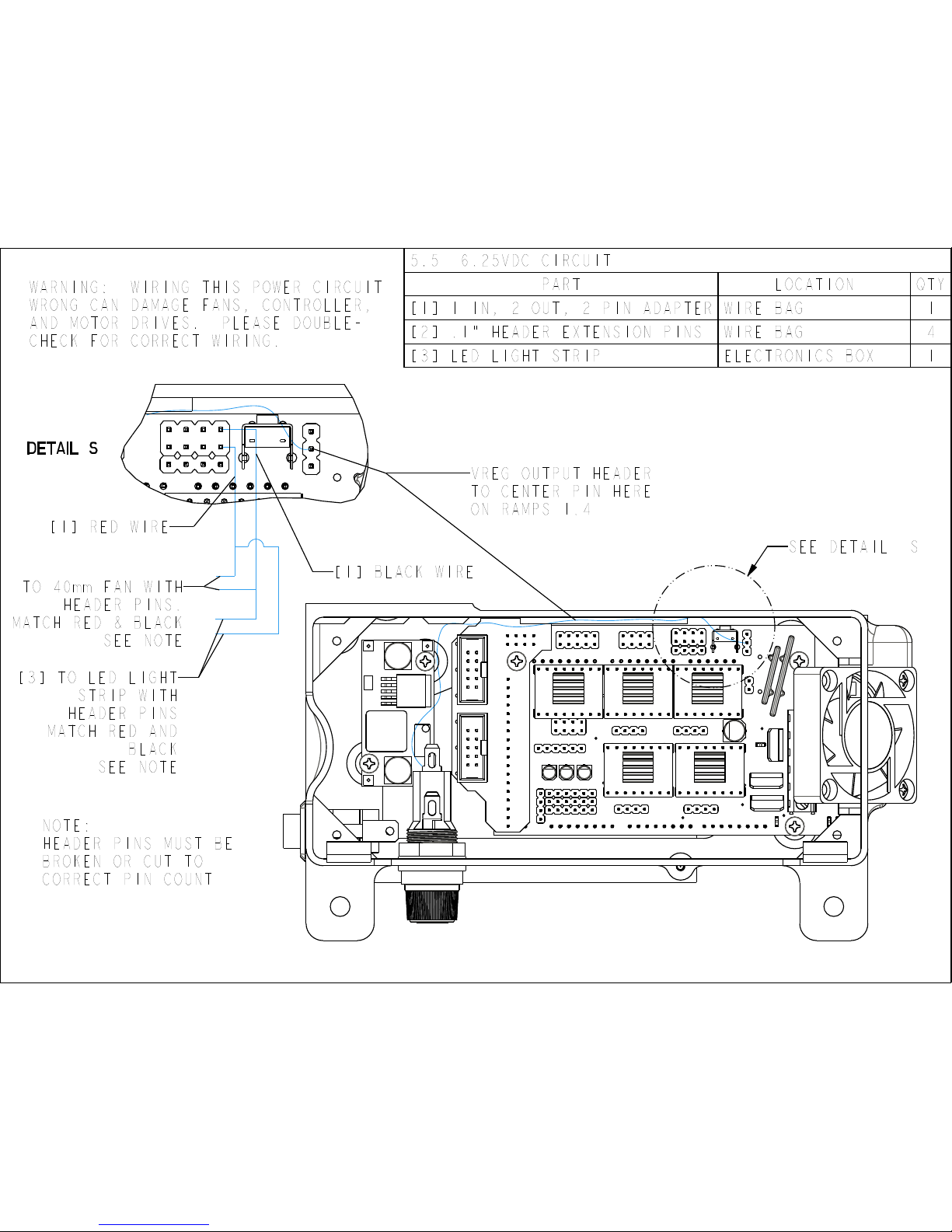

5.5 6.25VDC CIRCUIT

PART LOCATION QTY

[1] 1 IN, 2 OUT, 2 PIN ADAPTER WIRE BAG 1

[2] .1" HEADER EXTENSION PINS WIRE BAG 4

[3] LED LIGHT STRIP ELECTRONICS BOX 1

VREG OUTPUT HEADER
TO CENTER PIN HERE
ON RAMPS 1.4

DETAIL S

NOTE:
HEADER PINS MUST BE
BROKEN OR CUT TO
CORRECT PIN COUNT

WARNING: WIRING THIS POWER CIRCUIT
WRONG CAN DAMAGE FANS, CONTROLLER,
AND MOTOR DRIVES. PLEASE DOUBLE­CHECK FOR CORRECT WIRING.

SEE DETAIL S

[1] BLACK WIRE

[1] RED WIRE

TO 40mm FAN WITH

HEADER PINS.

MATCH RED & BLACK

SEE NOTE

[3] TO LED LIGHT

STRIP WITH

HEADER PINS

MATCH RED AND

BLACK

SEE NOTE

5.6 MOUNT ENCLOSURE TO TOP GANTRY FRAME

PART LOCATION QTY

[1] T SLOT NUTS BAG 3 2

[2] ENCLOSURE MOUNT WASHER BAG 9 2

[3] ENCLOSURE MOUNT SCREWS BAG 26 2

SEE DETAIL T

DETAIL T

REMOVE ADHESIVE FROM LED'S AND

APPLY TO UNDERSIDE OF FRAME

[1] IN FRAME

[2]

[3]

5.7 WIRE EXTENSIONS AND ROUTING

PART SIZE WIRE LOCATION QTY

[1] X AXIS MOTOR CABLE ALL ATTACHED N/A 1

[2] Y AXIS MOTOR CABLE

300x300 ATTACHED + 4P 30cm FFH WIRE BAG 1

600x300 ATTACHED + 4P 70cm FFH WIRE BAG 1

600x600 6-4P NEMA23 MOTOR WIRE +

4P 70cm FFH + 4P 30cm FFH

WIRE BAG

1

[3] Z AXIS MOTOR CABLE ALL ATTACHED + 4P 20cm FFH. SEE NOTE 2. WIRE BAG 2

[4] X AXIS LIMIT SWITCH
CABLE

ALL 4-3P WIRE + 3P 30cm FFH WIRE BAG 1

[5] Y AXIS LIMIT SWITCH

300x300 4-3P WIRE + 3P 70cm FFH WIRE BAG

600x300 4-3P WIRE + 3P 70cm FFH WIRE BAG 1

600x600 4-3P WIRE + 3P 70cm FFH + 3P 30cm FFH WIRE BAG 1

[6] Z AXIS LIMIT SWITCH
CABLE

ALL 4-3P WIRE + 3P 30cm FFH WIRE BAG 1

.1" HEADER EXT. PINS WIRE BAG 28

"2" LABEL (OPT.) R EXTRUDER BOX 2

SPIRAL WIRE WRAP WIRE BAG

NOTES:

1. IN WIRE DESCRIPTIONS, THE FOLLOWING ABBREVIATIONS ARE USED:
"P" MEANS PIN. "FFH" MEANS FEMALE TO FEMALE HEADER CABLE.
XXcm DENOTES THE LENGTH, IN cm.

2. THE Z AXIS MOTOR WIRES LABELED "SWITCHED" HAVE 2 OF THE 4
PINS SWITCHED. THIS CAN BE IDENTIFIED BY COMPARING THE WIRE
COLORS OF THE ENDS OF EACH CONNECTOR. THE "SWITCHED" WIRE
WILL SHOW 2 WIRES TO BE NOT IN THE SAME ORDER AS THE OTHER 2.

3. THE Z MOTOR WIRE CONNECTOR HAS 5 PINS, AND THE EXTENSION IS A
4-PIN FFH WIRE. LEAVE THE RED WIRE FROM THE 5-PIN MOTOR
CONNECTOR NOT CONNECTED.

4. WHERE "+" IS SHOWN IN CHART, USE HEADER EXTENSION PINS.

SEE NEXT PAGE FOR WIRE ROUTING

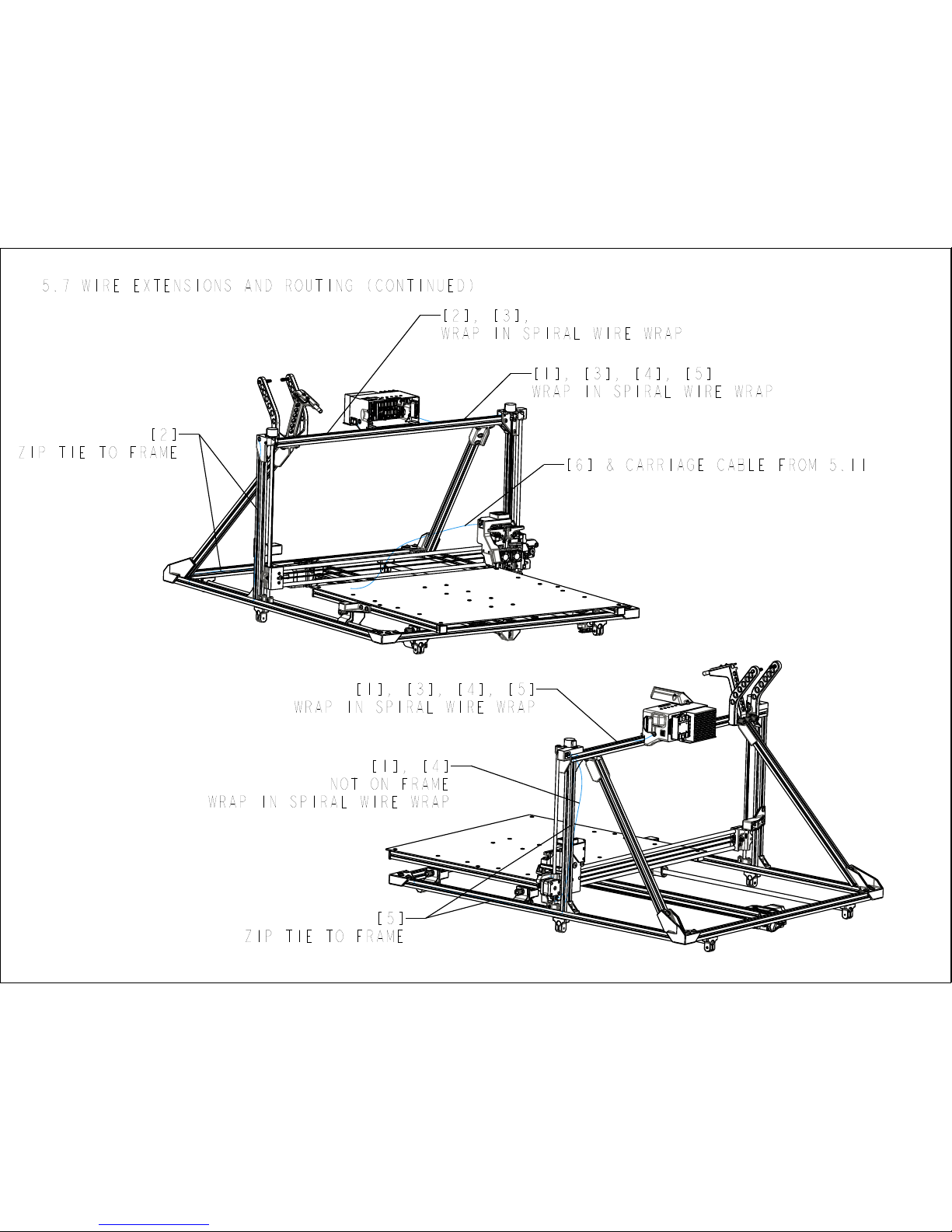

5.7 WIRE EXTENSIONS AND ROUTING (CONTINUED)

[2]

ZIP TIE TO FRAME

[2], [3],
WRAP IN SPIRAL WIRE WRAP

[1], [3], [4], [5]
WRAP IN SPIRAL WIRE WRAP

[6] & CARRIAGE CABLE FROM 5.11

[1], [4]

NOT ON FRAME

WRAP IN SPIRAL WIRE WRAP

[1], [3], [4], [5]

WRAP IN SPIRAL WIRE WRAP

[5]

ZIP TIE TO FRAME

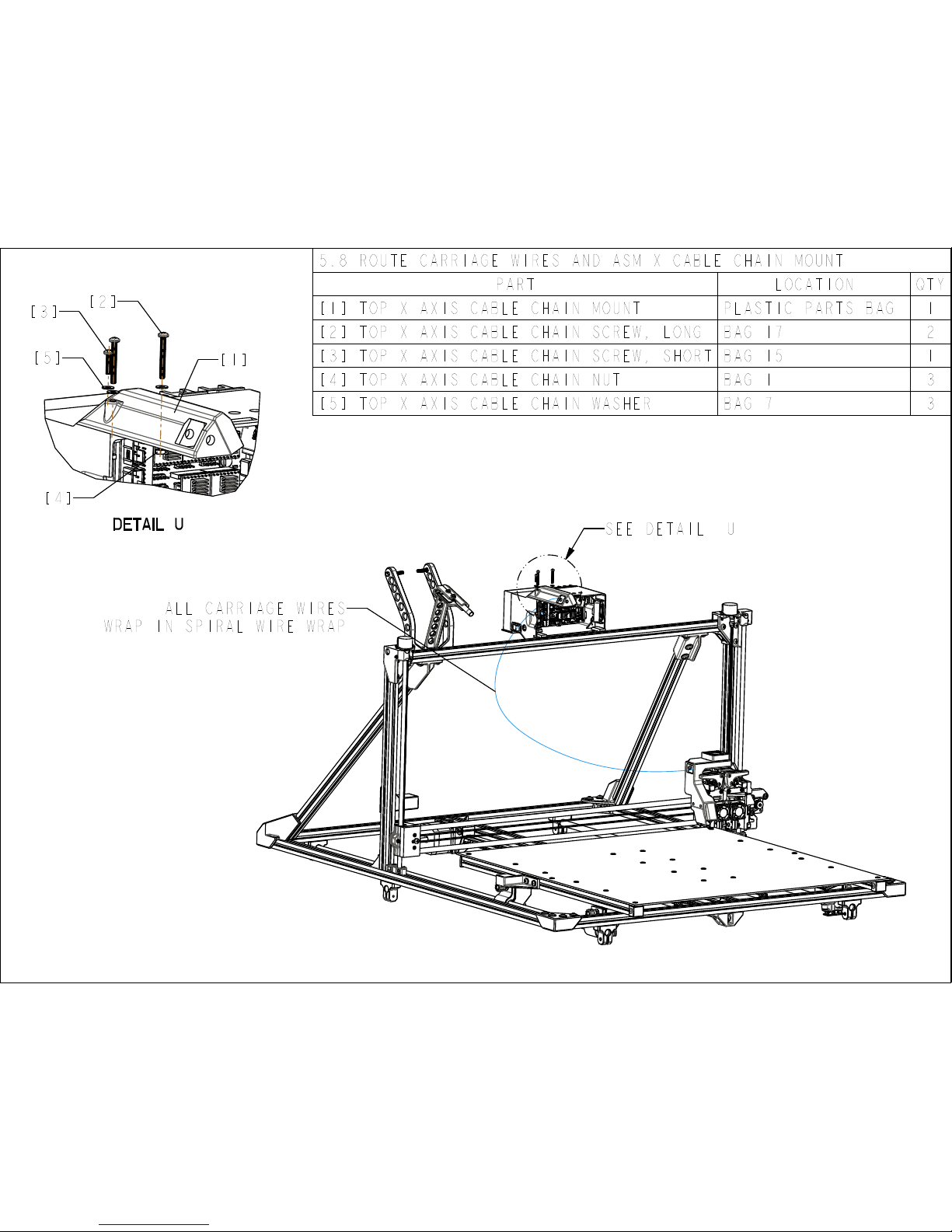

5.8 ROUTE CARRIAGE WIRES AND ASM X CABLE CHAIN MOUNT

PART LOCATION QTY

[1] TOP X AXIS CABLE CHAIN MOUNT PLASTIC PARTS BAG 1

[2] TOP X AXIS CABLE CHAIN SCREW, LONG BAG 17 2

[3] TOP X AXIS CABLE CHAIN SCREW, SHORT BAG 15 1

[4] TOP X AXIS CABLE CHAIN NUT BAG 1 3

[5] TOP X AXIS CABLE CHAIN WASHER BAG 7 3

SEE DETAIL U

ALL CARRIAGE WIRES

WRAP IN SPIRAL WIRE WRAP

DETAIL U

[5]

[3]

[2]

[1]

[4]

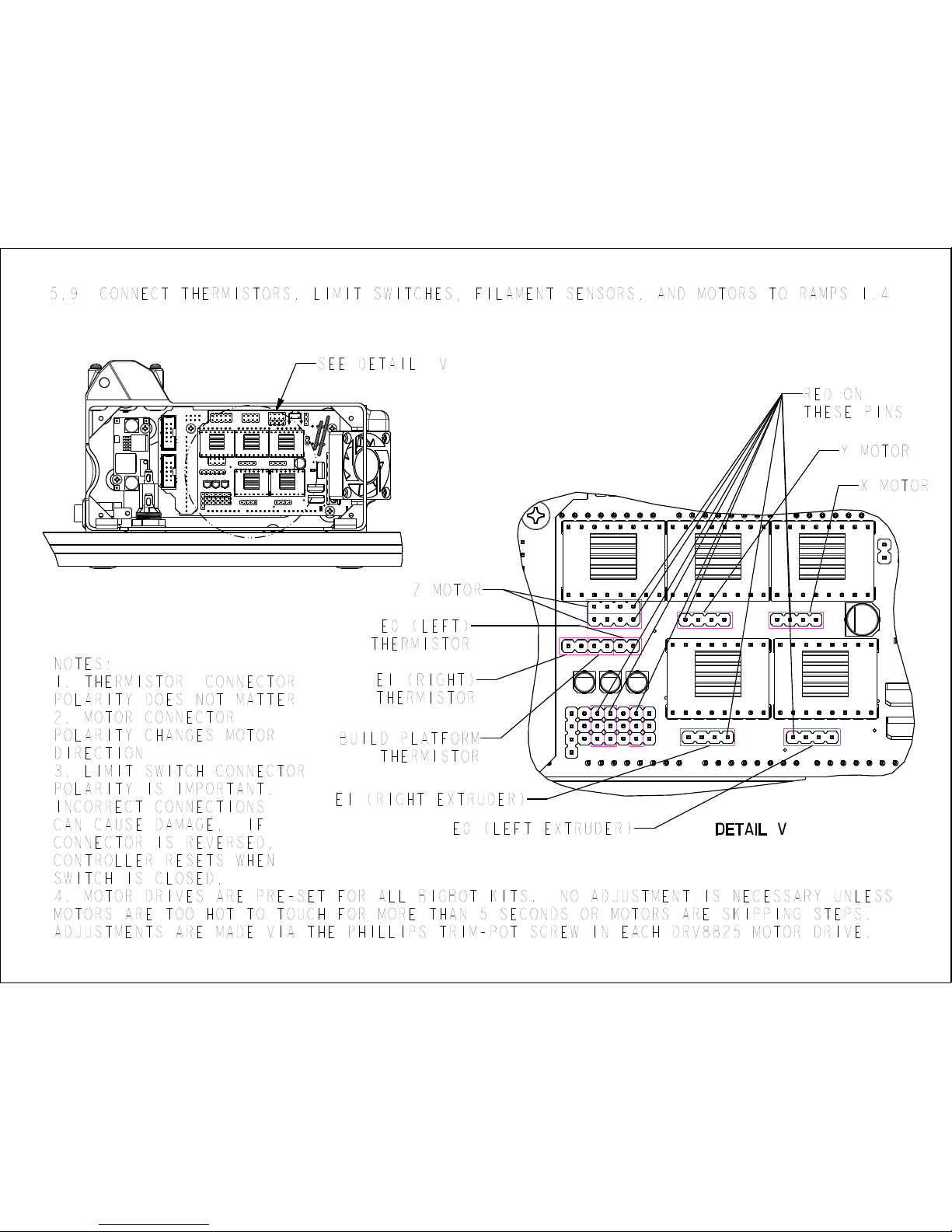

5.9 CONNECT THERMISTORS, LIMIT SWITCHES, FILAMENT SENSORS, AND MOTORS TO RAMPS 1.4

NOTES:

1. THERMISTOR CONNECTOR
POLARITY DOES NOT MATTER

2. MOTOR CONNECTOR
POLARITY CHANGES MOTOR
DIRECTION

3. LIMIT SWITCH CONNECTOR
POLARITY IS IMPORTANT.
INCORRECT CONNECTIONS
CAN CAUSE DAMAGE. IF
CONNECTOR IS REVERSED,
CONTROLLER RESETS WHEN
SWITCH IS CLOSED.

4. MOTOR DRIVES ARE PRE-SET FOR ALL BIGBOT KITS. NO ADJUSTMENT IS NECESSARY UNLESS
MOTORS ARE TOO HOT TO TOUCH FOR MORE THAN 5 SECONDS OR MOTORS ARE SKIPPING STEPS.
ADJUSTMENTS ARE MADE VIA THE PHILLIPS TRIM-POT SCREW IN EACH DRV8825 MOTOR DRIVE.

SEE DETAIL V

DETAIL V

RED ON
THESE PINS

Z MOTOR

Y MOTOR

X MOTOR

E1 (RIGHT EXTRUDER)

E0 (LEFT EXTRUDER)

E1 (RIGHT)
THERMISTOR

BUILD PLATFORM

THERMISTOR

E0 (LEFT)

THERMISTOR

5.10 MOUNT AND CONNECT LCD AND SD READER

PART LOCATION QTY

[1] LCD ELECTRONICS BOX 1

[2] FRONT COVER PLASTIC PARTS BAG 1

[3] FRONT COVER SCREWS BAG 14 4

LCD RIBBON CABLE ELECTRONICS BOX 2

1. CONNECT BOTH IDE CABLES FROM LCD
TO RAMPS 1.4. BE SURE MATCH EXP0 TO EXP0
(SEE LCD AND RAMPS FOR LABEL)

2. DO NOT MOUNT LCD COVER TO ENCLOSURE YET.

LCD KNOB

[1]

[2]

[3]

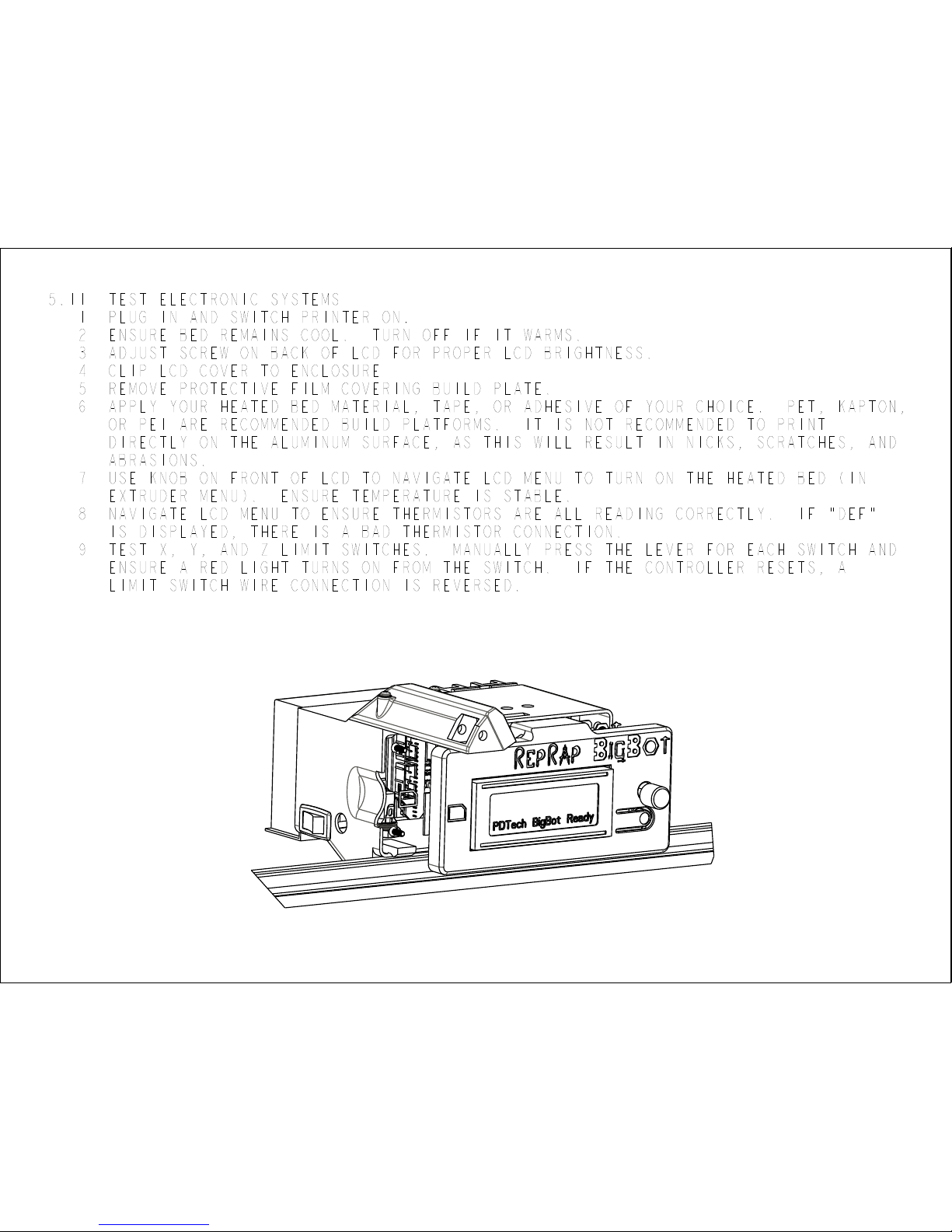

5.11 TEST ELECTRONIC SYSTEMS
1 PLUG IN AND SWITCH PRINTER ON.
2 ENSURE BED REMAINS COOL. TURN OFF IF IT WARMS.
3 ADJUST SCREW ON BACK OF LCD FOR PROPER LCD BRIGHTNESS.
4 CLIP LCD COVER TO ENCLOSURE
5 REMOVE PROTECTIVE FILM COVERING BUILD PLATE.
6 APPLY YOUR HEATED BED MATERIAL, TAPE, OR ADHESIVE OF YOUR CHOICE. PET, KAPTON,
OR PEI ARE RECOMMENDED BUILD PLATFORMS. IT IS NOT RECOMMENDED TO PRINT
DIRECTLY ON THE ALUMINUM SURFACE, AS THIS WILL RESULT IN NICKS, SCRATCHES, AND
ABRASIONS.
7 USE KNOB ON FRONT OF LCD TO NAVIGATE LCD MENU TO TURN ON THE HEATED BED (IN
EXTRUDER MENU). ENSURE TEMPERATURE IS STABLE.
8 NAVIGATE LCD MENU TO ENSURE THERMISTORS ARE ALL READING CORRECTLY. IF "DEF"
IS DISPLAYED, THERE IS A BAD THERMISTOR CONNECTION.
9 TEST X, Y, AND Z LIMIT SWITCHES. MANUALLY PRESS THE LEVER FOR EACH SWITCH AND
ENSURE A RED LIGHT TURNS ON FROM THE SWITCH. IF THE CONTROLLER RESETS, A
LIMIT SWITCH WIRE CONNECTION IS REVERSED.

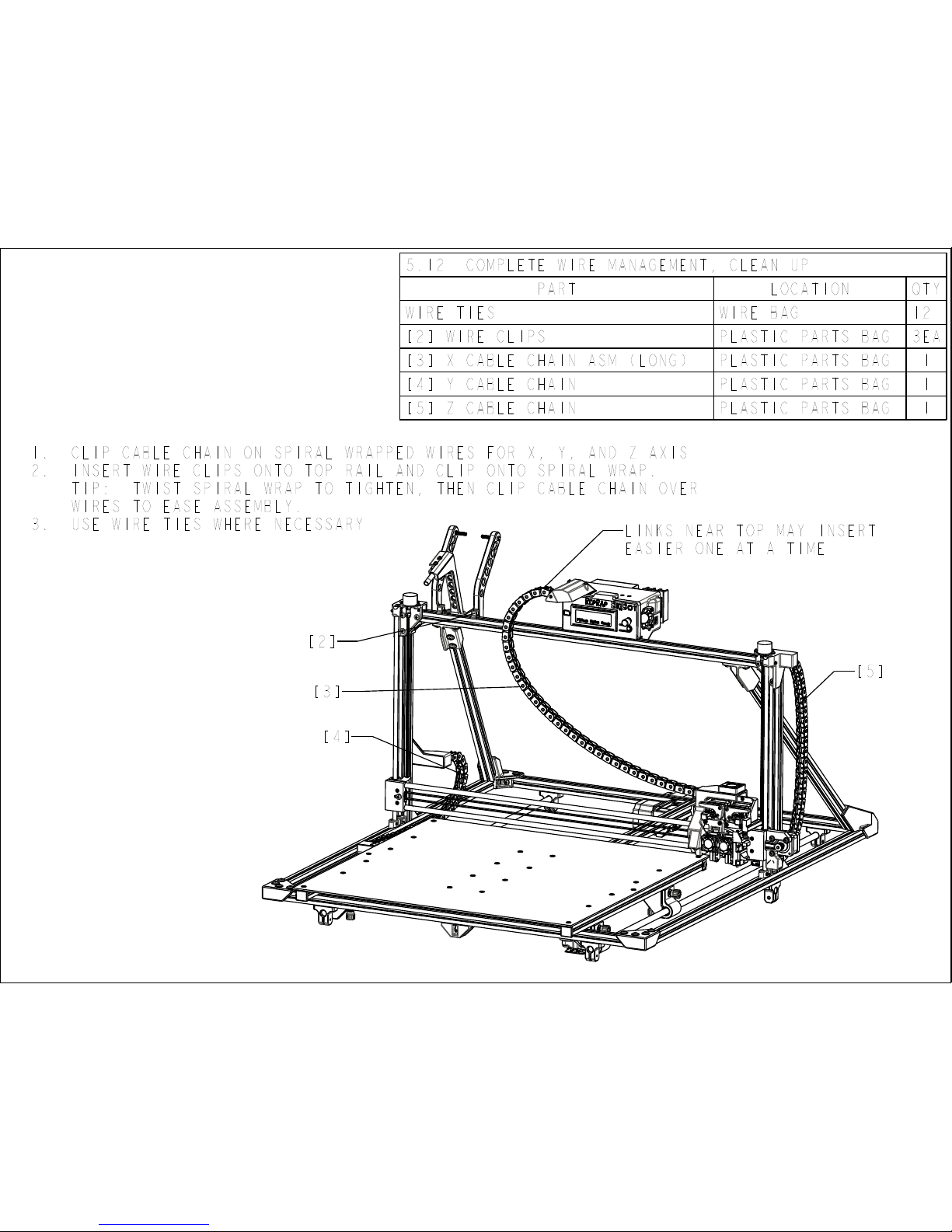

5.12 COMPLETE WIRE MANAGEMENT, CLEAN UP

PART LOCATION QTY

WIRE TIES WIRE BAG 12

[2] WIRE CLIPS PLASTIC PARTS BAG 3EA

[3] X CABLE CHAIN ASM (LONG) PLASTIC PARTS BAG 1

[4] Y CABLE CHAIN PLASTIC PARTS BAG 1

[5] Z CABLE CHAIN PLASTIC PARTS BAG 1

1. CLIP CABLE CHAIN ON SPIRAL WRAPPED WIRES FOR X, Y, AND Z AXIS

2. INSERT WIRE CLIPS ONTO TOP RAIL AND CLIP ONTO SPIRAL WRAP.
TIP: TWIST SPIRAL WRAP TO TIGHTEN, THEN CLIP CABLE CHAIN OVER
WIRES TO EASE ASSEMBLY.

3. USE WIRE TIES WHERE NECESSARY
LINKS NEAR TOP MAY INSERT

EASIER ONE AT A TIME

[3]

[4]

[5]

[2]

CONGRATULATIONS, ASSEMBLY OF YOUR BIGBOT PRINTER IS COMPLETE!
CONTINUE ON TO USAGE INSTRUCTIONS WHEN YOU'RE READY TO START PRINTING!
