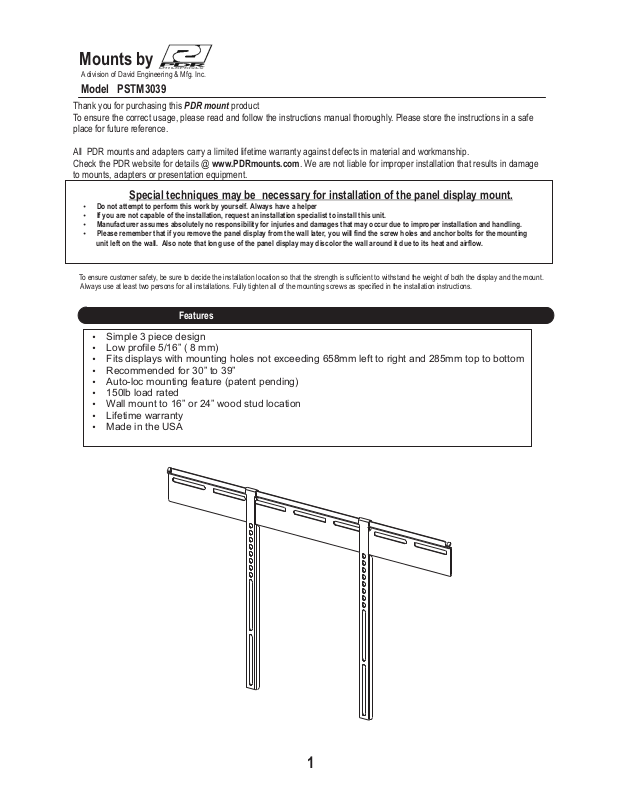

Mounts by

A division of David Engineering & Mfg. Inc.

Model PSTM3039

Thank you for purchasing this PDR mount product
To ensure the correct usage, please read and follow the instructions manual thoroughly. Please store the instructions in a safe
place for future reference.

All PDR mounts and adapters carry a limited lifetime warranty against defects in material and workmanship.
Check the PDR website for details @ www.PDRmounts.com. We are not liable for improper installation that results in damage
to mounts, adapters or presentation equipment.

Special techniques may be necessary for installation of the panel display mount.

?Do not attempt to perform this work by yourself. Always have a helper
?If you are not capable of the installation, request an installation specialist to install this unit.
?Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.
?Please remember that if you remove the panel display from the wall later, you will find the screw holes and anchor bolts for the mounting

unit left on the wall. Also note that long use of the panel display may discolor the wall around it due to its heat and airflow.

To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the display and the mount.
Always use at least two persons for all installations. Fully tighten all of the mounting screws as specified in the installation instructions.

?Simple 3 piece design
?Low profile 5/16” ( 8 mm)
?Fits displays with mounting holes not exceeding 658mm left to right and 285mm top to bottom
?Recommended for 30” to 39”
?Auto-loc mounting feature (patent pending)
?150lb load rated
?Wall mount to 16” or 24” wood stud location
?Lifetime warranty
?Made in the USA

Features

1

INSTALLATION LOCATION

The wall where the wall mount is to be installed must be capable of long-term support of the total load of
the panel display and wall mount. Measures should also be taken to ensure sufficient strength to
withstand the force of earthquakes, vibration and other external forces.

Note: Incorrect installation can cause the panel display to fall and cause injury.

INSTALLATION ON A WOODEN WALL

Always install so that the load is supported by a wood stud. If the strength of the wood studs is not sufficient, add reinforcement.

Do not install on decorative posts or plaster board. Always confirm the center of the stud is used for the installation.

Avoid installing in locations where the temperature and humidity are excessively high, and where contact with any water is possible.
These can result in fire or electric shock.
Do not install close to an air conditioner intake or outlet.
Do not install in locations where there are excessive amounts of dust, oily smoke or tobacco smoke. Fire could result.
Do not block the ventilation holes. Leave sufficient clearance in regard to the surroundings to avoid blocking the ventilation.
The internal temperature could elevate and possibly result in fire. Install the panel (4") or more away from surroundings.
Install only on a vertical surface. Avoid sloped surfaces. Also, do not install facing upward. The internal temperature could
elevate and possibly result in fire. Injury or damage could also result from falling.
Do not install in locations where there is excessive vibration or impact. Injury and damage could result from the panel display
falling.
Do not install where there is direct sunlight or other strong light. Strong light could result in eye fatigue during usage.

Total load of the panel (panel display + wall mount)
MAXIMUM WEIGHT - 150 Lbs. ( 68 Kg.)

WARNING

CAUTION

Use the specified bolts and screws in the specified places and tighten firmly. Failure to do this could cause injury if the panel
display falls.
Do not alter any of the parts. Do not use broken parts. This could result with injury due to the panel display falling.
Make sure that both hooks from the each bracket engage with the wall bracket . Failure to do so could cause the panel
display to fall.
Always use at least two people to perform the installation work. Injury could result from dropping heavy objects.

Rev 11/01/09

WARNING

2

DRAWING SPECIFICATIONS

27.405

658

25.91

.280

X 2.88 SLOT TYPICAL

285

11.23

.315

2.43

14.23
