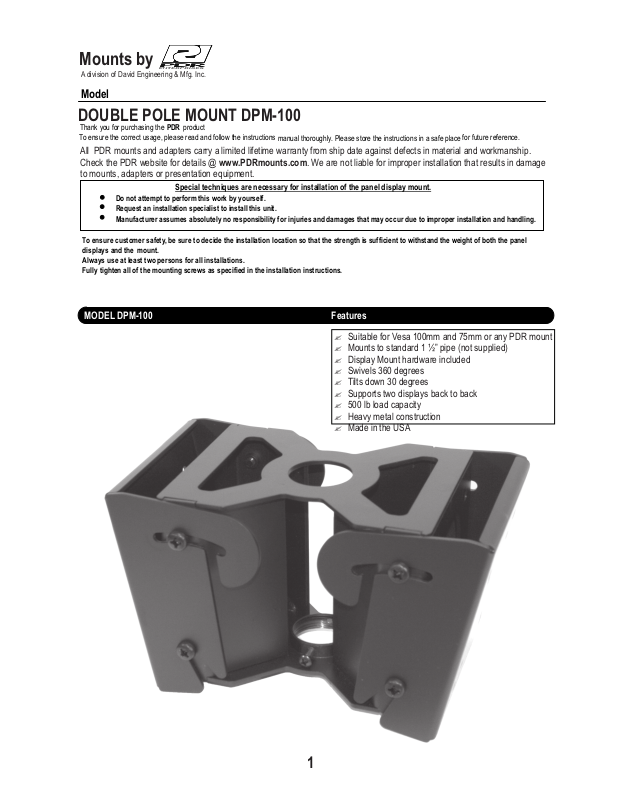

PDR Mounts dpm100 User Manual

Mounts by

A division of David Engineering & Mfg. Inc.

M odel

DOUBLE POLE MOUNT DPM-100

Thank you for purchasing the PDR product
To ensure the correct usage, please read and follow the instructions

All PDR mounts and adapters carry a limited lifetime warranty from ship date against defects in material and workmanship.
Check the PDR website for details @ www.PDRmounts.com. We are not liable for improper installation that results in damage

to mounts, adapters or presentation equipment.

manual thoroughly. Please store the instructions in a safe place

Special techniques are necessary for installation of the panel display mount.

Do not attempt to perform this work by yourself.
Request an installation specialist to install this unit.
Manufacturer assumes absolutely no responsibility for injuries and damages that may occur due to improper installation and handling.

for future reference.

To ensure customer safety, be sure to decide the installation location so that the strength is sufficient to withstand the weight of both the panel
displays and the mount.
Always use at least two persons for all installations.
Fully tighten all of the mounting screws as specified in the installation instructions.

MODEL DPM-100

Features

?Suitable for Vesa 100mm and 75mm or any PDR mount
?Mounts to standard 1 ½” pipe (not supplied)
?Display Mount hardware included
?Swivels 360 degrees
?Tilts down 30 degrees
?Supports two displays back to back
?500 lb load capacity
?Heavy metal construction
?Made in the USA

1

INSTALLATION LOCATION

The ceiling where the mount is to
the panel displays and DPM-100 mount. Measures should also
withstand the force of earthquakes, vi

Note: Incorrect installation can cause the

Total load of the panel (p

be installed must be capable of long-term support of the total load of

MAXIMUM WEIGHT - 500 Lbs. ( 226 Kg.)

WARNING

bration and other external forces.

displays to fall and cause injury.

be taken to ensure sufficient strength to

anel displays + pole mount)

Do not install close to an air conditioner intake or outlet. Do
oily smoke or tobacco smoke. Fire could result.
Do not block the ventilation holes. Leave sufficient clearance in regard to the surroundings to avoid blocking the ventilation..
Do not install in locations where there is excessive vibration or impact. Injury and damage could result from the panel displays
falling.

CAUTION

not install in locations where there are excessive amounts of dust

WARNING

Use the specified bolts and screws in the specified places and tighten firmly. Failure to do this could cause injury if the panel
displays fall.
Do not alter any of the parts. Do not use broken parts.

Always use at least two people to perform the installation work. Injury could result from dropping heavy objects.

Rev 033108

Caution: Installation o

location by checking the ceiling structure and durability for safety and accident prevention

f units to be carried out by qualified technicians only. Install in an appropriate

2

Fig1

30° MAX TILT

MODEL DPM-100 SPECIFICATIONS

9.560

6.290

TOP VIEW

30° MAX TILT

100mm

75mm

1 ½”NPT

SIDE VIEW

BOTTOM VIEW

LOCKING SCREW

6.750

.265 DIA

FRONT VIEW MOUNTING PATTERN

bottom screw

100mm

75mm

.325 DIA

3
