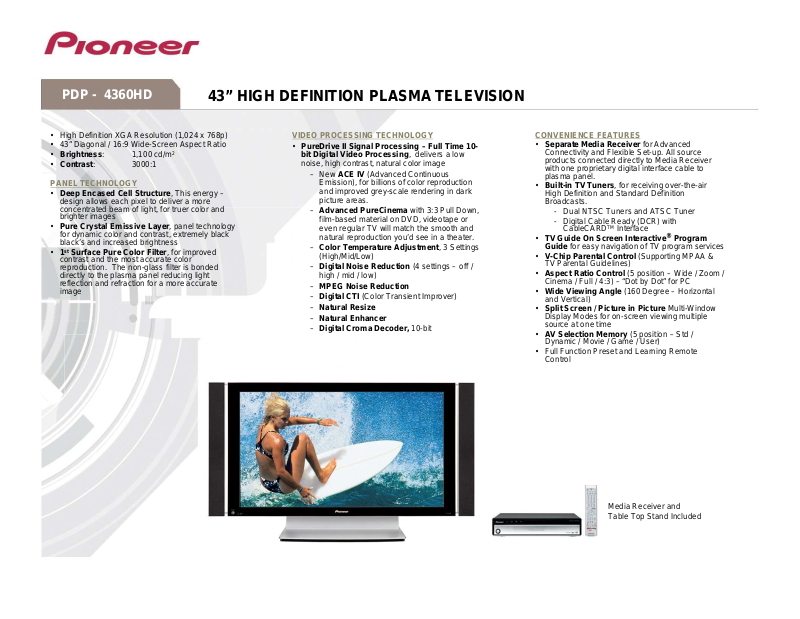

PDP 4360HD User Manual

PDP - 4360HD

43” HIGH DEFINITION PLASMA TELEVISION

• High Definition XGA Resolution (1,024 x 768p)

• 43”Diagonal / 16:9 Wide-Screen Aspect Ratio

• Brightness: 1,100 cd/m

• Contrast: 3000:1

PANEL TECHNOLOGY

• Deep Encased Cell Structure, This energy –
design allows each pixel to deliver a more
concentrated beam of light, for truer color and
brighter images

• Pure Crystal Emissive Layer, panel technology
for dynamic color and contrast, extremely black
black’s and increased brightness

• 1stSurface Pure Color Filter, for improved
contrast and the most accurate color
reproduction. The non-glass filter is bonded
directly to the plasma panel reducing light
reflection and refraction for a more accurate

2

VIDEO PROCESSING TECHNOLOGY

• PureDrive II Signal Processing – Full Time 10­bit Digital Video Processing, delivers a low

noise, high contrast, natural color image

– New ACE IV (Advanced Continuous

Emission), for billions of color reproduction
and improved grey-scale rendering in dark
picture areas.

– Advanced PureCinema with 3:3 Pull Down,

film-based material on DVD, videotape or
even regular TV will match the smooth and
natural reproduction you’d see in a theater.

– Color Temperature Adjustment, 3 Settings

(High/Mid/Low)

– Digital Noise Reduction (4 settings – off /

high / mid / low)
– MPEG Noise Reduction
– Digital CTI (Color Transient Improver)
– Natural Resize
– Natural Enhancer
– Digital Croma Decoder, 10-bit

CONVENIENCE FEATURES

• Separate Media Receiver for Advanced
Connectivity and Flexible Set-up. All source
products connected directly to Media Receiver
with one proprietary digital interface cable to
plasma panel.

• Built-in TV Tuners, for receiving over-the-air
High Definition and Standard Definition
Broadcasts.

- Dual NTSC Tuners and ATSC Tuner

- Digital Cable Ready (DCR) with
CableCARDTMInterface

• TV Guide On Screen Interactive®Program
Guide for easy navigation of TV program services

• V-Chip Parental Control (Supporting MPAA &
TV Parental Guidelines)

• Aspect Ratio Control (5 position – Wide / Zoom /
Cinema / Full / 4:3) – “Dot by Dot” for PC

• Wide Viewing Angle (160 Degree – Horizontal
and Vertical)

• Split Screen / Picture in Picture Multi-Window
Display Modes for on-screen viewing multiple
source at one time

• AV Selection Memory (5 position – Std /
Dynamic / Movie / Game / User)

• Full Function Preset and Learning Remote
Control

Media Receiver and
Table Top Stand Included

PDP - 4360HD

43” HIGH DEFINITION PLASMA TELEVISION

VERSITILE VIDEO AND AUDO CONNECTIVITY

• Inputs:

- Antenna F Connections x 2 (1-Digital &
Analog / 1-Analog)

- HDMI with HDCP x 2

- Component x 3, (2 on rear / 1 on front)

- AV Composite x 3 (2 on rear / 1 on front)

- S-Video x 3 (2 on rear / 1 on front)

- i.Link x 2 (For use with DVHS)

- D-Sub for PC x 1 (Front)

- SR In x1

- CableCARDTMInterface (rear)

• Outputs:

- Optical Audio Output x 1

- Subwoofer Output x 1

- Monitor Output x 1 (Composite)

- SR+ Output x 1

DISCLAIMERS

• Specifications and design subject to modification without notice.

• High-Definition Television (HDTV): HDTV refers to a complete
product/system with the following minimum performance attributes •
Receiver: Receives ATSC terrestrial digital transmissions and decodes all
ATSCTable 3 video formats • Display Scanning Format: Has active vertical
scanning lines of 720 progressive (720p), 1,080 interlaced (1,080i) or higher •
Aspect Ratio: Capable of displaying a 16:9 image • Audio: Receives and
reproduces, and/or outputs Dolby Digital audio " Consumer Electronics
Association, August 2000

• Displaying the same still images for long periods should be avoided as image
shadowing or burn-in may occur.

• Plasma Display Systems display images consisting of hundreds of thousands of
minute pixels (light emitting cells), and there is a possibility of inactive,
flashing or continually illuminated pixels.

• Plasma Display Systems emit slight amounts of IR (Infrared Emission)
through luminous discharge technology. This IR (Infrared Emission) is not
harmful to living organisms, but may interfere with the operation of remote
controls for other equipment, or cause static in equipment using IR (Infrared
Emission) (such as cordless headphones or cordless microphones)

SOUND TECHNOLOGY

• 13 watt x 2 stereo amplifier with separate bass
and treble controls

• 2-Way Stereo Speakers

• SRS / FOCUS / TruBass Surround Sound Audio
Processing for a virtual sound TV Experience

OTHER

• Table Top Stand (Supplied)

• 3-Meter Digital Connection Cable (Supplied)

• Wall Bracket, Tilt Wall Bracket (Optional)

• 10-Meter Digital Connection Cable (Optional)

• 30-Meter Fiber Optic Connection Cable (Optional)

DIMENSIONS(W x H x D)

• Display (Only): 42.4” x 24.9” x 3.6”

• Media Receiver:16 9/16”x3 9/16”x11 13/16”

WEIGHT:

• Display: 56.9lbs

• Media Receiver:9.9 lbs

• All phosphor-based display systems (Cathode Ray Television Systems, both
direct view televisions and projection televisions as well as plasma display
systems) may possibly have image retention, also known as burn-in.
Recommended guidelines are as follows:

• Do not display static images for long periods (such as still images, fixed
images from PC or TV game equipment, and/or fixed images such as
time of day indicator or channel logo display).

• Do not display content in the 4:3 aspect ratio (black or gray bars on left
and right side of content) or letter-box content (black bars above and
below of content) for extended periods of time, or use either of these
viewing modes repeatedly within a short period of time. This Plasma
Display System is equipped with multiple wide-screen viewing modes;
use one of these screen modes to fill the entire screen with content.

• Displaying dark images after displaying still images for a period of time
may cause image retention. In most cases, the image retention can be
corrected by displaying bright images for a similar period of time.
However, if your Plasma Display System displays still images for
additional long periods of time, image retention may be irreparable

• Plasma Display Systems may have a negative effect on sound or images
coming from AM radios, PCs or video-related products.

• Plasma Display Systems are made of glass; be sure to secure it from damage from
impact.

• Plasma Display Systems, while in use, may generate some functional sounds, for
example: fan motor noise, and electrical circuit humming/glass panel buzzing.

• Plasma Display Systems emit slight amounts of IR (Infrared Emission) through
luminous discharge technology. This IR (Infrared Emission) is not harmful to living
organisms, but may interfere with the operation of remote controls for other
equipment, or cause static in equipment using IR (Infrared Emission) (such as cordless
headphones or cordless microphones).

• The Plasma Display System Media Receiver uses an on-board cooling fan. If the
ambient temperature of the Media Receiver becomes high, the speed of the cooling fan
increases and it may sound louder than normal during the cooling period.

• PIONEER, the Pioneer Logo, the Elite logo and PureVision are registered trademarks
of Pioneer Corporation.

• CableCARD™ is a trademark of Cable Television Laboratories, Inc.

• *Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.

• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.

• i.LINK and the i.LINK logo are trademarks of Sony Corporation.

• SRS, TruBass and FOCUS are trademarks of SRS Labs, Inc.

• In the United States, TV Guide and other related marks are registered marks of

Gemstar-TV Guide International, Inc. and/or one of its affiliates.
