PDi CT340 Operator's Manual
Operator
Manual
"Quality Test Instruments"
PC
Cable
Tester

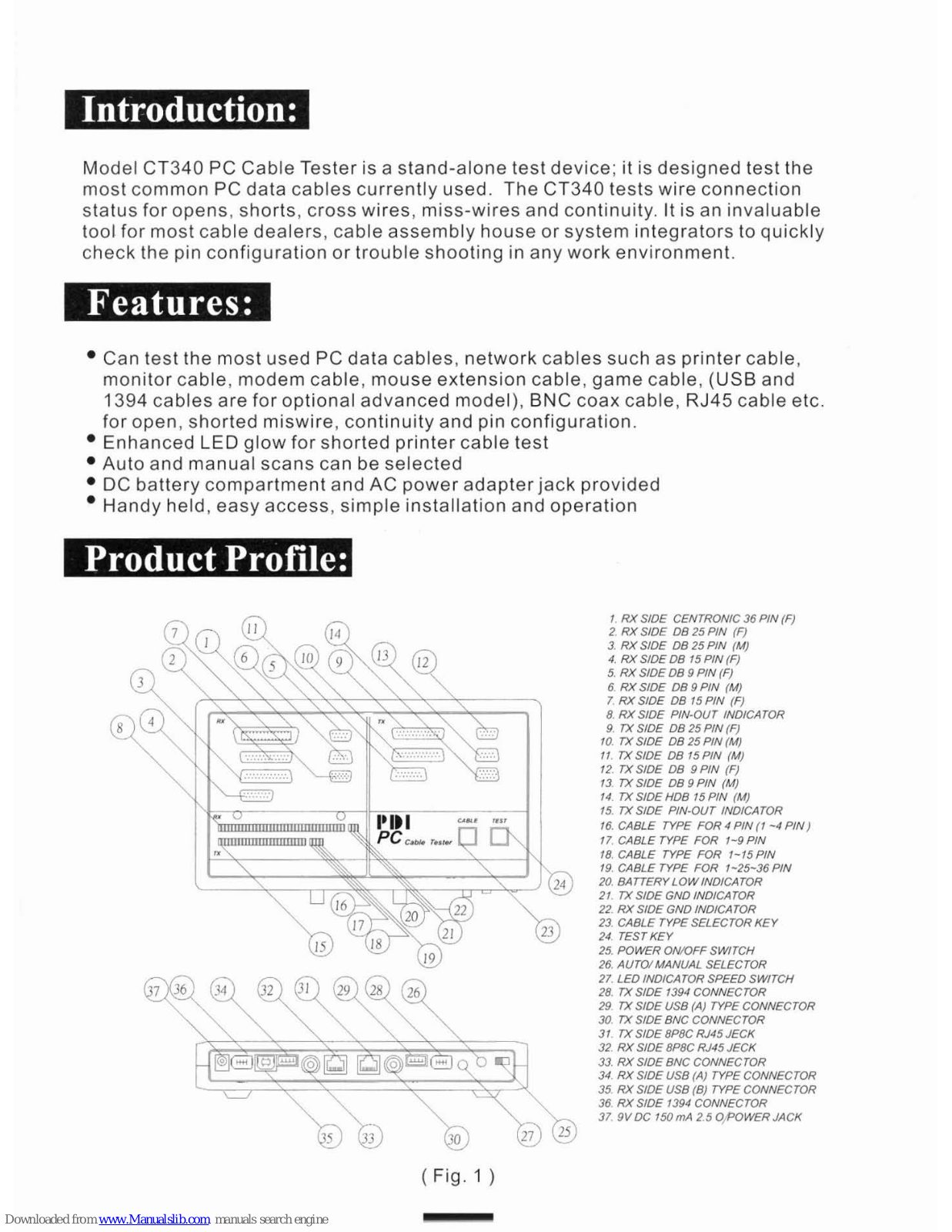

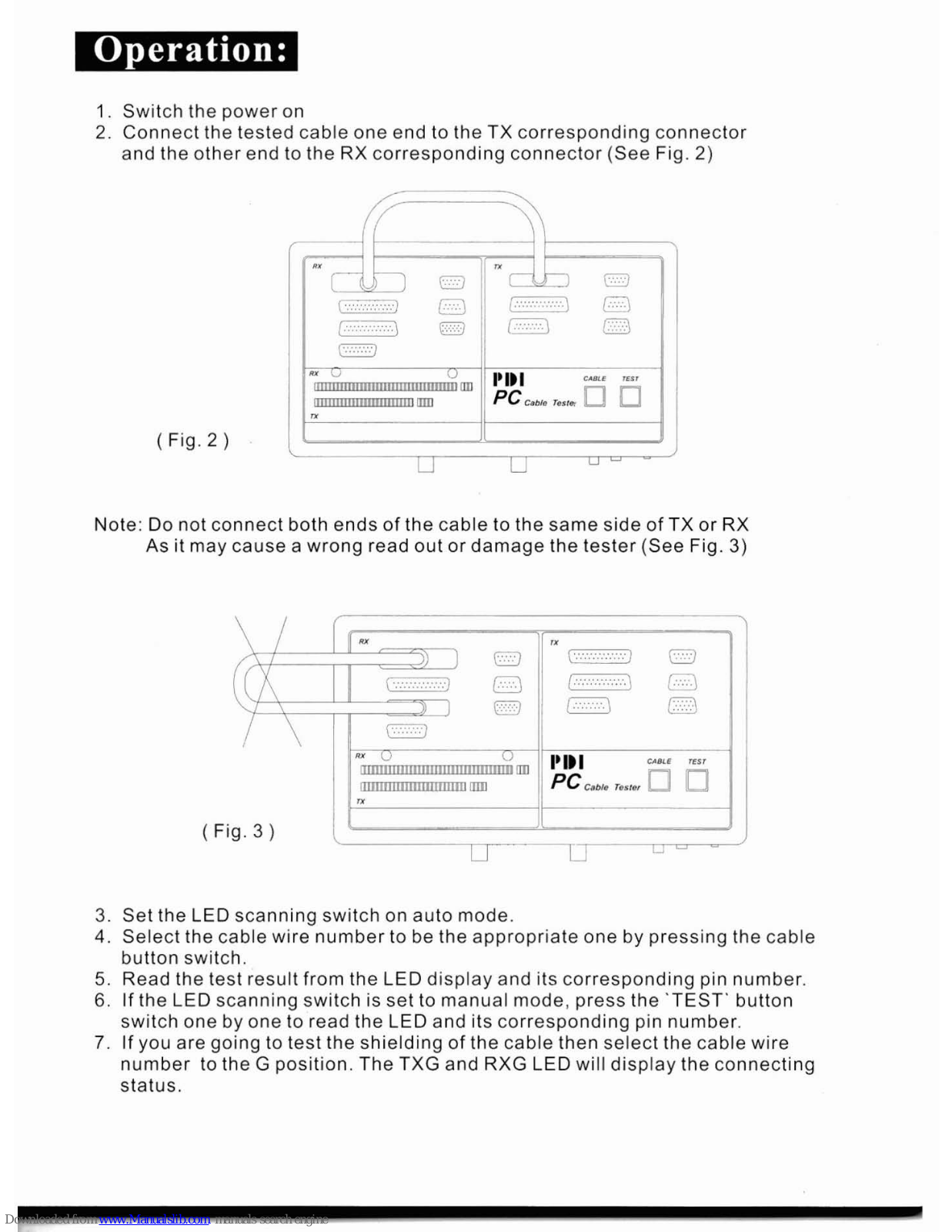

Model CT340 PC Cable Tester is a stand-alone test device; it is designed test the
most common PC data cables currently used. The
CT340 tests wire connection
status for opens, shorts, cross wires, miss-wires and continuity. It is an invaluable
tool for most cable dealers, cable assembly house or system integrators to quickly
check the pin configuration or trouble shooting in any work environment.
Can test the most used PC data cables, network cables such as printer cable,
monitor cable, modem cable, mouse extension cable, game cable, (USB and
1394 cables are for optional advanced model), BNC coax cable, RJ45 cable etc.
for open, shorted miswire, continuity and pin configuration.

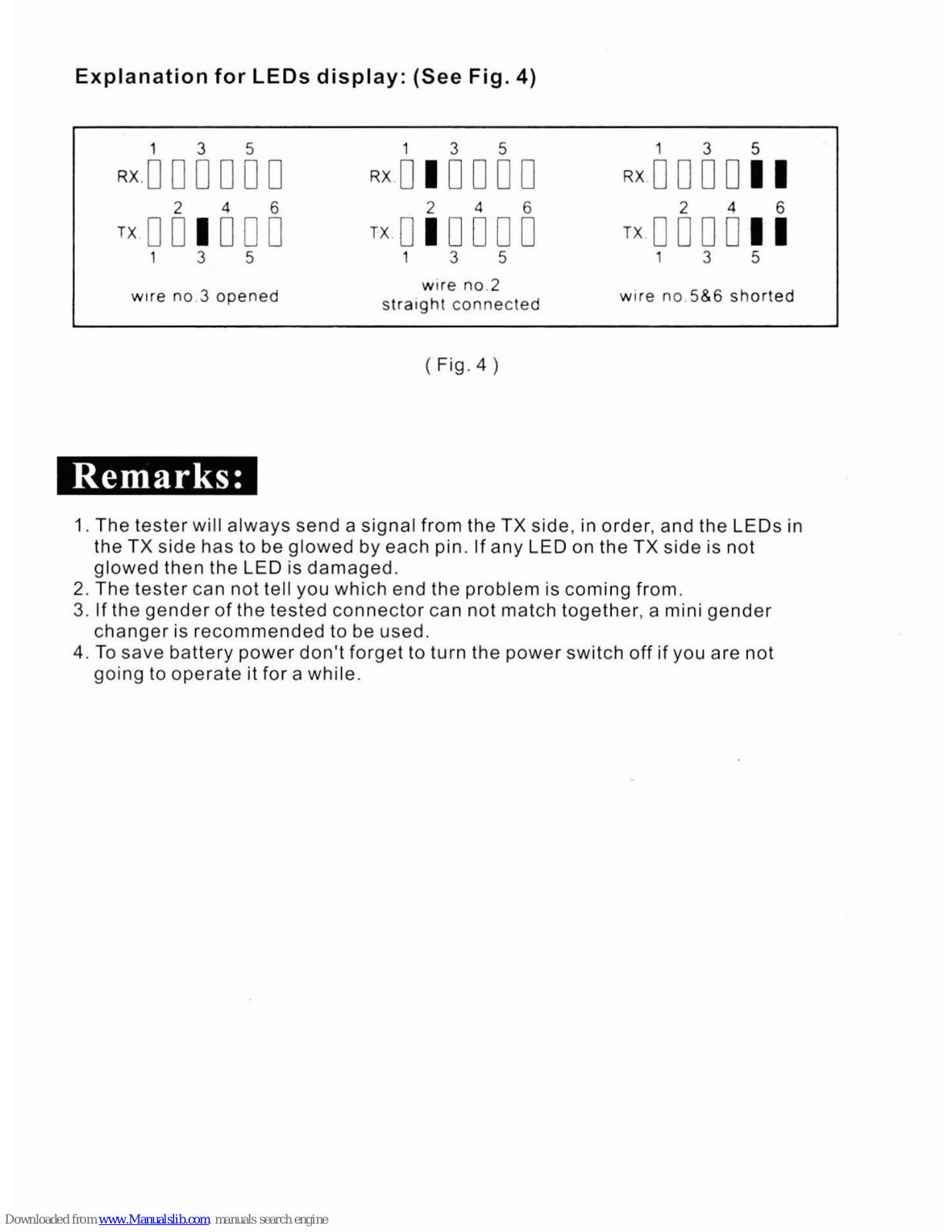

Enhanced
LED
glow for shorted printer cable test
Auto and manual scans can be selected
DC battery compartment and AC power adapter jack provided
Handy held, easy access, simple installation and operation
I. RX SIDE CENTRONIC 36 PIN (F)
2 RX SIDE
DB 25 PIN (F)
3 RX SIDE
DB 25 PIN (M)
4
RX SIDE DB 15 PIN (F)
5. RX SIDE
DB 9 PIN (F)
6
RX SIDE DB 9 PIN (M)
7.
RX SlDE DB 15 PIN (F)
8. RXSIDE PIN-OUT INDICATOR
9. TX SIDE
DB 25 PIN
(F)
I0
TX
SlDE DB 25 PIN (M)
11 TXSlDE DB 15 PIN (M)
12 TX SIDE DB 9 PIN (F)
13
TX SIDE DB 9 PIN (M)
14
TX SIDE HOB 15 PIN (M)
15. TXSIDE PIN-OUT INDICATOR
16. CABLE
TYPE FOR 4 PIN
(1
-4 PIN)
17 CABLE TYPE FOR
1-9 PIN
18 CABLE TYPE FOR 1-15 PIN
19. CABLE TYPE FOR 1-25-36 PIN
20 BATTERY LOW INDICATOR
21
TX
SIDE GND INDICATOR
22. RX SIDE GND INDICATOR
23. CABLE TYPE SELECTOR KEY
24
TESTKEY
25. POWER ON/OFF SWITCH
26. AUTO/ MANUAL SELECTOR
27. LED INDICATOR SPEED SWITCH
28.
TX
SIDE 1394 CONNECTOR
29 TXSIDE
US6 (A) TYPE CONNECTOR
30.
TX SlDE BNC CONNECTOR
31
TX
SIDE 8P8C RJ45 JECK
32 RX SIDE
8P8C RJ45 JECK
33 RX SIDE BNC CONNECTOR
34 RX SIDE
US6 (A) TYPE CONNECTOR
35 RX SlDE
US6 (6) TYPE CONNECTOR
36 RX SlDE 1394 CONNECTOR
37.
9VDC 150 mA 2.5 OPOWER JACK
(
Fig.
1
)
