Overview

Thank you for purchasing PC Vision ADM 4X. The ADM 4X are designed to power
multiple screens for digital signage applications. The ADM 4X effective support Intel,

AMD, nVidia’s graphics card and operating system into thinking that output

devices is one extremely wide monitors. it also has an operational mode allowing
you to "Clone" and "Stretch" the same output onto four separate monitors.

No software drivers and low power consumption, ADM 4X contains the latest image
processing technology, high-quality video and the best visual experience, ADM 4X

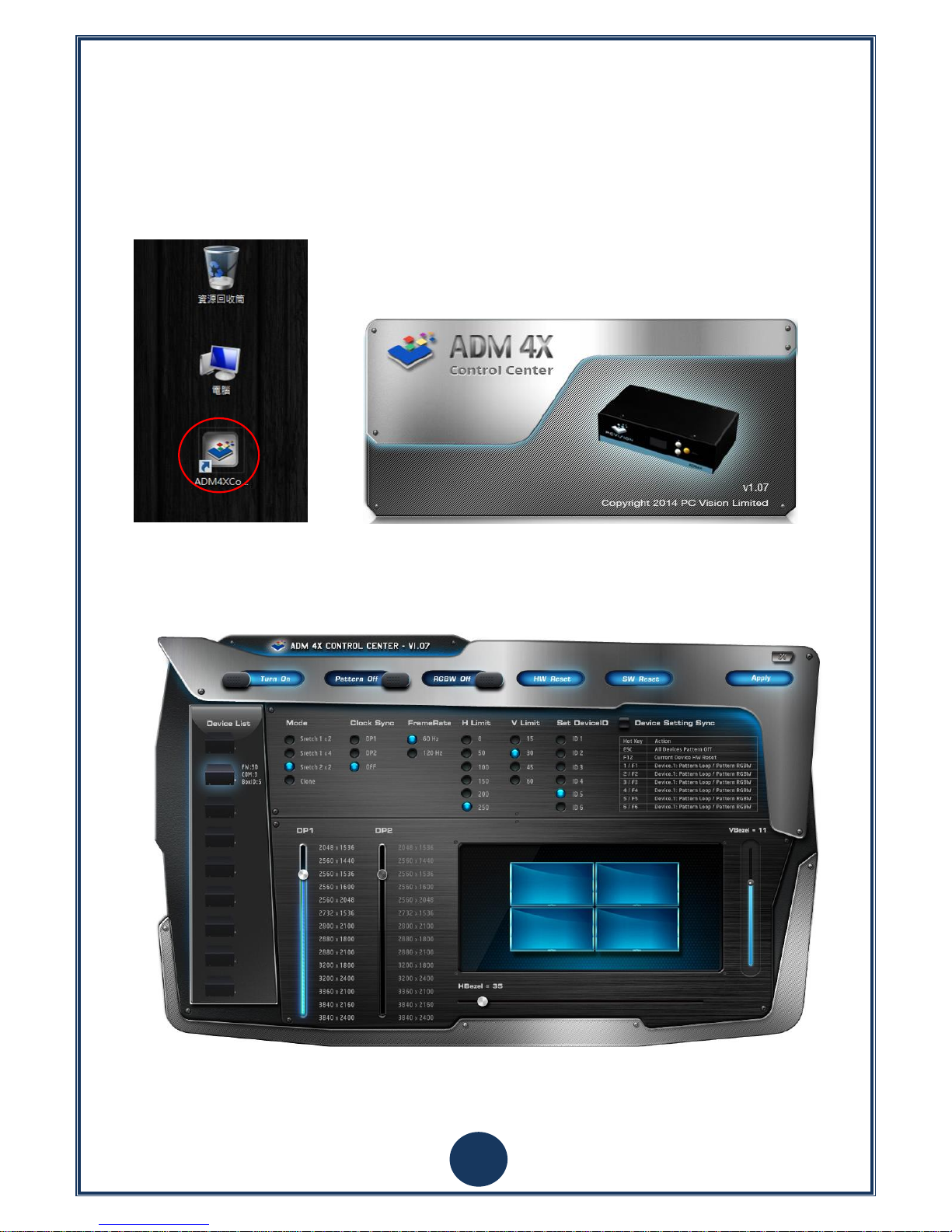

exclusive OLED hardware control and friendly ADM 4X Control Center software can
be display supports up to maximum 4 display contents.

ADM 4X provides superior image editing on the multi-display applications, In the
multiple-screen system, 3D animation, digital signage and digital signage
applications market place, all of you are best solution.

5

Hardware supplied

- Please check the package list:

- ADM 4X

- 2 * Input Cable (mini Display Port to Display Port)

- 1 * USB Power/Control Cable

1. Optional items not included in the product which you have purchased.

2. If you find the product package components are damaged, please contact

your dealer immediately.

3. This product can be shipped with a card reader or floppy drive, depending on

your host device based on the actual match.
