PCsensor TEMPerHUM User Manual

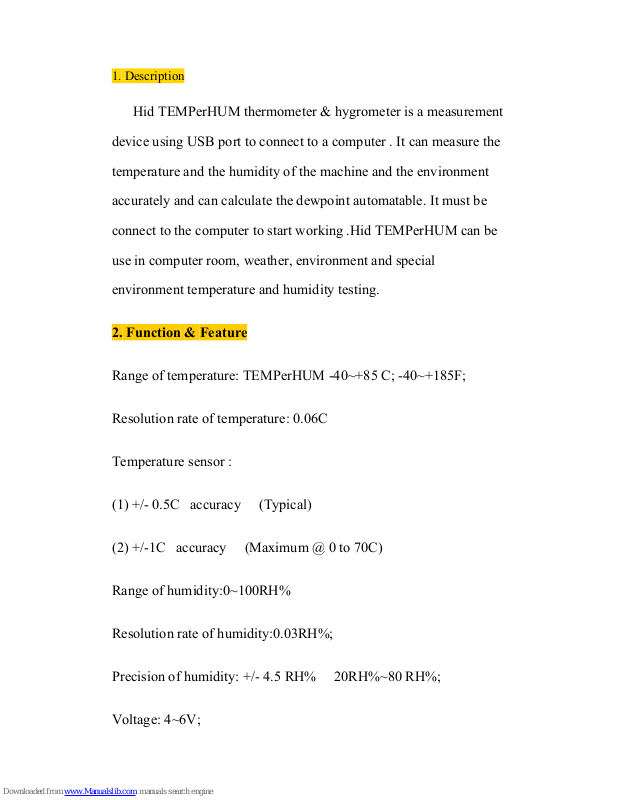

1. Description

Hid TEMPerHUM thermometer & hygrometer is a measurement

device using USB port to connect to a computer . It can measure the

temperature and the humidity of the machine and the environment

accurately and can calculate the dewpoint automatable. It must be

connect to the computer to start working .Hid TEMPerHUM can be

use in computer room, weather, environment and special

environment temperature and humidity testing.

2. Function & Feature

Range of temperature: TEMPerHUM -40~+85 C; -40~+185F;

Resolution rate of temperature: 0.06C

Temperature sensor :

(1) +/- 0.5C accuracy (Typical)

(2) +/-1C accuracy (Maximum @ 0 to 70C)

Range of humidity:0~100RH%

Resolution rate of humidity:0.03RH%;

Precision of humidity: +/- 4.5 RH% 20RH%~80 RH%;

Voltage: 4~6V;

Electricity:< 10 mA;

Voltage : 5V

Support Windows NT,XP, VIST;

Memory requirement: 20M

Data autosave to be txt Or csv format, can be open by excel;

Send mails function

Graph transfer function

New Function

(1)TXT Special button:

As long as you long pressing the TXT button for 1 seconds, you can

read the temperature and humidity no matter in excel, text or word

form without running software. If to stop the reading, press the TXT

button again . Easy operation! Solve your installed software and

cross-platform used troubles!

(2) Caps lock and Num Lock:

You don’t want to install software, OK! You can use the Caps lock

and Num lock function.

As long as you long press the caps lock or num lock for 3 seconds,

you can read the temperature and humidity no matter in excel, text or

word form without running software. Then you can create curve.

(3) PCsensor USB series products, can be used on the mobile

phone through OTG interface line.

Q1: What are these products mainly include?

A: TEMPer2 ,TEMPerNTC, TEMPer1F, TEMPer1F_H1,

TEMPerHUM, TEMPer1K3, TEMPer1K4, TH1000 ISO, TEMPerF,

TEMPe8 series (TEMPer8_D2, TEMPer8_D4

TEMPer8_D8,TEMPer8_H2 TEMPer8_H4, TEMPer8_H8

TEMPer8_T2, TEMPer8_T4, TEMPer8_T8, etc.)

Q2: what are the common OTG interface of mobile phone?

A: millet, samsung, etc.

Q3: how to validate if your mobile phone is in line with the

OTG?

A: Use OTG line connecting a mouse or keyboard, see if the mouse

is normally used in conformity with the OTG.

3. INSTALLING INSTRUCTION

Software installing instruction: please go to our website to download

the process

a) Install dotnetfx.exe, if your computer system is Vista, may be you

don’t need to install this process. Dotnetfx.exe is framework 2.0 of

Microsoft; you can download it from the website of Microsoft;

b) Decompress TEMPerHUM V22.2.rar to you computer, and

running TEMPerHUM V22.2.exe.

Hardware installing:

Plug the Hygrometer into the USB port of the computer to connect it.

If you plug it correctly the red light in the device will be turned on.

5. Operating instruction (Note: Our software just only support

windows system .)

1) THE TEMPERATURE & HUMIDITY DISPLAY BOX

and MESSAGE FRAME

The Real Time Temperature and humidity will Display in the Box

on the Top Left Corner of software interface and the Action of

Operation will Display on the Top Right Corner (see picture1).

Picture 1 TEMPerHUM_Real time temperature

2) CURVES DISPLAY

There is Two Curves, One is AVG Line and the Other is Current

Line. The User can Check the Situation of Temperature and
