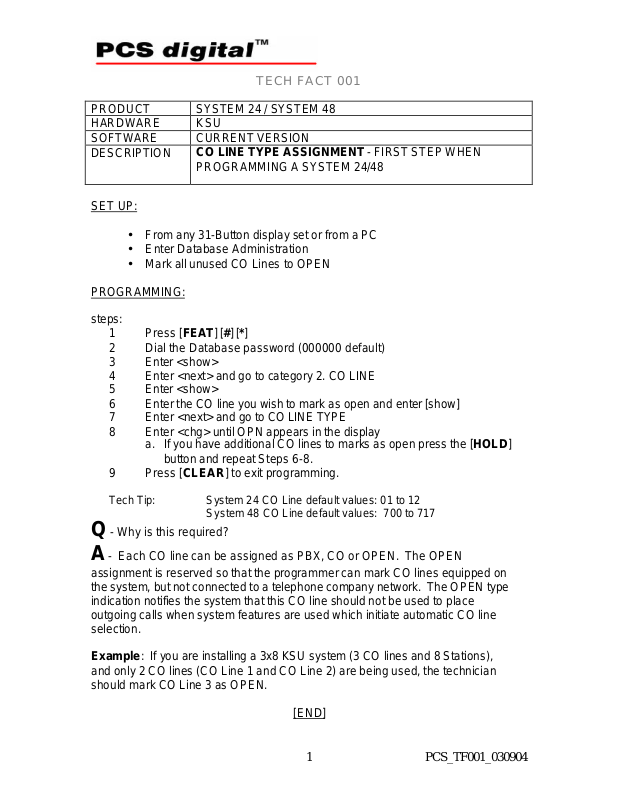

TECH FACT 001
PRODUCT SYSTEM 24 / SYSTEM 48
HARDWARE KSU
SOFTWARE CURRENT VERSION
DESCRIPTION
SET UP:
• From any 31-Button display set or from a PC
• Enter Database Administration
• Mark all unused CO Lines to OPEN
PROGRAMMING:
steps:
1 Press [FEAT] [#] [*]
2 Dial the Database password (000000 default)
3 Enter <show>
4 Enter <next> and go to category 2. CO LINE
5 Enter <show>
6 Enter the CO line you wish to mark as open and enter [show]
7 Enter <next> and go to CO LINE TYPE
8 Enter <chg> until OPN appears in the display
a. If you have additional CO lines to marks as open press the [HOLD]
button and repeat Steps 6-8.
9 Press [CLEAR] to exit programming.
Tech Tip: System 24 CO Line default values: 01 to 12
System 48 CO Line default values: 700 to 717
CO LINE TYPE ASSIGNMENT - FIRST STEP WHEN
PROGRAMMING A SYSTEM 24/48
Q - Why is this required?
A - Each CO line can be assigned as PBX, CO or OPEN. The OPEN
assignment is reserved so that the programmer can mark CO lines equipped on
the system, but not connected to a telephone company network. The OPEN type
indication notifies the system that this CO line should not be used to place
outgoing calls when system features are used which initiate automatic CO line
selection.
Example: If you are installing a 3x8 KSU system (3 CO lines and 8 Stations),
and only 2 CO lines (CO Line 1 and CO Line 2) are being used, the technician
should mark CO Line 3 as OPEN.
[END]
