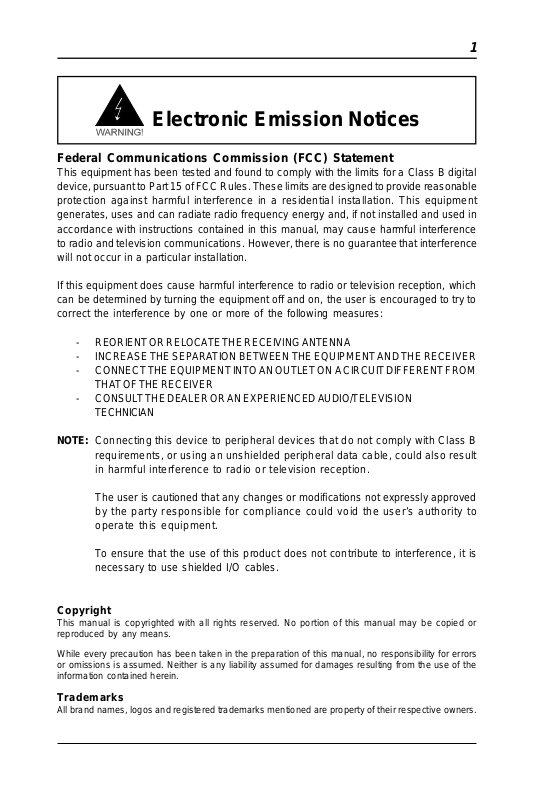

Electronic Emission Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions contained in this manual, may cause harmful interference
to radio and television communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- REORIENT OR RELOCATE THE RECEIVING ANTENNA
- INCREASE THE SEP ARATION BETWEEN THE EQUIPMENT AND THE RECEIVER
- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER
- CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION
TECHNICIAN
1
NOTE: Connecting this device to peripheral devices that do not comply with Class B
requirements, or using an unshielded peripheral data cable, could also result
in harmful interference to radio or television reception.
The user is cautioned that any changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to
operate this equipment.
To ensure that the use of this product does not contribute to interference, it is
necessary to use shielded I/O cables.
Copyright
This manual is copyrighted with all rights reserved. No portion of this manual may be copied or
reproduced by any means.
While every precaution has been taken in the preparation of this manual, no responsibility for errors
or omissions is assumed. Neither is any liability assumed for damages resulting from the use of the
information contained herein.
Trademarks
All brand names, logos and registered trademarks mentioned are property of their respective owners.
Page 2
2
Table of Contents
HARDWARE CONFIGURATION ............................................................. 3
Key Features .............................................................................................. 3
Motherboard Layout (Model Code No. - 35886300XX) .............................. 5
Jumper Settings ......................................................................................... 6
CPU Speed Selection ........................................................................... 6
JP1 - SDRAM CLK ................................................................................ 6
JP4 - CMOS Clear................................................................................. 6
JP2 - CPU FREQUENCY BAND ........................................................... 6
JP20, JP21, JP22 - Sound Chip Enable Setting .................................. 7
JP8, JP23 - BIOS Program Voltage ...................................................... 7
Memory Configuration ................................................................................. 8
To Install DIMMs .......................................................................................... 8
Installing the Processor .............................................................................. 9
BIOS SETUP ............................................................................................... 1 0
Starting Setup .............................................................................................. 10
Main Menu ................................................................................................... 10
Standard CMOS Setup ................................................................................ 12
BIOS Features Setup................................................................................... 14
Chipset Features Setup .............................................................................. 14
Power Management Setup .......................................................................... 14
PNP/PCI Configuration Setup ..................................................................... 14
Integrated Peripherals ................................................................................ 14
Supervisor/User Password Setting ............................................................ 1 4
Flash Update Procedure ............................................................................. 1 6
Technical Reference Booklet
Page 3
HARDWARE CONFIGURATION
The motherboard is based on the VIA® VT82C691 Chipset. The chipset is a
highly integrated solution enabling a cost effective motherboard and desktop
design for the Mendocino PPGA processor. The main board supports 3.3V
FP ,EDO,SDRAM and SDRAM-II. The features on board include Super-I/O, Ultra
DMA33 / PCI bus master IDE , PCI ver2.1 compliant, AGP specification
compliant, USB, VRM 8.2 compliant, On-board sound Sub-system(Optional).
This motherboard is ready for PC98 requirements.
Key Features
Motherboard PCB
• 4-layer, Micro A TX type design.
• PCB dimensions : 244mm x 175mm.
Processor
• Full support for Mendocino® PPGA processors using PGA370 socket.
• Support bus speed of 66/100MHz, this includs all Mendocino® processors
from 300MHz to 450MHz and future processors.
CPU Speed Jumperless
• No jumper is needed to set for various speed of CPU.
VRM (Voltage Regulator Modules) on Board
• Flexible motherboard design with on-board VRM 8.2, easy to upgrade
with Future Intel’s® OverDrive® processors.
Cache
• Processor built-in L2 128K cache.
System Memory
• A total of three 168-pin DIMM sockets.
• Supports Synchronous DRAM at 66/100Mhz (SDRAM-II).
• Supports Symmetrical and Asymmetrical Dram addressing
• Memory size up to 768M Bytes.
• Supports single density DIMMs of 1M, 2M, 4M, 8M and 16M depth (x64 or
x72).
• Supports double density DIMMs of 2M, 4M, 8M, 16M and 32M depth (x64
or 72).
• Supports single & double sided DIMMs.
• Supports bank-by-bank ECC(single-bit error correction detection) or
EC( error checking only) for DRAM integrity .
• Banks of different DRAM types and depths can be mixed.
• Support for Auto Detection of Memory Type.
On-Board I/O
• On board two PCI fast IDE ports supporting up to 4 ATA, ATA2 and Ultra
DMA33 IDE HDDs, CD-ROMs, ZIP devices and LS-120 drives as boot
drive.
3
Hardware
Page 4
4
• Support Bus Master IDE, PIO mode 4 (up to 16.6M bytes/sec) and Ultra
DMA33 (up to 33M bytes/sec) transfer.
• One ECP/EPP parallel port.
• Two 16550 Compatible UART serial ports.
• One floppy port, supports two FDDs of 360KB, 720KB, 1.2MB , 1.44MB
and 2.88MB capacity.
• Two USB port.
• One PS/2 Type keyboard ports.
• One PS/2 mouse port.
• Infrared (IrDA) is supported via a header.
• One Line/speaker out, one Mic in, one line in and MIDI/Gameport
(Optional).
System BIOS
• 2M Flash BIOS supporting PnP , APM, A T API, ACPI and DMI.
• 1M Flash BIOS with feature cut (e.g. ACPI /DMI ) is available upon
customer request.
• Jumper selection for 5V or 12V Flash memory voltage.
• Auto detects and supports LBA harddisks with capacities over 8.4GB.
• Easily upgrade BIOS by end-user.
Plug-and-Play
• Supports plug-and-play specification 1.1.
• Plug-and-play for DOS, Windows® 3.X, Windows® 95 as well as
Windows® 98.
• Fully steerable PCI interrupts.
Power Management
• Supports SMM, APM, ACPI and Energy star “ Green PC ” compliant.
• Break switch for instant suspend/resume on system operations.
• Hardware monitoring is supported, provides voltage, temperature, fan
speed, etc. monitoring (optional).
• External Modem Ring-in Wake-up support.
• Supports WAKE-ON-LAN (WOL).
On board Sound Sub-system (optional)
• Creative Vibra 16XV sound chip is used.
• Sound Blaster 16 compatible.
• Full-Duplex 16-bit record & playback.
• Roland MPU401 UART mode compatible.
• Integrated CQM and FM synthesizer.
• PnP and APM 1.2 Support.
Expansion Slots
• 1 AGP slot (ver. 1.0 compliant, 1x/2x mode supported).
• 3 PCI bus master slots (ver. 2.1 compliant, with 1 PCI slot sharing with
1 ISA slot).
• 1 ISA slot (1 ISA slot sharing with 1 PCI slot).
Technical Reference Booklet
Page 5

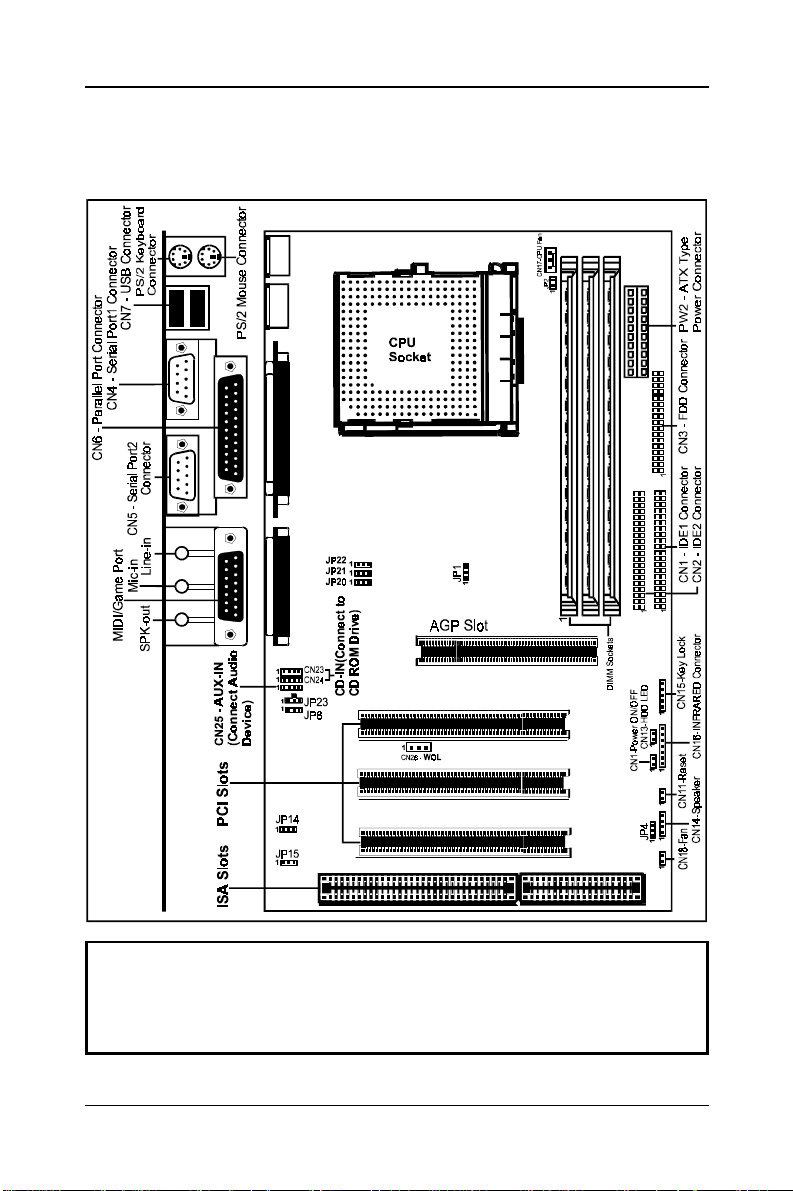

Motherboard Layout (Model Code No. - 35886300XX)
The following diagrams show the relative positions of the jumpers, connectors,
major components and memory banks on the motherboard.
1
5
Warning:
All connectors on board are labled Pin “1” at one conner. Ribbon
cables should always be connected with the red stripe on the Pin
“1” side of the connector.
Hardware Setup
Page 6
6

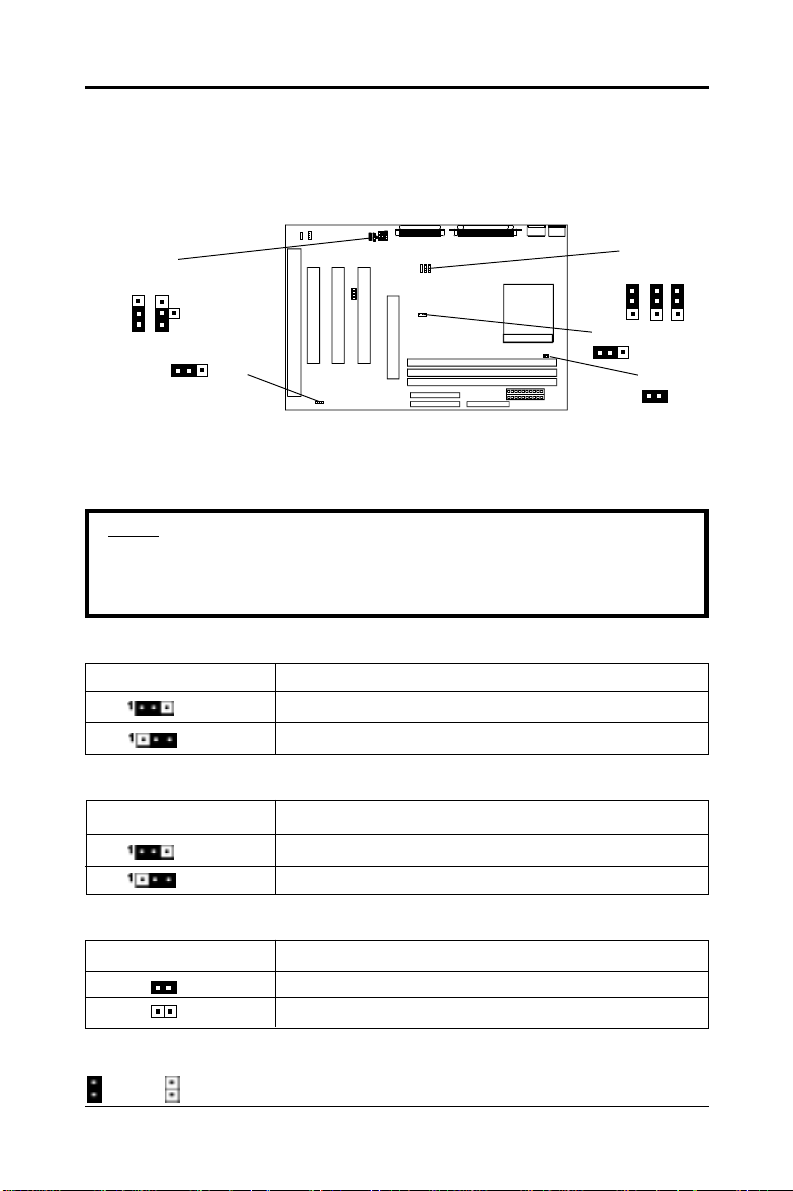

Jumper Settings
This chapter explains how to configure the motherboard’s hardware. Before
using your computer, make sure all jumpers and DRAM modules are set
correctly. Refer to this chapter whenever in doubt.
JP22
JP21
JP1
1
JP20
1
JP2
1
1
1
JP8
1
JP23
1
1
JP4
CPU Speed Selection
In this motherboard, jumperless feature is implemented such that no jumper is required to
be set for different type of CPU installed.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. Celeron PGA370 CPU is frequency multiplier locked, no CPU speed change will
be seen even if the frequency multiplier setting in CMOS setup is changed.
JP1 - SDRAM CLK
JP1 SDRAM CLK
(1-2)* Follow CPU*
(2-3) 66 MH z
JP4 - CMOS Clear
JP4 Selection
(1-2)* Normal*
(2-3) CMOS Clear
JP2 - CPU FREQUENCY BAND
JP2 CPU FREQUENCY
(Close)* Follow CPU default (100/66 MHz)*
1
1
(Open) 100 MHz
* = Default setting.
Close Open
Technical Reference Booklet
Page 7
Notice: Please ensure that your ATX Power Supply can provide
at least 720mA +5VSB power for Wake on Lan.

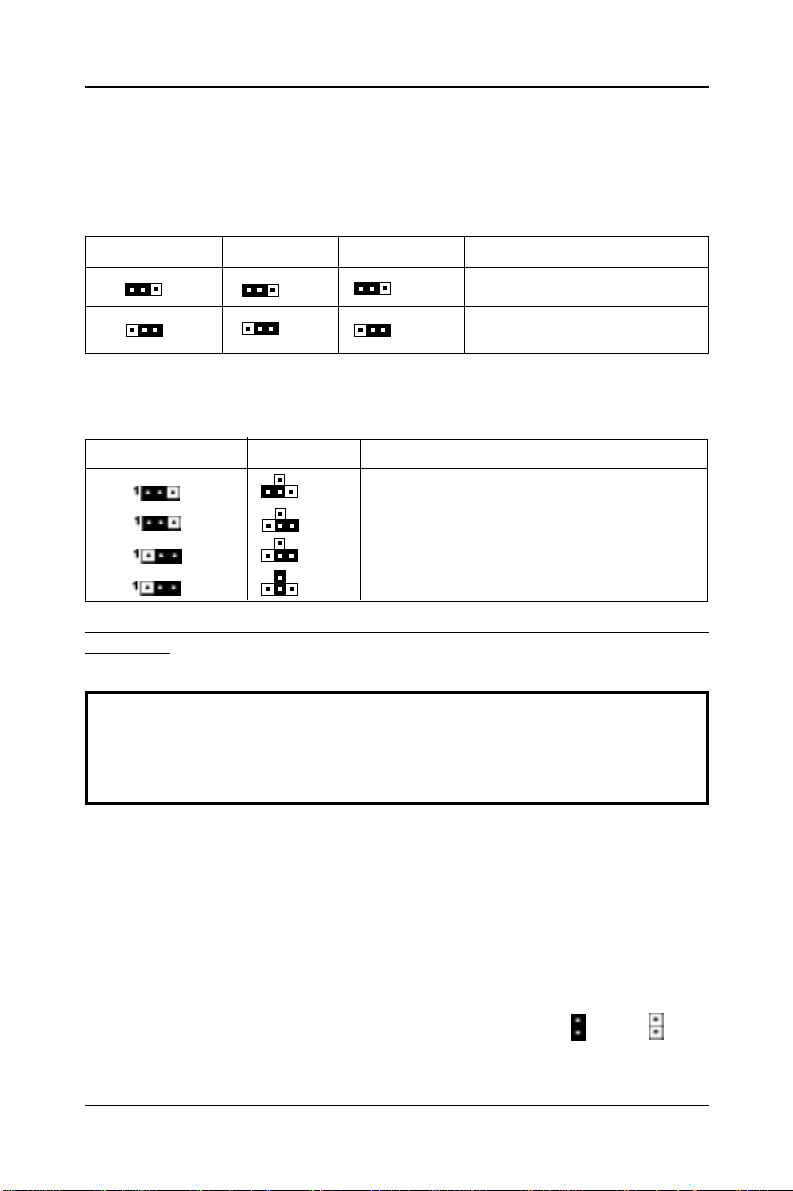

JP20, JP21, JP22 - Sound Chip Enable Setting
JP20 JP21 JP22 Selection
7
1
(1-2)* (1-2)* (1-2)* Enable*
1
(2-3) (2-3) (2-3) Disable
1
1
1
1
JP8, JP23 - BIOS Program Voltage
JP8 JP23 Selection
(1-2) (1-2) INTEL (1MB)
(1-2) (2-3) MX (1MB)
(2-3)* (2-3)* A TMEL/SST/Winbond (1MB)*
(2-3) (2-4) ATMEL/SST/W inbond (2MB)
JP8 & JP23 are pre-installed in the factory. They should NOT be altered by
the users.
1
1
1
1
Warning:
Before handling the motherboard from its original package, please
ensure that there is no static electricity on your body. Otherwise it
may cause damage to the integrated circuits on the motherboard.
* =Default setting
Close Open
Page 8
8
Memory Configuration
You can install up to 768MB SDRAM of memory in the motherboard DIMM
sockets. The board has DIMM sockets arranged as banks 0, 1, and 2. You can
install DIMMs in any of the three banks, and use different size DIMMs in different
banks. The BIOS detects the size and type of installed memory.

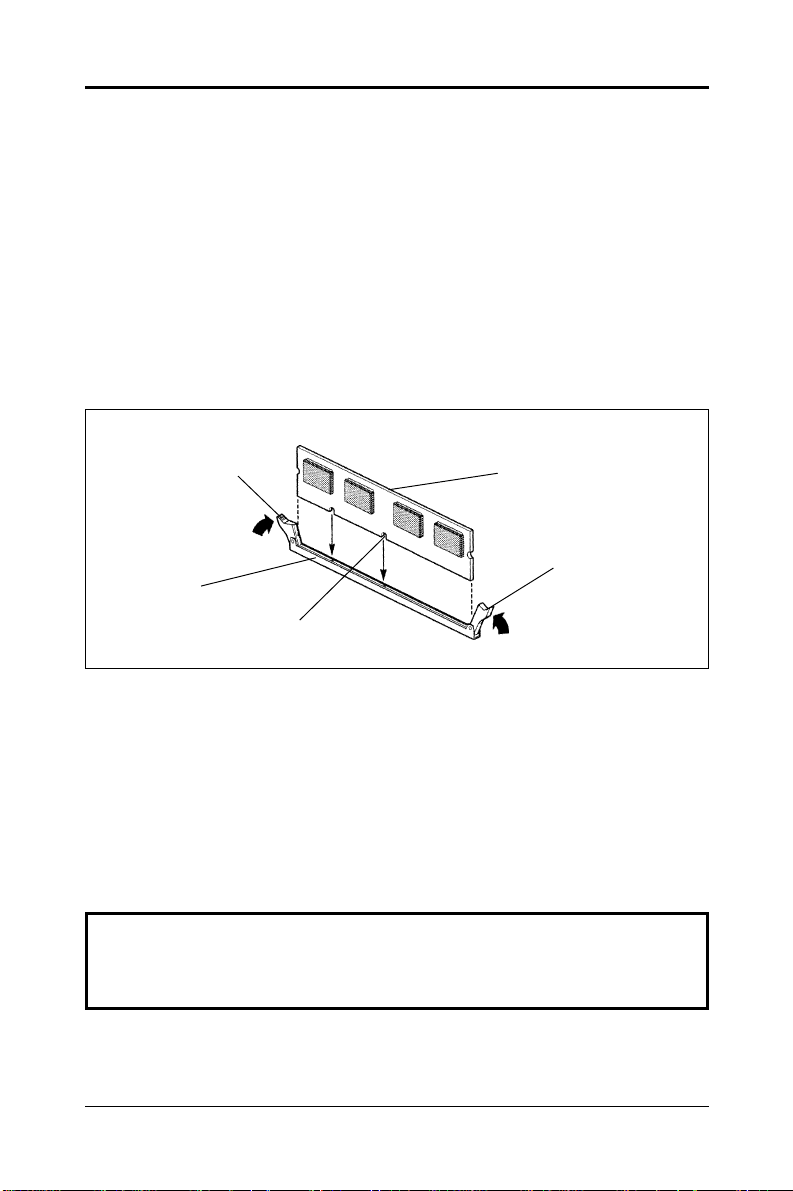

T o Install DIMMs
1. Turn off all peripheral devices connected to the computer . Turn of f the computer.
2. Remove the computer cover and locate the DIMM sockets.
3. Holding the DIMM by the edges, remove it from its antistatic package.
4. Make sure the clips at either end of the socket are pushed away from the
socket.
Clip
DIMM Socket
Notch
5. Position the DIMM above the socket. Align the two small notches in the
bottom edge of the DIMM with the keys in the socket.
6. Insert the bottom edge of the DIMM into the socket.
7. When the DIMM is seated, push down on the top edge of the DIMM until the
retaining clips at the ends of the socket snap into place. Make sure the
clips are firmly in place.
8. Replace the computer cover.
9. If you installed a DIMM with ECC memory, start the computer and use the
ECC Configuration feature in Setup to enable the use of ECC.
DIMM
Clip
Warning:
Turn system power off before installing and removing any device,
otherwise you’ll cause the system damage.
Technical Reference Booklet
Page 9
Installing the Processor
For easy installation of the CPU, it is recommended that you remove all
Cards in PCI slots first.
• Unpack the CPU and identify the pin 1 corner of the CPU.
• Match pin 1 of the CPU with pin 1 of the CPU socket. The pin 1 corner of
the CPU socket is designated by a small triangle printed on the
motherboard.
• Carefully insert the CPU into the CPU socket and move the metal arm
downward to replace it in its original position. Change any jumper
settings as detailed in the manual.
The small circle marked on the top of the CPU designates the pin 1 corner.
If a heat sink is attached and covers the top of the CPU, identify the pin 1
corner by turning the CPU over. Locate the small gold finger that extends
from one corner of the large central square portion of the CPU. The gold
finger points towards pin 1, which is also uniquely identified by a square pad.
Positioning the CPU incorrectly in the socket can permanently damage
the CPU and the computer when you turn on the system.
Warning:
There is a fan attached the CPU to prevent the overheating, please
ensure that the fan can operate. Otherwise the CPU can overheat
and cause damage to both CPU and motherboard.
9
Hardware Setup
Page 10
10
BIOS SETUP
This chapter discusses Award’s Setup Program built into the ROM BIOS. The
Setup Program allows users to modify the basic system configuration. This
special information is then stored in battery-backed RAM, which retains the
setup information when the power is turned off.
Starting Setup
The Award BIOS is immediately activated when you turn on the computer. The
BIOS reads the system information contained in the CMOS and begins the
process of checking out the system and configuring it. When it finishes, the
BIOS will seek an operating system on one of the disks and then launch and
turn control over to the operating system .
While the BIOS is in control, the Setup Program can be activated :
1. By pressing <Del> immediately after switching the system on, or
2. By pressing the <Del> key when the following message appears briefly at
the bottom of the screen during the POST (Power On Self Test )
Press DEL to enter SETUP
If the message disappears before you can respond and you still wish to enter
Setup, restart the system to try again by turning it OFF then ON or pressing the
“RESET” button on the system case. You may also restart by simultaneously
pressing the <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at
the correct time and the system does not reset, an error message will be
displayed and you will again be asked to ...
PRESS F1 TO CONTINUE, DEL TO ENTER SETUP
Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to
use and the possible selections for the highlighted item. To exit the Help
Window press <Esc> or the F1 key again.
In Case of Problems
If, after making and saving system changes with the Setup Program, you
discover that your computer does not reset, use the Award BIOS defaults to
override the CMOS settings.
Main Menu
Once you enter the Award BIOS CMOS Setup Utility , the Main Menu will appear
on the screen. The Main Menu allows you to select from various setup functions
and two exit choices. Use the arrow keys to select among the items and press
<Enter> to accept and enter the sub-menu.
Technical Reference Booklet
Page 11
11
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE. INC.
STANDARD CMOS SETUP CPU SPEED SETTING
BIOS FEATURES SETUP INTEGRATED PERIPHERALS
CHIPSET FEATURES SETUP SUPERVISOR PASSWORD
POWER MANAGEMENT SETUP USER PASSWORD
PNP/PCI CONFIGURATION SETUP IDE HDD AUTO DETECTION
LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING
Esc : Quit éêèç : Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Time. Date. Hard Disk Type
(Note : The figures of BIOS Setup Menu included here only show a typical
case, and may not be exactly the same as the one on your unit.)
Note that a brief description of each highlighted item will appear at the bottom
of the screen.
Standard This setup page includes all the items of Award™ special standard
CMOS Setup features.
BIOS Features This setup page includes all the items of Award special enhanced
Setup features.
Chipset This setup page includes all the items of chipset special features.
Features Setup
Power This entry only appears if your system supports Power
Management Management “Green PC” standards.
Setup
PNP / PCI This entry appears if your system supports PNP/PCI.
Configuration
Setup
Load BIOS The BIOS defaults have been set by the manufacturer and
Defaults represent settings which provide the minimum requirements
for your system to operate.
Load Setup The chipset defaults are settings which provide for maximum
Defaults system performance. While Award has designed the
custom BIOS to maximize performance, the manufacturer
has the right to change these defaults to meet its needs.
CPU Speed You should refer to your CPU marking and correct setting
Setting CPU speed.
BIOS Setup
Page 12
12
Integrated This section page includes all the items of IDE hard drive
Peripherals and Programmed Input / Output features.
Supervisor / Changes, sets, or disables password. It allows you to limit
User Password access to the system and the Setup Program.
Setting
IDE HDD Auto Automatically detects and configures the hard disk parameters.
Detection The Award BIOS includes this ability in the event you are
uncertain of your hard disk’s parameters.
Save & Exit Saves value changes to CMOS and exits setup.
Setup
Exit Without Abandons all CMOS value changes and exits setup.
Save
Standard CMOS Setup
The items in Standard CMOS Setup Menu are divided into 10 categories. Each
category includes one or more setup items. Use the arrow keys to highlight the
item and then use the <PgUp> or <PgDn> key to select the desired value in
each item.
ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE. INC.
Date (mm:dd:yy) : Thu, Jan 23 1997
Time (hh:mm:ss) : 00:00:00
HARD DISKS TYPE SIZE CYLS. HEADS PRECOMP LANDZ SECTORS Mode
Primary Master : None 0 0 0 0 0 0 --Primary Slave : None 0 0 0 0 0 0 --Secondary Master : None 0 0 0 0 0 0 --Secondary Slave : None 0 0 0 0 0 0 ---
Drive A : 1.44M, 3.5 in Base Memory : 640K
Drive B : None Extended Memory : 15360K
Video : EGA/VGA Other Memory : 384K
Halt on : All Errors T otal Memory : 16384K
Esc : Quit éêèç: Select Item PU/PD/+/- : Modify
F1 : Help (Shift) F2 : Change Color
(Note : The figures of BIOS Setup Menu included here only show a typical
case, and may not be exactly the same as the one on your unit.)
Date The date format is <day-of-the-week>. <day> <month> <year>.
Press <F3> to display the calendar.
Time The time format is <hour> <Minute> <second> displayed in
24-hour military-time clock. For example, 1 p. m. is displayed
as 13:00:00.
Technical Reference Booklet
Page 13
13
Primary These categories identify the types of the two channels that
Master/Primary have been installed in the computer. There are 45 predefined
Slave/Secondary types and one user definable types in BIOS. Type 1 to T ype 45 are
Master/Secondary predefined. Type “user” is user-definable.
Slave
Press PgUp or PgDn to select a numbered hard disk type or type
the number and press <Enter>. Note that the specifications
of your drive must match with those of the drive table. The
hard disk will not work properly if you enter improper
information for this category. If your hard disk drive type is not
matched or listed, you can select Type “User” to define your
own drive type manually.
If you select Type “User”, you will need to know the
information listed below. Enter the information directly
from the keyboard and press <Enter>. This information
should be included in the documentation from your hard
disk vendor or the system manufacturer.
If the controller of the HDD interface is ESDI, the selection
shall be “Type1”.
If the controller of the HDD interface is SCSI, the selection
shall be “None” .
If you select Type “Auto”, the BIOS will auto-detect the HDD
and CD-ROM drive at the POST stage and show the IDE for
the HDD and CD-ROM drive.
TYPE -Drive type
CYLS -Number of cylinders
HEADS -Number of heads
PRECOMP -Write precom
LANDZONE -Landing zone
SECTORS -Number of sectors
MODE -Mode type
If a hard disk has not been installed, select NONE and
press <Enter> .
Drive A Type / This category identifies the types of floppy disk drive A or
Drive B Ty pe drive B that has been installed in the computer.
Video This category selects the type of video adapter used for the
primary system monitor. Although secondary monitors are
supported, you do not have to select them in Setup.
BIOS Setup
Page 14
14
BIOS Features Setup
This section allows you to configure your system for basic operation. You have
the opportunity to select the system’s default speed, boot-up sequence,
keyboard operation, shadowing and security.
Chipset Features Setup
The Chipset Features Setup option is used to change the values of the chipset
registers. These registers control most of the system options in the computer.
This section allows you to configure the system based on the specific features
of the installed chipset. This chipset manages bus speeds and access to
system memory resources, such as DRAM and the external cache. It must be
stated that these items should not be altered. The default settings have been
chosen because they provide the best operating conditions for your system.
Power Management Setup
The Power Management Setup Menu allows you to configure your system to
most save energy while operating in a manner consistent with your own style
of computer use .
PNP/PCI Configuration Setup
This section describes how to configure the PCI bus system. This section
covers some very technical items and it is recommended that only experienced
users should make any changes to the default settings.
Integrated Peripherals
The Integrated Peripherals Setup allows the user to configure the onboard
IDE controller, floppy disk controller, the printer port and the serial ports.
Supervisor/User Password Setting
Y ou can set either supervisor or user password, or both of them. The difference
between them are:
Supervisor Password : You can enter the Setup Program and change
the options of the setup menus.
User Password : Y ou can enter the Setup Program but cannot
change the options of the setup menus.
When you select this function, the following message will appear at the center
of the screen to assist you in creating a password.
Technical Reference Booklet
Page 15
15
ENTER PASSWORD:
Type the password, up to eight characters in length, and press<Enter>. The new
password will clear the previously entered password from the CMOS memory.
You will be asked to confirm the password. Type the password again and
press <Enter>. You may also press <Esc> to abort the selection and operate
without a password.
To disable a password, just press <Enter> when you are prompted to enter the
password. A message will be displayed to confirm that the password is
disabled.
PASSWORD DISABLED.
Once the password is disabled, the system will reset and you can enter the
Setup Program freely.
When a password is enabled, you will be prompted to enter it every time you
try to enter setup. This prevents an unauthorized person from changing any
setting of your system configuration.
In addition, when a password is enabled, you can require the BIOS to request
a password every time your system is rebooted. This would further prevent
unauthorized use of your computer.
The password requirement is defined by the Security Option of the BIOS
Features Setup Menu. If the Security Option is set to “System”, the password
will be required both at resetting and at entering setup. If the option is set to
“Setup”, the prompt only appears when you try to enter setup.
BIOS Setup
Page 16
16
Flash Update Procedure
A program AWDFLASH.EXE is included in the utility diskette or CD. The user is
recommended to follow the procedure below to update the flash BIOS.
1. Create a DOS-bootable floppy diskette. Copy the new BIOS file (just obtained
or downloaded) and the utility program AWDFLASH.EXE to the diskette.
2. Allow the PC system to boot from the DOS diskette.
3. At the DOS prompt, key in
AWDFLASH
and hit <ENTER>
4. Enter the file name of the new BIOS.
5. The question: “Do you want to save file?” is displayed.
Key in “N” if there is no need to save the existing BIOS content..
Key in “Y” if a backup copy of the existing BIOS is needed.
(A file name has to be assigned to the existing BIOS binary file.)
6. The question : “Are you sure to program?” is displayed.
Key in “Y”
7. Wait until the flash-update is completed.
8. Power down the PC system.
9. Restart the PC.
Warning:
1. If the flash memory writer utility was not able to successfully
update a complete BIOS file, the system may not boot up.
2. Make sure that the BIOS file is available for this motherboard.
3. If you encounter problem while updating the new BIOS, DO NOT
turn off your PC since this might prevent the system from booting
up. Repeat the process, if the problem still persist, use the original
BIOS file you saved to disk above to update. If it failed, you need
service.
Technical Reference Booklet
91-8863-00
Loading...
