Page 1
R
marks a step forward for
g
g
g
PCE Instruments UK Ltd.
Units 12/13 Southpoint Business Park
Ensign Way, Southampton
United Kingdom, SO31 4RF
Phone: +44 (0) 2380 98703 0
Fax: +44 (0) 2380 98703 9
email: [email protected]
Web:
http://www.industrial-needs.com
http://www.pce-instruments.com

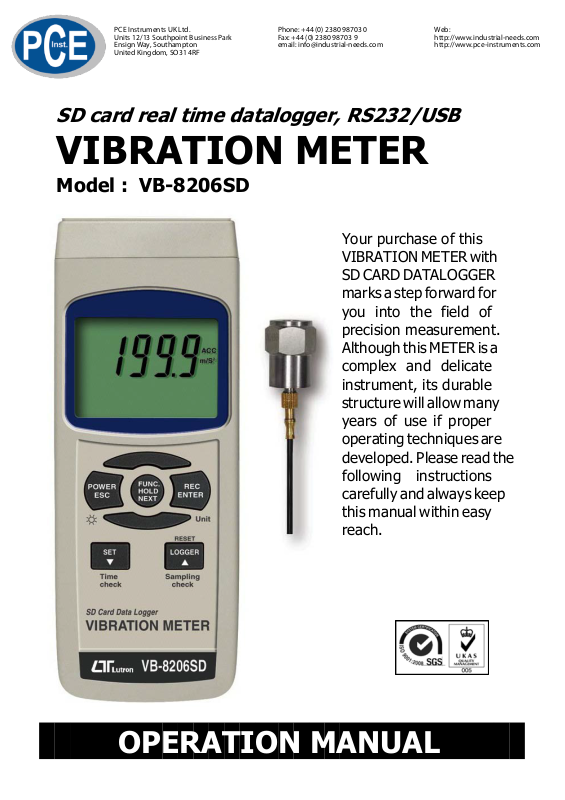

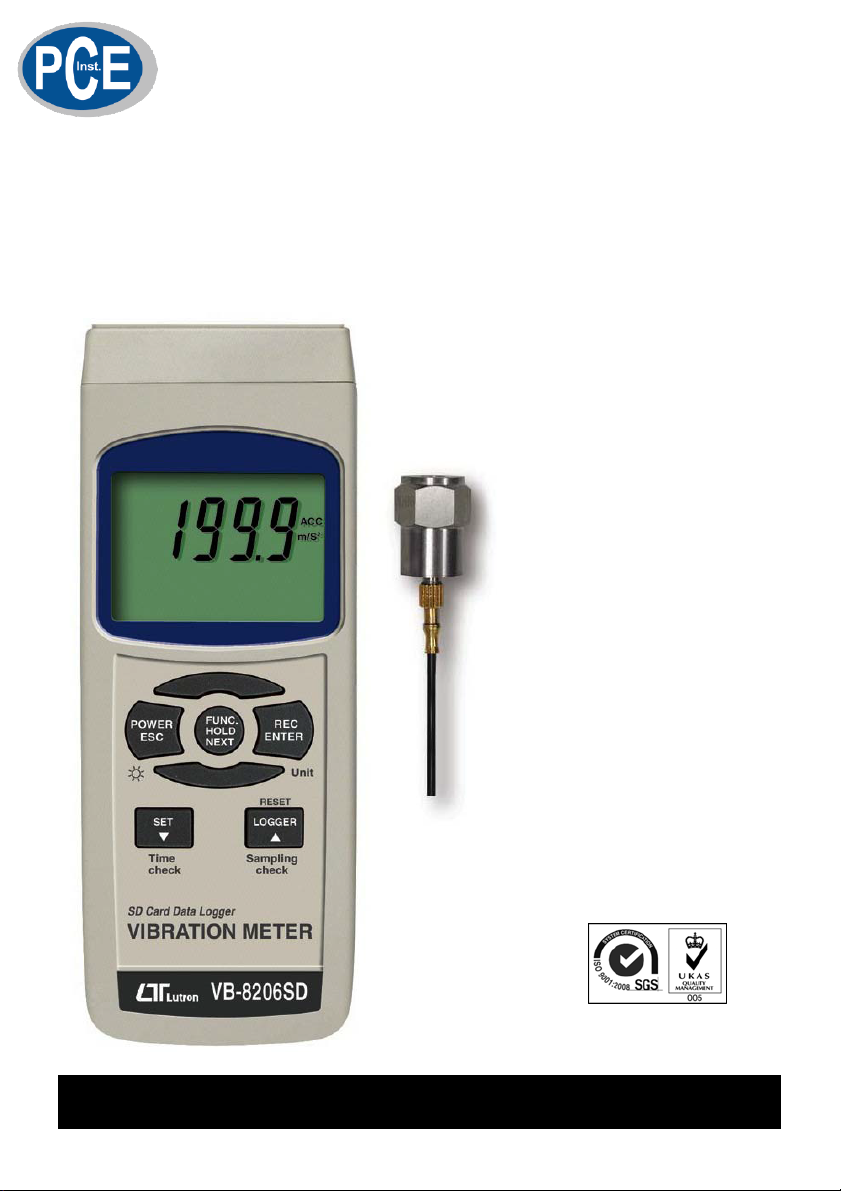

SD card real time datalogger, RS232/USB
VIBRATION METER
Model : VB-8206SD
Your purchase of this
VIBRATION METER with
SD CARD DATALOGGE
you into the field of
precision measurement.
Althou
complex and delicate
instrument, its durable
structure will allow many
years of use if proper
operatin
developed. Please read the
followin
carefully and always keep
this manual within easy
reach.
h this METER is a
techniques are
instructions
OPERATION MANUAL
Page 2
TABLE OF CONTENTS
g
.
.
gg
.
.
.
.
g
.
g
.
g
.
.
j
g
g
gg
gg
gg
.
g
.
g
g
g
.
.
.
.
1. FEATURES............................................................................... 1
2. SPECIFICATIONS..................................................................... 2

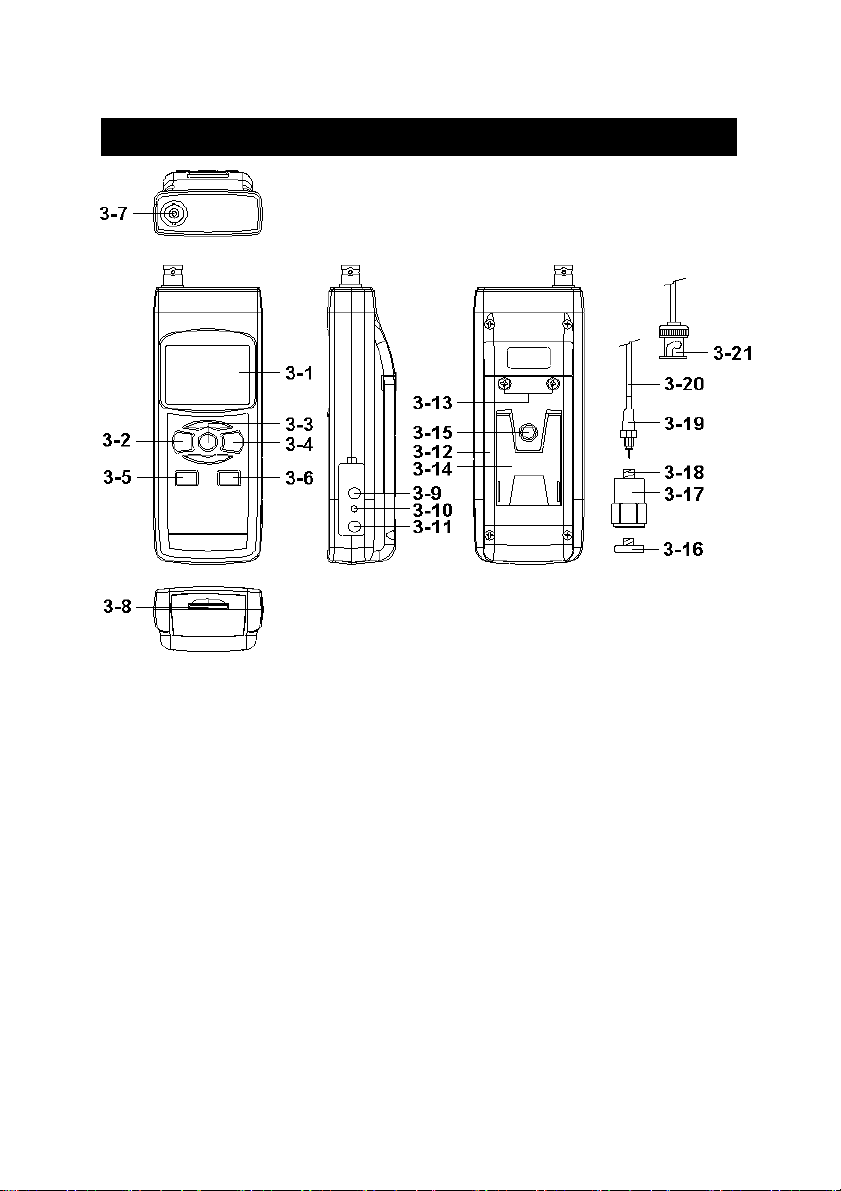

3. FRONT PANEL DESCRIPTION.................................................... 8
3-1 Display................................................................................................. 8
3-2 Power Button ( ESC, Backli
3-3 Hold Button ( Function Button, Next Button ).......................................... 8
3-4 REC Button ( Enter Button, Unit Button )...............................................
3-5 SET Button ( Button, Time check Button )..........................................
3-6 Lo
Max hold reset Button )........................................................................ 8
3-7 BNC Input Socket.................................................................................
3-8 SD Card Socket..................................................................................... 8
3-9 RS-232 Output Terminal........................................................................ 8
3-10 Reset Button......................................................................................
3-11 DC 9V Power Adapter Input Socket......................................................
3-12 Battery Compartment/Cover................................................................
3-13 Battery Cover Screws.......................................................................... 8
3-14 Stand................................................................................................. 8
3-15 Tripod Fix Nut..................................................................................... 8
3-16 Ma
3-17 Vibration Sensor................................................................................. 8
3-18 Input Socket of Vibration Sensor .........................................................
3-19 Mini Plu
3-20 Sensor Cable......................................................................................
3-21 Cable BNC Plu
▼ 8
er Button ( Button, Sampling time check Button, Zero Button )▲
netic base.................................................................................... 8
of Cable................................................................................8
................................................................................... 8
4. MEASURING PROCEDURE......................................................... 9
4-1 Preparation..........................................................................................
4-2 Unit selection ( Acc./Velocity/Displacement selection ).............................
4-3 Function selection ................................................................................11
4-4 Zero ad
4-5 Data Hold.............................................................................................13
4-6 Data Record ( Max./ Min. readin
4-7 LCD Backli
ustment procedures...................................................................12
ht ON/OFF...........................................................................14
5. DATALOGGER..........................................................................14
5-1 Preparation before execute datalo
5-2 Auto Datalo
5-3 Manual Datalo
5-4 Check time information.........................................................................
5-5 Check samplin
5-6 SD Card Data structure.........................................................................
er ( Set sampling time 1 second ).................................≧ 15
er ( Set sampling time = 0 second )..............................16
time information............................................................17
6. Saving data from the SD card to the computer...........................19
7. ADVANCED SETTING................................................................20
7-1 Set clock time ( Year/Month/Date, Hour/Minute/ Second )........................21
7-2 Decimal point of SD card settin
7-3 Auto power OFF mana
7-4 Set beep Sound ON/OFF........................................................................23
7-5 Set samplin
7-6 SD memory card format........................................................................
time ................................................................................ 23
8. POWER SUPPLY from DC ADAPTER...........................................
9. BATTERY REPLACEMENT..........................................................24
10. SYSTEM RESET......................................................................25
11. RS232 PC serial interface........................................................25
12. CLASSIFICATION RANGES......................................................
13. SENSITIVITY RELATIVE according ISO 2954............................
14. PATENT.................................................................................29
ht Button )................................................... 8
10
).........................................................13
er function.......................................14
17
17
.............................................................22
ement ...............................................................22
23
24
27
28
8
8
8
8
8
8
8
9
Page 3
1. FEATURES
* Applications for industrial vibration monitoring :
All industrial machinery vibrates. The level of vibration is
a useful guide to machine condition. Poor balance,
misalignment & looseness of the structure will cause the
vibration level increase, it is a sure sign that the
maintenance is needed.
* Frequency range 10 Hz - 1 kHz, sensitivity relative meet
ISO 2954.
* Professional vibration meter supply with vibration sensor
& magnetic base, full set.
* Metric & Imperial display unit
* Acceleration, Velocity, Displacement measurement.
* RMS, Max hold, Peak value measurement.
* Max. Hold reset button, Zero button.
* Wide frequency range.
* Data hold button to freeze the desired reading.
* Memory function to record maximum and minimum
reading with recall.
* Separate vibration probe with magnetic base, easy operation.
* Real time SD memory card Datalogger, it Built-in Clock
and Calendar, real time data recorder , sampling time set
from 1 second to 3600 seconds.
* Manual datalogger is available ( set the sampling
time to 0 ), during execute the manual datalogger
function, it can set the different position ( location ) No.
( position 1 to position 99 ).
* Innovation and easy operation, computer is not need
to setup extra software, after execute datalogger, just
take away the SD card from the meter and plug in the
SD card into the computer, it can down load the all the
measured value with the time information (
year/month/date/ hour/minute/second ) to the Excel
directly, then user can make the further data or graphic
analysis by themselves.
1
Page 4
* SD card capacity : 1 GB to 16 GB.
* LCD with green light backlight, easy reading.
* Can default auto power off or manual power off.
* Data hold, record max. and min. reading.
* Microcomputer circuit, high accuracy.
* Power by UM3/AA ( 1.5 V ) x 6 batteries or DC 9V adapter.
* RS232/USB PC COMPUTER interface.
2. SPECIFICATIONS
2-1 General Specifications
Circuit Custom one-chip of microprocessor LSI
circuit.
Display LCD size : 52 mm x 38 mm
LCD with green backlight ( ON/OFF ).
Measurement Velocity, Acceleration, Displacement
Function
Acceleration, Velocity :
RMS, Peak, Max Hold.
Displacement :
p-p ( peak-peak ), Max Hold p-p.
Unit
Frequency 10 Hz to 1 KHz
range
Measurement Metric Imperial
Acceleration meter/s^2, g ft/s^2,
Velocity mm/s, cm/s inch/s
Displacement mm inch
* Sensitivity relative during the
the frequency range meet ISO 2954
Refer to table 1, page 28
Circuit Exclusive microcomputer circuit.
Peak
Measurement To measure and update the peak
Acceleration, Velocity :
value.
Displacement :
To measure and update the peak to
peak ( p-p ) value.
2
Page 5
Max Hold
Acceleration, Velocity :
Measurement To measure and update the max. peak
value.
Displacement :
To measure and update the max.
peak to peak ( p-p ) value.
Zero Button Under Acceleration ( RMS ) measurement,
sensor motionless , press Logger Button
( 3-6, Fig. 1 ) > 5 seconds.
Max. Hold Reset Under Max. hold measurement, press
Button Logger Button ( 3-6, Fig. 1 ) > 5 seconds.
Datalogger Auto 1 second to 3600 seconds
Sampling Time
Setting range
@ Sampling time can set to 1 second,
but memory data may loss.
Manual Push the data logger button
once will save data one time.
@ Set the sampling time to
0 second.
@ Manual mode, can also select the
1 to 99 position ( Location ) no.
Memory Card SD memory card 1 GB to 16 GB.
Advanced * Set clock time ( Year/Month/Date,
setting Hour/Minute/ Second )
* Decimal point of SD card setting
* Auto power OFF management
* Set beep Sound ON/OFF
* Set sampling time
* SD memory card Format
Data error no. 0.1 % no. of total saved data typically.≦
Data Hold Freeze the display reading.
* Only available for the RMS function.
Memory Recall Maximum & Minimum value.
* Only available for the RMS function.
3
Page 6
Data Output RS 232/USB PC computer interface.
A
A
.
* Connect the optional RS232 cable
UPCB-02 will get the RS232 plug.
* Connect the optional USB cable
USB-01 will get the USB plug.
Sampling Time Approx. 1 second.
of Display
Operating 0 to 50 .℃
Temperature Less than 85% R.H.
and Humidity
Power Supply
Power Current Normal operation ( w/o SD card save
*
Alkaline or heavy duty DC 1.5 V battery
( UM3, AA ) x 6 PCs, or equivalent.
*
DC 9V adapter input. ( AC/DC power
adapter is optional ).
data and LCD Backlight is OFF) :
Approx. DC 15 mA.
When SD card save the data and LCD
Backlight is OFF) :
Approx. DC 36 mA.
Weight
Meter :
515 g/ 1.13 LB.
Probe with cable and magnetic base :
99 g/0,22 LB
Dimension
Meter :
203 x 76 x 38 mm
Vibration sensor probe:
Round 16 mm Dia. x 37 mm.
Cable length : 1.2 meter.
Accessories * Instruction manual........................1 PC
Included * Hrad carrying case, CA-06.............1 PC
* Vibration sensor with cable...........
* Magnetic base..............................1 PC
Optional SD Card ( 2 G )
Accessories AC to DC 9V adapter.
USB cable, USB-01.
RS232 cable, UPCB-02.
Data Acquisition software,SW-U801-WIN.
1 PC
4
Page 7
2-2 Electrical Specifications (23±5 )℃
Acceleration ( RMS, Peak, Max Hold )
Unit m/s^2
Range 0.5 to 199.9 m/s^2
Resolution 0.1 m/s^2
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 50 m/S^2 ( 160 Hz )
Point
Unit g
Range 0.05 to 20.39 G
Resolution 0.01 G
Accuracy ± ( 5 % + 2 d ) reading
@ 1 g = 9.8 m/s^2
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 50 m/S^2 ( 160 Hz )
Point
Unit ft/s^2
Range 2 to 656 ft/s^2
Resolution 1 ft/s^2
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 50 m/S^2 ( 160 Hz )
Point
Remark :
RMS : To measure the true RMS value.
Peak : To measure and update the peak value.
Max. Hold : To measure and update the max. peak value.
5
Page 8
Velocity ( RMS, Peak, Max Hold )
Unit mm/s
Range 0.5 to 199.9 mm/s
Resolution 0. 1 mm/s
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 50 mm/s ( 160 Hz )
Point
Unit cm/s
Range 0.05 to 19.99 cm/s
Resolution 0. 01 cm/s
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 50 mm/s ( 160 Hz )
Point
Unit inch/s
Range 0.02 to 7.87 inch/s
Resolution 0.01 inch/s
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 50 mm/s ( 160 Hz )
Point
Remark :
RMS : To measure the true RMS value.
Peak : To measure and update the peak value.
Max. Hold : To measure and update the max. peak value.
6
Page 9
Displacement ( p-p, Max Hold p-p )
Unit mm
Range 1.999 mm
Resolution 0.001 mm
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 0.141 mm ( 160 Hz )
Point
Unit inch
Range 0.078 inch
Resolution 0.001 inch
Accuracy ± ( 5 % + 2 d ) reading
@ 160 Hz, 80 Hz, 23 ± 5 ℃
Calibration 0.141 mm ( 160 Hz )
Point
Remark :
p-p :
To measure the Peak to Peak value.
Max. Hold p-p :
To measure and update the max. Peak to Peak value.
@ Above specification tests under the environment RF Field Strength
less than 3 V/M & frequency less than 30 MHz only.
7
Page 10
3. FRONT PANEL DESCRIPTION
Fig. 1
)
)
)
)
hold
)
d
l
/
d
g
k
bl
g
3-1 Display
3-2 Power Button ( ESC, Backlight Button
3-3 Hold Button ( Function Button, Next Button
3-4 REC Button ( Enter Button, Unit Button
3-5 SET Button ( Button, Time check Button
3-6 Logger Button ( Button, Sampling time check Button, Zero Button, ▲
Max
3-7 BNC Input Socket
3-8 SD Car
3-9 RS-232 Output Termina
3-10 Reset Button
3-11 DC 9V Power Adapter Input Socket
3-12 Battery Compartment
3-13 Battery Cover Screws
3-14 Stan
3-15 Tripod Fix Nut
3-16 Ma
3-17 Vibration Sensor
3-18 Input Soc
3-19 Mini Plug of Cable
3-20 Sensor Ca
3-21 Cable BNC Plu
netic Base
▼
reset Button
Socket
Cover
et of Vibration Sensor
e
8
Page 11
4. MEASURING PROCEDURE
4-1 Preparation
1)Turn on the meter by pressing the " Power Button "
( 3-2, Fig. 1 ) momentarily.
*
Pressing the " Power Button " ( 3-2, Fig. 1 )
continuously and > 2 seconds again will turn off the
meter.
2)Plug in the " Cable BNC Plug " ( 3-21, Fig. 1 )
to the " BNC Input Socket " ( 3-7, Fig. 1 ).
3)Plug in the " Mini plug of cable " ( 3-19, Fig. 2 )
to the " Input socket of vibration sensor " ( 3-18, Fig. 2 ).
Remark :
1.
If the surface material of measuring article is not
the ferrous material, hold the vibration sensor by
hand & touch the sensor to the surface of the
measuring article,
*
If the surface material of measuring article is the
ferrous material, connect " Vibration sensor " (
3-17, Fig. 2 ) with the " Magnetic base " ( 3-16, Fig.
2 ). Put the whole unit ( Vibration sensor &
Magnetic base ) to the surface of measuring article.
*
Please do not use the finger or hand to touch the
the " Sensor cable " ( 3-20, Fig. 1 ).
9
Page 12
4-2 Unit selection ( Acc./Velocity/Displacement
selection )
Select the desired display unit by pressing the " Unit
Button " ( 3-4, Fig. 1 ) continuously ( not release the
button ), the Display will show the following units
according Acceleration/Velocity/Displacement in
sequence.
Measurement Unit
Acceleration m/s^2, g, ft/s^2
* LCD show " ACC "
Velocity mm/s, cm/s, inch/s
* LCD show " VEL. "
Displacement mm, inch.
* LCD show " DISP p-p"
ACC m/s^2
ACC g 'Metric
unit
VEL mm/s
VEL cm/s
DISP p-p mm
ACC ft/s^2
Imperial
VEL inch/s unit
DISP p-p inch.
10
Page 13
Remark :
1.For the Acceleration measurement, the Display will
show the indicator " ACC "
2.For the Velocity measurement, the Display will show
the indicator " VEL. "
3.For the Displacement measurement, the Display will
show the indicator " DISP p-p "
4.For general applications of industrial vibration
monitoring, select " Velocity " or " Acceleration "
typically.
5. After select the unit will be saved into the circuit with
default.
4-3 Function selection
Select the desired function ( RMS, Peak, Max HOLD )
by pressing the " Function Button " ( 3-3, Fig. 1 ).
continuously ( not release the button ), until the
Display will show the desiring function ( RMS, Max
HOLD, Peak ) , then release the " Function
Button " ( 3-3, Fig. 1 ). The detail procedures, please
refer to chapter 4-1, page 9. .
Remarks :
1.RMS measurement is intend to measure and
root means square ( RMS ) value.
The Display will show the indicator " RMS ".
2.Max HOLD measurement is intend to measure and
update the max. peak value.
The Display will show the indicator " MAX HOLD ".
Max hold reset procedures
Under execute the Max Hold function if press the
" LOGGER Button " ( 3-6, Fig. 1 ) continuously at least 5
seconds will clear the existing Max hold value.
11
Page 14
3.Peak measurement is intend to measure the peak
vibration value.
The Display will show the indicator " PEAK ".
4.After select the unit will be saved into the circuit with
default.
5.Acceleration and Velocity measurement can select 3
function : RMS, PEAK, MAX HOLD
* Typically, for Acceleration and Velocity measurement
always select to the " RMS " measurement.
6.Displayment measurement can select 2 function :
" DISP p-p " or MAX HOLD ( DISP p-p )
* Typically, for Displacement measurement
always select to the " DISP p-p " measurement.
4-4 Zero adjustment procedures
Due to drift of environment temperature value, battery
power change, meter used for a long time or other
reasons. The display value may exist not zero value ( few
digits ) in case of no signal into the " Vibration Sensor ".
General speaking those not zero value will not effect the
measurement typically. However if intend to make the
precision measurement, the following zero adjustment
procedures should be executed as :
1)Vibration sensor is ready, connect the " Plug of cable "
( 3-21, Fig. 1 ) into the " " Input socket " ( 3-7, Fig. 1 ).
2)Select the measurement to the " Acceleration "
3)Keep the vibration sensor motionless, no signal into
the vibration sensor.
4)Press the " LOGGER Button " ( 3-6, Fig. 1 ) continuously
at least 5 seconds will let the display reach zero value.
5)The zero adjustment can be execute only
the display value show the no. less than 10 digits.
12
Page 15
4-5 Data Hold
* Only available for the RMS function.
During the measurement, press the " Hold Button " ( 3-3,
Fig. 1 ) once will hold the measured value & the LCD will
display a " HOLD " symbol.
Press the " Hold Button " once again will release the data
hold function.
4-6 Data Record ( Max., Min. reading )
* Only available for the RMS function.
1)The data record function records the maximum and
minimum readings. Press the " REC Button " ( 3-4, Fig.
1 ) once to start the Data Record function and there
will be a " REC " symbol on the display.
2)With the " REC " symbol on the display :
a)Press the " REC Button " ( 3-4, Fig. 1 ) once, the
" REC MAX " symbol along with the maximum value
will appear on the display.
If intend to delete the maximum value, just press
the " Hold Button " ( 3-3, Fig. 1 ) once, then the
display will show the " REC. " symbol only & execute
the memory function continuously.
b)Press the " REC Button " ( 3-4, Fig. 1 ) again, the
" REC MIN " symbol along with the minimum value
will appear on the display.
If intend to delete the minimum value, just press
the " Hold Button " ( 3-3, Fig. 1 ) once, then
the display will show the " REC. " symbol only &
execute the memory function continuously.
c)To exit the memory record function, just press the
" REC " button for 2 seconds at least. The display will
revert to the current reading.
13
Page 16
4-7 LCD Backlight ON/OFF
the down case
After power ON, the " LCD Backlight " will light
automatically. During the measurement, press the "
Backlight Button " ( 3-2, Fig. 1 ) once will turn OFF the
" LCD Backlight ".
Press the " Backlight Button " once again will turn ON the
" LCD Backlight " again.
5. DATALOGGER
5-1 Preparation before execute datalogger function
a. Insert the SD card
Prepare a " SD memory card " ( 1 G to 16 G, optional ),
insert the SD card into the " SD card socket " ( 3-8, Fig. 1).
The front panel of the SD card should face against the
* It recommend use memory card's capacity is 4 GB.≦
b. SD card Format
If SD card just the first time use into the meter, it
recommend to make the " SD card Format " at first. ,
please refer chapter 7-6 ( page 23 ).
.
* It recommend strongly, do not use memory cards
that have been formatted by other meter or by
other installation ( such as camera... ). Reformat
the memory card with your meter.
* If the SD memory card exist the trouble during
format by the meter, use the Computer to
reformat again can fix the problem.
14
Page 17
c. Time setting
r
*
*
If the meter is used at first time, it should to adjust the
clock time exactly, please refer chapter 7-1 ( page 21 ).
d. Decimal fo
The numerical data structure of SD card is
default used the " . " as the decimal, for
example "20.6" "1000.53" . But in certain
countries ( Europe ...) is used the " , " as the
decimal point, for example " 20, 6 "
"1000,53". Under such situation, it should
change the Decimal character at first, details
of setting the Decimal point, refer to Chapter
7-2, page 22.
5-2 Auto Datalogger ( Set sampling time 1 second )≧
a. Start the datalogger
Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will
show the text " REC ", then press the " Logger Button " (
3-6, Fig. 1 ), the " REC " will flashing, at the same time
the measuring data along the time information will be
saved into the memory circuit.
Remark :
How to set the sampling time, refer to Chapter 7-5,
page 23
How to set the beeper sound is enable, refer to
Chapter 7-4, page 23
15
Page 18
b. Pause the datalogger
During execute the Datalogger function , if press the
" Logger Button " ( 3-6, Fig. 1 ) once will pause the
Datalogger function ( stop to save the measuring data
into the memory circuit temporally ). In the same time
the text of " REC " will stop flashing.
Remark :
If press the " Logger Button " ( 3-6, Fig. 1 ) once again
will execute the Datalogger again, the text of " REC " will
flashing .
c. Finish the Datalogger
During pause the Datalogger, press the " REC Button " (
3-4, Fig. 1) continuously at least two seconds, the " REC "
indication will be disappeared and finish the Datalogger.
5-3 Manual Datalogger ( Set sampling time = 0
second )
a. Set sampling time is to 0 second
Press the " REC Button ( 3-4, Fig. 1 ) once , the LCD will
show the text " REC ", then press the " Logger Button " (
3-6, Fig. 1 ) once, the " REC " will flashing once and Beeper
will sound once, at the same time the measuring data
along the time information will be saved into the
memory circuit. The lower Display will show the
Position ( Location ) no. and saved into the SD card too.
16
Page 19
Remark :
During execute the Manual Datalogger, press the " ▼
Button " ( 3-5, Fig, 1 ) the lower no. ( position no. ) will
flashing. It can use the " Button " ( 3-6, Fig. 1) or " ▲
Button " ( 3-5, Fig. 1 ) to set the measuring position (▼
1 to 99, for example room 1 to room 99 ) to identify the
measurement location , the lower Display will show P x (
x = 1 to 99 ). After the position no. is selected, t press
the " Enter Button " ( 3-4, Fig. 1 ) to confirm.
b. Finish the Datalogger
Press the " REC Button " ( 3-4, Fig. 1) continuously at
least two seconds, the " REC " indication will be
disappeared and finish the Datalogger.
5-4 Check time information
During the normal measurement ( not execute the
Datalogger ), If press " Time check Button " ( 3-5, Fig. 1
) once , the lower LCD display will present the time
information of Year, Month/Date, Hour/Minute
5-5 Check sampling time information
During the normal measurement ( not execute the
Datalogger ), If press " Sampling Button " ( 3-6, Fig. 1 )
once , the lower LCD display will present the Sampling
time information in second unit.
5-6 SD Card Data structure
1) When the SD card is used into the meter, the SD card
When the first time, the SD card is used into the meter,
the SD card will generate a folder :
VBB01
17
Page 20
2)If the first time to execute the Datalogger,
B
B
under the route VBB01\, will generate a new
file name VBB01001.XLS.
After exist the Datalogger, then execute again,
the data will save to the VBB01001.XLS until
Data column reach to 30,000 columns, then
will generate a new file, for example VBB01002.XLS
3)Under the folder VBB01\, if the total files more
than 99 files, will generate anew route, such as
VBB02\ ........
4)The file's route structure :
VBB01\
VBB01001.XLS
VBB01002.XLS
.....................
VBB01099.XLS
V
VBB02001.XLS
VBB02002.XLS
.....................
VBB02099.XLS
V
.....................
.....................
Remark :
XX : Max. value is 10.
18
Page 21
6. Saving data from the SD card
(
)
to the computer ( EXCEL software )
1)After execute the Data Logger function, take away the
SD card out from the " SD card socket " ( 3-8, Fig. 1 ).
2)Plug in the SD card into the Computer's SD card slot
( if your computer build in this installation ) or
insert the SD card into the " SD card adapter ". then
connect the " SD card adapter " into the computer.
3)Power ON the computer and run the " EXCEL software ".
Down load the saving data file ( for example the file
name : VBB01001.XLS, VBB01002.XLS ) from the SD
card to the computer. The saving data will present into
the EXCEL software screen ( for example as following
EXCEL data screens ) , then user can use those EXCEL
data to make the further Data or Graphic analysis
usefully.

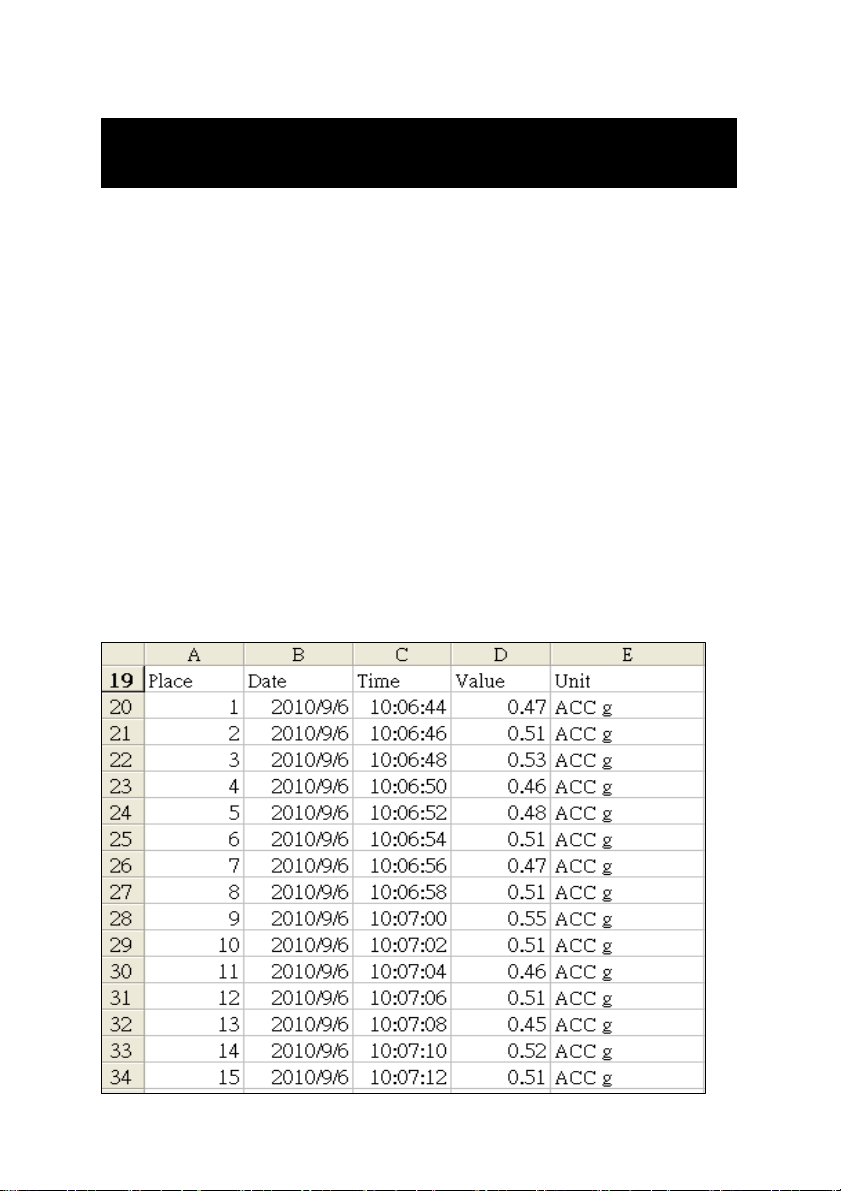

EXCEL data screen
for example
19
Page 22

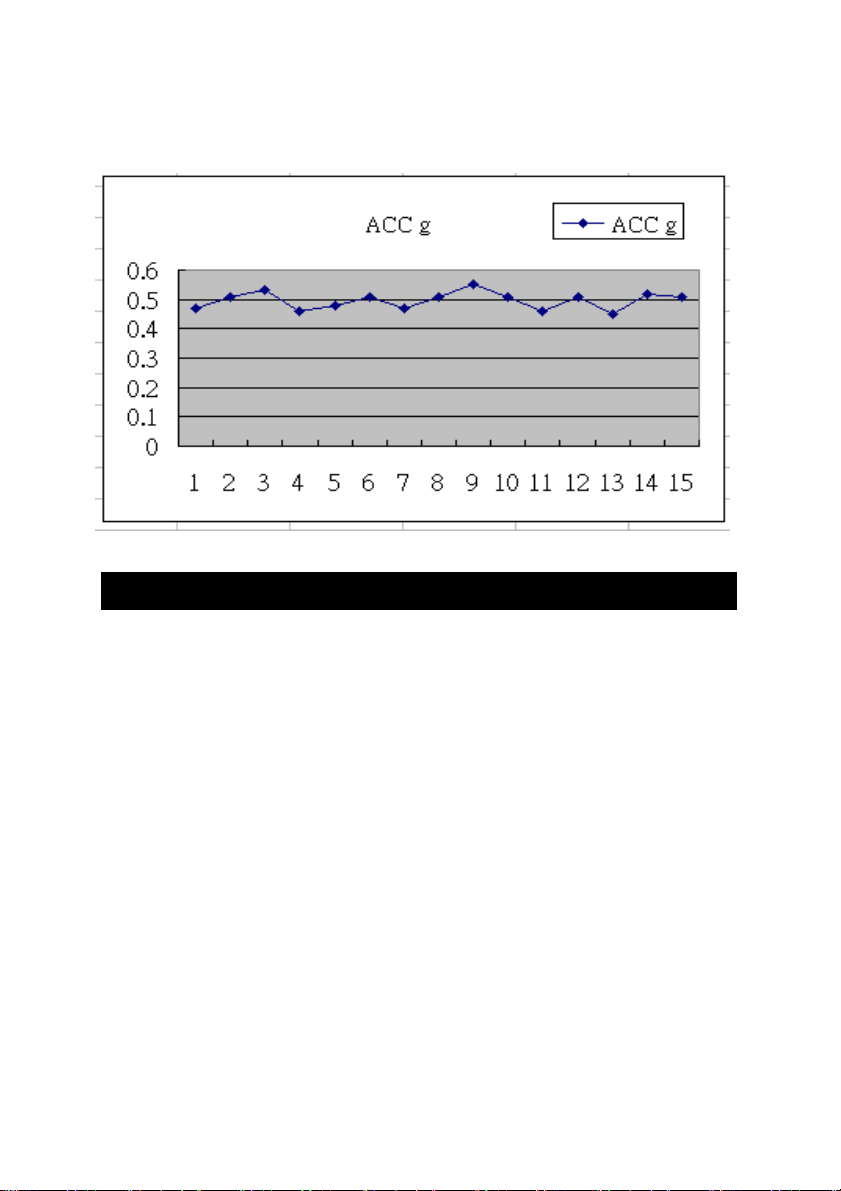

EXCEL graphic screen ( for example )
.
.
.
7. ADVANCED SETTING
Under do not execute the Datalogger function,
press the " SET Button " ( 3-5, Fig. 1 ) continuously at
least two seconds will enter the " Advanced Setting " mode.
then press the " Next Button " (3-3, Fig. 1 ) once a while
in sequence to select the eight main function, the lower
display will show :
dAtE.....
dEC......
PoFF.....Auto power OFF management
bEEP....
SP-t......Set sampling time ( Hour/Minute/Second )
Sd F..... SD memory card Format
Set clock time ( Year/Month/Date, Hour/Minute/
Second )
Set SD card Decimal character
Set beeper sound ON/OFF
20
Page 23
Remark :
During execute the " Advanced Setting " function,
if press " Esc Button " ( 3-2, Fig. 1 ) once will exit
the " Advanced Setting " function, the LCD will
return to normal screen.
7-1 Set clock time ( Year/Month/Date,
Hour/Minute/ Second )
When the lower display show " dAtE "
1)Press the " Enter Button " ( 3-4, Fig. 1 ) once,
Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲▼
( 3-5, Fig. 1 ) to adjust the value ( Setting start from
Year value ). After the desired value is set, press the
" Enter Button " ( 3-4, Fig. 1 ) once will going to
next value adjustment ( for example, first setting
value is Year then next to adjust Month, Date, Hour,
2)After set all the time value ( Year, Month, Date, Hour,
Minute, Second ),
the screen will jump to " Decimal point of SD card "
setting screen ( Chapter 7-2 ).
Remark :
After the time value is setting, the internal clock will
run precisely even Power off if the battery is under
normal condition ( No low battery power ).
21
Page 24
7-2 Decimal point of SD card setting
The numerical data structure of SD card is default used
the " . " as the decimal, for example "20.6" "1000.53" .
But in certain countries ( Europe ...) is used the " , " as
the decimal point, for example " 20,6 " "1000,53".
Under such situation, it should change the Decimal
character at first.
When the lower display show " dEC "
1)Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲▼
( 3-5, Fig. 1 ) to select the upper value to " USA " or
" Euro ".
USA - Use " . " as the Decimal point with default.
Euro - Use " , " as the Decimal point with default.
2)After select the upper text to " USA " or " Euro ",
press the " Enter Button " ( 3-4, Fig. 1 ) will save the
setting function with default.
7-3 Auto power OFF management
When the lower display show " PoFF "
1)Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲▼
( 3-5, Fig. 1 ) to select the upper value to " yES " or
" no ".
yES - Auto Power Off management will enable.
no - Auto Power Off management will disable.
2)After select the upper text to " yES " or " no ", press the
" Enter Button " ( 3-4, Fig. 1 ) will save the setting
function with default.
22
Page 25
7-4 Set beeper sound ON/OFF
When the lower display show " bEEP "
1)Use the " Button " ( 3-6, Fig. 1 ) or " Button " ▲▼
( 3-5, Fig. 1 ) to select the upper value to " yES " or
" no ".
yES - Meter's beep sound will be ON with default.
no - Meter's beep sound will be OFF with default.
is power ON.
2)After select the upper text to " yES " or " no ", press the
" Enter Button " ( 3-4, Fig. 1 ) will save the setting
function with default.
function with default.
7-5 Set sampling time ( seconds )
When the lower display show " SP-t "
1)Use the " Button " ( 3-6, Fig. 1 ) or " Button " (▲▼
3-5, Fig. 1 ) to adjust the value ( 1, 2, 5, 10, 30,60,
120, 300, 600, 1800,3600 seconds ).
2)After the Sampling value is selected, press the "
Enter Button " ( 3-4, Fig. 1 ) will save the setting
function with default.
7-6 SD memory card Format
When the lower display show " Sd F "
1)Use the " Button " ( 3-6, Fig. 1 ) or " Button " (▲▼
3-5, Fig. 1 ) to select the upper value to " yES " or
" no ".
23
Page 26
yES - Intend to format the SD memory card
1)When the left corner of LCD display show " ", it
no - Not execute the SD memory card format
2)If select the upper to " yES ", press the " Enter Button
" ( 3-4, Fig. 1 ) once again, the Display will show text
" yES Enter " to confirm again, if make sure to do the
SD memory card format, then press " Enter Button "
once will format the SD memory clear all the existing
data that already saving into the SD card.
8. POWER SUPPLY from DC
ADAPTER
The meter also can supply the power supply from the
DC 9V Power Adapter ( optional ). Insert the plug of
Power Adapter into " DC 9V Power Adapter Input Socket
" ( 3-11, Fig. 1 ). The meter will permanent power ON
when use the DC ADAPTER power supply ( The power
Button function is disable ).
9. BATTERY REPLACEMENT
is necessary to replace the battery. However, in-spec.
measurement may still be made for several hours after
low battery indicator appears before the instrument
become inaccurate.
2)Loose the screws of the " Battery Cover Screws " ( 3-13,
Fig. 1 ) and take away the " Battery Cover " ( 3-12, Fig. 1 )
from the instrument and remove the battery.
3)Replace with DC 1.5 V battery ( UM3, AA,
Alkaline/heavy duty ) x 6 PCs, and reinstate the cover.
4)Make sure the battery cover is secured after changing
the battery.
24
Page 27
10. SYSTEM RESET
If the meter happen the troubles such as :
CPU system is hold ( for example, the key button can
not be operated... ).
Then make the system RESET will fix the problem.
The system RESET procedures will be either following
method :
During the power on, use a pin to press the " Reset
Button " ( 3-10, Fig. 1 ) once a while will reset the
circuit system.
11. RS232 PC SERIAL INTERFACE
The instrument has RS232 PC serial interface via a 3.5
mm terminal ( 3-9, Fig. 1 ).
The data output is a 16 digit stream which can be
utilized for user's specific application.
A RS232 lead with the following connection will be
required to link the instrument with the PC serial port.
25
Page 28

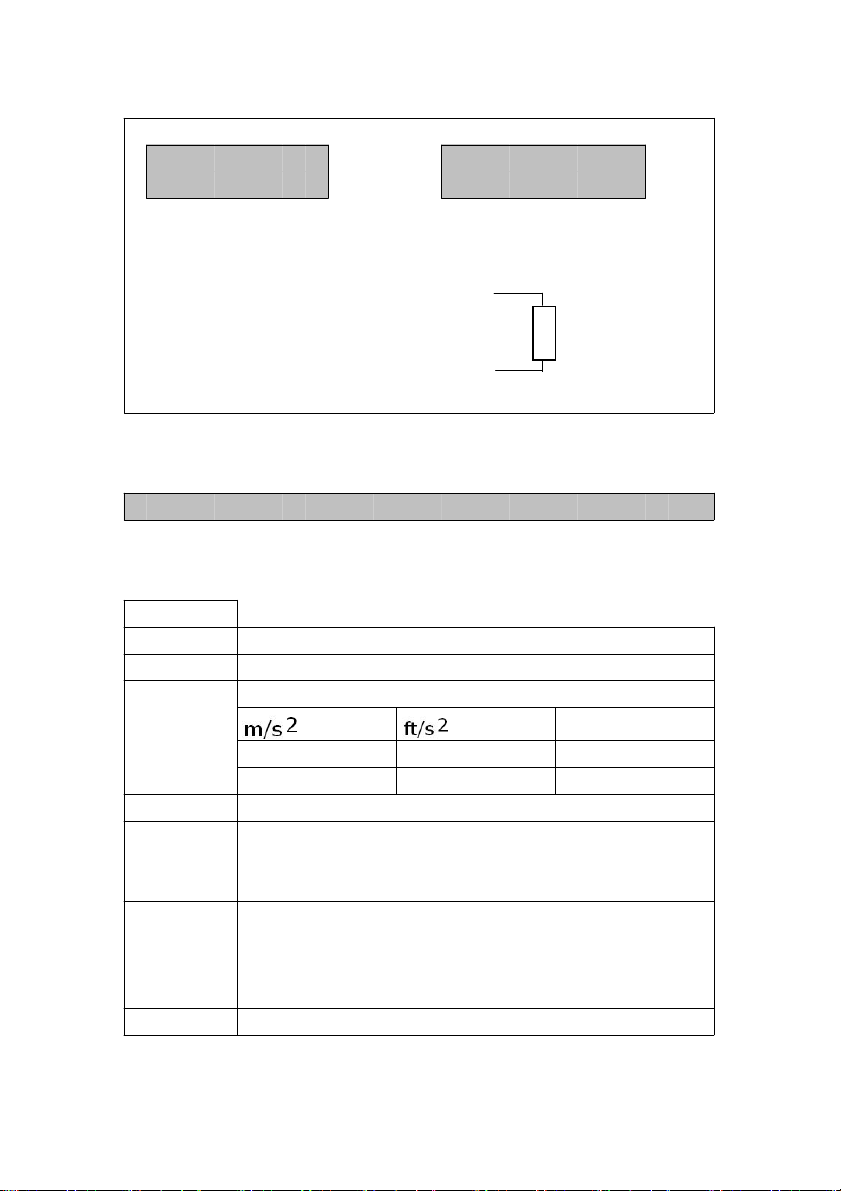

Meter PC
(9W 'D" Connector)
Center Pin..........................Pin 4
(3.5 mm jack plug)
Ground/shield.......................Pin 2
2.2 K
resistor
Pin 5
The 16 digits data stream will be displayed in the
following format :
D15 D14 D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0
Each digit indicates the following status :
D15 Start Word
D14 4
D13 1
D12, D11 Annunciator for Display
= 92 = 97
mm/s = 93 cm/s = 95 inch/s = 98
mm = 94 inch = 96 g = 57
D10 0
D9 Decimal Point(DP), position from right to the
left
0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP
D8 to D1 Display reading, D1 = LSD, D8 = MSD
For example :
If the display reading is 1234, then D8 to
D1 is : 00001234
D0 End Word
26
Page 29
RS232 FORMAT : 9600, N, 8, 1
Baud rate 9600
Parity No parity
Data bit no. 8 Data bits
Stop bit 1 Stop bit
12. CLASSIFICATION RANGES
For the valuation of machines and equipment in the ISO
2372 and VDI 2056, four different kinds of machine groups
with four classification ranges and their limits for vibration
severity ( mm/s ) are determined.
The classifications for each machine group are specified as
follows :
Small machines, especially production electrical
motors of up to 15 KW ( Group K )
Good 0 to 0.71 mm/s
Acceptable 0.72 to 1.80 mm/s
Still permissible 1.81 to 4.5 mm/s
Dangerous > 4.5 mm/s
Medium sized machines, especially electrical
motors with 15 up to 75 KW output, without
special foundations ( Group M )
Good 0 to 1.12 mm/s
Acceptable 1.13 to 2.80 mm/s
Still permissible 2.81 to 7.1 mm/s
Dangerous > 7.1 mm/s
27
Page 30
Large machines on heavy foundations ( Group G )
Good 0 to 1.80 mm/s
Acceptable 1.81 to 4.50 mm/s
Still permissible 4.51 to 11.2 mm/s
Dangerous > 11.2 mm/s
Largest machines and turbo machines with a
special foundations ( Group T ).
Good 0 to 2.80 mm/s
Acceptable 2.81 to 7.10 mm/s
Still permissible 7.11 to 18.0 mm/s
Dangerous > 18 mm/s
13. SENSITIVITY RELATIVE to the
reference sensitivity at 80 Hz ,
according ISO 2954
Frequency Normal Relative sensitivity
value Minimum Maximum
value value
10 Hz 1.0 0.8 1.1
20 Hz 1.0 0.9 1.1
40 Hz 1.0 0.9 1.1
80 Hz 1.0 1.0 1.0
160 Hz 1.0 0.9 1.1
500 Hz 1.0 0.9 1.1
1000 Hz 1.0 0.8 1.1
Table 1
28
Page 31
14. PATENT
D
The meter ( SD card structure ) already
get patent or patent pending in following
countries :
Germany
JAPAN Nr. 20 2008 016 337.4
TAIWAN 3151214
M 358970
CHINA M 359043
ZL 2008 2 0189918.5
USA ZL 2008 2 0189917.0
Patent pending
29
1009-VB8206S
Loading...
