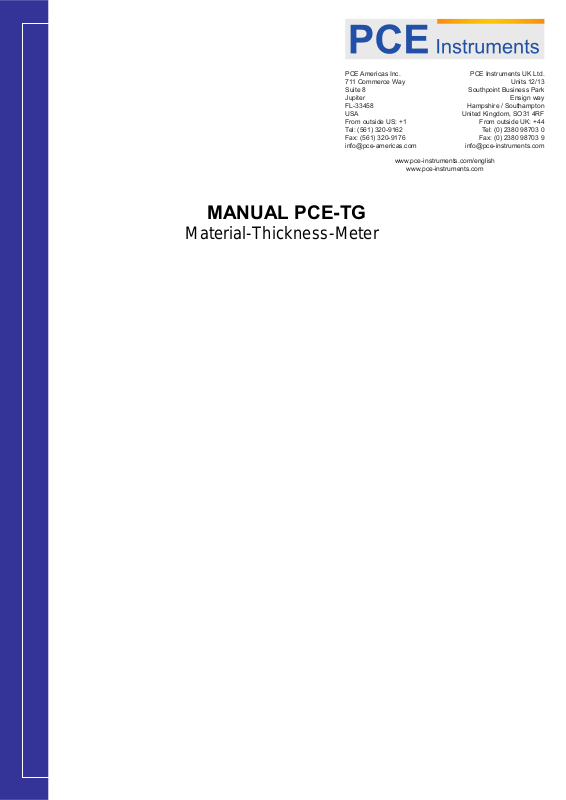

PCE Instruments PCE-TG 120 Users guide

Material-Thickness-Meter

PCE Americas Inc.
711 Commerce Way
Suite 8
Jupiter
FL-33458
USA
From outside US: +1
Tel: [phone]
Fax: [phone]
[e-mail]

www.pce-instruments.com/english

www.pce-instruments.com

PCE Instruments UK Ltd.

Units 12/13

Southpoint Business Park

Ensign way

Hampshire / Southampton

United Kingdom, SO31 4RF

From outside UK: +44

Tel: [phone]

Fax: [phone]

[e-mail]

MANUAL PCE-TG

∅

Overview

PCE-TG is a miniaturized ultrasonic thickness gauge which can measure thickness.

Keypad

ON - Turn on the gauge

OFF - Turn off the gauge

- Menu key. Circularly press to enter into different mode

- regulate the twinkling number (up)

- regulate the twinkling number (down)

- move the twinkling number on rightward

LCD display

THK - thickness measurement

CAL - calibration function

VEL - velocity setting

m/s - unit of velocity of sound

mm - unit of thickness

Calibration

9 Press menu key until CAL 0.0 displays on LCD.

9 Take the probe to measure the block of 3.0mm attached on the panel of gauge.

9 After 3.0mm displays, the gauge will automatically finish calibration and the display will come

back into the mode of measurement.

1. Change velocity

9 Press menu key consecutively until VEL and current velocity value displays on LCD.

9 Press key Δ or ∇ to change the value of velocity to be wanted.

Note: Press and hold

Measuring velocity

9 Press key consecutively until both THK and VEL display on LCD. And also last stored

thickness value will display.

9 Press Δ or ∇ to change the number to be the value of measured material.

9 Take measurement on the material and after new velocity of this material displays, the gauge

will automatically save this velocity and go into the mode of measurement.

Δ

or ∇ to let changing number go fast.

Optional probes

PT-5 5MHz

Dia.

10mm

For standard applications

XT-5 5MHz

∅

∅

∅

Dia.

7mm

For tubes with small diameter

GT-5 5MHz

CT-2.5 2.5MHz

Attached table:

Reference velocity of various materials

Material Sound Velocity

Al 6260 16.9

Zn 4170 29.6

Ag 3600 38.0

Au 3240 62.0

Su 3230 24.2

Fe 5900 46.0

Cu 4700 41.8

Brass 4640 39.6

SUS 5790 45.7

12mm For high temperature up to 400°C

Dia.

12mm

Dia.

(L wave, m/s)

For unfavorable attenuation cast

Acoustic impedance

(Lwave,10

6

kg/m2s)

Acrylic resin 2730 3.2

Water(20°C)

Oil 1390 1.28

Glycerin 1920 2.43

Water glass 2350 3.99

Precautions

Avoid shock, heavy dust and damp.

Remove the batteries from the gauge when not in use for long time.

1480 1.48

Specifications

9 Display: 4 digital LCD with back light

9 Measurement frequency: 5MHz

9 Measurement range: 1.0--250.0mm(steel)

9 Resolution: 0.1mm

9 Adjustment of velocity: Max. 9999m/s

9 Automatic power off: 3 minutes of non-use

9 Power : DC 3V x 2 (two AA batteries)

9 Low voltage indicating with BAT display

9 Size: 124 x 67 x 30mm

9 Weight: 240g

9 Environments for use:

Temperature: 0-40°C

Humidity:40°C(20—90)%RH

NOTE: "This instrument doesn’t have ATEX protection, so it should not be used in potentially explosive

atmospheres (powder, flammable gases)."
