Magnetic Stirrer PCE-MSR 150
User Manual
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 9 January 2020
v1.0
English
Page 2
Contents
1 Safety notes ........................................................................................... 1
2 Introduction ........................................................................................... 3
3 Intended use .......................................................................................... 3
4 Technical specifications ...................................................................... 3
5 Features ................................................................................................. 3
6 Delivery contents .................................................................................. 3
7 Device description ................................................................................ 4
8 Installation ............................................................................................. 5
8.1 Location and mounting ..................................................................................................... 5
8.2 Connecting power adaptor ............................................................................................... 5
9 User interface and display ................................................................... 6
10 Operation ............................................................................................... 8
10.1 Switching on the device .................................................................................................... 8
10.2 Setting Time ..................................................................................................................... 8
10.3 Setting Speed .................................................................................................................. 8
10.4 Pulse Mode Operation ...................................................................................................... 9
11 Troubleshooting .................................................................................... 9
12 Maintenance and cleaning ................................................................... 9
13 Contact ............................................................................................... 10
14 Disposal ............................................................................................... 10
© PCE Instruments
Page 3
© PCE Instruments
1
1 Safety notes
Please read this manual carefully and completely before you use the device for the first time. The
device may only be used by qualified personnel and repaired by PCE Instruments personnel.
Damage or injuries caused by non-observance of the manual are excluded from our liability and
not covered by our warranty.
• The device must only be used as described in this instruction manual. If used otherwise,
this can cause dangerous situations for the user and damage to the meter.
• The instrument may only be used if the environmental conditions (temperature, relative
humidity, …) are within the ranges stated in the technical specifications. Do not expose
the device to extreme temperatures, direct sunlight, extreme humidity or moisture.
• Do not expose the device to shocks or strong vibrations.
• The case should only be opened by qualified PCE Instruments personnel.
• Never use the instrument when your hands are wet.
• You must not make any technical changes to the device.
• The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,
no abrasives or solvents.
• The device must only be used with accessories from PCE Instruments or equivalent.
• Before each use, inspect the case for visible damage. If any damage is visible, do not
use the device.
• Do not use the instrument in explosive atmospheres.
• The measurement range as stated in the specifications must not be exceeded under
any circumstances.
• Place the device on a flat, stable, clean, non-slippery and fire-proof
surface.
• Ensure that only trained staff uses the device. Keep the instructions manual
in a place where it can be accessed easily.
• Beware of the possible effects of magnetic field on pacemakers, data media,
etc.
• Properly lift the device with both hands while moving or installing.
• Do not place any steel or magnetic material on the top surface except the
recommended magnetic stirring bar with beaker or flask in between. Doing this can
affect the magnetism of device.
• Wear your personal protective equipment in accordance with the hazardous category
of the media to be processed. Otherwise, there is a risk from:
Splashing of liquids.
Ejection of parts.
The release of toxic or combustible gases.
• The top surface must be clean and kept intact. Wear protective gloves while cleaning
the device. Use a soft mild cloth to clean.
• Do not use damaged beaker, flask, stirring bar or any other component for operation.
It may affect the efficiency of the device.
• Reduce the speed if:
If the medium splashes out of the vessel due to high speed.
If the appliance is not running smoothly.
If the container moves on the base plate.
• Do not move the device when it’s connected to power supply or during its operation.
• Ensure that the product is used only for specified operation. It should not be used for
shaking hazardous or reactive solutions.
Page 4
© PCE Instruments
2
• Give specific attention to the risks associated with:
Flammable materials
Flammable media with low steam pressure
Overfilling of medium
Incorrect vessel size
Unstable vessel
Glass breakage
• Note that, there is a possibility of contamination or unwanted chemical reaction.
• The rating of power supply must match with the specified rating.
• Process pathogenic materials only in a closed vessel under a suitable extractor hood.
Do not operate the appliance in explosive atmospheres, with the hazardous substance
or under water.
• Only that liquid should be used for mixing which does not react dangerously to the extra
energy produced through processing. This also applies to any extra energy produced
in other ways. For example: Through light irradiation, through surrounding temperature
etc.
• Abrasion of the dispersion equipment or the rotating accessories can get into the
medium you are working on.
• The chemical reaction of PTFE can occur when in contact with molten or dissolved
alkaline earth metals. Only elementary fluorine, chlorine trifluorine and alkaline metals
do attack PTFE, halogen hydrocarbons have a reversible swelling effect
• To protect do not cover the device, even partially, with elements such as metallic plates
or sheets otherwise it may overheat. Ensure that mounting plate remains clean.
• Non-observance of the safety notes can cause damage to the device and injuries to
the user.
We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of
business.
If you have any questions please contact PCE Instruments. The contact details can be found at
the end of this manual.
Page 5
© PCE Instruments
3
2 Introduction
This manual provides important safety information for this Magnetic Stirrer. It should be kept near
the equipment for quick & easy reference. This stirrer is specially designed for precise control of
stirring speed which allows gentle to vigorous mixing with speed ranging from 200 to 2200 RPM
with a maximum capacity of 10 Ltr. The multipurpose digital display assists users by displaying
various parameters like speed, time, pulse &mode of operation, etc.
3 Intended use
The hotplate stirrer is suitable to use for mixing and/or heating the liquids with the maximum
capacity of 10 l. It is designed for use in general laboratories, pharmacies, schools and
universities.
NOTE: Before using the instrument, please read this user manual carefully. This user manual is
intended to assist with the operation and care of the unit only and not its repair. For repair please
contact the supplier.
4 Technical specifications
Motor
DC
Max Stirring Quantity on Equip(H2O)
19 l
Speed range
200 … 2200 RPM
Speed control
10 RPM / Step
Accuracy
±20 RPM
Time range
1 … 999 minutes & Infinite
Bar Size
25 … 60 mm
Setup plate
Stainless steel
Dimensions (L x W x H)
156 x 248 x 77 mm
Protection class according to DIN EN
IP 43
Permissible ambient temp.
5 … 40°C
Permissible relative humidity
80 %
Weight
1.4 kg
Input Voltage
24 V / 0.3 A
Power Consumption
5.5 W
Maximum recommended bar size
Maximum Speed
25 mm
2200 RPM
35 mm
2200 RPM
50 mm
1650 RPM
60 mm
1500 RPM
5 Features
• Powerful motor delivers constant speed under varying load conditions.
• Variable speed setting from 200 to 2200 RPM in steps of 10 RPM & long timer range
from 1‐999 mins & infinite mode
• Microprocessor controlled with last run memory feature
• Large & clear display shows critical parameters for easy reading
• Small footprint saving valuable bench space
6 Delivery contents
1 x Magnetic Stirring Bar
1 x Power Adaptor: 100‐240VAC 50/60Hz (Input), 24V 1.5A (Output)
1 x User Manual
Page 6
© PCE Instruments
4
7 Device description
Front side
1 Stainless steel top plate 3 Start / stop button
2 Digital display 4 On / off button
Rear Side
1 Power Socket
Page 7
© PCE Instruments
5
8 Installation
This stirrer is provided in a box. Open the box, then remove the packaging and gently place the
device on the firm & levelled surface. Take care while unpacking and removing all accessories.
The user manual should be kept with the device for easy access. Please keep all packaging in
safe storage for at least two years for warranty purpose.
8.1 Location and mounting
Place the stirrer on a flat and levelled surface & ensure that all the four legs of this stirrer stands
on the surface firmly. Avoid installing on a slippery surface or surface prone to vibration.
1. Ideal ambient temperature is 25°C ± 1°C; avoid placing the unit in direct sunlight.
2. Keep clearance of at least 20 cm from all side to increase the cooling efficiency.
3. Keep the unit away from heated solution to avoid sample temperature issues.
4. Do not place the equipment at a place where it becomes difficult to operate it.

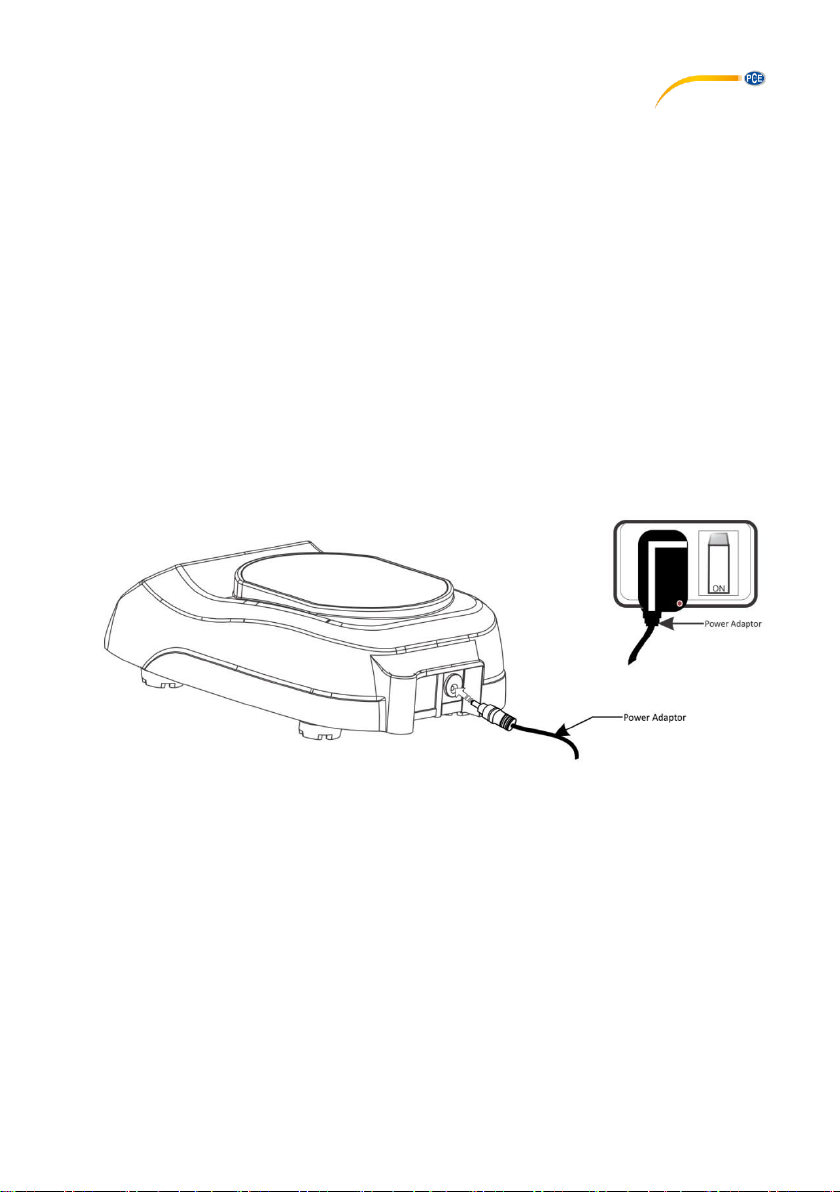

8.2 Connecting power adaptor
1. Connect one end of the power adaptor to the rear side of the stirrer and another end
to the power supply as shown in the figure below.
2. Push the power adaptor firmly for proper connection and turn ON the main switch.
3. Make sure that input power source is according to stirrer requirement.
Page 8
© PCE Instruments
6

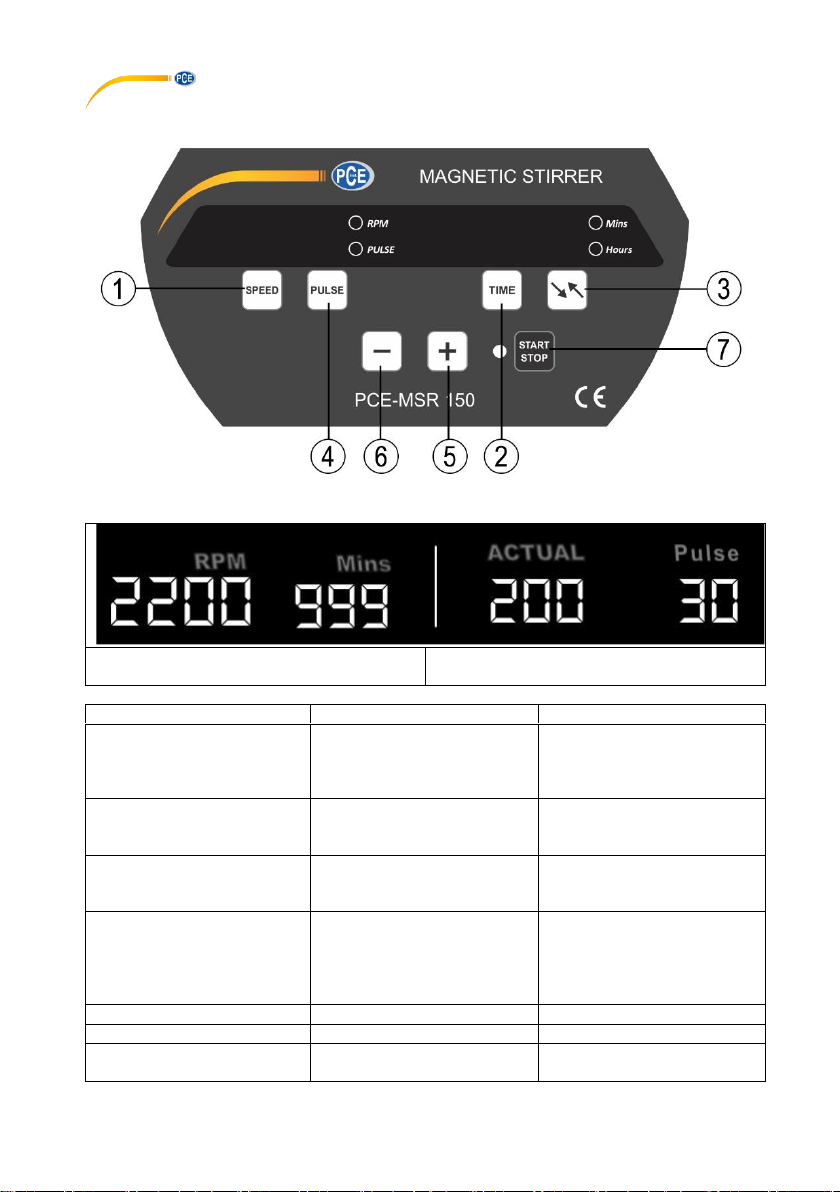

9 User interface and display
Display
Display shows current speed and time
values
Display shows speed, time and pulse mode
Item
No.
Function
1
Speed
Press “Speed” to select
Speed value. Then press
“+/‐”
to set Speed value in RPM
2
Time
Press “Time” to select time
value. Then press “+/‐” to set
Time value in minutes
3
Mins/Hours
Press “Mins / Hours” to
display time either in Minutes
or Hour/s
4
Pulse
Press “Pulse” to activate the
pulse mode in any operation.
Long pressing “Pulse” lets
user select timings for pulse
mode from 30 to 99 s
5
Increment
Press “+” to increase values
6
Decrement
Press “‐” to decrease values
7
Start/Stop
Press “Start/Stop” to Start or
Stop any operation
Page 9
© PCE Instruments
7
Page 10
© PCE Instruments
8
10 Operation

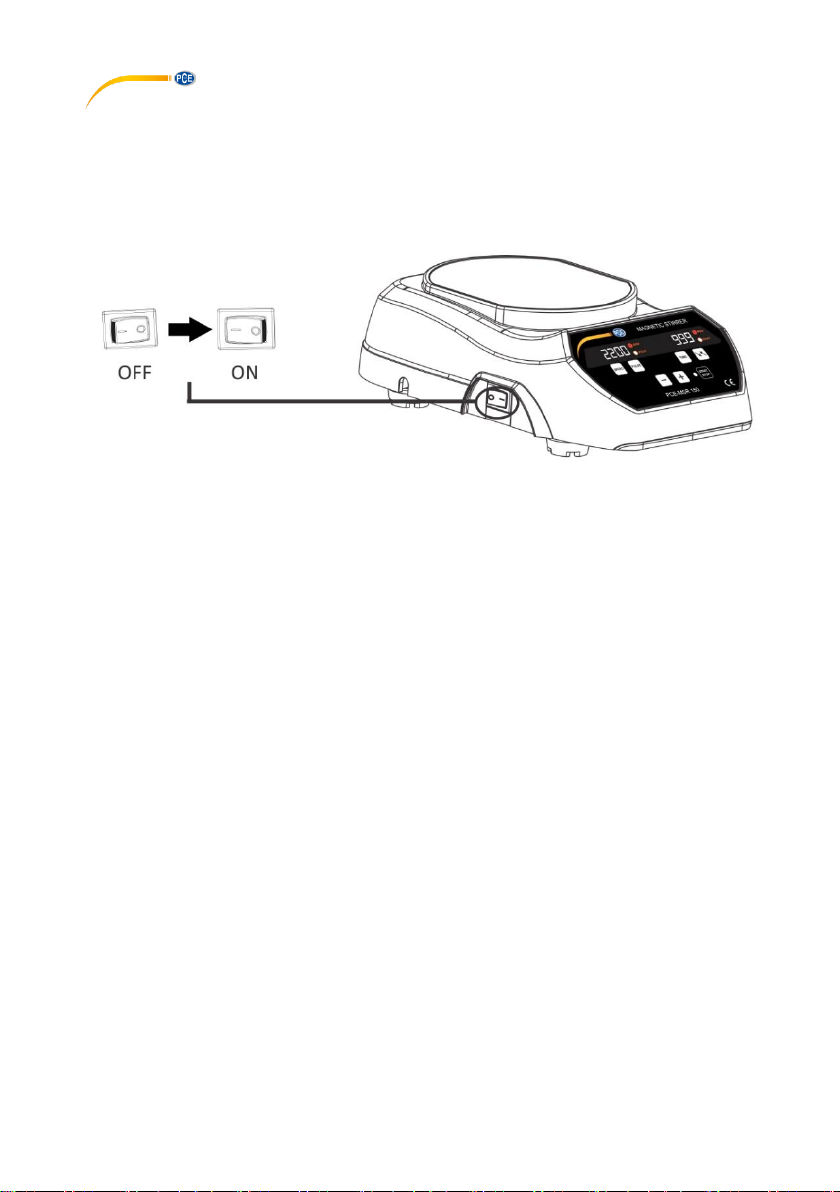

10.1 Switching on the device
Plug the power adaptor into its socket on the rear panel, now connect the power cord to AC power
output. Now switch ON the mains and switch ON the stirrer from the front side, as shown in the
figure. The power LED on its front panel will glow.
Important note: Values of any parameter will get set saved only after the respective display
blinks for 5 times.
10.2 Setting Time
The time in the display will show in minutes. The stirrer timer set for operation is in between 1min
to 999 mins and infinite. Infinite time is seen as “)(”. To set time, press “TIME” button and then set
the value by pressing “+/‐” button. When time button is pressed, the “Mins” display will blink
indicating the time value is selected. Once time value is selected, single press “+/‐” will increase
or decrease time value by 1min.
Long press increment or decrement button to quickly increase or decrease time value. Time value
gets saved after multiple blinks. The timer is a countdown timer showing remaining time left. Once
time is over, the stirrer stops.
10.3 Setting Speed
Speed is displayed as RPM. The minimum and maximum speed of stirrer is 200 RPM and 2200
RPM respectively. When the equipment is used for the 1st time, the speed will be set to zero and
shown as “0”. Once speed value is selected, single press “+/‐” will increase or decrease speed
value by 10 RPM. Long press“+/‐” to quickly increase or decrease speed value. Speed value get
saved after 5 blinks.
Page 11
© PCE Instruments
9
10.4 Pulse Mode Operation
User can also program the pulse mode and set it for alternating times from 30 secs to 99 secs.
First set the required speed and total run time for operation. Then hold down the “Pulse” button
to select the cycle time of stirring. The cycle time value will appear on the right side display, “SEC”
will appear in left side display and pulse LED will start blinking indicating that the user can now
modify the cycle time. Use increment or decrement button to modify the cycle time between 30
seconds to 99 seconds. Once the cycle time is modified, it will automatically save after 5 blinks.
Press the “Pulse Button” once to START pulse mode operation with the modified cycle time.
Press “Pulse” again to stop pulse mode operation. User can also Press “Start / Stop” to STOP
ongoing pulse mode operation.
11 Troubleshooting
Any type of malfunction during operation can be identified by error an message on display.
Proceed as follows in such cases.
1. Problem : No Display
Root Cause : No main power connection
Solution : 1. Check main power is available
2. Check that power adaptor is working properly and it is properly connected at both
ends.
3. If the problem still persists then contact PCE Instruments.
2. Problem : Err 2
Root Cause : Motor blockage/over load/fail, Encoder sensor fail
Solution : 1. First switch off the equipment, plug it out and plug it in again.
2. If the problem still persists then contact PCE Instruments.
12 Maintenance and cleaning
1. Before cleaning the device, allow the instrument to attain room temperature remove the
power cord from the mains.
2. To clean the housing of the device from dyes, building materials or cosmetic materials use
isopropyl alcohol as a cleaning agent.
3. To clean the housing of the device from food materials or fuels, use water containing
detergent as cleaning agent.
4. Wear proper protective gloves while cleaning the instrument.
5. Be careful that no liquid enters the device during cleaning.
6. Kindly contact suppliers before using any other methods for cleaning.
Page 12
13 Contact
If you have any questions, suggestions or technical problems, please do not hesitate to contact
us. You will find the relevant contact information at the end of this user manual.
14 Disposal
For the disposal of batteries in the EU, the 2006/66/EC directive of the European
Parliament applies. Due to the contained pollutants, batteries must not be disposed of as
household waste. They must be given to collection points designed for that purpose.
In order to comply with the EU directive 2012/19/EU we take our devices back. We either reuse them or give them to a recycling company which disposes of the devices in line with law.
For countries outside the EU, batteries and devices should be disposed of in accordance
with your local waste regulations.
If you have any questions, please contact PCE Instruments.
© PCE Instruments
10
Page 13
© PCE Instruments
11
PCE Instruments contact information
Germany France Spain
PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.
Im Langel 4 23, rue de Strasbourg Calle Mayor, 53
D-59872 Meschede 67250 SOULTZ-SOUS-FORETS 02500 Tobarra (Albacete)
Deutschland France España
Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel. : +34 967 543 548
Fax: +49 (0) 2903 976 99 29 Numéro de fax: +33 (0) 972 3537 18 Fax: +34 967 543 542
[email protected] [email protected] [email protected]
www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol
United States of America United Kingdom Italy
PCE Americas Inc. PCE Instruments UK Ltd PCE Italia s.r.l.
711 Commerce Way suite 8 Unit 11 Southpoint Business Park Via Pesciatina 878 / B-Interno 6
Jupiter / Palm Beach Ensign Way, Southampton 55010 LOC. GRAGNANO
33458 FL Hampshire CAPANNORI (LUCCA)
USA United Kingdom, SO31 4RF Italia
Tel: +1 (561) 320-9162 Tel: +44 (0) 2380 98703 0 Telefono: +39 0583 975 114
Fax: +1 (561) 320-9176 Fax: +44 (0) 2380 98703 9 Fax: +39 0583 974 824
[email protected] [email protected] [email protected]
www.pce-instruments.com/us www.pce-instruments.com/english www.pce-instruments.com/italiano
The Netherlands Chile Hong Kong
PCE Brookhuis B.V. PCE Instruments Chile S.A. PCE Instruments HK Ltd.
Institutenweg 15 RUT: 76.154.057-2 Unit J, 21/F., COS Centre
7521 PH Enschede Santos Dumont 738, local 4 56 Tsun Yip Street
Nederland Comuna de Recoleta, Santiago, Chile Kwun Tong
Telefoon: +31 (0)53 737 01 92 Tel. : +56 2 24053238 Kowloon, Hong Kong
Fax: +31 53 430 36 46 Fax: +56 2 2873 3777 Tel: +852-301-84912
[email protected] [email protected] [email protected]
www.pce-instruments.com/dutch www.pce-instruments.com/chile www.pce-instruments.cn
China
Turkey
PCE (Beijing) Technology Co.,Ltd PCE Teknik Cihazları Ltd.Şti.
1519 Room, 6 Building Halkalı Merkez Mah.
Men Tou Gou Xin Cheng, Pehlivan Sok. No.6/C
Men Tou Gou District 34303 Küçükçekmece - İstanbul
102300 Beijing Türkiye
China Tel: 0212 471 11 47
Tel: +86 (10) 8893 9660 Faks: 0212 705 53 93
[email protected] [email protected]
www.pce-instruments.cn www.pce-instruments.com/turkish
Loading...
