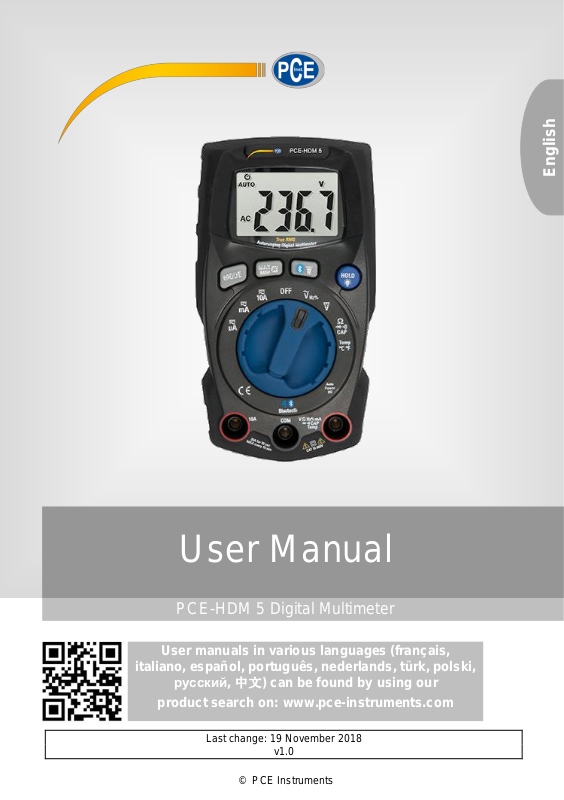

PCE-HDM 5 Digital Multimeter

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 19 November 2018

v1.0

English

© PCE Instruments

Contents

1 Safety notes ........................................................................................... 1

1.1 Safety symbols ................................................................................................................. 2

2 Introduction ........................................................................................... 2

2.1 Delivery contents .............................................................................................................. 2

3 Specifications ........................................................................................ 3

3.1 Measuring functions ......................................................................................................... 3

3.2 Further specifications ................................................................ ....................................... 4

4 Device description ................................................................................ 5

5 On / Off ................................................................................................... 6

6 Measuring functions ............................................................................. 6

6.1 µA measurement .............................................................................................................. 6

6.2 mA measurement ............................................................................................................. 6

6.3 10 A measurement ........................................................................................................... 6

6.4 Alternating voltage, frequency and duty cycle measurement ............................................ 6

6.5 Direct voltage measurement ............................................................................................. 6

6.6 Resistance measurement / diode test / continuity test / capacity measurement ................ 6

6.7 Temperature measurement .............................................................................................. 7

7 Hold readings ........................................................................................ 7

8 Backlight ................................................................................................ 7

9 MAX/MIN recording ............................................................................... 7

10 Select measurement range .................................................................. 7

11 Bluetooth and flashlight ....................................................................... 8

12 Auto Power Off ...................................................................................... 8

13 Batteries ................................................................................................. 8

14 Fuse replacement.................................................................................. 8

15 Warranty ................................................................................................. 9

16 Disposal ................................................................................................. 9

© PCE Instruments

1

1 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The
device may only be used by qualified personnel and repaired by PCE Instruments personnel.
Damage or injuries caused by non-observance of the manual are excluded from our liability and
not covered by our warranty.

• The device must only be used as described in this instruction manual. If used otherwise,
this can cause dangerous situations for the user and damage to the meter.

• The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

• Do not expose the device to shocks or strong vibrations.

• The case should only be opened by qualified PCE Instruments personnel.

• Never use the instrument when your hands are wet.

• You must not make any technical changes to the device.

• The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

• The device must only be used with accessories from PCE Instruments or equivalent.

• Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

• Do not use the instrument in explosive atmospheres.

• The measurement range as stated in the specifications must not be exceeded under

any circumstances. Try not to use the full measurement range.

• Remove the batteries if the device is not used for more than 60 days.

• Switch off the meter when not in use.

• The measured object must have no voltage when resistance is measured.

• Make all selections / settings first before connecting the test leads.

• When measuring voltages, do not switch the meter to resistance or current

measurement.

• Do not measure current when the object to be measured has more than 600 V.

• Remove all test leads from the meter before changing the measurement range.

• Remove all test leads from the meter before changing the batteries or the fuse.

• Exercise special caution when measuring above 25 VAC RMS or 35 VDC. Electric

shocks are possible.

• Capacitors must be discharged before each measurement.

• When making resistance or diode tests, make sure the tested object does not have

voltage.

• Non-observance of the safety notes can cause damage to the device and injuries to
the user.

We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of

business.
If you have any questions please contact PCE Instruments. The contact details can be found at

the end of this manual.

© PCE Instruments

2

1.1 Safety symbols

Several symbols are on the meter. These have the following meanings:

This symbol can appear next to another symbol or connection and indicates the user
must refer to the manual for important safety information.

Indicates hazardous voltages may be present.

Equipment is protected by double or reinforced insulation.

2 Introduction

The digital multimeter PCE-HDM 5 is a universal meter for lots of applications. Users can easily
measure current, voltage, capacitance, frequency and resistance. Additionally, the meter can
measure the duty cycle, make diode tests and continuity tests.

2.1 Delivery contents

1 x multimeter PCE-HDM 5
2 x test lead
1 x K-type thermocouple
1 x thermocouple adaptor
1 x user manual
2 x 1.5 V AAA batteries

© PCE Instruments

3

3 Specifications

3.1 Measuring functions

Measuring function

Measurement range

Accuracy (of

measurement range)

AC current

600.0 µA AC

± (2.0% + 5 digits)

6000 µA AC

± (2.5% + 5 digits)

60.00 µA AC

600.0 mA AC

10 A AC

± (3.0% + 7 digits)

DC current

600.0 µA DC

± (1.0% + 3 digits)

6000 µA DC

± (1.5% + 3 digits)

60.00 µA DC

600.0 mA DC

10 A DC

± (2.5% + 5 digits)

AC voltage

6.000 V AC

± (1.0% + 5 digits)

60.00 V AC

600.0 V AC

± (1.2% + 5 digits)

DC voltage

600.0 mV DC

± (1.0% + 8 digits)

6.000 V DC

± (1.0% + 3 digits)

60.00 V DC

600.0 V DC

± (1.2% + 3 digits)

Resistance

600.0

± (1.0% + 4 digits)

6.000 kΩ

± (1.5% + 5 digits)

60.00 kΩ

600.0 kΩ

6.000 MΩ

Capacitance

60.00 nF

600.0 nF

± (3.0% + 5 digits)

6.000 µF

60.00 µF

600.0 µF

± (4.0% + 5 digits)

6000 µF

± (5.0% + 5 digits)

Frequency

9.999 Hz

± (1.0% + 5 digits)

99.99 Hz

999.9 Hz

9.999 kHz

Temperature (K-type)

-20.0 … 760.0 °C

± (3% + 5 °C)

(without sensor)

-4.0 … 1400.0 °F

± (3% + 9 °F)

The accuracies are given at an environmental temperature of 23 °C ±5°C and an ambient humidity
of max. 80 % RH. For the waveforms, sine waves have been measured.

© PCE Instruments

4

3.2 Further specifications

Display

6000-digit LCD

Interface

Bluetooth (via app)

Continuity test

Limit 50 Ω
Test current <0.5 mA

Diode test

Test current 0.3 mA
Off-load voltage <3.3 V

Display refresh rate

2 Hz

Input impedance

10 MΩ (AC voltage / DC voltage)

AC coupling

TRMS (50 / 60 Hz)

Operating conditions

5 ... 40 °C / max. 80 % RH

Storage conditions

-20 ... 60 °C / max. 80 % RH

Operating altitude

max. 2000 m

Power supply

2 x 1.5 V AAA battery

Auto Power Off

>15 minutes

Safety

IEC1010-1(2001), EN61010-1(2001)
CAT III 600 V
Pollution degree 2

Weight

200 g

Dimensions

125 x 68 x 48 mm

© PCE Instruments

5

4 Device description

1. LCD

2. MIN / MAX / Range key

3. Bluetooth / flashlight

4. MODE key

5. HOLD / backlight

6. Rotary function switch

7. GND input jack (COM)

8. Current input jack (10 A)

9. Input jack for V, Ω, Farat, temperature,
Hz, µA and mA measurement
(V Ω CAP TEMP Hz mA)

Reading held

-

Negative reading

0 … 3999

Reading

AUTO

Automatic
measurement range

DC/AC

Direct current /
alternating current

Battery level indicator

mV / V

Voltage

Ω

Resistance

A

Current

F

Capacitance

Hz

Frequency

%

Duty cycle

°C / °F

Temperature

N, m, µ, M,
k

Unit of size
Continuity test

Diode test

Bluetooth is
deactivated

© PCE Instruments

6

5 On / Off

To switch on the device, turn the rotary switch to the desired measuring function. The meter will
power on immediately. To turn off the meter, turn the rotary function switch to “OFF”. The meter
will switch off automatically.

6 Measuring functions

6.1 µA measurement

To make a µA measurement, turn the rotary switch to “µA“. Use the input jacks “COM“ and “V, Ω,
HZ, %, mA, …“. With the “MODE“ key, you can switch between alternating and direct current.

6.2 mA measurement

To make a mA measurement, turn the rotary switch to “mA“. Use the input jacks “COM“ and “V,
Ω, HZ, %, mA, …“. With the “MODE“ key, you can switch between alternating and direct current.

6.3 10 A measurement

To make a measurement up to 10 A, turn the rotary switch to “10 A“. With the “MODE“ key, you
can switch between alternating and direct current.

6.4 Alternating voltage, frequency and duty cycle measurement

To measure voltage, frequency or the duty cycle in an alternating voltage, turn the rotary switch
to “V, Hz, %“. Now connect the test leads to the input jacks „COM“ and „V, Ω, HZ, %, mA, …“.

With the “MODE“ key, you can now switch between voltage, frequency and duty cycle

measurement.

6.5 Direct voltage measurement

To make a DC voltage measurement, turn the rotary switch to “V“. Use the input jacks „COM“ and
„V, Ω, HZ, %, mA, …“. With the “MODE“ key, you can switch between alternating and direct

current.

6.6 Resistance measurement / diode test / continuity test / capacity measurement

To make a resistance measurement / diode test / continuity test / capacity measurement, turn the
rotary switch to „Ω, CAP, ...“. Then select the desired measuring function with the “MODE“ key.
Now connect your test object to “COM“ and „V, Ω, HZ, %, mA, …“. The reading will be displayed
directly.

NOTE: To determine the capacitance of a capacitor, you must make sure it is discharged before
making the measurement. The capacitor will be charged during the measurement.

© PCE Instruments

7

6.6.1 Diode test

To test diodes, touch the diode with the test leads and write down the reading that is displayed.
Now change the polarity and compare the new reading with the first reading. If “OL“ is displayed
during both measurements, the diode is defective. If the reading for the first measurement is “OL“
and the value for the second measurement is a typical value between, e. g. 0.400 and 1,800 V,
this means that the diode works. If voltage values are displayed for both measurements, this
means that the diode is defective. In this case, the diode will cause a short circuit.

6.7 Temperature measurement

To make a temperature measurement, turn the rotary switch to “TEMP“. Then connect the
thermocouple adaptor to the meter as follows:
Black – into “COM“ jack
Red + into ”V“ jack
Then connect the thermocouple via the adaptor. Make sure the polarity is correct. The reading
will be displayed directly and will stabilise after approx. 30 seconds.
You can switch between °C and °F by using the “MODE“ key.

7 Hold readings

To hold / freeze the currently displayed reading, press the “HOLD / backlight“ key. The icon
will appear in the display. If you press the “HOLD / backlight“ key again, the held reading will be
released and the current measurement will be continued.

8 Backlight

To activate the backlight, press and hold the “HOLD / backlight“ for three seconds. The backlight
will turn on immediately. To deactivate the backlight, press and hold the same button for three
seconds again.

NOTE: The backlight will turn off automatically after 5 minutes.

9 MAX/MIN recording

Recording is started by pressing the „MAX/MIN/Range“ key. This will be indicated by the
„MAX/MIN“ icon in the display. During this type of recording, only the highest and the lowest value

will be saved and displayed. All other readings will be lost. Now press the „MAX/MIN/Range“ key
to switch between MIN and MAX. Tor e-enter normal measurement mode, press and hold the
„MAX/MIN/Range“ key for three seconds. The saved data will be lost when you do this.

NOTE: This function is only available if Auto Range is activated.

10 Select measurement range

To select the measurement range, press and hold the “MAX/MIN/Range” key for three seconds
to deactivate Auto Range. Press the “MAX/MIN/Range“ again several times until you have
reached your desired measurement range. To re-activate Auto Range, press and hold the
“MAX/MIN/Range” key again for three seconds.

© PCE Instruments

8

11 Bluetooth and flashlight

To switch on the flashlight, press and release the “Bluetooth / flashlight“ key. Press the same
button again to switch it off again.

To activate Bluetooth, press and hold the “Bluetooth / flashlight“ key for several seconds. The
icon will appear in the display. To turn off Bluetooth, press and hold the “Bluetooth / flashlight“
key again for several seconds
Use the “Meterbox Pro“ app from your Android or iOS store to connect the device to your mobile
phone.

12 Auto Power Off

To increase the battery life, the meter will switch off automatically after 15 minutes of inactivity.
To switch on the device after this, turn the rotary switch to “OFF“ and then turn it to your desired
measurement mode. To deactivate Auto Power Off, press and hold the “MODE“ key and switch
on the device. Then release the “MODE“ key. Auto Power Off is now deactivated.

13 Batteries

When the battery is no longer sufficiently charged, the following icon will appear on the display:

. In this case, replace both 1.5 V AAA batteries. If you do not replace the batteries,
measurement errors and even failure of the device can occur.
To replace the batteries, open the battery compartment on the rear side of the meter by loosening
the screw of the cover with a screwdriver. Observe correct polarity wehn replacing the batteries
and screw the battery compartment cover back on.

14 Fuse replacement

To replace the fuse, open the fuse compartment which is located below the foldable stand on the
rear side of the meter. Pull out the fuse and replace it by a new one. Only use the following fuses:
F10 A/600 V and F600 mA/600 V.
Follow the instructions in the fuse compartment for the correct arrangement of the fuses.

NOTE: Disconnect all test leads and turn off the meter before replacing the fuses.

© PCE Instruments

9

15 Warranty

You can read our warranty terms in our General Business Terms which you can find here:

https://www.pce-instruments.com/english/terms.

16 Disposal

For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament
applies. Due to the contained pollutants, batteries must not be disposed of as household waste.
They must be given to collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use
them or give them to a recycling company which disposes of the devices in line with law.

For countries outside the EU, batteries and devices should be disposed of in accordance with
your local waste regulations.

If you have any questions, please contact PCE Instruments.

© PCE Instruments

10

PCE Instruments contact information

Germany France Spain

PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.
Im Langel 4 23, rue de Strasbourg Calle Mayor, 53
D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete)
Deutschland France España
Tel.: [phone] Téléphone: [phone] Tel. : [phone]
Fax: [phone] Numéro de fax: [phone] Fax: [phone]
[e-mail] [e-mail] [e-mail]
www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol

Germany United Kingdom Italy

Produktions- und PCE Instruments UK Ltd PCE Italia s.r.l.
Entwicklungsgesellschaft mbH Units 11 Southpoint Business Park Via Pesciatina 878 / B-Interno 6
Im Langel 26 Ensign Way, Southampton 55010 Loc. Gragnano
D-59872 Meschede Hampshire Capannori (Lucca)
Deutschland United Kingdom, SO31 4RF Italia
Tel.: [phone] Tel: [phone] Telefono: [phone]
Fax: [phone] 9971 Fax: [phone] Fax: [phone]
[e-mail] [e-mail] [e-mail]
www.pce-instruments.com/deutsch www.pce-instruments.com/english www.pce-instruments.com/italiano

The Netherlands Chile Hong Kong

PCE Brookhuis B.V. PCE Instruments Chile S.A. PCE Instruments HK Ltd.
Institutenweg 15 RUT: 76.154.057-2 Unit J, 21/F., COS Centre
7521 PH Enschede Calle Santos Dumont N° 738, Local 4 56 Tsun Yip Street
Nederland Comuna de Recoleta, Santiago Kwun Tong
Telefoon: [phone] Tel. : [phone] Kowloon, Hong Kong
Fax: [phone] Fax: [phone] Tel: [phone]
[e-mail] [e-mail] [e-mail]
www.pce-instruments.com/dutch www.pce-instruments.com/chile www.pce-instruments.cn

United States of America Turkey China

PCE Americas Inc. PCE Teknik Cihazları Ltd.Şti. PCE

(Beijing)

Technology Co

.,

Limited
711 Commerce Way suite 8 Halkalı Merkez Mah. 1519 Room, 6 Building
Jupiter / Palm Beach Pehlivan Sok. No.6/C Zhong Ang Times Plaza
33458 FL 34303 Küçükçekmece - İstanbul

No. 9 Mentougou Road, Tou Gou District

USA Türkiye 102300 Beijing
Tel: [phone] Tel: [phone] China
Fax: [phone] Faks: 0212 705 53 93 Tel: [phone]
[e-mail] [e-mail] [e-mail]
www.pce-instruments.com/us www.pce-instruments.com/turkish www.pce-instruments.cn
