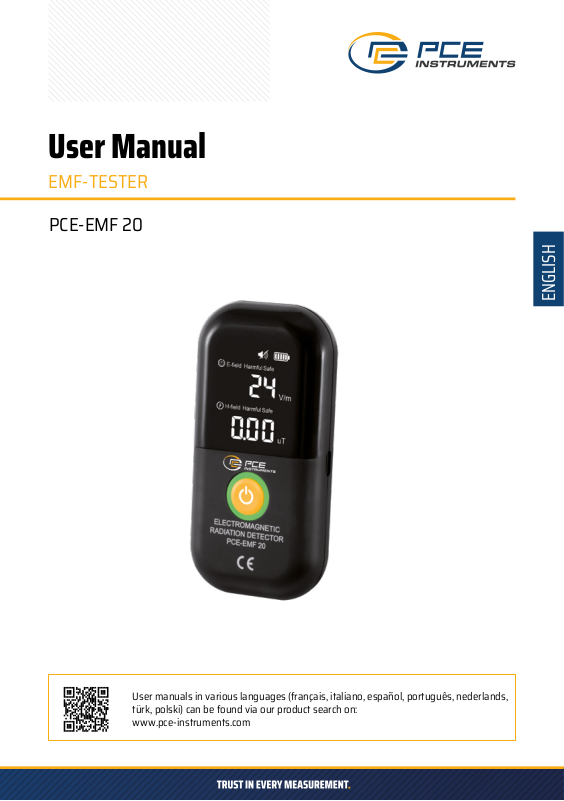

Page 1
User Manual
EMF-TESTER
PCE-EMF 20
ENGLISH
User manuals in various languages (français, italiano, español, português, nederlands,
türk, polski) can be found via our product search on:
www.pce-instruments.com
Page 2
2. 0PERATION INSTRUCTIONS
Dear user,thank you for purchasing lhis product. Please read the
instruction manual carefully before using it.
Please read and understand the safety instructions,
before using or repairing this appliance.
» This device is powered by a lithium-polymer battery.
» Do not set up the device in dusty, damp or hot (over 40 C) places.
» Please do not disassemble the device arbitrarily, but consult specialists
specialists for repair and maintenance.
» This product serves as a reference for a healthy lifestyle and cannot be used
be used as a measuring instrument.
1. DISPLAY BESCHREIBUNG
Volume
Reminder of excessive
electric eld
Elektrisches Feld Symboicon
Elektrischer Feldwert
Battery Power
Electric Field
Safety Tips
1. Power on
Lighlly press the on/o bulton „ “ to wake up lhe screen, lhe display screen lighls up,
and lhe on/o bullon „
“ glows green.
2. Power o
Lighlly press the on/o bulton „ “ again to turn o the machine, the screen becomes dark, and the light on the on/ o bullon „
“ goes out.
3. Detektion
After turning on the power, place the product close to the detected object, and the
detected electric/magnelic eld value will be displayed on the product screen.
When the detected value does not exceed the safe range, the screen displays the
electric/magnetic eld „safe“, and the on/o button „
When the detected value exceeds the safe range, the product will sound an alarm,
the electric/magnetic eld „safety“ prompts „exceeding the standard“, and the on/o
button „
“ lights up red.
“ lights up in green.
Erinnerung an Elektrisches
Feld
Magnetfeld-Symbol
Magnetfeldwert
Electric eld unit
Magnetic eld
Safety Tips
Magnetic eld unit
Page 3
4. PACKING LIST3. FUNCTION PARAMETERS
PCE-EMF 20 Electric eld Magnetic eld
Uni! V/m uT
Accuracy 1V/m 0.01uT
Range 1~1999V/m 0.01-99.99uT
Alarm lhreshold 40V/m 0.4uT
Test bandwidth 5Hz-3500MHz
Testmode Dual-mode simultaneous lest
Sampling time <0.5S
Display value Peak
Sound alarm yes
Display screen LED
Model
Master 1 pc
Color Box 1 pc
User Manual 1 pc
Charging line 1 pc
Certicale of Conformity/ warranty card 1 pc
Lithium battery
PCE-EMF 20
precautions card
Remarks: The manual is for reference only, subject to change
wilhout prior notice, the actual product shall prevail.
1 pc
Backlight yes
Battery Lithium battery
Charging port Type-C
Operating temperature 0-50°C
Product size 110x58x25mm
