Page 1
PCE-CIC Series Color Matching Cabinet
User Manual
User manuals in various languages (Deutsch,
français, italiano, español, português, nederlands,
türk, polski, русский, 中文) can be downloaded here:
www.pce-instruments.com
Last change: 14 June 2017
v1.0
English
© PCE Instruments
Page 2
Contents
1 Safety notes ....................................................................................... 1
2 Specifications .................................................................................... 2
2.1 Technical specifications ..........................................................................................................2
2.2 Delivery contents.....................................................................................................................2
3 System description ........................................................................... 3
4 Operation ........................................................................................... 4
5 Warranty ............................................................................................ 5
6 Disposal ................................ ............................................................. 5
© PCE Instruments
Page 3
1 Safety notes
Please read this manual carefully and completely before you use the device for the first time.
The device may only be used by qualified personnel and repaired by PCE Instruments
personnel. Damage or injuries caused by non-observance of the manual are excluded from our
liability and not covered by our warranty.
The device must only be used as described in this instruction manual. If used
otherwise, this can cause dangerous situations for the user and damage to the meter.
Do not expose the device to extreme temperatures, direct sunlight, extreme humidity
or moisture.
Do not expose the device to shocks or strong vibrations.
The case should only be opened by qualified PCE Instruments personnel.
Never use the instrument when your hands are wet.
You must not make any technical changes to the device.
The appliance should only be cleaned with a damp cloth. Use only pH-neutral
cleaner, no abrasives or solvents.
The device must only be used with accessories from PCE Instruments or equivalent.
Before each use, inspect the case for visible damage. If any damage is visible, do not
use the device.
Do not use the instrument in explosive atmospheres.
Before using the device after transportation, check if the neon tubes are fixed in
place.
The lamps, especially the D65 lamp, should be replaced after 2,000 hours of use.
Record the time of use of each lamp.
Non-observance of the safety notes can cause damage to the device and injuries to
the user.
We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of
business.
If you have any questions please contact PCE Instruments. The contact details can be found at
the end of this manual.
© PCE Instruments
1
Page 4
2 Specifications
PCE-CIC 10
House light
A / F
Artificial daylight
D65
Fluorescent
TL84 / F11
Ultraviolet
UV
Office / business / storage room light
CWF
Business / office lighting (USA)
TL83 / U30
Standards
ASTM D1729
ISO3664
DIN
ANSI
BSI
Dimensions
1310 x 600 x 800 mm
Weight
65 kg
PCE-CIC 11
House light
A / F
Artificial daylight
D65
Fluorescent
TL84 / F11
Ultraviolet
UV
Office / business / storage room light
CWF
Business / office lighting (USA)
TL83 / U30
Standards
ASTM D1729
ISO3664
DIN
ANSI
BSI
Dimensions
695 x 552 x 502 mm
Weight
19.5 kg
2.1 Technical specifications
2.2 Delivery contents
1 x colour matching cabinet PCE-CIC 11 or PCE-CIC 10
4 x bulbs Philips ZS 40 W
2 x fluorescent tube Philips Lifemax TLD 18W / 840
2 x fluorescent tube Philips Lifemax TLD 18W / 33-640
2 x fluorescent tube Philips Lifemax TLD 18W / 830
1 x fluorescent tube Sylvania Standard, F20T12 / D65
1 x fluorescent tube Philips TL-D 18W BLB
1 x instruction manual
© PCE Instruments
2
Page 5

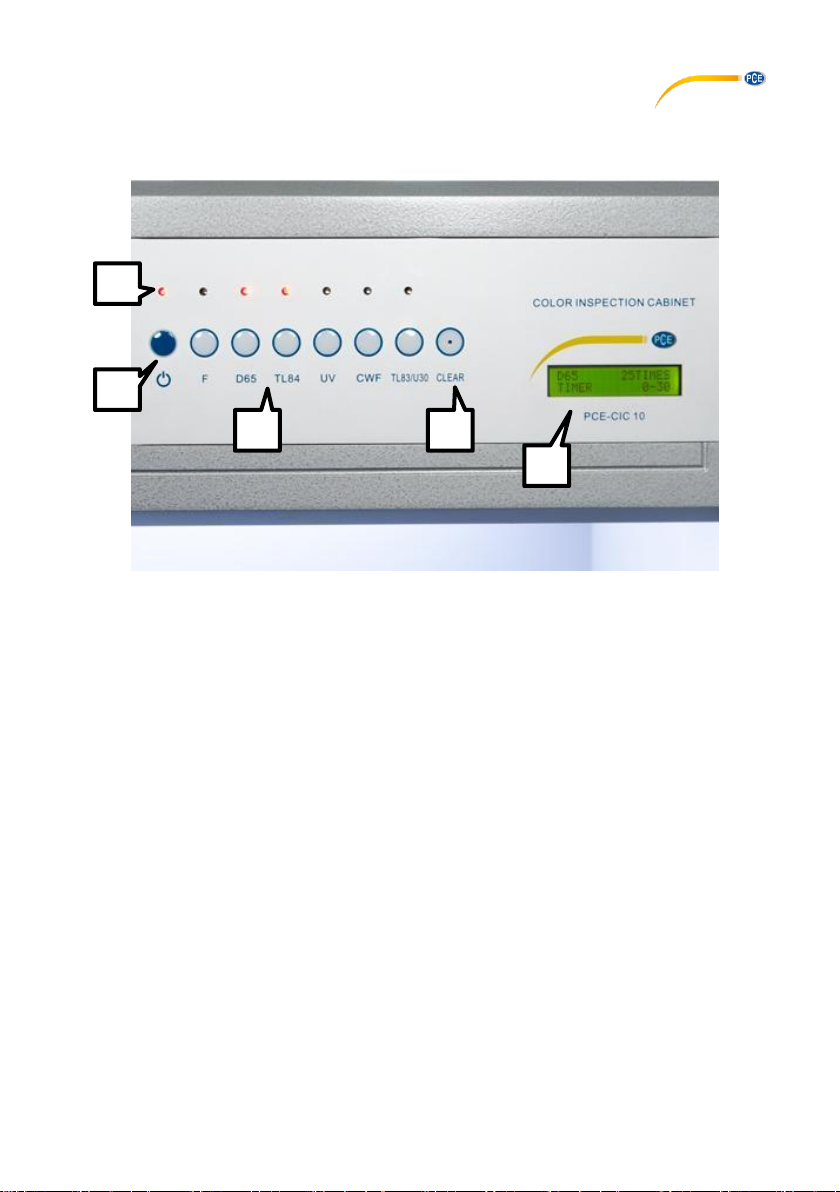

3 System description
1
2
3
4
5
1. Status LEDs
2. On/Off button
3. Light source buttons
4. Clear button
5. Display
© PCE Instruments
3
Page 6
4 Operation
1. Connect the device to a wall socket by using the power cable.
2. Press the On/Off button to turn on the device. The display shows the total running
time of the cabinet.
3. Activate the desired light source by pressing the particular button. The display now
shows the total service time of the selected lamp.
You can also use two or more light sources by selecting them with the particular
buttons.
4. Put the samples in the cabinet and check their colour characteristics. If you analyse
more than one item, do not let them overlap.
5. The item should be viewed from a 45° angle. The incidence of light should be
perpendicular to the surface of the sample.
6. Once you are finished with checking the samples, press the On/Off button to turn off
Lamp replacement
To replace a lamp, follow these steps:
the device.
1. Take out the old lamp.
2. Put in the new lamp. Make sure that the new lamp is in the right position.
3. Turn on the device by pressing the On/Off button.
4. Activate the new lamp by pressing the particular button.
5. Use a small object (like a paper clip or a small screwdriver) and put it in the hole of
the Clear button. Once you pressed the button, the usage time of the selected lamp
jumps back to zero.
© PCE Instruments
4
Page 7
5 Warranty
You can read our warranty terms in our General Business Terms which you can find here:
https://www.pce-instruments.com/english/terms.
6 Disposal
For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament
applies. Due to the contained pollutants, batteries must not be disposed of as household waste.
They must be given to collection points designed for that purpose.
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use
them or give them to a recycling company which disposes of the devices in line with law.
For countries outside the EU, batteries and devices should be disposed of in accordance with
your local waste regulations.
If you have any questions, please contact PCE Instruments.
© PCE Instruments
5
