Page 1

PCE-AM 45 Anemometer

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 30 December 2021

v1.0

English

Page 2

Contents

1 Safety notes ........................................................................................... 1

2 Specifications ........................................................................................ 2

3 Delivery scope ....................................................................................... 2

4 Device description ................................................................................ 3

4.1 Display description ........................................................................................................... 5

4.2 Numeric keypad ............................................................................................................... 6

5 Switching the meter on and off ........................................................... 7

5.1 Automatic power off.......................................................................................................... 7

6 Making a measurement ........................................................................ 8

6.1 Beaufort scale .................................................................................................................. 9

6.2 Setting the flow unit .......................................................................................................... 9

6.3 Setting the temperature unit ................................ ............................................................. 9

7 Volume flow measurement .................................................................. 9

7.1 Setting the unit of the volume flow measurement ............................................................. 9

7.2 Area specification for volume flow measurement .............................................................10

7.3 2/3 MAX volume flow measurement ................................................................................10

8 Lowest, highest and average measured value ................................ 10

8.1 Highest measured value ..................................................................................................10

8.2 Average reading ..............................................................................................................11

8.3 Lowest measured value ..................................................................................................11

8.4 Wind direction .................................................................................................................11

8.5 Freezing the measured value ..........................................................................................12

8.6 Recording the measured values ......................................................................................12

9 Software ............................................................................................... 13

10 Contact ............................................................................................... 16

11 Disposal ............................................................................................... 16

Page 3

1 Safety notes

Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty.

• The device must only be used as described in this instruction manual. If used otherwise, this can cause dangerous situations for the user and damage to the meter.

• The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

• Do not expose the device to shocks or strong vibrations.

• The case should only be opened by qualified PCE Instruments personnel.

• Never use the instrument when your hands are wet.

• You must not make any technical changes to the device.

• The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

• The device must only be used with accessories from PCE Instruments or equivalent.

• Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

• Do not use the instrument in explosive atmospheres.

• The measurement range as stated in the specifications must not be exceeded under

any circumstances.

• Non-observance of the safety notes can cause damage to the device and injuries to the user.

We do not assume liability for printing errors or any other mistakes in this manual. We expressly point to our general guarantee terms which can be found in our general terms of

business. If you have any questions please contact PCE Instruments. The contact details can be found at

the end of this manual.

Page 4

2 Specifications

Unit

Measurement range

Resolution

Accuracy Wind speed

m/s

0.3 ... 45.0 m/s

0.01 m/s

±3 % ±0.1 m/s of reading

ft/min

60 ... 8800 ft/min

0.01, 0.1, 1 ft/min

±3 % ±20 ft/min of reading

knots

0.6 ... 88.0 knots

0.01 knots

±3 % ±0.2 knots of reading

km/h

1.0 ... 140.0 km/h

0.01 km/h

±3 % ±0.4 km/h of reading

mph

0.7 ... 100 mph

0.01 mph

±3 % ±0.2 mph of reading

Wind direction

0 ... 360 °

1 ° Volume flow

CMM (m³/min)

0 ... 999900 m³/min

0.001 ... 100 m³/min

CFM (FT³/min)

0 ... 999900 ft³/min

0.001 ... 100 m³/min

Temperature measurement

°C

0 ... 45 °C

0.1 °C

±1.0 °C

°F

32 ... 113 °F

0.18 °F

±1.8 °F

Humidity measurement

% RH

10 ... 90 % RH

0.1 % RH

±5 % RH

Further specifications

Probe length

270 ... 540 mm / 10.63 … 21.26“, telescopic

Probe aperture

Ø65 mm / 2.5"

Interface

Micro USB

Data memory

960 measured values

Power supply

4 x 1.5 V AAA battery

Power consumption

15 ... 20 mA without backlight 20 ... 25 mA with backlight 0 ... 8 µA standby

Flat battery indicator

<4.5 V

Operating conditions

0 ... 50 °C / 32 ... 122 °F, 40 ... 80 % RH, non-condensing

Storage conditions

-20 ... 60 °C / -4 ... 140 °F, < 80 % RH, non-condensing

Dimensions

70 x 194 x 35 mm / 2.7 x 7.6 x 1.3"

Weight

400 g / 14.1 oz

3 Delivery scope

1 x handheld anemometer PCE-AM 45 1 x micro USB cable 1 x carrying case 4 x 1.5 V AAA battery 1 x user manual

Page 5

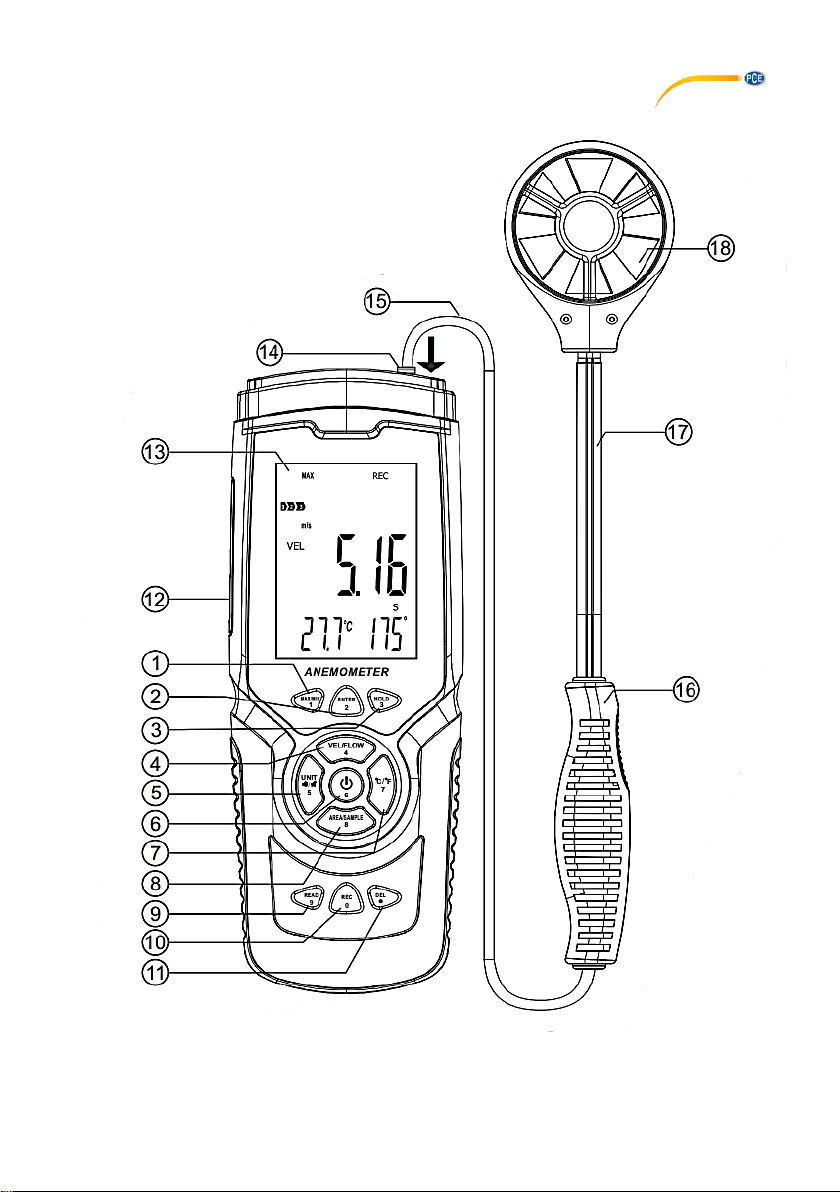

4 Device description

Page 6

No.

Description

Shift key between:

- MAX: highest measured value

- AVG: average measured value

- MIN: lowest measured value

Numeric keypad digit: 1

Enter key (ENTER) 2/3 V Max key Wind direction calibration key

Numeric keypad digit: 2

Freeze display (HOLD) Numeric keypad digit: 3

Select between wind speed and volume flow Numeric keypad digit: 4

Unit shift key (UNIT) (short press) Switching the key tone on and off (long press)

Numeric keypad digit: 5

On/off switch (long press) Numeric keypad digit: 6

Setting the temperature unit (short press) Select between temperature and humidity display (long press)

Numeric keypad digit: 7

Setting the area for volume flow measurement (AREA) Setting the storage interval (SAMPLE)

Numeric keypad digit: 8

Opening the memory menu (read, save, record) Numeric keypad digit: 9

Save a measured value Opening the recording menu

Numeric keypad digit: 0

Clear memory Numeric keypad digit: .

USB interface for data transfer

LC display

Connection for the flow sensor

Connection cable of the flow sensor

Handle of flow sensor

Telescopic arm of flow sensor

Flow sensor

Page 7

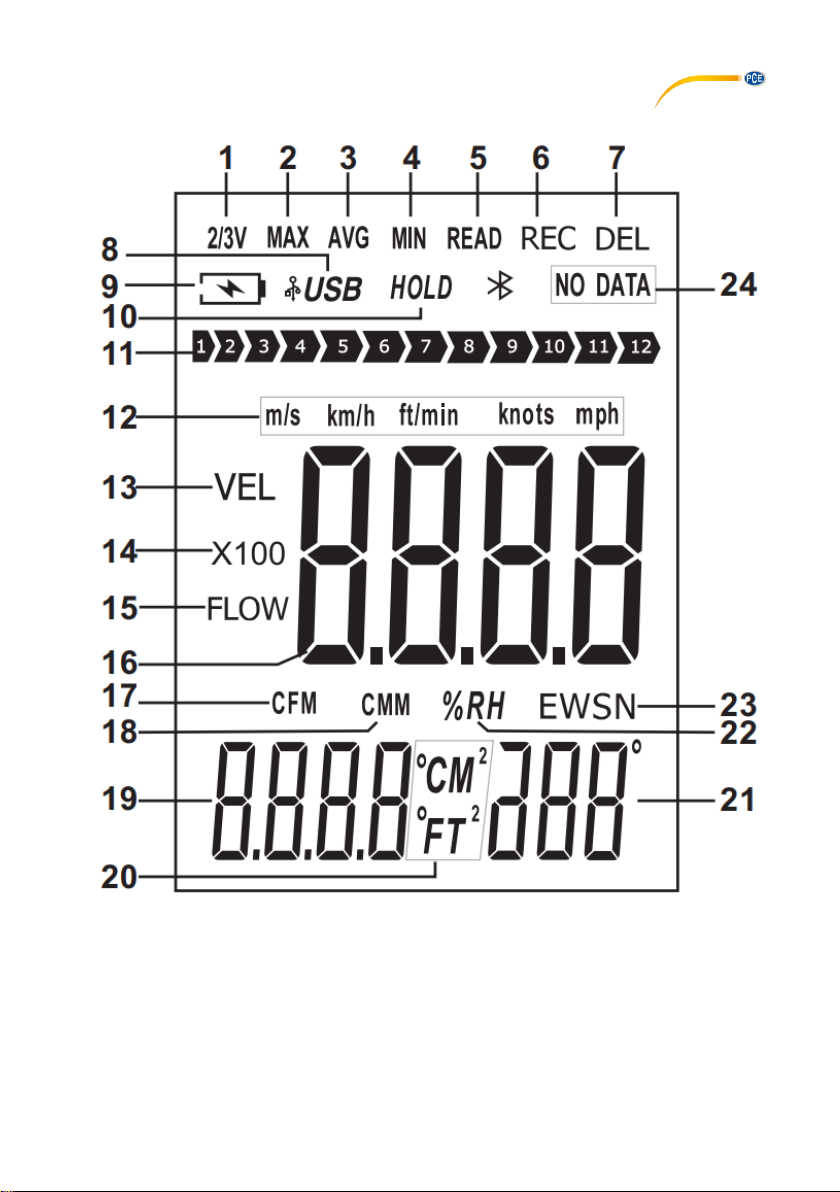

4.1 Display description

Page 8

No.

Meaning

2/3 of the maximum display for volume flow measurement

Display of the highest measured value

Display of the average reading

Display of the lowest measured value

Display of the saved measured value

Measured value is saved

Clearing the memory

Data connection with a PC has been established

Battery voltage too low

Measured value frozen

Beaufort scale

Units for speed display

When displayed, the flow value is shown

Displayed measured value must be multiplied by 100

When displayed, the volume flow is shown

Measured value

Unit: CFM (FT³/min)

Unit: CMM (m³/min)

Display for temperature, area and memory

Unit

Angle display

Unit: relative humidity

Compass direction E: East W: West S: South N: North ES: Southeast EN: Northeast WS: Southwest WN: Northwest

Indication that there is no saved data

4.2 Numeric keypad

It may happen that a number has to be entered; for example, when entering the memory interval. To enter this function, each key changes its function to a specific numerical key. All four cells must always be completed for each entry. A comma key is also available for volume flow measurement.

Page 9

5 Switching the meter on and off

To switch the meter on and off, press and hold the on/off key for at least two seconds.

5.1 Automatic power off

If no entry is made within five minutes after switching on, the meter switches itself off. To deactivate this function, hold down the Enter key when switching on and switch on the meter. The display shows "no". The automatic power off function is now deactivated. Now release all keys to make a measurement. The automatic power off function reactivates whenever the meter is switched off.

Page 10

6 Making a measurement

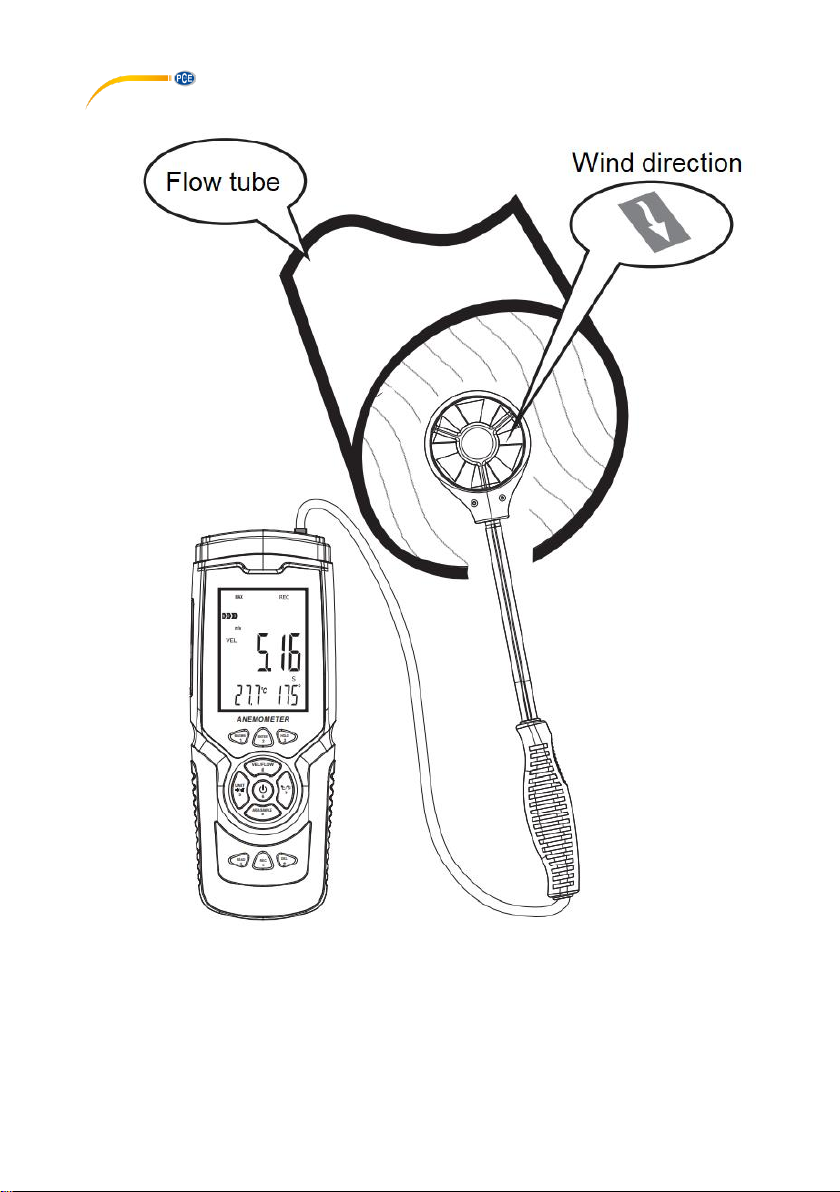

To make a measurement, align the flow sensor with the flow direction. An arrow inside the sensor indicates the orientation in relation to the wind flow. Wait for at least two seconds for the reading to stabilise.

Page 11

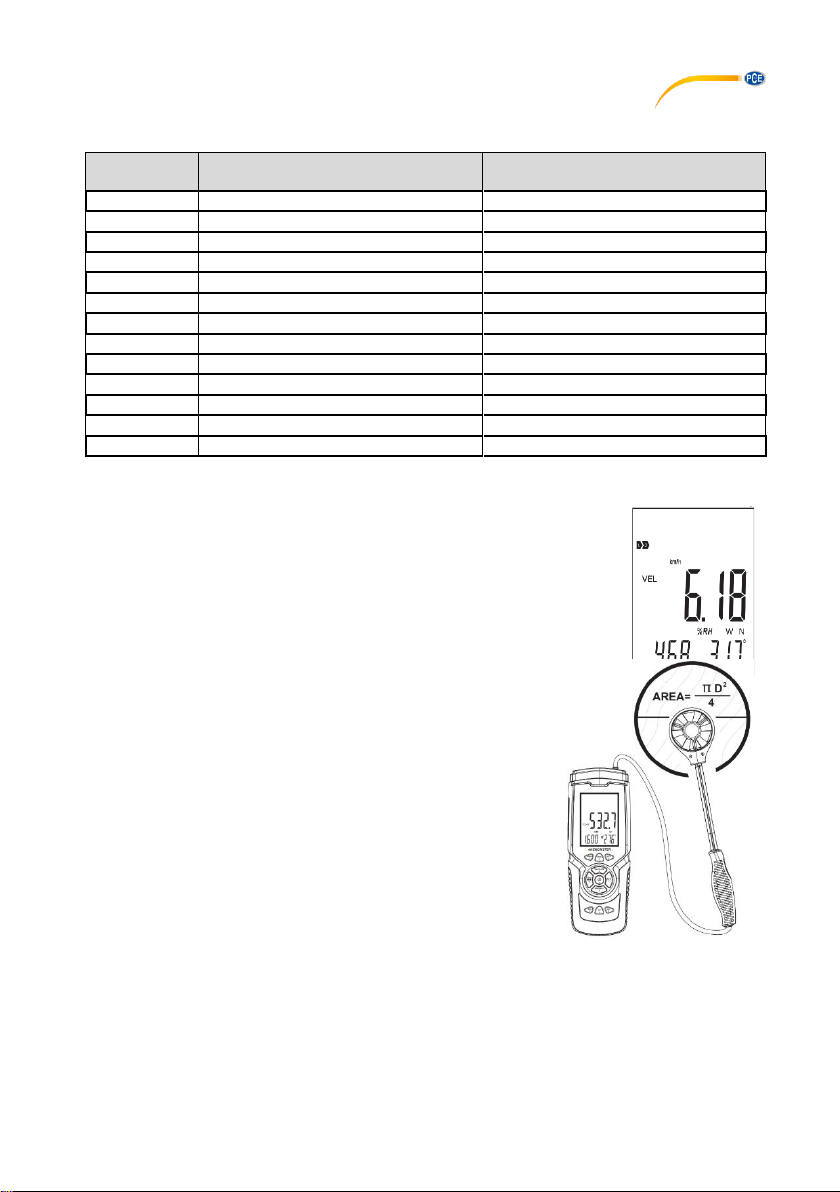

6.1 Beaufort scale

The Beaufort scale is always active and shows the current wind force category

Wind force

Designation of the wind force

Designation of the sea state (wind sea)

Calm

Completely calm, smooth sea

Light air

Calm, rippled sea

Light breeze

Mildly agitated sea

Gentle breeze

Mildly agitated sea

Moderate breeze

Slightly agitated sea

Fresh breeze

Moderately agitated sea

Strong breeze

Rough sea

Near gale

Very rough sea

Gale

Moderately high seas

Strong gale

High seas

Storm

Very high seas

Violent storm

Heavy sea

Hurricane

Exceptionally heavy sea

6.2 Setting the flow unit

To set the unit of the flow velocity, press the "UNIT" key. You can choose between m/s, km/h, ft/min, knots and mps. The default setting is m/s.

6.3 Setting the temperature unit

To set the temperature unit displayed, press and release "°C/°F" once. You can choose between °C and °F. The default setting is °C.

7 Volume flow measurement

For a volume flow measurement, first press the "VEL/FLOW" key to select between velocity and volume flow measurement. This is signalled by "VEL" (speed measurement) and "FLOW" (volume flow measurement) on the display. Depending on the entered area and the measured wind flow, the measured value can also be significantly higher than it is possible to display. In this case, "x100" or "x10" is displayed next to the measured value. The measured value in the display must then be multiplied by 100 or 10 accordingly.

7.1 Setting the unit of the volume flow measurement

To select the unit FT³ or m³, press and release the "UNIT" key once.

Hint:

The function also has an effect on the area specification.

Page 12

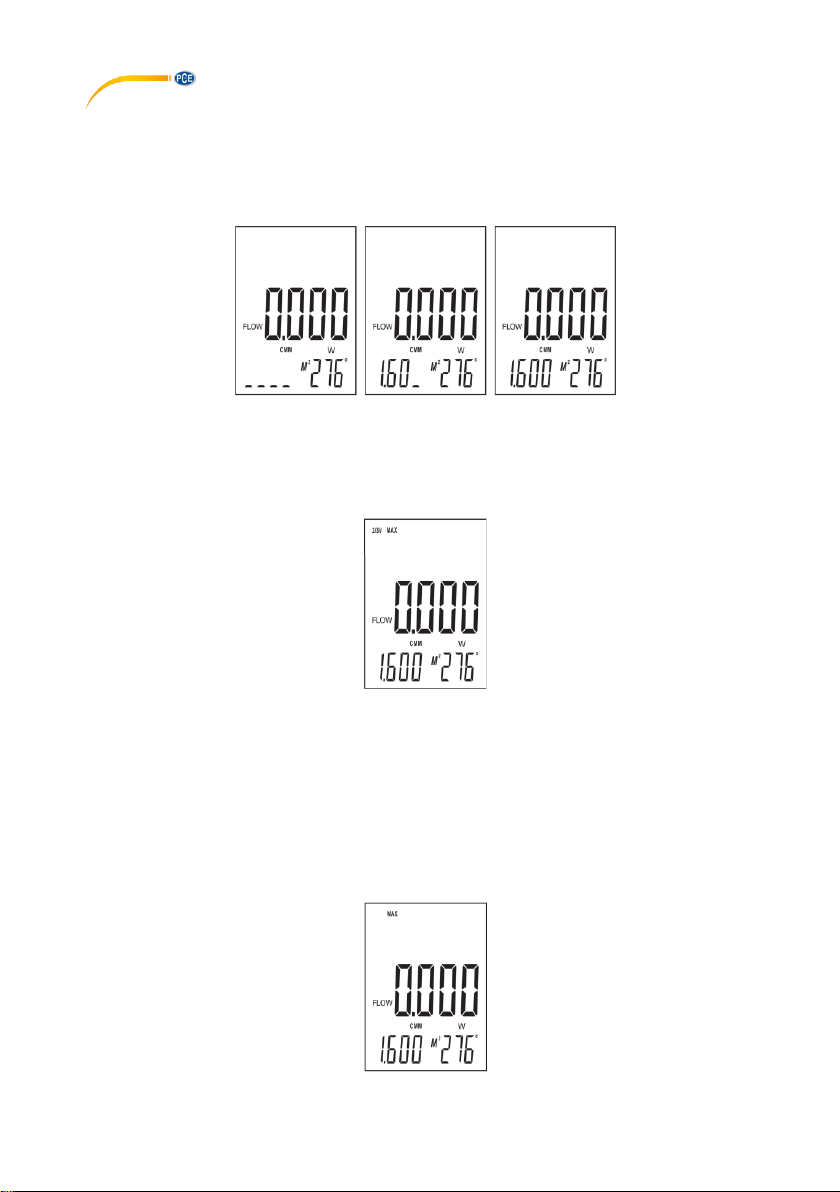

7.2 Area specification for volume flow measurement

In order to perform a volume flow measurement, it is mandatory to perform an area measurement of the flow. To do this, press the "AREA/SAMPLE" key in volume flow mode. Now enter the area. The unit of measurement m2 or FT2 flashes next to the display. Set the corresponding unit of measurement before entering the area.

7.3 2/3 MAX volume flow measurement

During the volume flow measurement, it is possible to display 2/3 of the maximum volume flow. To do this, press the "ENTER" key. 2/3 MAX" appears on the display. Only 2/3 of the maximum measured value will be displayed. Press the "ENTER" key again to exit the mode.

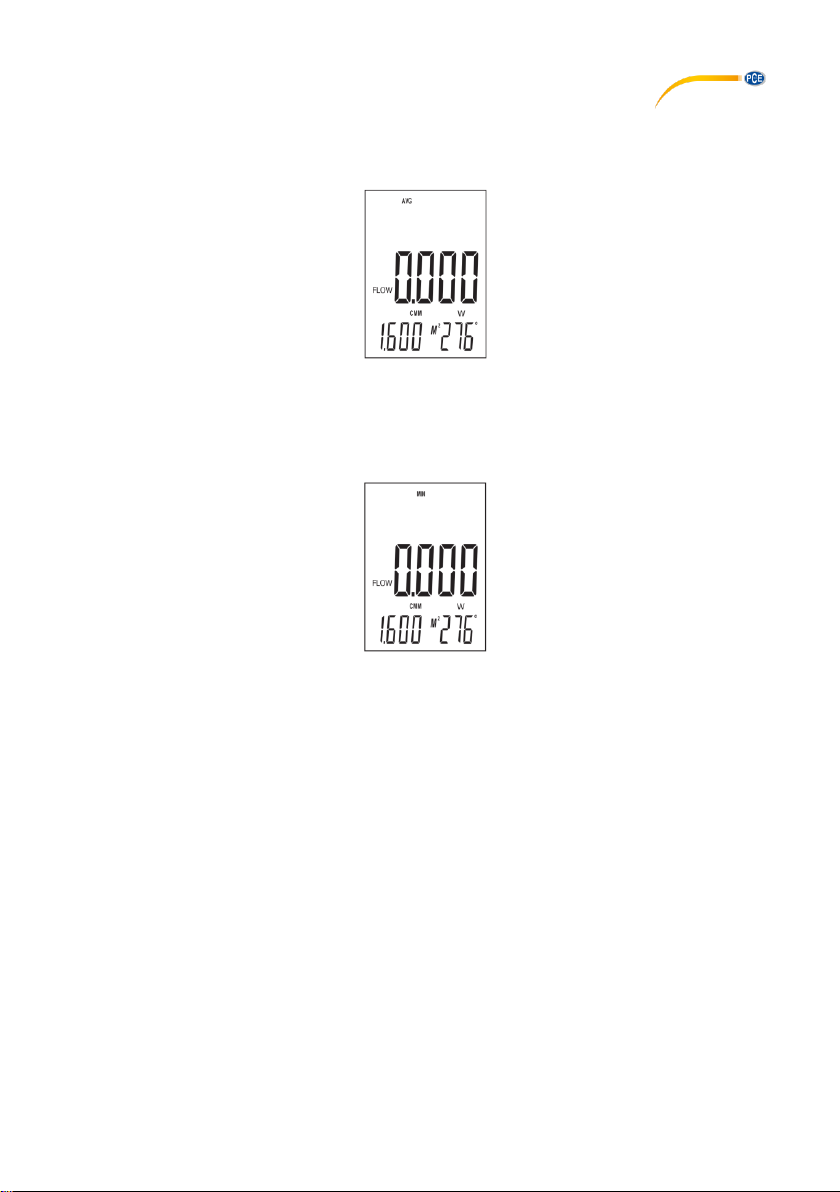

8 Lowest, highest and average measured value

For velocity and volume flow measurement, the lowest / highest and the average measured value can be displayed by pressing a key. To use these functions, repeatedly press the "MAX/MIN" key until you have reached your desired function.

8.1 Highest measured value

When displaying the highest measured value, only the highest measured value is displayed after activating this function. When "MAX" is displayed, this function is active. When the function is changed, the value expires.

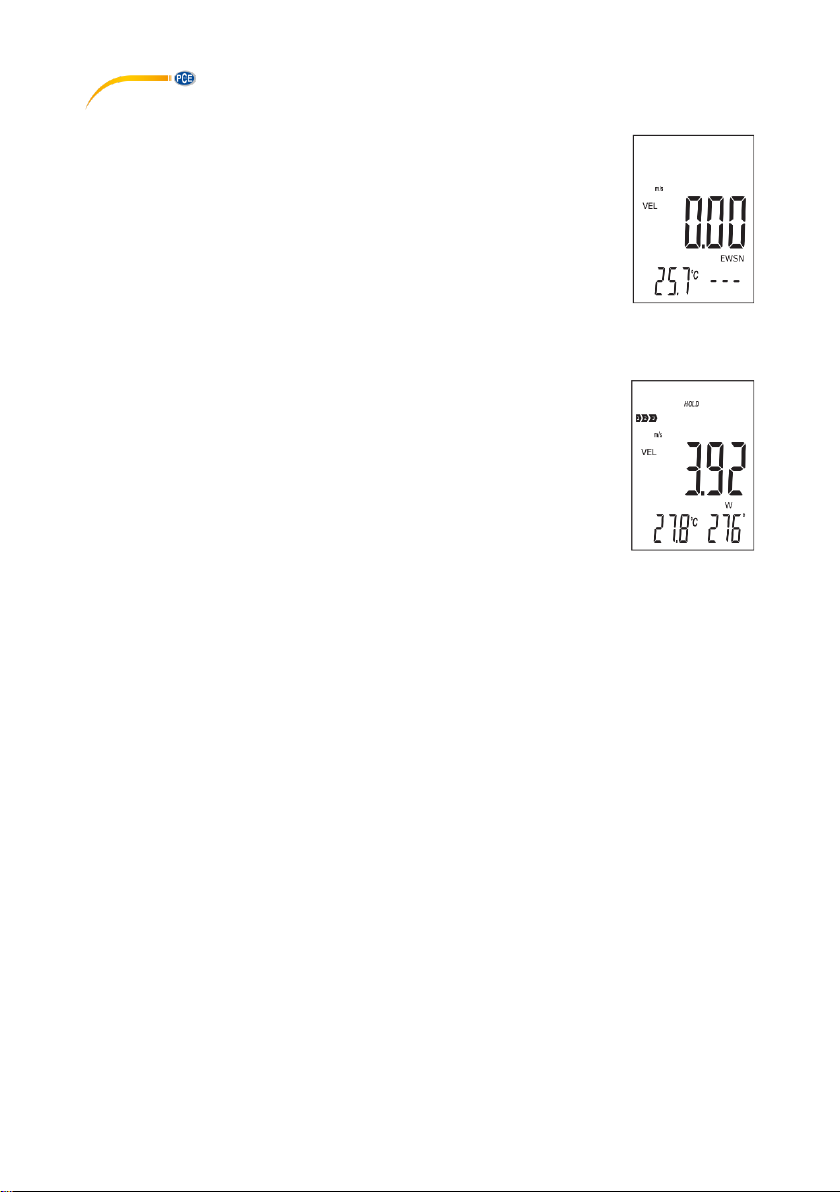

Page 13

8.2 Average reading

When the average reading is displayed, the average of the last 10 seconds is displayed. When "AVG" is displayed, this function is active. When the function is changed, the value expires.

8.3 Lowest measured value

When the lowest measured value is displayed, it is only the lowest measured value that is displayed. When "MIN" is displayed, this function is active. When the function is changed, the value expires.

8.4 Wind direction

For wind direction measurement, there is an additional gyroscope in the wind speed sensor. The wind direction can be determined via this sensor. To do this, hold the sensor vertically to the air flow. Pay attention to the marking inside the sensor for the flow direction. The display shows the current angle degree and the compass direction as letters:

E: East W: West S: South N: North ES: Southeast EN: Northeast WS: Southwest WN: Northwest

Page 14

8.4.1 Calibrating the wind direction

The wind direction should be calibrated when the meter is first put into operation, when it is located in a different region and at regular intervals. To do this, switch on the meter and then align the sensor vertically. Now press and hold the "ENTER" key until the wind direction indicator flashes "- - -". Now rotate the sensor vertically around its own axis twice for 8 seconds each. Then press the "Enter" key. The calibration is complete.

8.5 Freezing the measured value

To freeze and hold the currently displayed reading, press and release the "HOLD" key once. The reading is now held. HOLD" appears on the display. Press the "HOLD" key again to resume the measurement.

8.6 Recording the measured values

To record individual measured values, the storage interval must be set to "0000" seconds. The storage interval can only be set when the air velocity measuring function "VEL" is set. To do this, press the "SAMPLE" key and now set the storage interval accordingly. Then press the "REC" key whenever you want to save the current measured value. The memory location used is shown on the lower display and the "REC" display flashes once briefly above the display. For continuous recording, set a desired storage interval with the "SAMPLE" key. You can select between 1 ... 9999 seconds. Then press the "REC" key once. The lower display briefly shows the storage interval. REC" is shown above the display. This signals that the measured values are being recorded. To interrupt saving, keep the "REC" key pressed. If you press the "REC" key again, recording will be restarted. Date and time are only saved when recording with the software.

8.6.1 Read out data memory

To read out the data memory on the meter, press and release the "READ" key once. "READ" is now shown above the display. All readings displayed are now those from the memory. Each time you press the "READ" key, the next memory value is displayed. Now press the "AREA/SAMPLE" key and type in the memory location you want to read out. To return to normal measuring mode, keep the "READ" key pressed until "READ" disappears from the display.

Page 15

8.6.2 Delete data

The meter has a memory with 960 measuring points. As soon as the memory is full, "FULL" is shown on the display. To delete the measurement data on the meter, press and hold the "DEL" key for at least two seconds until "CLA" is displayed and "DEL" lights up. All saved data have now been deleted.

Hint:

Only the entire memory can be cleared.

9 Software

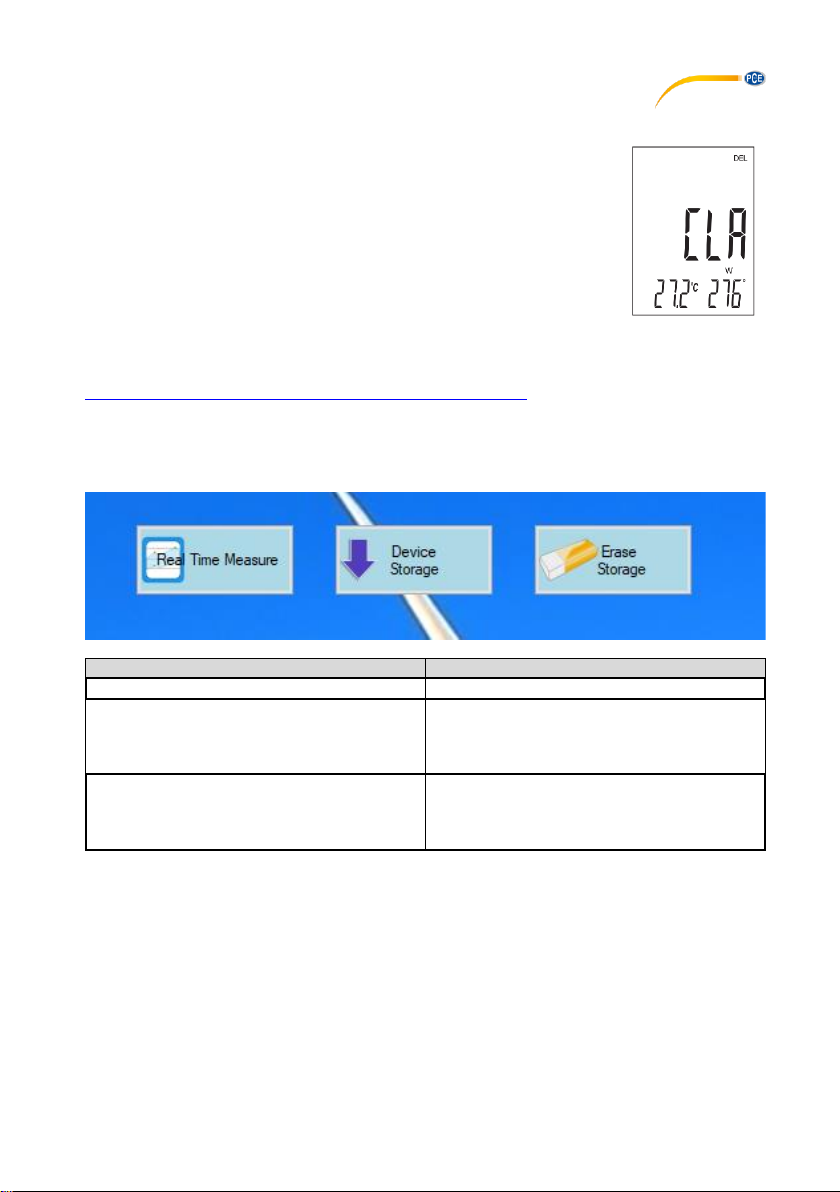

To install the software, first go to the page:

https://www.pce-instruments.com/english/download-win_4.htm

where you can download and install the latest software. Then connect the meter to the PC and open the software with administrator rights. As soon as the meter is connected to the PC, the automatic power off function is deactivated.

Button

Function

"Real Time Measure

Live view of the measurement

"Device Storage"

Reading out the memory of the meter. The window for viewing the saved readings on the meter has an identical structure.

"Erase Storage"

Clearing the memory of the meter. As soon as you click on this button, all measured values are immediately deleted. There is no warning in advance.

Page 16

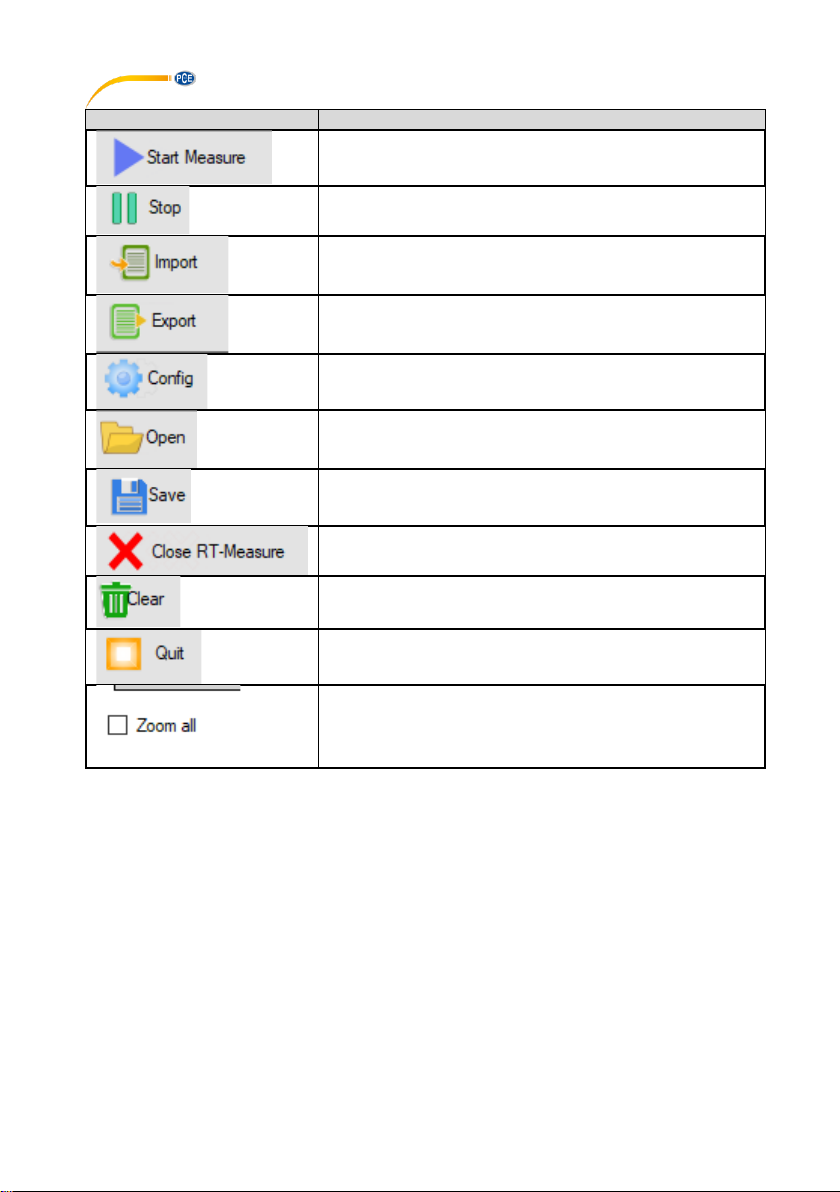

Icon

Function

Start live measurement

Stop live measurement

Import a saved live measurement. File format XLS

Export a current live measurement. The data is saved as XLS.

Entry of a company name, author and comment

Open an anemometer file: File format .ane and .xls

Save an anemometer file File format .ane and .xls This function is only available when reading out the meter.

Close window

Delete all displayed measured values

Close programme

The scaling of the current graph is adjusted so that all measured values in the current measurement period are visible in one window.

Page 17

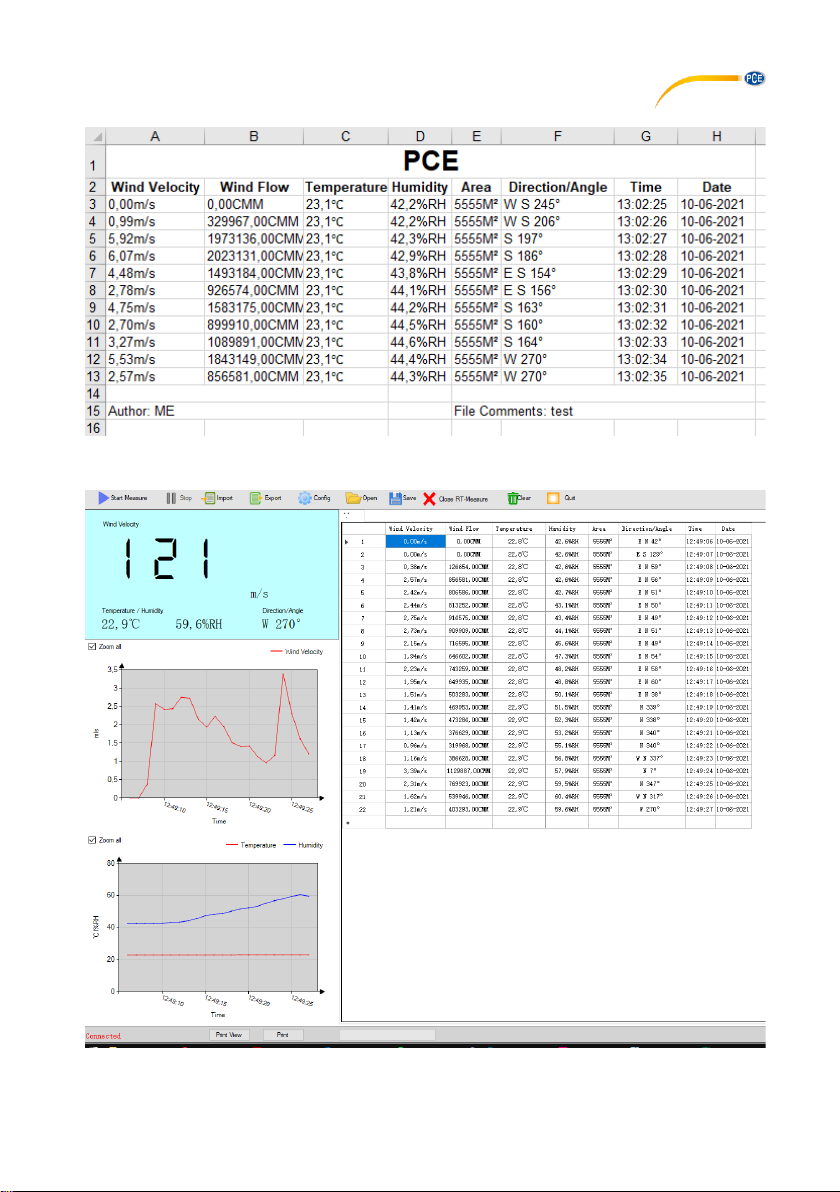

The exported data is saved in XLS format. This could look like this, for example:

After you have selected "Real Time Measure", a new window opens for live measurement on the PC. From here, the measurement data is transferred directly to the PC.

Page 18

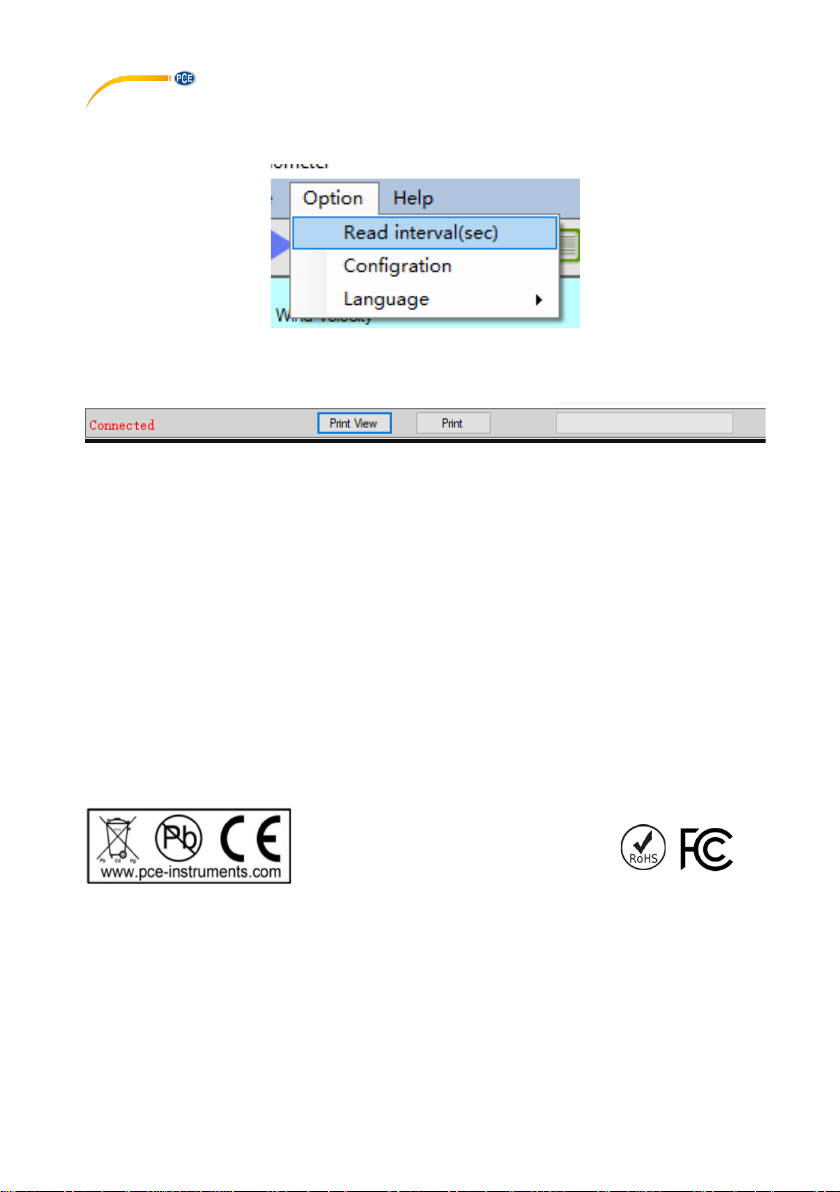

To set the read interval, click on "Option" and then select "Read interval(sec)". In the next window, you can set the interval in seconds.

Below the window, you can see whether a meter is connected. In addition, the current window can be printed. A print preview can be started before printing. There is also a status bar for the current status of importing a file.

10 Contact

If you have any questions, suggestions or technical problems, please do not hesitate to contact

us. You will find the relevant contact information at the end of this user manual.

11 Disposal

For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament applies. Due to the contained pollutants, batteries must not be disposed of as household waste. They must be given to collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either reuse them or give them to a recycling company which disposes of the devices in line with law.

For countries outside the EU, batteries and devices should be disposed of in accordance with your local waste regulations.

If you have any questions, please contact PCE Instruments.

Page 19

PCE Instruments contact information

Germany France Spain

PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 26 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel. : +34 967 543 548 Fax: +49 (0) 2903 976 99 29 Numéro de fax: +33 (0) 972 3537 18 Fax: +34 967 543 542 [email protected] [email protected] [email protected] www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol

United Kingdom Italy Turkey

PCE Instruments UK Ltd PCE Italia s.r.l. PCE Teknik Cihazları Ltd.Şti. Unit 11 Southpoint Business Park Via Pesciatina 878 / B-Interno 6 Halkalı Merkez Mah. Ensign Way, Southampton 55010 Loc. Gragnano Pehlivan Sok. No.6/C Hampshire Capannori (Lucca) 34303 Küçükçekmece - İstanbul United Kingdom, SO31 4RF Italia Türkiye Tel: +44 (0) 2380 98703 0 Telefono: +39 0583 975 114 Tel: 0212 471 11 47 Fax: +44 (0) 2380 98703 9 Fax: +39 0583 974 824 Faks: 0212 705 53 93 [email protected] [email protected] [email protected] www.pce-instruments.com/english www.pce-instruments.com/italiano www.pce-instruments.com/turkish

The Netherlands United States of America

PCE Brookhuis B.V. PCE Americas Inc. Institutenweg 15 1201 Jupiter Park Drive, Suite 8 7521 PH Enschede Jupiter / Palm Beach Nederland 33458 FL Telefoon: +31 (0)53 737 01 92 USA [email protected] Tel: +1 (561) 320-9162 www.pce-instruments.com/dutch Fax: +1 (561) 320-9176 [email protected] www.pce-instruments.com/us
