Infrared Thermometer PCE-670
User Manual
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 13 May 2020
v1.0
English
Page 2
Contents
1 Safety notes ........................................................................................... 1
2 Specifications ........................................................................................ 2
3 Delivery contents .................................................................................. 2
4 Views ...................................................................................................... 2
5 On / off .................................................................................................... 2
6 Measurement ......................................................................................... 3
7 How to change the unit ........................................................................ 3
8 Error codes ............................................................................................ 3
9 Battery .................................................................................................... 4
10 Cleaning ................................................................................................. 4
11 Contact ................................................................................................. 5
12 Disposal ................................................................................................. 5
© PCE Instruments
Page 3
© PCE Instruments
1
1 Safety notes
Please read this manual carefully and completely before you use the device for the first time. The
device may only be used by qualified personnel and repaired by PCE Instruments personnel.
Damage or injuries caused by non-observance of the manual are excluded from our liability and
not covered by our warranty.
• The device must only be used as described in this instruction manual. If used otherwise,
this can cause dangerous situations for the user and damage to the meter.
• The instrument may only be used if the environmental conditions (temperature, relative
humidity, …) are within the ranges stated in the technical specifications. Do not expose
the device to extreme temperatures, direct sunlight, extreme humidity or moisture.
• Do not expose the device to shocks or strong vibrations.
• The case should only be opened by qualified PCE Instruments personnel.
• Never use the instrument when your hands are wet.
• You must not make any technical changes to the device.
• The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,
no abrasives or solvents.
• The device must only be used with accessories from PCE Instruments or equivalent.
• Before each use, inspect the case for visible damage. If any damage is visible, do not
use the device.
• Do not use the instrument in explosive atmospheres.
• The measurement range as stated in the specifications must not be exceeded under
any circumstances.
• Non-observance of the safety notes can cause damage to the device and injuries to
the user.
• Never target any persons or animals with the laser beam.
We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of
business.
If you have any questions please contact PCE Instruments. The contact details can be found at
the end of this manual.
Page 4
© PCE Instruments
2
2 Specifications
Temperature measurement range
-33 ... 500°C / -27.4 ... 932°F
Resolution
-9.9 ... 199.9°C / 14.2 ... 391.8°F : 0.1°C / 0.18°F
< 10°C / 50°F : 1°C / 1.8°F
> 200°C / 392°F : 1°C / 1.8°F
Accuracy
± 2% of rdg. or ± 2°C / 3.6°F the greater value applies
Optical resolution
9: 1
Emissivity
0.95 (fixed)
Laser
Circle laser
Class 2 <1mW
Operating time
About 30 h
Operating conditions
0 ... 30°C / 32 ... 86°F, max. 90% rh
Storage conditions
-10 ... 40°C / 14 ... 104°F, max. 65% rh
Power supply
1.5V AA battery
Display
LC display
Dimensions
150 x 25 x 27 mm / 5.9 x 1 x 1.1 in
Weight
About 74 g / < 1 lb
3 Delivery contents
1 x infrared thermometer PCE-670
1 x 1.5V AA battery
1 x User manual

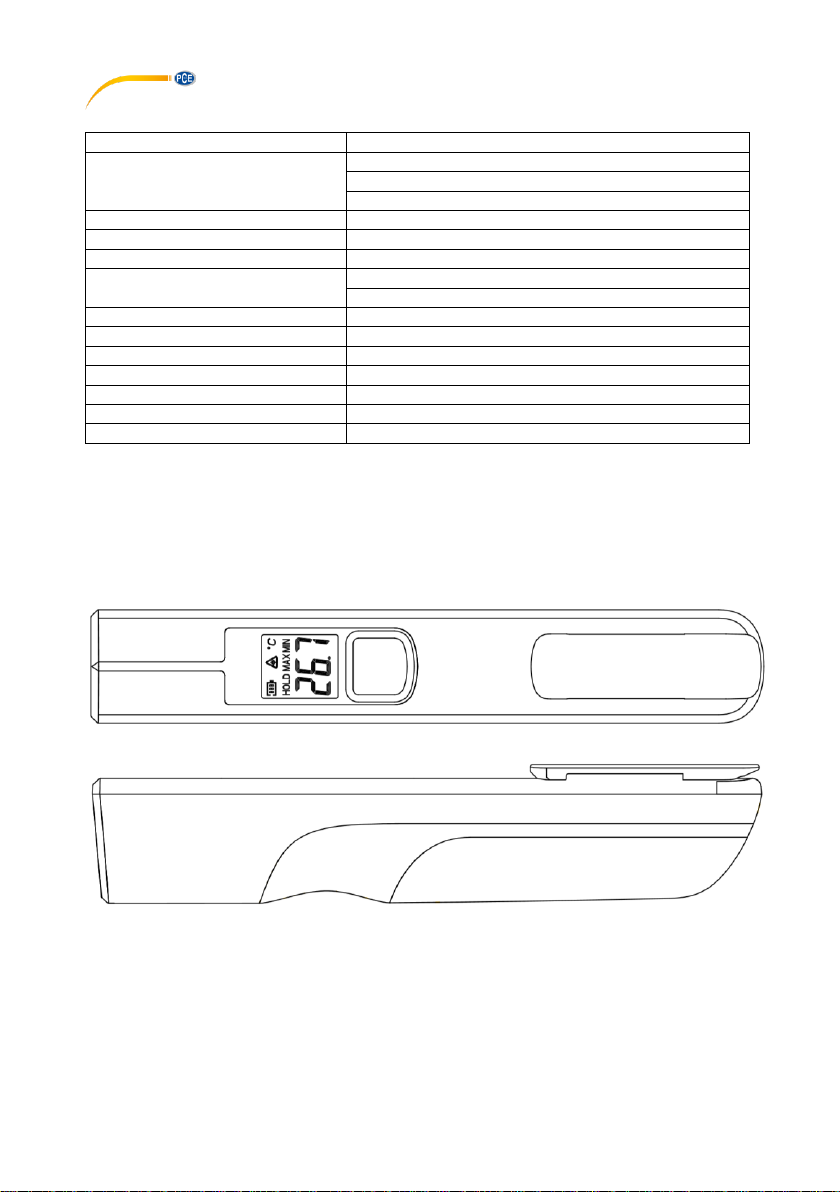

4 Views
Top view
Side view
5 On / off
To switch on the measuring instrument, press the measuring key briefly. To turn off the meter,
wait a few seconds. When not in use, the meter will turn off automatically.
Page 5
© PCE Instruments
3
6 Measurement
To make a measurement, target the surface to be tested with the meter. Now press the measuring
key After completion of the measurement, release the key. At two-second intervals, a history of
the last, the lowest and the highest measured value is now displayed.
7 How to change the unit
To select one of the units °C and °F, first open the battery compartment. There is a switch above
the negative pole of the battery. With this switch you can choose the desired unit.

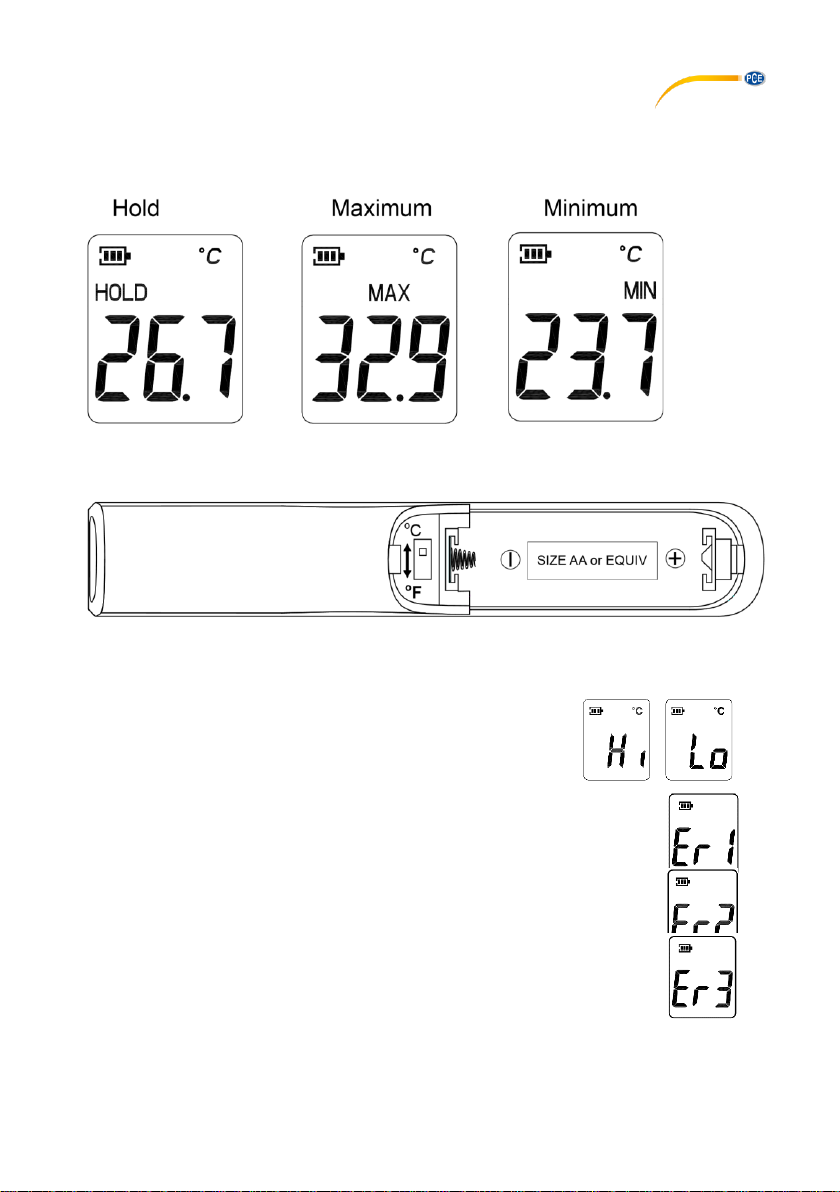

8 Error codes
If measurements are incorrect, the meter displays an error message. These error messages have
the following meanings.
As soon as the measured value is outside the measuring range, "HI"
or "LO" is displayed. If "HI" is displayed, the measured temperature
is too high. "LO" means that the measured temperature is too low.
Er1 means that the ambient temperature is outside the range of -10 ... 50 °C. To
correct this error, only work in an environment within -10 ... 50 °C. If the
temperature fluctuates considerably, the measuring instrument must acclimatise
for approx. 30 minutes to achieve a reliable measurement result.
Er2 is displayed when the meter is exposed to rapid temperature changes. Allow
the measuring instrument to adapt to the current ambient conditions.
For all other error messages starting from Er 3, you must reset the meter.
Remove the battery for about one minute.
Page 6
© PCE Instruments
4

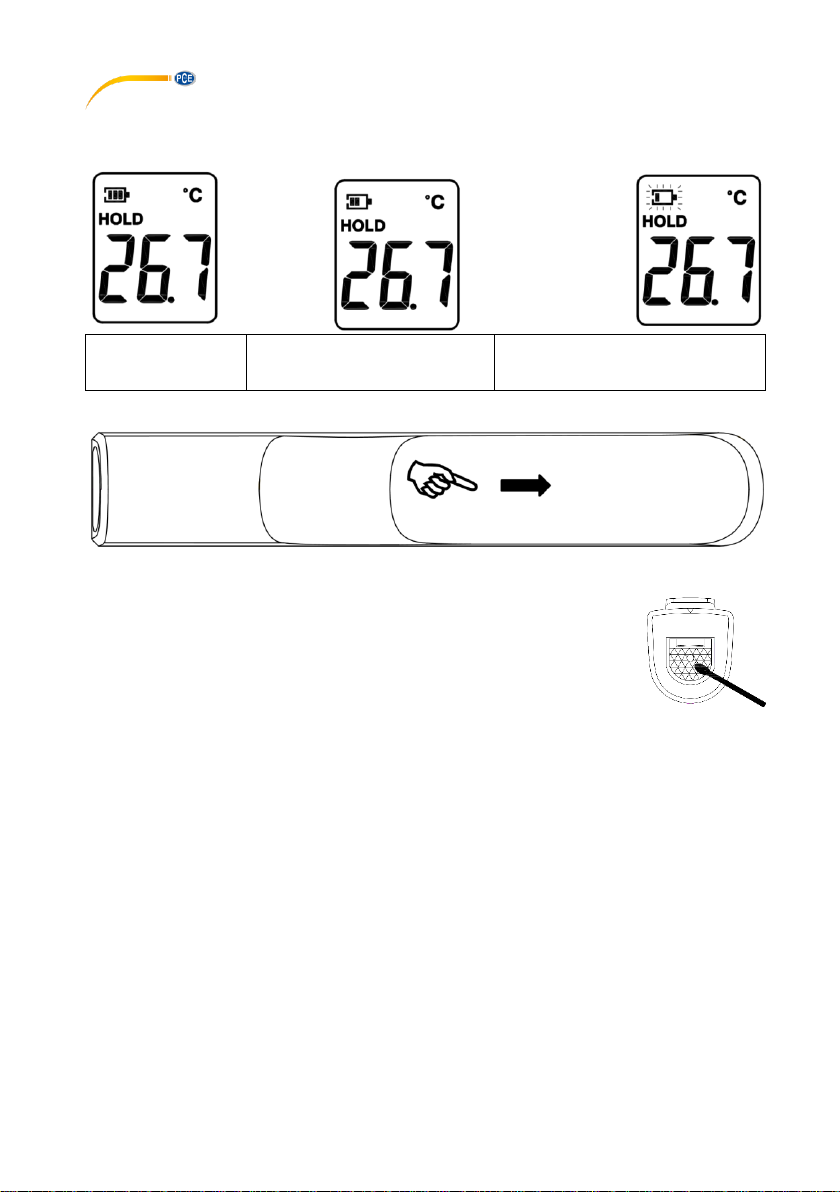

9 Battery
The infrared thermometer has a battery level indicator. This display shows the current battery
power.
Battery is full.
Battery is discharged.
Measurements are still
possible.
Battery is completely discharged.
Measurements are no longer
possible.
To replace the battery, first open the battery compartment at the rear side.
Now replace the flat battery by a new 1.5 V AA battery. Observe correct polarity.
10 Cleaning
The sensor system of the infrared thermometer must always be clean and
free from dust. To clean the sensor system, use a cotton swab in order to
remove the dust inside the sensor system.
Page 7
11 Contact
If you have any questions, suggestions or technical problems, please do not hesitate to contact
us. You will find the relevant contact information at the end of this user manual.
12 Disposal
For the disposal of batteries in the EU, the 2006/66/EC directive of the European
Parliament applies. Due to the contained pollutants, batteries must not be disposed of as
household waste. They must be given to collection points designed for that purpose.
In order to comply with the EU directive 2012/19/EU we take our devices back. We either reuse them or give them to a recycling company which disposes of the devices in line with law.
For countries outside the EU, batteries and devices should be disposed of in accordance
with your local waste regulations.
If you have any questions, please contact PCE Instruments.
