)RUFHJDXJHWHVWVWDQG LTS-20

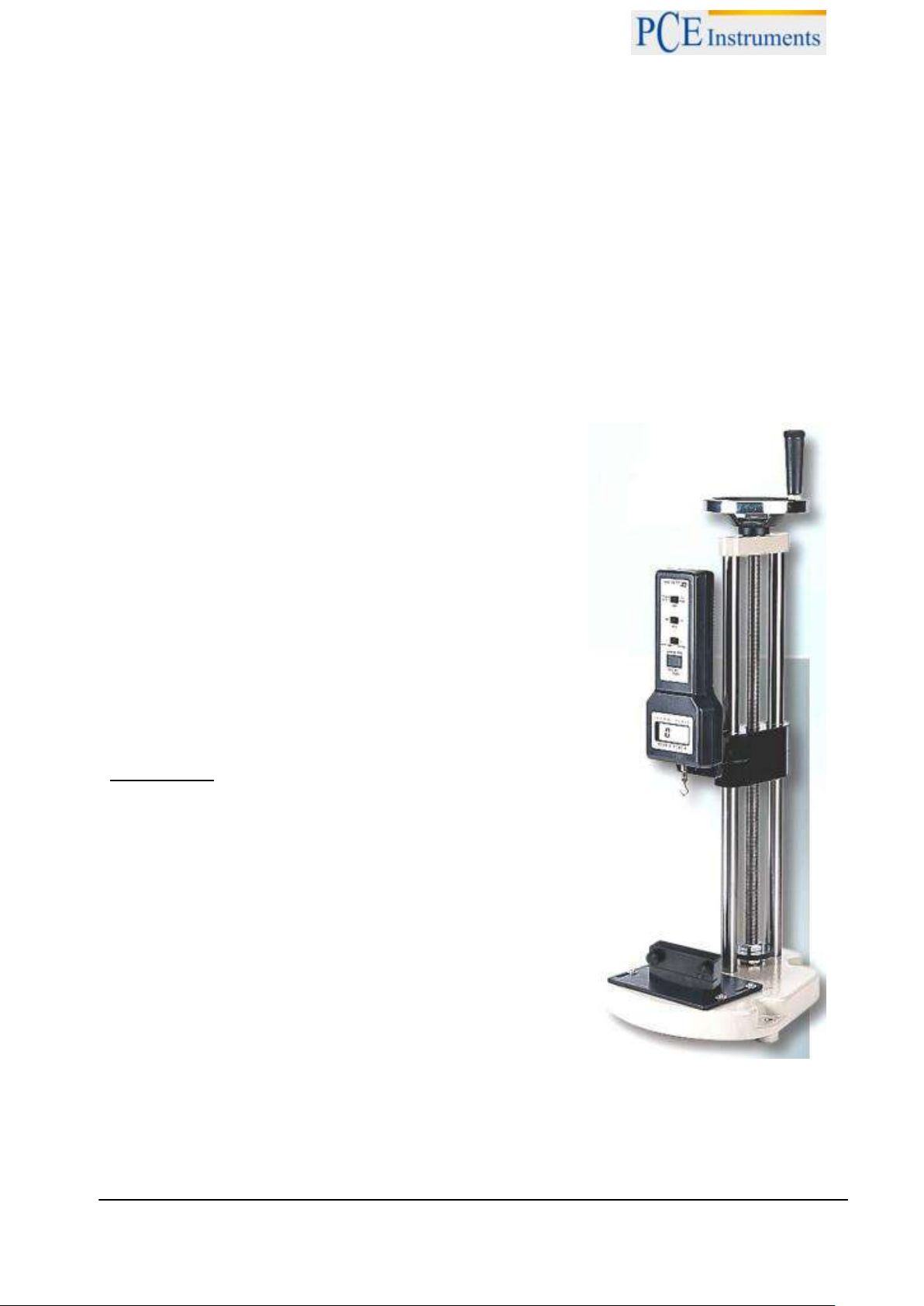

Manual test stand for force gauges. The crank-operated test stand LTS-20 can be used in combination
with different PCE force gauges. With the test stand LTS-20, you can perform tensile and compressive
force measurements up to 1000 N respectively 100 kg. By using a test stand, you can always be sure to
get consistent and repeatable results. The test stand LTS-20 is operated manually by using the crank
handle on top.

Specifications

 Max. travelling distance: 345 mm
 Total length: 530 mm (without crank handle)
 Crank handle diameter: 120 mm
 Leadscrew diameter: 15 mm
 Leadscrew thread pitch: 2 mm
 Base dimensions: 250 x 230 mm
 Base plate: 145 x 100 mm
 Weight: 7 kg
 Max. force: 1.000 N

Please notice:

Depending on your force gauge, a special mounting plate may be
necessary to attach the gauge to the test stand. Please contact our
customer support for more information.

Optional accessories:
Wedge grip: Self-fastening wedge grip with lever for fast opening of
the clamp. Ideal for material thicknesses up to 5 mm.

Wedge grip and force gauge not
included in the package
