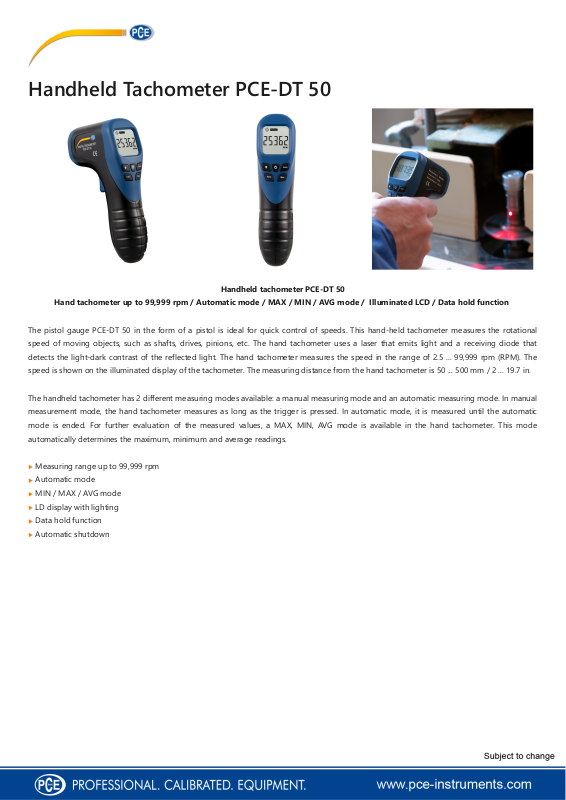

Handheld Tachometer PCE-DT 50
Handheld tachometer PCE-DT 50
Hand tachometer up to 99,999 rpm / Automatic mode / MAX / MIN / AVG mode / Illuminated LCD / Data hold function
The pistol gauge PCE-DT 50 in the form of a pistol is ideal for quick control of speeds. This hand-held tachometer measures the rotational
speed of moving objects, such as shafts, drives, pinions, etc. The hand tachometer uses a laser that emits light and a receiving diode that
detects the light-dark contrast of the reflected light. The hand tachometer measures the speed in the range of 2.5 ... 99,999 rpm (RPM). The
speed is shown on the illuminated display of the tachometer. The measuring distance from the hand tachometer is 50 ... 500 mm / 2 ... 19.7 in.
The handheld tachometer has 2 different measuring modes available: a manual measuring mode and an automatic measuring mode. In manual
measurement mode, the hand tachometer measures as long as the trigger is pressed. In automatic mode, it is measured until the automatic
mode is ended. For further evaluation of the measured values, a MAX, MIN, AVG mode is available in the hand tachometer. This mode
automatically determines the maximum, minimum and average readings.
Measuring range up to 99,999 rpm
Automatic mode
MIN / MAX / AVG mode
LD display with lighting
Data hold function
Automatic shutdown
Specifications
Measuring range 2.5 ... 99,999 rpm (RPM)
Measurement accuracy ± 0.02% + 1 digit
Resolution 2.5 ... 999 rpm: 0.1 rpm
1000 ... 99,999 rpm: 1 rpm
Measuring distance 50 ... 500 mm/ 2 ... 19.7 in
Measuring rate 0.5s (over 120 rpm)
Storage 60 individual data storage
Automatic shutdown After 20 s
Power supply 9V block battery
Operating conditions 0 ... 50°C / 32 ... 122°F, 10 ... 90% rh
Storage conditions -10 ... 60°C / 14 ... 140°F, 10 ... 75% rh
Dimensions 145 x 90 x 35 mm / 5.7 x 3.5 x 1.4 in
Weight
Approx. 120 g / < 1 lb incl. battery
