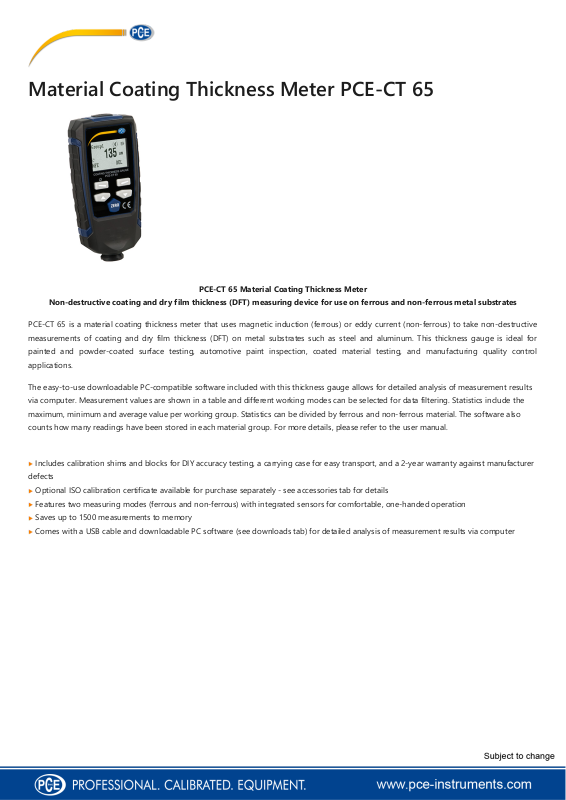

Material Coating Thickness Meter PCE-CT 65
PCE-CT 65 Material Coating Thickness Meter
Non-destructive coating and dry film thickness (DFT) measuring device for use on ferrous and non-ferrous metal substrates
PCE-CT 65 is a material coating thickness meter that uses magnetic induction (ferrous) or eddy current (non-ferrous) to take non-destructive
measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminum. This thickness gauge is ideal for
painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control
applications.
The easy-to-use downloadable PC-compatible software included with this thickness gauge allows for detailed analysis of measurement results
via computer. Measurement values are shown in a table and different working modes can be selected for data filtering. Statistics include the
maximum, minimum and average value per working group. Statistics can be divided by ferrous and non-ferrous material. The software also
counts how many readings have been stored in each material group. For more details, please refer to the user manual.
Includes calibration shims and blocks for DIY accuracy testing, a carrying case for easy transport, and a 2-year warranty against manufacturer
defects
Optional ISO calibration certificate available for purchase separately - see accessories tab for details
Features two measuring modes (ferrous and non-ferrous) with integrated sensors for comfortable, one-handed operation
Saves up to 1500 measurements to memory
Comes with a USB cable and downloadable PC software (see downloads tab) for detailed analysis of measurement results via computer
Specifications
Ferrous metals
Principle Magnetic induction
Measuring range 0 ... 1350 µm / 0 ... 53.1 mils
Accuracy
0 ... 1000 µm: (±2.5 % ±2 µm)
1000 µm ... 1350 µm: ±3.5 %
0 ... 39.3 mils: (±2 % ±0.08 mils)
39.3 mils ... 53.1 mils: ±3.5 %
Resolution
0 ... 100 µm: 0.1 µm
100 µm ... 1000 µm: 1 µm
in 1000 mm ... 1350 µm: 0.01 mm
0 ... 10 mils: 0.01 mils
10 mils ... 53.1 mils: 0 ... 1 mils
Smallest surface Ø 7 mm / Ø 0.3 in
Min. curvature radius 1.5 mm / 0.05 in
Min. substrate thickness 0.5 mm / 0.02 in
Non-ferrous metals
Principle Eddy current
Measuring range 0 ... 1350 µm / 0 ... 53.1 mils
Accuracy
0 ... 1000 µm: ±(2.5 % ±2 µm)
1000 µm ... 1350 µm: ±3.5 %
0 ... 39.3 mils: ±(2 % ±0.08 mils)
39.3 mils ... 53.1 mils: ±3.5 %
Resolution
0 ... 100 µm: 0.1 .mu.m
100 µm ... 1000 µm: 1 µm
in 1000 mm ... 1350 µm: 0.01 mm
0 ... 10 mils: 0.01 mils
10 mils ... 53.1 mils: 0 ... 1 mils
Smallest surface Ø 5 mm / Ø 0.2 in
Min. curvature radius 3 mm / 0.1 in
Min. substrate thickness 0.3 mm / 0.01 in
Units µm, mils
Functions
Alarm function, display lighting, automatic shutdown,
calibration, memory function
Memory option
30 storage groups with a capacity of 50 measurements
each = 1500 measurements total
Interface USB
Environmental conditions
0 ... 40°C / 32° F ... 104°F, 20% ... 90% rh
Power supply 2 x 1.5V AAA batteries
