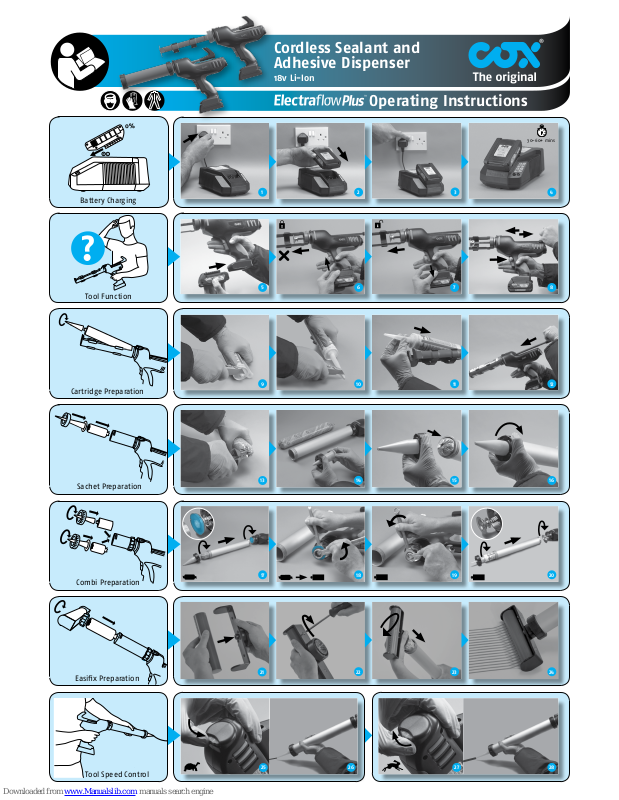

Battery Charging
Tool Function
Cartridge Preparation
Sachet Preparation
Combi Preparation
Easifix Preparation
Cordless Sealant and
Adhesive Dispenser
18v Li-Ion
Operating Instructions
30-60+ mins
Tool Speed Control
!
Acetone
Cellulose Thinner
Brake Cleaner
White Spirit
20°C
50RH
Tool Storage, Optimum Environment
Tool Vibration Rating:<2.5m/s
2
Tool Noise Rating:56dBA
DISCLAIMER
Whilst PC Cox has taken every care in the preparation of this
document, it cannot accept responsibility for omissions, and does not
warrant that it is correct and comprehensive in every particular detail.
Equipment supplied should always be operated by persons with an
appropriate level of skill and training. PC Cox Ltd shall not be liable for
incidental or consequential damages resulting from the misuse/abuse
of any of its products.
Manufactured in the UK to ISO 9001:2008 standards.
EXONERATION DE RESPONSABILITE
Bien que PC Cox ait pris grand soin dans la préparation de ce
document, PC Cox ne peut pas accepter de responsabilité pour
d’éventuelles omissions, et ne garantit pas que ces informations
soient correctes et complètes jusque dans les moindres détails.
Tout équipement fourni doit toujours être utilisé par des personnes
avec un niveau approprié de compétences et de formation. PC
Cox Ltd ne sera pas responsable de dommages directs ou indirects
résultant d’une erreur ou d’une mauvaise utilisation de l’un de ses
produits.
Fait au Royaume-Uni aux normes ISO 9001:2008.
HAFTUNGSAUSSCHLUSS
Obwohl PC Cox bei der Erstellung dieses Dokuments die größte
Sorgfalt walten ließ, kann sie für die Richtigkeit, Vollständigkeit
und Aktualität der Inhalte und jedes einzelnen Details keine
Gewähr übernehmen. Die gelieferten Arbeitsgeräte sollten
immer von Personen mit der entsprechenden Qualifikation und
Ausbildung bedient werden. PC Cox haften nicht für unmittelbare
oder mittelbare Schäden, die aus dem Fehlgebrauch/Missbrauch
irgendwelcher ihrer Produkte resultieren.
Im Vereinigten Königreicht gemäß ISO 9001:2008
Normen hergestellt
免責事項
PC Coxは細心の注意を払って文書を作成しておりますが、不作為
行為による損傷に関して責任を負いかねます。また、完全性・正
確性の詳細など全てに対して一切の保証を与えるものではありま
せん。供給された備品は、ある一定の経験やスキルのある者によ
って使用されるものとします。PC Cox社は、偶発的、もしくは製
品のいかなる誤用/乱用から生じる損傷に、責任を負いかねます。
ISO 9001に英国で製造。2008年規格。
면책조항
PC Cox가 이 문서를 작성함에 있어 전적으로 관여했으나, 생략된
내용에 대해서는 책무가 없으며, 이 문서가 모든 특정 세부 사항을
포괄함과 동시에 정확하게 다루고 있다는 것을 보장하지는
않습니다. 제공된 장치는 반드시 항상 적절한 수준의 훈련을
받았으며 기술력을 보유한 사람이 사용해야 합니다. PC Cox Ltd는
당사 제품을 잘못 사용하거나 사용시 실수로 인해 사고나 손해가
발생할 경우 그에 대한 책임을 지지 않습니다.
ISO 9001:2008 기준에 따라 영국에서 제조.
免责声明
尽管PC Cox在编写本说明书时考虑到了事情的各方各面，但它不为
任何疏漏承担责任，也不保证本说明书包揽了任何细节并且永远正
确。本设备务必由达到适当技术培训级别的人员操作。PC Cox 不
会对由于误用或滥用本公司产品招致的偶然损害或必然损害承担
责任。
产地：英国 ISO 9001:2008标准
ОТКАЗ ОТ ОТВЕТСТВЕННОСТИ
Компания PC Cox подготовила этот документ со всей
тщательностью, но она не может принять на себя
ответственность за упущения и не гарантирует, что все
данные в этом документе являются правильными и
исчерпывающими. Поставляемое оборудование должно
всегда использоваться людьми с соответствующим уровнем
квалификации и подготовки. Компания PC Cox Ltd не несет
ответственности за случайный или косвенный ущерб,
причиненный в результате неправильного или неосторожного
использования какого-либо из ее продуктов. Изготовлено в
Великобритании, согласно стандартам
ISO 9001:2008.
DESCARGO DE RESPONSABILIDAD
Aunque PC Cox ha tomado todas las precauciones en la
preparación de este documento, no se hace responsable de
omisiones y no garantiza que sea correcto y completo en cada
detalle en particular. Los equipos suministrados siempre deben
ser utilizados por personas con un adecuado nivel de habilidad
y entrenamiento. PC Cox Ltd. no será responsable por daños
incidentales o consecuentes resultantes del uso indebido o abuso
de cualquiera de sus productos.
Fabricado en el Reino Unido según normas
ISO 9001:2008.
P C COX LTD, TURNPIKE INDUSTRIAL ESTATE, NEWBURY, BERKSHIRE, RG14 2LR, UNITED KINGDOM
T Sales +44 (0) 1635 264500 | F +44 (0) 1635 264555 | E sales@pccox.co.uk | www.pccox.co.uk
©PC Cox 2014 Cox and EasiPower are trademarks of PC Cox Ltd. Every eort has been made to ensure that the information contained in this leaflet was correct
at the time of going to press. However, the company retains the right to change any specification without notice, in line with the company’s policy of continual
product development. For warranty information, please check our website.
PN: P
DECLARATION OF CONFORMITY
PC Cox Ltd. declares that the products:
Electraflow Plus 18v Volt Sealant Applicators
Are in conformity with the following standards:
Electrical Safety: (LV)
EN 60335-2-29:2004 (Safety requirements for battery chargers)
EN 60335-2-29:2004/A2:2010 (Safety requirements for battery chargers)
Electromagnetic Compatibility: (EMC)
EN 55014-1:2006+A1:2009 (Emissions-household appliances & electric tools)
EN 55014-2:1997+A2:2008 (Immunity-household appliances & electric tools)
EN 61000-6-1:2007 (Immunity-residential, commercial & light industrial)
EN 61000-6-3:2007 (Immunity-residential, commercial & light industrial)
Machinery Safety:
EN 4871:2009 (Verification of noise emission values)
EN 5349-1:2001 (Measurement of hand arm vibration)
EN 60745-1:2009+A11 2010 (Safety of battery tools and battery packs)
In accordance with the directives:
Low Voltage Directive-2006/95/CE
Electromagnetic Compatibility Directive-2004/108/EC
Machinery Directive-2006/42/EC
Cliord Beckett
Technical Director
P.C.Cox Ltd.
PC Cox Ltd.
Turnpike Industrial Estate
Newbury, Berkshire
RG14 2LR
United Kingdom
Tel: +44 (0) 1635 264500
Fax: +44 (0) 1635 264555
www.pccox.co.uk
Date of issue:
22 January 2014
18v. CHARGER SAFETY INSTRUCTION for Li-ION BATTERY CHARGER
PC COX MODEL 1020-028 COMPLIANCE: IEC 60335-1:2010 AND IEC 60335-2-29:2002+A1:2004+A2:2009
1. Read this instruction carefully.
2. The maximum output ratings as shown on the label shall not be exceeded.
3. The equipment shall not be exposed to dripping or splashing.
4. The battery charger is for indoor use in dry locations only.
5. A certified power supply cord has to be used with this equipment. The relevant national installation and/or
equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride
flexible cord according to AS/NZS 3191 (designation H03VVH2-F) shall be used. The power cord set shall have a power
supply cord with conductors providing a cross-sectional area of 2 x 0.75mm2 minimum.
6. The socket-outlet shall be installed near the battery charger and shall be easily accessible.
7. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction, concerning
use of the appliance by a person responsible for their safety.
8. Children should be supervised to ensure that they do not play with the appliance.
9. Charge only PC Cox model 1010-014 or 1010-015 batteries, with the PC Cox model 1020-028 battery charger. Charging any
other type of battery may result in the risk of fire, electric shock, or electrocution. The end user bears responsibility for
any damage or harm caused, by inappropriate product use.
10. Do not recharge non-rechargeable batteries, with PC COX charger model 1020-028
11. Do not install this equipment in caravans or similar vehicles.
12. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
13. Contact your local government for information regarding the collection systems available.
14. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater
and get into the food chain, damaging your health and well-being.
15. When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for
disposal, at least for free of charge.
Battery Type
Li-Ion
1010-014
1010-014: 1.5 AhrLi-ion :
3.6 V × 5 cell = 18 V
Battery voltage Rated capacity
of battery
Battery Type
Li-Ion
1010-015
1010-015: 3.0 AhrLi-ion :
2×(3.6V × 5 cell) = 18V
Battery voltage Rated capacity
of battery
OR
+44 (0) 1635 264500
Workplace VentilationTool Cleaning Instructions
