PC Chips M766LMRT User Manual

Download

Page 1

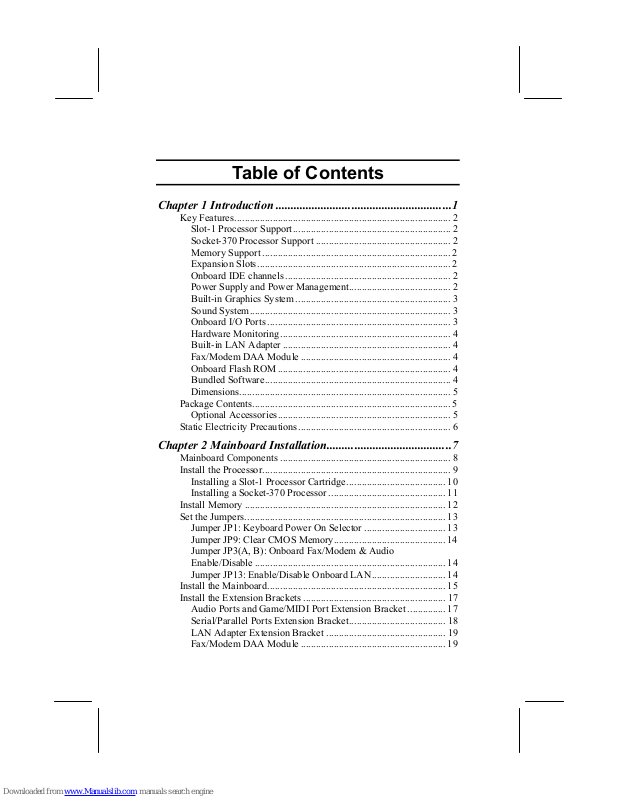

Table of Contents

Chapter 1 Introduction ..........................................................1

Key Features..................................................................................... 2

Slot-1 Processor Support.............................................................. 2

Socket-370 Processor Support ..................................................... 2

Memory Support .......................................................................... 2

Expansion Slots............................................................................ 2

Onboard IDE channels ................................................................. 2

Power Supply and Power Management........................................ 2

Built-in Graphics System ............................................................. 3

Sound System............................................................................... 3

Onboard I/O Ports ........................................................................ 3

Hardware Monitoring................................................................... 4

Built-in LAN Adapter .................................................................. 4

Fax/Modem DAA Module ........................................................... 4

Onboard Flash ROM.................................................................... 4

Bundled Software......................................................................... 4

Dimensions................................................................................... 5

Package Contents.............................................................................. 5

Optional Accessories.................................................................... 5

Static Electricity Precautions............................................................ 6

Chapter 2 Mainboard Installation.........................................7

Mainboard Components ................................................................... 8

Install the Processor.......................................................................... 9

Installing a Slot-1 Processor Cartridge....................................... 10

Installing a Socket-370 Processor .............................................. 11

Install Memory ............................................................................... 12

Set the Jumpers............................................................................... 13

Jumper JP1: Keyboard Power On Selector ................................ 13

Jumper JP9: Clear CMOS Memory............................................ 14

Jumper JP3(A, B): Onboard Fax/Modem & Audio

Enable/Disable ........................................................................... 14

Jumper JP13: Enable/Disable Onboard LAN............................. 14

Install the Mainboard...................................................................... 15

Install the Extension Brackets ........................................................ 17

Audio Ports and Game/MIDI Port Extension Bracket ............... 17

Serial/Parallel Ports Extension Bracket...................................... 18

LAN Adapter Extension Bracket ............................................... 19

Fax/Modem DAA Module ......................................................... 19

Page 2

Table of Contents

VGA Extension Bracket............................................................. 20

Optional Extension Brackets .......................................................... 21

ATX Form Card......................................................................... 21

Digital Audio Extension Bracket ............................................... 22

Internal Digital Audio ................................................................ 22

AV/S-Video Output Extension Bracket ..................................... 23

Install Other Devices ...................................................................... 24

Floppy Disk Drive...................................................................... 24

IDE Devices ............................................................................... 24

Internal Sound Connections ....................................................... 25

Expansion Slots .............................................................................. 25

LAN Wake Up ........................................................................... 26

SB-Link...................................................................................... 26

Chapter 3 BIOS Setup......................................................... 27

Introduction .................................................................................... 27

Running the Setup Utility............................................................... 28

Standard CMOS Setup Page........................................................... 29

Advanced Setup Page..................................................................... 30

Power Management Setup Page ..................................................... 32

PCI / Plug and Play Setup Page...................................................... 33

Load Optimal Settings.................................................................... 34

Load Best Performance Settings..................................................... 34

Features Setup Page........................................................................ 35

CPU PnP Setup Page...................................................................... 36

Hardware Monitor Page.................................................................. 37

Change Password............................................................................ 37

Change or Remove the Password............................................... 38

Exit ................................................................................................. 38

Chapter 4 Software & Applications.................................... 39

Introduction .................................................................................... 39

Bus Master IDE Driver .............................................................. 39

USB Driver ................................................................................ 39

Sound Driver.............................................................................. 40

Graphics Drivers and Software .................................................. 40

Fax/Modem Drivers and Software ............................................. 40

MediaRing Talk Software .......................................................... 40

Network Adapter Driver............................................................. 40

BIOS Update Utility................................................................... 40

PC-Cillin Software..................................................................... 40

ADCM Software ........................................................................ 41

Using the PCI Sound Application................................................... 41

The Four Speakers System ............................................................. 42

Page 3

Table of Contents

Speaker Installation.................................................................... 42

Speaker Position......................................................................... 42

Mixer Setup................................................................................ 42

Demo.......................................................................................... 43

Appendix A: Corel WordPerfect Suite 8 ..........................A1

Welcome to Corel WordPerfect Suite 8 ....................................... A2

Installing Corel WordPerfect Suite 8 ............................................ A6

Learning how to use Corel WordPerfect Suite 8 .......................... A9

Support and Services .................................................................. A13

Appendix B: Gamut ...........................................................B1

Introduction ...................................................................................B2

Before Installing ............................................................................B3

Installation .....................................................................................B4

Produce MP3 fileUse CD-Cashier .............................................B5

Play MP3 fileUse Musician .......................................................B7

Play music CDUse 3D

Play MIDI fileUse Midier ..........................................................B9

Recording audio dataUse Voice-Catcher .................................B10

FS-ACD ...................................................B8

Page 4

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer.

The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, the manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademarks

IBM, VGA, OS/2, and PS/2 are registered trademarks of International Business Machines. Intel, Pentium, Pentium-II, MMX, and Celeron are registered trademarks of Intel Corporation. Microsoft, MS-DOS and Windows 95/98/NT are registered trademarks of Microsoft Corporation. Sound Blaster and SB-Link are trademarks of Creative Technology Ltd. PC-cillin and ChipAway Virus are trademarks of Trend Micro Inc. AMI is a trademark of American Megatrends Inc. A3D is a registered trademark of Aureal Inc. Gamut is a registered trademark of Formosoft International Inc. SuperVoice is a registered trademark of Pacific Image Communications Inc. MediaRing Talk is a registered trademark of MediaRing Inc. WordPerfect is a registered trademark of Corel Corporation Ltd. Other names used in this publication may be trademarks and are acknowledged.

M766LMRT

i6T/June 1999

, V1.3

Page 5

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment onto an outlet on a circuit different from that

to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cable must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

 This device may not cause harmful interference, and  This device must accept any interference received, including

interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.

Page 6

Chapter 1

Introduction

This mainboard has a slot-1 processor socket for an Intel processor cartridge, and it also has a socket-370 for an Intel PPGA (Plastic Pin Grid Array) Celeron processor. You can

install either one of these processors according to the power and performance requirements that you need from your system. Note

that you cannot install two processors on this mainboard.

Slot-1 processors include the SEPP (Single Edge Processor Package) Celeron, the Pentium-II, and the Pentium-III. Clock rates run as high as 600 MHz. Socket-370 processors are the PPGA Celeron which runs at speed up to 533 MHz. The

mainboard supports a system bus of 66 MHz or 100 MHz.

The mainboard uses the Intel 810 chipset which provides CPU Plug & Play through firmware. The mainboard is highly integrated and includes a built-in Graphics Accelerator with optional AV/S-

Video output, a built-in PCI 3D Sound System, and a built-in 10BaseT/100BaseTX Network Adapter. A V.90 Fax/Modem DAA module is also shipped with the mainboard. In addition, it

has a full set of I/O Ports including a serial port, one PS/2 ports, a parallel port and two USB ports.

This mainboard has all the features you need to develop a powerful multimedia workstation that is network ready, and has built-in communications. The board is baby-AT sized and has power connectors for ATX and AT power supply units and it can be installed in AT system case.

Page 7

Chapter 1

Key Features

This key features of this mainboard include:

Processors Support

♦ Pentium-III support for 450 MHz to 600 MHz clock rates ♦ Pentium-II support for 233 MHz to 450 MHz clock rates ♦ SEPP Celeron support for 266 MHz to 433 MHz clock

rates

♦ PPGA Celeron provides Pentium-II performance with

integrated level 1 and level 2 cache memory

♦ PPGA Celerons run from 300 MHz through to 533 MHz. ♦ Supports a 66 MHz and 100 MHz FSB (Front Side Bus) ♦ All processors configured by CPU Plug & Play

Memory Support

♦ Two DIMM slots for SDRAM 168-pin memory modules ♦ Support for 66 MHz & 100 MHz memory bus ♦ Maximum installed memory can be 2 x 256 MB = 512 MB

Expansion Slots

♦ Three 32-bit PCI slots

Onboard IDE channels

♦ Primary and Secondary PCI IDE channels ♦ Support for PIO (programmable input/output) modes ♦ Support for Bus mastering and UltraDMA 33 modes

Power Supply and Power Management

♦ Dual connector for either an AT or ATX power supply ♦ Support for Green PC standard, suspend switch, keyboard

power on/off

♦ Support Wake on Modem, Wake on LAN and Wake on

Alarm

Page 8

Key Features

Built-in Graphics System

♦ 3D Hyper Pipelined Architecture: Parallel Data Processing

(PDP) and Precise Pixel Interpolation (PPI).

♦ Full 2D H/W and Motion Video Acceleration ♦ Up to 1600x1200 in 8-bit color at 85Hz refresh ♦ H/W Motion Compensation Assistance for S/W MPEG2

decode

♦ Optional TV encoder for NTSC and PAL TV support

(AV/S-Video)

Sound System

♦ Meets PC98 audio specification ♦ Full duplex playback and recording with built-in 16-bit

CODEC

♦ HRTF 3D professional audio supports both Direct Sound

3D® and A3D® compatible interface plus support for 4-

channel speakers

♦ Drivers support DOS/Windows 95/98/2000/NT 4.0 ♦ Built-in 32 ohm earphone buffer and 3D surround ♦ Provides MPU-401 Game/MIDI port and legacy Sound

Blaster 16 support

♦ Downloadable Wave-table Synthesizer supports Direct

Music®

♦ Optional Digital Audio Interface (SPDIF In/Out) with 24-

bit stereo, 44KHz sampling rate and measured 120dB

audio quality

♦ Optional optic fibre interface which enables communication

with MiniDisk or high-end audio systems

♦ Stereo Mixer supports analog mixing from CD-Audio,

Line-In, and digital mixing from voice, FM/Wave-table and digital CD-Audio

Onboard I/O Ports

♦ Floppy disk drive port with 1Mb/s transfer rate ♦ One serial ports with 16550-compatible fast UART ♦ One parallel port with support for ECP and EPP ♦ Two USB ports, One PS/2 port (for mouse) and One

infrared port (optional)

Page 9

Chapter 1

Hardware Monitoring

♦ Built-in hardware monitoring for CPU/system temperatures,

fan speeds and mainboard voltages

♦ Supports AMI’s Desktop Client Manager (ADCM)

Built-in LAN Adapter

♦ Onboard 10BaseT/100BaseTX LAN Adapter ♦ LAN controller integrates Fast Ethernet MAC and PHY

compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3T12 TP-PMD standards

♦ Compliant with ACPI 1.0 and the Network Device Class

Power Management 1.0

♦ High Performance provided by 100 Mbps clock generator

and data recovery circuit for 100 Mbps receiver

Fax/Modem DAA Module

♦ 56 Kbps Fax/Modem DAA module ♦ Supports V.90, V.34, V.32bis, V.32, V.22bis, V.22 ♦ Supports Auto Fallback and MNP 5, V.42bis data

compression with 115200 compatible Virtual UART

♦ Requires 16 MB RAM and WIN 95/98/NT

Onboard Flash ROM

♦ Provides plug and play function for automatic CPU and

board configuration

♦ Supports plug and play configuration of peripheral devices

and expansion cards

♦ Built-in virus protection using Trend’s ChipAway Virus

which ensures that the entire boot process is virus protected.

Bundled Software

♦ AMI Desktop Client Manager supports hardware

monitoring on stand alone systems or over a network

♦ PC-Cillin provides automatic virus protection under

Windows 95/98

♦ SuperVoice Fax/Modem and voice software

Page 10

Package Contents

♦ Media Ring Talk provides PC to PC base internet phone

communication

♦ Gamut provides professional audio applications included

MP3 encoding/playback

♦ WordPerfect Suite 8 is a windows version office

application

Dimensions

♦ Baby-AT form factor (22cm x 25.7cm)

Package Contents

Your mainboard package ships with the following items:

 Mainboard  This User’s guide  IDE cable  Floppy diskette drive cable  Audio ports and Game/MIDI port extension bracket  Serial/Parallel ports extension bracket  VGA extension bracket  Fax/Modem DAA module  Network adapter extension bracket  Support software CD-ROM

Optional Accessories

You can purchase the following optional accessories for this mainboard.

 ATX Form Card (2 USB ports, IR port & PS/2 port)  Digital Audio extension bracket  AV/S-Video output extension bracket

Page 11

Chapter 1

Static Electricity Precautions

1. Components on this mainboard can be damaged by static electricity. Take the following precautions when unpacking the mainboard and installing it in a system.

2. Keep the mainboard, and other components, in their original static-proof packaging until you are ready to install them.

3. During an installation, wear a grounded wrist strap if possible. If you don’t have a wrist strap, frequently discharge any static electricity by touching the bare metal of the system chassis.

4. Handle the mainboard carefully by the edges. Avoid touching the components unless it is absolutely necessary. During the installation lay the mainboard on top of the static-proof packaging with the component side facing upwards.

5. Inspect the mainboard for any damage caused during transit. Ensure that all the components that are plugged into sockets are correctly seated.

6. If you suspect that the mainboard has been damaged, do not apply power to the system. Contact your mainboard vendor and report the damage.

Page 12

Chapter 2

Mainboard Installation

To install this mainboard into your system, follow the procedures in this chapter:

 Identify the mainboard components  Install the correct processor  Install one or more memory modules  Verify that any jumpers or switches are at the correct setting  Install the mainboard in the system chassis  Install any extension cables to the mainboard headers  Install any other devices and make the appropriate connections

to the mainboard headers.

Note: 1. Before installing the mainboard, you must ensure that the Clear CMOS jumper JP9 is set to the Normal setting. See this chapter for information locating JP9 and changing the jumper setting.

2. While installing the mainboard into AT case with ATX power, please make sure the AC power cord is unplugged before the full system is installed completely. Otherwise, it may destroy stuffs unpredictably, due to the power-on trigger event of power management.

Page 13

Chapter 2

Mainboard Components

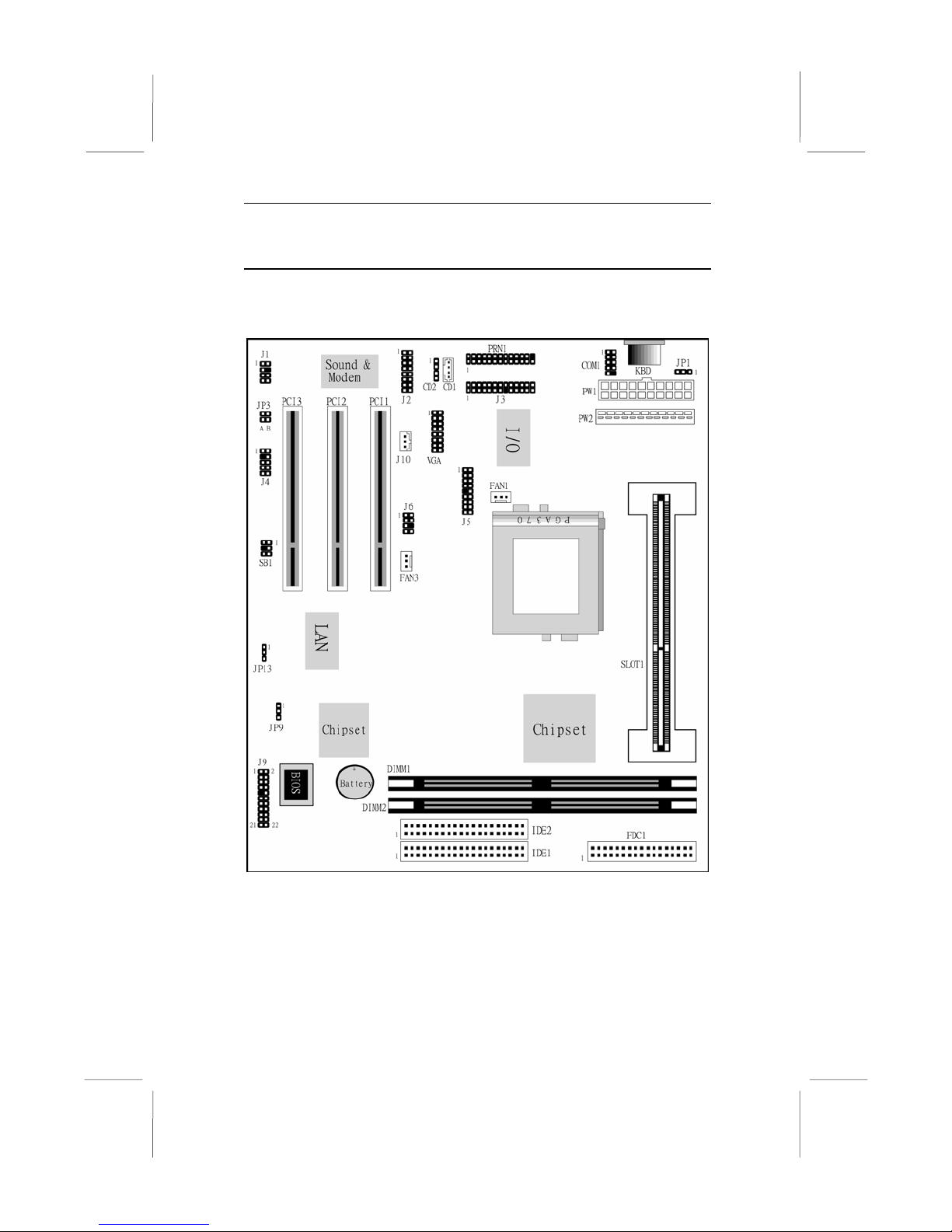

Use the diagram below to identify the major components on your mainboard.

Note: Any jumpers on your mainboard that do not appear in this illustration are for testing only.

Page 14

Install the Processor

This mainboard has a Slot-1 which can be installed with any Slot-1 processor cartridge including the Pentium-II, and the SEPP Celeron. It also has a Socket-370 which can be installed with the new Celeron processor which is shipped in a PPGA (Plastic Pin Grid Array) package. To ensure reliability, make sure that your

PPGA Celeron processor is fitted with a heatsink/cooling fan assembly.

You can install a Slot-1 processor or a PPGA Celeron. You cannot install a PPGA and a Slot-1 processor cartridge together. Take care that you do not try to install a Socket-7 processor into the Socket-

370. A Socket-7 processor such as the Pentium-MMX, or the AMD K5/K6 does not fit in the socket-370. The following table lists the processors that are currently supported by this mainboard. New processors may be a released after this manual is printed.

Processor

Cartridge

Pentium-II 450 Slot-1 100 Pentium-II 400 Slot-1 100 Pentium-II 350 Slot-1 100 Pentium-II 333 Slot-1 66 Pentium-II 300 Slot-1 66 Pentium-II 266 Slot-1 66

Pentium-II 233 Slot-1 66 SEPP Celeron 433 Slot-1 66 SEPP Celeron 400 Slot-1 66 SEPP Celeron 366 Slot-1 66 SEPP Celeron 333 Slot-1 66 SEPP Celeron 300A Slot-1 66 SEPP Celeron 300 Slot-1 66 SEPP Celeron 266 Slot-1 66

PPGA Celeron 533 Socket-370 66 PPGA Celeron 500 Socket-370 66 PPGA Celeron 466 Socket-370 66 PPGA Celeron 433 Socket-370 66 PPGA Celeron 400 Socket-370 66 PPGA Celeron 366 Socket-370 66 PPGA Celeron 333 Socket-370 66 PPGA Celeron 300 Socket-370 66

Clock Rate

MHz

Processor

Socket

System Bus

MHz

Page 15

Chapter 2

Installing a Slot-1 Processor Cartridge

1. Locate Slot-1, and FAN1 on the mainboard.

FAN1

Slot-1 with pre-installed cartridge holder. The upright arms are folded down for shipping.

2. The Slot-1 is installed with a cartridge holder. The upright

struts of the cartridge holder are folded down for shipping. Pull the struts upwards so that they are in the upright position.

3. Insert the processor cartridge into the cartridge holder. Follow

the instructions given with your processor cartridge. The edge connector on the cartridge has a notch so that it only fits into the Slot-1 in the correct way.

Page 16

Install the Processor

4. Locate the cooling fan power supply FAN1. Connect the cable

from the processor cartridge cooling fan to FAN1.

5. On this mainboard, you can configure the processor by

entering the correct settings in the BIOS setup utility.

Installing a Socket-370 Processor

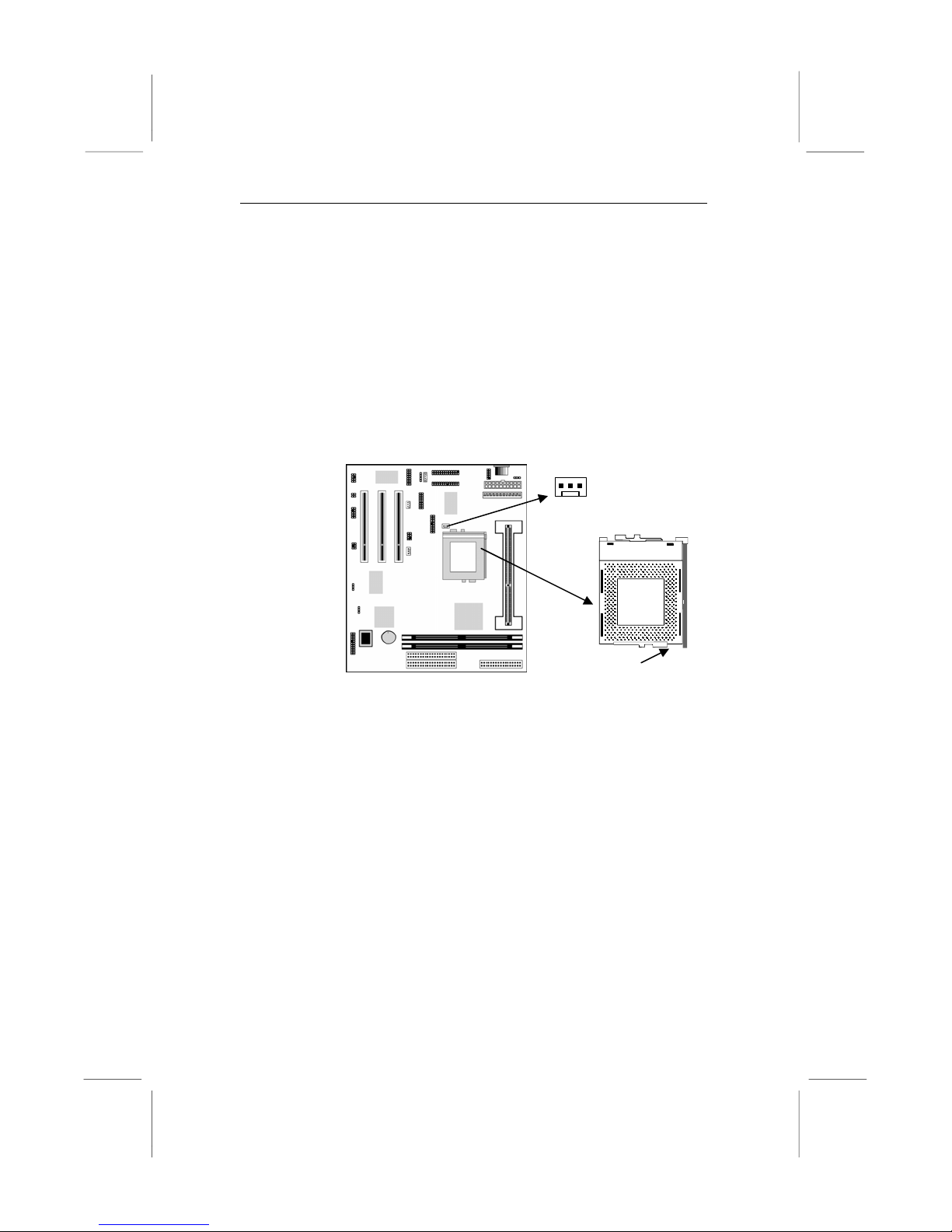

The Celeron processor installs into the ZIF (Zero Insertion Force) Socket-370 on the mainboard.

1. Locate the Socket-370, and FAN1. Pull the locking lever out

from the socket and swing it to the upright position.

FAN1

Socket-370

Pin-1 Corner

2. On the Celeron processor, identify the pin-1 corner by noting

that it has a slight bevel.

3. On the Socket-370, identify the pin-1 corner. The pin-1 corner

is on the same side as the locking lever, closest to the top of the lever when it is in the locked position.

4. Match the pin-1 corners and insert the Celeron processor into

the socket. No force is required and the processor should drop into place freely.

5. Swing the locking lever down and hook it under the catch on

the side of the socket. This locks the Celeron processor in the socket.

6. If the Celeron processor is installed with a cooling fan

assembly, connect the cable from the fan to the CPU fan power connector FAN1.

Page 17

Chapter 2

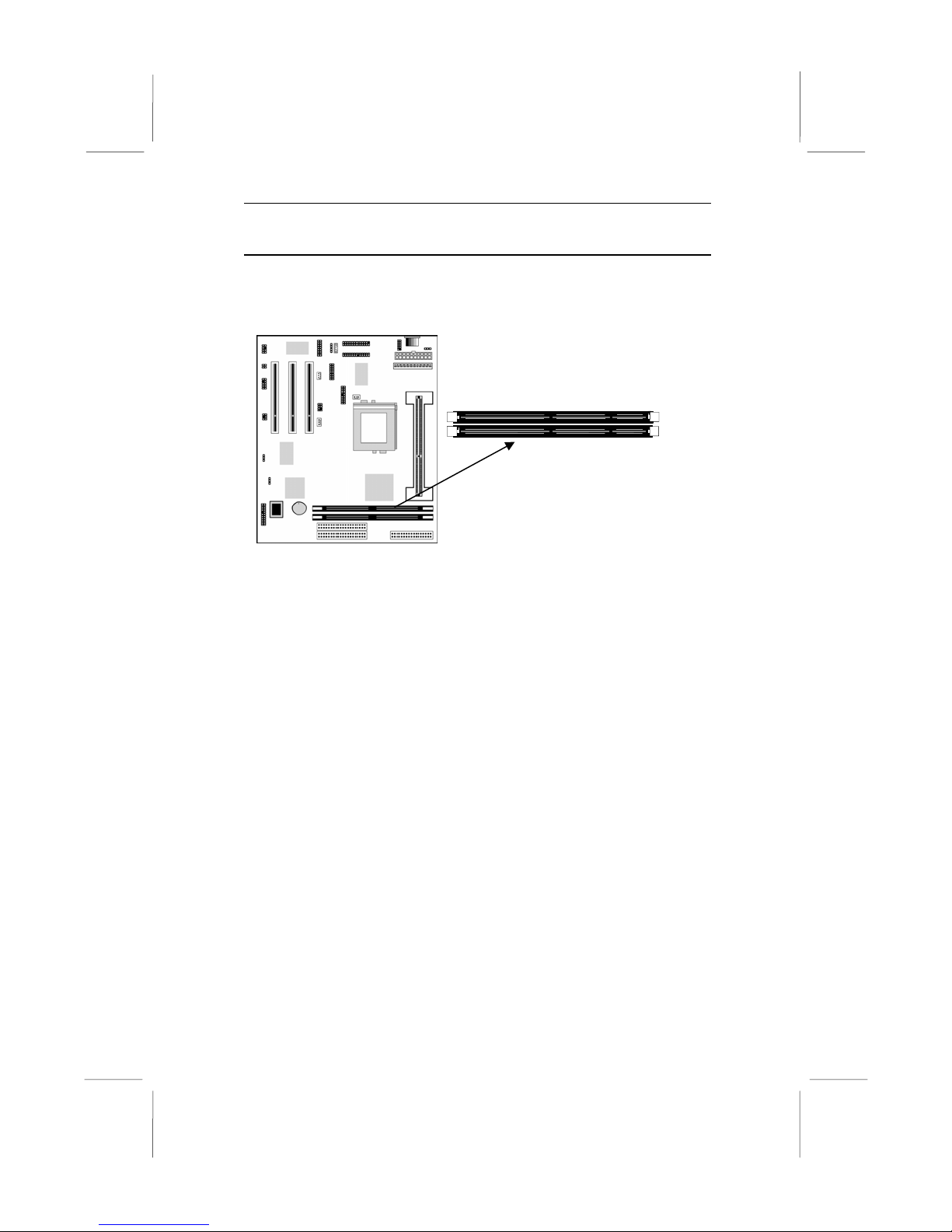

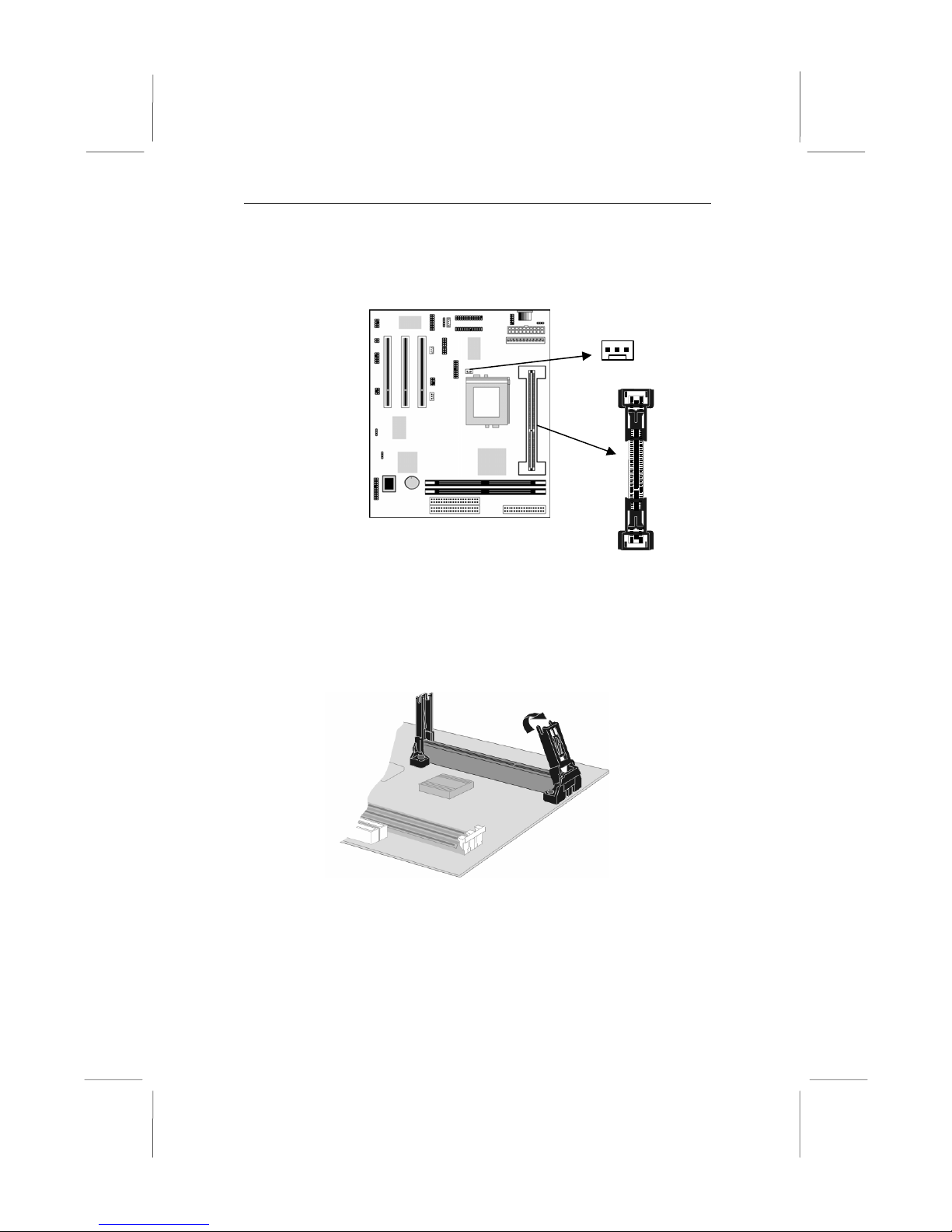

Install Memory

The mainboard has two DIMM slots which can be installed with memory modules. You must install at least one memory module in order to use the mainboard.

For this mainboard, you must use 168-pin, 3.3V memory modules installed with SDRAM memory chips. You must use memory that operates on a 100 MHz memory bus (PC-100 memory). You can install any size of memory module from 16 MB up to 256 MB, so the maximum memory size is 2 x 256 MB = 512 MB.

The edge connectors on the memory modules have cut outs, which coincide with struts in the DIMM slots, so the memory modules can only be installed in the correct way.

On the DIMM slot, pull the locking latches at either end of the slots outwards. Position the memory module correctly and insert it into the DIMM slot. Press the module down into the slot so that the locking latches lever inwards and lock the module in place.

DIMM1

DIMM2

Page 18

Set the Jumpers

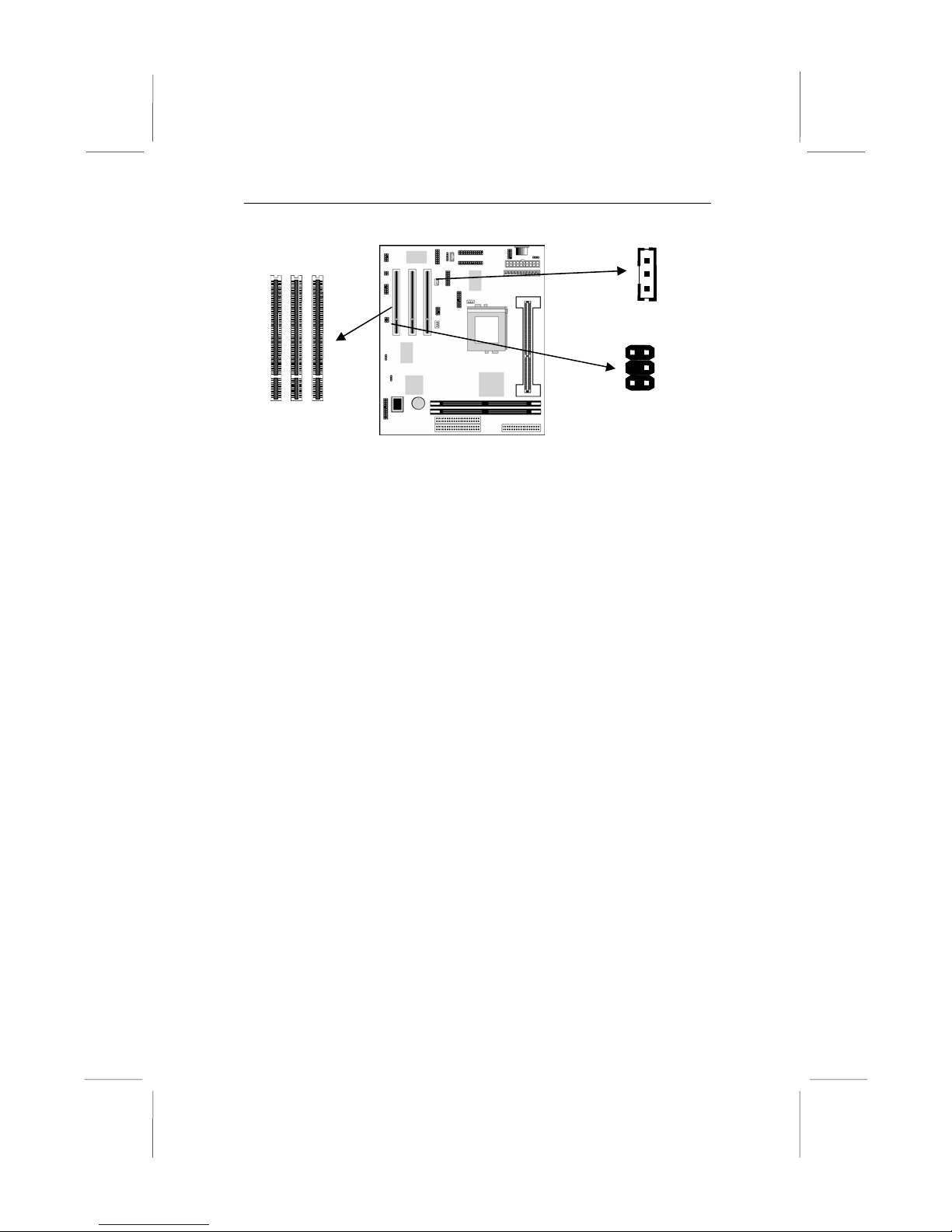

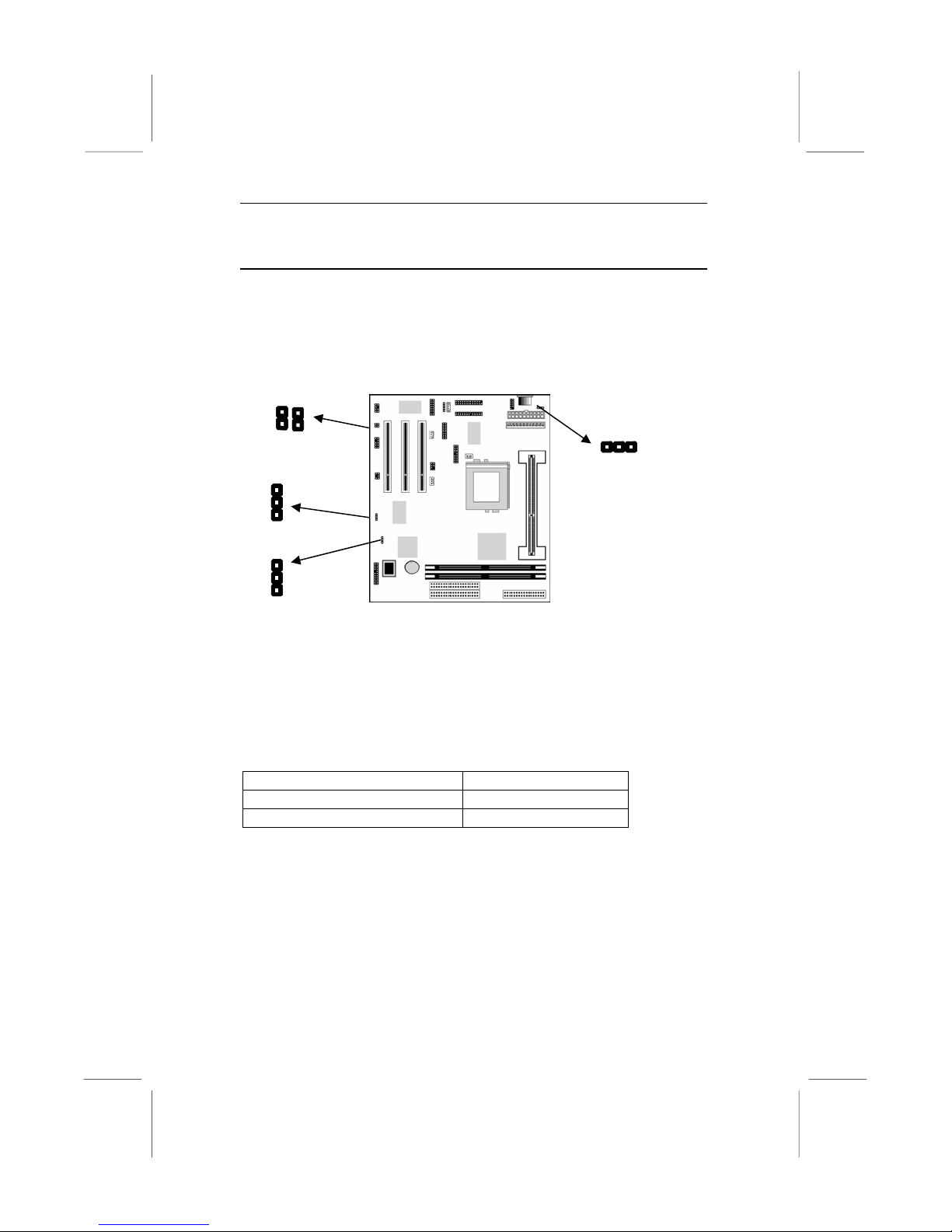

Jumpers are sets of pins that can be connected together with jumper caps. The jumper caps change the way the mainboard operates by changing the electronic circuits on the mainboard. If a jumper cap connects two pins, we say the pins are SHORT. If a jumper cap is removed from two pins, the pins are OPEN.

JP3

A B

JP13

JP9

Jumper JP1: Keyboard Power On Selector

If you are using an ATX power supply unit, you can use hot keys on your keyboard as a power on/off switch for the system. Use this jumper to turn this feature on or off.

Note: Make sure that the system can provide 1A on +5VSB (+5V Standby) signal before using the Keyboard Power On function.

Function Jumper Setting

Enable Keyboard Power On Short Pins 1-2 Disable Keyboard Power On Short Pins 2-3

JP1

Page 19

Chapter 2

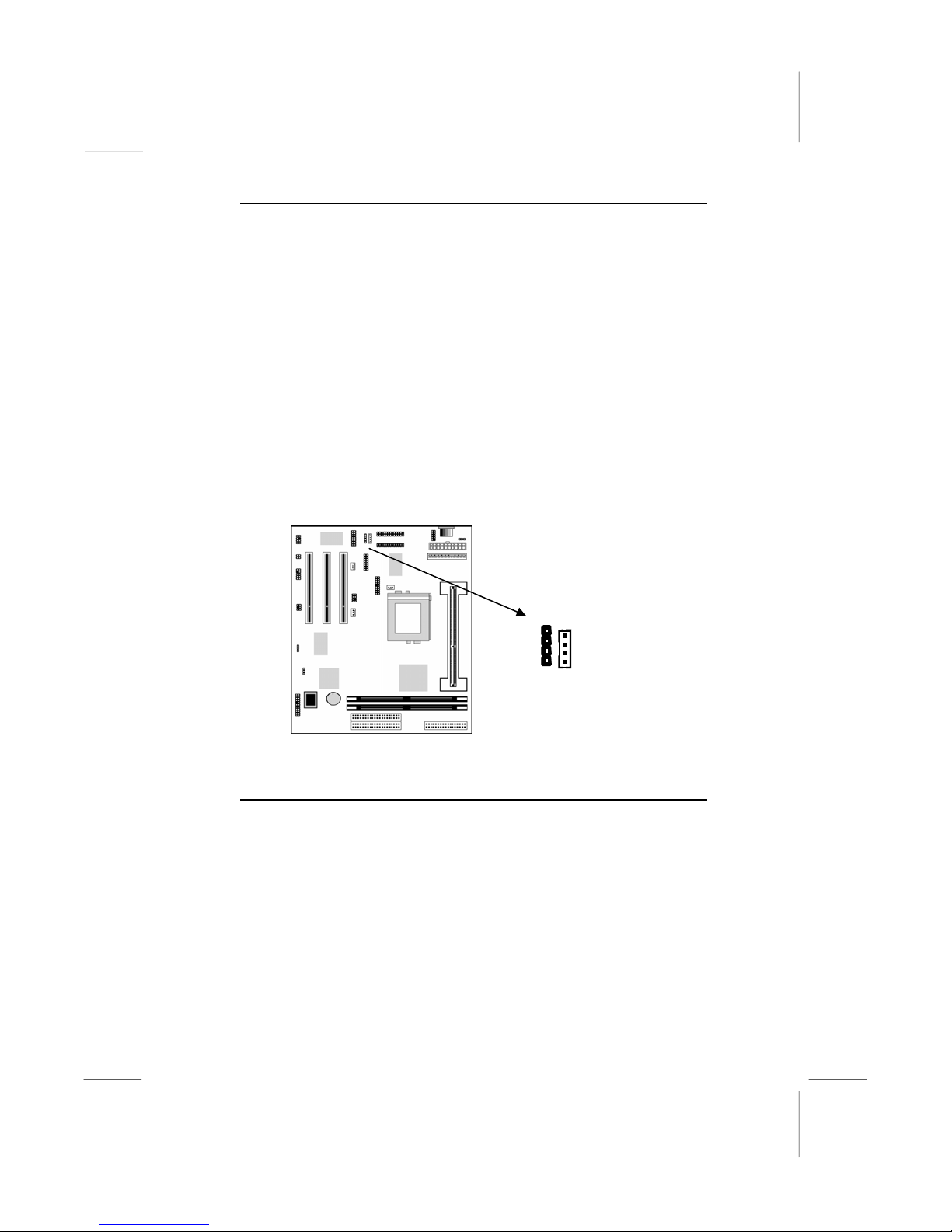

Jumper JP9: Clear CMOS Memory

Use this jumper to clear the contents of the CMOS memory. You may need to clear the CMOS memory if the settings in the setup utility are incorrect and prevent your mainboard from operating. To clear the CMOS memory, disconnect all the power cables from the mainboard and then move the jumper cap into the CLEAR setting for a few seconds.

Function Jumper Setting

Normal Operation Short Pins 1-2 Clear CMOS Memory Short Pins 2-3

Jumper JP3(A, B): Onboard Fax/Modem & Audio Enable/Disable

This jumper has two rows of two pins. The left row (JP3-A) is used to enable or disable the onboard Fax/Modem. The right row (JP3B) is used to enable or disable the onboard audio system.

Function Jumper Setting

Enable Onboard Modem Open JP3-A Pins Disable Onboard Modem Short JP3-A Pins

Function Jumper Setting

Enable Audio Open JP3-B Pins Disable Audio/Modem Short JP3-B Pins

Note: If you use the right row of pins to disable the onboard audio system, the Fax/Modem is disabled, even if you have set the left row of pins to the enable Fax/Modem setting.

Jumper JP13: Enable/Disable Onboard LAN

Use this 3-pin jumper to enable or disable the onboard network adapter.

Function Jumper Setting

Enable Onboard LAN Short Pins 1-2 Disable Onboard LAN Short Pins 2-3

Page 20

Install the Mainboard

ATX-

Install the Mainboard

Install the mainboard into the system chassis. This mainboard is baby AT-sized and the I/O ports are provided on extension brackets. In addition the mainboard can operate using an AT power supply unit or an ATX power supply unit. This means that you have a wide choice of cases that can be used by this mainboard.

Install the mainboard into the unit case. Follow the instructions provided by the case manufacturer using the screws and mounting points provided in the chassis.

FAN3

Connect the power cable from the power supply unit to the power connector on the mainboard. If you are using an AT power unit, connect it to the AT power connector PW2. If you are using an ATX power unit connect it to the ATX power connector PW1.

If the case that you are using has a chassis cooling fan, connect the power cable from the fan to the onboard chassis cooling fan power supply FAN3.

PW1

AT-PW2

Page 21

Chapter 2

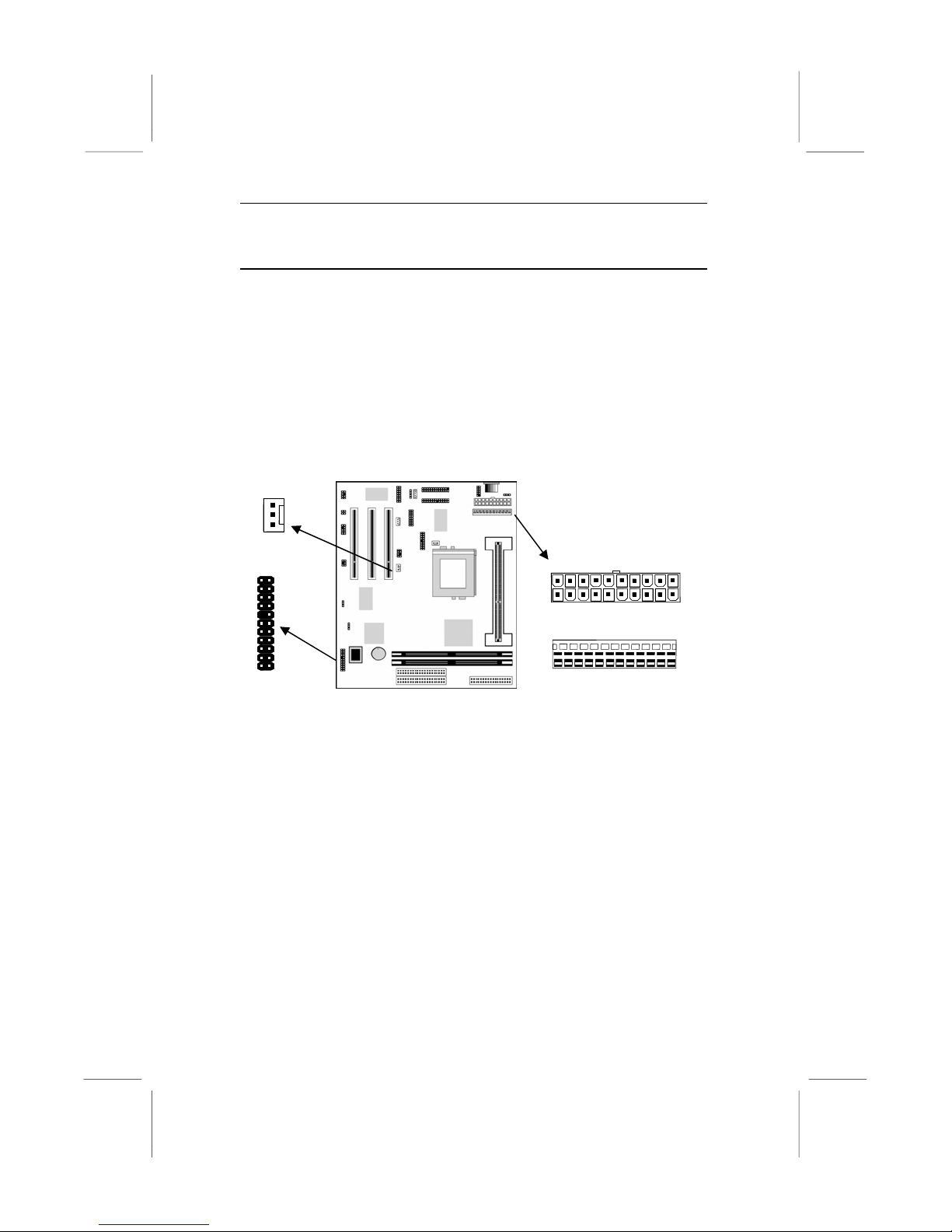

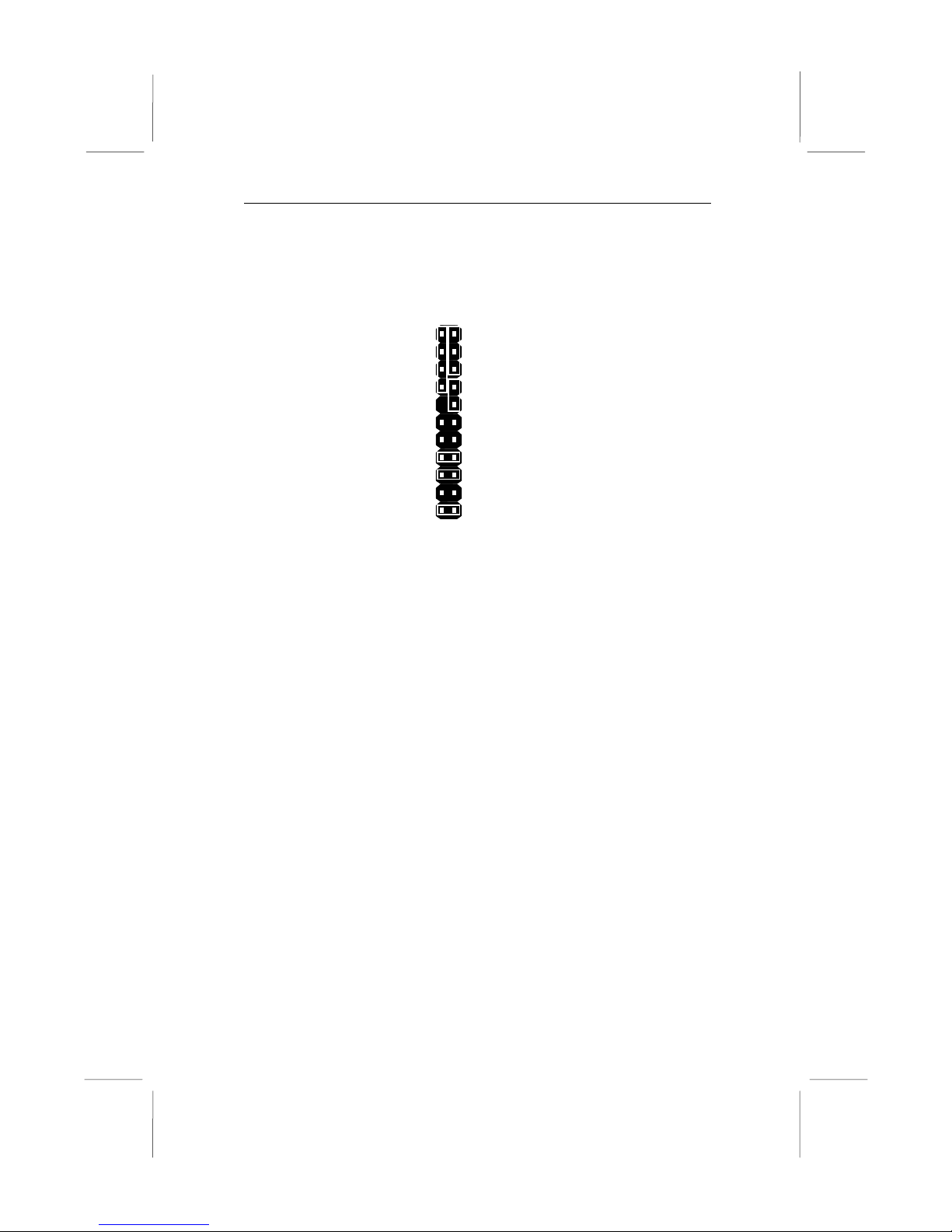

Connect the case switches and indicator LEDs to the bank of switch and LED connectors J9. See the illustration below for a guide to the pin functions of the J9 case connector.

Speaker Pins 1-3-5-7

1 2

Power LED Pins 2-4-6

Keylock Pins 8-10

Reset Switch Pins 17-18

Power Switch Pins 21-22

HDD LED Pins 15-16

Green LED Pins 19-20

21 22

Page 22

Install the Extension Brackets

The extension brackets are used to transmit features on the mainboard to external connectors that can be fixed to the system chassis. Follow the steps below to install the extension brackets.

Note: All the ribbon cables used on the extension brackets carry a red stripe on the pin-1 side of the cable.

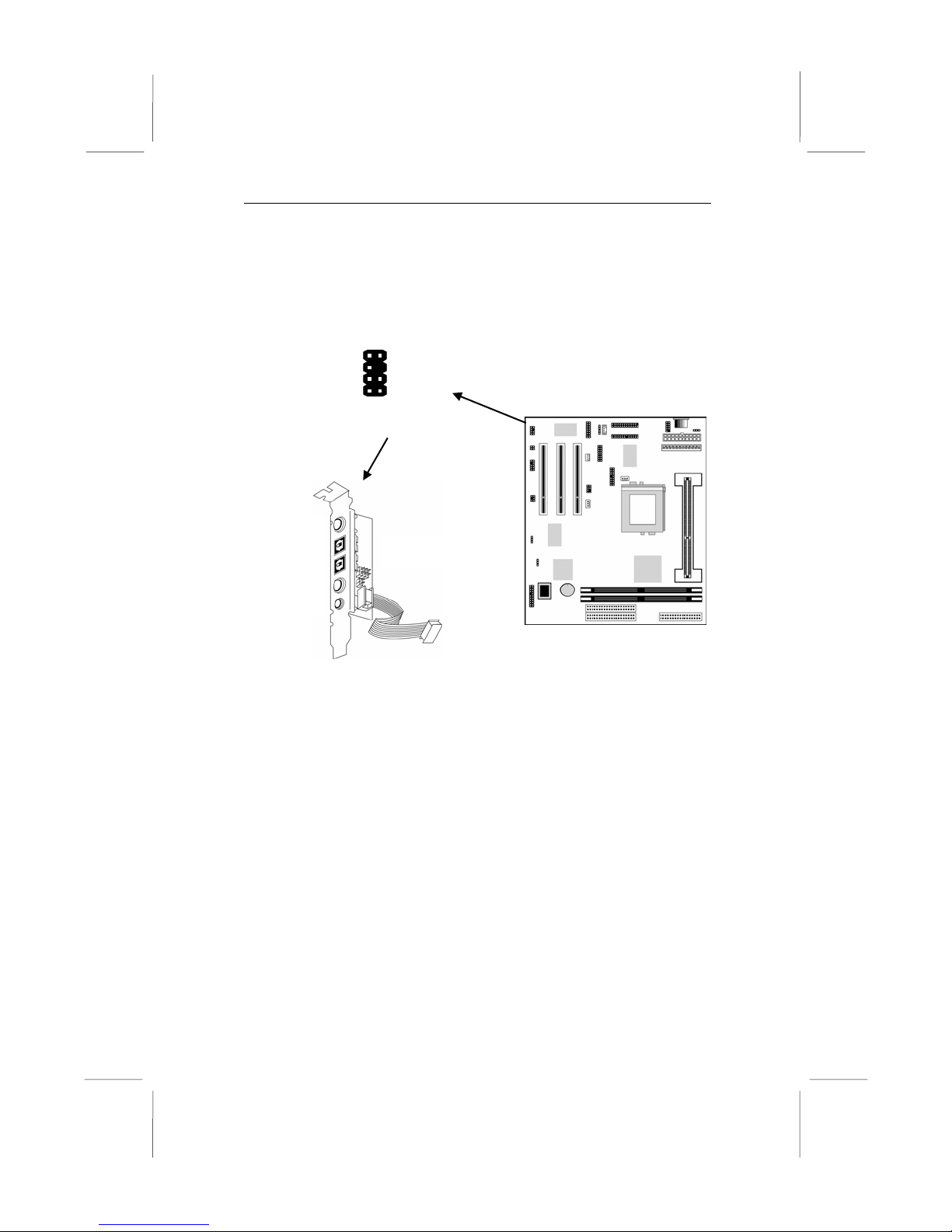

Audio Ports and Game/MIDI Port Extension Bracket

This bracket provides three audio jacks for stereo line in, stereo line out and microphone. In addition it has a 15-pin D-connector which can be used by either a joystick or a MIDI device. If you are using a four channel speaker system, channel one and two are output through the Stereo Line-out, and the rear speaker channels three and four are output through Stereo Line-in.

Audio Ports & Game/MIDI Extension Bracket

1. On the mainboard, locate the J3 audio header for this bracket.

2. Plug the cable from the bracket into the J3 audio header.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

J3-Audio Header

Stereo Line-in /Rear speaker channels 3-4

Microphone

Stereo Line-out /Speaker channels 1

Game/MIDI

Page 23

Chapter 2

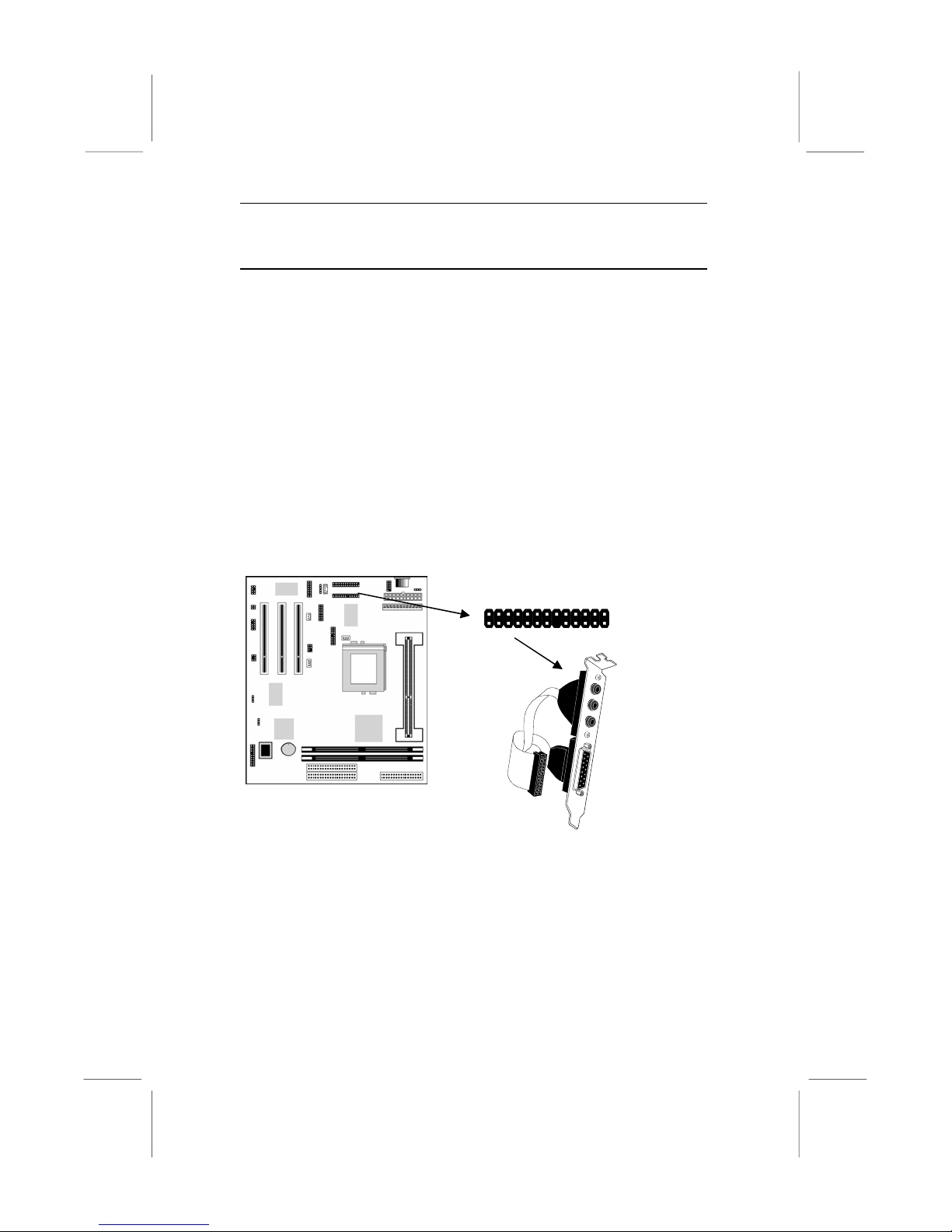

Serial/Parallel Ports Extension Bracket

This bracket has one serial port - COM1 (9-pins) and one parallel port – LPT1 (25pins). On this mainboard, the second serial port is reserved for the Fax/Modem card so you can only connect one of the serial ports to the manboard header COM1.

COM1 Header

PRN1- Parallel Port Header

Serial Port COM1

Serial/Parallel Ports Extension Bracket

Parallel Port LPT1

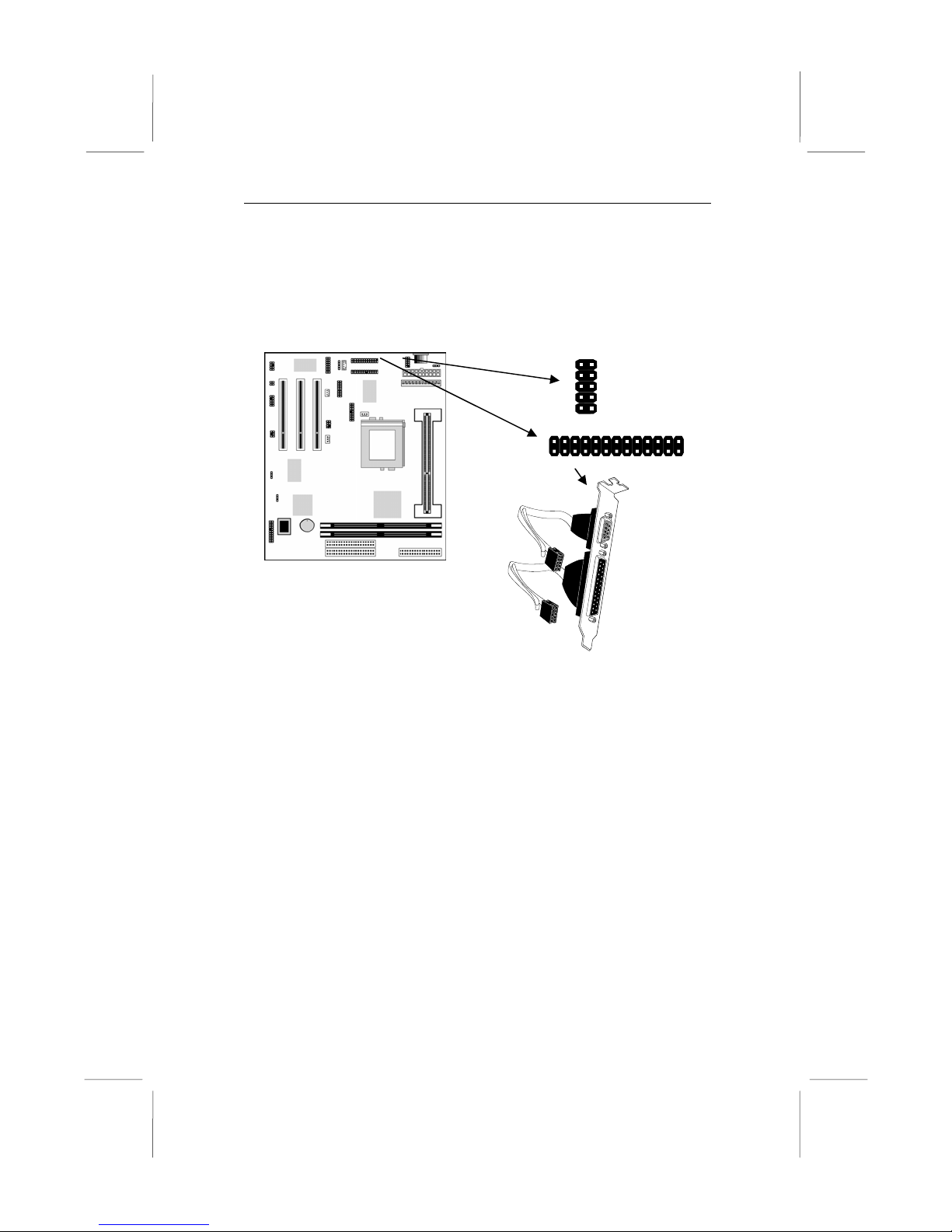

1. On the mainboard, locate the headers COM1 and PRN1 for this

bracket.

2. Plug the serial cable into COM1 and the parallel cable into

PRN1.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

Page 24

Install the Extension Brackets

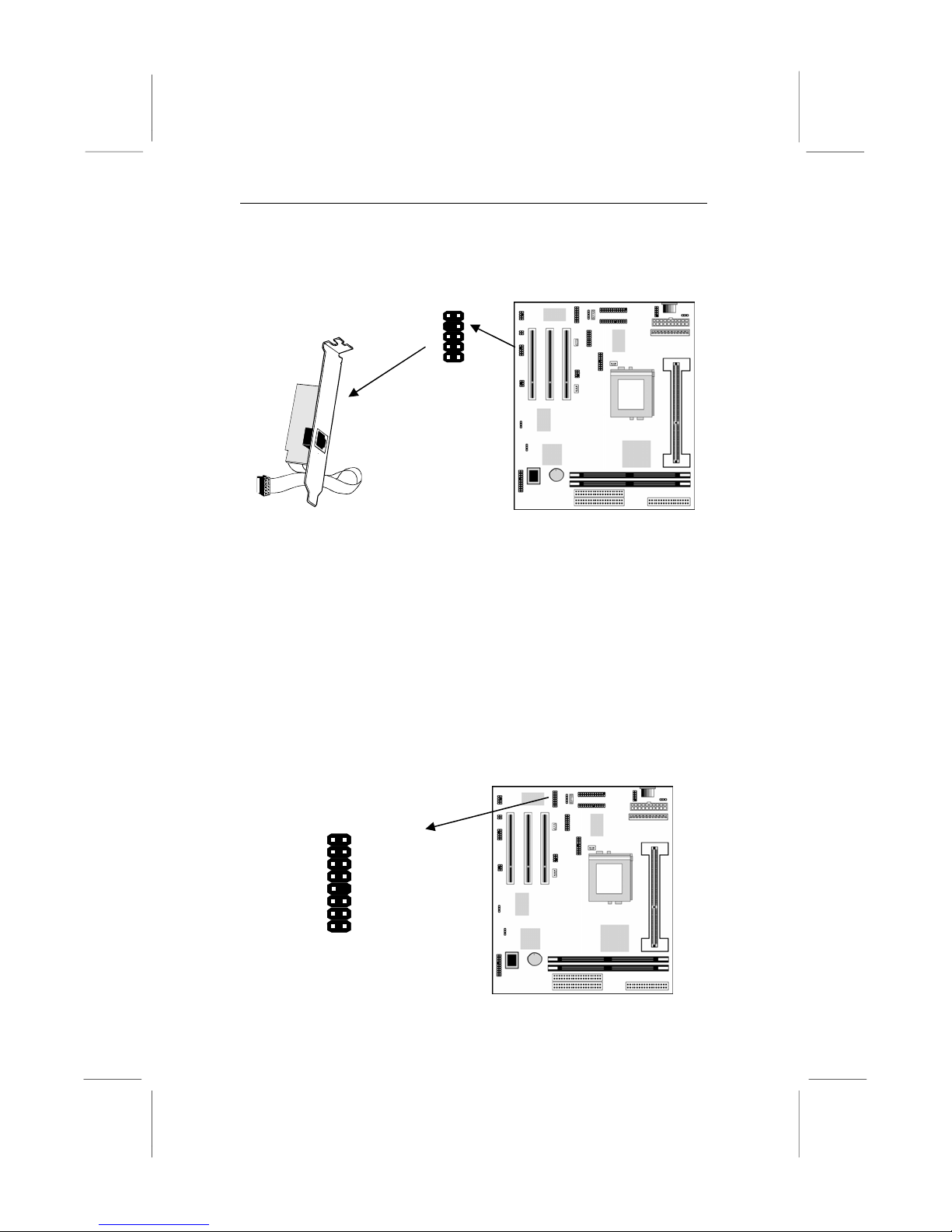

LAN Adapter Extension Bracket

This bracket supports an RJ45 network connector and connects to the built in J4 LAN header on the mainboard.

J4 LAN Header

LAN Extension Bracket

1. On the mainboard, locate the J4 LAN header for this bracket.

2. Plug the cable from the bracket into the LAN header.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

Fax/Modem DAA Module

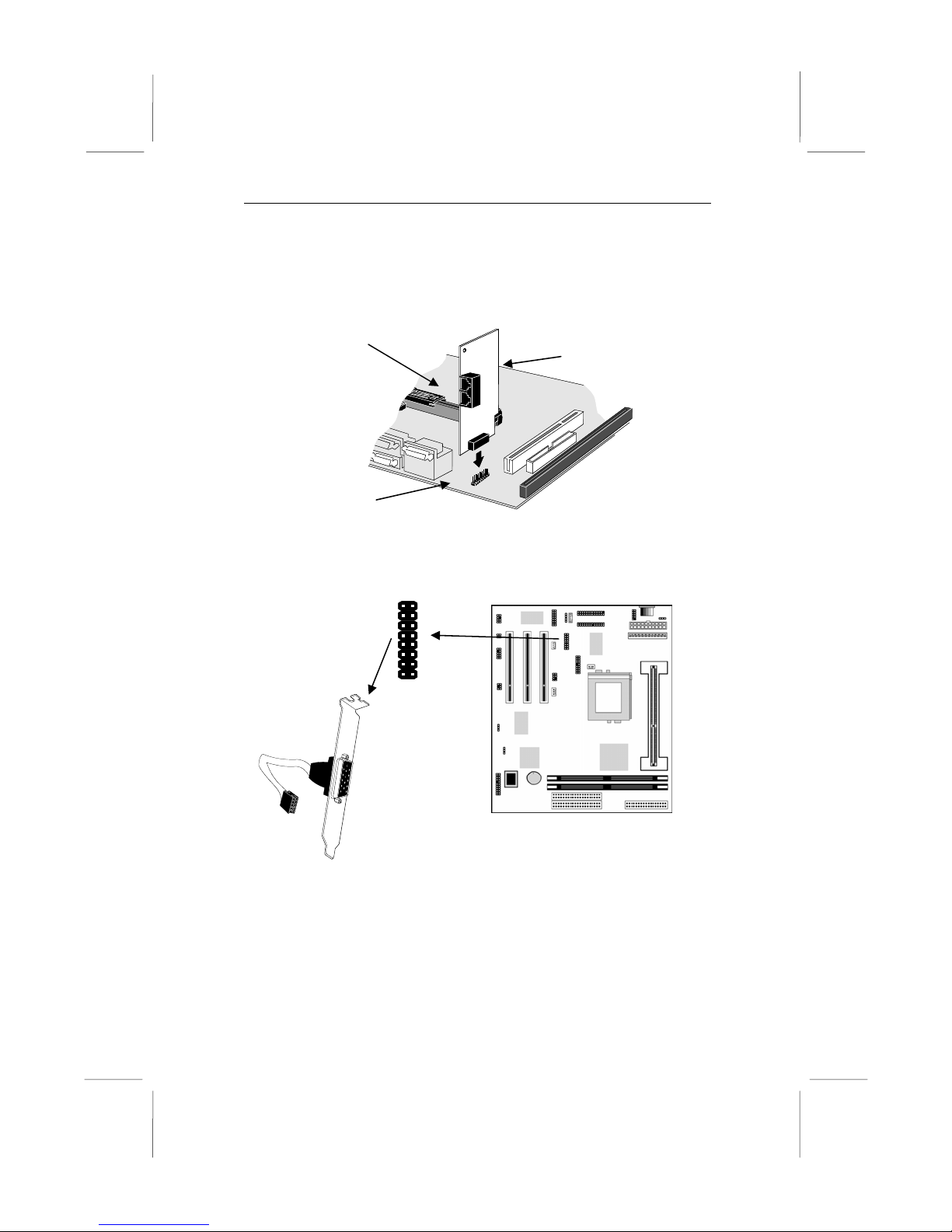

The Fax/Modem DAA module plugs directly into the mainboard adjacent to an expansion slot in the system chassis. When you remove the blanking plate from the system chassis, you can access the LINE and TEL RJ11 connectors on the metal edge of the Fax/Modem DAA module.

J2-MODEM Header

GND 1 GND 3 GND 5

AUX 3V 7

HOOK 9

RIN 11

AUX 5V 13

MUTE 15

2 MCLK 4 FRA-SY 6 SCLK 8 RIN-WAK 10 GPIO 12 SDO 14 SDI 16 RST

Page 25

Chapter 2

1. Locate the J2 Modem header on the mainboard.

2. Plug the Fax/Modem DAA module into the J2 Modem header.

3. Remove the blanking plate adjacent to the Fax/Modem DAA

module.

Line & Tel RJ11 Sockets

Modem DAA Module

J2 Modem Header

VGA Extension Bracket

The VGA extension bracket has a 15-pin connector for an external monitor cable.

VGA Header

VGA Extension Bracket

1. On the mainboard, locate the VGA header for this bracket.

2. Plug the cable from the bracket into the VGA header.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

Page 26

Optional Extension Brackets

For this mainboard, you can also obtain an ATX Form Card, an SPDIF digital audio extension bracket and an AV/S-Video output extension bracket. Install these brackets by following the steps below.

ATX Form Card

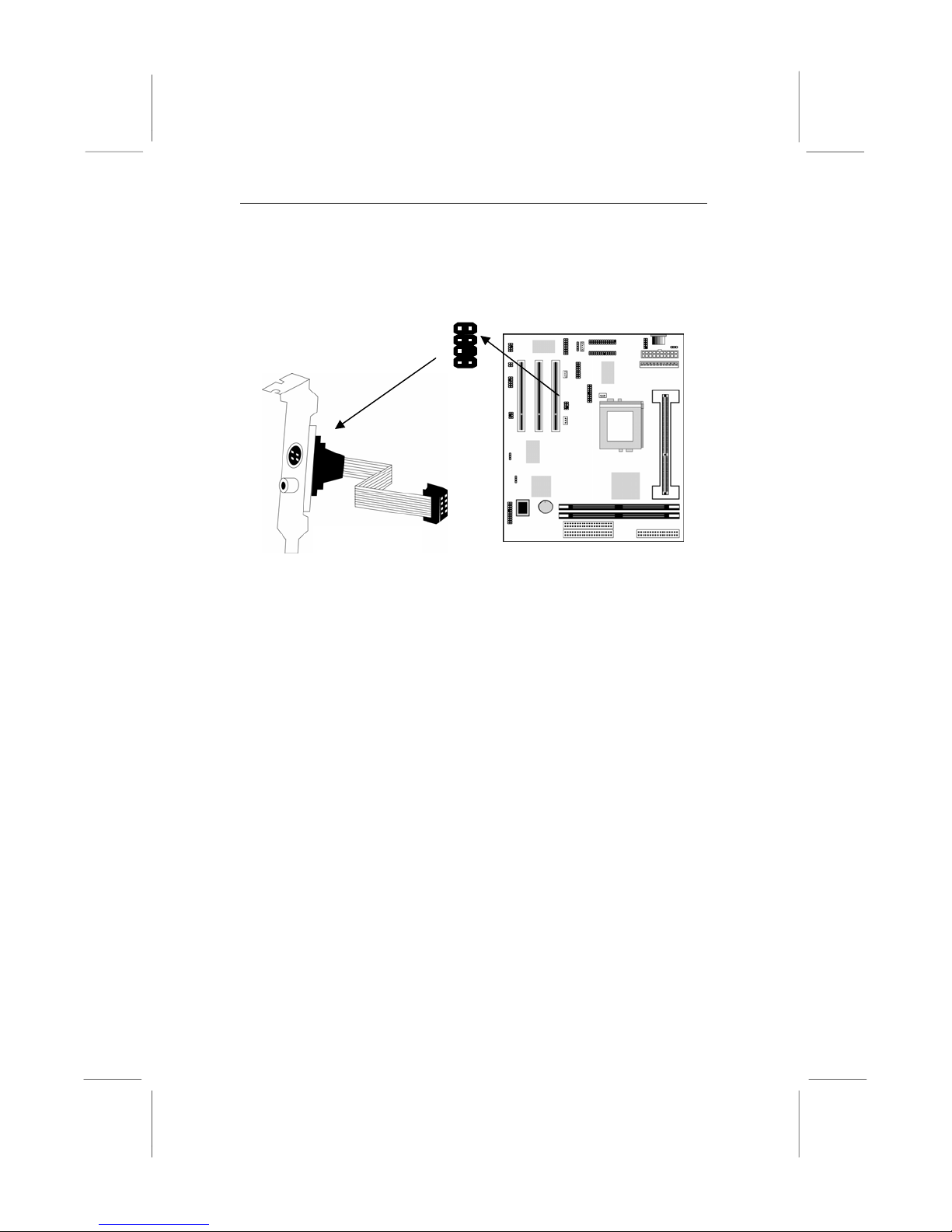

This ATX Form Card provides a mini-DIN port for infrared, one mini-DIN port for a PS/2 mouse. In addition it has two USB (Universal Serial Bus) ports.

J5-ATX Header

Infrared Port

PS/2 Mouse Port

USB Ports

1. On the mainboard, locate the J5 ATX header for this bracket.

2. Plug the cable from the bracket into the J5 ATX header.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

ATX Form Card

Page 27

Chapter 2

Digital Audio Extension Bracket

This bracket has two RCA jacks for digital audio in/out, and an auxiliary jack for a Stereo Line-in device. It also provides a pair of optic fiber interface which enables the communication with MiniDisk or high-end audio systems.

Aux In(L) 1

+12V 3

SPDIF/In 5

SPDIF/Out 7

2 Aux In(R)

6 GND 8 GND

J1 SPDIF Header

SPDIF Out

Optic Out

Optic In

SPDIF In

Aux In

Digital Audio Extension Bracket

1. On the mainboard, locate the J1 SPDIF header for this bracket.

2. Plug the cable from the bracket into the J1 SPDIF header.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

Internal Digital Audio

If you have an optional internal digital audio cable, you can also use it to connect the digital audio output connector of a CD-ROM or DVD drive to the pins 5-6 of J1.

Page 28

Optional Extension Brackets

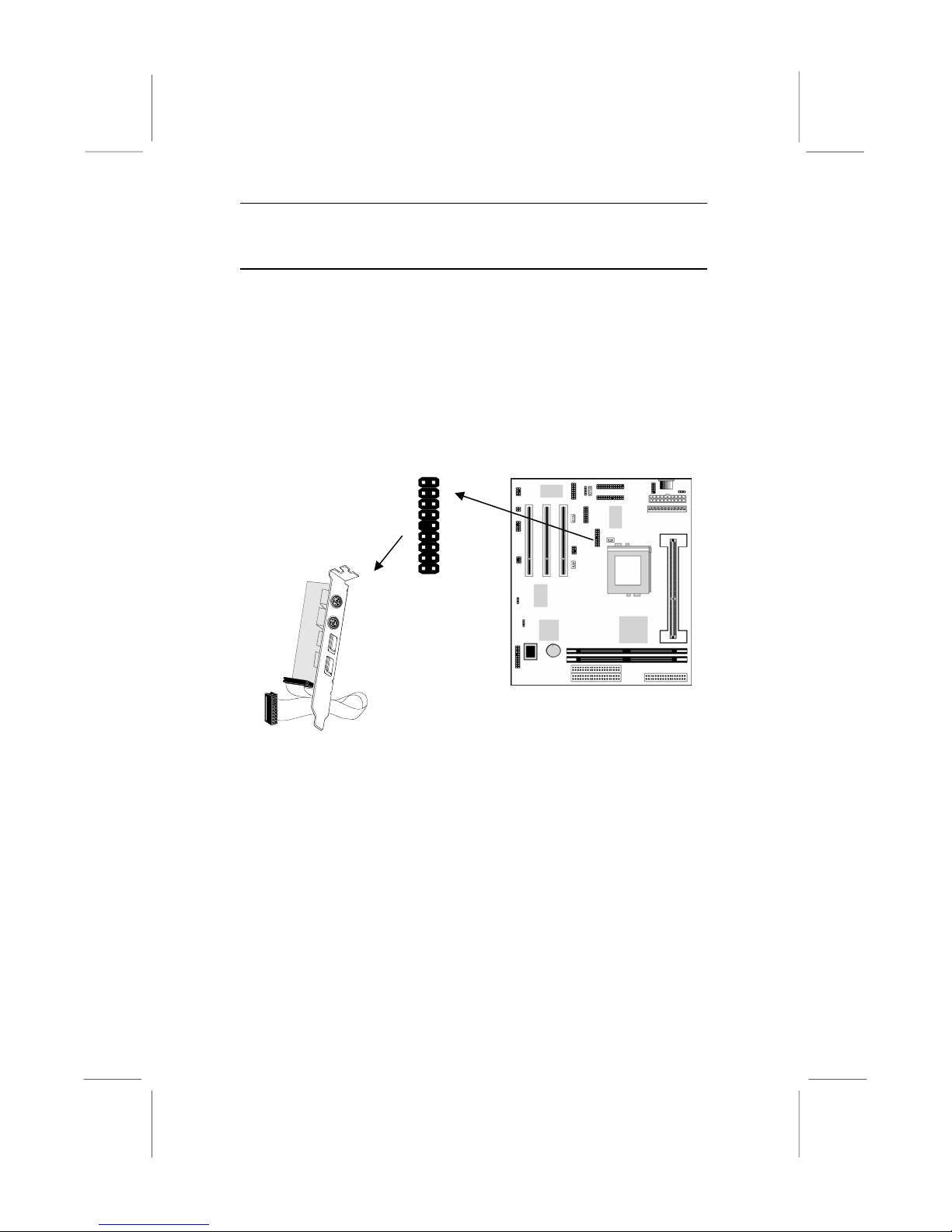

AV/S-Video Output Extension Bracket

This bracket has an AV jack and a S-Video jack for the television out.

J6 TV-Out Header

AV/S-Video Output Extension Bracket

1. On the mainboard, locate the J6 TV-Out header for this

bracket.

2. Plug the cable from the bracket into the J6 TV-Out header.

3. In the system chassis, remove a blanking plate from one of the

expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

Page 29

Chapter 2

Install Other Devices

Install and connect any other devices in the system following the steps below.

Floppy Disk Drive

The mainboard ships with a floppy disk drive cable that can support one or two drives. Drives can be 3.5” or 5.25” wide, with capacities of 360K, 720K, 1.2MB, 1.44MB, or 2.88MB.

Install your drives and supply power from the system power unit. Use the cable provided to connect the drives to the floppy disk drive header FDC1.

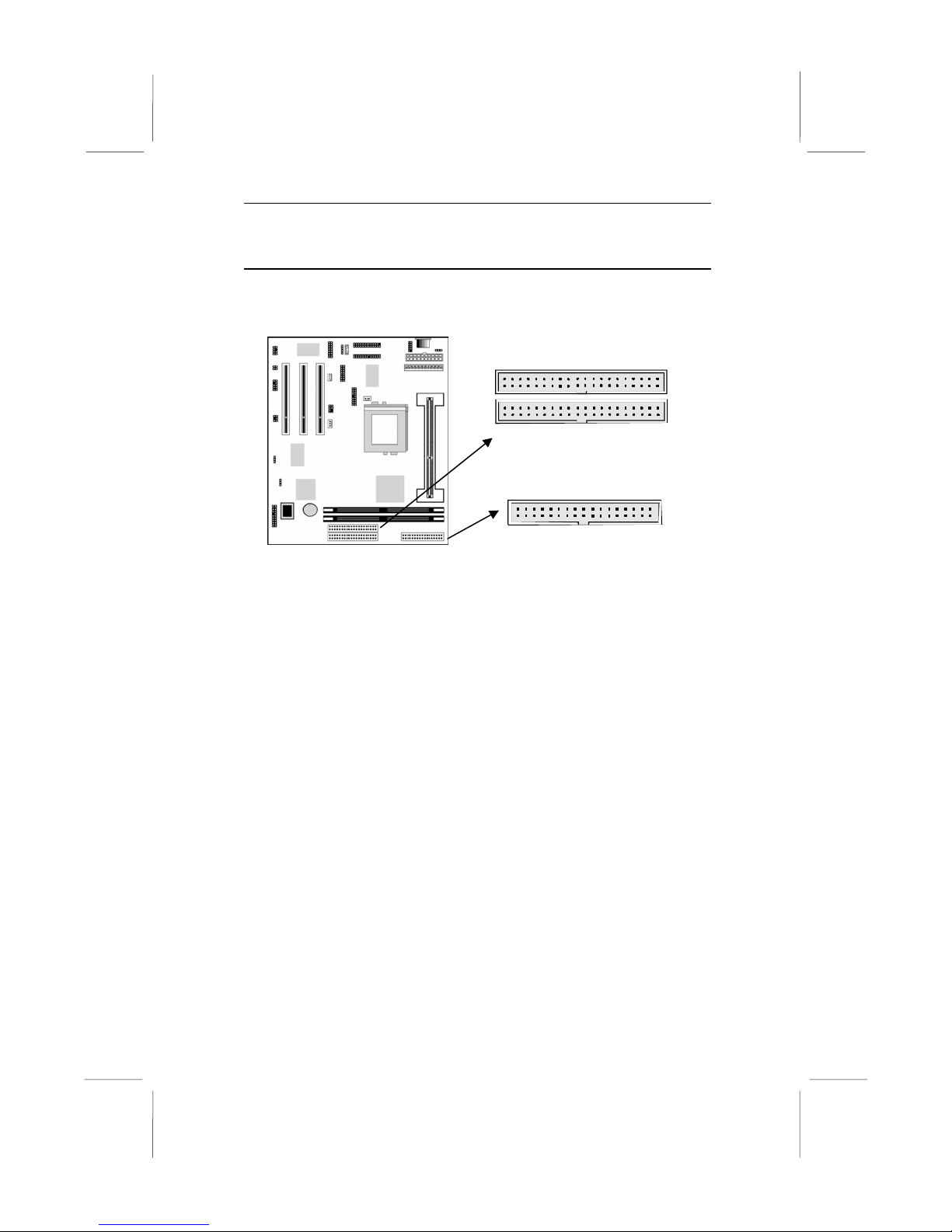

IDE Devices

IDE devices include hard disk drives, high-density diskette drives, and CD-ROM/DVD drives.

The mainboard ships with an IDE cable that can support one or two IDE devices. If you connect two devices to a single cable, you must configure one of the drives as Master and one of the drives as Slave. The documentation of the IDE device will tell you how to configure for Master or Slave.

Install the device(s) and supply power from the system power unit. Use the cable provided to connect the device(s) to the Primary IDE channel connector IDE1 on the mainboard.

IDE2

IDE1

FDC1

Page 30

Expansion Slots

If you want to install more IDE devices, you can purchase a second IDE cable and connect one or two devices to the Secondary IDE channel connector IDE2 on the mainboard. If you have two devices on the cable, one must be Master and one must be Slave.

Internal Sound Connections

If you have installed a CD-ROM drive or a DVD drive, you can connect the sound output of the drive to the built-in sound system.

On the mainboard, locate the two 4-pin connectors for CD1 and CD2. There are two kinds of connector because different brands of CD-ROM drive have different kinds of cable connectors on their audio output cable. Connect the cable to the appropriate connector.

CD2 CD1

Expansion Slots

This mainboard has three 32-bit PCI expansion slots. The PCI1 slot is shared with the onboard VGA, the PCI2 slot is shared with the onboard LAN, and the PCI3 slot is shared with the onboard audio system. It means that you can use either one of shared both but you cannot use the both at the same time.

Page 31

Chapter 2

PCI3 PCI2 PCI1

J10-LAN Wake Up

SB1-SB-Link Header

Follow the steps below to install a PCI expansion card.

1. Locate the PCI slot on the mainboard.

2. Remove the blanking plate from the appropriate expansion slot

on the system chassis.

3. Install the edge connector of the expansion card into the slot

and press it quite firmly down so that it is seated correctly.

4. Secure the bracket of the card into the expansion slot in the

system chassis using the screw that held the blanking plate in place.

LAN Wake Up

If you are using an ATX power supply and you have installed a LAN adapter expansion card, connect the card to the LAN Wake Up header J10. This allows incoming traffic to resume the system from a software power down.

SB-Link

If you have disabled the built-in audio system and installed a PCI Sound Blaster audio card, you can connect the card to the SB-Link header on the mainboard. The SB-Link circuit solves some problems that can occur when you try to play some older computer games which run in the DOS real-mode environment.

Page 32

Chapter 3

BIOS Setup

Introduction

The BIOS setup utility stores information about your computer such as the date and time, the kind of hardware you have installed, and so on. Your computer uses this information to initialize all the components at boot up time, and make sure that everything runs smoothly.

If the information in the setup utility is incorrect, it may cause your system to malfunction. It can even stop your computer from booting properly. If this happens, you can use the clear CMOS jumper to clear the CMOS memory area that is used to store the setup information, or you can hold down the End key while you reboot your computer, Holding down the End key also clears the setup information.

You can run the setup utility and manually make changes to the setup utility. You might need to do this to configure some of the hardware that you add to the mainboard, such as the CPU, the memory, disk drive, etc.

Page 33

Chapter 3

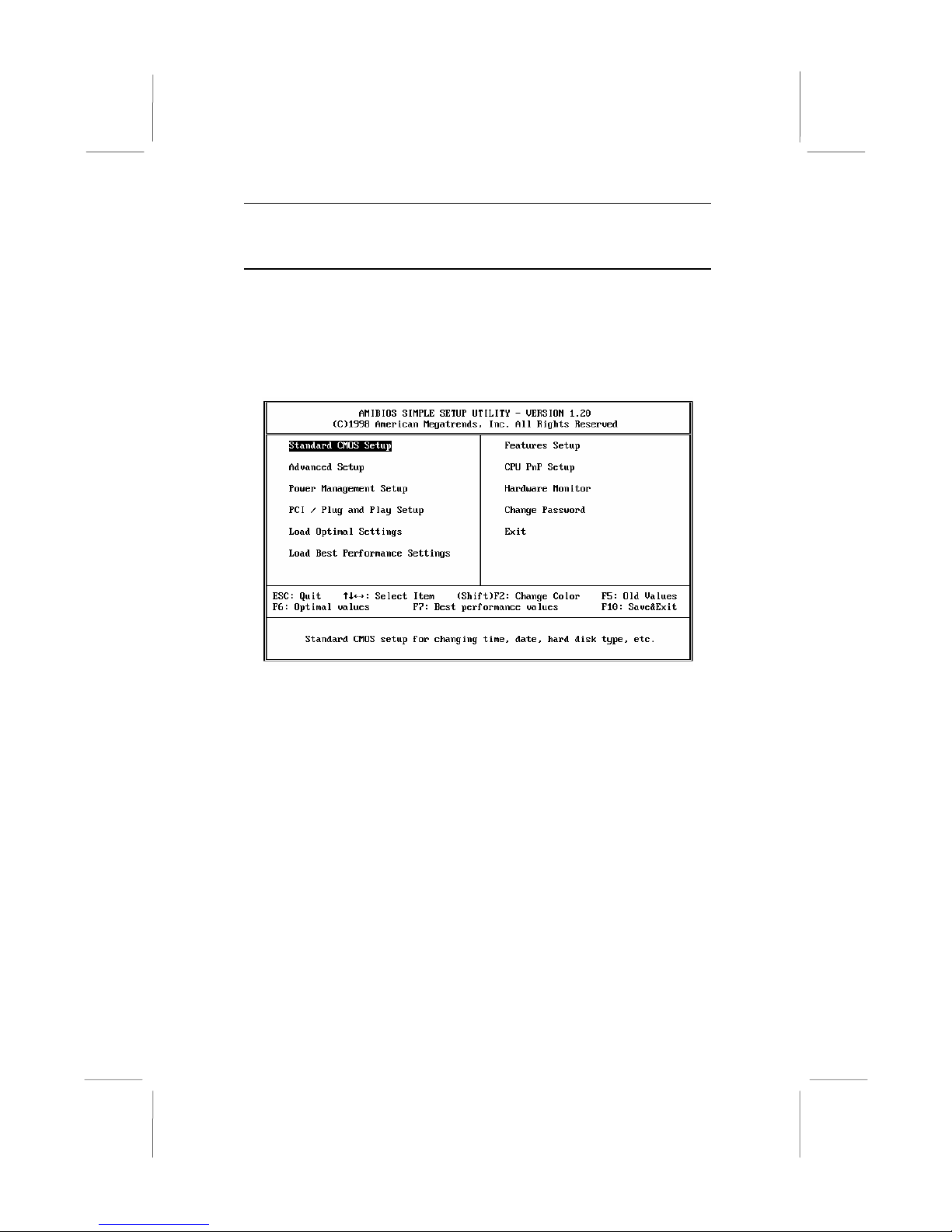

Running the Setup Utility

Each time your computer starts, before the operating system is booted, a message appears on the screen that prompts “Hit <DEL> if you want to run SETUP”. When you see this message, press the Delete key and the Mainmenu page of the setup utility appears on your monitor.

You can use the cursor arrow keys to highlight any of the options on the Mainmenu page. Press Enter to select the highlighted option. To leave the setup utility, press the Escape key. Hold down the Shift key and press F2 to cycle through the optional color schemes of the setup utility.

Some of the options on the Mainmenu page lead to tables of items with installed values. In these pages, use the cursor arrow keys to highlight the items, and then use the PgUp and PgDn keys to cycle through the alternate values for each of the items. Other options on the Mainmenu page lead to dialog boxes which require you to answer Yes or No by hitting the Y or N keys.

If you have already made changes to the setup utility, press F10 to save those changes and exit the utility. Press F5 to reset the changes to the original values. Press F6 to install the setup utility

Page 34

Standard CMOS Setup Page

with a set of default values. Press F7 to install the setup utility with a set of best-performance values.

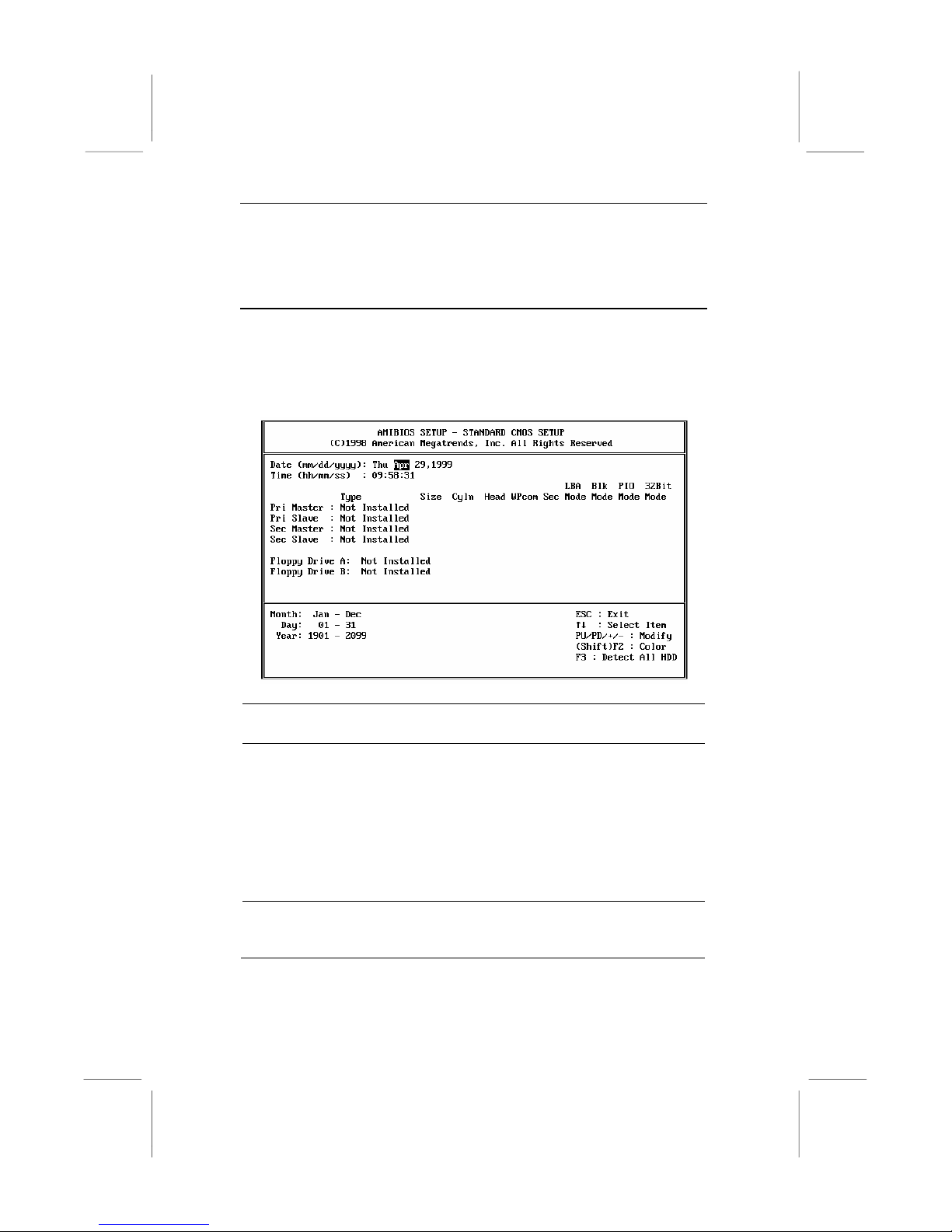

Standard CMOS Setup Page

Use this page to set basic information such as the date and time, the IDE devices, and the diskette drives. If you press the F3 key, the system will automatically detect and configure the hard disks on the IDE channels.

Date & Time

Pri Master Pri Slave Sec Master Sec Slave

Floppy Drive A Floppy Drive B

Use these items to install your system with the correct date and time

Use these items to configure devices on the primary and secondary IDE channels. To configure a hard disk drive, choose Auto. If the

Auto setting fails to find a hard disk drive, set it to User, and then fill in the hard disk characteristics

(Size, Cyls, etc.) manually. If you have a CDROM drive, select the setting CDROM. If you have an ATAPI device with removable media (e.g. a ZIP drive or an LS-120) select ARMD.

Use these items to set the size and capacity of the floppy diskette drive(s) installed in the system.

Page 35

Chapter 3

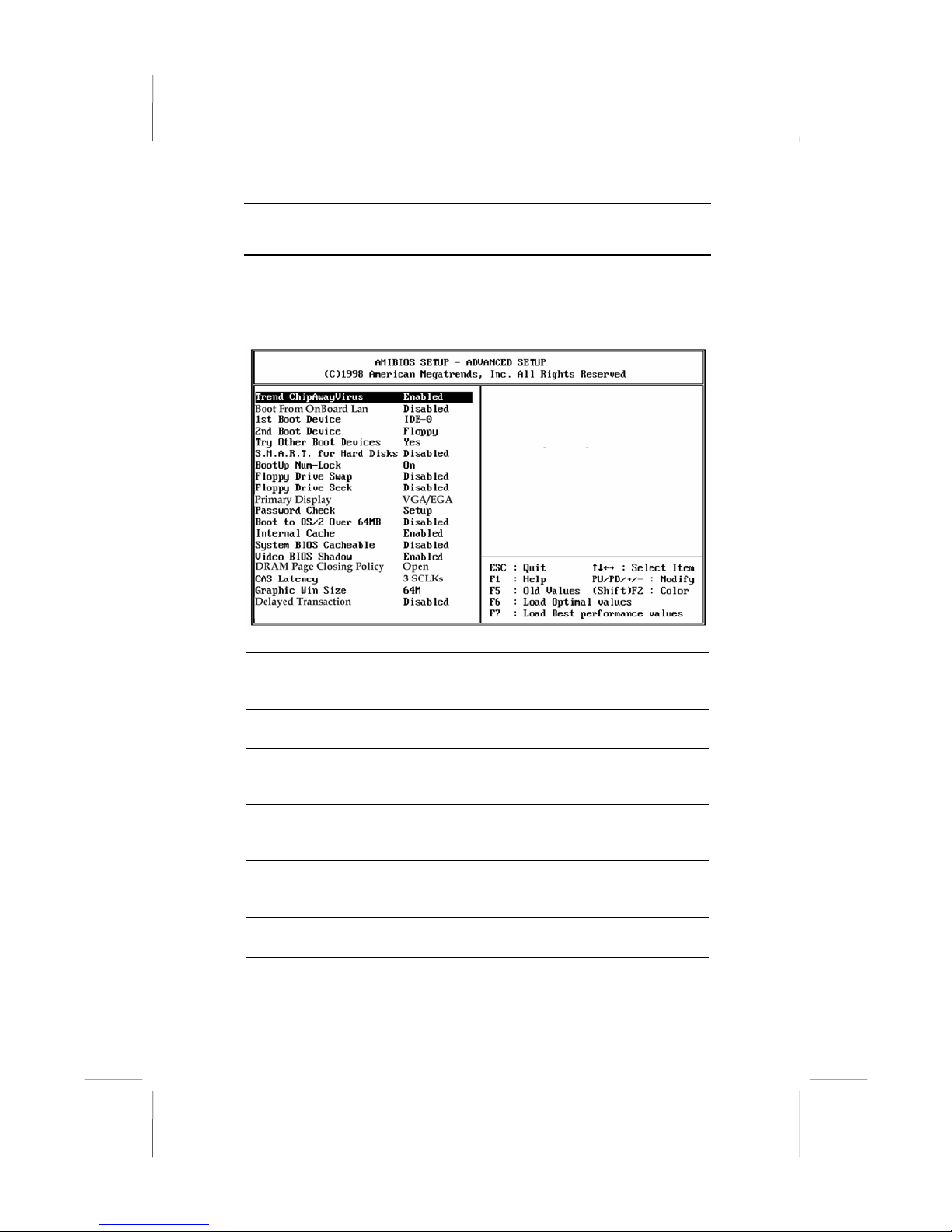

Advanced Setup Page

Use this page to set more advanced information about your system. Take some care with this page. Making changes can affect the operation of your computer.

Trend ChipAway Virus

Boot From OnBoard Lan

1st Boot Device

Boot Device

Try Other Boot Devices

S.M.A.R.T. for Hard Disks

BootUp NumLock

This mainboard has built-in virus protection in the firmware. Use this item to enable or disable the built-in virus protection.

If you enable this item, the system will boot from onboard LAN.

Use these two items to determine the order and priority that your computer follows to load an operating system at start-up time.

If you enable this item, the system will also search for other boot devices if it fails to find an operating system from the first two locations.

Enable this item if your hard disk(s) supports SMART (Self-Monitoring, Analysis and Reporting Technology).

This items determines if the Num Lock key is active or inactive at system start-up time.

Page 36

Advanced Setup Page

Floppy Drive Swap

Floppy Drive Seek

Primary Display

Password Check

Boot to OS/2 Over 64MB

Internal Cache

System BIOS Cacheable

Video BIOS Shadow

DRAM Page Closing Policy

CAS Latency

Graphic Window Size

Delayed Transaction

If you have two diskette drives installed and you enable this item, drive A becomes drive B and drive B becomes drive A.

If you enable this item, your system will check the diskette drives at start up time. Disable this item unless you are using an old 360K diskette drive.

Use this item to determine the display devices for the primary display of your computer.

If you have installed a password on your system, use this item to determine if the password is required to enter the setup utility (Setup) or required at start-up time and to enter the setup utility (Always).

Enable this item if you are booting the OS/2 operating system and you have more than 64MB of memory installed.

Leave this item enabled since all the processors that can be installed on this board have internal cache memory.

If you enable this item, a segment of the system BIOS will be cached to main memory for faster execution.

When this item is enabled, 32 kilobytes of the system video BIOS is copied to system memory from where it can execute more rapidly.

This item determines the operation of the memory Page Closing Policy. We recommend that you leave this item at the default value.

This item determines the operation of the main memory CAS (column address strobe). We recommend that you leave this item at the default value.

This item determines the operation of the onboard graphics adapter. We recommend that you leave this item at the default value.

If you enable this item, your system will delay the transaction mechanism for AGP master/PCI master. We recommend that you leave this item at the default value.

Page 37

Chapter 3

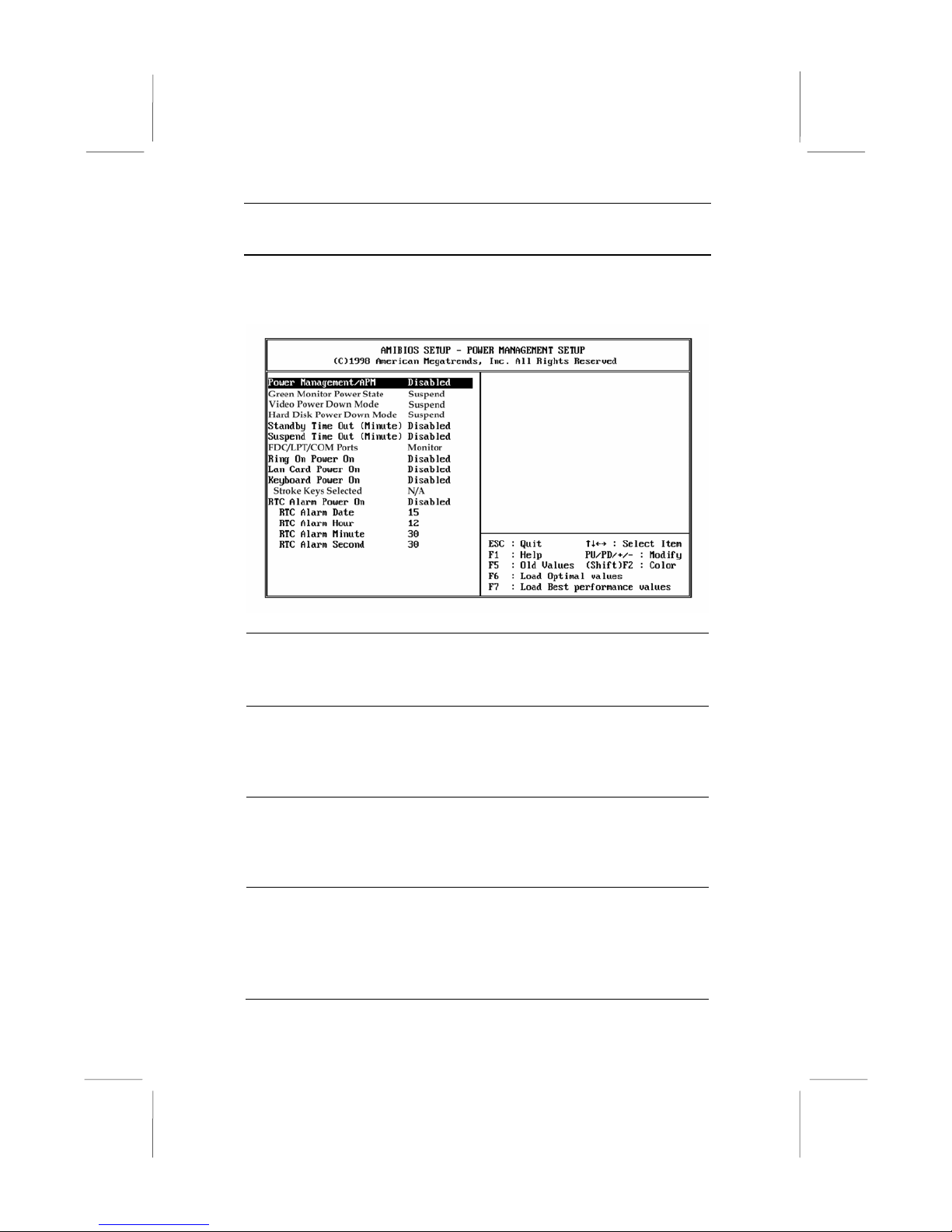

Power Management Setup Page

This page sets some of the parameters for the system power management operation.

Power Management/APM

Green Monitor Power State

Video Power Down Mode

Hard Disk Power Down Mode

Use this item to enable or disable the power management routines. If you enable the power management, you can use the items below to set the power management operation.

Use this item to determine which power-saving mode is required to power down a green PCcompliant monitor. You can force the monitor to power down in Standby or Suspend modes, or you can disable the powerdown.

Use this item to determine which power-saving mode is required to power down the graphics sub-system. You can force the graphics to power down in Standby or Suspend modes, or you can disable the powerdown.

Use this item to determine which power-saving mode is required to power down the hard disk drive(s). You can force the hard disk to power down in Standby or Suspend modes, or you can disable the powerdown.

Page 38

PCI / Plug and Play Setup Page

Standby Time Out (Minute)

Suspend Time Out (Minute)

FDC/LPT/COM Ports

Ring On Power On

Lan Card Power On

Keyboard Power On

Stroke Keys Selected

RTC Alarm Power On

This sets the timeout for standby mode in minutes. If the time selected passes without any system activity, the computer will enter the power-saving standby mode.

This sets the timeout for suspend mode in minutes. If the time selected passes without any system activity, the computer will enter the power-saving suspend mode.

If you set this item to Monitor, any activity on the floppy disk drive(s)/the parallel port/the serial port can resume the system from a power saving mode.

Your system can enter a software power down. If you enable this item, the system can automatically resume if there is an incoming call on the built-in Fax/Modem.

Your system can enter a software power down. If you enable this item, the system can automatically resume if there is traffic on the network adapter.

Your system can enter a software power down. If you enable this item, you can resume the system by pressing hot keys on the keyboard.

You must enable the jumper for Keyboard Power On.

If you have enabled the Keyboard Power On, use this item to select the hot keys to power on the system.

Your system can enter a software power down. If you enable this item, the system can automatically resume at a fixed time on the system’s RTC (realtime clock). Use the items below to set the date and time of the wake-up alarm.

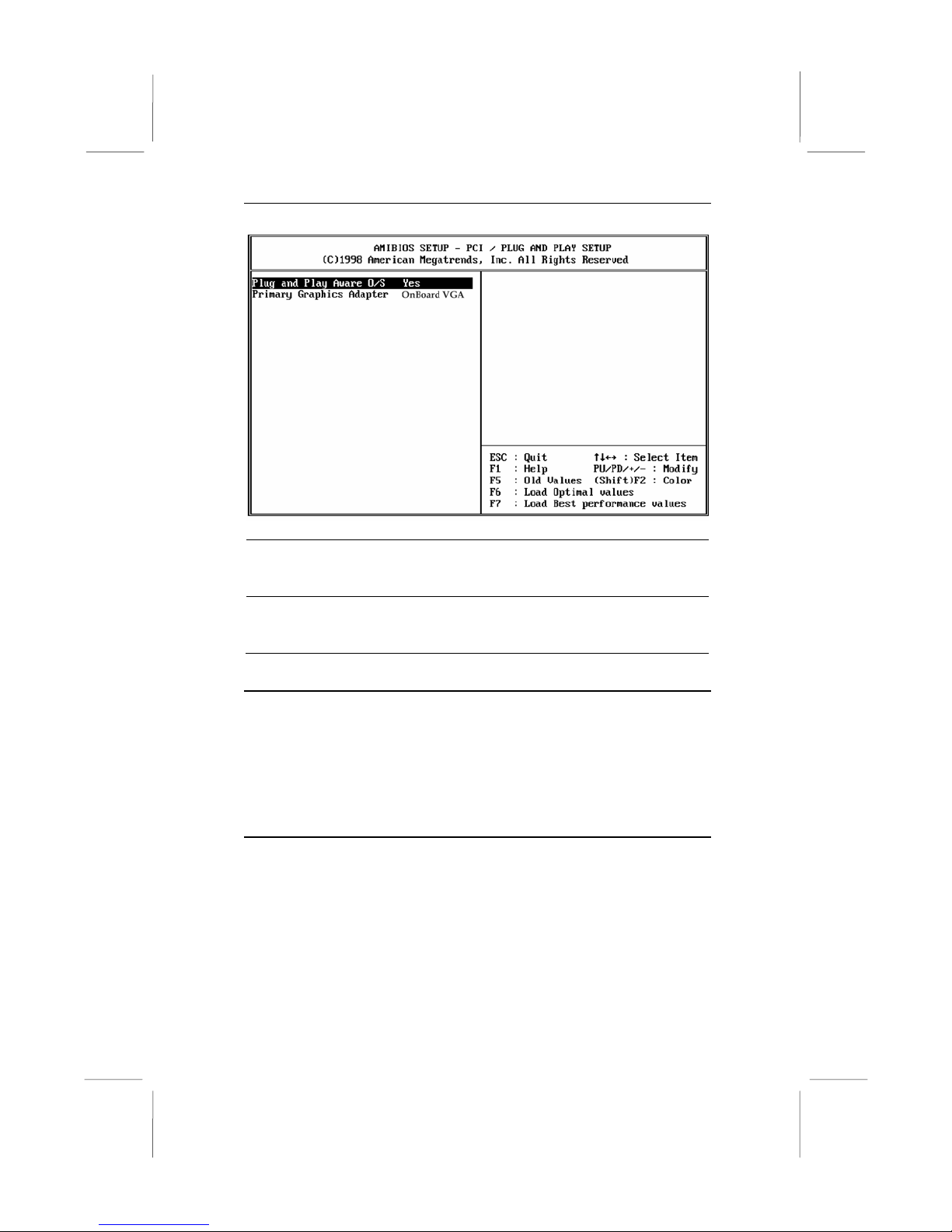

PCI / Plug and Play Setup Page

This page sets some of the parameters for devices installed on the system PCI bus, and devices that use the system plug and play capability.

Page 39

Chapter 3

Plug and Play Aware O/S

Primary Graphics Adapter

Enable this item if you are using an O/S that supports Plug and Play such as Windows 95 or

98.

Use this item to define if your primary graphics adapter is installed in a onboard VGA or add-on VGA.

Load Optimal Settings

If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the setup utility is loaded with a set of optimal default values. The optimal default values are not very demanding and they should allow your system to function with most kinds of hardware and memory chips.

Load Best Performance Settings

If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the setup utility is loaded with a set of best-performance default values. The optimal default values are quite demanding and your system might not function properly if you are using slower memory chips or other kinds of lowperformance components.

Page 40

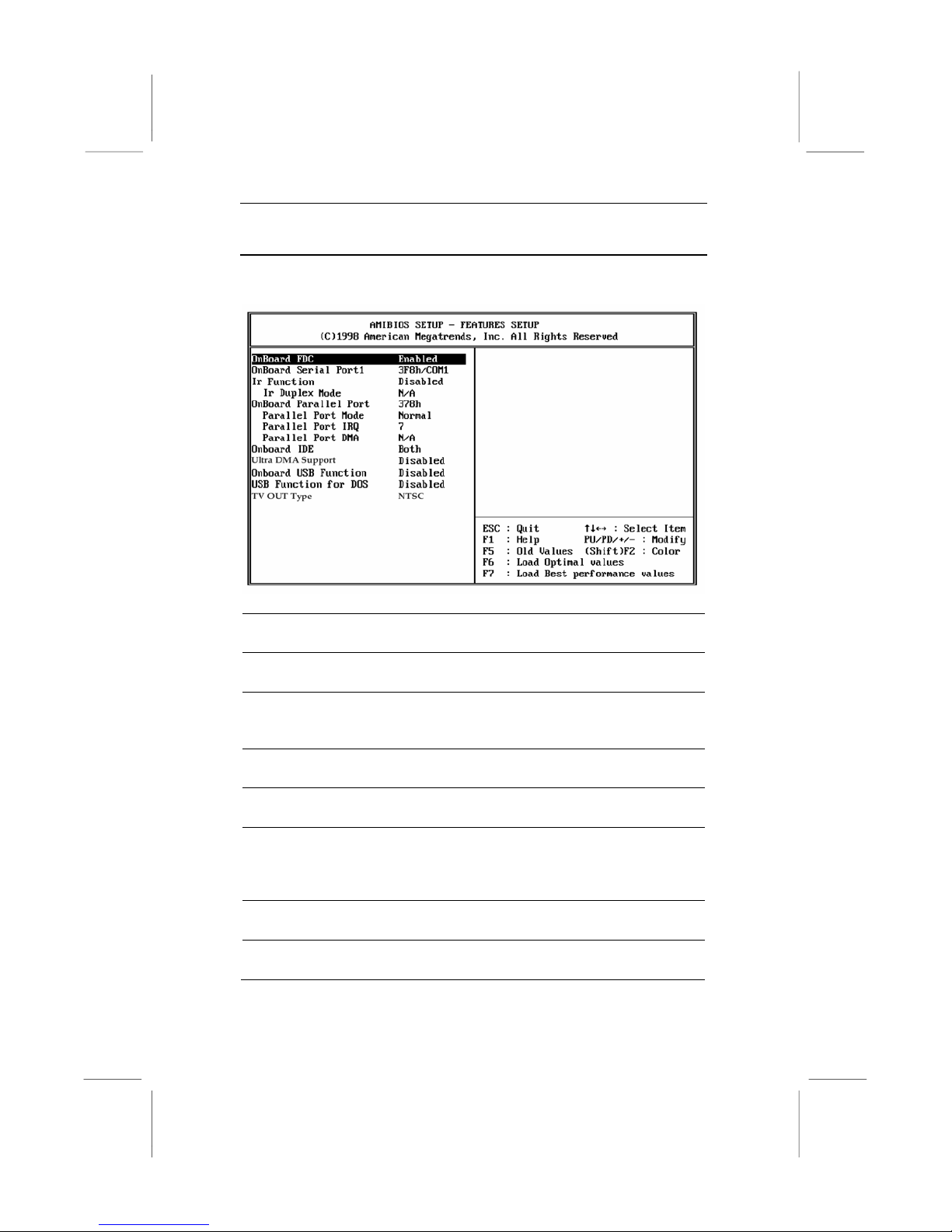

Features Setup Page

This page sets some of the parameters for peripheral devices installed on the system.

Onboard FDC

Onboard Serial Port1

IR Function

IR Duplex Mode

Onboard Parallel Port

Parallel Port Mode

Parallel Port IRQ

Parallel Port DMA

Use this item to enable or disable the onboard floppy disk drive interface.

Use this item to enable or disable the onboard serial port COM1, and to assign a port address

Use this item to define the protocol for an infrared port if you have installed an optional IR port.

Use this item to define if the optional infrared port is full-duplex or half-duplex.

Use this item to enable or disable the onboard parallel port LPT1, and to assign a port address

Use this item to determine the parallel port mode. You can select Normal, ECP (Extended Capabilities Port), EPP (Enhanced Parallel Port), or ECP + EPP.

Use this item to assign an IRQ to the parallel port.

Use this item to assign a DMA channel to the parallel port.

Page 41

Chapter 3

Onboard IDE

Ultra DMA Support

OnBoard USB Function

USB Function for DOS

TV Out Type

Use this item to enable or disable either of the two onboard IDE channels, Primary or Secondary.

Use this item to enable or disable the Ultra DMA function to support the IDE devices.

Use this item to enable or disable the USB (Universal Bus Ports) that are integrated on this mainboard.

If you have enabled the USB function, use this item to enable or disable USB when you are working in the DOS environment.

This item is available when TV out kit onboard (optional). Use this item to determine the type of the TV Out . You can select NTSC or PAL.

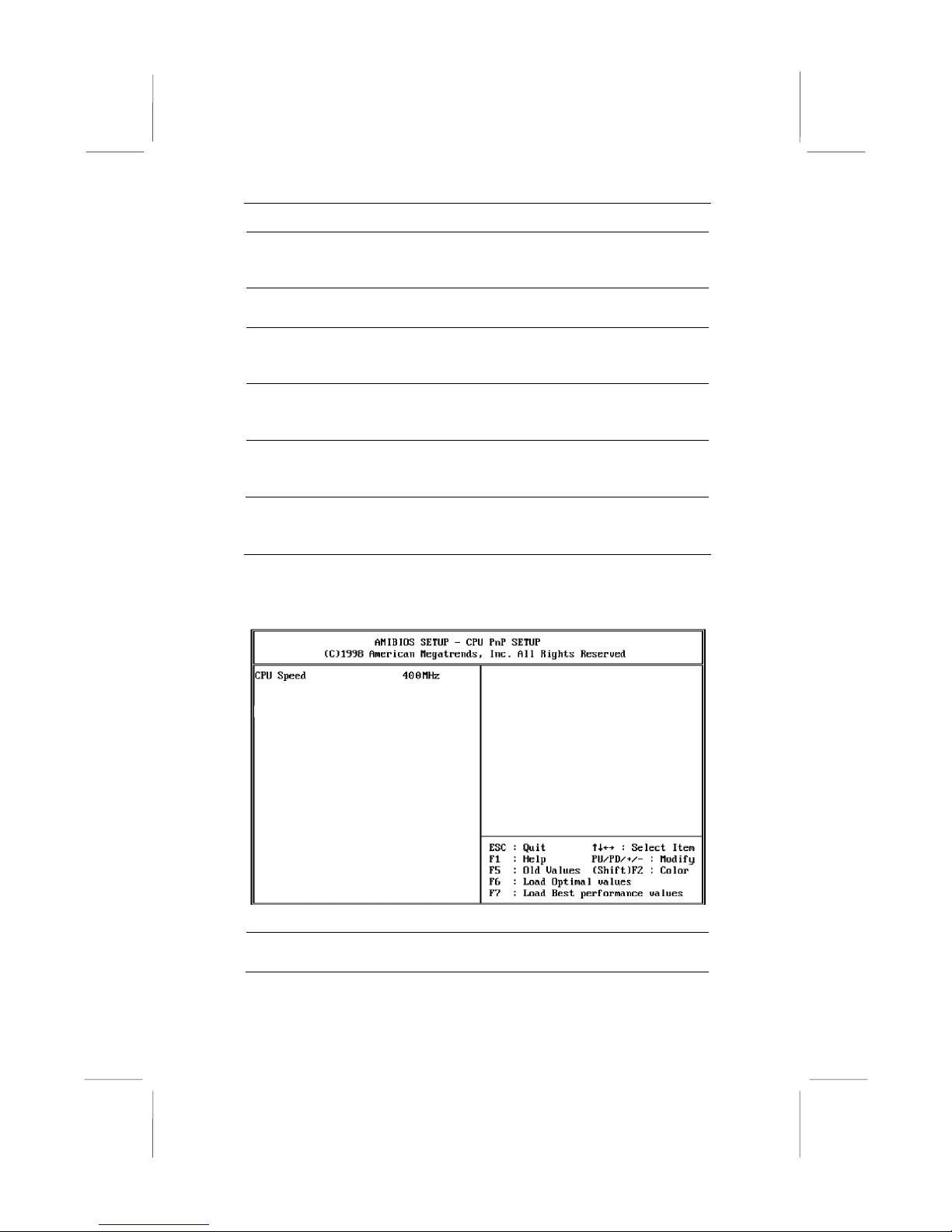

CPU PnP Setup Page

This page lets you configure the mainboard for the kind of CPU that you have installed.

CPU Speed

Use this item to define the clock speed of the processor that you have installed.

Page 42

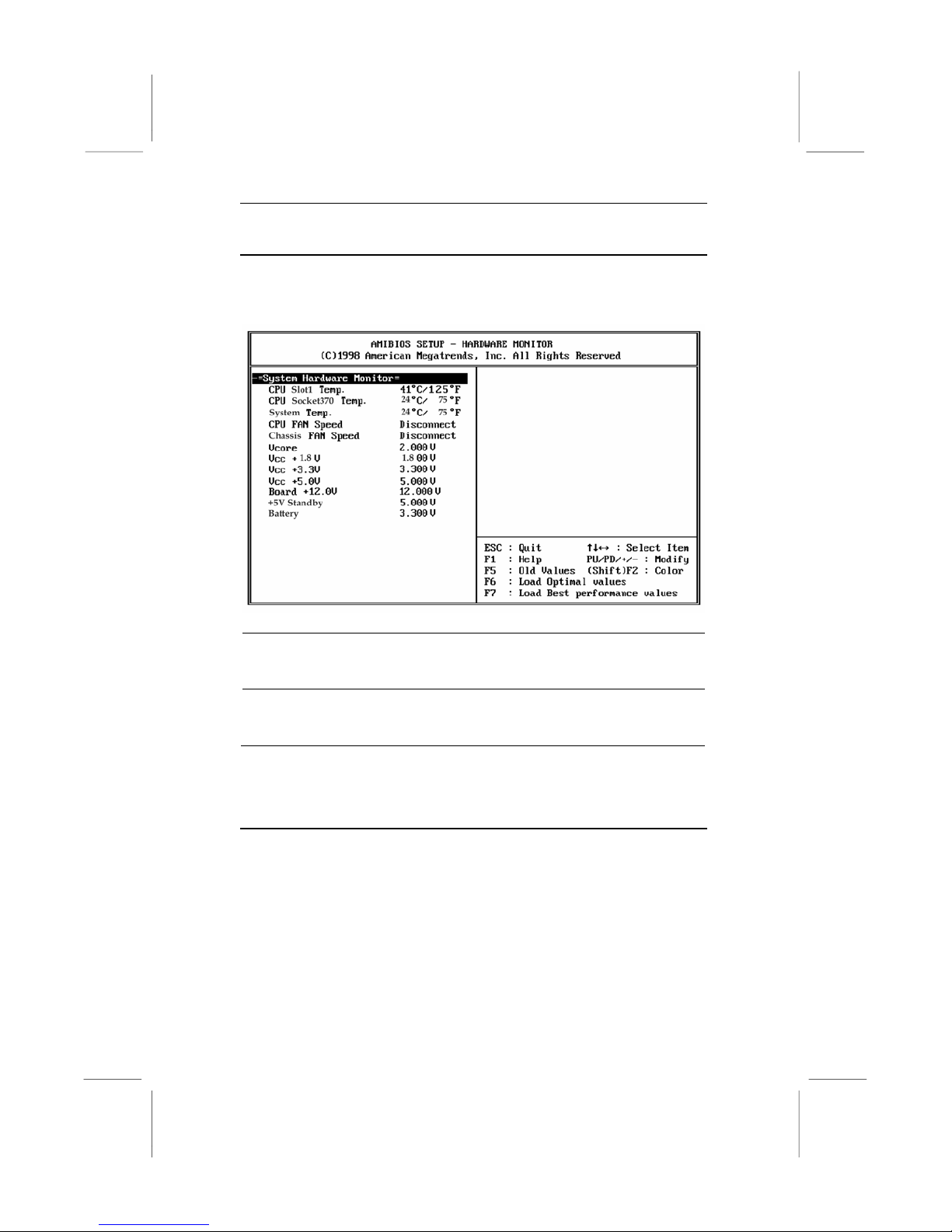

Hardware Monitor Page

This page sets some of the parameters for the hardware monitoring function of this mainboard.

CPU Slot1 / Socket370 & System Temp.

CPU/Chassis Fan Speed, VCCs & Battery

Use these items to monitor the threshold temperature for the CPU and the system chassis.

Use these items to monitor the parameters for the voltages that control the fans and the mainboard.

Change Password

If you highlight this item and press Enter, a dialog box appears which lets you enter a Supervisor password. You can enter no more than six letters or numbers. Press Enter after you have typed in the password. A second dialog box asks you to retype the password for confirmation. Press Enter after you have retyped it correctly. The password is required at boot time, or when the user enters the setup utility.

Page 43

Chapter 3

Change or Remove the Password

Highlight this item and type in the current password. At the next dialog box, type in the new password, or just press Enter to disable password protection.

Exit

Highlight this item and press Enter to save the changes that you have made in the setup utility and exit the setup program. When the Save and Exit dialog box appears, press Y to save and exit, or press N to exit without saving.

Page 44

Chapter 4

Software & Applications

Introduction

The support software CD-ROM that is included in the mainboard package contains all the drivers and utility programs needed to properly run our products. Below you can find a brief description of each software program, and the right location for your mainboard version. More information on each individual program might be available in a README file, located in the same directory as the software.

In order to run the software, put the support software CD-ROM in the CD-ROM drive, and execute the EXE file name given in the description below.

Note: The correct path name for each software driver is provided, where D: identifies the CD-ROM drive letter – modify if necessary.

Bus Master IDE Driver

The IDE Bus Master Drivers allows the system to properly manage the IDE channels on the mainboard. You need to install two IDE drivers if you are running Windows 95/98.

♦ Windows 9x –

D:\IDE\M766LMRT\WIN9x\Intelinf\SETUP.EXE and then D:\IDE\M766LMRT\WIN9x\Infinst\SETUP.EXE

USB Driver

The USB Driver allows the system to recognize the USB ports on the mainboard. You need to install this driver if you are running Windows 95.

This driver is available for:

Page 45

Chapter 4

♦ Windows 95 – D:\USB\EUSBSUPP\USBSUPP.EXE ♦ Windows 95 (Chinese) –

D:\USB\CUSBSUPP\CUSBSUPP.EXE

Sound Driver

The Sound driver allows the system to generate optimal sound effects. This driver is available for: ♦ DOS & Windows 3.x – D:\SOUND\Driver\8738AM\DOS-

W31\

♦ Windows 95/98 – D:\SOUND\Driver\8738AM\W95-98\ ♦ Windows NT – D:\SOUND\ Driver\8738AM\\Nt40DRV\

There is also an Audio Rack application program available for: ♦ Windows 95/98 - D:\SOUND\Gamut\Audio Player

Graphics Drivers and Software

Find the Graphics drivers and software here: ♦ D:\VGA\M766LMRT\Win9xGraphics\SETUP.EXE

Fax/Modem Drivers and Software

Find the fax/modem drivers and software here:

♦ D:\Modem\8738\Win9x ♦ D:\Modem\SuperVoice\

Media Ring Talk Software

MediaRing Talk provides an internet telephone for the onboard modem. ♦ D:\Modem\MediaRingTalk\

Network Adapter Driver

Find the network adapter driver here: ♦ D:\LAN\Davicom9102

BIOS Update Utility

The BIOS Update utility allows you to update the BIOS setup file on your mainboard to a newer version. You can download the latest version of the BIOS setup available for your mainboard from the website.

Page 46

Using the PCI Sound Application

♦ D:\UTILITY\AMIFL815.EXE

PC-Cillin Software

The PC-Cillin software program provides anti-virus protection for your system.

This program is available for:

♦ DOS – D:\PC-CILLIN\DOS\PCSCAN.EXE ♦ Windows 95 – D:\PC-CILLIN\WIN95\DISK1\SETUP.EXE ♦ Windows 98 – D:\PC-CILLIN\WIN98\SETUP.EXE

ADCM Software

The AMI Desk-Client Management software provides network management services. This software is available for: Windows 95/98 – D:\AMI ADCM\M766LMRT\SETUP.EXE

Using the PCI Sound Application

1. Before you install the PCI Sound drivers, make sure your Operating System has been installed, otherwise the PCI Sound might be detected as “Other device” by the device manager of your OS.

2. After the drivers are properly installed, choose the MULTIMEDIA icon in the CONTROL PANEL when you need to use the Software Wave-Table drivers as a MIDI output device. Select the MIDI page and click on “C-media SoftMidi Synthesis (Win98) / Driver (Win95)”, then click “OK” to confirm.

3. A Windows application named Audio Rack is provided with the PCI Sound drivers, which gives you control over all the audio functions through a user interface that is as simple to use as a home stereo system. We recommend that you use the System Mixer in the Audio Rack software to control your computer’s audio volume, recording device and the recording gain.

4. If the devices that you are using require the MIDI port as the control interface, you need to select the MULTIMEDIA icon

Page 47

Chapter 4

in the CONTROL PANEL. Select the MIDI page and click on “CM8738 MPU-401” (Win98) or “CM8738/C3DX PCI Audio External MIDI Port” (Win95), and then click “OK” to confirm.

5. For more information, refer to the PCI Sound manual in the CD which ships with this mainboard.

The Four Speakers System

The onboard Sound Pro audio system supports 2 wave channels (front/rear) known as the 4 speaker system. If you are running applications which use the DirectSound® 3D or A3D® audio interface, your system can simulate realistic 3D sound through a 4 speaker setup. Follow the steps below to install a 4-speaker setup.

Speaker Installation

Connect the front two speakers to the Line-out jack on the sound ports extension bracket. Connect the rear two speakers to the Linein/Rear jack on the sound ports extension bracket. The original Line-in can be moved to Aux.

Speaker Position

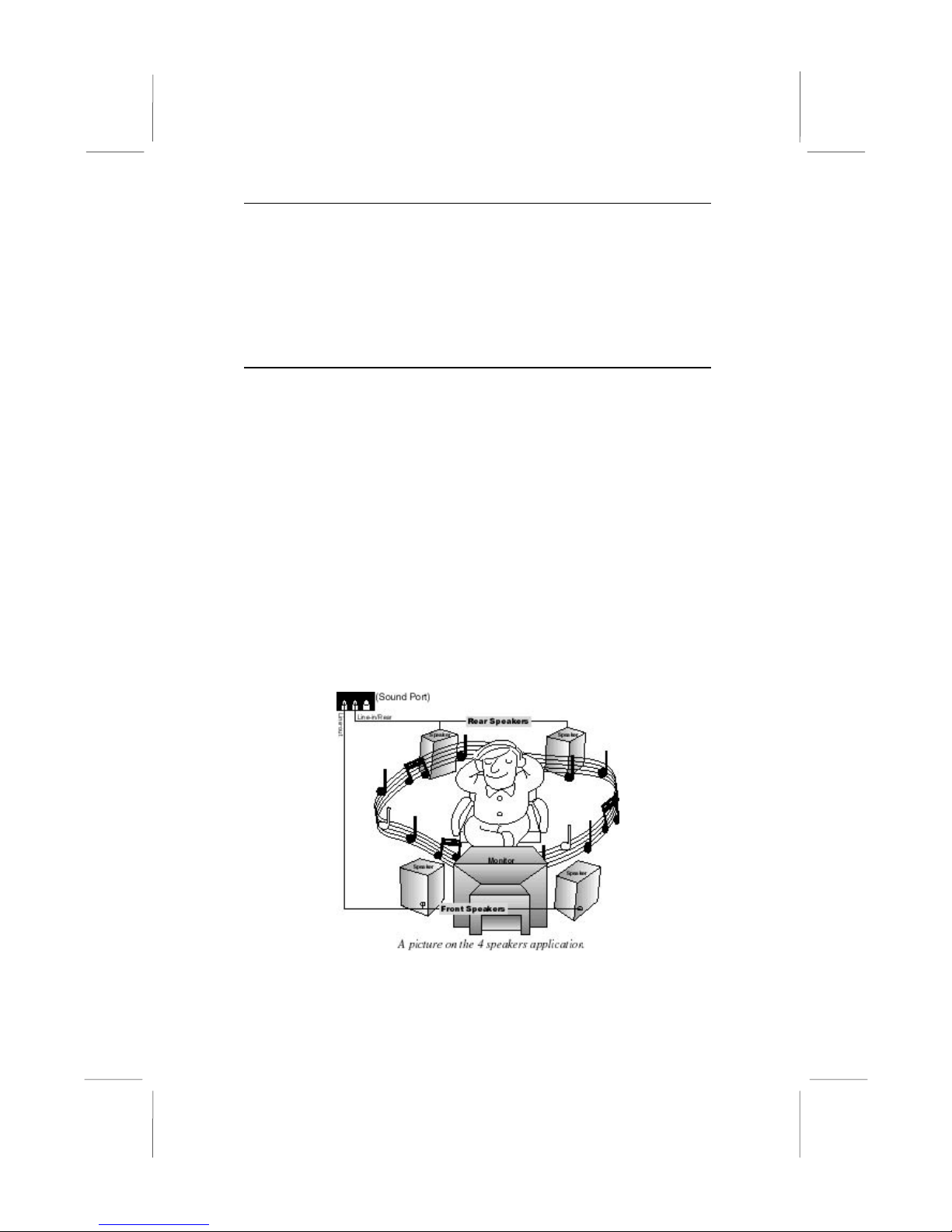

Set up your speakers similar to the following figure to get the best audio result.

Page 48

The Four Speakers System

Mixer Setup

There is a 4-speakers option in the Volume Control of the Mixer when you are setting up the PCI Audio Application. Click on the 4 SPK icon to enable this option. This means that the output to the rear speakers is sent through the Line-in/Rear jack. In order to avoid hardware conflicts, DO NOT enable this option when the Line-in/Rear jack is connected with a line-in device. While the 4 speakers mode is enabled, turn on/off the output of the front speakers and adjust the volume of the speakers so that the front/rear speakers have the same volume.

Demo

Execute the “Helicopter” demo in the C3D HRTF Positional Audio Demos of the PCI Audio Application. When you hear the helicopter flying behind you, it means that the rear speakers are working properly.
