PC Chips M598LMR User Manual

Download

Page 1

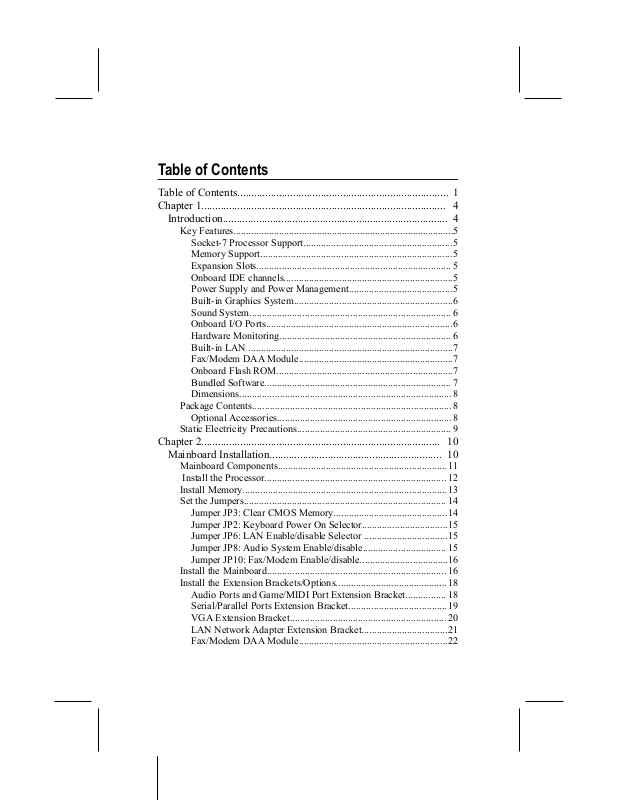

Table of Contents

Table of Contents............................................................................ 1

Chapter 1........................................................................................ 4

Introduction................................................................................. 4

Key Features.......................................................................................5

Socket-7 Processor Support...........................................................5

Memory Support............................................................................5

Expansion Slots............................................................................. 5

Onboard IDE channels...................................................................5

Power Supply and Power Management.........................................5

Built-in Graphics System...............................................................6

Sound System................................................................................ 6

Onboard I/O Ports..........................................................................6

Hardware Monitoring.................................................................... 6

Built-in LAN .................................................................................7

Fax/Modem DAA Module.............................................................7

Onboard Flash ROM......................................................................7

Bundled Software.......................................................................... 7

Dimensions.................................................................................... 8

Package Contents............................................................................... 8

Optional Accessories..................................................................... 8

Static Electricity Precautions............................................................. 9

Chapter 2...................................................................................... 10

Mainboard Installation.............................................................. 10

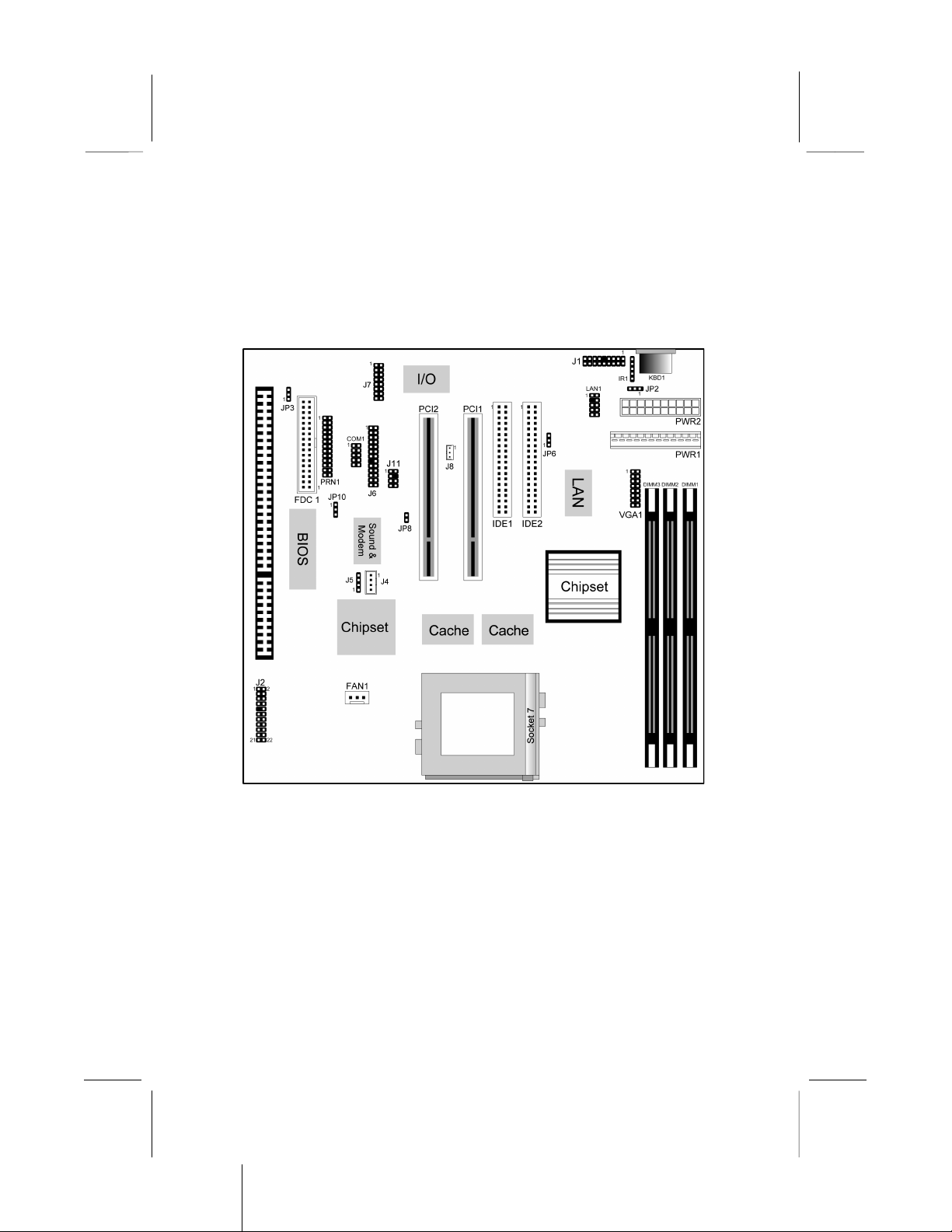

Mainboard Components...................................................................11

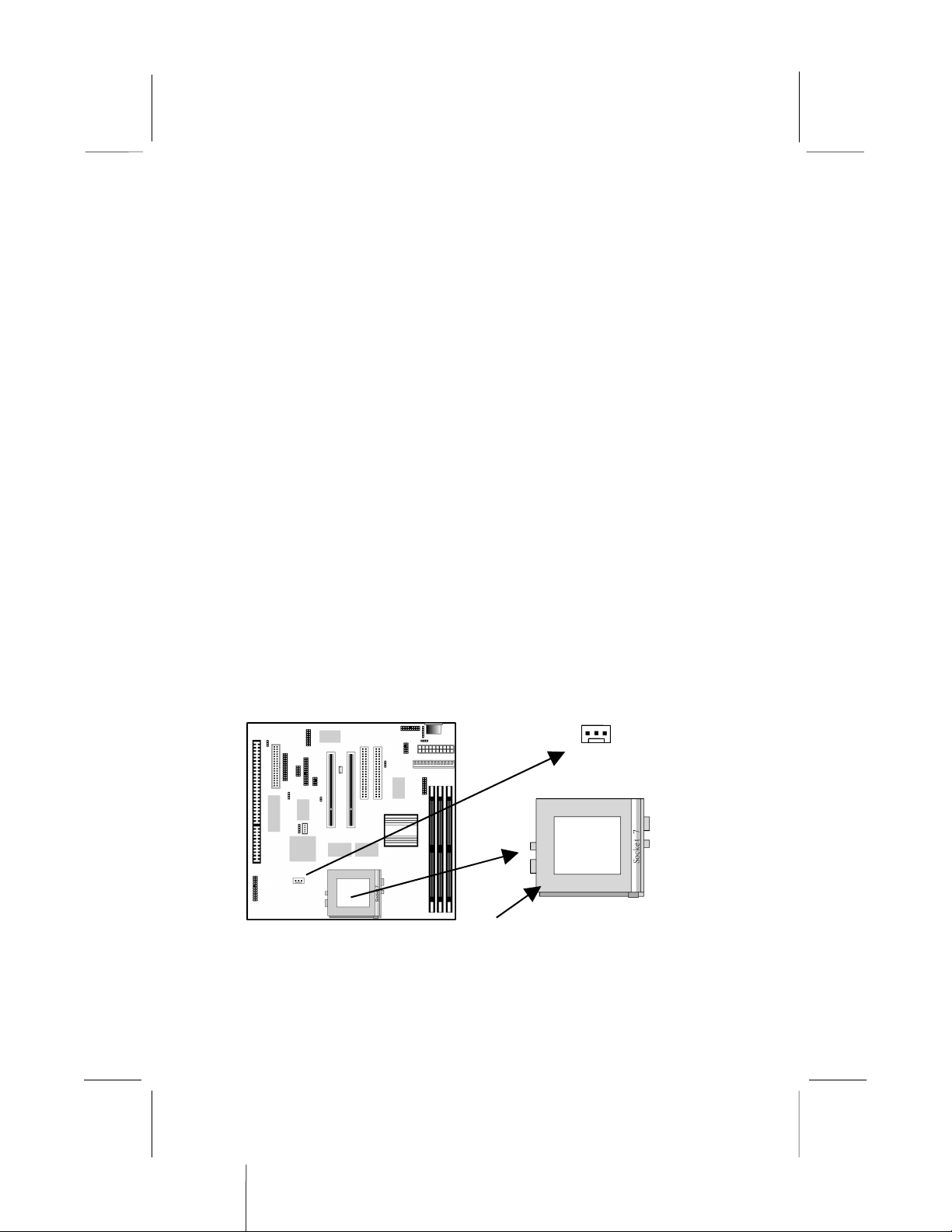

Install the Processor........................................................................ 12

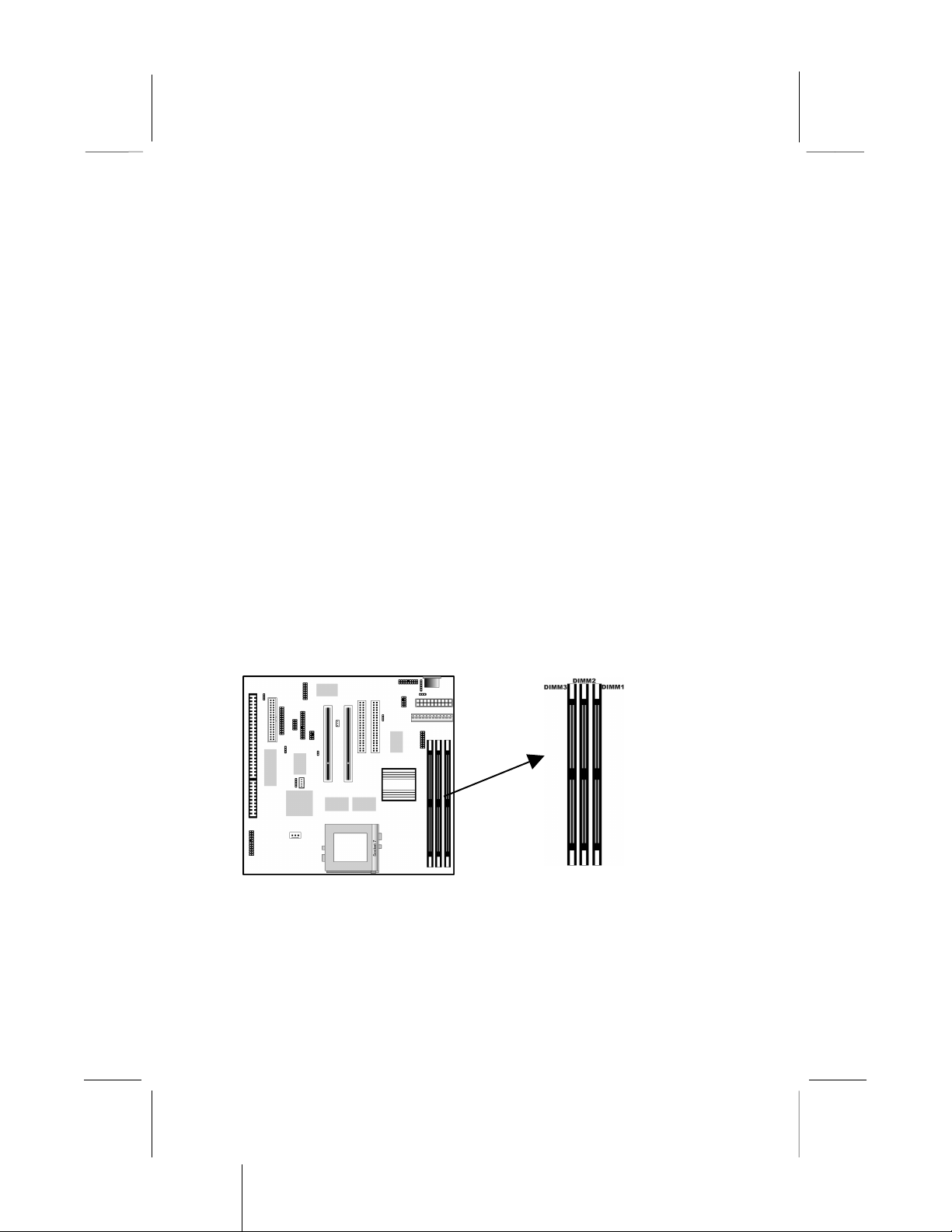

Install Memory.................................................................................13

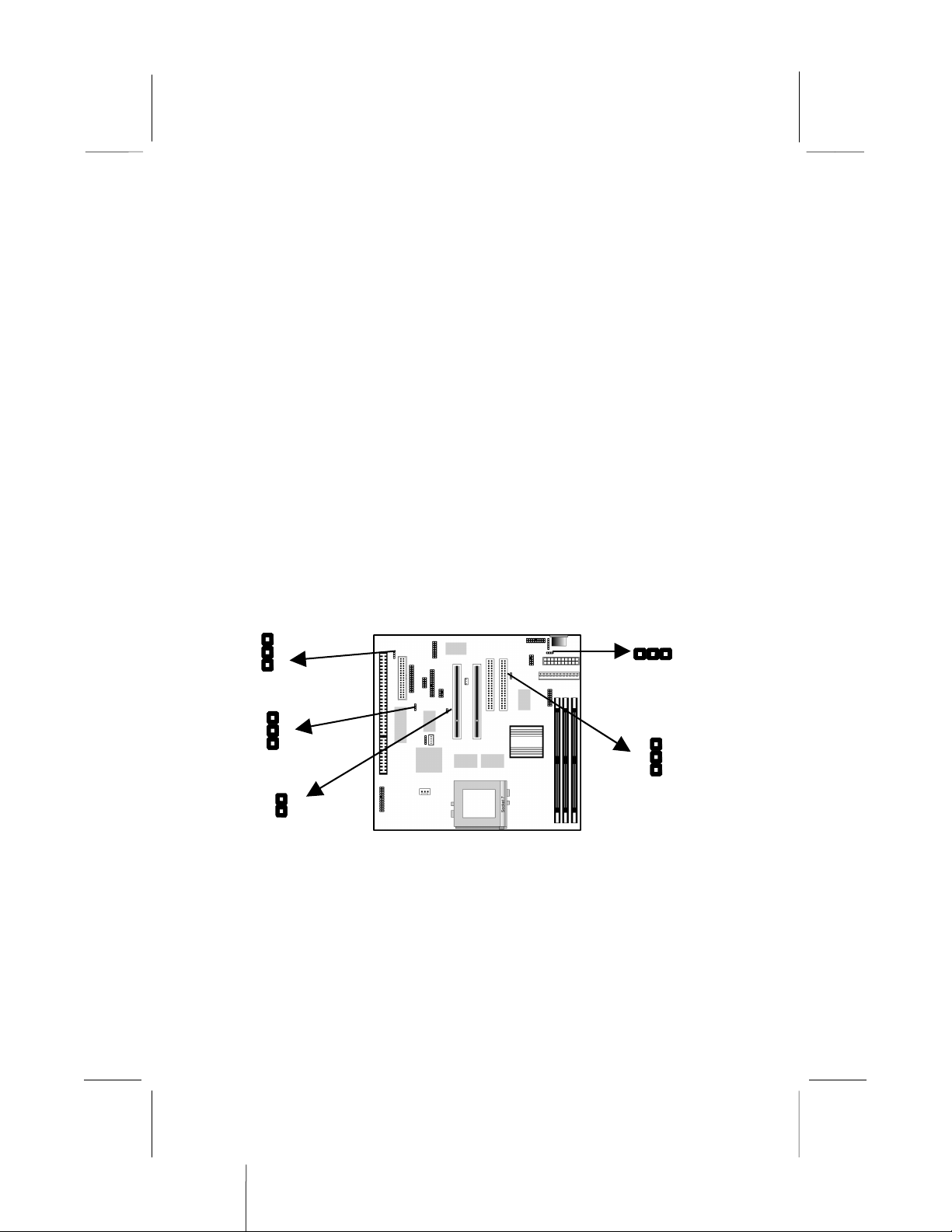

Set the Jumpers................................................................................ 14

Jumper JP3: Clear CMOS Memory.............................................14

Jumper JP2: Keyboard Power On Selector..................................15

Jumper JP6: LAN Enable/disable Selector .................................15

Jumper JP8: Audio System Enable/disable................................. 15

Jumper JP10: Fax/Modem Enable/disable...................................16

Install the Mainboard....................................................................... 16

Install the Extension Brackets/Options............................................ 18

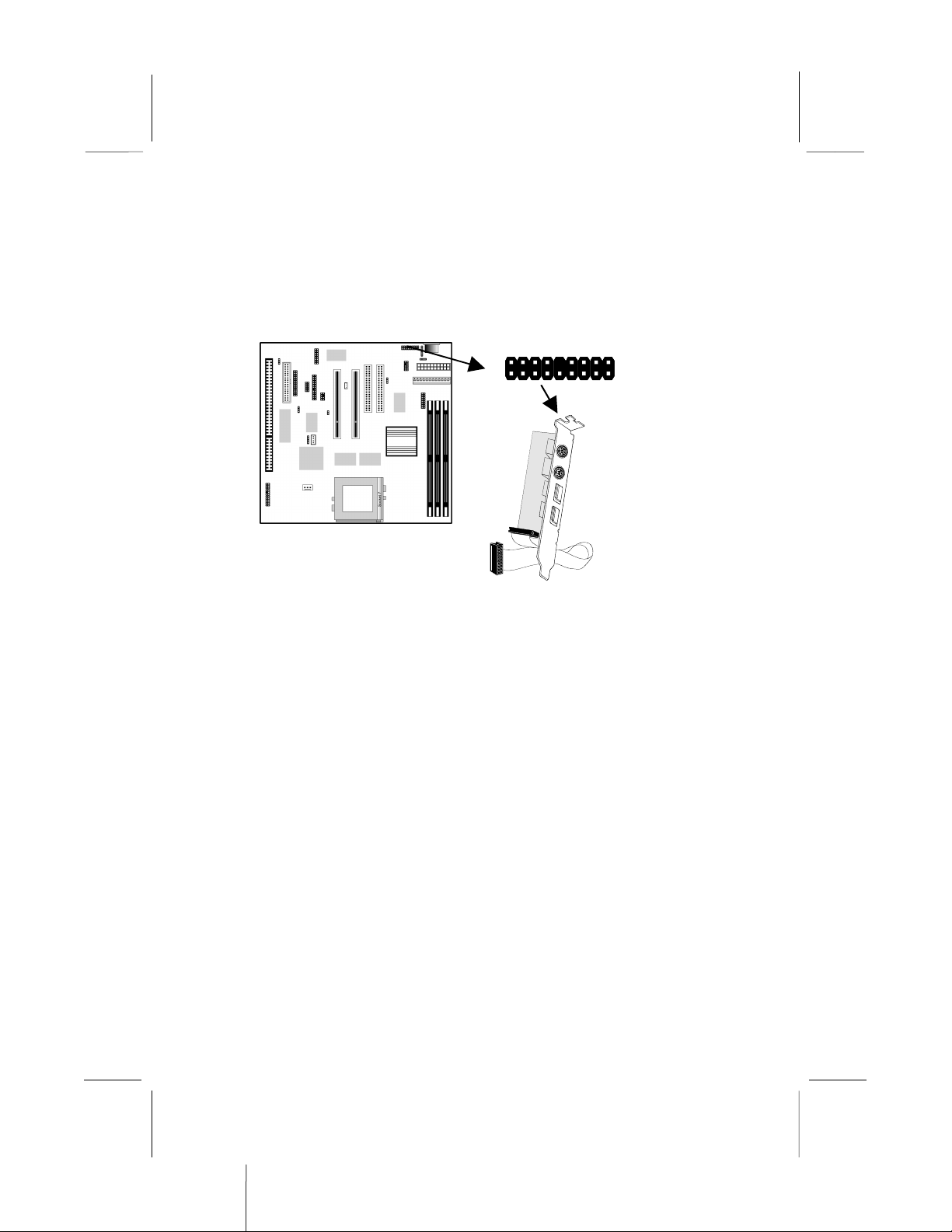

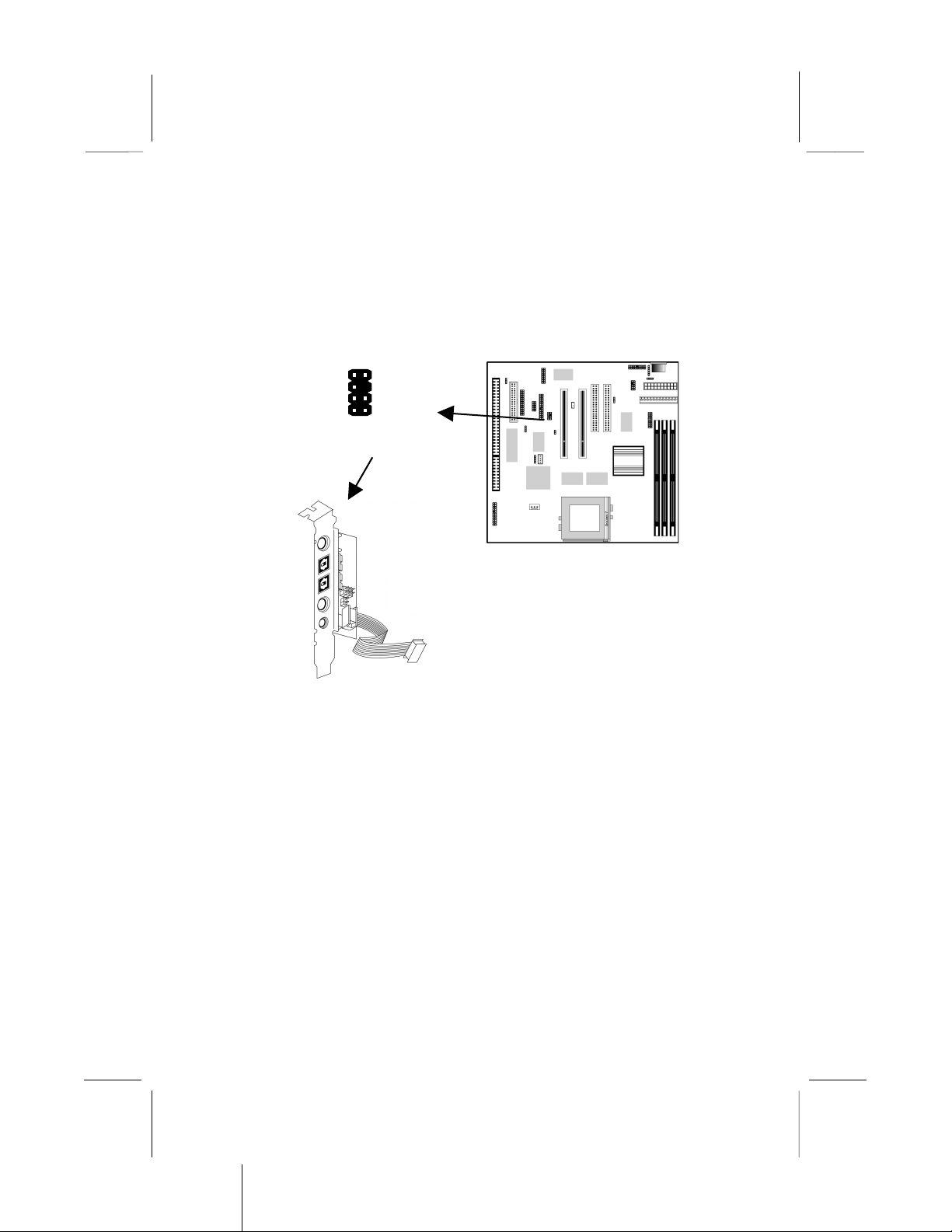

Audio Ports and Game/MIDI Port Extension Bracket................ 18

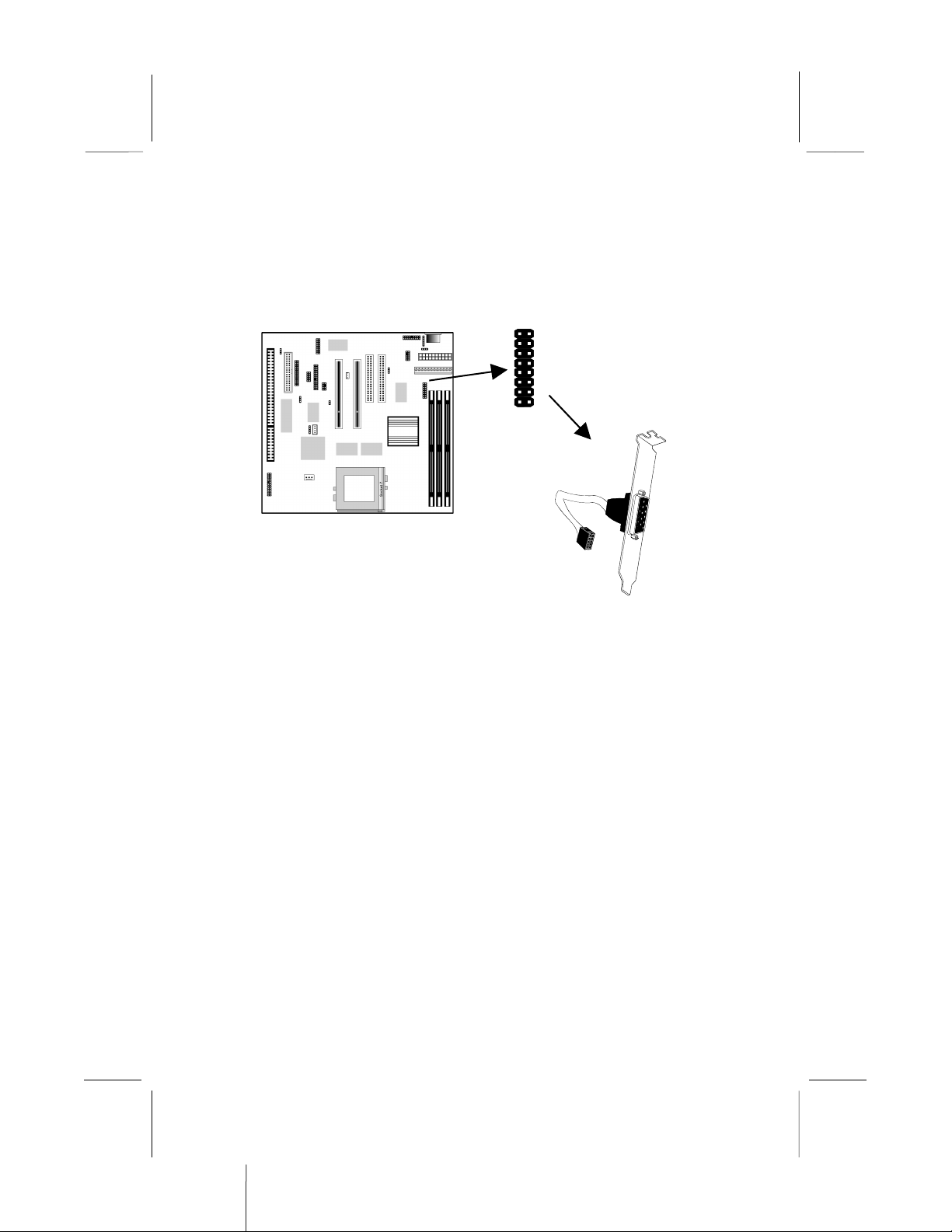

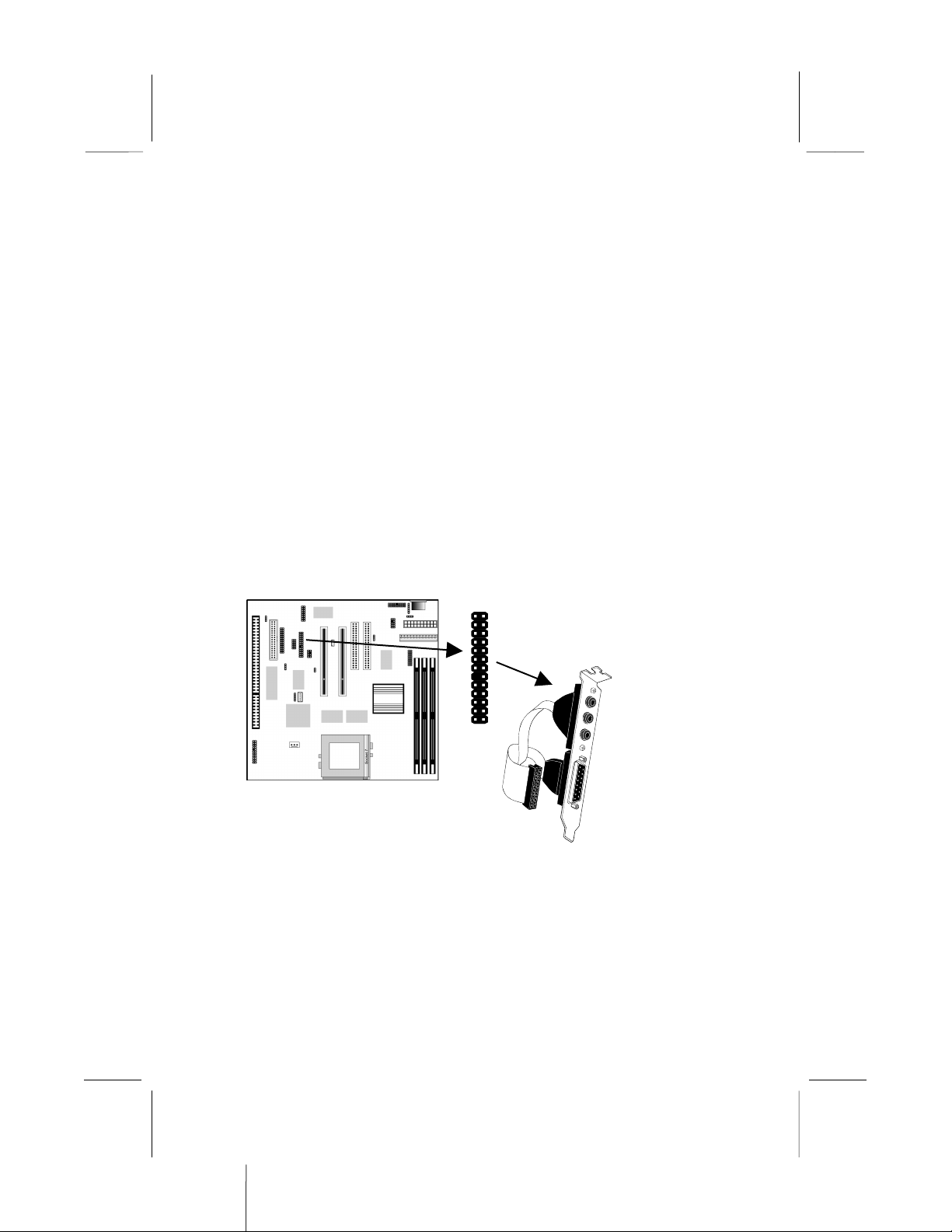

Serial/Parallel Ports Extension Bracket....................................... 19

VGA Extension Bracket.............................................................. 20

LAN Network Adapter Extension Bracket..................................21

Fax/Modem DAA Module...........................................................22

Page 2

Optional Digital Audio Extension Bracket..................................23

Internal Digital Audio..................................................................23

Optional ATX Form Card ...........................................................24

Optional Infrared Port..................................................................25

Install Other Devices........................................................................26

Floppy Disk Drive....................................................................... 26

IDE Devices.................................................................................26

Internal Analog Sound Connections............................................27

Expansion Slots................................................................................28

Installing an Expansion Card.......................................................28

Wake On LAN Connector........................................................... 29

Chapter 3...................................................................................... 30

BIOS Setup............................................................................... 30

Introduction...................................................................................... 30

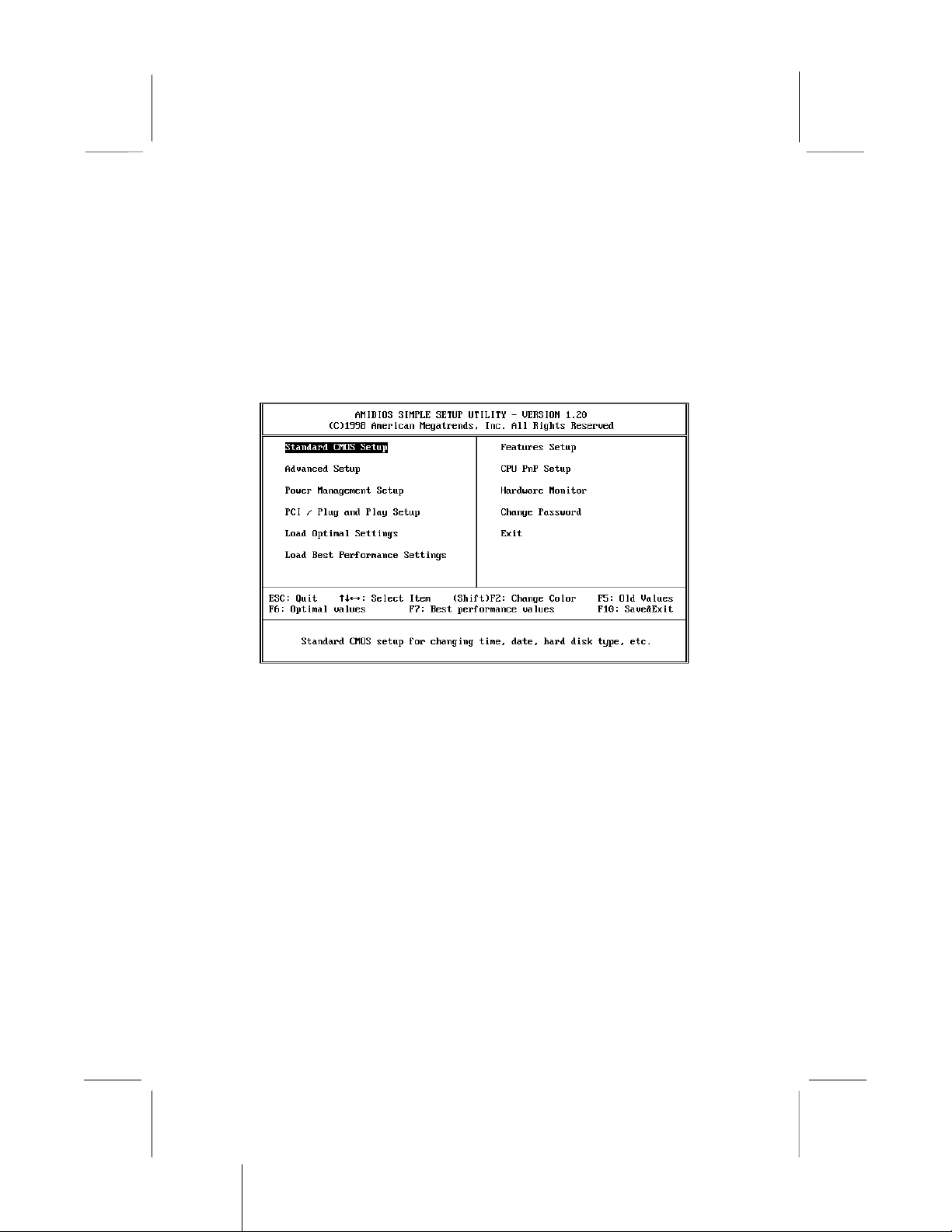

Running the Setup Utility.................................................................31

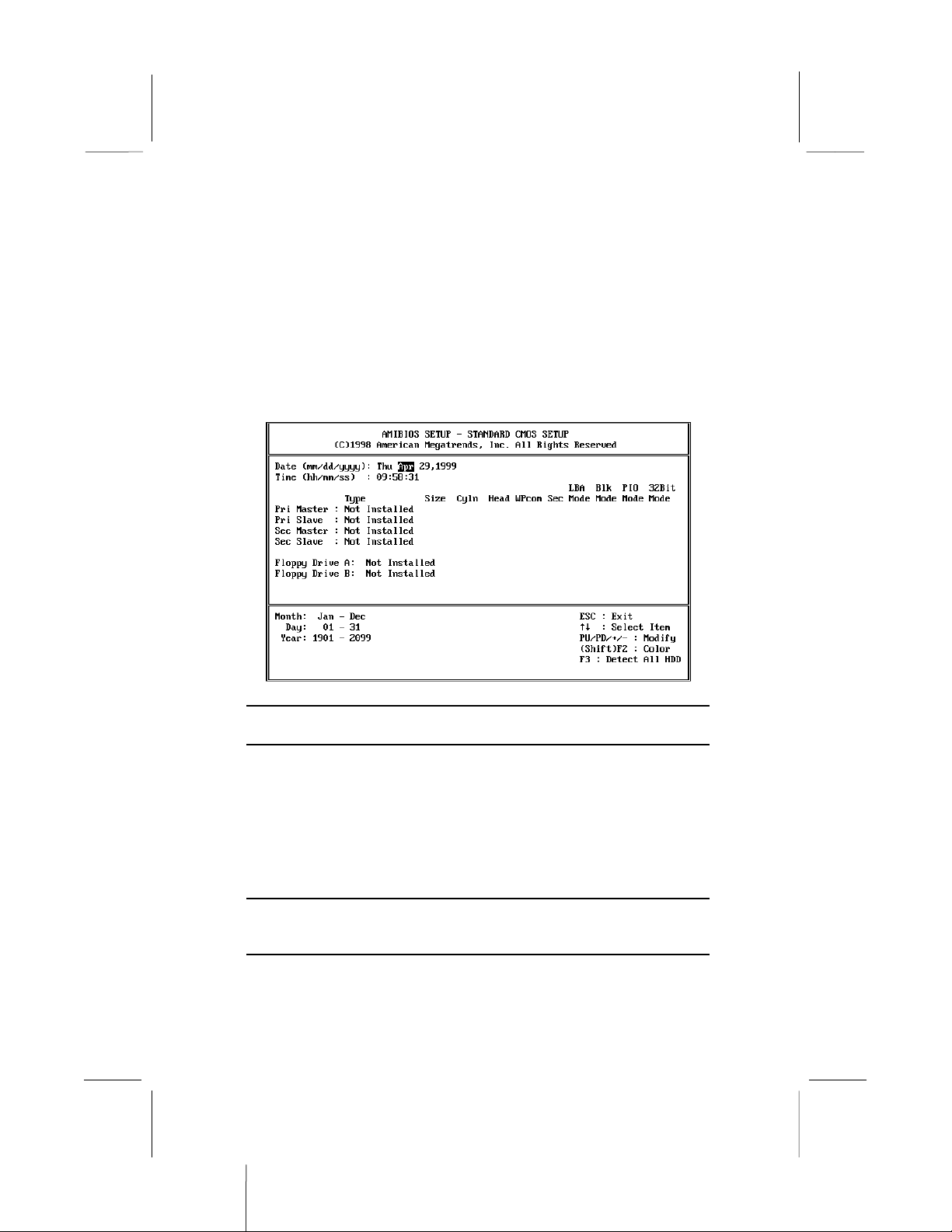

Standard CMOS Setup Page............................................................ 32

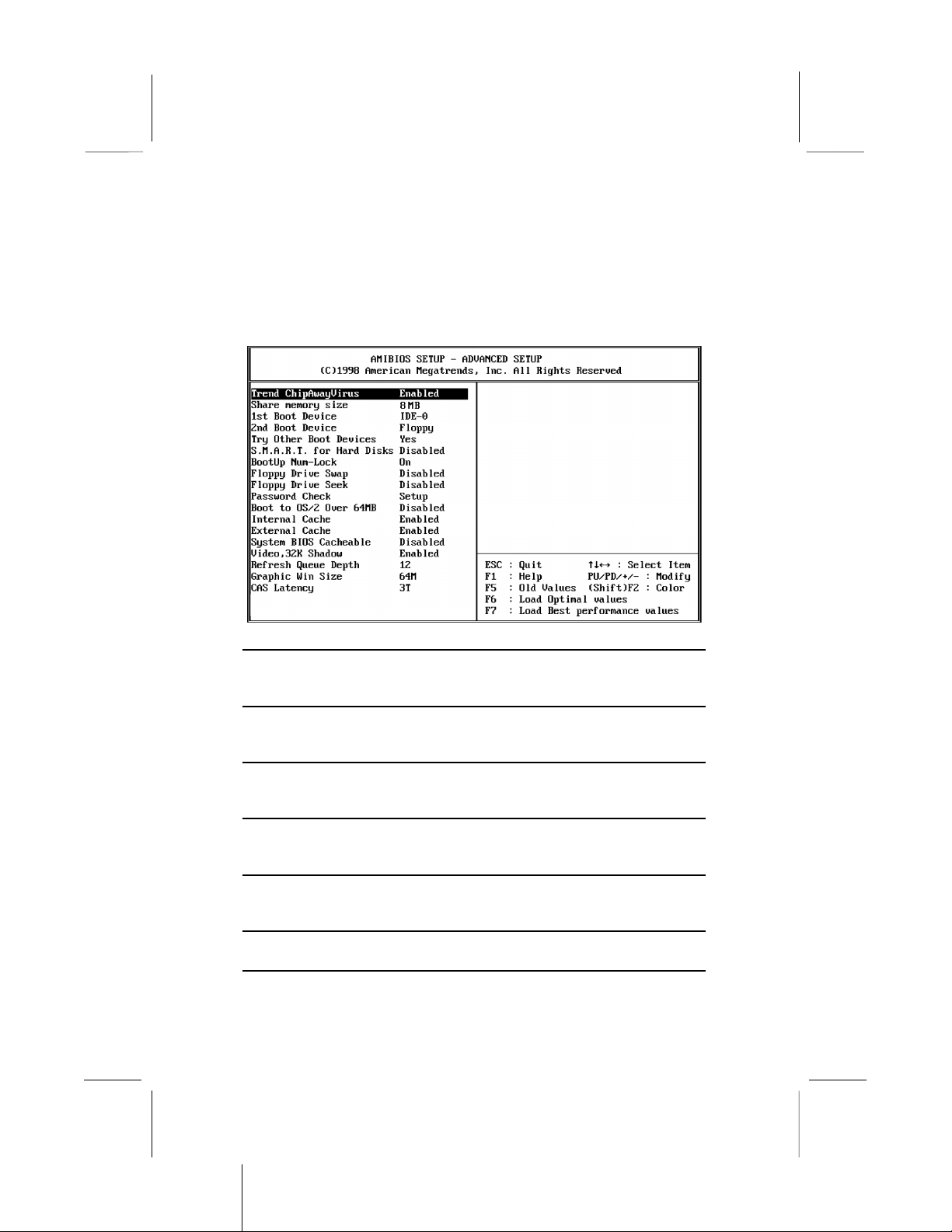

Advanced Setup Page.......................................................................33

Power Management Setup Page.......................................................35

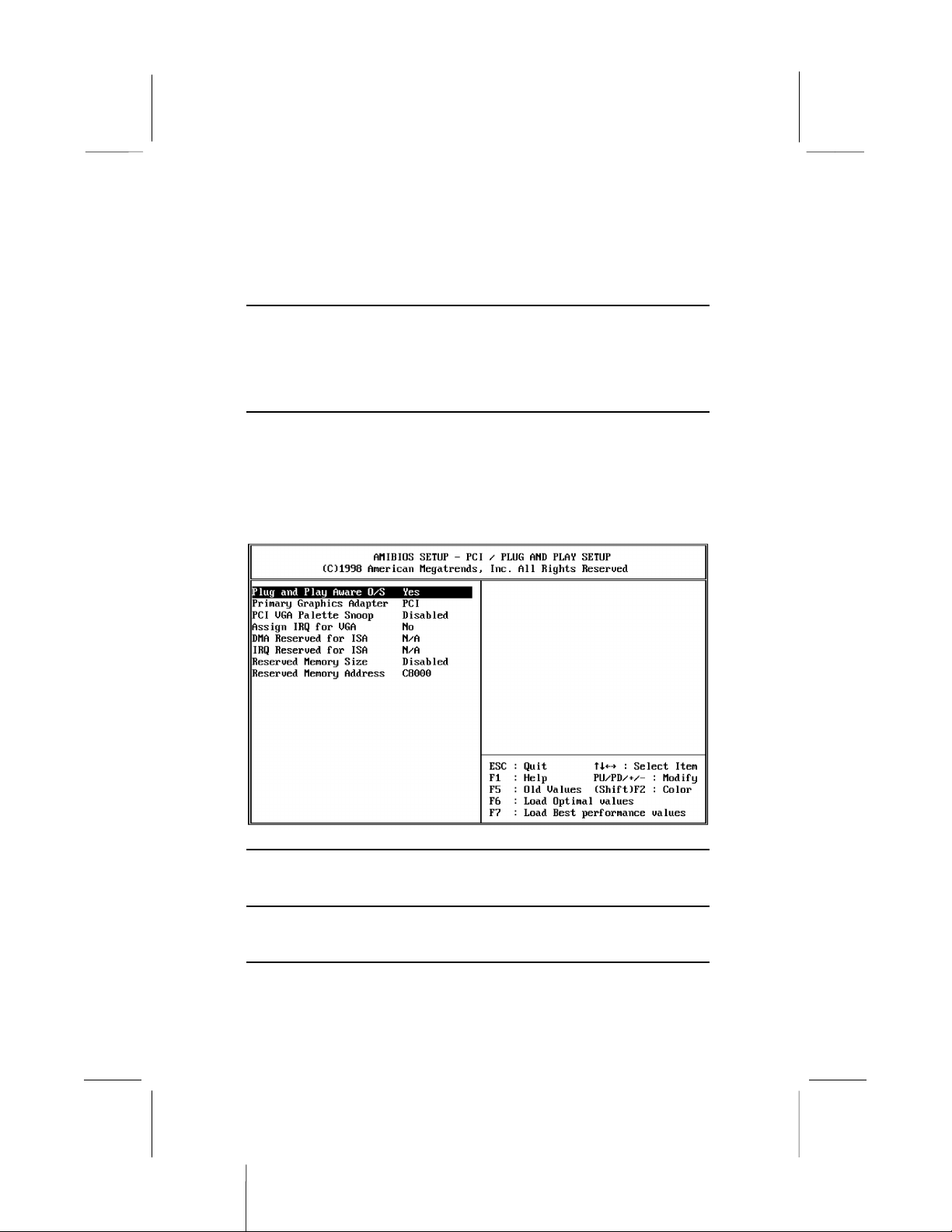

PCI / Plug and Play Setup Page....................................................... 36

Load Optimal Settings......................................................................37

Load Best Performance Settings...................................................... 37

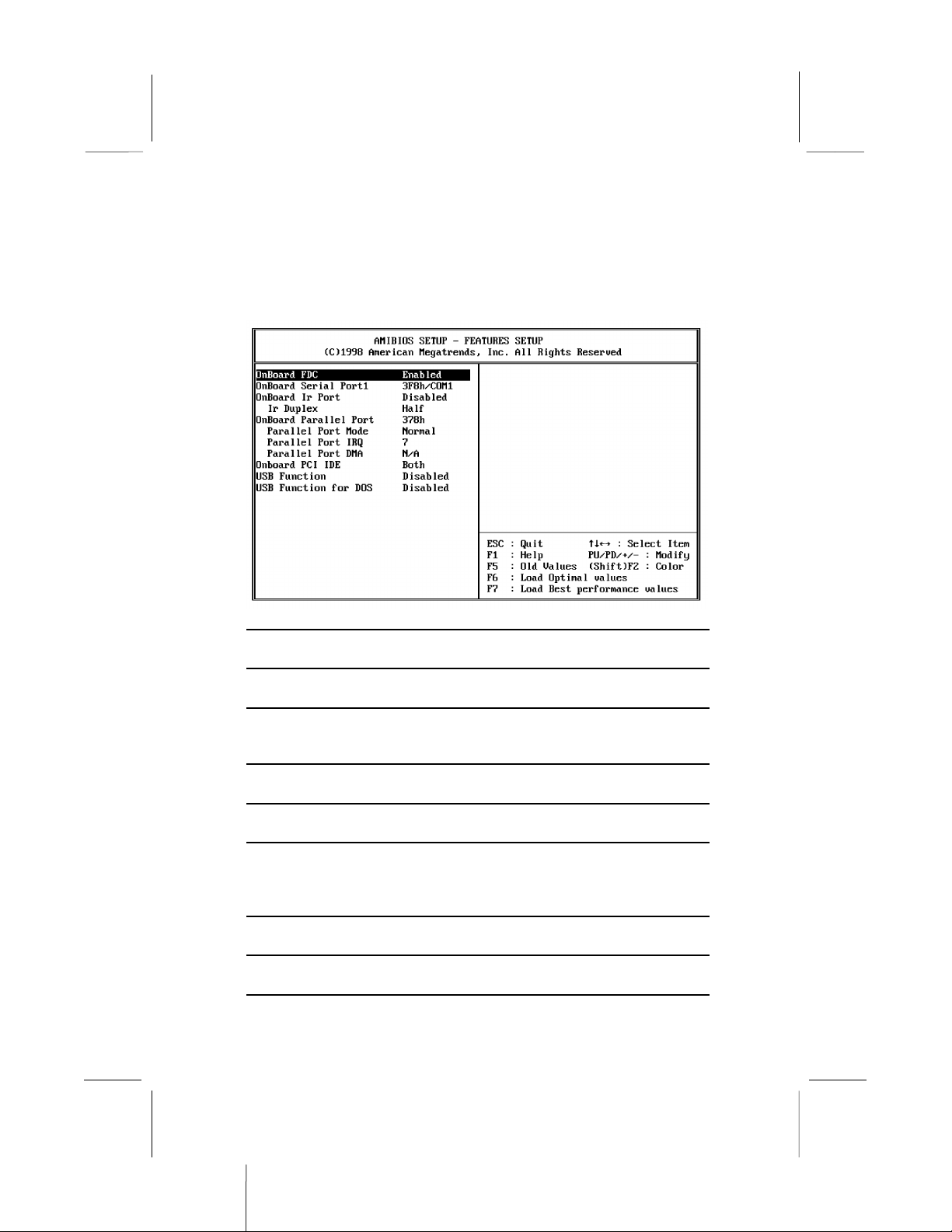

Features Setup Page......................................................................... 38

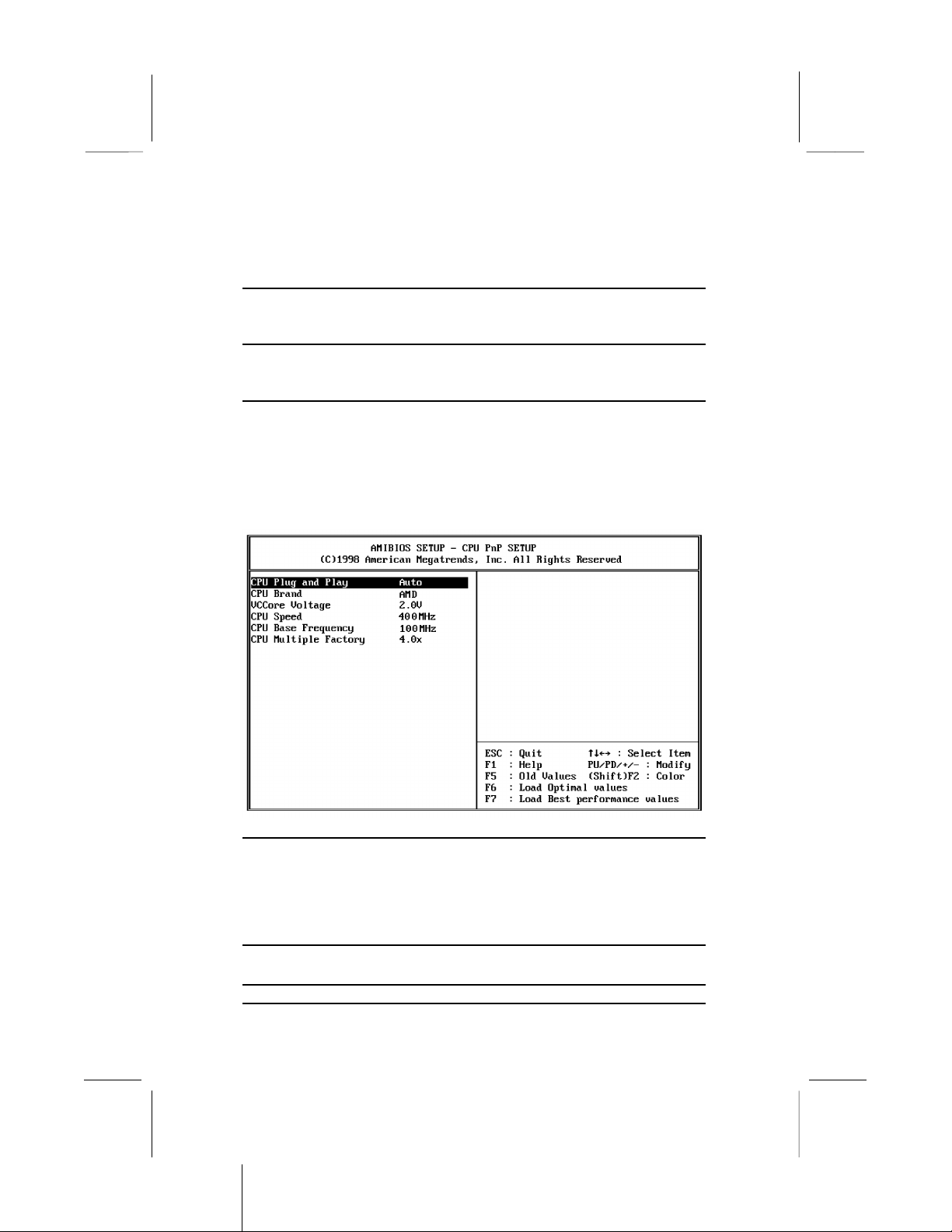

CPU PnP Setup Page........................................................................39

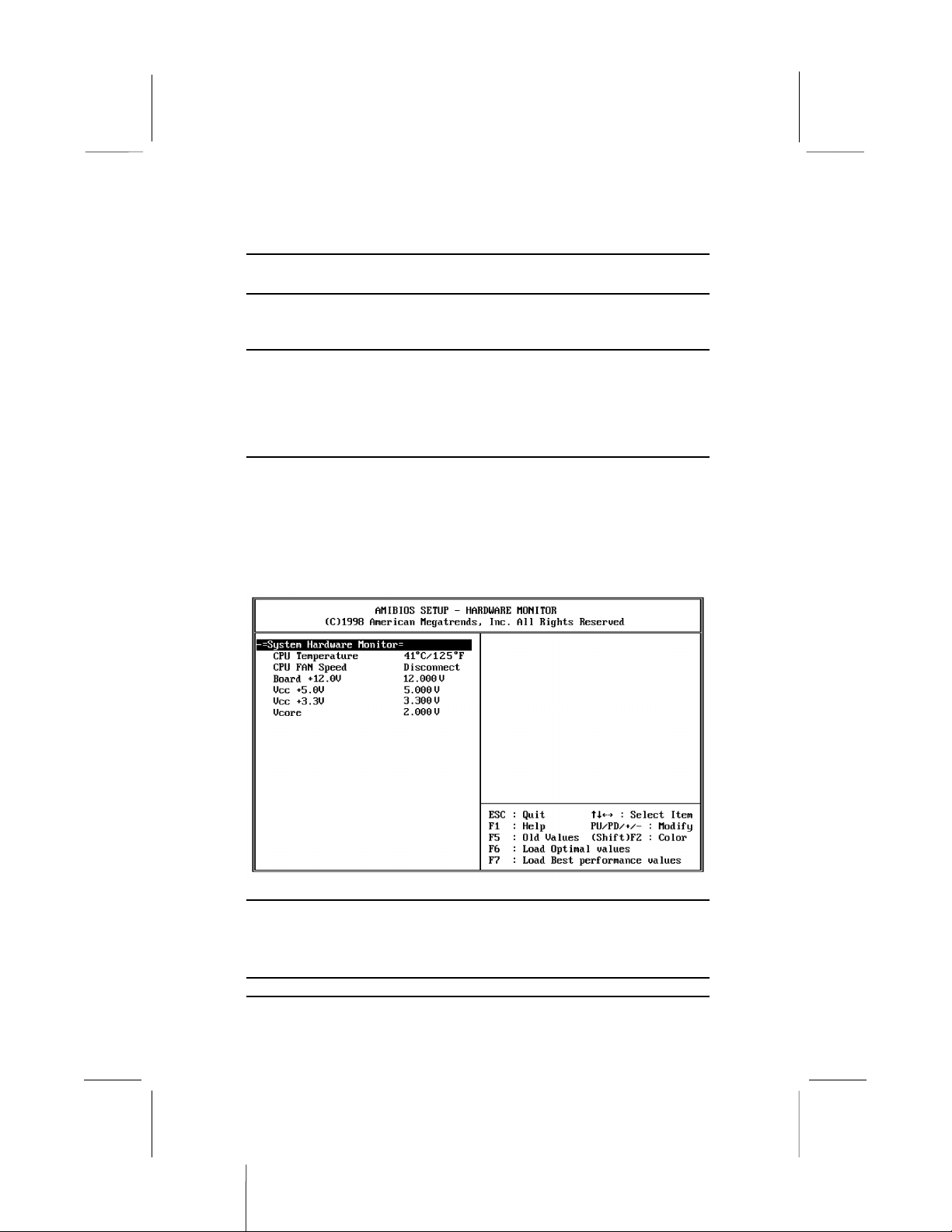

Hardware Monitor Page................................................................... 40

Change Password............................................................................. 41

Change or Remove the Password................................................ 41

Exit................................................................................................... 41

Chapter 4...................................................................................... 42

Software & Applications........................................................... 42

Introduction...................................................................................... 42

Installing the Drivers........................................................................42

Installing Under Windows 95/NT/2000...................................... 42

Bus Master IDE Driver................................................................43

USB Driver.................................................................................. 43

Video Driver................................................................................ 43

Sound Driver................................................................................43

BIOS Update Utility.................................................................... 44

PC-Cillin Software.......................................................................44

LAN Driver..................................................................................44

Modem Driver............................................................................. 44

Media Ring Talk Software...........................................................44

ADCM Software..........................................................................44

Auto-Installing Under Windows 98.............................................44

Page 3

Using the PCI Sound Pro Application............................................. 46

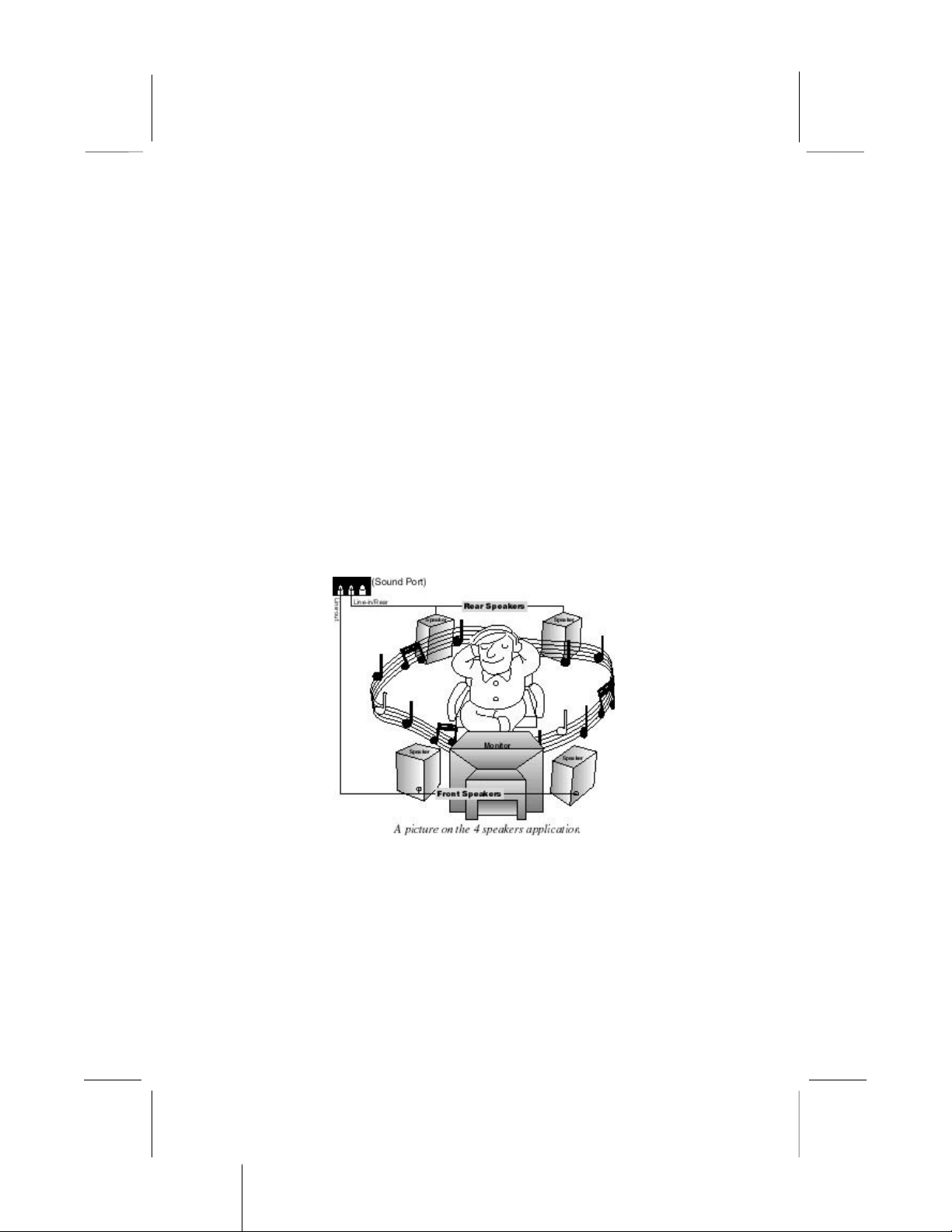

The Four Speakers System...............................................................47

Speaker Installation..................................................................... 47

Speaker Position.......................................................................... 47

Trademarks.......................................................................................48

Federal Communications Commission (FCC)................................. 49

Canadian Department of Communications...................................... 49

Appendix A: Corel WordPerfect Suite 8 .................................... A1

Welcome to Corel WordPerfect Suite 8 .........................................A2

Installing Corel WordPerfect Suite 8 ............................................. A6

Learning how to use Corel WordPerfect Suite 8 ........................... A9

Support and Services ....................................................................A13

Appendix B: Gamut .................................................................... B1

Introduction .................................................................................... B2

Before Installing .............................................................................B3

Installation ......................................................................................B4

Produce MP3 fileUse CD-Cashier ............................................. B5

Play MP3 fileUse Musician ........................................................B7

Play music CDUse 3DFS-ACD ................................................... B8

Play MIDI fileUse Midier .......................................................... B9

Recording audio dataUse Voice-Catcher ................................. B10

Page 4

Chapter 1

Introduction

This mainboard uses the SiS530 chipset to leverage extra performance from the Socket-7 architecture. The mainboard supports all Socket-7 processors including newer designs which feature a 100 MHz system bus. The mainboard firmware supports CPU Plug and Play so that the system will automatically adopt the correct configuration for the Socket-7 processor that you install.

The mainboard is highly integrated and includes a built-in PCI 3D Sound System and a built-in 3D AGP graphics adapter. The sound system supports 24-bit digital audio and a 4-way speaker system. The graphics system supports extended VGA resolutions with an 8MB frame buffer.

Communications and networking are supported with a V.90

Fax/Modem DAA module and a 10BaseT/100BaseTX network adapter. The mainboard supports both AT/ATX power supply. If

you use an ATX supply, it supports all of the ATX power management features including ACPI (Advanced Configuration and Power management Interface), power saving modes and

keyboard power on hot keys.

The mainboard has a full set of I/O ports and three expansion slots. It supports hardware monitoring and ships with trend’s ChipAway Virus virus protection system. The board adheres to

the baby-AT form factor which permits an inexpensive system case and reduced power supply unit.

Page 5

Key Features

This key features of this mainboard include:

Socket-7 Processor Support

♦ Supports all recent socket-7 processors including Intel

P55C (Pentium MMX), Cyrix/IBM 6x86L/6x86MX/M-II, AMD K6/K6-2/K6-III, and IDT C6 and WinChip 2/2A CPUs

♦ Supports socket-7 processors with system bus frequencies

of 60/66/75/83/95/100 MHz

♦ CPU Plug and Play support let the firmware automatically

configure the CPU

♦ 512K/1 MB external Level 2 cache memory is provided

onboard

Memory Support

♦ Three DIMM slots for 3.3V SDRAM 168-pin memory

modules

♦ Support for 66 MHz and 100 MHz memory bus ♦ Maximum installed memory can be 3 x 256 MB = 768 MB

Expansion Slots

♦ Two 32-bit PCI slots ♦ One 8/16-bit ISA slots

Onboard IDE channels

♦ Primary and Secondary PCI IDE channels ♦ Support for PIO (programmable input/output) modes ♦ Support for Bus mastering and UltraDMA 33/66 modes

Power Supply and Power Management

♦ Provides AT/ATX power connector ♦ Support for Power button/Suspend Switch, and Keyboard

Power On/Off (needs Win98 keyboard)

♦ Supports Wake on Modem, Wake on LAN and Wake on

Alarm

Page 6

Built-in Graphics System

♦ Onboard 64-bit 3D AGP Graphics Accelerator ♦ Complies with AGP Ver.1 with 66/133 MHz operation ♦ Shared memory architecture allows a maximum of 8 MB main

memory to act as frame buffer

♦ Supports high resolutions up to 1600 x 1200 pixels

Sound System

♦ Meets PC98 audio specification ♦ Full duplex playback and recording with built-in 16-bit

CODEC

♦ HRTF 3D professional audio supports both Direct Sound

3D® and A3D® compatible interfaces plus support for 4-

channel speakers

♦ Drivers support Windows 3.1/95/98/NT 4.0 ♦ Built-in 32 ohm earphone buffer and 3D surround ♦ Provides MPU-401 Game/MIDI port and legacy Sound

Blaster 16 support

♦ Downloadable Wave-table Synthesizer supports Direct

Music®

♦ Digital Audio Interface with 24-bit stereo, 44KHz

sampling rate and measured 120dB audio quality

♦ Optional optic fibre interface which enables communication

with MiniDisk or high-end audio systems.

♦ Stereo Mixer supports analog mixing from CD-Audio,

Line-In, and digital mixing from voice, FM/Wave-table and digital CD-Audio

Onboard I/O Ports

♦ Floppy disk drive port with 1Mb/s transfer rate ♦ One serial port with 16550-compatible fast UART ♦ One parallel port with support for ECP and EPP ♦ Two USB ports & one PS/2 ports (optional) ♦ One optional infrared port

Hardware Monitoring

♦ Built-in hardware monitoring for CPU temperature and fan

speeds

Page 7

♦ Supports AMI’s Desktop Client Manager (ADCM)

Built-in LAN

♦ Onboard 10BaseT/100BaseTX LAN ♦ LAN controller integrates Fast Ethernet MAC and PHY

compliant with IEEE802.3u 100BASE-TX, 10BASE-T and ANSI X3T12 TP-PMD standards

♦ Compliant with ACPI 1.0 and the Network Device Class

Power Management 1.0

♦ High Performance provided by 100 Mbps clock generator

and data recovery circuit for 100 Mbps receiver

Fax/Modem DAA Module

♦ 56 Kbps Fax/Modem DAA module ♦ Supports V.90, V.34, V.32bis, V.32, V.22bis, V.22 ♦ Supports Auto Fallback and MNP 5, V.42bis data

compression with 115200 compatible Virtual UART

♦ Requires 16 MB RAM and WIN 95/98/NT

Onboard Flash ROM

♦ Provides plug and play function for automatic CPU and

board configuration

♦ Supports plug and play configuration of peripheral devices

and expansion cards

♦ Built-in virus protection using Trend’s ChipAway Virus

which ensures that the entire boot process is virus protected.

Bundled Software

♦ AMI Desktop Client Manager supports hardware

monitoring for a stand-alone systems or a networked workstation

♦ PC-Cillin provides automatic virus protection under

Windows 95/98

♦ Super Voice is Fax/Modem software with support for data

and voice transmission

♦ MediaRing Talk is an internet telephone application ♦ Gamut provides professional audio applications included

MP3 encoding/playback

Page 8

♦ WordPerfect Suite 8 is a windows version office

application

Dimensions

♦ Baby-AT form factor (22cm x 22cm)

Package Contents

Your mainboard package ships with the following items:

 Mainboard  This User’s guide  IDE cable  Floppy diskette drive cable  Audio ports and Game/MIDI port extension bracket  Serial/parallel ports extension bracket  VGA extension bracket  V.90 Fax/Modem DAA module  10BaseT/100BaseTX network adapter extension bracket  Support software CD-ROM

Optional Accessories

You can purchase the following optional accessories for this mainboard.

 Digital Audio extension bracket  ATX Form card (2 USB ports, IR port & PS/2 Port)

Page 9

Static Electricity Precautions

1. Components on this mainboard can be damaged by static electricity. Take the following precautions when unpacking the mainboard and installing it in a system.

2. Keep the mainboard, and other components, in their original static-proof packaging until you are ready to install them.

3. During an installation, wear a grounded wrist strap if possible. If you don’t have a wrist strap, frequently discharge any static electricity by touching the bare metal of the system chassis.

4. Handle the mainboard carefully by the edges. Avoid touching the components unless it is absolutely necessary. During the installation lay the mainboard on top of the static-proof packaging with the component side facing upwards.

5. Inspect the mainboard for any damage caused during transit. Ensure that all the components that are plugged into sockets are correctly seated.

6. If you suspect that the mainboard has been damaged, do not apply power to the system. Contact your mainboard vendor and report the damage.

Page 10

Chapter 2

Mainboard Installation

To install this mainboard into your system, follow the procedures in this chapter:

 Identify the mainboard components  Install the correct processor  Install one or more memory modules  Verify that any jumpers or switches are at the correct setting  Install the mainboard in the system chassis  Install extension brackets/options  Install any other devices and make the appropriate connections

to the mainboard headers.

Note: Before installing the mainboard, you must ensure that jumper JP3 is set to the Normal setting. See this chapter for information on locating JP3 and changing the jumper setting.

Note: Please do not use the AC power cord to connect the system case to a power outlet until you have completely installed the mainboard and components. In some circumstances, the power management of the system might damage components and create unsafe conditions by allowing power to flow before the installation is complete,

Note: The PCI2 slot can only be used if you disable the onboard LAN network using jumper JP6.

Page 11

Mainboard Components

Use the diagram below to identify the major components on your mainboard.

Note: Any jumpers on your mainboard that do not appear in this illustration are for testing only.

Page 12

Install the Processor

This mainboard is installed with a socket-7, and so it may be installed with any of the socket-7 processors including the Intel P55C (MMX) series, the Cyrix/IBM 6x86L/6x86MX/M-II series, the AMD K6/K6-2/K6-III series, and the IDT C6/Winchip 2/2A series. The mainboard supports system bus speeds of 60, 66, 75, 83, 95, 100 MHz.

The board supports CPU plug and play, so it can automatically run the installed processor with the correct clock speed and the correct system bus frequency. To automatically configure the processor, use the BIOS setup program to select the CPU speed and system bus frequency. See chapter three for more information.

To ensure reliability, make sure that your socket-7 processor is fitted with a heatsink/cooling fan assembly.

The socket-7 processor installs into the ZIF (Zero Insertion Force) socket-7 on the mainboard.

1. Locate the socket-7 and FAN1. Pull the locking lever out from the socket and swing it to the upright position.

FAN1

Pin-1 Corner

Socket-7

2. On the socket-7 processor, identify the pin-1 corner by noting that it has a slight bevel.

Page 13

3. On the socket-7, identify the pin-1 corner. The pin-1 corner is on the same side as the locking lever, closest to the top of the lever when it is in the locked position.

4. Match the pin-1 corners and insert the socket-7 processor into the socket. No force is required and the processor should drop into place freely.

5. Swing the locking lever down and hook it under the catch on the side of the socket. This locks the socket-7 processor in the socket.

6. If the socket-7 processor is installed with a cooling fan assembly, connect the cable from the fan to the CPU fan power connector FAN1.

Install Memory

The mainboard has three DIMM slots that can be installed with memory modules. You must install at least one memory module in order to use the mainboard. You must install the first memory module into DIMM1 so that the system can share some of the memory with the built-in graphics system. A second module can be installed in either DIMM2 or DIMM3.

For this mainboard, you must use 168-pin, 3.3V memory modules installed with SDRAM memory chips. For best performance, we recommend that you use PC-100 memory modules which operate over a 100 MHz memory bus.

Page 14

You can install any size of memory module from 16 MB up to 256 MB, so the maximum memory size is 3 x 256 MB = 768 MB.

The edge connectors on the memory modules have cut outs, which coincide with struts in the DIMM slots, so the memory modules can only be installed in the correct way.

On the DIMM slot, pull the locking latches at either end of the slots outwards. Position the memory module correctly and insert it into the DIMM slot. Press the module down into the slot so that the locking latches lever inwards and lock the module in place.

Set the Jumpers

Jumpers are sets of pins which can be connected together with jumper caps. The jumper caps change the way the mainboard operates by changing the electronic circuits on the mainboard. If a jumper cap connects two pins, we say the pins are SHORT. If a jumper cap is removed from two pins, the pins are OPEN.

JP3

JP2

JP10

JP8

JP6

Jumper JP3: Clear CMOS Memory

Use this jumper to clear the contents of the CMOS memory. You may need to clear the CMOS memory if the settings in the setup utility are incorrect and prevent your mainboard from operating. To clear the CMOS memory, disconnect all the power cables from the mainboard and then move the jumper cap into the CLEAR setting for a few seconds.

Page 15

Function Jumper Setting

Normal Operation Short Pins 1-2 Clear CMOS memory Short Pins 2-3

Note: The mainboard ships with this jumper in the CLEAR position so you must change this jumper to NORMAL.

Jumper JP2: Keyboard Power On Selector

If you are using an ATX power supply unit, you can use hot keys on your keyboard as a power on/off switch for the system. Use this jumper to turn this feature on or off.

Note: Make sure that the system can provide 1A on +5VSB (+5V Standby) signal before using the Keyboard Power On function.

Function Jumper Setting

Disable Keyboard Power On Short Pins 1-2 Enable Keyboard Power On Short Pins 2-3

Jumper JP6: LAN Enable/disable Selector

This mainboard has a built-in 10BaseT/100BaseTX network adapter. If you plan on using an alternative network adapter, you must use this jumper to disable the onboard network adapter.

Function Jumper Setting

Enable onboard LAN Short Pins 1-2 Disable onboard LAN Short Pins 2-3

Jumper JP8: Audio System Enable/disable

Use this jumper to enable or disable the audio system integrated on this mainboard. Disable the built-in audio if you plan on using another audio system on an expansion card.

Function Jumper Setting

Enable Audio Open Pins 1-2 Disable Audio Short Pins 1-2

Note: If you disable the onboard audio system, you cannot use the onboard Fax/Modem.

Page 16

Jumper JP10: Fax/Modem Enable/disable

Use this jumper to enable or disable the onboard Fax/Modem. Disable the Fax/Modem if you plan on using another Fax/Modem.

Function Jumper Setting

Enable Fax/Modem Short Pins 2-3 Disable Fax/Modem Short Pins 1-2

Note: If you have disabled the onboard audio system with jumper JP8, the Fax/Modem will not function even if it is enabled.

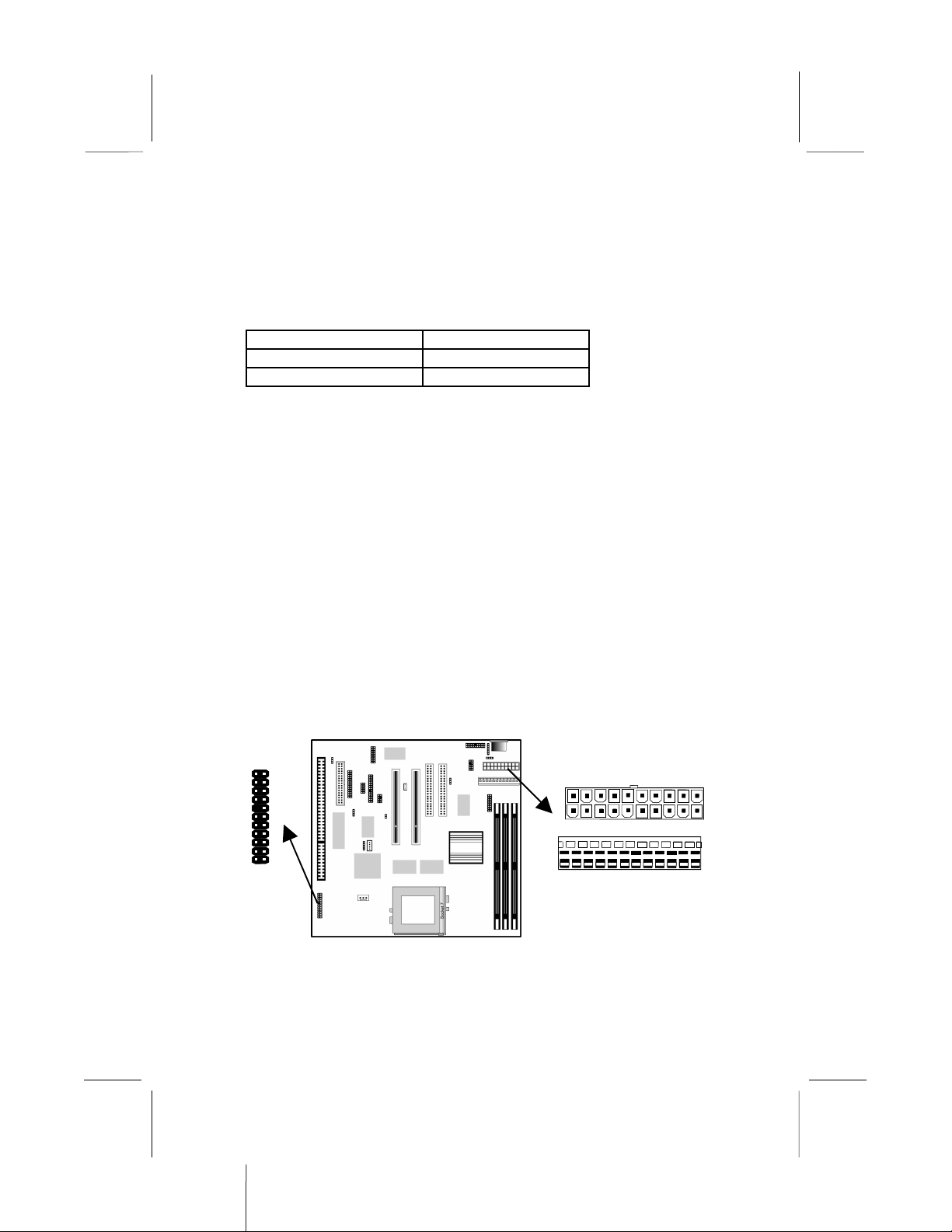

Install the Mainboard

Install the mainboard into the system chassis. This mainboard uses the baby-AT format. In addition the mainboard can operate using an AT power supply unit or an ATX power supply unit. This means that you have a wide choice of cases that can be used by this mainboard.

Install the mainboard into the unit case. Follow the instructions provided by the case manufacturer using the screws and mounting points provided in the chassis.

ATX-PWR2

AT-PWR1

Connect the power cable from the power supply unit to the power connector on the mainboard. If you are using an AT power unit,

Page 17

connect it to the AT power connector PWR1. If you are using an ATX power unit connect it to the ATX power connector PWR2. Connect the case switches and indicator LEDs to the bank of switch and LED connectors J2. See the illustration below for a guide to the pin functions of the J2 connector.

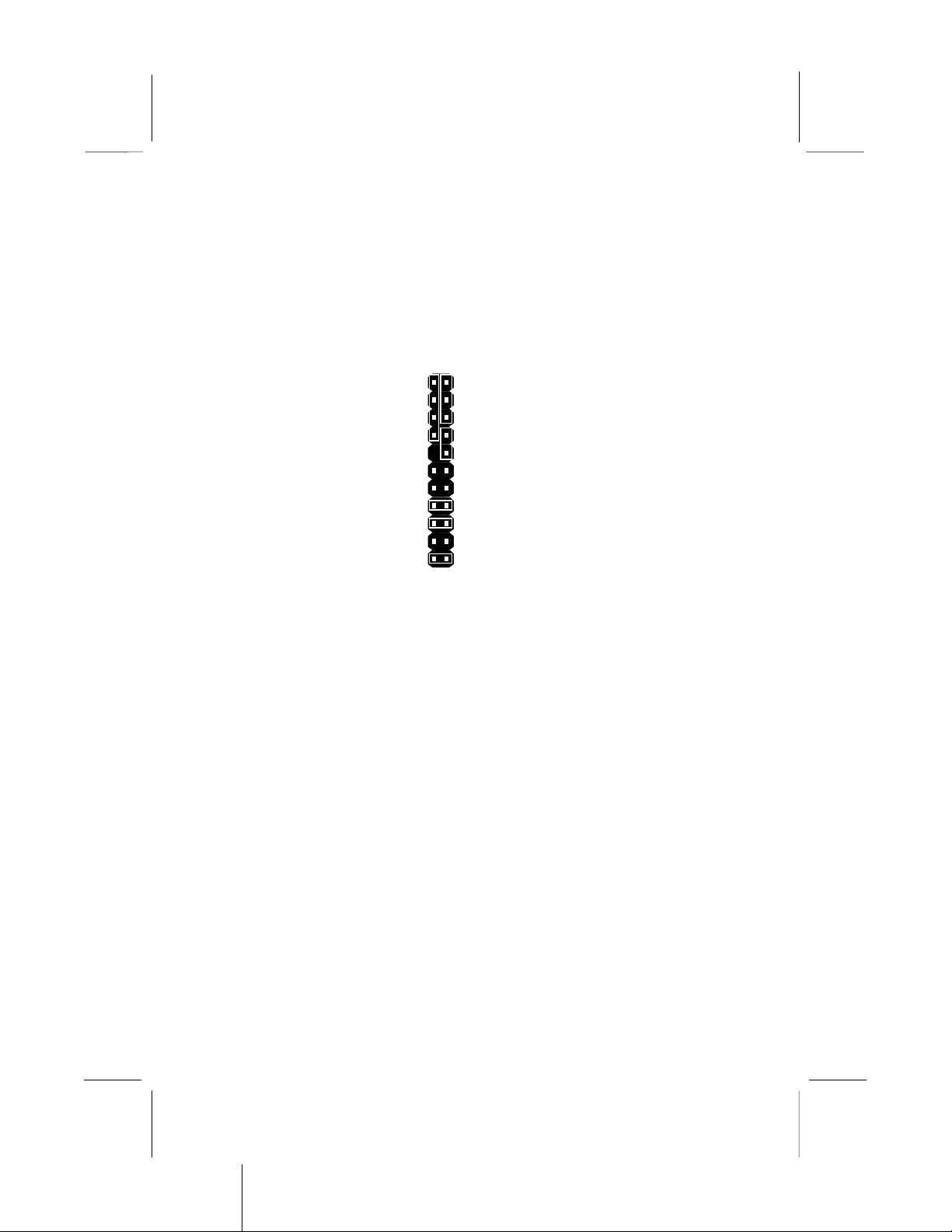

1 2

Speaker Pins 1-3-5-7

Reset Switch Pins 17-18

Power LED Pins 2-4-6

Keylock Pins 8-10

HDD LED Pins 15-16

Power Switch Pins 21-22

21 22

Page 18

Install the Extension Brackets/Options

Stereo Line-out /Speaker channels 1-2

The modules and extension brackets are used to transmit features on the mainboard to external connectors that can be fixed to the system chassis. Follow the steps below to install the extension brackets.

Note: All the ribbon cables used on the extension brackets carry a red stripe on the pin-1 side of the cable.

Audio Ports and Game/MIDI Port Extension Bracket

This bracket provides three audio jacks for stereo line in, stereo line out and microphone. In addition it has a 15-pin D-connector which can be used by either a joystick or a MIDI device. If you are using a four channel speaker system, channel one and two are output through the Stereo Line-out, and the rear speaker channels three and four are output through Stereo Line-in.

J6-Audio Header

Stereo Line-in /Rear speaker channels 3-4

Microphone

Game/MIDI

Audio Ports & Game/MIDI Extension Bracket

1. On the mainboard, locate the J6 audio header for this bracket.

2. Plug the cable from the bracket into the J6 audio header.

3. In the system chassis, remove a blanking plate from one of the expansion slots and install the extension bracket in the slot. Use the screw that held the blanking plate in place to secure the extension bracket.

Page 19

Serial/Parallel Ports Extension Bracket

This bracket has one serial port - COM1 (9-pins) and one parallel port – LPT1 (25pins).

COM1 Header

PRN1- Parallel Port Header

Serial Port COM1

Parallel Port

Serial/Parallel Ports Extension Bracket

LPT1

1. On the mainboard, locate the headers COM1 and PRN1 for this bracket.

2. Plug the serial cable into COM1 and the parallel cable into PRN1.

Page 20

VGA Extension Bracket

The VGA extension bracket has a 15-pin connector for an external monitor cable.

VGA1-VGA Header

VGA Extension Bracket

1. On the mainboard, locate the VGA1 header for this bracket.

2. Plug the cable from the bracket into the VGA1 header.

Page 21

LAN Network Adapter Extension Bracket

This bracket supports an RJ45 network connector and connects to the built in LAN header LAN1 on the mainboard.

LAN1 LAN Header

LAN Extension Bracket

1. On the mainboard, locate the LAN1 LAN header for this bracket.

2. Plug the cable from the bracket into LAN1.

Page 22

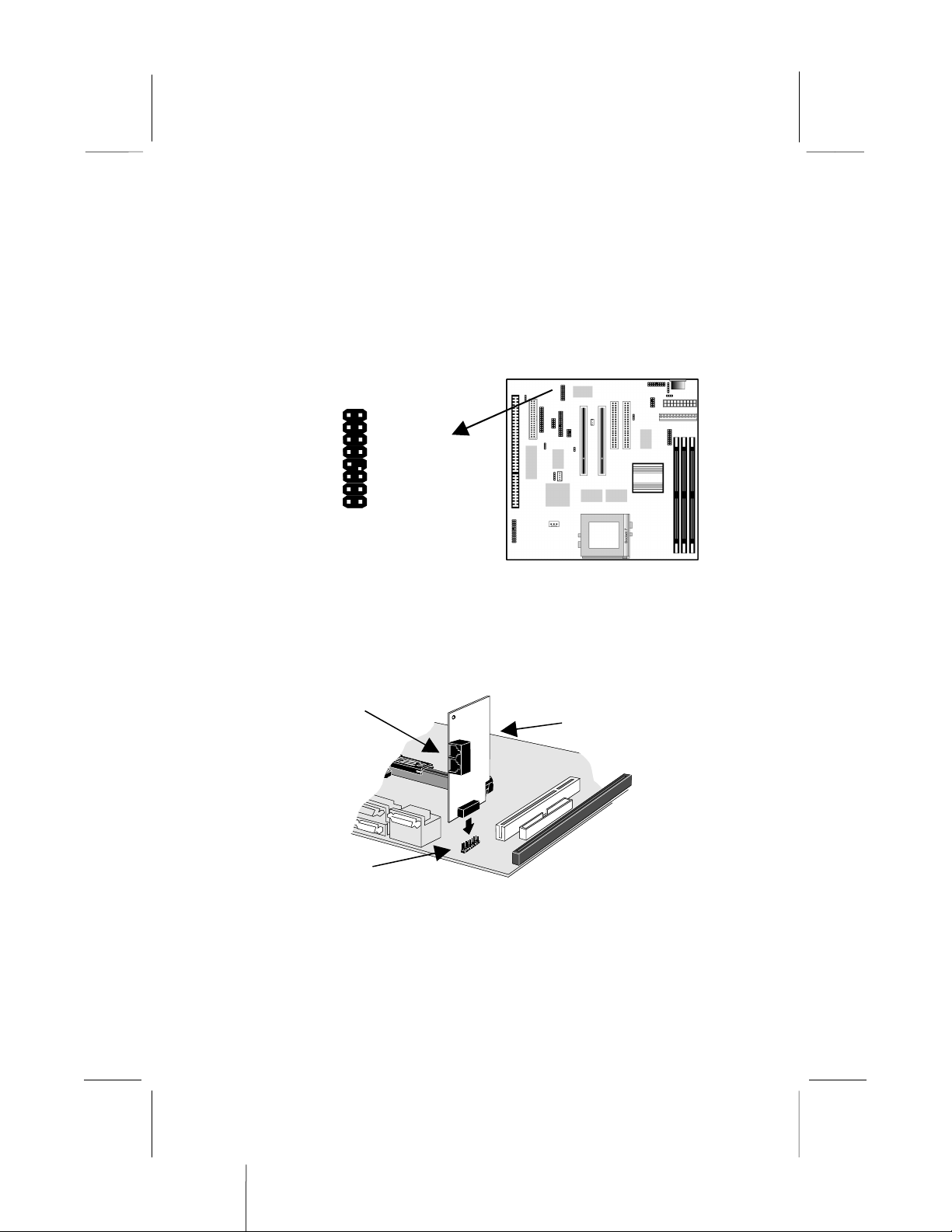

Fax/Modem DAA Module

The Fax/Modem DAA module plugs directly into the mainboard adjacent to an expansion slot in the system chassis. When you remove the blanking plate from the system chassis, you can access the LINE and TEL RJ11 connectors on the metal edge of the Fax/Modem DAA module.

J7-MODEM Header

GND 1 GND

3 GND 5

AUX 3V 7

HOOK 9

RIN 11 AUX

5V 13

MUTE 15

2 MCLK 4 FRA-SY 6 SCLK 8 RINWAK 10 GPIO 12 SDO 14 SDI 16 RST

1. Locate the J7 modem header on the mainboard.

2. Plug the Fax/Modem DAA module into the J7 modem header.

3. Remove the blanking plate adjacent to the Fax/Modem DAA module.

Line & Tel RJ11 Sockets

Modem Header

Modem DAA Module

Page 23

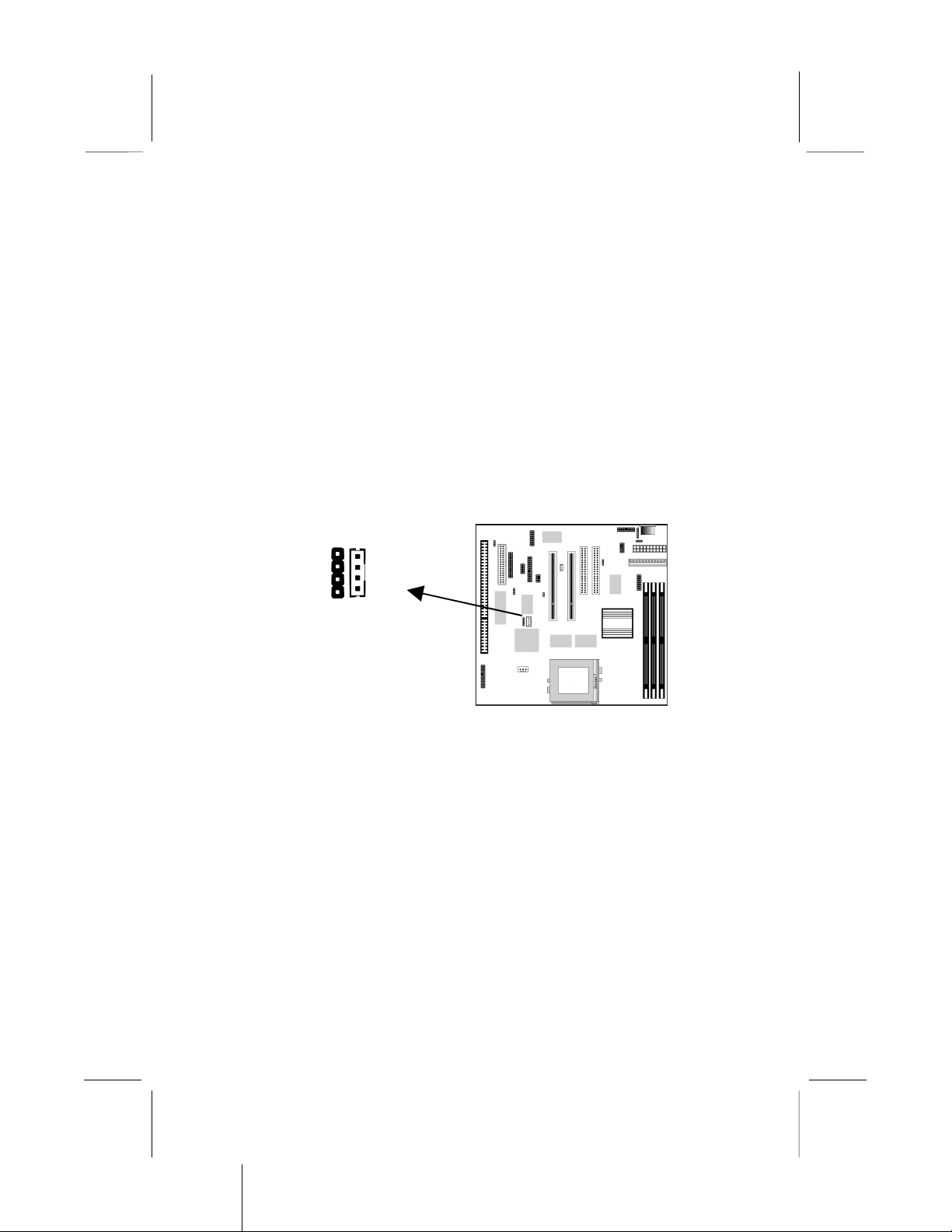

Optional Digital Audio Extension Bracket

This bracket has two RCA jacks for digital audio in and digital audio out, and an auxiliary jack for a stereo line-in device. It also provides a pair of optic fiber interface which enables the communication with MiniDisk or high-end audio systems.

Aux In(L) 1

SPDIF/In 5

SPDIF/Out 7

SPDIF Out

Optic Out

Optic In

SPDIF In

Aux In

+12V 3

2 Aux In(R) 6 GND 8 GND

J11 SPDIF Header

Digital Audio Extension Bracket

1. On the mainboard, locate the J11 SPDIF header for this bracket.

2. Plug the cable from the bracket into J11.

Internal Digital Audio

If you have the optional internal digital audio cable, you can use it to connect the digital audio output connector of a CD-ROM or DVD drive to the pins 5-6 of J11.

Page 24

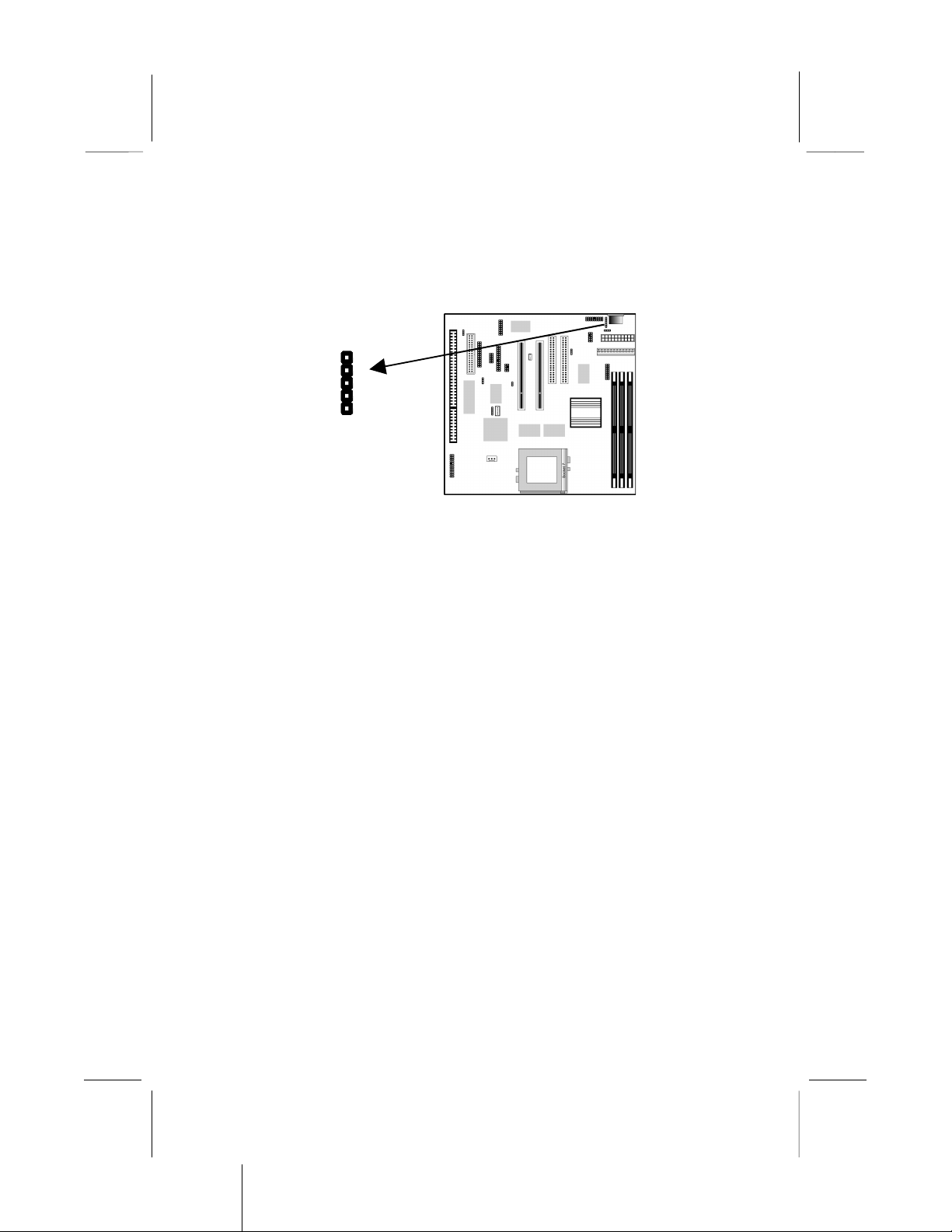

Optional ATX Form Card

This ATX Form card provides a mini-DIN port for infrared, one mini-DIN port for a PS/2 mouse. In addition it has two USB (Universal Serial Bus) ports.

J1-ATX Header

Infrared Port

PS/2 Mouse Port

USB Ports

ATX Form Card

1. On the mainboard, locate the J1 ATX header for this bracket.

2. Plug the cable from the bracket into the J1 ATX header.

Page 25

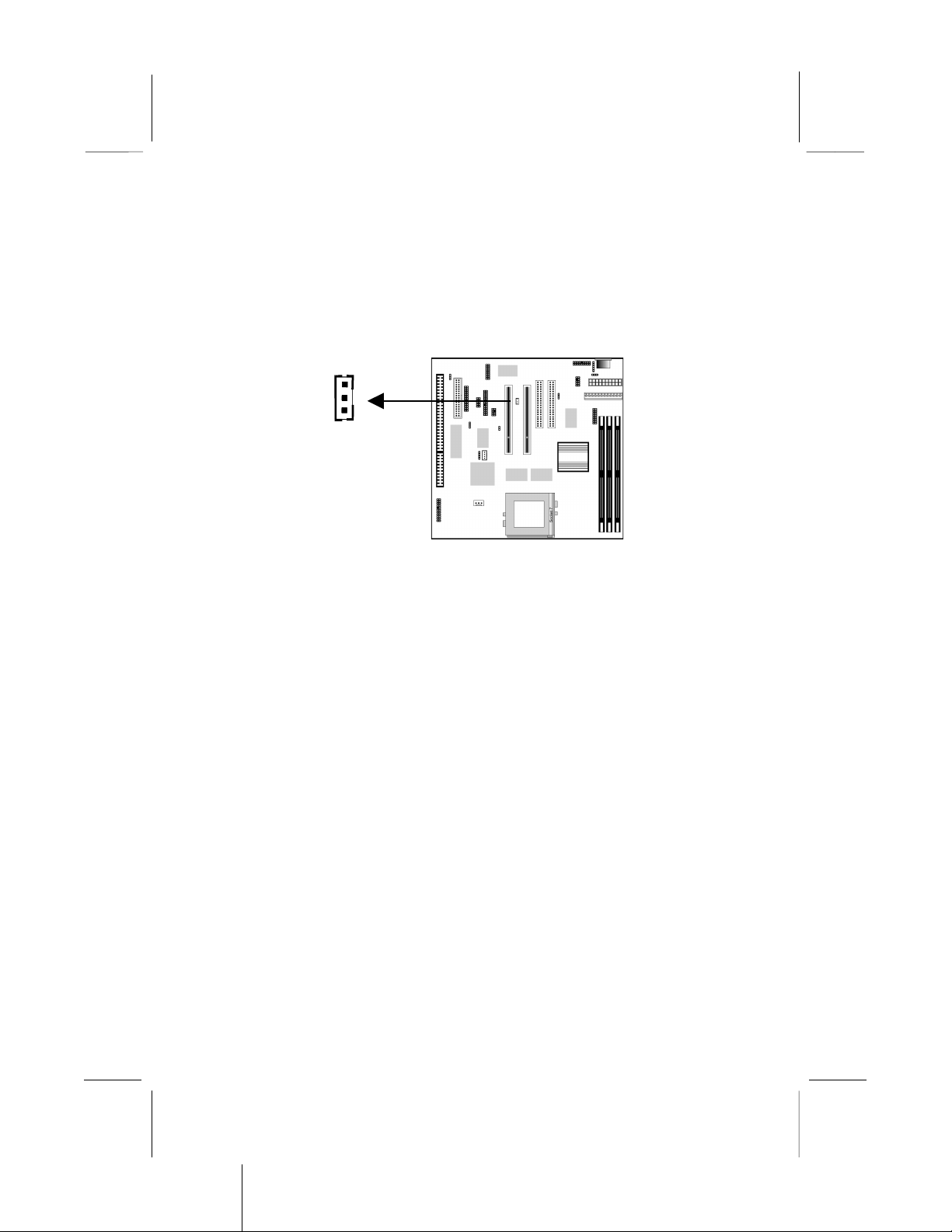

Optional Infrared Port

The mainboard has an infrared header IR1 so that you can install an optional serial infrared port.

IR1 Infrared Header

1. On the mainboard locate the infrared port header IR1.

2. Connect the ribbon cable from the port to the header IR1 and then secure the port to an appropriate place in your system chassis.

Page 26

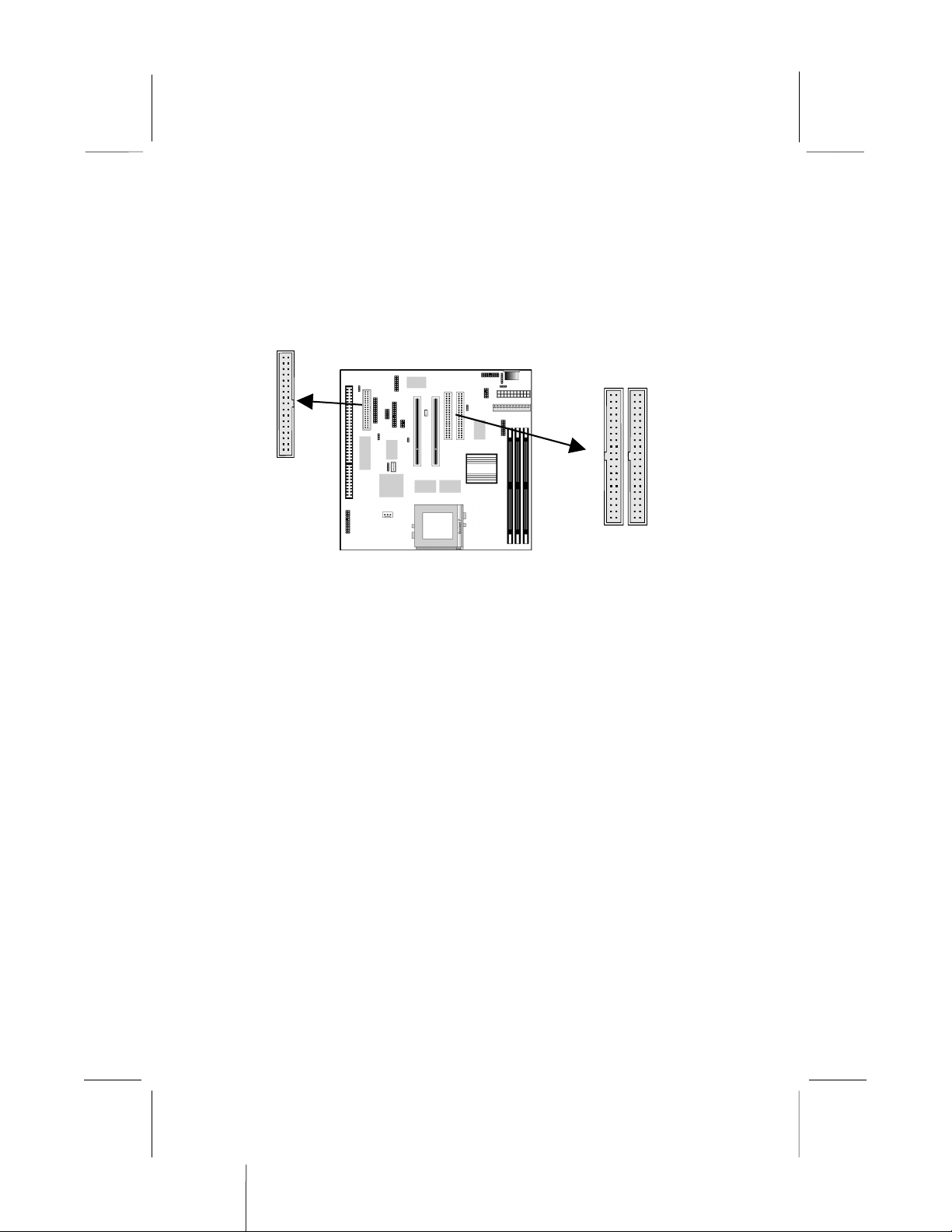

Install Other Devices

Install and connect any other devices in the system following the steps below.

FDD1

IDE2IDE1

Floppy Disk Drive

The mainboard ships with a floppy disk drive cable that can support one or two drives. Drives can be 3.5” or 5.25” wide, with capacities of 360K, 720K, 1.2MB, 1.44MB, or 2.88MB.

Install your drives and supply power from the system power unit. Use the cable provided to connect the drives to the floppy disk drive header FDD1.

IDE Devices

IDE devices include hard disk drives, high-density diskette drives, and CD-ROM/DVD drives.

The mainboard ships with an IDE cable that can support one or two IDE devices. If you connect two devices to a single cable, you must configure one of the drives as Master and one of the drives as Slave. The documentation of the IDE device will tell you how to configure for Master or Slave.

Install the device(s) and supply power from the system power unit. Use the cable provided to connect the device(s) to the Primary IDE channel connector IDE1 on the mainboard.

Page 27

If you want to install more IDE devices, you can purchase a second IDE cable and connect one or two devices to the Secondary IDE channel connector IDE on the mainboard. If you have two devices on the cable, one must be Master and one must be Slave.

Internal Analog Sound Connections

If you have installed a CD-ROM drive or a DVD drive, you can connect the sound output of the drive to the built-in sound system.

On the mainboard, locate the two 4-pin connectors for J4 and J5. There are two kinds of connector because different brands of CDROM drive have different kinds of cable connectors on their audio output cable. Connect the cable to the appropriate connector.

J5 J4

Page 28

Expansion Slots

This mainboard has two PCI 32-bit expansion slots and one 8/16bit ISA slot.

PCI1

ISA1

PCI2

Use the PCI slots to install 32-bit PCI expansion cards. Use the ISA slot to install legacy 8/16-bit expansion cards.

Note: The PCI2 slot can only be used if you disable the onboard LAN network using jumper JP6.

Installing an Expansion Card

1. Locate the PCI or ISA slot on the mainboard.

2. Remove the blanking plate from the appropriate expansion slot on the system chassis.

3. Install the edge connector of the expansion card into the slot and press it quite firmly down so that it is seated correctly.

4. Secure the bracket of the expansion card into the expansion slot in the system chassis using the screw that held the blanking plate in place.

Page 29

Wake On LAN Connector

If you have installed a network adapter card, connect the adapter to the wake on LAN connector J8. You can then use the setup utility to program your computer to resume from a power saving mode whenever there is traffic through the network.

Page 30

Chapter 3

BIOS Setup

Introduction

The BIOS setup utility stores information about your computer such as the date and time, the kind of hardware you have installed, and so on. Your computer uses this information to initialize all the components at boot up time, and make sure that everything runs smoothly.

If the information in the setup utility is incorrect, it may cause your system to malfunction. It can even stop your computer from booting properly. If this happens, you can use the clear CMOS jumper to clear the CMOS memory area that is used to store the setup information, or you can hold down the End key while you reboot your computer, Holding down the End key also clears the setup information.

You can run the setup utility and manually make changes to the setup utility. You might need to do this to configure some of the hardware that you add to the mainboard, such as the CPU, the memory, disk drive, etc.

Page 31

Running the Setup Utility

Each time your computer starts, before the operating system is booted, a message appears on the screen that prompts “Hit <DEL> if you want to run SETUP”. When you see this message, press the Delete key and the Mainmenu page of the setup utility appears on your monitor.

You can use the cursor arrow keys to highlight any of the options on the Mainmenu page. Press Enter to select the highlighted option. To leave the setup utility, press the Escape key. Hold down the Shift key and press F2 to cycle through the optional color schemes of the setup utility.

Some of the options on the Mainmenu page lead to tables of items with installed values. In these pages, use the cursor arrow keys to highlight the items, and then use the PgUp and PgDn keys to cycle through the alternate values for each of the items. Other options on the Mainmenu page lead to dialog boxes which require you to answer Yes or No by hitting the Y or N keys.

If you have already made changes to the setup utility, press F10 to save those changes and exit the utility. Press F5 to reset the changes to the original values. Press F6 to install the setup utility

Page 32

with a set of default values. Press F7 to install the setup utility with a set of best-performance values.

Standard CMOS Setup Page

Use this page to set basic information such as the date and time, the IDE devices, and the diskette drives. If you press the F3 key, the system will automatically detect and configure the hard disks on the IDE channels.

Date & Time

Pri Master Pri Slave Sec Master Sec Slave

Floppy Drive A Floppy Drive B

Use these items to install your system with the correct date and time

Use these items to configure devices on the primary and secondary IDE channels. To configure a hard disk drive, choose Auto. If the

Auto setting fails to find a hard disk drive, set it to User, and then fill in the hard disk characteristics

(Size, Cyls, etc.) manually. If you have a CDROM drive, select the setting CDROM. If you have an ATAPI device with removable media (e.g. a ZIP drive or an LS-120) select ARMD. Use these items to set the size and capacity of the floppy diskette drive(s) installed in the system.

Page 33

Advanced Setup Page

Use this page to set more advanced information about your system. Take some care with this page. Making changes can affect the operation of your computer.

Trend ChipAway Virus

Share Memory Size

1st Boot Device 2nd Boot Device

Try Other Boot Devices

S.M.A.R.T. for Hard Disks

BootUp NumLock

This mainboard has built-in virus protection in the firmware. Use this item to enable or disable the built-in virus protection.

This item lets you allocate a portion of the main memory for use by the onboard VGA system. Leave this at the default value 8 MB

Use these two items to determine the order and priority that your computer follows to load an operating system at start-up time.

If you enable this item, the system will also search for other boot devices if it fails to find an operating system from the first two locations.

Enable this item if your hard disk(s) supports SMART (Self-Monitoring, Analysis and Reporting Technology).

This items determines if the Num Lock key is active or inactive at system start-up time.

Page 34

Floppy Drive Swap

Floppy Drive Seek

Password Check

Boot to OS/2 Over 64MB

Internal Cache

External Cache

System BIOS Cacheable

Video 32K Shadow

Refresh Queue Depth

Graphic Win Size

CAS Latency

If you have two diskette drives installed and you enable this item, drive A becomes drive B and drive B becomes drive A.

If you enable this item, your system will check the diskette drives at start up time. Disable this item unless you are using an old 360K diskette drive.

If you have installed a password on your system, use this item to determine if the password is required to enter the setup utility (Setup) or required at start-up time and to enter the setup utility (Always).

Enable this item if you are booting the OS/2 operating system and you have more than 64MB of memory installed.

Leave this item enabled since all the processors that can be installed on this board have internal cache memory.

Leave this item enabled since this mainboard is installed with external cache memory.

If you enable this item, a segment of the system BIOS will be cached to main memory for faster execution.

When this item is enabled, 32 kilobytes of the system video BIOS is copied to system memory from where it can execute more rapidly.

This item determines the operation of the memory refresh timing. We recommend that you leave this item at the default value.

This item determines the operation of the onboard graphics adapter. We recommend that you leave this item at the default value.

This item determines the operation of the main memory CAS (column address strobe). We recommend that you leave this item at the default value.

Page 35

Power Management Setup Page

This page sets some of the parameters for the system power management operation.

Power Management/APM

Standby Time Out (Minute)

Suspend Time Out (Minute)

Keyboard Power On

Lan Card Power On

Use this item to enable or disable the power management routines. If you enable the power management, you can use the items below to set the power management operation.

This sets the timeout for standby mode in minutes. If the time selected passes without any system activity, the computer will enter the power-saving standby mode.

This sets the timeout for suspend mode in minutes. If the time selected passes without any system activity, the computer will enter the power-saving suspend mode.

Your system can enter a software power down. If you enable this item, you can resume the system by pressing hot keys on the keyboard.

You must enable the jumper for Keyboard Power On.

Your system can enter a software power down. If you enable this item, the system can automatically resume if there is traffic on the network adapter.

Page 36

Ring On Power On

RTC Alarm Power On

Your system can enter a software power down. If you enable this item, the system can automatically resume if there is an incoming call on the built-in Fax/Modem.

Your system can enter a software power down. If you enable this item, the system can automatically resume at a fixed time on the system’s RTC (realtime clock). Use the items below to set the date and time of the wake-up alarm.

PCI / Plug and Play Setup Page

This page sets some of the parameters for devices installed on the system PCI bus, and devices that use the system plug and play capability.

Plug and Play Aware O/S

Primary Graphics Adapter

Enable this item if you are using an O/S that supports Plug and Play such as Windows 95 or

98.

Use this item to define if your primary graphics adapter is installed in a PCI slot or on an AGP bus.

Page 37

PCI VGA Palette Snoop

Assign IRQ for VGA

DMA Reserved for ISA

IRQ Reserved for ISA

Reserved Memory Size

Reserved Memory Address

When this item is enabled, multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device.

If this item is enabled, an IRQ will be assigned to the PCI VGA graphics system. We recommend that you set this value to No.

If you set it to a DMA, the channel will be reserved for an installed non-PnP ISA or EISA expansion card.

If you set it to an IRQ, the IRQ line will be reserved for an installed non-PnP ISA or EISA expansion card.

This item lets you reserve a block of memory for any device that requires it.

This item lets you set the address for any block of memory that has been reserved.

Load Optimal Settings

If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the setup utility is loaded with a set of optimal default values. The optimal default values are not very demanding and they should allow your system to function with most kinds of hardware and memory chips.

Load Best Performance Settings

If you select this item and press Enter a dialog box appears. If you press Y, and then Enter, the setup utility is loaded with a set of best-performance default values. The optimal default values are quite demanding and your system might not function properly if you are using slower memory chips or other kinds of lowperformance components.

Page 38

Features Setup Page

This page sets some of the parameters for peripheral devices installed on the system.

Onboard FDC

Onboard Serial Port1

Onboard IR Port

IR Duplex

Onboard Parallel Port

Parallel Port Mode

Parallel Port IRQ

Parallel Port DMA

Use this item to enable or disable the onboard floppy disk drive interface.

Use this item to enable or disable the onboard serial port COM1, and to assign a port address

Use this item to define the protocol for an infrared port if you have installed an optional IR port.

Use this item to define if the optional infrared port is full-duplex or half-duplex.

Use this item to enable or disable the onboard parallel port LPT1, and to assign a port address

Use this item to determine the parallel port mode. You can select Normal, ECP (Extended Capabilities Port), EPP (Enhanced Parallel Port), or ECP + EPP.

Use this item to assign an IRQ to the parallel port.

Use this item to assign a DMA channel to the parallel port.

Page 39

Onboard PCI IDE

USB Function

USB Function for DOS

Use this item to enable or disable either of the two onboard IDE channels, Primary or Secondary.

Use this item to enable or disable the USB (Universal Bus Ports) that are integrated on this mainboard.

If you have enabled the USB function, use this item to enable or disable USB when you are working in the DOS environment.

CPU PnP Setup Page

This page lets you configure the mainboard for the kind of CPU that you have installed.

CPU Plug and Play

CPU Brand

VCCore Voltage

If you set this item to Auto, the system will automatically detect the kind of CPU you have installed and configure the mainboard for it. If you set this item to User Define, you can use the following items to manually configure the mainboard.

Use this item to set define the Brand of CPU that you have installed in the system.

Use this item to define the core voltage of the

Page 40

processor that you have installed.

CPU Speed

CPU Base Frequency

CPU Multiple Factory

Use this item to define the clock speed of the processor that you have installed.

Use this item to define the system bus frequency that is supported by the processor that you have installed.

Use this item to set a multiplier for the system bus frequency. The multiplier x the system bus frequency must equal the internal clock speed of your CPU, e.g. 100 MHz (system bus) x 3.5 (muliplier) = 350 MHz (internal clock speed of installed CPU).

Hardware Monitor Page

This page sets some of the parameters for the hardware monitoring function of this mainboard.

CPU Temperature

CPU FAN Speed &

Use this item to set the threshold temperature for the CPU. The system will alert you if this temperature is exceeded.

Use these items to set the parameters for the

Page 41

VCCs

voltages that control the fans and the CPU core. If the values deviate by an amount greater than the values installed here, the hardware monitoring will alert you with a warning.

Change Password

If you highlight this item and press Enter, a dialog box appears which lets you enter a Supervisor password. You can enter no more than six letters or numbers. Press Enter after you have typed in the password. A second dialog box asks you to retype the password for confirmation. Press Enter after you have retyped it correctly. The password is required at boot time, or when the user enters the setup utility.

Change or Remove the Password

Highlight this item and type in the current password. At the next dialog box, type in the new password, or just press Enter to disable password protection.

Exit

Highlight this item and press Enter to save the changes that you have made in the setup utility and exit the setup program. When the Save and Exit dialog box appears, press Y to save and exit, or press N to exit without saving.

Page 42

Chapter 4

Software & Applications

Introduction

The support software CD-ROM included in the mainboard package contains all the drivers and utilities as needed to use our products. Below you can find a brief description of each software program, and the right location for your mainboard. More information on each individual software might be available in a README file, located in the same directory as the software.

If the operating system used in your system is Windows 98, it will automatically install all the drivers and utilities for your board. See the Auto-Installing Under Windows 98 section.

Installing the Drivers

The software on the support CD-ROM is for Windows 95/NT/2000 and Windows 98, but the automatic installation is now for Win98 only. If your operating system is not Windows 98, you have to manually install for your drivers.

Installing Under Windows 95/NT/2000

1. In order to run the software put the support software CD-ROM in the CD-ROM drive.

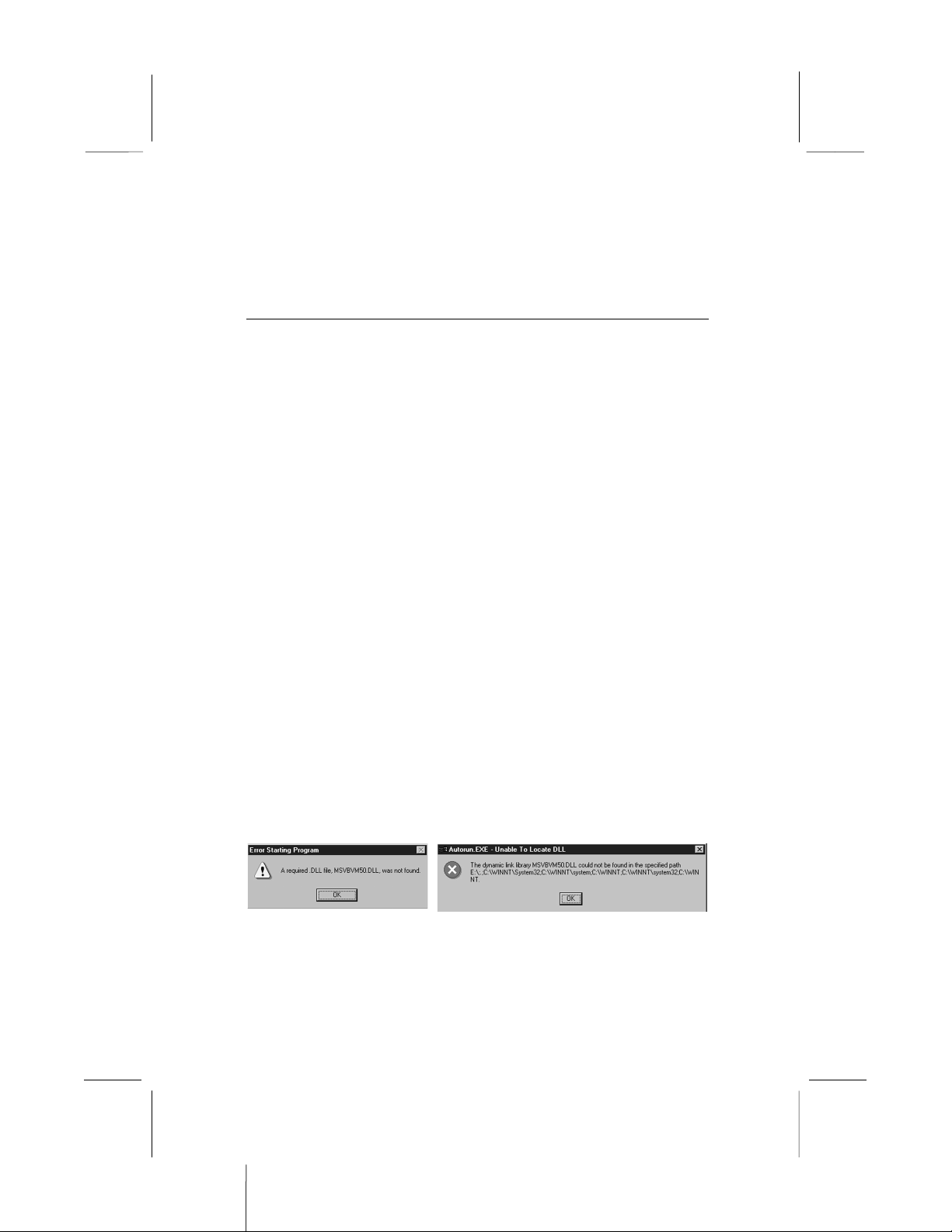

2. If your operating system is Windows 95/NT, the system might get an error message as one of two pictures below from the PnP function.

Don’t care the message, and click the OK button to exit. You don’t really need the file to install the drivers. If your operating system is Windows 2000, exit the Auto Set Up window and go on.

Page 43

3. Use either My Computer or Windows Explorer to look at the directory structure. You must use the Open command. Doubleclicking on the drive icon will not work.

4. Execute the EXE file name given in the description below.

Note: The correct path name for each software driver is provided, where D: identifies the CD-ROM drive letter – modify if necessary.

Bus Master IDE Driver

The IDE Bus Master Drivers allows the system to properly manage the IDE channels on the mainboard.

♦ Windows 9x – D:\IDE\SiS530\WIN9X\SETUP.EXE ♦ Windows NT4.0 – D:\IDE\SiS530\NT

USB Driver

The USB Driver allows the system to recognize the USB ports on the mainboard. You need to install this driver if you are running Windows 95. This driver is available for:

♦ Win95 – D:\USB\EUSBSUPP\USBSUPP.EXE ♦ Win95 (Chinese) – D:\USB\CUSBSUPP\CUSBSUPP.EXE

Video Driver

The video drivers are available for Windows 95/98 and Windows NT. Look for the folders in:

♦ D:\VGA\SiS530

Sound Driver

The Sound driver allows the system to generate optimal sound effects. This driver is available for:

♦ DOS & Win3.x – D:\SOUND\Driver\DOSDrv\ ♦ Windows 9x – D:\SOUND\Driver\W95-98\Drv ♦ Windows NT – D:\SOUND\Driver\NT40\Drv

There is also an Audio application program available for:

♦ Windows 9x – D:\SOUND\Gamut\Audio Player

Page 44

BIOS Update Utility

The BIOS Update utility allows you to update the BIOS setup file on your mainboard to a newer version. You can download the latest version of the BIOS setup available for your mainboard from the website.

♦ D:\UTILITY\AMIFL816.EXE

PC-Cillin Software

The PC-Cillin software program provides anti-virus protection for your system. This program is available for:

♦ DOS – D:\PC-CILLIN\DOS\PCSCAN.EXE ♦ Windows 9x – D:\PC-CILLIN\WIN98\SETUP.EXE

LAN Driver

The LAN driver is required by the onboard LAN adapter.

♦ D:\LAN\Davicom9102

Modem Driver

The Modem driver is required by the onboard modem module.

♦ D:\MODEM\Driver\9xNT\Setup.exe ♦ D:\MODEM\SuperVoice\

Media Ring Talk Software

MediaRing Talk provides an internet telephone for the onboard modem.

♦ D:\MODEM\MediaRing Talk\

ADCM Software

The AMI Desk-Client Management software provides network management services. This software is available for:

♦ Windows 9x – D:\AMI ADCM\WIN9x\SETUP.EXE

Auto-Installing Under Windows 98

During the installation under Win98 OS, the setup program will automatically find out and match the proper drivers for the hardware of your system. However, Windows might not be able to detect some of your new hardware.

Page 45

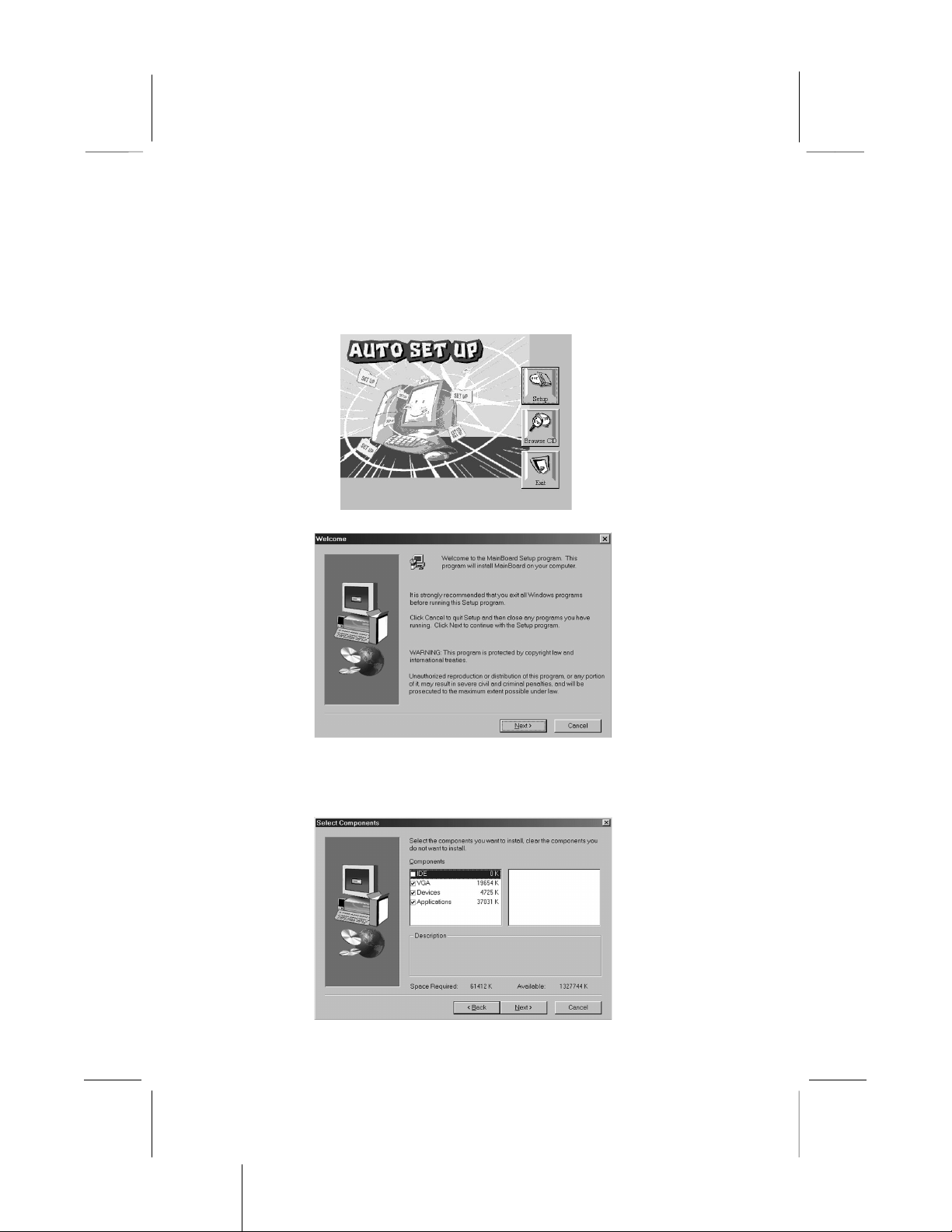

Please follow the steps listed below to install drivers and applications for your system.

1. Put the support CD into CD-ROM drive.

2. The setup window will appear as below.

3. Click Setup button to continue.

4. Click Next button to continue.

5. Select the items that you want to setup by clicking on it (the default options are recommended). Click the Next button to proceed.

Page 46

6. The support software will automatically install.

Once any of the installation procedures start, software is automatically installed in sequence. You will need to follow the onscreen instructions, confirm commands and allow the computer to restart as few times as is needed to complete installing whatever software you selected to install. When the process is finished, all the support software will be installed and working.

There are some utilities that you have to manually install if you need, check to the above section.

Using the PCI Sound Pro Application

1. Before you install the PCI Sound Pro drivers, make sure your Operating System has been installed, otherwise the PCI Sound Pro might be detected as “Other device” by the device manager of your OS.

2. After the drivers are properly installed, choose the MULTIMEDIA icon in the CONTROL PANEL when you need to use the Software Wave-Table drivers as a MIDI output device. Select the MIDI page and click on “C-media SoftMidi Synthesis (Win98) / Driver (Win95)”, then click “OK” to confirm.

3. A Windows application named Audio Rack is provided with the PCI Sound Pro drivers, which gives you control over all the audio functions through a user interface that is as simple to use as a home stereo system. We recommend that you use the System Mixer in the Audio Rack software to control your computer’s audio volume, recording device and the recording gain.

4. If the devices that you are using require the MIDI port as the control interface, you need to select the MULTIMEDIA icon in the CONTROL PANEL. Select the MIDI page and click on “CM8738 MPU-401” (Win98) or “CM8738/C3DX PCI Audio External MIDI Port” (Win95), and then click “OK” to confirm.

5. For more information, refer to the PCI Sound Pro manual in the CD which ships with this mainboard.

Page 47

The Four Speakers System

The onboard Sound audio system supports 2 wave channels (front/rear) known as the 4 speaker system. If you are running applications which use the DirectSound® 3D or A3D® audio interface, your system can simulate realistic 3D sound through a 4 speaker setup. Follow the steps below to install a 4-speaker setup.

Speaker Installation

Connect the front two speakers to the Line-out jack on the sound ports extension bracket. Connect the rear two speakers to the Linein/Rear jack on the sound ports extension bracket. The original Line-in can be moved to Aux.

Speaker Position

Set up your speakers similar to the following figure to get the best audio result.

Page 48

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without the express written consent of the manufacturer. The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, the manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes.

Trademarks

IBM, VGA, OS/2, and PS/2 are registered trademarks of International Business Machines. Intel, Pentium, MMX are registered trademarks of Intel Corporation. Microsoft, MS-DOS and Windows 95/98/NT are registered trademarks of Microsoft Corporation. Sound Blaster and SB-Link are registered trademarks of Creative Technology Ltd. PC-cillin and ChipAwayVirus are trademarks of Trend Micro Inc. AMI is a trademark of American Megatrends Inc. A3D is a registered trademark of Aureal Inc. Gamut is a registered trademark of Formosoft International Inc. SuperVoice is a registered trademark of Pacific Image Communications Inc. MediaRing Talk is a registered trademark of MediaRing Inc. WordPerfect is a registered trademark of Corel Corporation Ltd. Other names used in this publication may be trademarks and are acknowledged.

M598LMR, V1.3A

S53T/March 2000

Page 49

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and the receiver.  Connect the equipment onto an outlet on a circuit different from that

to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and shielded AC power cable must be employed with this equipment to insure compliance with the pertinent RF emission limits governing this device. Changes or modifications not expressly approved by the system’s manufacturer could void the user’s authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions:

 This device may not cause harmful interference, and  This device must accept any interference received, including

interference that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le matériel brouilieur du Canada.
