DXP

DXPDXP

DXP

----

5410/5411

5410/54115410/5411

5410/5411

EM

EMEM

EM

User

Manual

Brighten Your Digital View!

4-Channel Integrated H.264

HD Encoder-Modulator

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

01 Notice

03 Before Using the Device

04 1 Overview

04 2 Features

05 3 Technical Specifications

06 4 Block Diagram

07 5 Front panel and rear panel instructions

07 5.1 Front panel

07 5.2 Rear panel

08 6 Control with Front Panel

08 6.1 Overview of the Menu

09 6.2 Description of menu

09 6.2.1 Status

10 6.2.2 Encoder

11 6.2.3 Remux

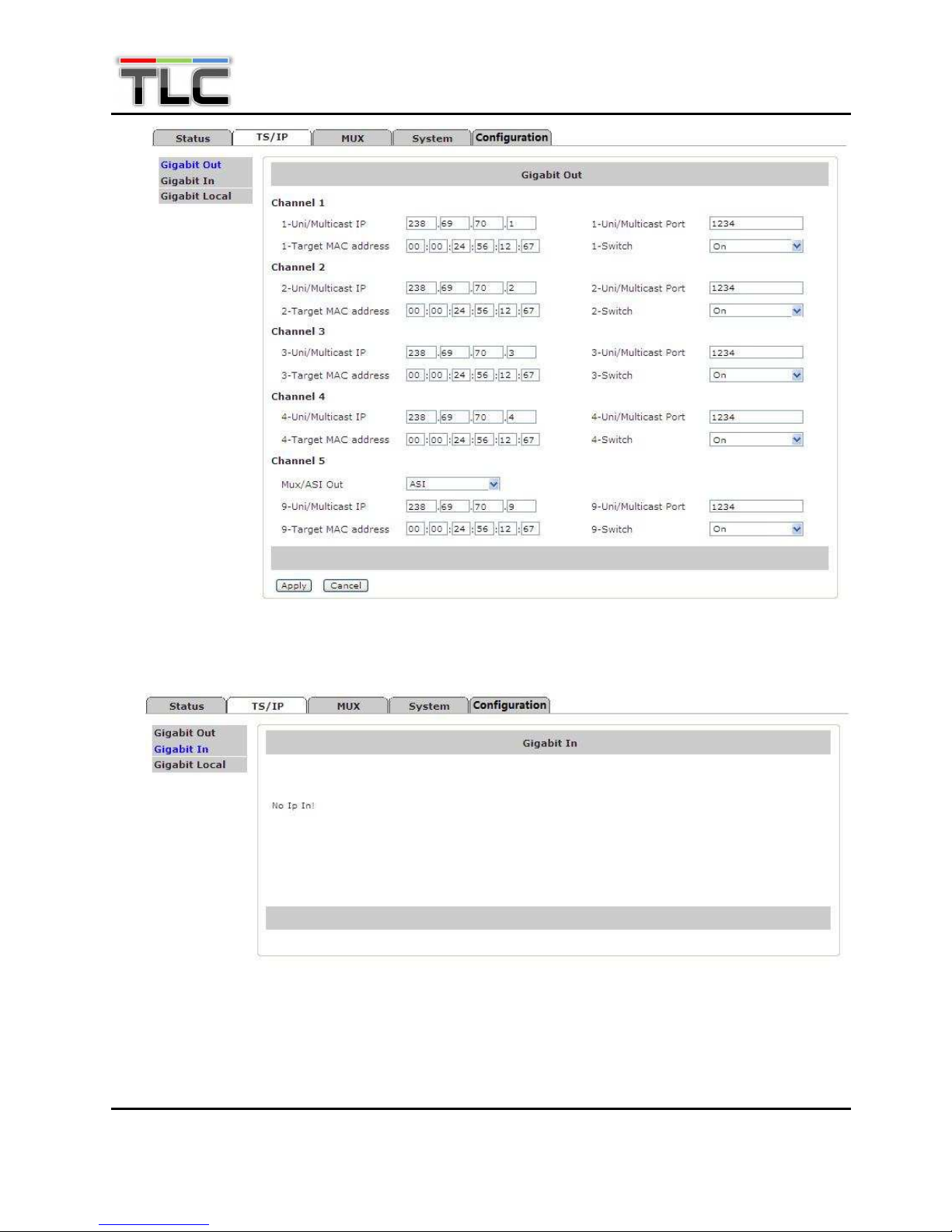

12 6.2.4 TS/IP (Multiple Output Mode)

13 6.2.5 TS/IP (Full Duplex Mode)

14 6.2.6 Modulation (QAM)

14 6.2.7 Modulation (COFDM)

15 6.2.8 RF Setting

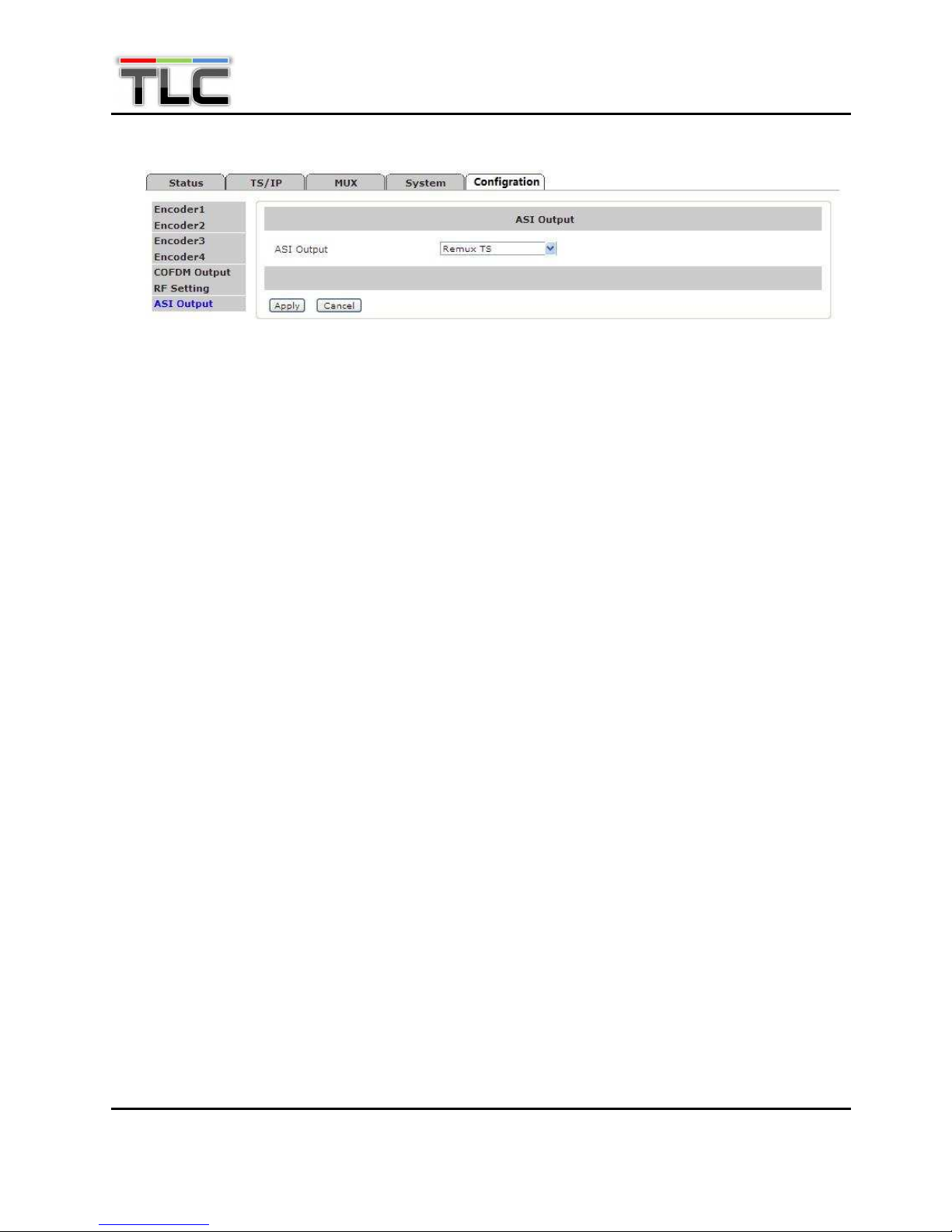

15 6.2.9 ASI Output

15 6.3 System

17 7 Control with Web Server

17 7.1 Status

Contents

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Notices

COPYRIGHT (Copyright © 2013 Beijing Jaeger Communication Electronic Technology Co., Ltd.)
Not to be copied, used or translated in part or whole without Beijing Jaeger prior consent in writing

except approval of ownership of copyright and copyright law.

WARRANTY

This warranty does not cover parts which may become defective due to misuse of the information
contained in this manual.

Read this manual carefully and make sure you understand the instructions provided. For your
safety, be aware of the following precautions.

WARNING! IMPORTATNT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

• To avoid explosion danger, do not dispose of batteries in an open fire.

CE MARK FOR EUROPEAN HARMONISED STANDARDS

The CE mark which is attached to these products means it conforms to EMC Directive
(89/336/EEC) and Low Voltage Directive (73/23/EEC).

IMPORTANT INFORMATION

Please retain the original packaging, should it be necessary at some stage to return the device.

Disposal of Old Electrical and Electronic Equipment (Applicable in the European Union and
other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural resources.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

For more detailed information about recycling of this product, please contact your local
Civic Office, your household waste disposal service, or the shop where you purchased the
product.

COPYRIGHTS

Television programs, movies, video tapes, discs, and other materials may be copyrighted.
Unauthorized recording of copyrighted material may be against the copyright laws in your region.
Also, use of this product with cable television transmissions may require authorization from the
cable television operator or transmitter/owner.

VENTILATION

• Do not expose the product to high temperatures, such as placing it on top of other product that
produce heat or in places exposed to direct sunlight or spot lights.

• The ventilation slots on top of the product must be left uncovered to allow proper airflow into the
device.

• Do not stand the product on soft furnishings or carpets.

• Do not stack electronic equipment on top of the product.

• Do not place the product in a location subject to extreme changes in temperature. The temperature
gradient should be less than 10 degrees C/hour.

• Place the product in a location with adequate ventilation to prevent the build-up of heat inside the
product. The minimum ventilation space around the device should be 7 cm. The ventilation should
not be impeded by covering the ventilation openings with items, such as newspapers, table cloth,
curtains, etc.

POWER SOURCES

• The product is not disconnected from the AC power source (mains) as long as it is connected to the
power outlet or wall socket, even if the product is turned off.

• If the product will not be used for a long period of time, disconnect it from the AC power outlet or wall
socket.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Before Using the Device

Thank you for purchasing the DXP-5410/5411EM 4-Channel Integrated Encoder-Modulator. This
User Manual is written for operators/users of the DXP-5410/5411EM to assist in installation and
operation. Please read this user manual carefully before installation and use of the device.

FOR YOUR SAFETY

This equipment is provided with a protective earthing ground incorporated in the power cord. The
main plug shall only be inserted in a socket outlet provided with a protective earth contact. Any
interruption of the protective conductor, inside or outside the device, is likely to make the device
dangerous. Do not remove the covers of this equipment. Hazardous voltages are present within
this equipment and may be exposed if the covers are removed. Only Beijing Jaeger trained and
approved service engineers are permitted to service this equipment.

The supplied AC power cable must be used to power the device. If the power cord becomes
damaged it must be replaced. No operator serviceable parts inside. Refer servicing to Beijing
Jaeger trained and approved service engineers. For the correct and safe use of the device, it is
essential that both operating and servicing personnel follow generally accepted safety procedures
in addition to the safety precautions specified in this manual. Whenever it is likely that safety
protection is impaired, the device must be made in-operative and secured against unintended
operation. The appropriate servicing authority must be informed. For example, safety is likely to be
impaired if the device fails to perform the intended measurements or shows visible damage.

WARNINGS

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

• The mounting environment should be relatively dust free, free of excessive vibration and the ambient
temperature between 0C° to 40C°. Relative humidity of 20% to 80% (non-condensed) is
recommended.

• Avoid direct contact with water.

• Never place the equipment in direct sunlight.

• The outside of the equipment may be cleaned using a lightly dampened cloth. Do not use any
cleaning liquids containing alcohol, methylated spirit or ammonia etc.

• For continued protection against fire hazard, replace line fused only with same type.

• Air intake for cooling is achieved via holes at the side of the device and the fans inside. The air flow
should not be obstructed. Therefore, the device has to be placed on a flat surface, leaving some
space at the sides of the device.

• When in operation, the internal temperature should not exceed the limit of 70C°.

DXP-5410/5411EM

4 Channel Integrated Encoder-Modulator

1 Overview

DXP-5410EM/5411EM is an integrated 4-channel real-time encoder re-multiplexer modulator. Four sets of A/V
inputs are encoded and generated 4 Transport Streams (TS) independently. TS streams from the internal
encoders, ASI input and TS/IP (TS_over_IP) input (duplex mode only) could be re-multiplexed into one MPTS
(Multiple Program TS), then modulated onto one DVB RF carrier, QAM or COFDM. This MPTS is also available
at the ASI output & TS/IP output simultaneously. There are up to 5 streams encapsulated onto TS/IP output when
TS/IP is configurated as Multi-output mode. In this mode, all 4 TS streams from internal encoder could be sent
through the TS/IP port while the fifth IP slot could be fed with the internal re-multiplexer or ASI input. With a built­in RF back-up relay switch, any external RF signal could be fed to the main output for back-up in cases of internal
malfunction (main RF level < 75dBuV) or power supply lost.

DXP-5410EM/5411EM series are accommodated in 1U x 19” standard chassis with 2 redundant power supply
modules.

2 Features

 Comply with H.264/AVC HP@L4.1
 4 independent real-time encoders
 Integrated 6-input TS reMUX, (4 for encoders, 1 for ASI in, 1 for TS/IP in)

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

 ASI & TS/IP outputs
 Up to 5 TS/IP output streams (200Mb/s Max.)( 4 for encoders, 1 for ASI mirrored or reMUX)
 480i/NTSC, 576i/PAL, 720p,1080i & 1080p
 Constant Bit Rate (CBR) & Variable Bit Rate (VBR)
 DVB-C/QAM (ITU J.83 Annex A/C) or DVB-T/COFDM RF out, selectable
 50MHz ~ 996MHz RF carrier output frequency adjustable
 120dBµV Total Output Level
 RF Back-up loop through input (RF relay)
 SNMP & HTTP remote control & monitor
 Software could be upgraded with Web interface
 EIA 1U x 19” standard chassis with 2 redundant power supply modules

3 Technical Specifications

Video Input & Encoding

Input type

CVBS x 4 BNC Female 75Ω, HDMI x 4 A-type Sockets or HD-SDI x 4 BNC Female
75Ω (see ordering info.)

Encoding Standard

H.264/AVC High Profile, up to Level 4.1

Y/Cb/Cr Sampling Format 4:2:0

Video Resolution &
Recommended Bit Rate
(see ordering info.)

1080p (1920x1080) @25Hz, 29.97Hz, 30Hz:SMPTE274M: 6~40Mb/s
1080i (1920×1080) @25Hz, 29.97Hz, 30Hz:SMPTE274M: 6~20Mb/s
720p (1280×720) @25Hz, 29.97Hz, 30Hz:SMPTE296M: 6~20Mb/s
480i (720×480) @29.97Hz:BT.656: 2~15Mb/s
576i (720×576) @25Hz: BT.656: 2~15Mb/s

Other Video Resolution &
Down Scaler

Full D1,Half D1,SIF,QSIF
Vertical & Horizontal Pixel down scalable respectively (with frame rate not changed)

Aspect Ratio 4:3 or 16:9 adjustable

Audio Input & Encoding

Audio Input type

Analog Stereo x 4 pairs of BNC Female, HDMI Embedded or HD-SDI Embedded
(see ordering info.)

MPEG1 Layer II, Mono: 32~192Kb/s, Stereo: 64~384Kb/s

Standard & Recommended
Bit Rate

AAC-LC 2ch, Stereo: 128 ~ 512Kb/s (DXP-5410EM-X only)

Sampling Rate 48KHz

DVB-ASI Input

Interface Type BNC Female, 75Ω

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Maximum Effective Bit Rate 200 Mb/s
Data type Byte
Packet Length 188/204 Bytes
Valid Receiving Amplitude 200 ~ 880mVp-p

DVB-ASI Output

Interface Type BNC Female, 75Ω
Maximum Effective Bit Rate 200Mb/s
Data type Byte
Packet Length 188/204 Bytes
Output Waveform Level 800±80mVp-p

TS/IP Gigabit Ethernet (Duplex mode)

Physical Layer Standard IEEE 802.3, 10/100/1000 Base-T
Maximum Effective Bit Rate Input: 200Mb/s, Output: 200Mb/s
Data Encapsulation UDP, RTP, SPTS, MPTS
Other Protocols ICMP, ARP, IGMPv2

TS/IP Multiple Stream, Output Only

Physical Layer Standard IEEE 802.3, 10/100/1000 Base-T
Maximum Effective Bit Rate Output: 200Mb/s
Data Encapsulation UDP, RTP, SPTS, MPTS
Other Protocols ICMP, ARP, IGMPv2
QAM Modulation
Standard of System ETSI EN300 492, ITU J.83, Annex A/C: 16/32/64/128/256QAM
Symbol Rate 3~7.2MS/s
I/Q Amplitude Error ≤ 0.1%
I/Q Phase Error ≤ 0.1%
Phase Jitter < 0.5°RMS
MER 36dB min., 42dB typ. (with tester equalizer “off ” )
COFDM Modulation
Standard of System ETSI EN 300 744
Constellation QPSK/16QAM/64QAM
Bandwidth 5/6/7/8MHz
FTT carrier number 2K, 8K

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Guard Interval

1/4，1/8，1/16，1/32

FEC rate

1/2，2/3，3/4，5/6，7/8

MER 36dB min., 40dB typ.
RF Output

Interface

F-type Female，75Ω

Carrier Central Frequency

50~996MHz adjustable，step by 10 KHz
Output Level 90~120dBµV, step by 1dB
Spurious ≥60dBc @ 120dBuV
Return Loss

≥12dB（typ.）

Rear Panel

ASI In 1 x BNC Female, 75Ω
CVBS In (option, see order

info.)

4 x BNC Female, 75Ω ( for DXP-5410EM/5411EM-C only)

Audio In (4X2) x BNC Female, 75Ω (DXP-5410EM/5411EM-C only)
HDMI In 4x HDMI A-type Sockets (DXP-5410/5411EM-H only)
HD-SDI In 4x x BNC Female, 75Ω (DXP-5410/5411EM-S only)
ASI Out 2 x BNC Female, 75Ω (mirrored contents)
RF Out 1x F Type Female, 75Ω
Back-up RF In 1x F Type Female, 75Ω

Front Panel

Control 1×RJ-45, 10/100 Base-T
TS/IP 1× IP (GbE), RJ-45, 10/100/1000 Base-T
Display 20 x 2 character VFD
RF Monitor -20dB 1x F Type Female, 75Ω

Others

Operating Input Voltage AC100~260V 50/60Hz
Operating Temperature

0 ~ 40℃
Storage Temperature

-10 ~ 60℃

Operating Humidity 10 ~ 90%, Non-condensed

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

A3 A4

4 Block Diagram

5 Front panel and rear panel instructions

5.1 Front panel

A5

A7

A6

A2

A1

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

A1 Status LEDs Power: green when power is on, red when one of the power supply unit

malfunction

Warning: red when function faulty

Alarm: red when function critical

A2 Encoder Status Encoder 1~4 working status, green light indicates the corresponding encoder

module is under working, red when the corresponding encoder module
malfunction or stop or input is invalid (the other 4 LEDs are not used)

A3 VFD Panel Menu display

A4 Keypad 6 keys for local control

A5 USB Used to upgrade software version of this device

A6 Management Ethernet (10/100 LAN) control port

A7 TS/IP TS over IP input and output port

5.2 Rear panel

DXP-5410EM/5411EM-C

DXP-5410EM/5411EM-H

B1

B2

B3

B6

B4

B5

B7

B8

B1

B2

B3

B6

B4

B5

B7

B8

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

DXP-5410EM/5411EM-S

B1 ASI IN ASI input interface

B2 ASI OUT 2 ASI output interface (output in mirror)

B3 Audio Video Input CVBS and Audio input interface

B4 RS232 Reserved for factory use

B5 Alarm Alarm relay interface

B6 RF Out Main RF output port

B7 RF In (Back Up) Backup RF signal input port

B8 Power Socket AC Power Input

6 Control with Front Panel

With the keypad and display panel on the front panel, user can configure the device locally.

6.1 Overview of the Menu

Power on the device and wait for initialization complete, the Local IP address will be displayed on the VFD
panel. Press〔ENTER〕to get into the main menu.

Main Menu

I/O

Status

B1

B2

B3

B6

B4

B5

B7

B8

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

6.2 Description of menu

The main menu items can be selected with the keypad. By pressing the [Enter], the user navigates to the
submenus, which are selected in the same manner.

6.2.1 Status

Submenu
Layer 1

Submenu
Layer 2

Parameters Description

Encoder 1 Bit Rate Display encoder 1 bitrate
Encoder 2 Bit Rate Display encoder 2 bitrate
Encoder 3 Bit Rate Display encoder 3 bitrate
Encoder 4 Bit Rate Display encoder 4 bitrate
ASI Input Bit rate Display the input ASI signal bitrate

Input Bit Rate

TS/IP Input Bit Rate Display the TSoverIP input bitrate

I/O Status

Output Status Display the work status of modulator part
Link Status Display IP link status:10M/100M/1000M/Disconnect

UDP Packets/s Display IP out UDP packet rate
Column FEC Pkts/s Display IP out column FEC packet rate

Gigabit Output
Status

Row FEC Pkts/s Display IP out row FEC packet rate
IP Input Status Display IP in lock/unlock status
IP Input Protocol Display the protocol of IP input
Column/Row FEC Display the mode of column FEC and row FEC
Pkts per UDP Frame Display the packets per UDP frame
Received TS Frames Display the received TS frames
Fixed RTP Frames Display the fixed RTP frames

TS/IP Status
(Full Duplex)

Gigabit Input
Status

FEC Counter Display the FEC packets that has been received

Status

Configuration

System

TS/IP

Status

(Full
Duplex/
Multiple
Output)

Encoder Remux

TS/IP

(Mode:

Multiple

Output/

Full

Duplex)

COFDM

/QAM

RF

Setting

ASI

Output

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

FEC Counter Reset Reset the FEC packets counter
TS/IP Status
(Multiple Output)

Link Status

Display IP link Status:
10M/100M/1000M/Disconnect

6.2.2 Config – Encoder

Submenu

Parameters

& Description Default Value

Encoder Select

Encoder Select:
Encoder 1: the encoder 1 is active for configuration
Encoder 2: the encoder 2 is active for configuration
Encoder 3: the encoder 3 is active for configuration
Encoder 4: the encoder 4 is active for configuration

Video Settings

Video Rate Ctl:
CBR: set constant bit rate mode
VBR: set variable bit rate mode

Input Video Format:

1920x1080i 29.97 / 1920x1080i 25 / 1440x1080i 29.97 /
1440x1080i 25 / 1280x720p 59.94 / 1280x720p 50 / 720x480i

29.97 / 720x576i 25 / 1920x1080p 59.94 / 1920x1080p 50

Video Bit Rate:
300~45000Kb/s: set the video bit rate

Aspect Ratio:
4:3: set video aspect ratio to 4:3
16:9: set video aspect ratio to 16:9

Video Rate Ctl: VBR

Input Video Format:
1920x1080i 29.97

Video Bit Rate: 3000Kb/s

Aspect Ratio: 4:3

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Audio Settings

Audio Format:
MPEG1 Layer2: set the audio compression format MPEG-1

Layer II

MPEG2 AAC-LC, MPEG4 AAC-LC can be selected on DXP­5410EC series only

Audio Bit Rate: 32k bps /48k bps /56k bps /64k bps /80k bps
/96k bps /112k bps128k bps /160k bps /192k bps /224k bps
/256k bps /320k bps /384k bps

Audio Channel Mode:
Stereo: set stereo mode
Mono: set mono mode. NOTE: only Left audio channel will be

encoded

Audio Level:
+12dB~-17dB: set the gain of output volume
Mute: mute the output audio

Audio SDI EMB:
(the menu is displayed on DXP-5410/5411EC-S only)
EMB1/EMB2/EMB3/EMB4: select the group of embedded

audio from input SDI signal

Audio Format: MPEG1
Layer2

Audio Bit Rate: 128 Kbps

Audio Channel Mode: Stereo

Audio1 Level: 0dB

Audio SDI EMB:EMB1

Encoder Bit Rate

Encoder Bit Rate: 600~48000Kbps. set the output bit rate of
the selected encoder.

Encoder Bit Rate: 5000Kb/s

PMT PID: set PMT PID, valid range from 32 to 8190 decimal

Output PMT PID: 43

Video PID: set Video PID, valid range from 32 to 8190
decimal

Output Video PID: 4001

Audio PID: set audio PID, valid range from 32 to 8190
decimal

Output AudioPID:4002

PCR PID: set PCR PID, valid range from 32 to 8190 decimal

Output PCR PID:8004

Service PID: set Service PID, valid from 32 to 8190 decimal

Output Service PID:4000

Service Name: set the service name

Output Service Name:
Encoder Video

Scale:
Disable: video resolution is the same as input
Enable: rescale the video resolution of the output manually

Scale: Disable

Scale Vertical: set the resolution in vertical

576

Advanced Settings

Scale Horizontal: set the resolution in horizon

720

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

6.2.3 Config – Remux

Submenu

Parameters

& Description Default Value

Program List

Program List: select the programs to remux. Click on Enter to
select, double click to cancel. (The program(s) will be marked
with an asterisk (*) once be selected)

Encoder 1: select the program from encoder 1
Encoder 2: select the program from encoder 2
Encoder 3: select the program from encoder 3
Encoder 4: select the program from encoder 4
ASI Input: select the program(s) inputted via ASI input port.
IP Input: select the program(s) inputted via IP input port.

(Note: this submenu is displayed only when the IP I/O is
configured as full-duplex mode.)

Bit Rate

Output Bit Rate: key in the bit rate of the new generated
MPTS, valid range from 100~216000 Kb/s

Output Bit Rate:
38015Kb/s

Packet Size

188 Byte / 204 Byte

188 Byte

TS ID

TS ID: key in the TSID of the new generated transport stream,
valid range from 0 to 65535 decimal

TS ID:00008

Remove CA

ON: remove the CA descriptors that are carried within the
inputted TS over ASI or IP

OFF: keep the CA descriptors

OFF

Insert EIT

ON: insert EIT into the output stream, EIT data may come
from ASI or IP input port

OFF: do not insert EIT into the output stream.

OFF

Output Program Display the selected program names

6.2.4 Config – TS/IP (Multiple Output Mode)

Submenu

Parameters

& Description Default Value

Mux/ASI Out: set the source for the IP output (This menu is

only valid for IP Channel 5)

Mux/ASI Out: Mux

Uni/Multi IP Address: set the destination IP address for the
IP output

Uni/Multi IP Address:

238.069.070.001

Uni/Multi UDP Port: set the destination port number, valid
range from 1~65535

Uni/Multi UDP Port:
01234

Channel 1~4
(the streaming comes

from Encoder 1~4
correspondingly.)

Channel 5
(the streaming comes

from ASI input.)

Target MAC Address:

set the destination port number MAC Address

Target MAC Address:
00:00:24:56:12:67

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Gigabit Out Switch:
ON/OFF: to switch on/off the current channel

Gigabit Out Switch: ON

Gigabit Address: set the IP address of the IP port

IP Board IP
Address:10.10.10.10

Gigabit Subnet Mask: set the net mask of the IP port

IP Board Net
Mask:255.255.255.0

Gigabit Gateway: set the gateway of the IP port

IP Board
Gateway:10.10.10.1

Gigabit MAC Address: display the MAC address of the IP
port

Protocol:
UDP: set UDP protocol to IP output
RTP: set RTP protocol to IP output

Protocol: UDP

TS Pkts Per UDP: set the number of TS packets that can be
carried by each UDP packet, valid range from 1~7

TS Pkts Per UDP: 7

Time To Live: set TTL to the output IP packets, valid range
from 1~255

Time To Live: 255

Type Of Service: Min Delay/Max Reliability/Max
Throughput/Min Monetary Cost/Normal

Type Of Service: Min Delay

Gigabit Local

Gateway MAC Address: set the MAC address of the gateway
under which the device is connected

Gateway MAC Address:
ff:ff:ff:ff:ff:ff

6.2.5 Config – TS/IP (Full Duplex Mode)

Submenu

Parameters

& Description Default Value

Gigabit Out Switch: Enable/Disable

Gigabit Out Switch: ON

Source: set the source for the IP output

Remux

Protocol:
UDP: set UDP protocol to IP output
RTP: set RTP protocol to IP output

Protocol: UDP

TS Pkts Per UDP: set the number of TS packets that can be
carried by each UDP packet, valid range from 1~7

TS Pkts Per UDP: 7

Time To Live: set TTL to the output IP packets, valid range
from 1~255

Time To Live: 1~255

Gigabit Output

Type Of Service: Min Delay/Max Reliability/Max
Throughput/Min Monetary Cost/Normal

Type Of Service: Min Delay

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Uni/Multi IP Address: set the destination IP address

Uni/Multi Address:

238.069.070.001

Uni/Multi UDP Port: set the destination port number, valid
range from 1~65535

Uni/Multi UDP Port: 01234

ProMPEG FEC Switch: Enable/Disable

ProMPEG FEC Switch:
Disable

ProMPEG FEC Mode:
1D,5x5/1D,5x20/1D,10x10/2D,5x5/2D,5x20/2D,10x10

ProMPEG FEC Mode :
1D,5x5

FEC Alignment:

Annex A/Annex B

FEC Alignment:

Annex A

Gigabit Address: set the IP address of the IP port

Gigabit Adress:

010.010.010.010

Gigabit Subnet Mask: set the net mask of the IP port

Gigabit Subnet Mask:

255.255.255.000

Gigabit MAC Address: display the MAC address of the IP
port

Gigabit Gateway: set the gateway of the IP port

Gigabit IP Gateway:

010.010.010.001

Gigabit Local

Gateway MAC Address: set the MAC address of the gateway
under which the device is connected

Gateway MAC Address:
ff:ff:ff:ff:ff:ff:ff

Uni/Multi Address: set the uni/multicast target address of the
IP input

Uni/Multi
Addres:238.069.070.002

Uni/Multi UDP Port: set the target port number of the
uni/multicast IP input, valid range from 1~65535

Uni/Multi UDP Port: 01234

Gigabit Input

TS Clock Recovery:
Auto: it is suggested to set Auto when there is accurate PCR

carried by the inputted TS/IP
Fixed Rate: when fixed rate is selected, user has to configure

a bit rate to regenerate the TS clock. The configured fixed bit
rate has to be a little bit higher than the bit rate of the inputted
TS/IP.

TS Clock Recovery: Auto

6.2.6 Configuration – Modulation (QAM)

Submenu

Parameters

& Description Default Value

Modulator Output

ON/OFF: put OFF to switch off the QAM carrier

ON

Output Source

Encoder1/Enco

der2/Encoder3/Encoder4:

the stream output
from the corresponding encoder will be delivered to modulator
directly.

Remux: the stream from built-in remux will be delivered to

REMUX

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

modulator

IP In: the stream from IP input will be delivered to modulator
ASI Input: the stream from ASI input will be delivered to

modulator

Constellation

16QAM/32QAM/64QAM/128QAM/256QAM

64QAM

Symbol Rate

valid range from 782~12500

6875

Spectral Invert

Yes: the spectrum is inverted
NO: the spectrum is normal

NO

6.2.7 Configuration – Modulation (COFDM)

Submenu

Parameters

& Description Default Value

Modulator Output

ON/OFF: put OFF to switch off the QAM carrier

ON

Output Source

Encoder1/Encoder2/Encoder3/Encoder4: the stream output
from the corresponding encoder will be delivered to modulator
directly.

Remux: the stream from built-in remux will be delivered to
modulator

IP In: the stream from IP input will be delivered to modulator
ASI Input: the stream from ASI input will be delivered to

modulator

REMUX

Constellation

APSK/16QAM/64QAM

64QAM

Bandwidth

5M/6M/7M/8M

8M

Guard Interval

1/32, 1/16, 1/8, 1/4

1/32

Code Rate

1/2, 2/3, 3/4, 5/6, 7/8

7/8

Spectral Invert

Yes: the spectrum is inverted
NO: the spectrum is normal

NO

TMS

2K IFFT DM/8K IFFT DM/4K IFFT DM

8K IFFT DM

6.2.8 Configuration – RF Setting

Submenu

Parameters

& Description Default Value

RF Frequency valid range from 30,000~1,000,000KHz 474000
RF Level valid range from 90~120dBuV 100
RF Level adjust (-1dBuV~4dBuV) 0 dBuV

Backup Switch

Auto: automatically output the RF signal inputted via Backup
RF input port when the built-in modulator is down

Main: always output from the built-in modulator

Auto

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Spare: always output from the backup RF input

RF Out Restore
(the submenu displays

only when Auto mode
is selected.)

Spare to Main: switch to Main source (the built-in modulator)
Main to Spare: switch to Backup RF source

6.2.9 Configuration – ASI Output

Submenu

Parameters

& Description Default Value

ASI Output

ASI Output Source: select the source for ASI output
Encoder1 / Encoder2 / Encoder3 / Encoder4 / Remux / IP In /

ASI Input

Remux

6.3 System

IP Address: set the IP address of the device, valid range from

0.0.0.0~255.255.255.255

IP Address: 10.10.70.48

Subnet Mask: set the net mask of the device, valid range from

0.0.0.0~ 255.255.255.255

Net Mask: 255.255.255.0

Gateway: set the gateway of the device, valid range from

0.0.0.0~255.255.255.255

Gateway: 10.10.70.1

Network Setting

MAC Address: to display the MAC address

Remote Setting

Trap IP Address: set the IP address of the SNMP Trap
server, valid range from 0.0.0.0~255.255.255.255

Trap IP Address:

10.10.70.25

Product Name

Edit Product name: user allows to rename the device, press
Enter and key in the name of the device, then press Enter to
confirm the setting or press Exit to cancel.

Software Version

Software Version: display the software version

Factory Default

Factory Default:
Enter = Yes: press Enter to recall the factory default settings.
Exit = No: press Exit to cancel

Note: the IP address of the
device is not reset to the
factory setting!

MAC Address: to Modify the MAC address

S/N: display the serial number of the device

Gigabit MAC Address: to Modify the Gigabit MAC address

Machine Type
(Reserved for factory

setup)

Detail Version: Display the detail version of
MCU,FPGA,LINUX OS

WEB Login ID

Edit Login ID: press Enter and key in the login ID for WEB
management

Default Login ID: root

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

WEB Login Password

Edit Login Password: press Enter and key in the password
for WEB management

Default Login Password:
12345

Gigabit Mode:

Multiple Output: the IP I/O is configured as multiple

uni/multicast output mode, which delivers up to 5 streams over
IP. There are 4 stuffed or un-stuffed SPTS (lower bit rate but
less PCR accurate than normal SPTS, from local encoders)
and 1 MPTS from built-in remultiplexer over the IP with
different Unicast or Multicast IP addresses.

Gigabit Mode

Full Duplex: the IP I/O is configured as full duplex mode,
which allows only one MPTS or SPTS over IP input and output
in uni/multicast at the same time.

Note: the device will reboot after modification.

Gigabit Mode:
Multiple Output

7 Control with Web Server

DXP-5410/5411EM has an integrated web server. This web server allows the configuration and status
requests with a standard web browser. To operate a DXP-5410/5411EM, first make sure the Ethernet control
port is well connected in the network and could be pinged by the host PC, and then enter the IP address of
the DXP-5410/5411EM into the browser, there will be a pop-up showed asking for login user and password.
After login the device can be operated. The default user name is “root” with password “12345”. The
username and password can be modified via front panel webpage. A new user and password can be set via
front panel in case of the user name and password are forgotten.

7.1 Status

Via the status page, user can have an overview of the current status of the connected DXP-5410/5411EM.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Status of Encoders and ASI input

Status of Output

Status of TS/IP Linkage

7.2 Configuration

All parameters for encoding, TS/IP I/O, built-in Remux, modulation and RF output can be found under the
page “Configuration”. Click the button "Apply" to submit your configuration or click the button "Cancel" to
cancel and restore the previous settings.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Encoder-1~4

There are four encoders, each encoder works independently. Click on the to configure the
Encoder 1, and the same for the rest.

Video Settings

Video Rate Ctl: set constant bit rate mode or variable bit rate mode for the selected encoder

Input Video Format: select the resolution for the encoded video in the dropdown list.

Video Bit Rate: set the video bit rate. The setting is valid only when the Video Rate Ctl is CBR.

Aspect Ratio: set the aspect ratio for the encoded video, 4:3 or 16:9.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Audio Settings

Audio Format: set the audio compression format MPEG-1 Layer II or MPEG2 AAC-LC. (MPEG4 AAC-LC

can be selected on DXP-5410EC series only)

Audio Bit Rate: set the audio bitrate.

Audio Channel Mode: set the audio in stereo or mono. NOTE: only Left audio channel will be encoded

when Mono mode is on.

Audio Level: set the gain of output volume.

Audio SDI EMB: select the group of embedded audio from input SDI signal (the menu is displayed on DXP-
5410/5411EC-S only).

Encoder Bit Rate: set the output bit rate of the current encoder. Encoder bit rate must greater than the sum

of video bit rate + audio bit rate + PSI (150Kbps) + buffering (100Kbps) + encoder error (150Kbps), valid
range from 300 to 99999Kb/s

Advanced Settings

PMT PID: set PMT PID, valid range from 32 to 8190 decimal

Video PID: set Video PID, valid range from 32 to 8190 decimal

Audio PID: set audio PID, valid range from 32 to 8190 decimal

PCR PID: set PCR PID, valid range from 32 to 8190 decimal

Service PID: set Service PID, valid from 32 to 8190 decimal

Service Name: set the service name for the encoded channel. The length should be less than 24

characters.

Scale: Enable or Disable the output video resolution rescaling. The following two parameters have to be set
manually if the Scale is enabled.

Scale Vertical: set the resolution in vertical

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Scale Horizontal: set the resolution in horizon

Modulation

In the page user can set up the parameters for the built-in modulator. DXP-5410/5411EM support QAM and
COFDM modulation upon user’s configuration. The tag name will change following the
change of the modulation mode. To change the modulation mode please refer to Chapter 7.6.

RF Setting

Set up the RF parameters in the page “RF setting”. The output RF frequency ranges from 30,000 to
1,000,000 KHz, and output RF level ranges from 90~120dBuV.

ASI Output

Under ASI Output page, select the source for ASI output, there are 7 sources can be selected in the
dropdown list which are:

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Encoder1 / Encoder2 / Encoder3 / Encoder4 / Remux / IP In / ASI Input

7.3 MUX

In the “MUX” page, select the program(s) that to be remultiplexed and configure the necessary parameters
for the new generated transport stream.

Packet Size:

188 Byte / 204 Byte

Bit Rate (Kbps):

Set the bitrate for the new generated MPTS, valid range from 100~216000 Kb/s. The bitrate should be at
least bigger than the total bitrate of selected programs, otherwise, packets may dropout.

TS ID:

Set the TSID of the new generated transport stream, valid range from 0 to 65535 decimal

Insert EIT:

ON: insert EIT into the output stream, EIT data may come from ASI or IP input port

OFF: EIT will not be inserted into the output stream.

Remove CA:

ON: remove the CA descriptors that are carried within the inputted TS over ASI or IP

OFF: keep the CA descriptors

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

7.4 TS/IP

DXP-5410/5411EM support two TS/IP operation mode, which are respectively Multiple Output Mode and Full
Duplex Mode. To switch between the two mode please refer to chapter 7.6.

7.4.1 Multiple Output Mode
Gigabit Out

There are up to 5 streams encapsulated onto TS/IP output when TS/IP is configured as multiple output
mode. In this mode, all 4 TS streams from internal encoder could be sent through the TS/IP port while the
5th IP slot could be fed with the internal re-multiplexer or ASI input.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Gigabit In

IP in is not supported under multiple output mode

Gigabit Local

Gigabit Address: set the IP address of the IP port

Gigabit Subnet Mask: set the net mask of the IP port

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Gigabit MAC Address: display the MAC address of the IP port, cannot be modified by user

Gigabit Gateway: set the gateway address under which the IP port is connected

Gateway MAC Address: set the MAC address of the gateway under which the device is connected, this is

necessary when the IP streaming is needed to pass through the gateways

Protocol: select UDP or RTP protocol for the IP output

TS Pkts Per UDP: set the number of TS packets that can be carried by each UDP packet

Time To Live: set TTL to the output IP packets

Type of Service: select the service type for the outputted IP streaming.

7.4.2 Full Duplex Mode

In this mode, the DXP-5410/5411EM supports single uni/multicast input and output in parallel. Set the IP I/O
parameters in following pages.

Gigabit Out

IP Out Switch: Enable or Disable the IP output

Source:

select the source for the IP output in the dropdown list

Protocol: select UDP or RTP protocol for the IP output

TS Pkts Per UDP: select the number of TS packets that can be carried by each UDP packet

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Time To Live: set TTL to the output IP packets

Type of Service: select the service type for the outputted IP streaming

Uni/Multi IP Address: set the unicast or multicast address for the output IP streaming

Uni/Multi UDP Port: set the destination port number, valid range from 1~65535

ProMPEG FEC Switch: Enable or Disable the ProMPEG FEC

(Note: the two submenus below are available only when the ProMPEG FEC is switched on and has be
applied)

ProMPEG FEC Mode: select the mode of ProMPEG FEC from the dropdown list

Column FEC UDP Port: set the port number for column FEC

Row FEC UDP Port: set the port number for row FEC

FEC Alignment: set the alignment for FEC

Test Drop Packets: set the test drop packets

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Gigabit Input

Note the Column and Row FEC UDP ports have to be configured if Pro-MPEG protocol is used in the IP
signal inputted.

Uni/Multicast IP Address: set the multicast address for the incoming IP streaming. To receive a unicast
streaming, the submenu can be ignored.

Uni/Multicast UDP Port: set the port number for the incoming IP streaming.

TS Clock Recover:

Auto: it is suggested to set Auto when there is accurate PCR carried by the inputted TS/IP

Fixed Rate: when fixed rate is selected, user has to configure a bit rate to regenerate the TS clock. The

configured fixed bit rate has to be a higher than the bit rate of the inputted TS/IP.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Gigabit Local

Gigabit Address: set the IP address of the IP port

Gigabit Subnet Mask: set the net mask of the IP port

Gigabit MAC Address: display the MAC address of the IP port, cannot be modified by user

Gigabit Gateway: set the gateway address under which the IP port is connected

Gateway MAC Address: set the MAC address of the gateway under which the device is connected, this is

necessary when the IP streaming is needed to pass through the gateways

7.5 System

The system page shows all information of this device including device name, serial number, software
version, and so on. User can implement the local network settings, TS/IP operation mode, modulation mode,
software upgrade, remote reboot and so on.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Device

Device name: Check the name and the serial number of this device. User can resign this product name at

will, the device name should be less than 24 characters. The serial number is read-only.

Serial Number: show the serial number for the device, cannot be modified by user.

WEB Auto Refresh Time: set the interval of webpage refresh.

Gigabit Mode: switch the TS/IP operation mode between “Multiple Output” and “Full duplex”. The device will

reboot after change.

Modulator Type: switch the modulator to COFDM or QAM.

Network Setting

IP Address: set the device’s IP address

Network Mask: set the net mask of the device

Gateway: set the gateway address of the device

MAC: display the MAC address of the device, cannot be modified by user

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Version

User can check versions of the device, as shown in the picture below.

Web Login

Username: set the username for webpage login

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Password: set the password for webpage login

Factory Default

Click the button “Default” to restore the factory default settings to the device.

Note: the IP address of the device and the operation mode of the Gigabit board will not be restored.

System Reboot

User can reboot this device by clicking the button “Reboot”.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

Upgrade

DXP-5410/5411EM support online firmware upgrade. To upgrade the device, load the upgrade file first by
clicking on “Browse…”, in the opened window select the correct upgrade file, then click on “Upgrade”, wait
the device complete the upgrade procedure. It is recommended to restore the factory default settings after
firmware upgrade.

8 Installation

It is highly recommended to fix the DXP-5410/5411EM be mounted in EIA standard 19” rack, any other
mounting method may lead to damage to the device.

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

 Open the box and take out the device with care. Inspect if there is any damage to the appearance of

the device.

 Fix the device into the standard EIA 19” rack.
 Connect the input and output cables.
 Plug the power cable into the AC Power input socket. The POWER Indicator LED (A4) should be green

and always light on during working. The DXP-5410/5411EM needs 1.5-2 minutes to boot up
completely.

 Configure the network settings of the device via front panel.
 Make the settings of Encoder, Remux, Modulator and RF output step by step following the instruction

written in the user manual.

9 Ordering Information

Model

Function

DXP-

5410EM-C

DXP-

5410EM-H

DXP-

5410EM-S

DXP-

5411EM-C

DXP-

5411EM-H

DXP-

5411EM-S

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

10 Accessories

CD-ROM 1PC

RCA to BNC adaptor 12 PCS

Certificate of quality /Guarantee card 1PC

AC Power cord 2 PCS

75Ohm F type load 1PC

Video Compression H.264 / AVC H.264 / AVC H.264 / AVC H.264 / AVC H.264 / AVC H.264 / AVC

Audio Compression MPEG + AAC MPEG + AAC MPEG + AAC MPEG MPEG MPEG

CVBS & Audio

x4 （（（（BNC））））

●●●● ●●●●

HDMI x4 (A type)

●●●● ●●●●

HD-SDI x 4 （（（（BNC）））） ●●●● ●●●●

ASI (BNC)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

TS/IP (GbE, RJ45)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

Input

Back-up

RF In (F-

female)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

ASI x2 (BNC)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

TS/IP (GbE, RJ45)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

RF Out QAM/COFDM

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

Output

RF Monitor -20dB

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

Alarm (Contact Relay)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

IP Control port (RJ45)

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

RS-232

●●●● ●●●● ●●●● ●●●● ●●●● ●●●●

ООО «ТЛК Трейд» | 196158, г.Санкт-Петербург, Пулковское шоссе, д.30, корп.4, оф. 213В (юр.) | ИНН 7810592830 КПП 781001001

р/с 40702810068000007550 | к/с 30101810200000000704 | Филиал ОПЕРУ ОАО Банк ВТБ в Санкт-Петербурге | БИК 044030704

ОКПО 66035862 | ОКАТО 40284565000 | ОГРН 1107847196060 | т.(812)6499888 | http://www.tlct.ru http://www.rftel.ru

ООО «ТЛК Трейд», Санкт

-

Петербург

[phone]

[e-mail]

No.3 Feng Zhi East Road, Xi Bei Wang Town,

Hai Dian District, Beijing, 100094, China

Tel：[phone]

Fax：[phone]
