Paxton Access
Ins-30064 RS485 IDC connection module
RS485 Network connection
This module will greatly speed up the installation of a Net2 controller with a CAT5 cable data line.
Many installations are wired in CAT5 which is traditionally used in telecoms networks. This
module converts the standard screw terminal Net2 Network connection into Krone terminal strips
designed for this cable type.
The two strips have positions for each individual wire. Ensure that the Green and Orange data
pairs matches the correct colour positions. The Brown and Blue pair positions are grouped into a
common Screen connection.
If this ACU is not at the end of the data line, parallel the connections in the strips and REMOVE
the on-board resistors. These are only required at the end of a data line to stop signal
reections.
Pull off the screw terminal block from the network port and replace it with this module.
A Krone insertion tool (not supplied) should be used to ensure a good connection of the wires
into the terminal strip.

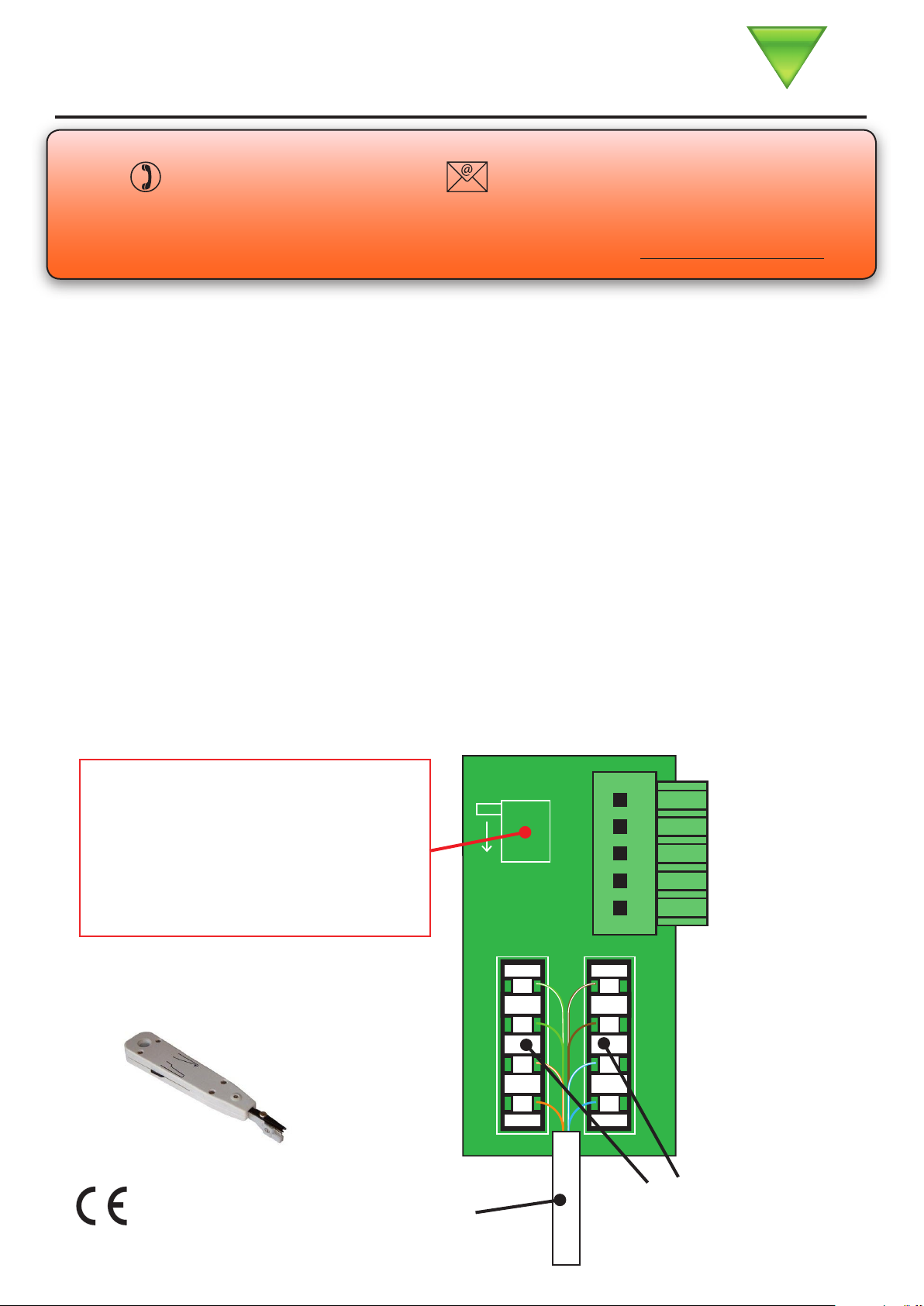

Krone terminal strip
Remove Net2 data
cable plug and
replace with this
module.
22/07/2008
Net2 data cable
White/Green
Green
White/Orange
Orange
White/Brown
Blue
Brown
White/Blue
SCREEN
The on board resistors must be
removed if this unit is NOT the
last one in the line.
See instructions supplied with
Net2 ACU for correct network
termination (ins-30000)
