Paxton Access 746583 Users Manual
11/12/2008
Layout
Parts list
Tools List
Power Drill
Drill bits 10mm, 25mm.
Philips screwdriver
Hacksaw for cutting bolts
Hammer / Mallet
Chisel 25mm
Stanley knife
Adhesive tape
Pencil
Tape measure
8mm spanner (supplied)
2mm Allen key (supplied)
1) Front Lock Assembly
2) Rubber Escutcheon x2
3) Rear Lock Assembly
4) Ins-30067 - Easyprox Template
5) Left and Right Handles
6) Square Drive
7) Strike Plate Backbox
8) Strike Plate
9) Battery Pack
10) Tubular Mortice Latch
11) Latch Screws x4
12) Short Fixing Screws x4
13) Long Fixing Screws x4
This unit is for Indoor use only.
Technical Support
Technical help is available: Monday - Friday from 5am - 5pm PST / 8am - 8pm EST
1 800 672 PAXT support@paxton.co.uk
Ins-30100-US Easyprox compact keypad
Documentation on all Paxton Access products can be found on our web site - http://www.paxton-access.com/
NOTE: All dimensions are shown in millimetres to maintain accuracy.
Fitting the latch
Step 1
Decide on the height of the latch and mark a line on the edge of the door and about 80mm across both faces. Fold
the template along one of the dotted lines (right or left). Tape it to the door, the latch centre line positioned on the
height mark. (Diagram A).
Mark the 4 x 10mm holes and 1 x 25mm holes. Remove the template and apply it to the other side of the door,
again aligning it with the height line. Mark the holes as before.
Step 2
Drill the 25mm hole on the centre line of the door edge at least 80mm deep to accept the latch.
Step 3
Drill the 4 x 10 mm holes for the xings and one 25mm hole for the square drive. To ensure accuracy you should
drill these holes from both sides of the door towards the centre. This also avoids the risk of damaging the door face
when the drill breaks through.
Step 4
Put the latch into the hole and draw around the edge of the faceplate. Remove the latch and score the outline with
a Stanley knife to avoid splitting the wood when chiselling. Chisel a 3.5mm rebate allowing a ush t for the latch.
(See diagram B).
Step 5
Re-t the latch with the plunger facing away from the door frame and secure with two latch screws.
NOTE. This plunger protects against the manipulation or ‘shimming’ of the latch with a credit card, etc.
Step 6
Cut the square drive to length ( Door thickness +20mm) and slide into the latch.
Step 7
Accurately measure the thickness of the door. (20mm minimum - 60mm max) For doors between 40mm to 45mm
and 55mm to 60mm thick the supplied securing screws (long or short) can be used without adjustment.
For doors outside of this range the long screws should be cut to length of approximately Door thickness + 5 mm.
Diagram A - Drilling template taped to door
25mm
57mm
80mm
3.5mm
25mm

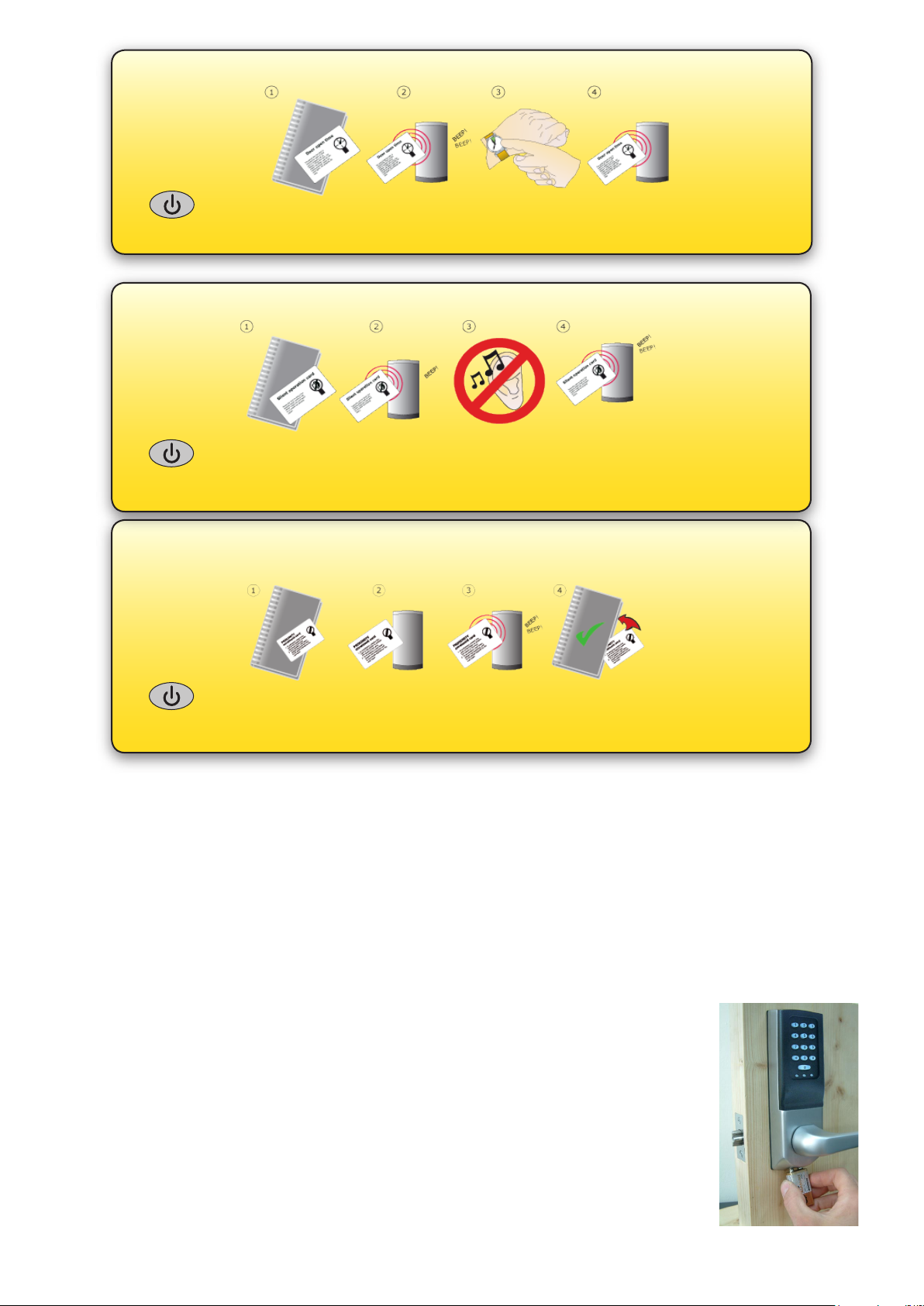

Power up and Initialise
Diagram B - Latch dimensions
Step 8

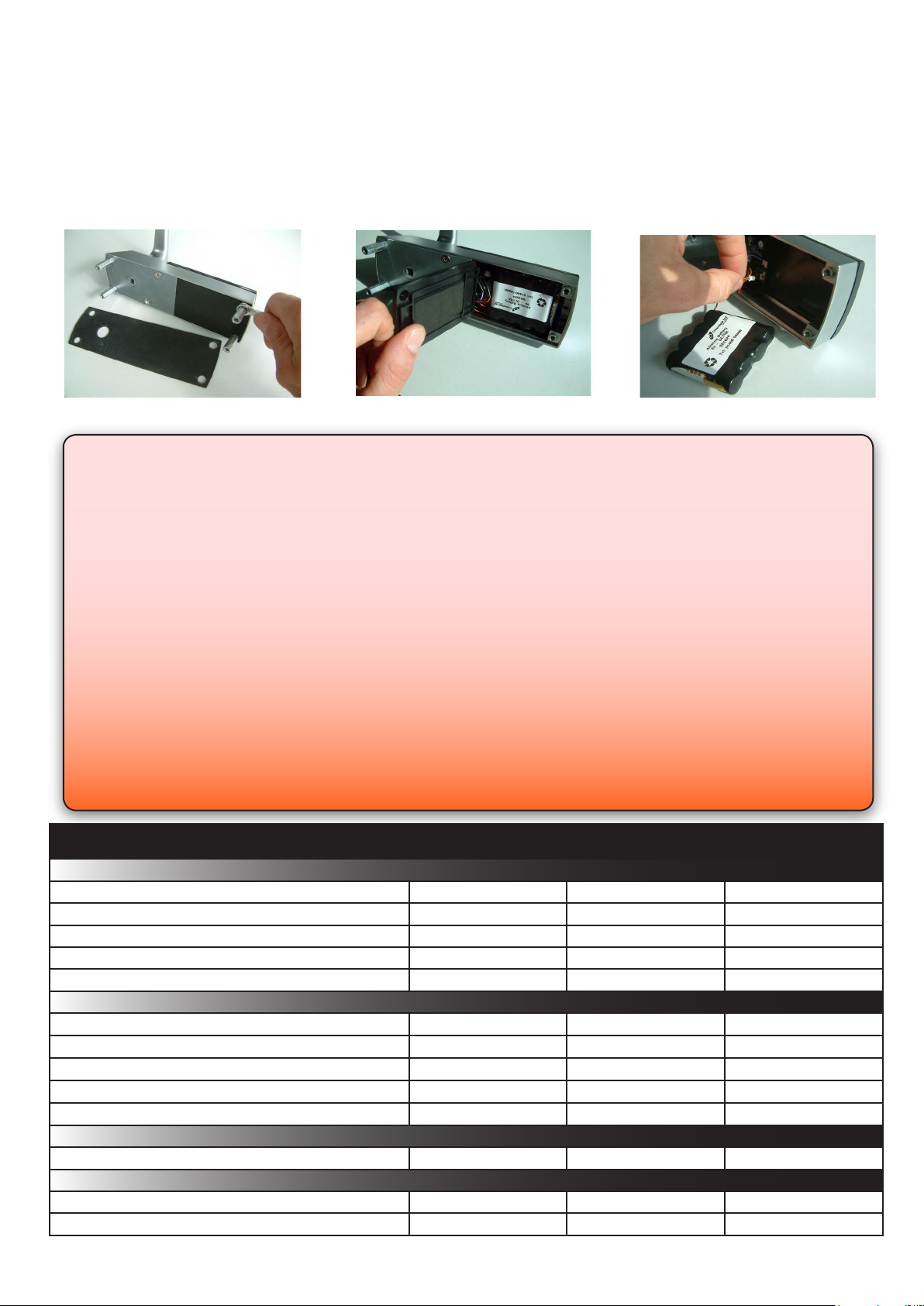

With reference to ‘Battery Replacement’ remove the access plate at the rear of the unit by removing the top
standoff screws. (Fig 1) Take the battery pack and connect the lead to the white plug. (Fig 3) - The unit will
click twice and then commence to beep regularly.
Step 9

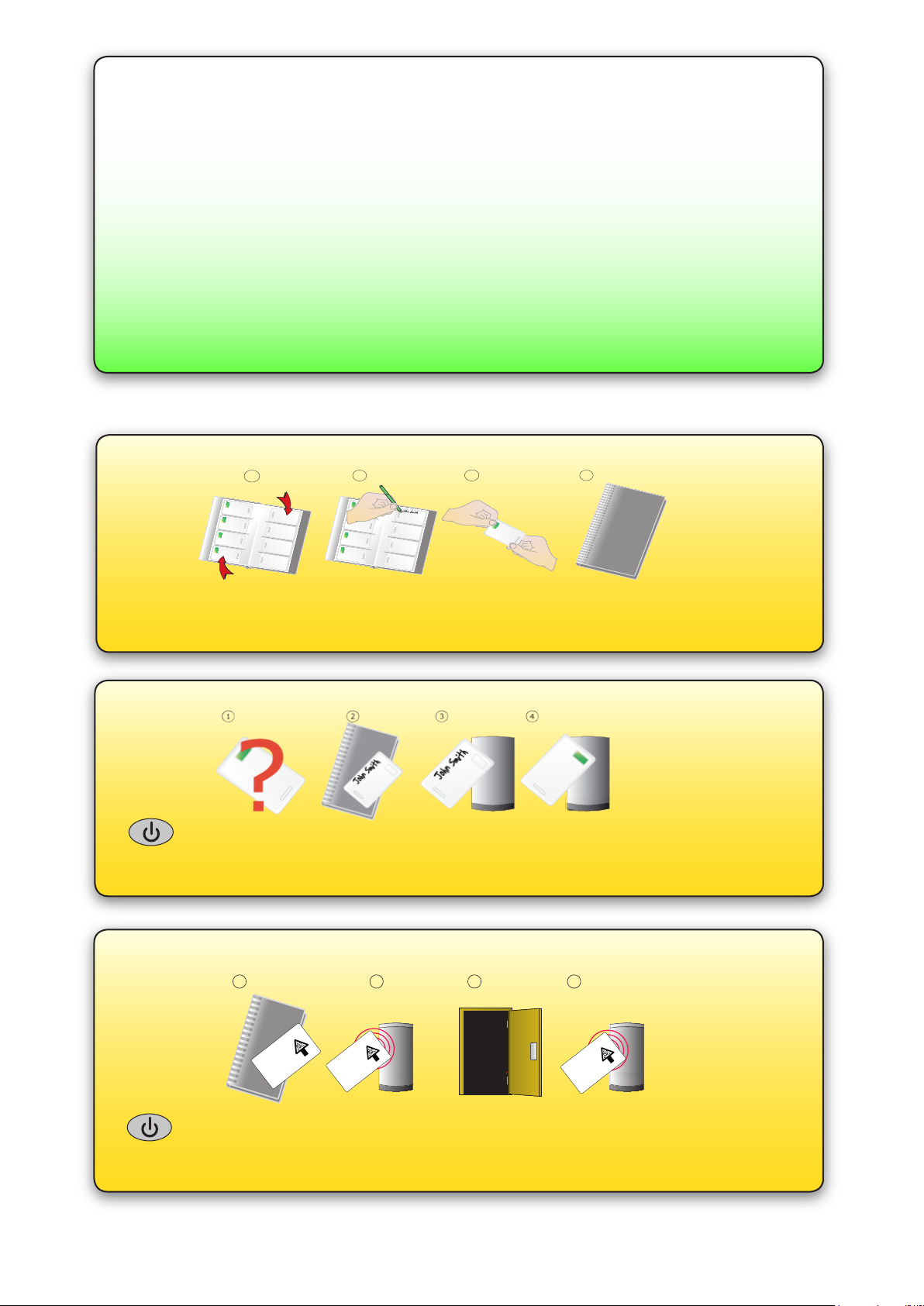

The unit must now be enrolled. Please refer to ‘Initialising a new System’.
The unit will stop beeping and is now active.
15mm
2.5mm
Diagram C - Strike plate and backbox
Diagram D - Strike plate position - Anti-shim plunger
Fitting the strike plate and backbox
Step 10
Fit the battery pack into the unit. Replace the access plate and secure with the standoff screws.
Step 11
Fit the rubber escutcheons to front plate and the back plate. Present the front and rear lock assembly to the door,
locating the square drive in its recess and secure the two parts of the lock together with the xing screws. Fit the
two handles positioning the screw holes to the underside and secure with the grub screws provided.
Step 12
Check the operation of the lock by using the inside lever to check that the latch moves freely. If required, loosen
the xing screws and adjust the position of the lock assemblies until the lever handle and latch are all moving
freely. Tighten the xing screws.
Step 13
To determine the vertical position of the plate - Close the door against the frame and mark the top and bottom of
the latch where it touches the frame. - Transfer these lines horizontally across the frame rebate.
Step 14
To determine the horizontal position of the plate - Measure the distance from the back edge of the door to the at
face of the latch. (NOT the plunger.) Mark this distance on the frame to show how far back the plate needs to be
to hold the door closed.
Step 15
Position the strike plate so that the ‘cut-out’ lines up with the lines made in Steps 13 and 14. Mark the positions
of the xing screws and draw around the ‘cut-out’ in the strike plate. Chisel out a 15mm aperture to receive the
latch bolt. (Diagram C)
Step 16
Fix the strike plate with one latch screw to the surface of the frame.
FROM THE INSIDE: Gently close the door and check that the latch enters the aperture easily with no additional
‘play’ in the frame.
Slight adjustment can be made by moving the plate slightly. When satised, draw around the outline of the strike
plate, remove it. Score around the outline and then cut the rebate to enable the strike plate to lie ush with the
surface.
Step 17
Fix the strike plate using two latch screws and check the lock operation. Remove the strike plate and increase the
aperture to accept the strike plate back box. Now re-x the strike plate and check the operation of the ‘anti-shim’
plunger and the door. (Diagram D)
Step 18

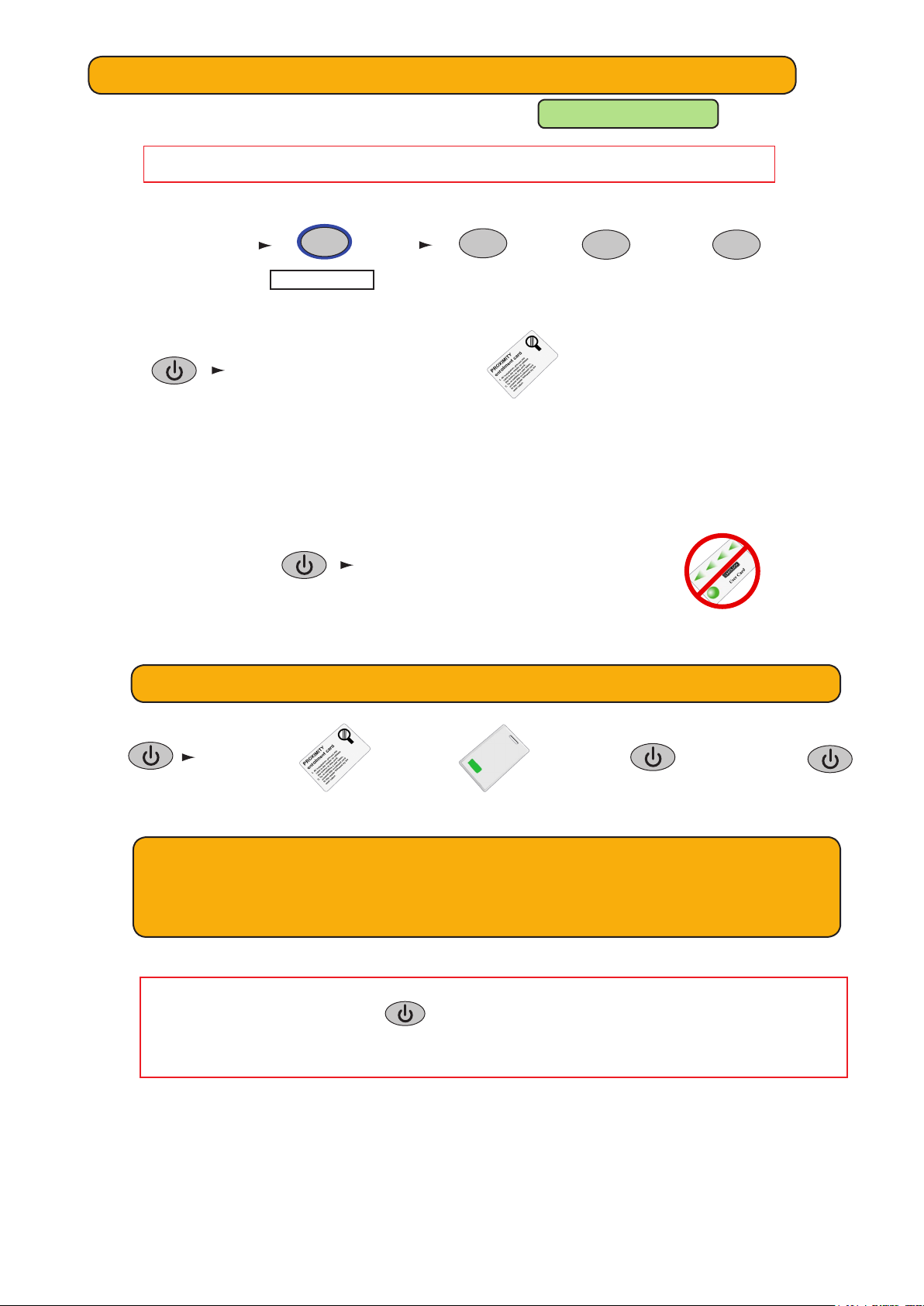

The unit is now fully operational - See following pages for programming instructions and LED indications.
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation. Changes or modications not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
