Ins-30139 PROXIMITY energy saving reader demonstration kit

Technical Support

01273 811011 [e-mail]

Technical help is available: Monday - Friday from 07:00 - 19:00 (GMT)

Saturday from 09:00 - 13:00 (GMT)

Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

Paxton

What’s in the box?

Energy saving reader - Demonstration card pack

Documentation

Part Number

595-248

242-166

Qty

1

1

PROXIMITY energy saving reader

Switch 2 ACU and 1A PSU in plastic housing

Description

1. At installation, present this card to the
reader to

validate the to

kens in this pack

2. To re-validate a user to

ken present this

enrolment card to the reader followed

by the

user token

Paxton Access

FUNCTION CARD

enrolment card

More info:

http://paxton.info/74

Setting up your energy saving reader system

Paxton Access

Relay toggle card

Swipe or present this card to change the action

of the output relay from a time interval to toggle.

A valid card will now close the relay contacts.
They stay closed until another valid card is swiped

or presented.

1. Wiring the system

Equipment to be switched

(not supplied)

Contact

Exit

12V

Red LED

Amber LED

Green LED

Data

Clock

Media Detect

0V

Switch2

Caution: For 12V d.c readers only. For correct

connection of old 5V readers, please refer

to instructions.

Reader or Keypad

Inputs

Power

Door relay

http://paxton.info/107

PLACE SERIAL

NUMBER

123456

LABEL HERE

+

-

Bell

Alarm

12V

0V

N.C.

N.O.

COM

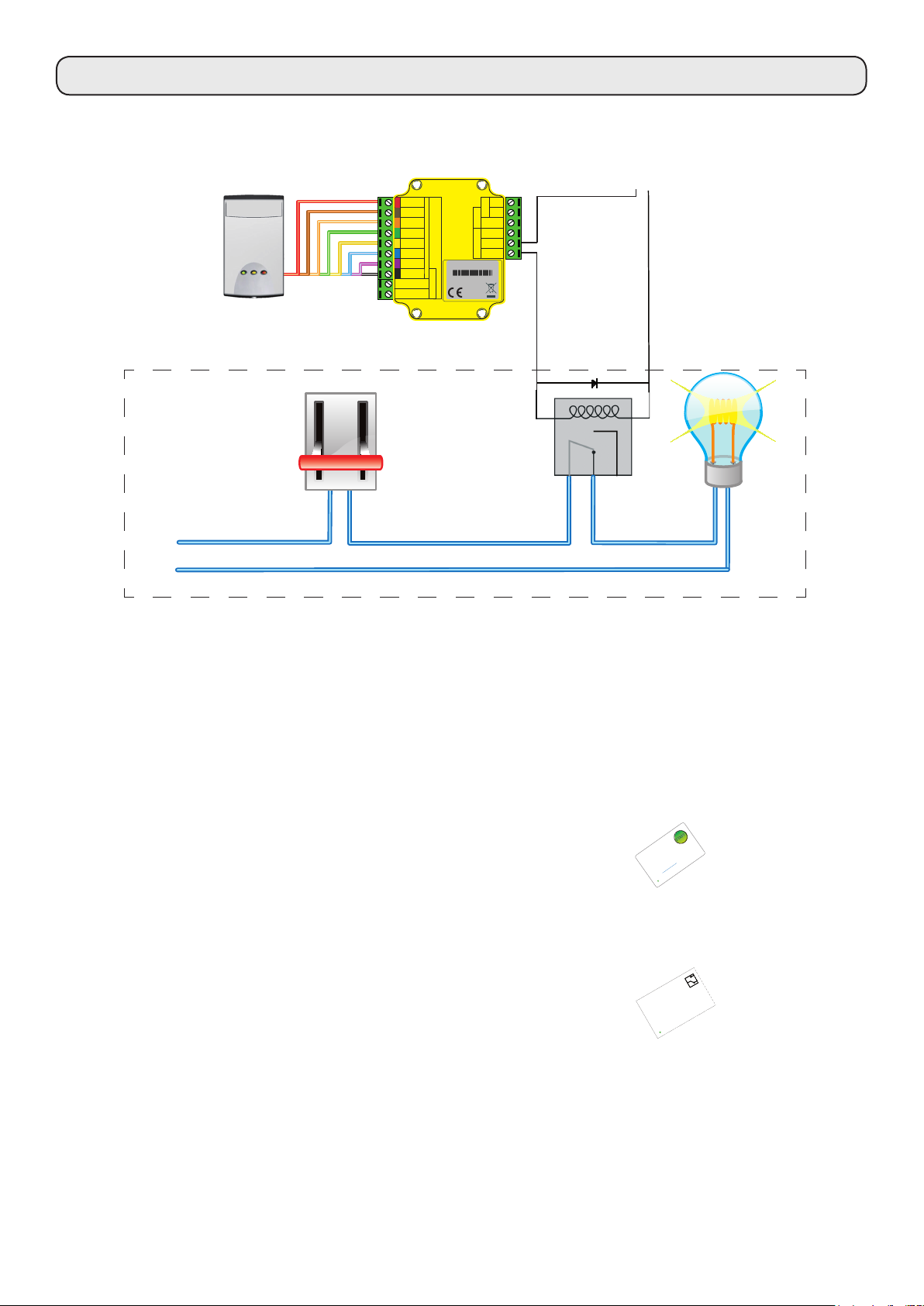

The above diagram shows the Switch2 and energy saving reader congured to control a room light.

This could be used in a meeting room to ensure that the lights are off when the room is not occupied.

NOTE: AC Mains voltage must NOT be directly connected to the controller.

The kit supplied here demonstrates these principles.

Connect the reader to the Switch 2 as per instruction Ins-30119 and power up the Switch 2.
The controller will beep at 3 times per second to indicate that it requires enrolling.

2. Enrolment

Remove the Enrolment card from the card pack and present it to the reader.

PROXIMITY

enrolment card

1. At installation, present this
card to the reader to validate

the tokens in this pack.

2. To re-validate a user token,
present this enrolment card

to the reader followed by the

user token.

3. Relay toggle card

The Switch 2 controller must be used in toggle mode and provides a set of normally open or normally closed relay
contacts to control the attached hardware. This means that the relay will stay turned on for as long as a user card
remains in the reader.

To set the system in toggle mode, present the relay toggle card to the reader.
The control unit will beep twice and the GREEN and AMBER LEDs will go out.
The RED LED will remain lit.

4. Operation

When a user card is placed in the reader, the relay output will change state and the GREEN LED will come on by
itself. When the card is removed again the relay state will change back and the RED LED will illuminate.
