PAX Technology S500RF User Manual

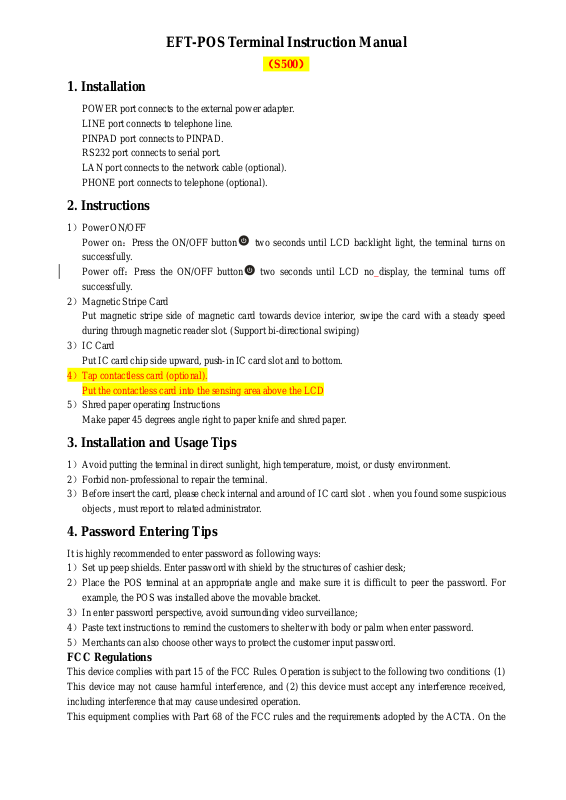

EFT-POS Terminal Instruction Manual

（S500）

1. Installation

POWER port connects to the external power adapter.
LINE port connects to telephone line.
PINPAD port connects to PINPAD.
RS232 port connects to serial port.
LAN port connects to the network cable (optional).
PHONE port connects to telephone (optional).

2. Instructions

1）Power ON/OFF

Power on：Press the ON/OFF button two seconds until LCD backlight light, the terminal turns on
successfully.
Power off：Press the ON/OFF button two seconds until LCD no
successfully.

2）Magnetic Stripe Card

Put magnetic stripe side of magnetic card towards device interior, swipe the card with a steady speed
during through magnetic reader slot. (Support bi-directional swiping)

3）IC Card

Put IC card chip side upward, push-in IC card slot and to bottom.

4）Tap contactless card (optional).

Put the contactless card into the sensing area above the LCD

5）Shred paper operating Instructions

Make paper 45 degrees angle right to paper knife and shred paper.

display, the terminal turns off

3. Installation and Usage Tips

1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment.
2）Forbid non-professional to repair the terminal.
3）Before insert the card, please check internal and around of IC card slot . when you found some suspicious

objects , must report to related administrator.

4. Password Entering Tips

It is highly recommended to enter password as following ways:
1）Set up peep shields. Enter password with shield by the structures of cashier desk;
2）Place the POS terminal at an appropriate angle and make sure it is difficult to peer the password. For

example, the POS was installed above the movable bracket.
3）In enter password perspective, avoid surrounding video surveillance;
4）Paste text instructions to remind the customers to shelter with body or palm when enter password.
5）Merchants can also choose other ways to protect the customer input password.

FCC Regulations

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the

body of this equipment is a label that contains, among other information, a product identifier . If requested,
this number must be provided to the telephone company.

RF Exposure Information

This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

P AX TECHNOLOGY LIMITED
To know more product details, please visit http://www.pax.com.cn

P/N：200312000000198

FCC Caution.

§ 15.19 Labelling requirements.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

§ 15.21 Information to user.

Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.

§ 15.105 Information to the user.
Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

-Consult the dealer or an experienced radio/TV technician for help.
