PAX Technology Q30 User Manual

Q30 POS T erm inal

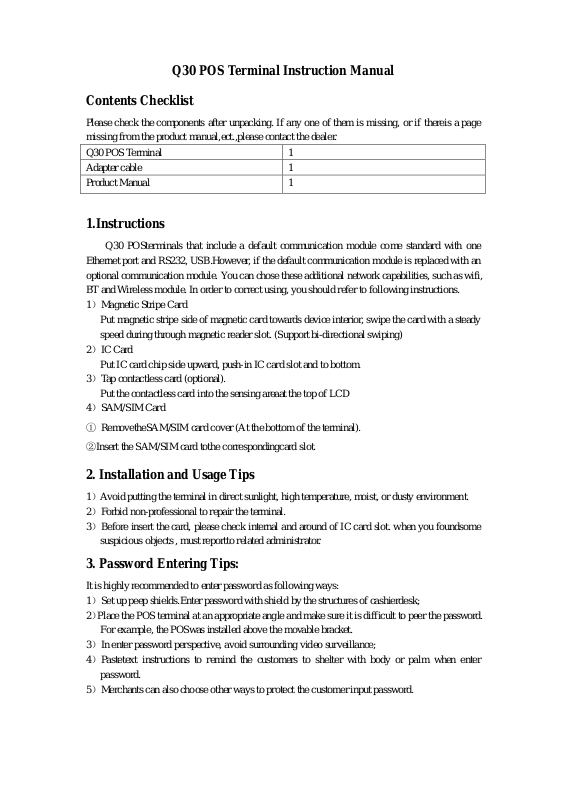

Q30 POS Terminal Instruction Manual

Contents Ch ecklist

Please check the components after unpacking. If any one of them is missing, or if thereis a page missing from the product manual,ect.,please contact the dealer.

Adapter cable 1 Product Manual 1

1.Instructions

Q30 POSterminals that include a default communication module come standard with one Ethernet port and RS232, USB.However, if the default communication module is replaced with an optional communication module. You can chose these additional network c ap abilities, such as wifi, BT and Wireless module. In order to correct using, you should refer to following instructions. 1）Magnetic Stripe Card

Put magnetic stripe side of magnetic card towards device interior, swipe the card with a steady speed during through magnetic reader slot. (Support bi-directional swiping)

2）IC Card

Put IC card chip side upward, push-in IC card slot and to bottom.

3）Tap contactless card (optional).

Put the contactless card into the sensing areaat the top of L CD

4）SAM/SIM Card

① RemovetheSAM/SIM card cover (At the bottom of the terminal). ②Insert the SAM/SIM card tothe correspondingcard slot.

2. Installat ion and Usage Tips

1）Avoid putting the terminal in direct sunlight, high temperature, moist, or dusty environment. 2）Forbid non-professional to repair the terminal. 3）Before insert the card, please check internal and around of IC card slot. when you foundsome

suspicious objects , must reportto related administrator.

3. Password Entering Tips:

It is highly recommended to enter password as following ways: 1）Set up peep shields.Enter password with shield by the structures of cashierdesk; 2）Place the POS terminal at an appropriate angle and make sure it is difficult to peer the password.

For example, the POSwas installed above the movable bracket. 3）In enter password perspective, avoid surrounding video surveillance; 4）Pastetext instructions to remind the customers to shelter with body or palm when enter

password. 5）Merchants can also choose other ways to protect the customer input password.

4. Frequency band & transmitting power

The devicesupports 1/2/5.5/11/6/9/12/18/24/36/48/54 Mbps for WIFI2.4GHz b/g and MCS0~MCS7 for WIFI n-20MHz of transmitting speed and operating frequency is 2412MHz~2462MHz with 11 channels.The device of RF carrier is DSSS (DBPSK / DQPSK / CCK) and OFDM (BPSK / QPSK / 16QAM / 64QAM)

Bluetooth, frequency: 2402-2480MHz, transmitting power: 9.0dBm WIFI, frequency: 2412-2462MHz, transmitting power: 15.5dBm

The CLRC663is a highly integrated transceiver IC for contact|ess communication at

13.56MHz.This transceiverIC utillzes an outstanding moduation and demodulation conoept completely integrated for different kinds of contactless comFnunication methodsand protocoIs at13.56MHz. The CLRC663 suppors MIFARE1K,MIFARE4K,MIFARE UlraIight,MIFARE UltaIoht C,MlFARE PLUS and MIFARE DESFire products.The CLRC663 supports contactless con1munication and uses the MlFARE highertransfer speeds of up to 848 kbiVs in both directions.

4. Icon shows

Do not throw away, need professional recycling.

Class II Equipment

For indoor use only

Energy Efficiency Marking

AC voltage

DC voltage

The MAINS plug is used as the disconnected device.

FCC Regulations:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

s equipment has been tested and found to comply with the limits for a Class B digital device,

Thi pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. T his equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reo  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that

 Consult the dealer or an experienced radio/TV technician for help.

CC Caution:

 Any changes or modifications not expressly approved by the party responsible for

 This transmitter must not be co-located or operating in conjunction with any other antenna

rient or relocate the receiving antenna.

to which the receiver is connected.

compliance could void the user's authority to operate this equipment.

or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Industry Canada statement

 This device complies with Industry Canada license-exempt RSS standard(s). Operation is

subject to the following two conditions:

1) this device may not cause interference, and

2) this device must accept any interference, including interference that may caus sired operation of the device.

unde

 Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:

1) l'appareil ne doit pas produire de brouillage, et

2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si l

ouillage est susceptible d'en compromettre le fonctionnement.

 This device and its antenna(s) must not be co-located or operating in conjunction with any

other antenna or transmitter, except tested built-in radios

 C

 The County Code Selection feature is disabled for products marketed in the US/ Canada.  La fonction de sélection de l'indicatif du pays est désactivée pour les produits

et appareil et son antenne ne doivent pas être situés ou fonctionner en conjonction avec une

autre antenne ou un autre émetteur, exception faites des radios intégrées qui ont été testées.

commercialisés aux États-Unis et au Canada.

adiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

éclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
