Pax Technology D200 User Manual

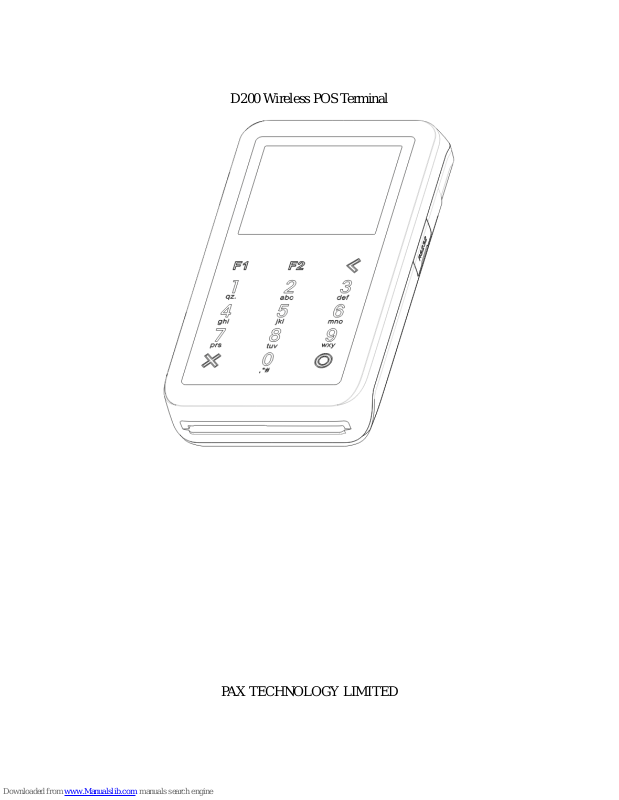

D200 Wireless POS Term inal

PAX TECHNOLOGY LIMITED

1. Production Description：

LCD Di splay

RF Antenna Area

Rs232 Conncet

Capacitive Key Area

Ic Ca r d Sl o t

Magnetic Strip Card Solt

USB Connect

Battery Cover

Front View Back View

Screw

MagneticStripCard Solt
Barcode Label
Nameplate Label

Battery Ar ea

SAM / SI M Card Slot

Antenna

Back Layout Battery / Battery Cover View

2. Installation

1） SAM Card Installation

① Open up battery cover, which is at the bottom of the terminal;
② Take out battery ;
③ Insert SAM card to corresponding SAM card slot.

2） Battery Installation

① Hold the battery with its facing up;
② Attach battery forelock to battery bayonet;
③ Press down the other side of the battery

3. Instruction

1） Power ON/OFF
Power on: Plug in power adapter or insert the battery, Press

button for 3 seconds until

‘Di’ is heard, and then PAX LOGO will display on LCD.

Power off: Press

button for 3 seconds until Shutting down... can be seen. POS terminal is

being turned off.

2） Magnetic Stripe Card
When user swipes magnetic stripe card along the slot, the backside of card, which contains
magnetic strip information, should be facing to the terminal. Bi-directional swiping is supported. It
is recommended to swipe starting from left to right (or from right to left) with a c onstant moving
speed.

3） IC card
When user insert IC card into the IC slot, the chip of IC card should be facing up; user is
recommended to gently insert the card, in order to avoid any physical damage to the card or the IC
slot of the terminal. If IC card is successfully read by the terminal, the IC card icon will be shown
on LCD display screen.

ICC Operation Process

Before inserting the IC card, please check inside and around the IC card slot. If there
is any suspicious object, please don‘t insert card and immediately report to the
relevant staff.

4) Contactless Card
