PAX Technology D180BT User Manual

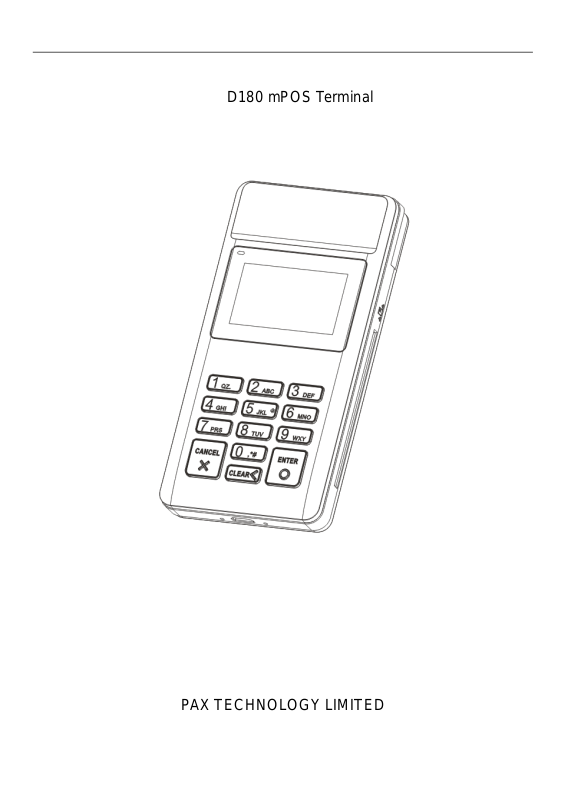

D180 mPOS Terminal
PAX TECHNOLOGY LIMITED
1. Product Description
Figure 1. Front view
1. Charging LED indicator
2. Power key
3. Magnetic stripe card reader
4. Display
5. Smart card reader
6. Keyboard
Figure 2. Back view
7. MicroUSB
8. Serial number
9. Nameplate
10. P AX Logo
2.Quick Start
ConnecttoPCwithUSBcable
1) Connect PC with D180 by USB cable.
2) Shopping and click PAY button on PC.
3) Confirm amount displayed on D180 screen.
4) Prompt for reading card on D180.
5) Input PIN through pinpad of D180.
6) Finish the transaction.
