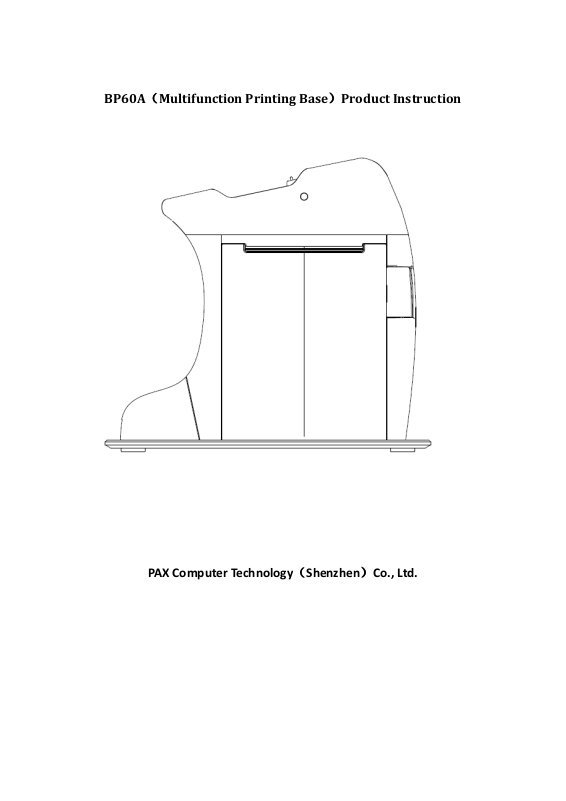

BP60A（Multifunction Printing Base）Product Instruction
PAX Computer Technology（Shenzhen）Co., Ltd.
1. Appearance Instruction
Charging
Contact
Front
Back
NameplateLaser
SNBar Code
Rubber
Foot
Foot
Rubber
Foot
Rubber
Foot
Etching
Rubber
USB2
POWER
RS232
LAN
USB1
The matching diagram for A60 host and intelligent printer base is as follows:
2. Installation Instruction
1）Connect the base's DC port with a 9V/1A power adapter.
2） Use a network cable to connect the base's LAN port with a gateway device that can access the
Internet, such as router, LAN switch. (If not used, do not install.)
3）Put the paper roll (width: 58mm, diameter: 80 mm) into the paper storehouse.
3. Usage Instruction
1. Place A60 host (by pushing from bottom to top) on the base. Then A60 host will identify the
base automatically, and switch to be charged through the base.
2. When the base's Ethernet connection is available, the A60 host will automatically switch the
data connection to the Ethernet connection on the base.
3. It is supported that multiple A60 hosts are connected to the base printer through Bluetooth,
and bills will be printed one by one.
Note: When using the Ethernet, do not vibrate the base and A60 host violently, so as to avoid the
interruption of the data connection between the host and the base.
4. Terminal Specifications
：
Power supply：DC-9V@1A
Ethernet：10/100Mbps adaptive network port
RS-232 serial port: Maximum transfer rate115200bps
USB port：USB2.0 HOST
Port Instruction:
DC port x 1: Power port
TYPE AUSB x 2:USB2.0 Host port, used to connect the scanner gun or keyboard
RS-232serial port x 1 : RJ45-8P8C
Ethernet x 1 :RJ45-8P8C
Working Environment: Working temperature：0℃～50℃
Relative humidity: 10％～96％（Non-condensing）
Storage Environment: Storage temperature: -20℃～70℃
Relative humidity: 5％～96％（Non-condensing）
Dimensions
Weight：550g
162mm * 119.0mm * 146.3mm（Length x width x height）
5. Precautions for Use and Installation
1）Do not damage the power adapter. Otherwise, they can't be used again.
2）Before connecting the power supply to the AC outlet, check whether the power supply of
the socket is in compliance with the device specified voltage.
3）Make sure the base is switched on when connecting it to the power supply.
4）Avoid exposing the machine in sunshiny, hot, humid, or dusty environment.
5）Keep the machine away from liquid.
6）Do not insert foreign objects into any port of the device, which may damage the device.
7）Please contact the special maintenance personnel when the device fails. The user is not
allowed to repair the device without authorization.
8）It is strictly forbidden to disassemble the machine in explosive dangerous places and use
external interfaces.
9）Do not use wet cloth to clean the product.
10）You can operate the device only after being guided by the professional.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate this equipment.
Radiation Exposure Statement:
This equipment complies with FCC’s RF radiation exposure limits for general population without
SAR evaluation.
This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
