Paxar 676 User Manual

Users Manual

Model 676

PAXAR Systems Group

Manual Edition 7.1

15 November 2002

Manual Part Number 371398

This page intentionally blank

Users Manual Model 676

Contents

Scope 6

Introduction ...............................................................................................................................6

Safety Issues / Warnings 6

Caution ......................................................................................................................................6

Warranty Information 7

Description / Specifications 8

Printer Description..................................................................................................................... 8

Printer Specification ..................................................................................................................9

Personal Computer Specifications........................................................................................... 10

Customer Responsibility 11

Location of Printer...................................................................................................................11

AC Power Line ........................................................................................................................12

Printer Unpacking / Installation 12

Unpacking................................................................................................................................ 12

Inventory of Components ........................................................................................................13

Fuse Configuration .................................................................................................................. 14

Installing the Power Cord ........................................................................................................ 15

Installing the PC Interface Cable............................................................................................. 15

Installing the PC Software....................................................................................................... 15

TCB Dip Switch S2 Settings ...................................................................................................15

Printer Operation 16

Loading Stock.......................................................................................................................... 16

Butt Splice ...............................................................................................................................17

Web Guides .............................................................................................................................17

Print Head Operation ............................................................................................................... 18

Installing Ink Ribbon ............................................................................................................... 19

Control Panel Operation 20

Printer Controls........................................................................................................................20

Indicator Lights........................................................................................................................21

Display Modes......................................................................................................................... 23

Adjustments 36

Users Manual Model 676 Scope • 3

Feed Roller Pressure................................................................................................................ 36

Sensors..................................................................................................................................... 37

Sensor Adjustments:................................................................................................................ 38

Print Head................................................................................................................................ 39

Knife squarness........................................................................................................................40

Stacker ..................................................................................................................................... 40

Machine Set Up Sequence ....................................................................................................... 42

Maintenance 43

Cleaning................................................................................................................................... 43

Print Head Handling ................................................................................................................44

Print Head Replacement ..........................................................................................................45

Lubrication Procedure .............................................................................................................47

Electrical Trouble Shooting 48

Power Up / Sign On / Communications...................................................................................48

Stock / Ink Advance ................................................................................................................50

Print .........................................................................................................................................51

Cut / Stack ...............................................................................................................................53

Mechanical Trouble Shooting 54

Stock ........................................................................................................................................ 54

Ink............................................................................................................................................ 56

Print .........................................................................................................................................57

Knife ........................................................................................................................................ 58

Appendix A 60

Error Messages ........................................................................................................................ 60

Appendix B 61

Software Upgrade Chip Placement Positions ..........................................................................61

Front Panel Diagnostic Descriptions .......................................................................................63

Appendix C 64

Ink and Stock Transfer Types.................................................................................................. 64

Appendix D 67

Knife MFG Guideline.............................................................................................................. 67

Appendix E 70

Printhead Life Extension .........................................................................................................70

Printhead Fail Modes...............................................................................................................71

Printhead Cleaning Procedure .................................................................................................72

Printhead Installation and Removal Procedures ......................................................................73

Static Checks for 636/656 Printers .......................................................................................... 74

Print Quality Adjustment......................................................................................................... 76

Appendix F 77

4 • Scope

Platen Rollers for 6x6 and 676 Printers................................................................................... 77

Electrical Assembly Drawings 82

Machine Wiring....................................................................................................................... 82

Electrical System Schematic.................................................................................................... 83

Motherboard Power Connectors.............................................................................................. 84

Mechanical Assembly Drawings 85

Unwind Assembly Drawing ....................................................................................................86

Unwind Parts List ....................................................................................................................87

Web Guide / Light Bar Assembly Drawing.............................................................................88

Web Guide / Light Bar Parts List ............................................................................................ 89

Drive Assembly Drawing ........................................................................................................ 90

Drive Parts List........................................................................................................................ 91

Top - Printhead Assembly Drawing ........................................................................................ 92

Top - Printhead Parts List........................................................................................................ 93

Ink-Save Printhead Assembly Drawing................................................................................... 94

Ink - Save Printhead Parts List ................................................................................................95

Bottom - Printhead Assembly Drawing................................................................................... 96

Bottom - Printhead Parts List ..................................................................................................97

Ink Unwind Assembly Drawing .............................................................................................. 98

Ink Unwind Parts List.............................................................................................................. 99

Ink Rewind Assembly Drawing.............................................................................................100

Ink Rewind Parts List ............................................................................................................ 101

Ink Rewind w/Head-Lift Assembly Drawing........................................................................ 102

Ink Rewind w/Head-Lift Parts List........................................................................................ 103

Ink Rewind - Station 3 - 1 over 1 - Assembly Drawing ........................................................104

Ink Rewind - Station 3 – 1 over 1 - Parts List ....................................................................... 105

Knife Assembly Drawing ...................................................................................................... 106

Knife Parts List...................................................................................................................... 107

Stacker Assembly Drawing (Part 1) ...................................................................................... 108

Stacker Parts List (Part 1)...................................................................................................... 109

Stacker Assembly Drawing (Part 2) ...................................................................................... 110

Stacker Parts List (Part 2)...................................................................................................... 111

Rewind Assembly Drawing................................................................................................... 112

Rewind Parts List................................................................................................................... 113

Optional 4 1/4” Stacker Specifications.................................................................................. 115

Optional 4 1/4” Pick-up Assembly ........................................................................................ 116

Optional 4 1/4” Pick-up Parts List......................................................................................... 117

Optional 4 1/4” Stacker Assembly.........................................................................................118

Optional 4 1/4” Stacker Parts List ......................................................................................... 119

Drive Belt Routing (2 over 1) Drawing................................................................................. 120

Drive Belt Routing (2 over 1) Parts List................................................................................ 121

Drive Belt Routing (1 over 1) Drawing................................................................................. 122

Drive Belt Routing (1 over 1) Parts List................................................................................ 123

Users Manual Model 676 Scope • 5

Scope

Introduction

This user manual was arranged for the person who is going to operate the machine.
The information is arranged in the order that is needed to install and operate the
machine. It starts with general information, then to unpacking the crate, installing
the stock and ink ribbon, printer operation, control panel operation, and finally care
and maintenance of the printer.

We at PAXAR hope that you will come to appreciate the efforts and quality which
have gone into producing your PAXAR 676 Printer and wish to remind you that you
are our number one priority. We welcome any constructive comments or criticisms
so that we may continue to offer you the best printer in the industry for years to
come.

Safety Issues / Warnings

Caution

This machine has some pinch points. All of these areas have been well guarded and
it is recommended that the safety features of this machine are never altered or
defeated.

6 • Scope

Warranty Information

Limited Warranty

PAXAR Systems Group, Division of PAXAR Corporation, extends the following
warranties to the original purchaser of a PAXAR 676 which has been installed and
operated using recommended procedures and operating conditions.

Parts

Parts found defective in material or workmanship will be replaced at no charge for a
period of six months following the machine's shipment date. Parts damaged by
negligence, abuse, or normal wear are not covered. PAXAR 676 parts classed as
normal wear items include print heads, feed and platen rollers, and knife blades.

Service

Service to replace defective parts as defined above, shall be provided at no charge
for a period of six months following the shipment date.

When ordering machines and supplies in the U.S.A., reference all correspondence to
the address below.

PAXAR Corporation

One Wilcox Street

Sayre, Pa. 18840

Call: 1-800-96PAXAR or [phone]

Fax: [phone]

For spare parts, requests for service or technical support

Paxar Service Group

170 Monarch Lane

Miamisburg, OH 45342

Call: [phone]

Fax: [phone] for Warranty Parts

Fax: [phone] or [phone] for Customer Parts Orders

For parts and service in other countries please contact your local PAXAR supplier.

PAXAR Apparel Identification Systems Group reserves the right to incorporate any
modifications or improvements in the machine system and machine specifications
which it considers necessary and does not assume any obligation to make said
changes in equipment previously sold.

Users Manual Model 676 Warranty Information • 7

Description / Specifications

Printer Description

The PAXAR MODEL 676 THERMAL PRINTER (Figure 1) is an electronic two
side printer that can print on Fabric Tapes, Card Stock, Heat Seal, and Pressure
Sensitive rolled stocks. The printer interfaces to a computer or a main frame system
that allows for computer input or even design of a label with PAXAR’S PCMate
Plus's "FORMATTER" program. The printer can generate a complete label printed
on two sides, with up to two colors on the top and a third on the bottom.

• Design your own labels on a PC

• Computer interface = IBM Compatible

• Mainframe direct interface

• RS232 9 Pin D shell female Serial interface connector

8 • Description / Specifications

Figure 1 - PAXAR MODEL 676 LABEL PRINTER

Printer Specification

Print method: Wide web thermal transfer or thermal direct two sided printer

Speed - up to 5 IPS (127mm/second)

Label Size Min: 1" (25.4mm) web x 1" (25.4mm) feed (standard stacker)

1" (25.4mm) web x 5/8” (15.8mm) feed (optional 4 ¼” stacker)

Max: 5.125" (130.2mm) web x 7" (177.8 mm) feed (standard stacker)

4.25" (108mm) web x 1 ¾”" (44.45 mm) feed (optional 4 ¼” stacker)

5.125" (130.2mm) web x 14" (355.6mm) feed

No stacker – optional rewind unit or cut without stacking

Print Area Min: None

Max: up to 5" (127mm) web x up to 13.875" (352.4 mm) feed

except station #2 web reduced to 4.875” (123.8mm) for trap printing and electronic adjustment

Resolution 300 DPI x 300 DPI

Fonts Two scalable fonts resident: condensed, standard, and bold typefaces, upper and lower case

4pt up to 96pt (300 DPI),

All rotations 0°, 90°, 180°, 270°

Logos No restriction on number or size per tag (up to maximum image area)

All rotations 0°, 90°, 180°, 270°

Care Symbols Full Ginetex Care Symbol set and full NAFTA Care Symbol Set

Fully Scaleable

All rotations 0°, 90°, 180°, 270°

Justification Left, Right, and Center field selectable

Stock Support for blank or pre-printed fabrics, blank or pre-printed card stock and die cut blank or

pre-printed pressure sensitive

Interface PAXAR PCL via RS232 serial port - 9 pin D-shell

Control Panel Push-button printer function with 2 Line x 24 Character International LCD Backlit Display

Dimensions 17.0" (431.8mm) high x 35.75" (908.05mm) wide

including stacker x 20.0" (508.0mm) deep

Weight 98 Lbs. (44.45Kg.)

Electrical 90-132 / 180-265 VAC 50-60Hz 10Amp 1 Ph User selectable

Temperature

Humidity 5% to 90% non-condensing

41°F (5°C) to 104°F (40°C)

Users Manual Model 676 Description / Specifications • 9

Other Features - Downloading of information while machine is operating

- Sequenced Fields

- Time/Date Stamping (Both month/day/year and day/month/year format)

- Life Counts

- Operator adjustable: strobe, cut position, print position, baud rate, and buffer size

- Error Detection of: stock out, ink out, print head open, feed open, full stacker, stacker jam,

and print head over-temperature

- Display: labels left to be cut and stacked in a batch, batch ID, total life inches, total life

cuts

- Self Diagnostics

- Missed sense mark detection and correction

- Slot / Notches/ Hole

Ink Ribbon PAXAR standard thermal colors and widths

Options - VL70 Barcode Verifier System

- 4 ½” Stacker

- Downstacker

- Rewind Unit (115V or 230V)

- Reflective registration detection (Back of web only)

- Optional Contrast registration detection

- PCMate Plus w/Formatter

- Spare Parts Kit

- International Hardware Kit

Personal Computer Specifications

This specification describes the hardware and application software requirements for
the Personal Computer that is connected to the PAXAR 676 Printer.

The PAXAR 676 Printer uses a DOS Version of PCMate or a Windows version of
“PcMate Plus / Formatter ”. These applications create the tag or label formats
(layouts) then fill and transfer data to the printer through the serial port of the
computer.

“PcMate Plus / Formatter ” Requires the following;

- IBM® PC or compatible

- Microsoft Windows® 95 or higher (Including Win 2000, ME, and NT)

- 16 Megabytes RAM (minimum) - 32 Megabytes recommended

- 50 Megabytes (minimum) free disk space

- Pentium or Pentium Type processor - 200 Mhz or higher

- 3-1/2" floppy drive

Refer to your specific software package for proper installation procedures.

10 • Description / Specifications

Customer Responsibility

Location of Printer

The printer weighs approximately 70 Lbs (32 Kg) and requires a table of sufficient
quality and strength to handle this load while the printer is operating. PAXAR
recommends an industrial type work table having the approximate dimensions of 96"
wide to 30" deep to 32" high. Refer to Figure 2.

Figure 2 - Recommended Workstation Layout.

The location of the PAXAR 676 printer should be based on human factors. The
printer should be located in an area that maintains optimum flow of your product
while providing for the operator’s comfort. PAXAR has taken significant steps to
ensure that the operator controls and operations are easily accessible. This goal can
only be met, however, if the printer is also located with human factors in mind.
These include the height of the printer, the space around the printer, and the
accessibility to the printer.

The PAXAR 676 printer is a high-resolution thermal printer. While PAXAR has
designed the printer to be reasonably quiet, it is recommended to locate the printer in
an area where printing and cutting repetitious noise is acceptable.

The unit should always be operated with the cover closed to minimize the amount of
dust and dirt in the machine.

Users Manual Model 676 Customer Responsibility • 11

AC Power Line

PAXAR requires that the electric service be 10 Amps @ 115VAC or 10 Amps @
230VAC. This will allow the computer and any additional support or service
equipment to be plugged into the same service.

Any electrical service which is supplying a PAXAR printer or peripheral equipment
connected to a PAXAR printer should follow standard electrical code practices
including proper grounding and neutral requirements.

The PAXAR printer was designed to operate in an industrial setting for extended
periods of time; however, the printer is controlled by a microprocessor which is very
sensitive to brownouts or power spikes. For this reason as well as the minimum
recommended current supply, PAXAR recommends that a separate “clean” service
be installed or reserved for the exclusive use of the PAXAR printer and it’s
peripherals.

Printer Unpacking / Installation

Unpacking

The PAXAR printer is shipped in a large plywood crate which may be difficult to
move by hand.

DO NOT REMOVE THE PRINTER FROM THE CRATE OR UNPACK IN
THE SHIPPING / RECEIVING DEPARTMENT.

NOTE: Unpacking in the shipping/receiving department is not recommended for

the following reasons. First: The plywood crate in which your PAXAR printer was
shipped allows the printer to be moved with a forklift, forkcart or hand cart.
Because of the weight of the printer, it is easier and safer to use one of these devices
to move the printer to its intended installation location. Second: Leaving the printer
in the crate while it is being moved within your facility will help to protect the
printer during the movements to this new location. Once the printer has reached its
intended location you should begin the unpacking process.

Open the crate from the bottom by removing the six screws along the bottom of the
cover near the floor (See Figure 3).

Remove the plastic over the printer.

Remove all the smaller loss items from in and around the printer.

Unbolt the shipping bracket from the crate bottom.

Lift the printer onto the table.

Remove the shipping brackets from the machine.

12 • Printer Unpacking / Installation

Inspect the machine for shipping damage. If obvious damage is discovered, contact
PAXAR for further instructions - in the U.S.A. at (570)-888-9116. In countries
other than the U.S.A. please contact your local PAXAR supplier.

Save the shipping materials to relocate the unit or return to factory for service.

Inventory of Components

The following list shows the additional parts (pieces) which should be included in
your PAXAR 676 shipping crate. If anything is missing, notify PAXAR
immediately - in the U.S.A. at (570)-888-9116. In countries other than the U.S.A.
please contact your local PAXAR supplier.

- PAXAR 676 "User's Manual" (See tool kit below)

Figure 3 Shipping Crate.

- Stacker assembly

- A quick-disconnect power cord

- A serial communications cable with converter

- Optional IC card for custom Logos or additional fonts that were special ordered.
(in the back of the manual)

- Optional software ordered to drive the printer.

- Tool kit

NOTE: Some of the above parts may be inside of the envelope which contains the

tool kit.

PAXAR 676 TOOL KIT (#371390)

241149 Anti-Static Gloves (2)
241132 Anti-Static Wrist Strap
921309 Hex Key Set
181301 2.5mm Ball Driver
101330 9/64” Ball Driver
921304 5/32” Ball Driver
921364 3/16" Long Ball Driver
351156 Chip Removal Tool
371398 676 Users Manual

921353 Phillips Head Screwdriver

Users Manual Model 676 Printer Unpacking / Installation • 13

Fuse Configuration

The main fuse(s) on the Paxar 676 are located inside the AC power entry receptacle.
The entry has a fuse drawer that holds the fuse(s) and selects the appropriate line
voltage. If the number in the window DOES NOT match the AC line intended to be
supplied to the printer, DO NOT plug the power cord in. Re configure as follows:

1) Using a flat blade screwdriver, open the AC entry by lifting the tab just above the
voltage indicator window.

WARNING: Attempting to open the AC entry with the AC power cord inserted into

2) Remove the red fuse drawer.

3) Remove all fuses and the fuse jumper if it is present.

4) Insert into the fuse drawer the correct number and style of fuses and fuse jumper
for your application.

Configuration Number One: Line voltage between the range of

it will cause damage to the AC entry.

90 - 132VAC @ 50 - 60Hz 1 Ph

1) Install one 921167 - 10.0A 250V Fast Acting 1/4 x 1 1/4"

2) Install one Fuse Jumper

See Figure FUSE1

Configuration Number Two: Line voltage between the range of

180 - 265VAC @ 50 - 60Hz 1 Ph

1) Install two 921168 10.0A 250V Fast Acting 5 x 20MM

NOTE: The fuse jumper must be removed to install both 5 x
20mm fuses.

The fuses must be between points A and B as shown not B and C.

See Figure FUSE2

4) Reinsert the fuse drawer into the AC entry with the desired voltage up.

5) Close the AC entry and verify the correct voltage is now visible.

14 • Printer Unpacking / Installation

Installing the Power Cord

A power cord is shipped with each printer. The cord for 115-volt printers, will use
the standard three prong plug used in the U.S.A. A 230-volt printer and some other
115-volt configurations must have the receptacle end of the connector removed and
the proper plug installed. It is the customers’ responsibility to have the plug and
alteration work done by a certified electrician. Paxar supplies printers to many
countries with many variations. Therefore we leave this to the customer to make the
proper selection for their country.

Installing the PC Interface Cable

The 676 requires a 9-pin RS232 cable. This cable is provided with the printer. If
the cable was not found it can be order from PAXAR (Part no. 351124).

The male end of the cable should be connected to the 9-pin D-shell female connector
that is located on the right side of the printer. The female end of the cable is made to
fit a 9-pin male RS232 connector on the back of the PC.

Installing the PC Software

The software to drive the Paxar family of printers is covered in separate
documentation. The "Formatter" software to create formats for the Paxar 676 printer
is a Windows application. The original software "Selfform" will not create formats
for the 676. The new "Formatter" package is capable of making formats for all
Paxar control printers.

The DOS version of "PCMate" has been updated to drive the 676 printer. PCMate
DOS version 3.10 or higher is needed for its use.

The printer is also capable of operating directly from a mainframe when using the
RS232 interface and Paxar's PCL command language.

TCB Dip Switch S2 Settings

DIP SWITCH # DEFINITION 676

8 DOWNSTACKER /

LOKPRINT

7 UNUSED OFF
6 UNUSED OFF
5 STACKER JAM ENABLE ON

4 MACHINE TYPE ON
3 MACHINE TYPE ON
2 UNUSED OFF
1 DPI N/A OFF

DOWNSTACKER ON

LOKPRINT

DISABLE OFF

® OFF

300 ON

Users Manual Model 676 Printer Unpacking / Installation • 15

Printer Operation

Loading Stock

LOADING STOCK FOR THE FIRST TIME

Figure 4 - Stock Threading

1) Adjust the unwind width wider than the roll of stock to be loaded. Set the stock

roll on the unwind between the guides with the stock unwinding from the top
clockwise. Adjust the unwind width down to the stock size without clamping
the core.

2) Adjust the web guides on the decurler bar to a width wider than the stock.

3) Remove the tape or pull the glued end of the stock loose from the supply roll of

stock. Pull off about 2 feet (.5 m) of stock to thread it through the printer.

NOTE: If the material was glued to the core, cut off all material that has glue on

any surface.

4) Open the hinged cover to the machine.

5) Open all the print heads by pulling the release knob and then rotating the print

head into the open latched position. The top two print stations have a pin in the
rear to hold them open. The bottom print station has a hole in the rear to hold
the print head slightly open to act as a bridge for the stock to pass over.

6) Open the feed rollers by rotating the feed pressure knob fully clockwise.

7) After looping the leading edge of the stock over the decurler slide it through the

funnel containing the registration sensor system. Keep the stock in the center,
as the printer is center justified.

8) As the stock exits the sensor area, continue to slide the stock through the print

stations.

9) Once the stock reaches the feed rollers it maybe necessary to hold the feed

pressure knob open in order to pass between the rollers. After exiting the feed
rollers enter the aux. feed and then through the knife into the stacker.

16 • Printer Operation

Butt Splice

10) Check that the stock is centered and tracking straight through the printer.

Adjust as needed.

11) Close the feed roller and only the print stations needed for the format.

12) Rewind any loose stock back onto the supply roll.

13) Adjust the web guides on the decurler down to the edges of the stock without

deforming the stock.

NOTE: DO NOT RUN BUTT SPLICES THROUGH THE PRINT STATIONS

The PAXAR 676 has been designed keeping the operators need to change supplies
quickly and often in mind. Re-threading the stock is quicker than butt splicing. If
however you have determined a butt splice is necessary, after loading a new roll of
stock onto the unwind tape the free ends together. Remove all slack by rotating the
supply roll counterclockwise. To prolong print head life it is highly recommended
that all hand splices be advanced beyond all three print stations before printing is
resumes. This can best be accomplished by using the stock presently in the print
stations to manually pull the new stock through and into the stacker. Once the butt
splice is in the stacker close the feed rollers and those print stations needed for the
format.

NOTE: Whenever stock of a different type or width is put on the printer, a sample

run should be performed. If the print quality / position is acceptable, you
can immediately begin your production run. If the print quality / position
needs to be optimized, refer to the Adjustments section and perform the
procedure needed to make the necessary improvement.

Web Guides

The Paxar 676 printer has been designed with the operators needs in mind.
Therefore there are only two sets of web guides in the printer that need to be
changed as the width of the rolls change for various width stocks. Neither of these
adjustments requires a tool.

The first guide is on the unwind itself. A knob located on the front of the unwind
adjusts the width of the guides on the unwind while maintaining center justification.
To increase the width - turn the knob counter clockwise. To decrease the width ­turn the knob clockwise. Adjust the unwind width wider than the roll of stock to be
loaded. Set the stock roll on the unwind between the guides with the stock
unwinding from the top clockwise. Adjust the unwind width down to the stock size
without clamping the core.

The second set of guides are located on the decurler just to the left of the stock
registration funnel. Once a stock is loaded and tracking straight through the machine
adjust this set of web guides down to the edges of the stock without deforming the
stock. If a large distance is to be covered loosen the plastic thumb screw and slid the
collar into the new position then retighten the thumbscrew. Fine adjustments of the
stocks web position can be made by simply moving the collar as a set in or out. If
the guides are too tight, the stock will have rolled up edges.

Users Manual Model 676 Printer Operation • 17

Print Head Operation

The print head modules are to be opened and closed for threading of stock and ink.
The unit must also be opened to clean the head and for print head replacement.
Later in the manual, under separate headings, cleaning and replacement will be
covered.

For clarity the print stations have been assigned numbers one through three from left
to right. The far-left print station prints the back; it is print station number one. The
center and right print stations print on the top; they are stations two and three. Each
print station has an interlock switch that prevents the printer from running with any
or all print stations in the open position if that print station is assigned in the format
being printed. If a print station is open, the display will read HEAD OPEN
STATION X.

WARNING: DO NOT TOUCH THE PRINT HEAD WITHOUT WEARING THE

To open the print heads for threading supplies or cleaning pulling the release knob
and then rotating the print head into the open latched position (see figure x). The top
two print stations have a pin in the rear to hold them open. The bottom print station
will remain open via gravity however it has a hole in the rear to hold the print head
in a slightly open position to act as a bridge when one is threading stock.

ANTI-STATIC GLOVES AND THE ANTI-STATIC WRIST STRAP.

18 • Printer Operation

Figure 5 - Print Head Open / Closed

To close the head again pull the release knob and then rotating the print head into the
closed latched position (see figure 5).

Installing Ink Ribbon

The ink ribbon comes pre-packaged in a plastic bag. For best results, leave the ink
ribbon wrapped in this bag until you are ready to use it in the printer. Use the
procedure and diagram below for loading the ink.

Figure 6

1) Unwrap the ink ribbon and put it on the ink-ribbon supply arbor for the print

station to be loaded (Figure 6) by pressing it on to the arbor when the three slots
are lined up.

2) Make sure the ink ribbon comes off the roll in the direction shown and is

threaded as illustrated (Figure 6).

NOTE: A new ink ribbon has a leader that makes it easier to use when threading

the ribbon through the print area.

3) Place an empty ink-ribbon take-up core on the ink-ribbon take-up arbor for the

print station to be loaded. The ink take-up core must be at least as wide as the
ink supply.

4) Open the print head to the print station being loaded.

5) After starting the leader off the supply roll pull enough ink off to thread though

the print station and onto the take up core. The adhesive on the supply roll of ink
will be used to fasten the leader to the take up core.

NOTE: Make sure that the ink-ribbon take-up core and the ink-ribbon supply roll

are both against the ink backer plate so that the ink ribbon tracks straight
through the print station.

Users Manual Model 676 Printer Operation • 19

Control Panel Operation

Printer Controls

20 • Control Panel Operation

Start

- Starts the printer

- ON LINE light must be GREEN

(Batches downloaded to be printed)

Feed

- FEED and START must both be used

- Feed will stop when the buttons are released

- Labels between print station one and the knife will be cut and stacked as
finished labels

- Stock moves through in one continuous strip

- Stock moves through without printing

- Ink will advance, ink save on print station two will automatically be
activated.

- The print heads must be latched in the down position.

Indicator Lights

Test

- TEST and START must both be used

- Test will stop when the buttons are released

- Labels between print station one and the knife will be cut and stacked as
finished labels

- Stock moves through in one continuous strip

- Stock moves through with test pattern printing

- The ink will advance with the stock.

- The print heads must be latched in the down position.

Stop

- The stop button will stop the printer at the end of the current label being
printed.

The Paxar 676 has three Indicator lights. These lights are used along with the LCD
display to tell the operator the current status of the printer.

Users Manual Model 676 Control Panel Operation • 21

On Line

OFF

- Has not been powered on.

- Is in it's power - up sequence.

- Failed the system test

After Power Up Sequence:

- Printer is running.

ORANGE

- System is operational

- Ready for batches to be downloaded

GREEN

- Batches to print, ready to start

Sensor

GREEN = "C" SENSOR

- Printer is stopped, - light is on, - sensor is setting over a web sensor

mark

- Flashing light while the printer is running, - the sensor is in-line with

the registration HOLES

ORANGE = REFLECTIVE SENSOR

- Flashing light while the printer is running, - the sensor is in-line with

the registration PRINTED MARKS

Error

ORANGE

- System inter-lock triggered, display for error LCD Display

The LCD display is a 2 line, 24 character, with back lighting feature for easy
readability. The first line of the display, in most cases, will be a prompt or question ­the second line is the response.

22 • Control Panel Operation

Display Modes

READY FOR BATCHES

676 / 300

BATCH I D QUANT I TY
PCL001 10

There are four (4) main mode levels that are selected and modified using the
following function keys:

Use the MODE ↓ key to move through the main mode screens shown below:

Pressing the EXIT/Up arrow button will put the user at one of these two screens.

HOME SCREEN

OR

Press the MODE/Down arrow button will cycle the panel through the following
main screens.

PRINTER ADJUSTMENTS

PRESS ENTER FOR
PR I NT / CUT POS I T I ONS

PRINTHEAD ADJUSTMENTS

PRESS ENTER FOR
PR I NT HEAD SETUP

CALIBRATE SENSORS

PRESS ENTER FOR
CAL I BRAT I NG SENSORS

LIFE COUNTS/VERSIONS

PRESS ENTER FOR
L I FE COUNTS /VERS IONS

Users Manual Model 676 Control Panel Operation • 23

SETUP SCREEN

PRESS ENTER FOR
FEATURE SETUP

VERIFIER SETUP SCREEN

PRESS ENTER FOR
VER I F I ER SETUP

POWER UP DIAGNOSTICS

D I AGNOST I C T ES T 1

This screen is displayed while the Front Panel is initializing and waiting for the
Thermal Control Board (TCB) response. While this screen is displayed the code
will check the functionality of the LED's and the display. Each state of the LED's
will be checked - (red, green, amber and off). The LCD is checked by writing a
character to the display, checking for communications and then reading the character
back and comparing with the code. If an error occurs, the code will halt the
diagnostic test and blink the ERROR LED.

The keypad is also checked during DIAGNOSTIC TEST 1. Each key is tested to
see if it is stuck on. If a fault condition is detected, the test is halted and the screen
will display the first error key found with the following display:

(BUT TON NAME ) KEY STUCK

The (BUTTON NAME) will be one of the push button names on the front panel ­START, FEED, TEST, STOP, EXIT, MODE, <YES, NO>, OR ENTER.

When the code has finished the above tests, the code will attempt to communicate
with the Control Board (TCB).

D I AGNOST I C T ES T # # #
TCB VERS ION 00 . 00

This screen will be updated with diagnostic numbers as the TCB and AT go through
different stages of PowerPC initialization.

The diagnostic test screen will also be displayed when the Diagnostic tests that are
runable from the front panel are being executed.

Once the diagnostic tests are complete, the Front Panel should display the HOME
screen.

24 • Control Panel Operation

HOME SCREEN

READY FOR BA TCHES

676 / 300

OR

BATCH I D QUANT I TY
PCL001 10

When the printer is powered up and all initializations are complete, if there aren’t
any Batches to print, the "HOME" screen will be "READY FOR BATCHES" and
the model and print head density.

When there are Batches to be printed, the "HOME" screen will be the

"BATCH ID QTY" screen. The Batch ID / Batch Qty screen displays the
currently cutting batch ID and labels remaining to be cut. Note: Look into
suppressing leading zeros on batch quantity.

When the Batch Id/Qty screen is the home screen and the user presses the EXIT
button the Model and DPI are displayed briefly before the Batch Id/Qty screen is
shown.

If the printer is performing a FEED or a TEST pattern, the screen will show
"FEEDING" or "PRINTING TEST PATTERN" respectively on line two, the top
line will be blank

FEED I NG

PR I NT I NG TEST PAT TERN

Pressing the MODE/Down Arrow key will take the user to the "PRINT/CUT
POSITIONS" screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

Users Manual Model 676 Control Panel Operation • 25

PRINT/CUT POSITIONS

PRESS ENTER FOR
PR I NT / CUT POS I T I ONS

This screen follows the Batch ID/Batch Qty screen if there are batches to print,
otherwise it follows the “Ready for batches”/Model DPI “HOME” screen.

Pressing ENTER will take the user to the PRINTER ADJUSTMENTS screens.

Pressing the MODE/Down Arrow key will take the user to the "PRINTHEAD
SETUP" screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

PRINTER ADJUSTMENTS

PRESS ENTER TO
PR I NT CHECKOUT FORMAT

This screen is the first screen under PRINTER ADJUSTMENTS. Pressing ENTER
will cause the printer to print the checkout format. The printer will setup to do the
checkout format and start printing. The front panel will remain on this screen so the
user can use the MODE/Down Arrow key to get to the printer adjustments. When
the EXIT/Up Arrow key is pressed the printer stops printing the checkout format and
goes back to what it was doing before the checkout was requested.

Pressing the MODE/Down Arrow key will take the user to the first screen of this
group. Pressing the EXIT/Up Arrow key will take the user back to the "HOME"
screen.

PR I NT POS I T I ON STAT I ON 1
VALUE : ±XX NEW VALUE : ± YY

This screen follows the PRINT CHECKOUT FORMAT screen. This screen allows
the print position of station 1 to be adjusted.

The <YES / NO> buttons are used to change the print value.

The value is displayed in a positive/negative format. The value ranges for XX and
YY can be from a -9 to a +9

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME.

PR I NT POS I T I ON STAT I ON 2
VALUE : ±XX NEW VALUE : ± YY

This screen follows the first screen under PRINTER ADJUSTMENTS. This screen
allows the print position of station 2 to be adjusted.

The <YES / NO> buttons are used to change the print value.

The value is displayed in a positive/negative format. The value ranges for XX and
YY can be from a -9 to a +9

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME.

26 • Control Panel Operation

PR I NT POS I T I ON STAT I ON 3
VALUE : ±XX NEW VALUE : ± YY

This screen follows the second screen under PRINTER ADJUSTMENTS. This
screen allows the print position of station 3 to be adjusted.

The <YES / NO> buttons are used to change the print value.

The value is displayed in a positive/negative format. The value ranges for XX and
YY can be from a -9 to a +9

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME.

CHANGE CUT POS I T I ON
VALUE : ±XX NEW VALUE : ±YY

This screen follows the print adjust screens. This screen allows the cut position to
be adjusted. The <YES / NO> buttons are used to change the cut value. The value
is displayed in a positive/negative format. The value ranges for XX and YY can be
from a -9 to a +9. Pressing ENTER will change the CURRENT CUT value to the
NEW CUT value. Pressing the MODE/Down Arrow key will take the user to the
next screen. Pressing the EXIT/Up Arrow key will take the user back to the
"HOME" screen.

STAT ION 2 DOT SH I FT
VALUE : ±XX NEW VALUE : ± YY

This screen follows the CHANGE CUT POSITION screen. This screen allows the
print position of station 2 to be adjusted in the WEB direction.

The <YES / NO> buttons are used to change the shift value.

The value is displayed in a positive/negative format. The value ranges for XX and
YY can be from a -16 to a +16 dots. (A dot is 1/300)

Pressing the MODE/Down Arrow key will take the user to the first screen under
PRINTER ADJUSTMENTS.

Pressing the EXIT/Up Arrow key will take the user back to the HOME.

PRINTHEAD SETUP

PRESS ENTER FOR
PR I NTHEAD SE TUP

This screen follows the PRINT/CUT POSITIONS screen.

Pressing ENTER will take the user to the PRINTHEAD SETUP screens.

Pressing the MODE/Down Arrow key will take the user to the "LIFE
COUNTS/VERSIONS" screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

Users Manual Model 676 Control Panel Operation • 27

CHANGE STROBE STA T I ON 1
VALUE : ±XX NEW VALUE : ± YY

This screen is the first screen under PRINTHEAD SETUP screen. This screen
allows the user to adjust the strobe for station 1. The <YES / NO> buttons are used
to change the print value. The value is displayed in a positive/negative format. The
value ranges for X and Y can be from a -7 to a +7. Pressing ENTER will change the
CURRENT STROBE value to the NEW STROBE value.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

CHANGE STROBE STA T I ON 2
VALUE : ±XX NEW VALUE : ± YY

This screen follows strobe adjust for station 1. This screen allows the user to adjust
the strobe for station 2. The <YES / NO> buttons are used to change the print value.
The value is displayed in a positive/negative format. The value ranges for X and Y
can be from a -7 to a +7. Pressing ENTER will change the CURRENT STROBE
value to the NEW STROBE value.

Pressing the MODE/Down Arrow key will take the user to the next screen. Pressing
the EXIT/Up Arrow key will take the user back to the HOME screen.

CHANGE STROBE STA T I ON 3
VALUE : ±XX NEW VALUE : ± YY

This screen follows strobe adjust for station 2. This screen allows the user to adjust
the strobe for station 3. The <YES / NO> buttons are used to change the print value.
The value is displayed in a positive/negative format. The value ranges for X and Y
can be from a -7 to a +7. Pressing ENTER will change the CURRENT STROBE
value to the NEW STROBE value.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

HEAD CAT EGORY STAT I ON 1
VALUE : ±XX NEW VALUE : ± YY

This screen follows strobe adjust for station 3. The screen allows the user to enter
the head category for station 1. The <YES / NO> buttons are used to change the
head category value. The value ranges from 1 to 8. Pressing ENTER will change
the head category value to the new value. This value should be changed only if the
printhead is changed. See the section “PRINTHEAD REPLACEMENT” for
instructions on setting the head category.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

28 • Control Panel Operation

HEAD CAT EGORY STAT I ON 2
VALUE : ±XX NEW VALUE : ± YY

This screen follows HEAD CATEGORY STATION 1. The screen allows the user
to enter the head category for station 2. The <YES / NO> buttons are used to change
the head category value. The value ranges from 1 to 8. Pressing ENTER will
change the head category value to the new value. See the section “PRINTHEAD
REPLACEMENT” for instructions on setting the head category.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

HEAD CAT EGORY STAT I ON 3
VALUE : ±XX NEW VALUE : ± YY

This screen follows HEAD CATEGORY STATION 2. The screen allows the user
to enter the head category for station 3. The <YES / NO> buttons are used to change
the head category value. The value ranges from 1 to 8. Pressing ENTER will
change the head category value to the new value. See the section “PRINTHEAD
REPLACEMENT” for instructions on setting the head category.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

STAT ION ACT I VAT I ON 12 3
CLOSE HEADS PRESS ENTER

This screen follows HEAD CATEGORY STATION3. The screen allows the user to
configure the printer for the number of heads in the system. The numbers ‘1’,’2’,’3’
stand for stations 1, 2, and 3. If the number appears on the screen then it means that
station is activated. If the number doesn’t appear on the screen then that station is
not activated and the printer will not print, look for ink out, or look for head open on
that print station.

The printer determines if a head is in the system by checking the head open switch
when the ‘Enter’ button is pressed. If the user would like to disable a station that is
in the machine for reasons of convenience then they can just open the head for that
station and press enter.

If the operating system has been changed or TCBSETUP has been used to re­initialize the machine it will show all print stations active as the default. If it is a 1/1
printer that doesn’t have station 3 installed then the user will have to come to this
screen and press ‘Enter’ to deactivate station 3, otherwise the printer will show INK
OUT STATION3 errors when it is run.

Pressing the MODE/Down Arrow key will take the user to the first screen under
PRINTHEAD SETUP.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

Users Manual Model 676 Control Panel Operation • 29

CALIBRATE SENSORS

PRESS ENTER TO
CAL I BRAT E SENSORS

This screen follows “PRINT HEAD SETUP”.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

HOL E / SLOT I N SENSOR
VALUE: 000 NEW VALUE:000

This is the first screen under CALIBRATE SENSORS. Place the stock hole/slot
sense mark under the sensor. Slowly move stock under sensor until NEW VALUE
reads its smallest value then press ‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

HOL E / SLOT NOT I N S ENSOR
VALUE: 000 NEW VALUE:000

This screen follows HOLE/SLOT IN SENSOR under CALIBRATE SENSORS.
Place stock under the sensor so that it blocks the sensor and when NEW VALUE is
at is largest value press ‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

TOP REF L OVER MARK
VALUE: 000 NEW VALUE:000

This screen follows HOLE/SLOT NOT IN SENSOR under CALIBRATE
SENSORS. Place stock under the sensor so that the reflective mark is under the
sensor and when NEW VALUE is at is largest value press ‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

TOP REF L NOT OVER MARK
VALUE: 000 NEW VALUE:000

This screen follows TOP REFL OVER MARK under CALIBRATE SENSORS.
Place stock under the sensor so that the stock is under the sensor but the reflective
mark is not under the sensor and when NEW VALUE is at is smallest value press
‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

30 • Control Panel Operation

BOT REF L OVER MARK
VALUE: 000 NEW VALUE:000

This screen follows TOP REFL NOT OVER MARK under CALIBRATE
SENSORS. Place stock over the sensor so that the reflective mark is over the sensor
and when NEW VALUE is at is largest value press ‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

BO T REF L NOT OVER MARK
VALUE: 000 NEW VALUE:000

This screen follows BOT REFL OVER MARK under CALIBRATE SENSORS.
Place stock over the sensor so that the stock is over the sensor but the reflective
mark is not over the sensor and when NEW VALUE is at is smallest value press
‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

STACKER BLOCKED
VALUE: 000 NEW VALUE:000

This screen follows BOT REFL NOT OVER MARK under CALIBRATE
SENSORS. Place stock in the stacker jam sensor so that the stock is within the
sensor site path and when NEW VALUE is at is highest value press ‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

STACKER NOT BLOCKED
VALUE: 000 NEW VALUE:000

This screen follows STACKER BLOCKED under CALIBRATE SENSORS.
Remove any stock from the stacker jam sensor so that no stock is within the sensor
site path and when NEW VALUE is at is lowest value press ‘Enter’.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

LIFE COUNTS / VERSIONS

PRESS ENTER FOR
L I FE COUNTS /VERS IONS

This screen follows the CALIBRATE SENSORS screen.

Pressing ENTER will take the user to the Life Count and Operating system version
number Screens.

Pressing the MODE/Down Arrow key will take the user to the SETUP screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

Users Manual Model 676 Control Panel Operation • 31

LABEL COUNTER: 000000
PRESS ENTER TO RESET

This screen is the first screen under LIFE COUNTS/VERSIONS.

This screen shows total labels since last counter reset.

Pressing the ENTER key will reset the counter.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

TOTAL LABELS PRODUCED

0000000000

This screen follows the LABEL COUNTER screen. This screen displays the total
labels since the factory. This counter is NOT resettable by the user.

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

TOTAL I NCHES OF STOCK

0000000000

This screen follows the TOTAL LABELS SINCE FACTORY screen. This screen
displays the total inches since the factory. This value is NOT resettable by the user.
Pressing the MODE/Down Arrow key will take the user to the next screen. Pressing
the EXIT/Up Arrow key will take the user back to the HOME screen.

CONTROL LER VERS I ON
TCB10934

This screen follows the FRONT PANEL VERSION screen.

This screen shows operating system version for the controller (TCB).

Pressing the MODE/Down Arrow key will take the user to the next screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

IMAGER VERS ION

USA1 9 . 0 1

This screen follows the controller version number screen.

This screen shows operating system version for the imager (AT).

Pressing the MODE/Down Arrow key will take the user to the first screen under
Counts \ version.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

32 • Control Panel Operation

FEATURE SETUP SCREEN

PRESS ENTER FOR
FEATURE SETUP

This screen follows the LIFE COUNT\VERSIONS screen.

Pressing ENTER shows the first screen under setup.

Pressing the MODE/Down Arrow key will take the user to the PRINT/CUT
POSITIONS screen.

Pressing the EXIT/Up Arrow key will take the user back to the HOME screen.

CUT TER I S ENABLED
PRESS ENTER TO D I SABLE

OR

CUTTER I S D I SABLED
PRESS ENTER TO ENABLE

This screen is the first screen of SETUP. This screen allows the cutter to be enabled
or disabled. Pressing ENTER will toggle from ENABLED to DISABLED and vice
versa. Pressing the MODE/Down Arrow key will take the user to the next screen.
Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

EMULAT ION MODE: NONE
NEW EMULAT I ON MODE : 63 0

This screen follows the CUTTER ENABLE/DISABLE screen. This screen allows
the EMULATION MODE to be changed. Use the <YES and NO> keys to move
between NONE, 630, and 650 modes. Pressing ENTER will update the emulation
mode with the selection after new emulation mode. Pressing the MODE/Down
Arrow key will take the user to the next screen. Pressing the EXIT/Up Arrow key
will take the user back to the "HOME" screen.

DEFAUL T TRANS F ER TYPE 1
VALUE : XXX NEW VALUE : YYY

This screen follows the EMULATION screen IF emulation mode is something other
than none. This screen allows the DEFAULT TRANSFER TYPE to be changed.
This transfer type is used when the printer is in 630 or 650 emulation mode for print
station 1. The 630 and 650 do not send valid 676 transfer types in their PCL code.
This default is used for those formats. Use the <YES and NO> keys change the
number value at the cursor position. Pressing ENTER will update the current
position with the selection and move the cursor to the next position. All three
positions must be entered. (I.e. 053 for type 53). After ENTER is pressed on the
last digit the TRANSFER TYPE on the top line will be updated. Pressing the
MODE/Down Arrow key will take the user to the next screen. Pressing the
EXIT/Up Arrow key will take the user back to the "HOME" screen.

DEFAUL T TRANS F ER TYPE 2
VALUE : XXX NEW VALUE : YYY

Users Manual Model 676 Control Panel Operation • 33

This screen follows the DEFAULT TRANSFER TYPE1 screen IF emulation mode
is something other than none. This screen allows the DEFAULT TRANSFER
TYPE to be changed. This transfer type is used when the printer is in 630 or 650

emulation mode for print station 2. The 630 and 650 do not send valid 676 transfer
types in their PCL code. This default is used for those formats. Use the <YES and
NO> keys change the number value at the cursor position. Pressing ENTER will
update the current position with the selection and move the cursor to the next
position. All three positions must be entered. (I.e. 053 for type 53). After ENTER
is pressed on the last digit the TRANSFER TYPE on the top line will be updated.
Pressing the MODE/Down Arrow key will take the user to the next screen. Pressing
the EXIT/Up Arrow key will take the user back to the "HOME" screen.

DEFAUL T TRANS F ER TYPE 3
VALUE : XXX NEW VALUE : YYY

This screen follows the DEFAULT TRANSFER TYPE2 screen IF emulation mode
is something other than none. This screen allows the DEFAULT TRANSFER
TYPE to be changed. This transfer type is used when the printer is in 630 or 650
emulation mode for print station 3. The 630 and 650 do not send valid 676 transfer
types in their PCL code. This default is used for those formats. Use the <YES and
NO> keys change the number value at the cursor position. Pressing ENTER will
update the current position with the selection and move the cursor to the next
position. All three positions must be entered. (I.e. 053 for type 53). After ENTER
is pressed on the last digit the TRANSFER TYPE on the top line will be updated.
Pressing the MODE/Down Arrow key will take the user to the next screen. Pressing
the EXIT/Up Arrow key will take the user back to the "HOME" screen.

LANGUAGE : XXXXXX

NEW LANGUAGE : YYYYYY

This screen follows the DEFAULT TRANSFER TYPE3 screen. This screen allows
the front panel display language to be changed. Use the <YES and NO> keys to
move between the supported languages on the printer. Any number of front panel
languages can be stored on the optional PCMCIA card (dependent on available
space). If no additional languages other than the default are available on the printer
XXXXXX and YYYYYY will be the same value. Pressing ENTER will update the
display language with the selection. Pressing the MODE/Down Arrow key will take
the user to the next screen. Pressing the EXIT/Up Arrow key will take the user back
to the "HOME" screen.

Warning: Mis-matched communication protocols may result in the inability to

communicate with the printer and/or loss of data.

PROTOCOL : XXXXXX

NEW PROTOCOL : YYYYYY

This screen follows the LANGUAGE screen. This screen allows the
communications protocol to be changed between the supported types. Use the <YES
and NO> keys to move between the supported protocols – RTS/CTS is considered
hardware handshaking and XON/XOFF is considered to be software. Pressing
ENTER will update the communications protocol with the selection. Pressing the
MODE/Down Arrow key will take the user to the next screen. Pressing the
EXIT/Up Arrow key will take the user back to the "HOME" screen.

34 • Control Panel Operation

BAUD RATE : XXXXXX

NEW BAUD RAT E : YYYYYY

This screen follows the PROTOCOL screen. This screen allows the serial
communications speed to be changed. Use the <YES and NO> keys to move
between the supported speeds – typical is 9600 dependent on serial communication
cable length. Pressing ENTER will update the communications speed with the
selection. Pressing the MODE/Down Arrow key will take the user to the
“CHANGE DATE AND TIME" screen. Pressing the EXIT/Up Arrow key will take
the user back to the "HOME" screen.

CHANGE DATE AND T I ME

03 / 14 / 00 12: 05 PM

This screen follows the “BAUD RATE” screen. This screen allows the system date
and time to be changed. When this screen appears, the first digit of the month will
be blinking. (The date is shown in US format, MM/DD/YY.) Pressing the <YES
and NO> keys will change the digit up and down respectively. Pressing ENTER
will move to the next digit. Only the digits and the A or P in AM or PM can be
changed. When all changes are complete, pressing the MODE/Down Arrow key
will take the user to the “INSAVE ENABLE/DISABLE” screen, and pressing the
EXIT/Up Arrow key will take the user back to the “HOME” screen. If an illegal
date or time is entered, this screen will be re-displayed with the original date or time.
A valid date and time must be entered before the user can go on.

I NKSAVE I S ENABLED

PRESS ENTER TO D I SABLE

OR

I NKSAVE I S D I SABLED

PRESS ENTER TO ENABLE

This screen allows inksave to be enabled or disabled. Inksave is an option that is
available on certain models. It must be enabled in the format to operate. If inksave
is enabled in the format, it can be disabled using this screen. Pressing ENTER will
toggle from ENABLED to DISABLED and vice versa. Pressing the MODE/Down
Arrow key will take the user to the "CUTTER ENABLE/DISABLE" screen.
Pressing the EXIT/Up Arrow key will take the user back to the "HOME" screen.

Users Manual Model 676 Control Panel Operation • 35

Adjustments

Feed Roller Pressure

General

The rubber pressure roller is supported by an eccentric shaft mounted in bearings
located in vertical slots in the front and rear mounting plates of the drive module.
These bearings are supported by compression springs and controlled by cap screws
located in the top of the bearing mounts.

From time to time the feed pressure setting will need to be readjusted. This is
important to reduce any slip from too light an adjustment or any binds from too tight
an adjustment which will result in excessive roller wear or feed failure.

Adjustment Procedure:

1) Open the stock feed lever (fully clockwise) and remove the stock from the feed
module.

2) Loosen without removing the two cap screws located in the top of the bearing
mounts using the 9/64” ball driver from the tool kit.

3) Using a small piece of the same stock being ran as a "feeler" gauge tighten the
two 9/64” cap screws so that there is equal distance (just enough to cause the top
roller to rotate as the gauge is moved left and right) between the two rollers at
both outboard edges. This should be done with the stock feed lever closed (fully
counter clockwise).

4) Add 1/2 turn to each of the 9/64” cap screws from the previous adjustment.

5) Reload the production stock through the feed module.

6) Run the checkout format (found in the Printer Adjust Mode on the front panel)
and further adjust the two 9/64” cap screws an equal amount based on the results
as follows:

Using the scribe marks on the front of the machine cover measure the
length of the label. These scribe marks are 11 inches apart with the
tolerance of the label built into the right scribe. Align the left end of the
label to the left side of the left scribe and confirm that the right end falls
within the right scribe.

If the label produced measures less than 11inchs, tighten (clockwise) both
screws equally and repeat the measurement on a new strip.

If the 11 inch label produced exceeds 11inchs, loosen (counter-clockwise)
both screws equally and repeat the measurement on a new strip.

NOTE: Care should be taken to ensure that the label you use for the

measurement is an actual label produced after any adjustments
made. Run at least three labels between adjustments and use the
last label out to achieve this.

7) Once an 11-inch strip is achieved a final check for stock feed balance between
inboard and outboard can be made. Measure the distance between the main

36 • Adjustments

Sensors

vertical support plate of the printer to the inboard edge of the stock at both the
feed roller and the unwind. This measure should be the same distance at both
locations. To move the stock inboard at the feed roller, away from the operator,
loosen the outboard screw slightly. This can be done while running the printer.
To move the stock outboard at the feed roller, toward the operator, loosen the
inboard screw slightly.

Sensor Identification:

Stock Out

A micro switch located on the back of the unwind will detect when the stock core is
lifted when the stock is consumed and stop the printer.

Hole / Slot Index Registration

The hole / slot registration is via an optical sensor used in conjunction with an LED
light bar located in the stock funnel which allows the printer to register to pre­punched possible preprinted stock.

Reflective Index Registration

The same optical sensor used for hole / slot registration, allows the printer to register
to preprinted stock by detecting a black mark when the LED light bar is turned off
via the format.

Ink Out

Optical sensors located on each print station’s ink unwind arbor allow the printer to
monitor the availability of ink.

Roller Drop

An optical sensor on back of print station number two allows the printer to control
and register the platen roller position to perform ink save.

Feed Open

A micro switch on the back of the feed module will detect the position of the feed
module pressure knob and only allow the printer to operate with the feed pressure
knob closed.

Jam

An optical sensor located in the stacker will detect each cut label as it leaves the
cutter. If a cut fails to occur or a label remains in the sensor sight path, the machine
will stop.

Users Manual Model 676 Adjustments • 37

Full Stacker

A micro switch in the stacker rails allows the printer to detect a full load of labels in
the stacker. The stack full condition will stop the machine when the stacker is full.

Sensor Adjustments:

All the micro switches and optical sensors in your 676 printer were calibrated at the
time your printer was manufactured, however from time to time it may become
necessary to readjust / recalibrate due to the large variety of stocks and inks that can
be run on the machine.

Stock Out

With a full roll of stock loaded on the unwind with the unwind web guides properly
adjusted you should heard the switch click as you raise and lower the roll. If not the
switch bale is adjusted by carefully bending it as needed.

Print Registration Sensor Web Position Adjustment

If you are running sense mark media with a hole or slot for registration the
registration sensor web position must be adjusted for the sense mark media being
run:

1) Open the feed roller and print stations.

2) Move the stock by hand in the feed direction until the registration hold or slot

desired is in the slot on the sensor funnel over the red LED light bar.

3) Close the feed and those print stations needed for the format.

4) Slide the top sensor assembly using the sensor handle while looking at the sensor

LED on the front panel. When the LED turns on with the registration sensor over
the media in the vicinity of the hole / slot, and stays on, the sensor is over the
registration hole or slot.

If your machine stops, for no apparent reason, while it is in the middle of printing a
batch, you may be missing sense marks (three consecutive tickets in a row in which
a sense mark was not found). Check for the following:

- The front panel will display a screen indicating that there has been a missed
sensor error.

1) Check that the web guides have been positioned properly - both on the unwind
and decurler.

2) Check that the feed roller pressure has been set equally across the roller.

3) Check that the feed roller pressure has been set to pull 11 inches of media
properly.

4) Compare the actual feed length of the sense mark stock being run with the feed
length set in the format.

5) Repeat the sensor alignment procedure.

Print Registration Sensor Rotation Alignment

The optical sensor for the light from the LED bar for stock registration is mounted
on a square shaft directly above the web plate assembly, just prior to the first print
station. Although this bar is factory adjusted prior to shipment, it may become
necessary to readjust the bar to assure proper light reception if after following the
previous procedure the missed sense mark error continues to occur.

1) Remove the stock from the machine.

38 • Adjustments

2) Slide receiver block to its furthest rear travel (away from the operator).

3) Remove the back cover of the machine.

4) While holding the screw that secures the square bar to the machine upright, rotate
the square bar to align the sensor to the slot over the light bar. Retighten the
screw as needed.

5) Slowly slide the receiver block to its furthest forward position (towards the
operator) while confirming that the sensor alignment is maintained throughout its
travel.

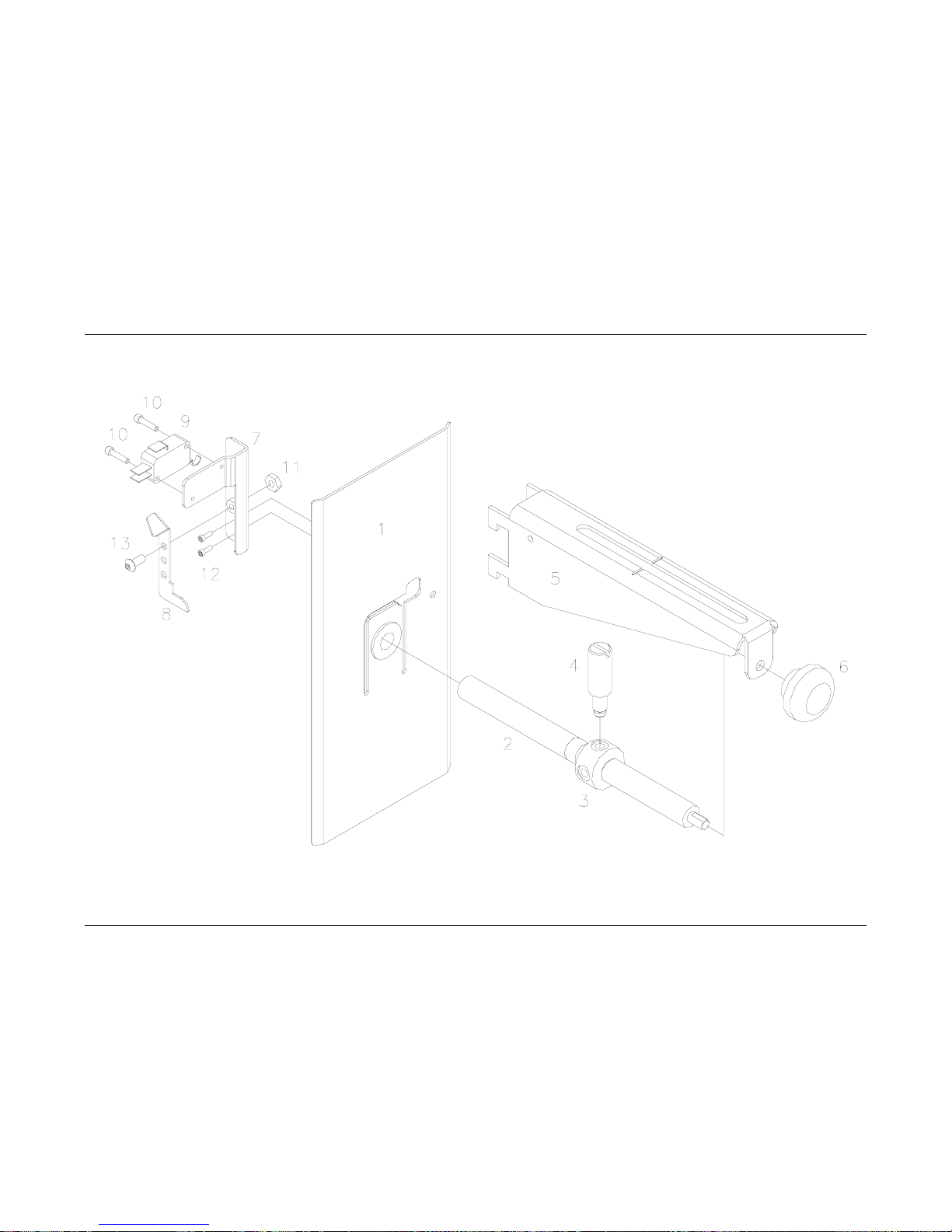

Feed Open

If the switch is in need of adjustment - first check and adjust, as needed the feed
pressure, as it will affect the switch adjustment. With the machine rear cover
removed while opening and closing the feed pressure knob you should heard the
switch clicking. If not, the switch bale is adjusted by carefully bending it as needed.

Optical Sensor Electrical Calibration

Re calibration times are indicated in the troubleshooting section.

The following guidelines indicate the proper procedure used to calibrate these
sensors.

Note: Clean all optical sensors with clean compressed air or canned air prior to

adjustment as dust and debris will adversely effect their performance.

Print Head

There are three basic steps to calibrating each optical sensor.

1) Select the sensor to be calibrated in the Calibrate Sensors mode on the front panel.

2) Place media or ink as the case maybe in the appropriate sensor and press the enter
button on the front panel.

3) In the case of stock registration sensing reposition the media so that a hole / slot
or black reflective mark is in the sight path of the appropriate registration sensor
and press the enter button on the front panel. In the case of stacker jam sensor
reposition the media so the media is not in the sight path of the jam sensor and
press the enter button on the front panel.

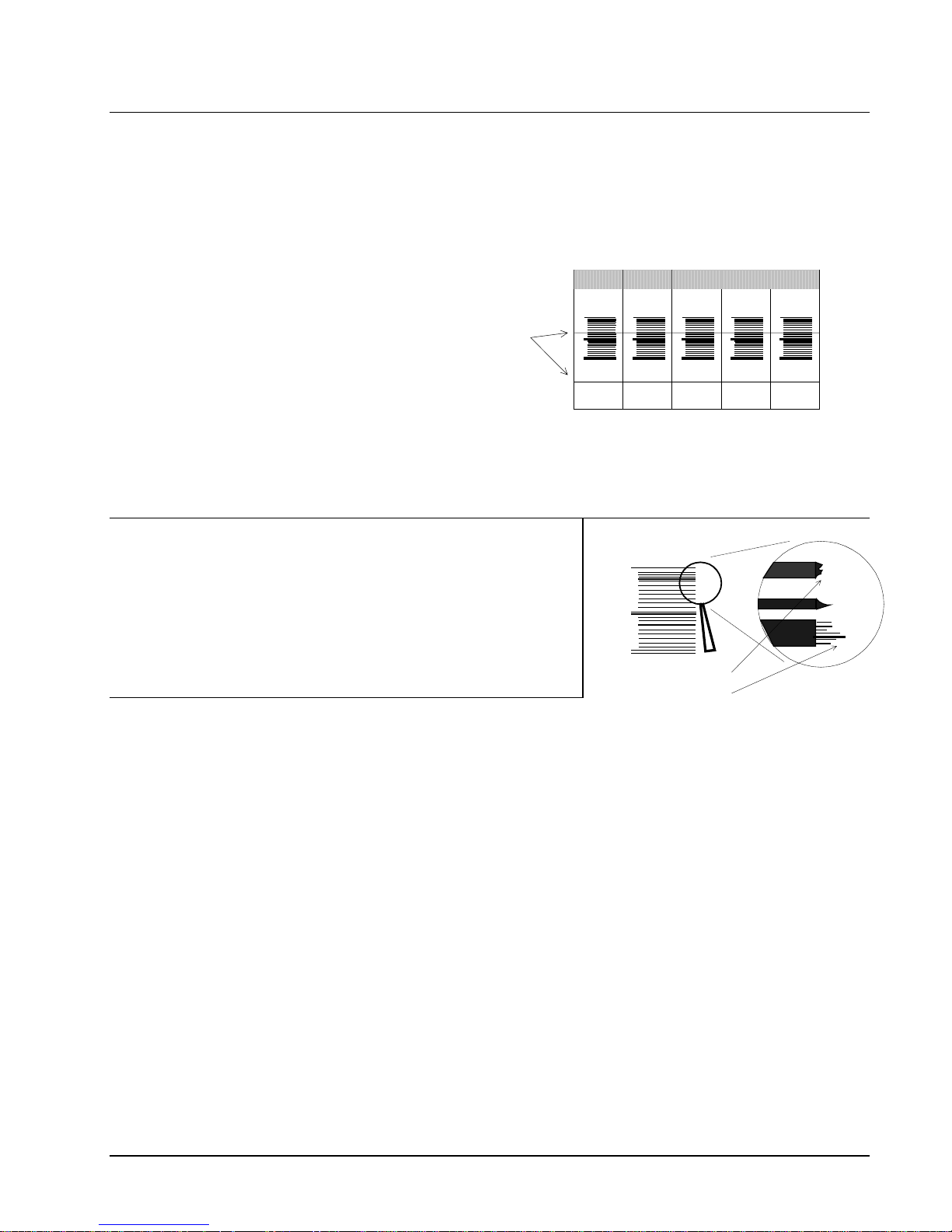

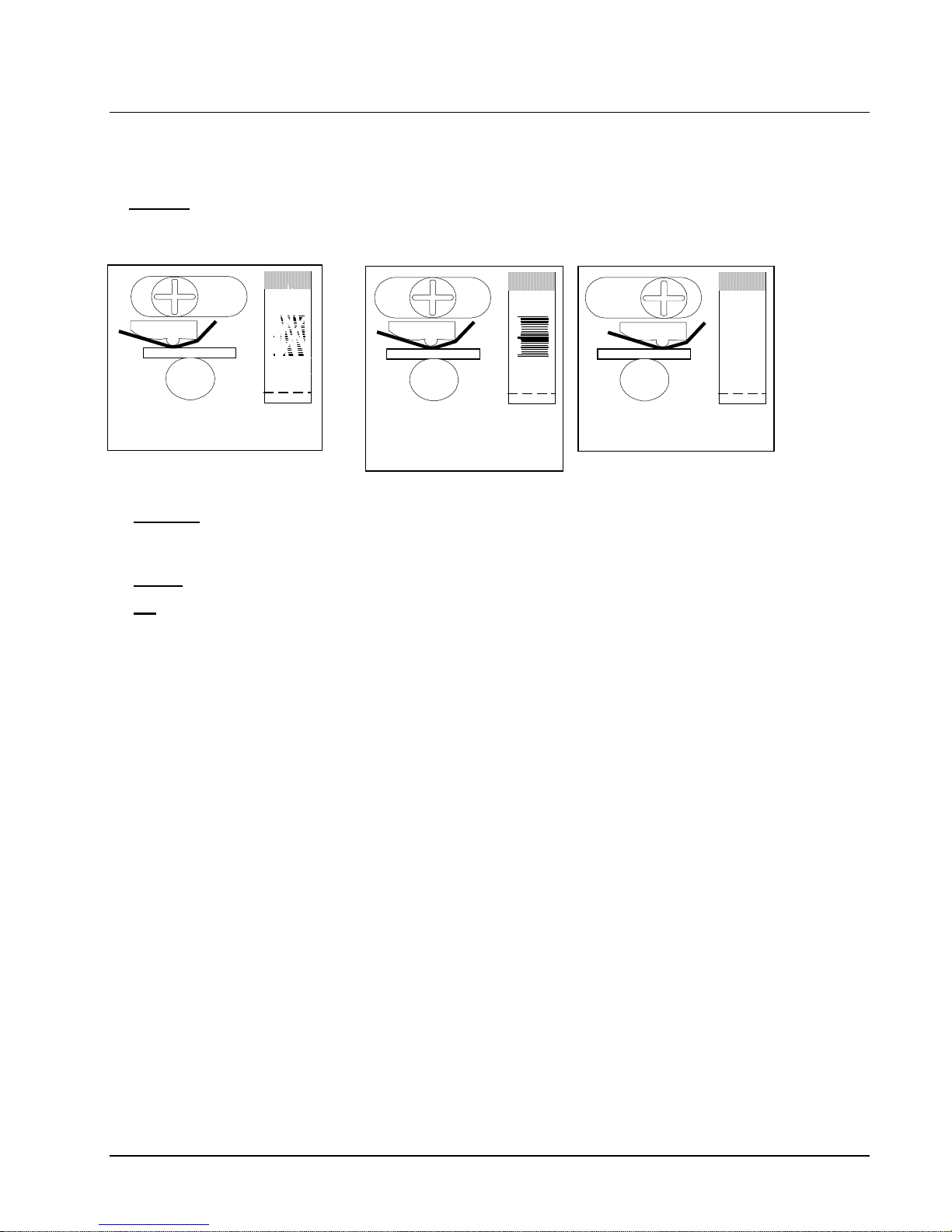

Tangent

Proper print head tangent is perhaps the most important adjustment to make on a
thermal transfer printer. A printhead which is not properly adjusted will result in
poor print quality, poor heat dissipation which can reduce print head life, and
possible ink wrinkling problems. When the machine was manufactured, the print
head was adjusted to the proper tangent point on the platen roller, however, with
print head replacements the tangent point for the new print head may change. It is
therefore necessary to understand when and how to properly adjust the printhead
tangent. Before making any adjustment to any of the three print station tangent
points confirm the following:

Users Manual Model 676 Adjustments • 39

- Is the ink and stock loaded in the printer correctly?

- Is the proper ink and stock loaded in the printer for the format downloaded?

- Is the strobe setting(s) on the front panel set according to the ink and stock
loaded in the printer?

- Is the ink and stock of known types?

- Are the correct width platen rollers installed in the print stations for the stock
width loaded in the printer?

To actually adjust the tangent continue as follows:

1) Determine the print station that adjustment is needed.

2) Using the sight hole on the front of that print station, observe the present location
of the print line on the print head in relation to the platen roller.

3) As the printer is printing labels use the adjustment thumbscrew to move the head
left and right. Since this adjustment is very precise, do not turn the thumbscrew
more than 1/4 turn before evaluating the results of your adjustment. (See Note)

4) Continue adjusting the thumbscrew until obtaining optimum print quality. Most
stocks and inks print the best with the tangent adjusted to just before top dead
center.

5) Rerun some label to determine if any further adjustment is required, if so repeat
steps three through seven.

NOTE: The print head mounting block is spring mounted so that tangent

adjustment can be performed without loosening mounting screws.

Knife squarness

Stacker

squarness

If the test pattern, printed on a wide web (4" (100mm) plus), is lighter on one edge
than the other, it is possible that the printhead is out of square. This can also be
detected by looking at the front edge of the print head in reference to the printhead
holder. To remedy this problem, power off the machine and remove the print head
as outlined in the print head installation information. The printhead adjustment plate
has been manufactured so when properly adjusted the head will be square. The
printhead holder has a locator plate that must be slide up snug against the printhead
mount plate. Reinstall the head and it should be square to the web.

The knife has an adjustment to square the cut to the stock. To make the adjustment,
loosen the two cap screws, one on top of the knife and one below the knife, using the
3/16" ball driver in the tool kit. Move the knife in the direction desired to square the
cut and retighten the screws.

The stacker has four adjustments that can be made without a tool to accommodate
different types of stocks.

40 • Adjustments

Stock Length Adjustment

Loosen the two thumb screws at the base of the stacker uprights and slide the
uprights to a position that allows the cut tag or label to hang over the last belt roller
approximately 1/4" (6mm). Retighten.

Stock Width Adjustment

Loosen the two thumbscrews behind the stacker uprights and adjust the stacker
upright nearest to the operator to the desired stock width position. Re tighten.

Stacker Angle Adjustment

Loosen the lever located on the side of the stacker assemble nearest the operator and
adjust the angle of the stacker with a few cut labels in the stacker so that there is a
slight gap under the last label as it hangs over the last belt drive roller. Re tighten.

Stacker Full Adjustment

The switch on the inboard stacker up right is used to stop the printer when the stack
is full. A thumb screw adjustment is provided to set the stack height.

Warning: some stock materials can not be stacked to the full height of the

stacker because of excessive weight.

Users Manual Model 676 Adjustments • 41

Machine Set Up Sequence

1) Power off the printer, remove the media and ink and thoroughly clean it from the
unwind to the stacker using alcohol and a clean soft cloth. The print heads should
be cleaned as per the Print Head Cleaning instruction section in the manual.

2) Load a full roll of an average width media and ink on the printer.

3) Power on the printer. After passing diagnostics tests the front panel should display
READY FOR BATCHES if not resolve any remaining error conditions.

4) Arrow down to the PRINT / CUT POSITIONS mode and press enter. Cycle
through all the prints, cut, and station two dot shift values to get a feel for their
present settings.

5) Cycle back to the beginning of the Printer Adjustment and press enter at Print
Checkout Format.

6) Adjust as needed the print head tangent for optimum print quality on all print
stations present. Refer to the Print Head Tangent adjustment section in the
manual. If the machine will not pull stock for this step refer to step number seven.

7) Adjust the feed pressure to pull 11.0" +- .032" of media. Refer to the Feed Roller
Pressure adjustment section in the manual. After the machine is pulling the
correct amount of media, make sure that the tracking line on the back of the label
is at the center of the stock +- .032" through out the label. If it is not, first check
and adjust as needed the unwind, and the collars on the decurler, then if needed
adjust the feed pressure from side to side until it is. Re-verify that the label is

11.0" in length. If the print quality is inadequate refer back to step number six.

8) Using two consecutive labels back to back check the squarness of the cut. Adjust
the knife module, as needed referring to the Knife Square adjustment section in
the manual.

9) Using the front panel adjust the print positions so that the print lines for each print
station present is 1.0" +- .032" from the leading edge of the label.

10) If both stations two and three are present, adjust station number two-dot shift on
the front panel so that the tracking line on the front of the label becomes one
continuous line.

NOTE: Once a production sense mark format is loaded, the cut position may be

adjusted which will cause the print to move accordingly.

The machine is now ready for production formats at which time the operator should

need only to fine tune the prints, cut, and strobes via the front panel.

NOTE: If the machine is used to print on multiple media types the print heads may

need to be adjusted for optimum print quality on each media as they are ran.

42 • Adjustments

Maintenance

Cleaning

Print Head Cleaning

CAUTION: TURN OFF THE POWER TO THE PRINTER BEFORE
STARTING ANY CLEANING.

NEVER REMOVE THE HEAD FROM THE PRINTER EXCEPT FOR
REPLACEMENT.

Supplies:

- Always use clean supplies when cleaning the head.

- Never use anything abrasive to the head.

- NEVER use anything metallic on or near the printhead.

The Anti-static wrist strap (which must contact the skin and be
tight) and anti-static gloves must be worn at all times when
handling a print head to avoid damaging the print head.

- Alcohol and a cotton swab are the recommended items to use when cleaning the

printhead.

RECOMMEND PAXAR "MASTER CLEANING KIT" # 921338

Procedure:

-The Printhead should be cleaned every two to four hours of continuous usage. A

good cleaning of the print head after eight to twelve hours of continuous usage
should be done. This cleaning must be done with the print head in the printer.

- Apply a liberal amount of alcohol to a swab.

- Rub the swab across the print line of the printhead to remove the build-up.

- The platen roller and feed rollers should also be cleaned with alcohol to remove ink

and card dust build-up.

Users Manual Model 676 Maintenance • 43

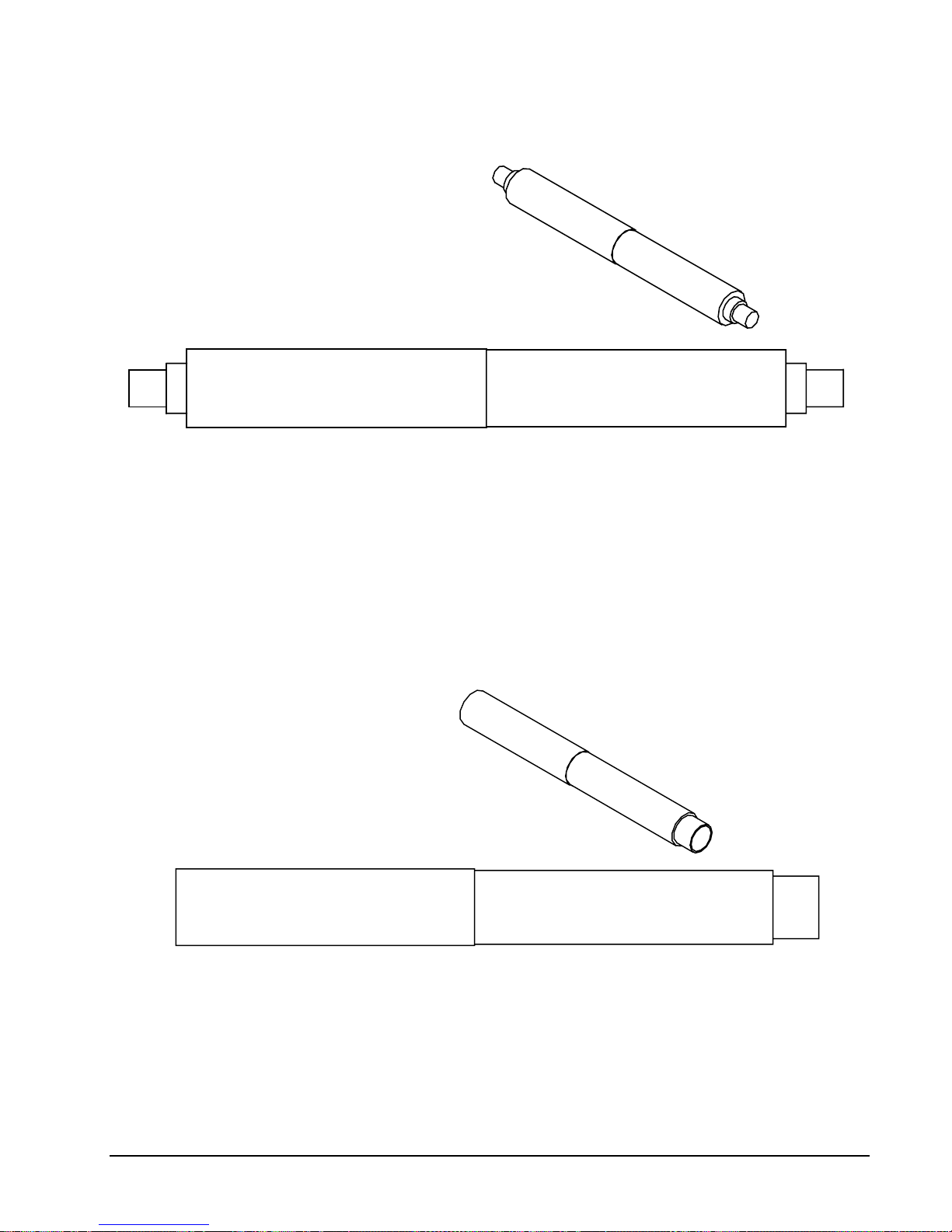

Clean Platen Roller

You may determine if the printhead has been adjusted properly by performing a test
pattern as documented elsewhere in this manual. A properly adjusted print head will
produce an even grid of chevrons when the test pattern is performed. Before

making any judgments as to the quality of the printhead, it is absolutely
necessary to ensure that the platen roller and the printhead is clean of all
debris. Clean the platen roller located immediately beneath the print head with a

clean cloth and a small amount of alcohol. Be careful not to damage the platen roller
while cleaning. If the roller is worn, replace the roller.

Cleaning Print Sensor

When print registration, in reference to sense mark, becomes inconsistent or erratic
the Sensor and Light Bar may need to be cleaned.

Supplies:

- Always use clean supplies when cleaning the sensor and light bar.

- Never use anything abrasive to the sensor and light bar.

- NEVER use an alcohol based solution when cleaning the sensor or light bar.

- Dry air or a cotton swab are the PAXAR recommended items to use when cleaning

the sensor and light bar.

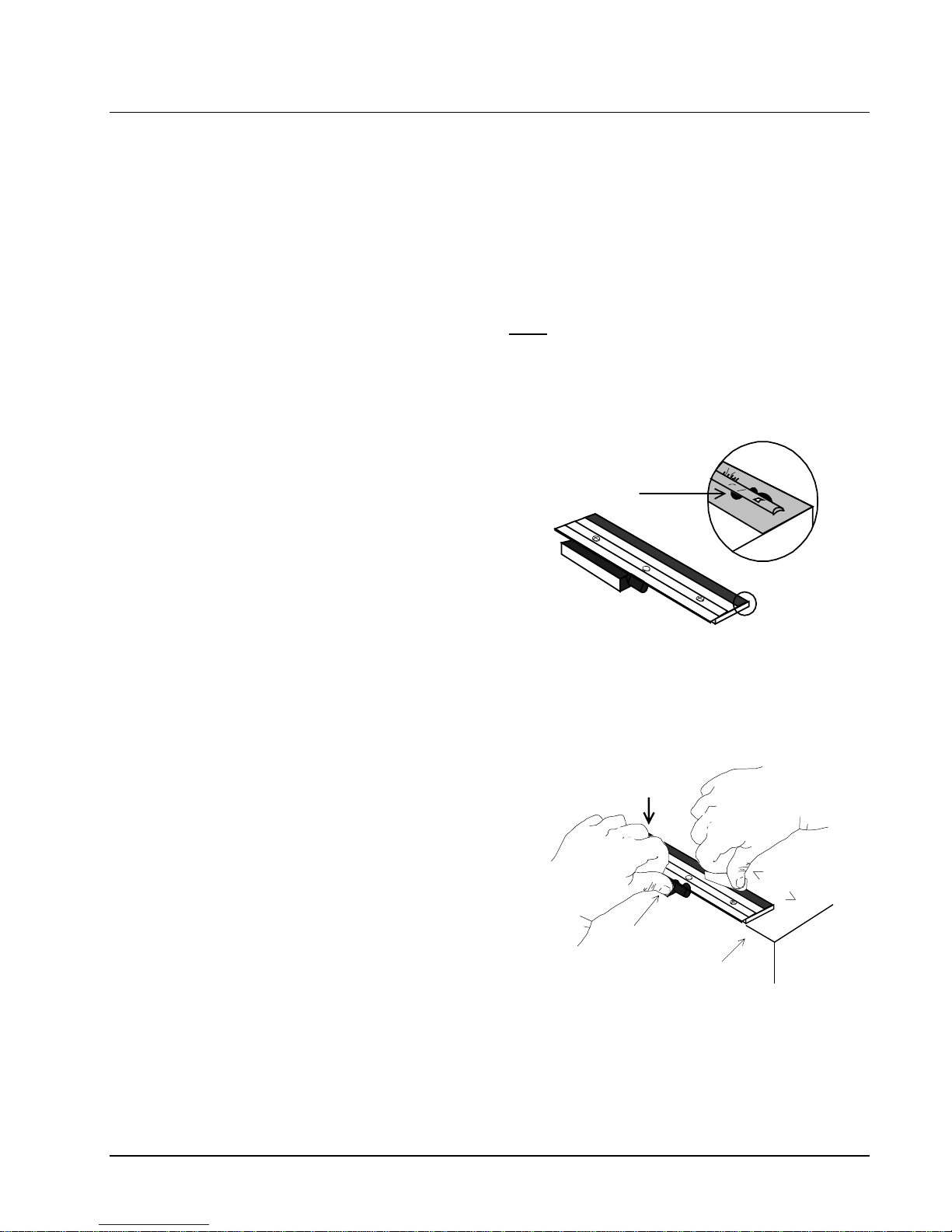

Print Head Handling

Warning

Print heads can be damaged easily, and are subject to premature failure if not
cleaned on a regular basis. Please follow the procedures carefully to help ensure
print head life and print quality.

Thermal print heads are very sensitive and must be handled with care to help ensure
longer print head life. Because print heads may be damaged through a number of
ways, Paxar has developed the following procedures;

Handling

Static discharge is very detrimental to thermal print heads. To avoid contacting

print heads with a static charge, follow these simple procedures:

- All print heads should be kept in original anti-static bags until they are
placed in the machine.

- The 676 printer is supplied with an anti-static wrist strap. Locate the strap

- it must be worn at all times when handling the print heads.

- Do not touch any terminals extending from the print head or the print line.

- Anti-static gloves are provided with your machine upon installation and
extras may be ordered from Paxar. These gloves must be worn at all
times when handling the print head. If an anti-static glove is not
available, make absolutely certain to thoroughly wash and dry your
hands before handling the print head. Oils from your hands can
contaminate the print line and quickly destroy the printing elements.

44 • Maintenance

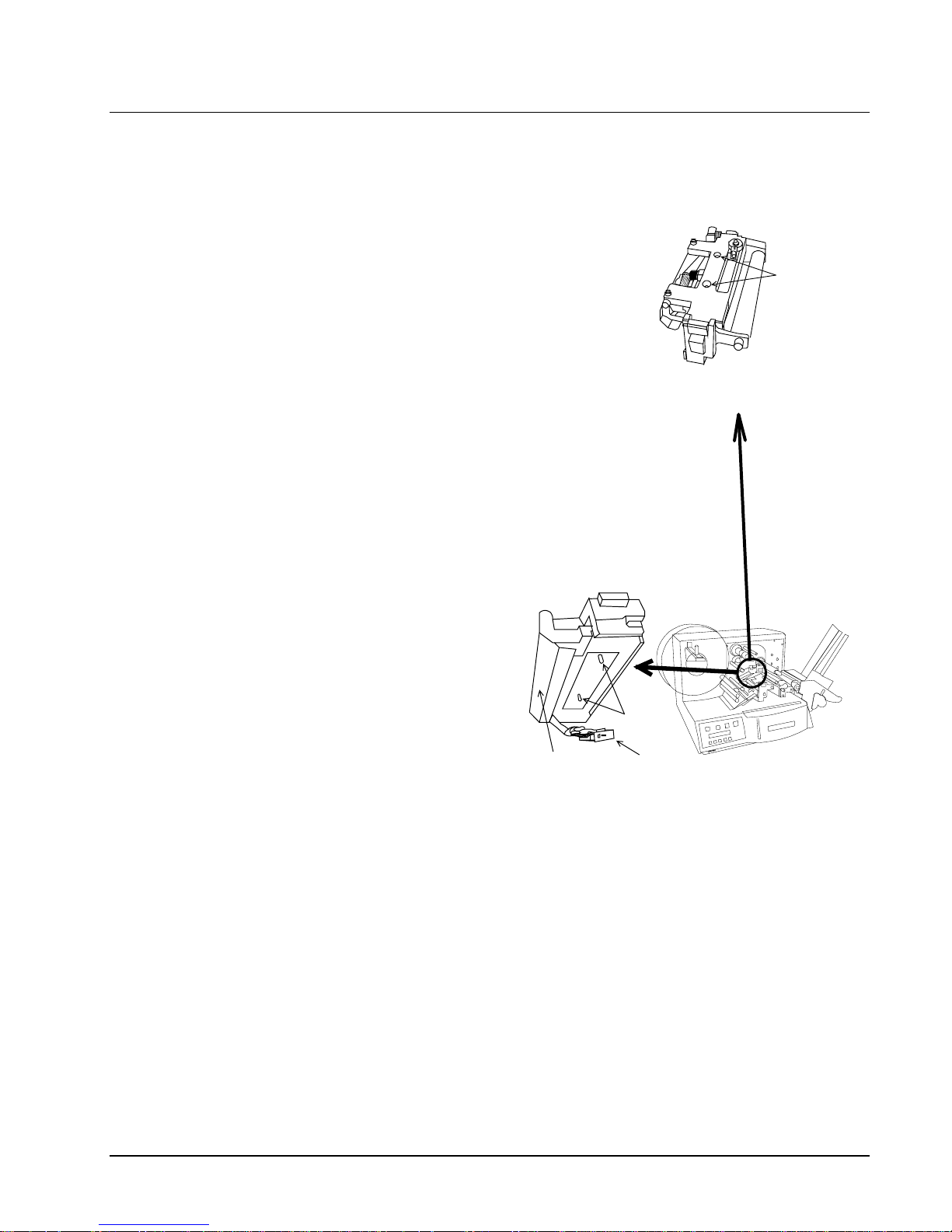

Print Head Replacement

NEVER REMOVE THE PRINT HEAD FROM THE PRINTER EXCEPT

FOR REPLACEMENT.

TURN OFF THE POWER TO THE PRINTER BEFORE STARTING ANY

ELECTRONIC COMPONENT REPLACEMENT.

NOTE: The Anti-static wrist strap (which must contact the skin and be tight) and

anti-static gloves must be worn at all times when handling a print head to avoid
damaging the print head.

1) Review the Printhead Handling Procedure Sheet packaged with each print head to
determine if any procedures have changed before beginning this procedure.

2) Remove the media and ink from the machine for easy print head removal.

3) Unplug the cables that connect to the print head. Unplug the cable by firmly, but
gently pulling it out.

4) Loosen the two 6-32 screws on the rear of the print head holder and slide the
mounting pins inward.

5) Place your hand (with static gloves on) underneath the print line of the print head
and push up to release the locator pins on the heat sink, while pulling the print
head to the right of the machine. This will remove the print head assembly from
the mount plate. You may need to "help" the print head out by pushing on the
heat sink with your left hand.

6) Remove the two print head mount screws located on the top of the print head with
a Phillips head screw driver.

7) Remove the old printhead carefully from the heat sink.

8) Place the new print head onto the heat sink. Check to see that the new printhead
sits square on the heat sink and that there is no end play. If there is end play, or
the head does not seat properly, the heat sink guide will need adjustment.

9) Replace the two print head mount screws. Be sure that the head is resting flat on
the heat sink before tightening these screws.

10) Replace the print head assembly in the printer, sliding the pins (Paragraph 4) into
the holes in the mount plate. Make sure that the guide pins insert into both the
front and back grooves. Secure the 6-32 screws.

11) Reconnect the print head cable connectors, making sure that the connectors are
seated tightly.

NOTE: If the cable is not connected correctly, the print head will be destroyed when

the machine is powered on. Check to see that the cable is tight by
observing from underneath the print head. The cable’s connectors should
be inside of the connectors located on the print head.

12) Replace the media and ink and double-check your work. Power the machine on
and make sure that no adverse effects are noted.

Users Manual Model 676 Maintenance • 45

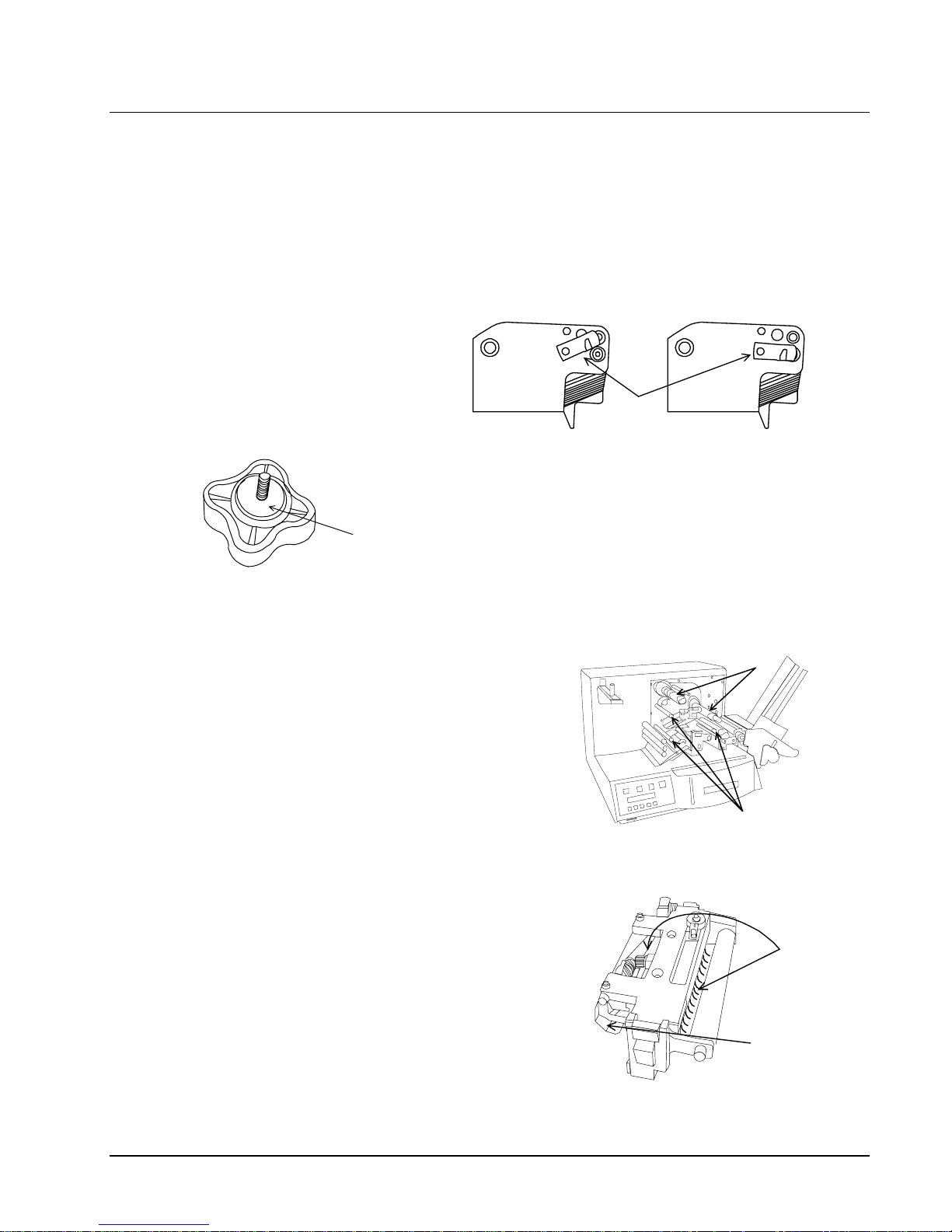

Caution: Before printing - the printhead category must be set to match the

new printheads mean resistance as labeled on the head itself.

A) On the front panel arrow down to PRINT HEAD SETUP using the

MODE button and press ENTER.

B) Arrow down to HEAD CATEGORY for the print station you

replaced the head in.

C) Using the left (<YES) or right (NO>) arrow key set the HEAD

CATEGORY as called out in the PRINTHEAD CATEGORY
CHART below.

D) Press the ENTER key to enter the value. The printer must be turned

off and back on for the change to take effect.

PRINTHEAD CATEGORY CHART

MEAN

RESISTANCE

obtained from

printhead label

PRINTHEAD

CATEGORY

entered in front panel

for print station

containing head

1190 – 1243 1

1244 – 1295 2

1296 – 1348 3

1349 – 1400 4

1401 – 1453 5

1454 – 1505 6

1506 – 1558 7

1559 – 1610 8

13) As a final test of the print head installation, run a test pattern to check the print
quality. You should observe an even grid of chevrons. If you do not see such a
grid, you may wish to reference the topic of print head tangent adjustment.

46 • Maintenance

Lubrication Procedure

General

The 676 series printers are factory equipped with either composition bearings not
requiring lubrication, pre-lubricated bronze bearings, or pre-lubricated needle
bearings. The one exception is the rub cams on either end of the rotary knife.
Periodic cleaning of the printer and removal of dust will greatly enhance the length
of the time the printer will function.

Cam - Lubrication Procedure

1) Clean dust and residue from cams (using alcohol or other suitable solvent) daily,
or approximately every 100K cuts. Use any good quality general purpose grease
(not oil). Apply with cotton swab or other non-metallic device.

2) If lubrication is omitted, knife will squeak and draw attention to required
lubrication.

3) Some machines are equipped with a self-lubricating oiler system built into the
knife protector. This is an oil-wick system and will require 2-3 drops of SAE 30
weight oil weekly. Be sure wick is in contact with cam. If not, press wick
downward with any suitable blunt device that will fit through the oil cap.

Composition (Iglide) Bearings

1) If field replacement of an assembly fitted with an Iglide bearing is performed, a
single drop of spindle oil should be applied to assist in bearing break-in.

2) If, after long use, an Iglide bearing starts to "squeak", disassemble the component
containing the bearing and lightly abrade the shaft surface. Clean the bearing
(dust or old oil) with alcohol, re lubricate with 1 drop of light oil and reassemble.

No other printer lubrication should be required in normal use.

Users Manual Model 676 Maintenance • 47

Electrical Trouble Shooting

Power Up / Sign On / Communications

Problem Probable Cause Corrective Action

Machine fails to power up

with no light present in
the AC power switch.

Machine fails to power up

with light present in the
AC power switch.

Front panel displays no text

or nothing at all.

1) Incorrect power amplitude. 1) Confirm that the AC entry is configured for the
line voltage intended to be applied to the
machine. Failure to do so can damage the
machine's internal power supply. Refer to the
"Fuse Configuration".

2) Lack of power to machine. 2) Check that both ends of the power cord are
plugged in securely.

2A) Confirm that the outlet the machine is plugged

into has power.

3) Missing or blown fuse(s) 3) Check that the fuse(s) located inside the AC
entry are present and intact. Replace as needed.
Refer to the "Fuse Configuration".

1) Unconnected cable / connector

inside machine.

2) Thermal Control Board

unplugged from the Mother Board

1) Front panel cable unplugged. 1) Power off and remove the power cord from the

1) Power off and remove the power cord from the
AC entry. Remove the back cover and inspect
the cables and connectors to and from the power
supply. Refer to the "Electrical System
Schematic".

2) Power off and remove the power cord from the
AC entry. Remove the back cover and reseat the
Thermal Control Board.

AC entry. Remove the back cover and inspect
the cable and connectors to and from the front
panel. Refer to the "Electrical System
Schematic".

48 • Electrical Trouble Shooting

Problem Probable Cause Corrective Action

Front panel does not

complete diagnostics test

2.

Machine does not receive

batches.

1) One or more PC board(s)
unplugged from the Mother
Board.

2) PCMCIA cartridge not inserted
correctly in optional PCMCIA
slot.

1) Serial communications cable
loose or unconnected.

2) Machine not powered on or has
not completed diagnostics tests.

1) Power off and remove the power cord from the
AC entry. Remove the back cover and reseat the
offending board.

2) Insert a PCMCIA cartridge with the arrow up
and towards the front of the machine so that the
ejector button pops out.

1) Check and secure both ends of the serial cable
with the thumb screws.

2) Power machine on and wait until machine
displays "Ready for batches". Re download data.

3) Data sent to wrong printer. 3) In PCMate change to the printer the data is
intended to be sent.

4) Configuration incorrect in

PCMate.

4) Re configure PCMate for Paxar PCL printer as
per your PCMate manual.

5) Faulty Thermal Control Board. 5) Replace Thermal Control Board.

6) Jumpers not configured correctly. 6) Contact Paxar Service.

Users Manual Model 676 Electrical Trouble Shooting • 49

Stock / Ink Advance

Problem Probable Cause Corrective Action

Stock does not advance

when the start button is
depressed.

Ink does not advance when

the start button is
depressed.

1) No batches to be printed. 1) Download batch (if batch downloaded uses the
same format as a previously downloaded batch
the machine with start automatically).

2) An interlock condition exists. 2) Determine the number and type of interlock(s)
by reading the front panel display. As each is
corrected the number of errors will decrease
(Example "Error 910 Stock Out" reload stock).

3) Feed motor unplugged or faulty. 3) Check feed motor cable and or replace feed
motor.

4) Thermal Control Board

unplugged or faulty.

5) Feed roller not gripping stock. 5) Adjust the feed pressure. Refer to "Mechanical

6) Feed rollers bound. 6) With power off check that all rollers turn freely.

7) Stock bound. 7) With the print head and feed open check that

1) No batches to be printed. 1) Download batch (if batch downloaded uses the

4) Check Thermal Control Board / AT board
connection and or replace Thermal Control
Board.

Adjustment Of Feed Roller Pressure".

the stock will pull through the printer with little
to no resistance.

same format as a previously downloaded batch
the machine with start automatically).

2) An interlock condition exists. 2) Determine the number and type of interlock(s)
by reading the front panel display. As each is
corrected the number of errors will decrease
(Example "Error 910 Stock Out" reload stock).

3) Ink motor unplugged or faulty. 3) Check ink motor cable and or replace ink
motor.

4) Thermal Control Board

unplugged or faulty.

5) Ink roller bound. 5) With power off check that all rollers and arbors

6) Ink bound. 6) With the print head open check that the ink will

4) Check Thermal Control Board / AT board
connection and or replace Thermal Control
Board.

turn freely.

pull through the printer with little to no
resistance.

50 • Electrical Trouble Shooting

Print

Problem Probable Cause Corrective Action

Machine advances stock

but does not print.

Machine stops after ever

third label.

Print registration is off in

the feed direction.

1) Stock registration sensor miss
aligned.

2) Miss adjusted print head position. 2) Set print head position. Refer to "Print Head

3) Miss adjusted print head
pressure.

4) Print head cable unconnected or
faulty.

5) Print head faulty. 5) Replace print head.

6) Head Driver Board unplugged or
faulty.

1) Stock registration sensor miss
aligned.

2) Stock registration sensor
uncalibrated.

1) Feed pressure setting is off. 1) Set feed pressure. Refer to "Mechanical

1) Adjust sensor position so that the sensor light
on the front panel flashes as a sense slot or hole
passes under the sensor.

Tangent Point".

3) Set print head pressure. Refer to "Print Head
Pressure Setting".

4) Power off the machine and reinsert the
offending connector or replace cable.

6) Check Head Driver Board / AT board
connection and or replace Head Driver Board.

1) Adjust sensor position so that the sensor light
on the front panel flashes as a sense slot or hole
passes under the sensor.

2) Recalibrate the sensor from the front panel
using the “Calibrate Sensors” mode. Refer to
"Optical Sensor Electrical Calibration".

Adjustment Of Feed Roller Pressure".

2) Print position is incorrect. 2) Enter the setup menu and readjust the print
setting as needed.

3) Field(s) position incorrect in the

format.

4) Bound platen roller. 4) Check that the platen roller turns freely on it's

3) Using formatter check and readjust the field(s)
position(s) as needed.

shaft. If it does not replace it.

Users Manual Model 676 Electrical Trouble Shooting • 51

Problem Probable Cause Corrective Action

Print registration is off in

the web direction.

Print contrast is too light or

dark.

Voids in print image in the

feed direction.

1) Machine incorrectly threaded. 1) Check and rethread the media as needed. Refer
to "Loading Stock".

2) Web guides incorrectly adjusted. 2) Check and adjust as needed. Refer to "Web
Guide Adjustment".

3) Unwind incorrectly adjusted. 3) Check and adjust as needed. Refer to "Web
Guide Adjustment".

4) Incorrect DIP switch settings on

the Thermal Control Board.

1) Incorrect strobe setting selected

in the format.

4) Check and reset DIP switches as needed. Refer
to "TCB Dip Switch S2 Settings".

1) Using Formatter check and adjust the strobe
setting according to the media and ink being
used.

2) Incorrect strobe setting in the
machine setup.

2) Enter the setup menu and readjust the strobe as
needed.

3) Misadjusted print head position. 3) Set print head position. Refer to "Print Head
Tangent Point".

4) Misadjusted print head pressure. 4) Set print head pressure. Refer to "Print Head
Pressure Setting".

1) Ink misaligned with format. 1) Adjust ink position on the arbors to achieve full
ink coverage over all fields on the format.

2) Print head dirty. 2) Power off the machine clean the print head and
platen. Refer to "Print Head Cleaning".

Machine continually stops

with an erroneous
interlock condition.

3) Faulty print head. 3) After cleaning head and running the test pattern
to confirm that a void still exists, replace the
print head.

4) Misadjusted print head position. 4) Set print head position. Refer to "Print Head
Tangent Point".

5) Misadjusted print head pressure. 5) Set print head pressure. Refer to "Print Head
Pressure Setting".

6) Worn platen roller. 6) Replace platen roller.

1) Sensor uncalibrated. 1) Recalibrate the sensor from the front panel
using the “Calibrate Sensors” mode. Refer to
"Optical Sensor Electrical Calibration".

2) Sensor position misadjusted. 2) Determine which sensor and relocate
accordingly.

3) Ink sensor type (light / dark)

incorrect in the format for the

3) Either change the ink or the ink type in the
format.

ink type being used.

52 • Electrical Trouble Shooting

Cut / Stack

Problem Probable Cause Corrective Action

Machine fails to cut labels

(the rotary knife does
not rotate).

The stacker fails to run. 1) The stacker cable is unconnected. 1) Power off and insert the stacker cable in the

1) The cut is disabled in the setup
menu.

2) Knife cable unconnected. 2) Power off and remove the power cord from the

3) Knife jammed causing auto
resetting fuse to trip on the
Thermal Control Board.

4) Faulty knife motor. 4) Replace the knife motor.

5) Faulty knife motor drive circuit
on the Thermal Control Board.

2) Faulty stacker motor. 2) Replace the stacker motor.

3) Stacker jammed causing auto
resetting fuse to trip on the
Thermal Control Board.

3) Faulty stacker motor drive circuit
on the Thermal Control Board.

1) Enable the knife in the setup menu via the front
panel..

AC entry. Remove the back cover and inspect
the cable and connector to the knife module.
Refer to the "Electrical System Schematic".

3) Remove cause of jam at the knife.

5) Replace the Thermal Control Board.

stacker port on the Thermal Control Board.

3) Remove cause of jam at the stacker.

3) Replace the Thermal Control Board.

Users Manual Model 676 Electrical Trouble Shooting • 53

Mechanical Trouble Shooting

Stock

Problem Probable Cause Corrective Action

Stock will not roll or jumps 1) Incorrect adjustment of unwind

web guides

Machine fails to stop at end

of roll.

Stock does not pull

smoothly through
printhead module.

1) Incorrect adjustment of stock-out
sensor.

1) Web guides on unwind arm too
tight.

2) Web guides on decurler arm too
tight

3) Stock is slipping in drive or drive
pressure is uneven.

1) Be sure stock roll is as flat as possible and does
not extend over core.

2) Adjust web guides to touch stock roll but not
pinch the roll.

1) Adjust contact strip so that a “click” will be
heard when supply roll is lifted.

1) Adjust web guides to touch outer edges of stock
with minimum pressure required to keep stock­out switch closed.

2) Adjust collars on decurler bar to touch edge of
stock.

3) Remove stock from drive rollers. Using a piece
of stock the same thickness as the stock being
run as a "feeler" gauge, adjust set screws in
drive endplates clockwise until "feeler" gauge
barely slides between rollers with pressure lever
closed. Rotate set screws clockwise an
additional 1/2 - 3/4 turn. Rethread and operate.
Minor adjustment can now be made to cause
stock to run the same distance from center frame
as is measured at unwind arm.

54 • Mechanical Trouble Shooting

Problem Probable Cause Corrective Action

Cracks or craze marks

appear on face of

1) Incorrect adjustment of decurler. 1) Move decurler turn-bar toward unwind end of
machine until cracks no longer appear.

finished labels.

Stock jams in bridge blade

rollers or knife area.

1) Knife mounted bridge blade too

close to stationary bridge blade.

1) Loosen screws in upper knife securing bridge
blade roller assembly and slide up (holes in
blade are slotted) until rollers just contact stock.
Tighten screws.

2) Knife not cutting full width of
stock.

2) Loosen knife shear adjustment screws and
move outer end of knife until full cut is
accomplished.

3) Stacker not operating or nip
rollers not turning.

3) Check stacker connection to access port. Be
sure nip roller is free to rotate and moves easily
in the bearing slots.

Will not stack. 1) Stacker not operating. 1) See step 3 above.

2) Stacker position on machine too
far forward so labels go under

2) Loosen stacker mounting knob and move
stacker toward rear of machine - tighten.

rear stacker rail.

3) Incorrect rail position or stacker
bed angle.

3) Using a cut label, position stacker rails so that
approximately 3/8" (9.5mm) overhangs the
second grooved roller. Loosen quick-turn
handle on stacker clamp and raise or lower
stacker bed until opening between 1st label
overhang and belt surface will allow entry of
next label.

Knife will not cut or partial

cut

1) Incorrect pre-load on clutch pawl. 1) With back cover removed and power off ­operate solenoid by hand. When lever is
moved, clutch pawl should move counter­clockwise about 1/32" (0.79mm) with the "pac­man" in home position. If not - loosen "pac­man" set screws and readjust "pac-man" to stop
with spring in detent.

2) Partial cut 2) Loosen shear adjustment screws and move
outer end of knife until full cut is obtained.

Users Manual Model 676 Mechanical Trouble Shooting • 55

Ink

Problem Probable Cause Corrective Action

Ink wrinkles or will not

pull smoothly.

Ink rolls loosely on take-up

roller.

1) Incorrect adjustment of unwind

roller brake resistance.

2) Unwind roller and ink take-up

roller misaligned.

3) Ink buildup on turn bar(s). 3) Clean with alcohol.

4) Incorrect ink width. 4) Use an ink width no wider than stock being

1) Take-up roller not turning. 1) Assure roller does not bind and is clean. Adjust

2) Take-up core binding on locator

plate.

3) Ink unwind adjuster too tight. 3) Loosen knurled knob to a point flush with

1) Adjust knurled knob clockwise as far as
possible without breaking ink or stalling ink
motor. Do not bottom adjustment knob.
Replacement of fiber brake disc may be
required if printer has high hours.

2) Align rear edge of ink with rear of print area
(allow approximately 1/8" (3mm) overlap).
Loosen thumb cap screw on ink out sensor
mount plate and adjust until it touches rear of
ink roll on unwind arbor. Lock slide rewind
core toward rear of printer until it just contacts
plate.

printed. This is especially critical when using a
narrow web with cut down rollers.

pressure knob to higher detent position if
required.

2) Move core .015" - .030" (.38mm - .76mm)
away from plate.

surface of mounting shaft.

4) Take-up roller too full. 4) Remove used ink roll. It is designed to hold
only 1 full roll.

56 • Mechanical Trouble Shooting

Print

Problem Probable Cause Corrective Action

Poor print - uneven or no

print (mechanical).
Also see electrical
trouble shooting.

1) Incorrect tangent position. 1) Refer to tangent adjust procedure in Print Head
section.

2) Broken ink. 2) Replace ink and readjust (see INK trouble
shooting).

3) Ink not rewinding. 3) Readjust (see INK trouble shooting).

Users Manual Model 676 Mechanical Trouble Shooting • 57

Knife

Problem Probable Cause Corrective Action

Double Cuts, extra knife

cycle

Skips cut, double length

label

Noisy Rattle when not

cutting but motor
turning

1) Solenoid sticking in 1) Check proper assembly of washers. Clean

plunger with alcohol and completely dry.

2) Worn Trip Arm on Clutch

actuator.

3) Worn Stop roll pin on clutch 3) Replace Clutch if not solved above.

1) Solenoid did not pull in 1) Check gap on the trip arm to clutch body must

2) Trip arm sticking on clutch roll

pin.

3) Low voltage to solenoid 3) Check power supply voltage for 12 and 24 volts

4) Weak solenoid driver 4) Substitute TCB. Change back if not solved.

5) Bad Solenoid 5) Unusual, but replace Solenoid and adjust.

1) Packman not visibly homing 1) Adjust Packman to center the home location of

2) Replace Actuator

be about .040 inches. If too large, solenoid has
less force. Check assembly of spring and
washers. Use latest engineering assembly
procedure. Clean Solenoid.

2) Check for burr on trip arm catching on clutch
stop roll pin. File off burr on clutch roll pin
and/or replace trip arm.

the packman to the quiet location. If the knife
still does not home, clean knife cams and
lubricate.

If still does not home, replace blades. If still does

not home, replace clutch.

2) Packman homing ok but noisy. 2) Adjust Packman to center the home location of
the packman to the quiet location .

3) Dirty Clutch 3) Clean clutch and one drop of light oil.

4) Packman slipping 4) Order improved set screws with multiple points
that bite better to shaft.

5) Bad Motor Gear Box 5) Replace Knife Motor

58 • Mechanical Trouble Shooting

Problem Probable Cause Corrective Action

Knife stops during cut in

stock

1) Check life of blades 1) If warn and dull, may stall in stock. If life is
greater than 2 million, replace blades.

2) Clean cams and lubricate 2) Make sure oiler is on knife. Instruct Operator
to oil weekly. Make sure oil is available.

3) Clutch worn out and can’t stay

3) Replace Clutch

engaged

Slight Long and Short Tags 1) Sticking Solenoid 1) Check gap on the trip arm to clutch body must

be about .040 inches. If too large, solenoid has
less force. Check assembly of spring and
washers. Use latest engineering assembly
procedure. Clean Solenoid.

2) Sticking Trip Arm to Clutch Roll

Pin

2) Check for burr on trip arm catching on clutch
stop roll pin. File off burr on clutch roll pin
and/or replace trip arm.

3) Clutch has trouble picking up 3) Clean clutch and replace if not solved

Stock popping in front of

knife

1) Slow knife rotation 1) Worn out blades create too much load for motor
and knife slows down too much during cut.
Replace Blades.

2) Clutch has trouble engaging and

2) Clean clutch and replace if not solved.

stock runs into blades

Knife does not cycle 1) Solenoid not engaging 1) Trip knife solenoid by hand to see if knife

cycles. If cycles and cuts, check cable to
solenoid, check solenoid adjustments and
assembly, check gap and replace solenoid if
necessary.

2) Knife Motor Broken 2) Replace Knife Motor, good for 10 million
labels by spec

3) Clutch total failure 3) Unlikely, but change if necessary

4) Solenoid Drive circuit failure 4) Replace Cable or TCB

5) Knife motor not cycling 5) Replace Cable or TCB

Continuous Knife cycling 1) Solenoid stuck in 1) Clean and adjust solenoid.

2) Circuit stuck on 2) Unplug solenoid wires from knife module
connector and should stop cutting. If it does
stop cutting, replace TCB.

3) Very bad trip arm to stop pin on

3) Unusual, but file roll pin and replace trip arm.

clutch

Users Manual Model 676 Mechanical Trouble Shooting • 59

Appendix A

Error Messages

On the Machine's detection of errors/error, the displays will show the first error encountered and allow the
displaying of any other errors with the <YES / NO> keys, which will "Scroll" through additional errors if any.

XX is the total number of errors at the time of error detection.

ERROR SCREENS:
The screen advances to next error with each depression of the "NO>" key
The screen retreats to prior error with each depression of the "<YES" key
The screen reverts back to the first error when the “EXIT” key is pressed.

XX ERROR( S )
STOCKOUT 901

XX ERROR( S )

INK OUT 904

XX ERROR( S )
HEAD OR F EED OPEN 9 1 0

XX ERROR( S )
MI SSED SENSE MARK 7O1

XX ERROR( S )
CHECK STACKER 9 0 2

XX ERROR( S )
HEAD OVER TEMP 404

XX ERROR( S )
VERI F I ER HALT 912

60 • Appendix A

Users Manual Model 676 Appendix B • 61

Appendix B

Software Upgrade Chip Placement Positions

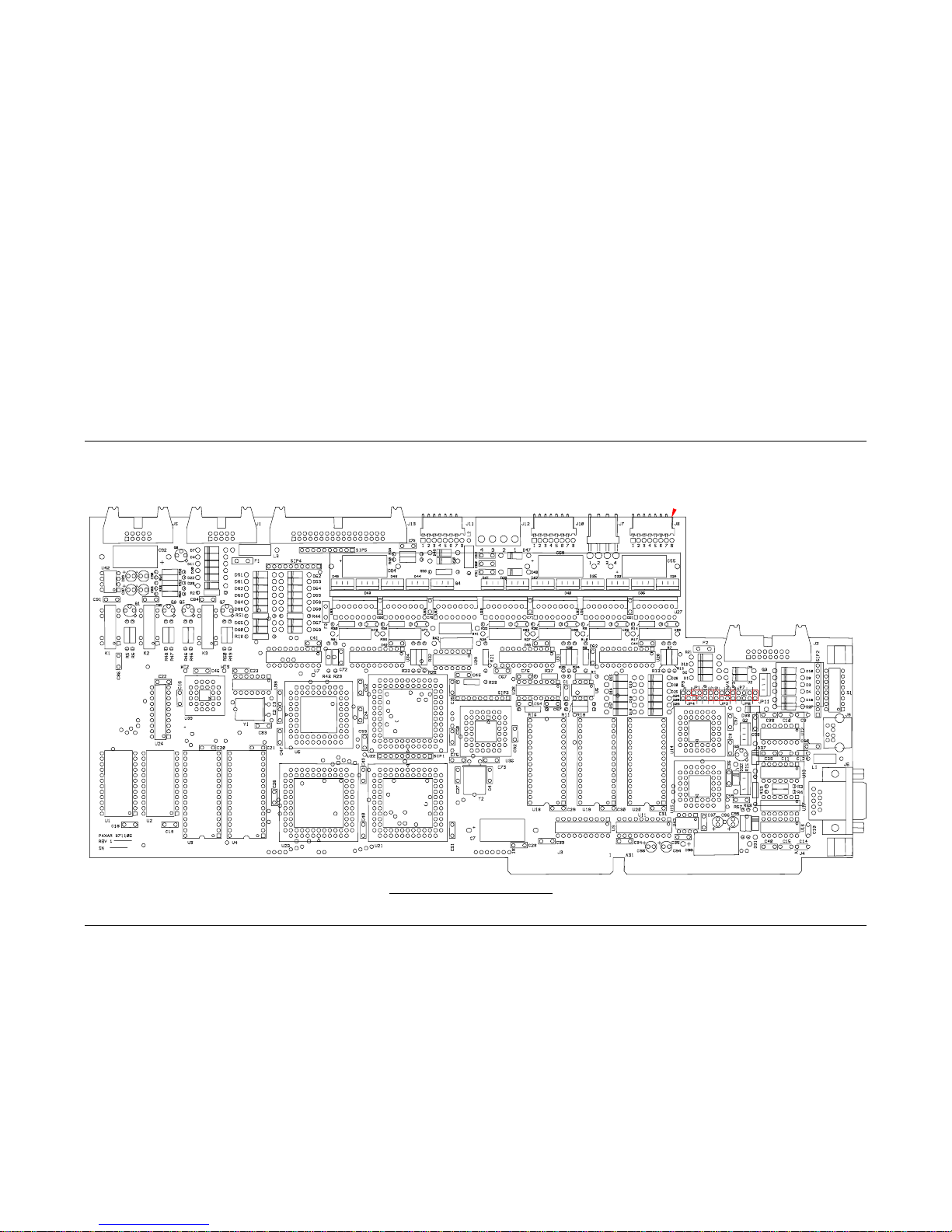

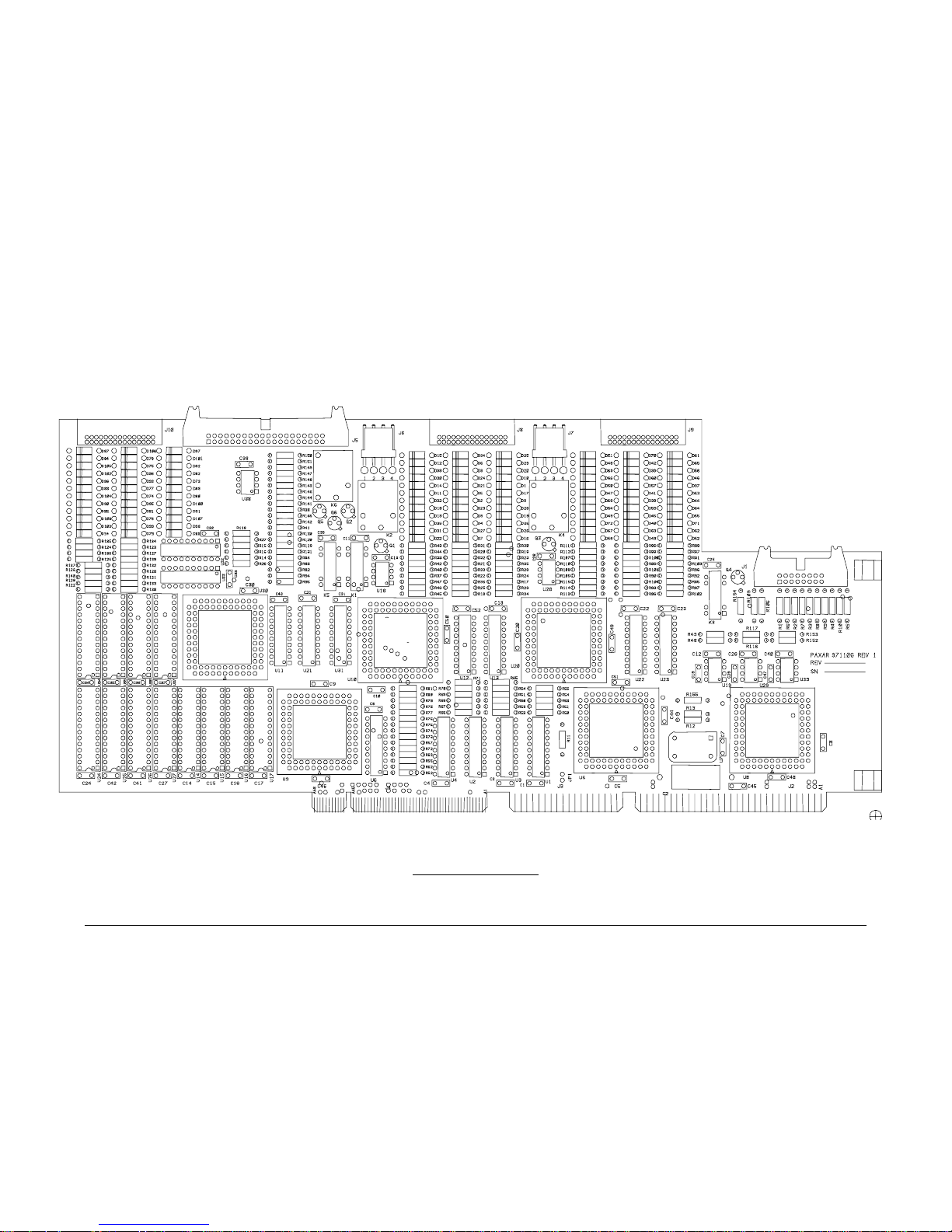

Thermal Control Board P/N 371105TT

U 3

6

U 23 U 21U 4U 3

U 18 U 19 U 20

U 22

THERMAL CONTROL BOARD

Align angled corners of chip with socket and arrow denotes pin #1 or dimple on chip.

62 • Appendix B Users Manual Model 676

Head Driver Board P/N 371106TT

U - 30

U - 9

U - 10

U - 20

U - 5

U - 8

(Use chip removal tool p/n. 351156 for square I.C.'s)

HEAD DRIVER BOARD

Align angled corners of chip with socket and arrow denotes pin #1 or dimple on chip.

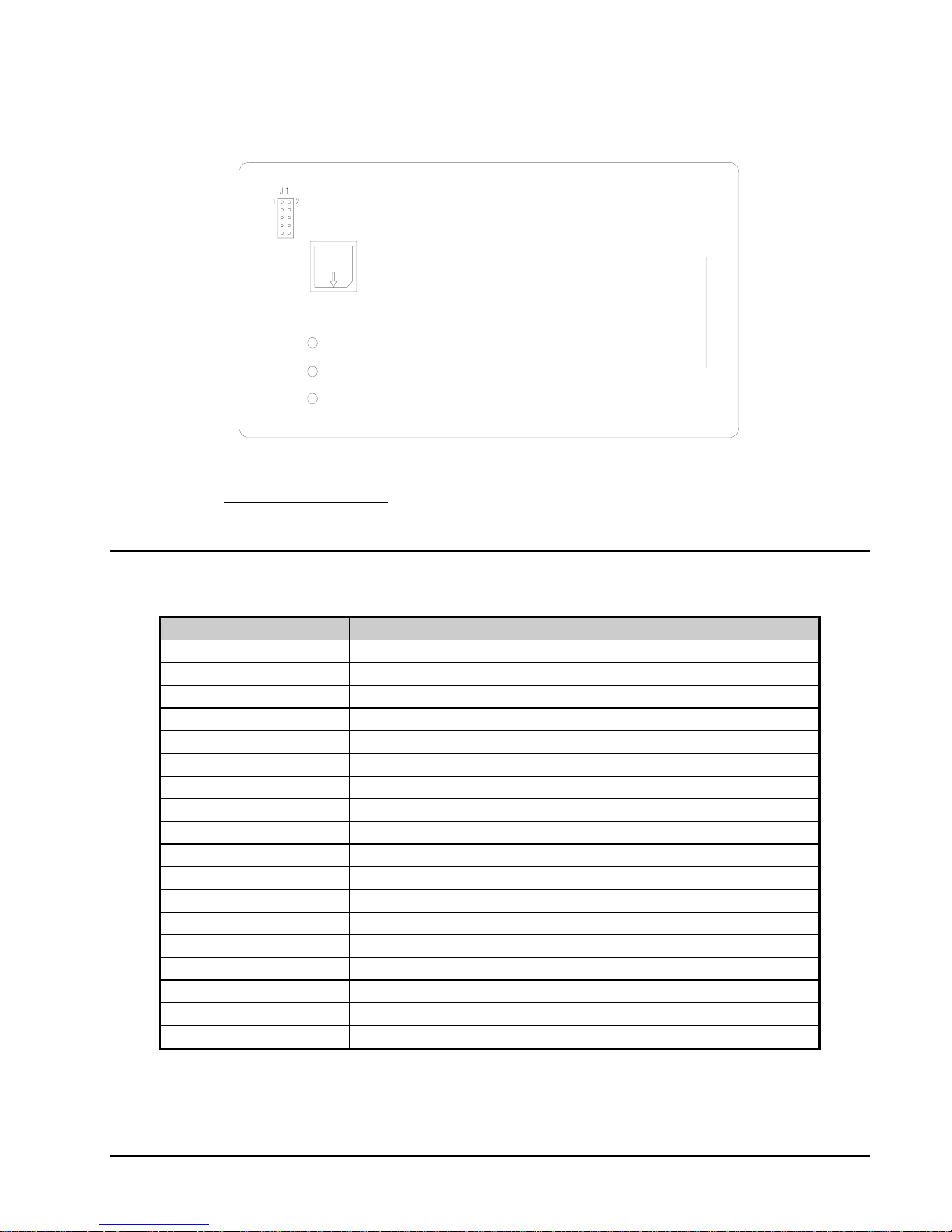

Front Panel Board P/N 351108

(Use chip removal tool p/n. 351156 for square I.C.'s)

FRONT PANEL BOARD, Upgradeable software I.C.'s include U1.
Align angled corners of chip with socket and arrow denotes pin #1 or dimple on chip.

Front Panel Diagnostic Descriptions

Diagnostic Numbers Descriptions

1 Front panel initialization
2 TCB Opsys initialization * See note below
5 Attempting Serial Host Initialization
6 Initializing Verifier
7 Executing Protected Mode Imaging Code
8 Attempting to read PCMCIA Card - (if installed)

9 Attempting to read in scalable fonts.
10 Initializing Font Scaler
11 Attempting to load code pages
12 Attempting to read in logos
13 Attempting to read in care symbols
14 Waiting for Machine Definition from TCB
15 Attempting to create test pattern
16 Attempting to create strobe tables
17 Attempting to read in formats
18 Protected Mode Imaging Code initialization complete
19 Serial Communications Activated

0 Power up complete

Note: There must be a PCMCIA card installed in the slot if the PCMCIA option board is installed. If

the PCMCIA card is not present – the front panel will stop at Diagnostic 2.

Users Manual Model 676 Appendix B • 63

Appendix C

Ink and Stock Transfer Types

Transfer Type values associated with the XT commands.

Value Transfer Type

51 Heat Seal & SD-1111 Ink
52 Topcoated card stock & TT-3111 Ink
53 Topcoated card stock & TT-1111 Ink
54 Topcoated card stock & HR-3111 Ink
55 Topcoated card stock & HR-1111 Ink
56 Topcoated Card Stock & TW-1111 Ink
57 Topcoated card stock & TW-1151 Ink
58 Pressure Sensitive & TT-3111 Ink
59 Pressure Sensitive Thermal Receptive & TT-1111 Ink
60 Pressure Sensitive Thermal Receptive & TW-1111 Ink
61 Pressure Sensitive & TW-1151 Ink
62 Pressure Sensitive & HR-3111 Ink
63 Uncoated Tag Stock & TT-3111 Ink
64 Uncoated Tag Stock & TT-1111 Ink
65 Uncoated Tag Stock & HR-3111 Ink
66 Uncoated Tag Stock & HR-1111 Ink
67 Uncoated Tag Stock & TW-1111 Ink
68 Uncoated Tag Stock & TW-1151 Ink
69 Fabric 2800 & TT-1111 Ink
70 Fabric 2800 & HR-3111 Ink
71 Fabric 2800 & TT-3111 Ink
72 Fabric 2800 & HC-3111 Ink
73 Fabric 2800 & HR-1111 Ink
74 Fabric 2795 & TT-1111 Ink
75 Fabric 2795 & HR-3111 Ink
76 Fabric 2795 & TT-3111 Ink
77 Fabric 2795 & HC-3111 Ink
78 Fabric 2795 & HR-1111 Ink
79 Coated Tag Stock & HR-4111 Ink

64 • Appendix C

Value Transfer Type

80 Pressure Sensitive & HR-4111 Ink
81 Uncoated Tag Stock & HR-4111 Ink
82 Fabric 2800 & HR-4111 Ink
83 Fabric 2795 & HR-4111 Ink
84 New Pressure Sensitive (no xfer) & TT-3111 Ink
85 New Pressure Sensitive (no xfer) & TT-1111 Ink
86 New Pressure Sensitive (no xfer) & TW-1111 Ink
87 New Pressure Sensitive (no xfer) & TW-1151 Ink
88 New Pressure Sensitive (no xfer) & HR-1111 Ink
89 New Pressure Sensitive (no xfer) & HR-3111 Ink
90 New Pressure Sensitive (no xfer) & HR-4111 Ink
91 Coated Tag Stock & GP-1111 Ink
92 Uncoated Tag Stock & GP-1111 Ink
93 New Pressure Sensitive (no xfer) & GP-1111 Ink
94 2800 Fabric & GP-1111 Ink
95 2795 Fabric & GP-1111 Ink
96 2795 Fabric & CT-1111 Ink
97 4800 Fabric & CT-1111 Ink
98 4800 Fabric & CT-1114 (Blue)
99 4800 Fabric & GP-1111

100 2395NWT Fabric & CL-1111 (UK)
101 2395NWT Fabric & XC-3111 (UK)
102 2395NWT Fabric & HR-1111 (UK)
103 2495NWT Fabric & CL-1111 (UK)
104 2495NWT Fabric & XC-3111 (UK)
105 2495NWT Fabric & HR-1111 (UK)
106 4000NWT Fabric & CL-1111 (UK)
107 4000NWT Fabric & XC-3111 (UK)
108 4000NWT Fabric & HR-1111 (UK)
109 4002NWT Fabric & CL-1111 (UK)
110 4002NWT Fabric & XC-3111 (UK)
111 4002NWT Fabric & HR-1111 (UK)
112 G.S. Satin & XC-3111 (UK)
113 2012T Fabric & XC-3111 (UK)
114 1021T Fabric & XC-3111 (UK)
115 2800 Fabric & CT-1111

Users Manual Model 676 Appendix C • 65

Value Transfer Type

116 591SST Fabric & CT-1111 Ink
117 591SST/601SST Fabrics & CT-1114 Ink
118 601SST Fabric & CT-1111 Ink
119 591SST/601SST Fabrics & CT-1115 Ink
120 591SST/601SST Fabrics & CT-1117 Ink
121 591SST Fabric & CT-1112 Ink
122 601SST Fabric & CT-1112 Ink
155 4900NWT / 4900HSA & HS1111
156 1800FRA & TW1111
157 1800FRA & GP1111
158 2085NWT / 2495NWT / 2360NWT & HS1111
159 2360NWT / 2800NWT & XC3111
160 2895NWT / 2800NWT & HS1111
161 2895NWT & XC3111
162 2895NWT & HC3111
163 1800MWA & GP1111
164 1800MWA & TW1111
165 604LKP / 601LKP & DS7501 / 7502 / 7504
166 604LKP / 601 LKP & DS7503
167 4800NBC Fabric & HS1011

66 • Appendix C

Appendix D

Knife MFG Guideline

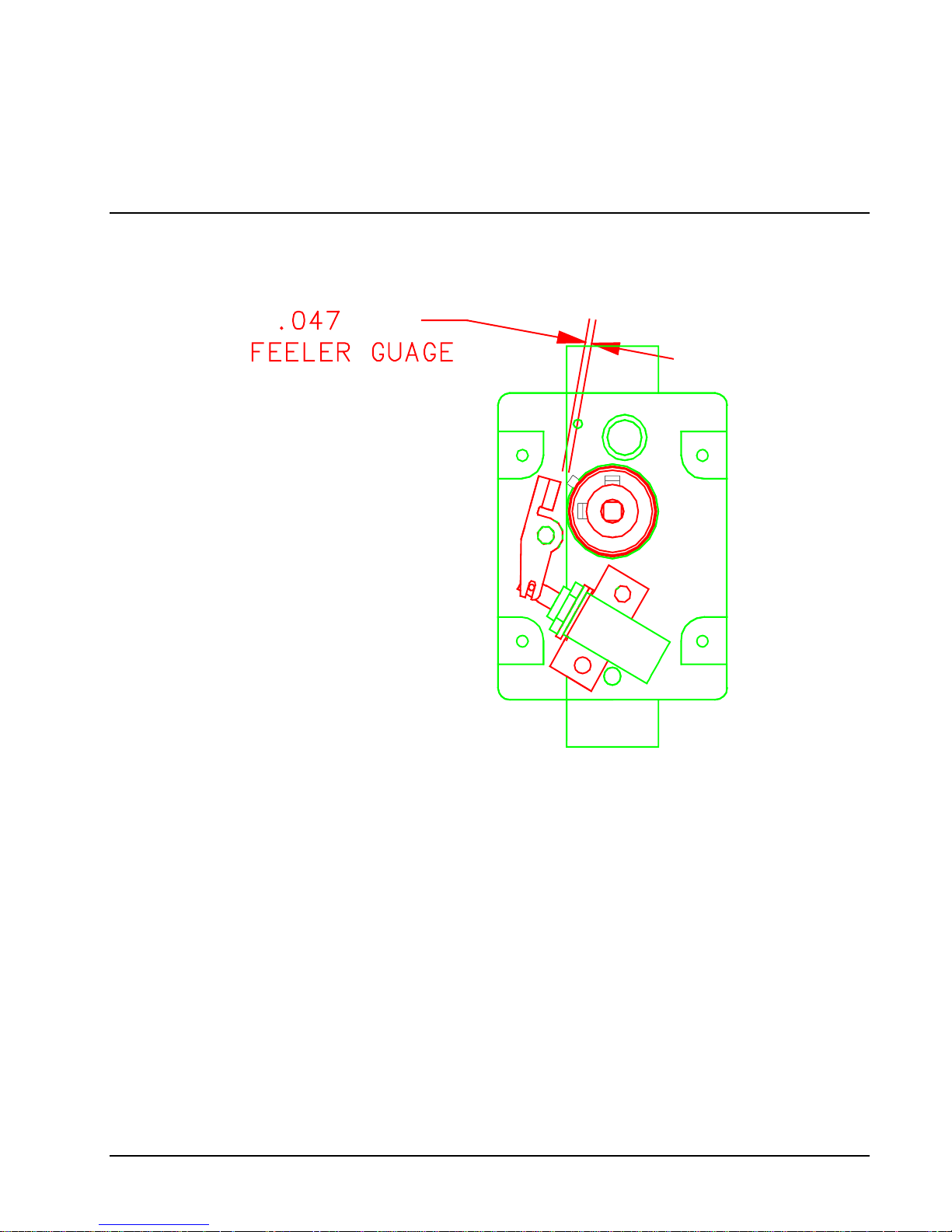

Solenoid Trigger Setting

+.000

-.020

1. After the clutch and actuator is mounted to the knife, attach the solenoid assembly to the inside

support using two 6-32 x 3/8 cap screws, flat washers, and lock washers. Make sure the plunger
moves freely and does not bind. Motor and faceplate must be mounted also.

2. Check the gap between the actuator and the top of the pin on the clutch as shown in drawing.

The plunger should be pushed in to make the measurement.

Other hints if there is still a problem:

• If the gap is greater then .047”, an old solenoid bracket is being used. Replace (P/N 357003) or

slot the bracket.

• If plunger binds, the solenoid is not parallel with the base of the bracket that mounts to the knife

support, and/or the actuator slot is bottoming out on the roll pins that are on the plunger. Make
adjustment or replace the bracket.

Users Manual Model 676 Appendix D • 67

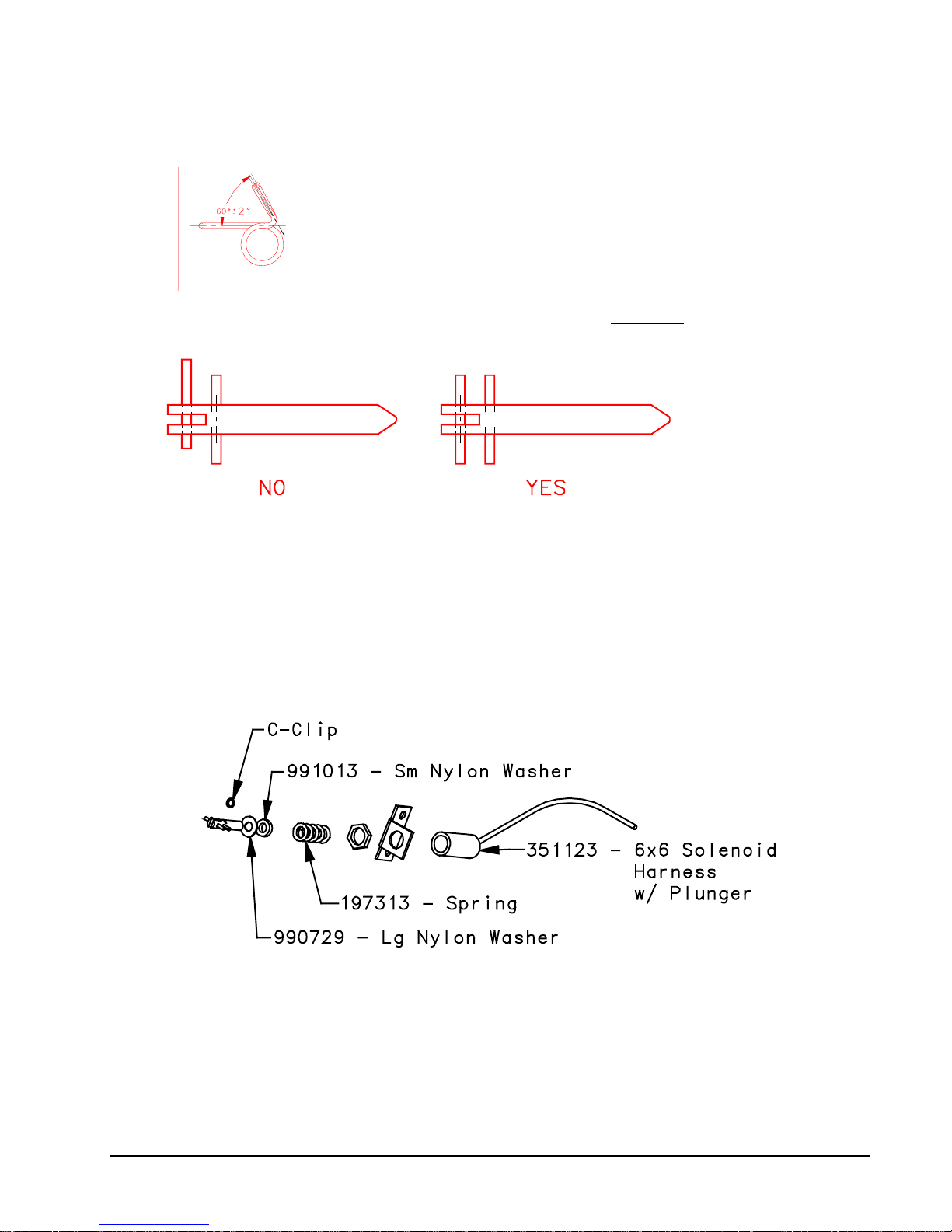

• Torsion Spring should be at an angle of 60±2°. Lay the spring over the drawing below to see if

the spring is made properly.

• Plunger pins should be centered on shaft. If either pin is loose DO NOT use the plunger. The

pins should be checked before installing.

• (Rev 3) Replace both roll pins on all reworked assemblies.

• (Rev 4) Effective 3/3/97 a large nylon washer will be added between the coil pin and the c-clip

on the plunger. To install, the c-clip has to be removed, then put the large washer on the
plunger and push it down against the coil pin. While holding it in that location, re-install the c­clip. Now the Small nylon washer and spring can be put on the plunger and inserted into the
solenoid.

68 • Appendix D

- 989513

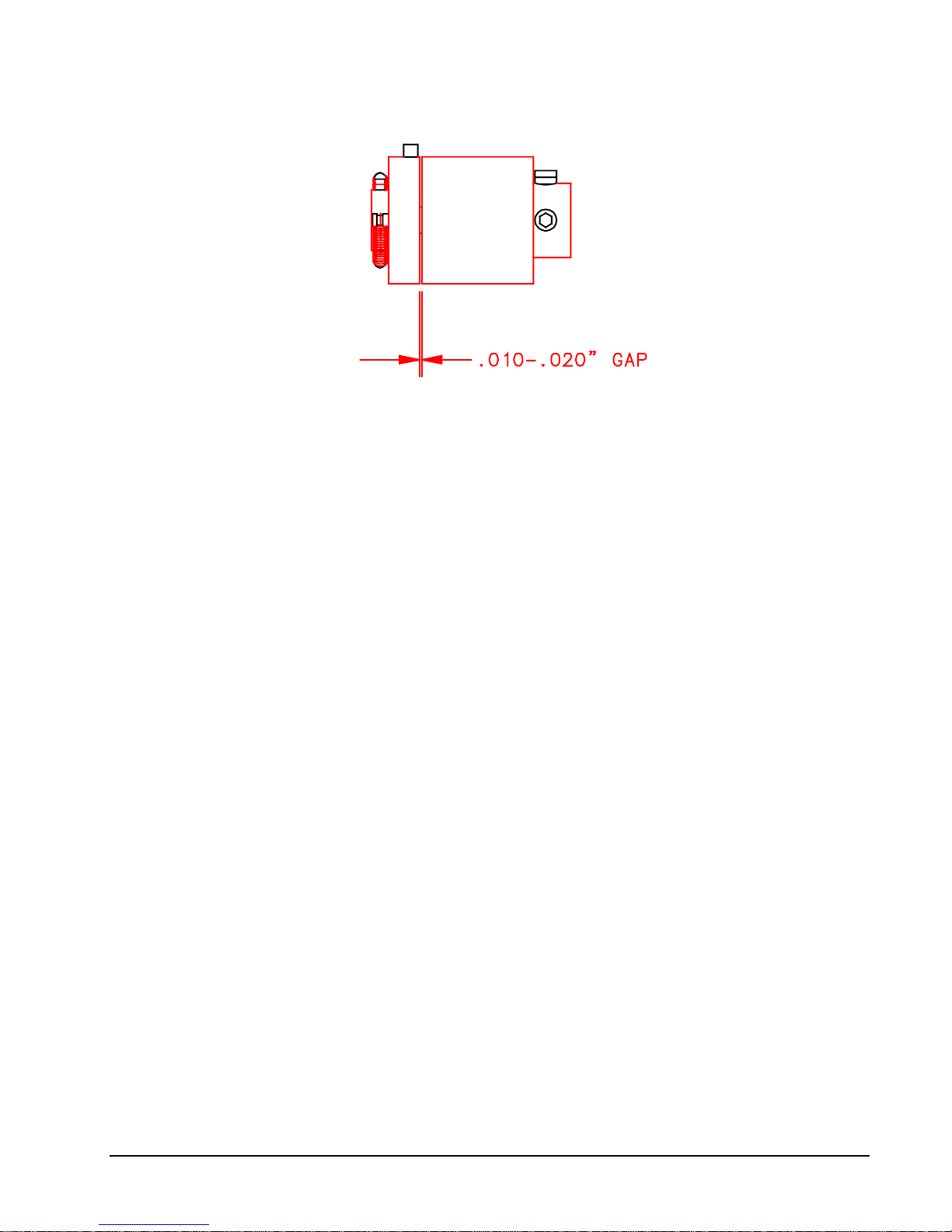

• There should be a .010-.020 gap (for roller clutch only) between the two clutch pieces.

• (Test on the solenoid test box.) The knife must cut both fabric and card stock. The solenoid

should operate on both the high and low settings.

• Excessive motor drag must be minimal at start/stop and while running. Replace or repair

problem component. On old knife assemblies, there are bronze bushings in outer support. They
may be causing a bind. Ream bushing and retest. (Do not ream if it is a roller bearing.)

• (Rev 1) Pre-load setting adjustment. While motor is running, not while cutting, loosen set

screws on “pac-man” and rotate the rotary blade clockwise, mark the stopping position on the
“pac-man”, rotate counterclockwise, mark the “pac-man”, then rotate the blade to the middle of
the two marks and tighten the set screws.

• (Rev 2) All new knife assemblies have a blue clutch. The clutch outer race bushing has an I.D.

of .500 and the 2 extension springs are .012 dia wire.

• (Rev 2) The 2 extension springs on all rebuilt clutches must have the .009 dia. wire springs

replaced with .012 wire springs.

• (Rev 5) Replace Knife Actuator 357020, if it is worn or if there is a “bulge” at the 90-degree

bend.

• (Rev 6) Changed feeler gauge tolerance from .047 MIN

Users Manual Model 676 Appendix D • 69

Appendix E

Printhead Life Extension

NOTE: This section was written specifically for the 636/656 – but the
information is useful and applicable for the 676 as well.

Matching stock and ink widths

If your customer is running multiple media and multiple widths on their Paxar machine, Great! They are
taking advantage of one the most compelling features of our printers: multimedia capability. Our printers can
also reduce the width of the ink to only that area being printed. However, we run into printhead problems
when customers combine both these features.

The edge of the narrower stock not covered by the ink will gouge the printhead and cause dots to be
out.

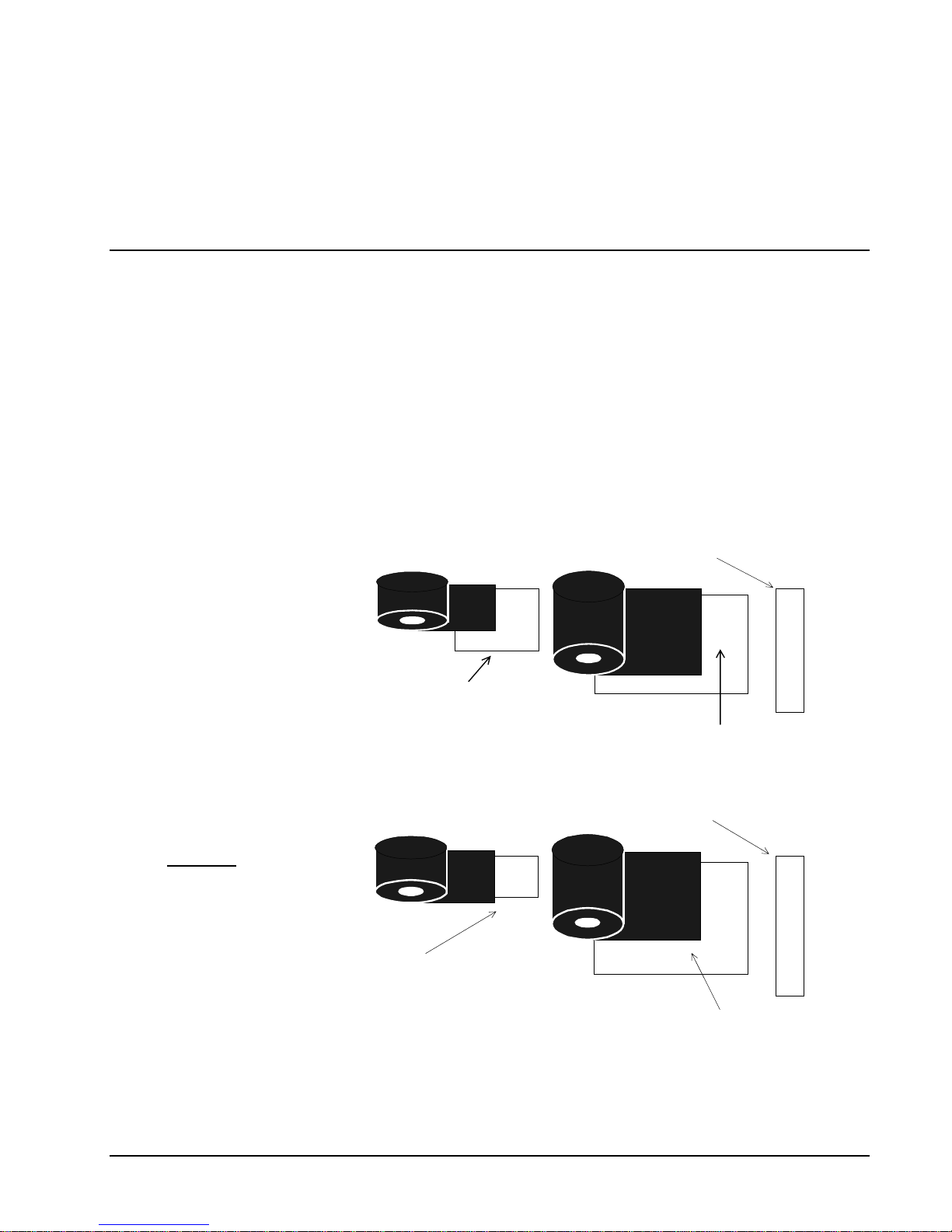

Printhead

Here, the customer will have
much shorter printhead life
because of the edge of the
narrower, uncovered stock.

WRONG!

The solution is to make sure
that the narrower stocks
have at least 1/8” of ink
coverage over the edge.
The widest stock does not
need full ink coverage.

RIGHT!

This edge which is

not covered by ink

will erode the

printhead.

Must have 1/8" inch

overlap to protect the

printhead from the

stock edges

Will have missing dots from

the eroded printhead when

this prints out.

Printhead

Overlap unneccessary because

this is the widest stock being

printed

70 • Appendix E

Printhead Fail Modes

Symptoms, Causes, Solutions

Symptom #1:

A dot is leaving a line in the print direction. The dot appears to be dragging or failed on,

sometimes in the print area, and sometimes not. If in a barcode, the verifier will halt the printer.

Cause: Paper dust or dirt on the printhead
causing the ink to print without printhead firing.
The dot is NOT failed on. The printhead is
DIRTY.

Lines of

print from

a dragging

dot

Specialty

Style: Fall

Color: Rose

23456 78901

Brand

Specialty

Brand

Style: Fall

Color: Rose

23456 78901

Specialty

Brand

Style: Fall

Color: Rose

23456 78901

Specialty

Brand

Style: Fall

Color: Rose

23456 78901

If not addressed immediately: the line will go
from black or gray to white and the dot will fail.

$5.95

$5.95

$5.95

$5.95

The printhead will be damaged.

Solution: Immediately stop the printer and clean the printhead in the machine.

If problem continues: Remove the printhead and clean with hard pressure.

Symptom #2: Edges of barcode and text do not appear

crisp and sharp.

23456 78901

Cause: Strobe is too high. Printhead is dirty.

Solution: Reduce front panel strobe one increment at a time until

fuzzy printing goes away.

Specialty

Brand

Style: Fall

Color: Rose

23456 78901

$5.95

If problem continues: Clean the printhead as described below.

Fuzzy edges

Symptom #3: While printing along fine early in the printheads life (< 300,000 inches), a dot suddenly

appears missing. The verifier will halt the machine if the missing dot is in a barcode.

Cause: Most likely, the printhead failed from static.

Solution: Replace the printhead. Note current life counts on the printer. If less than 500,000 inches, return

for a pro-rated credit.

If problem continues: Check that the machine has all the static upgrades. Double check the connections
and wires.

Users Manual Model 676 Appendix E • 71

Printhead Cleaning Procedure

Printhead performance and life are influenced by proper handling and cleaning.

• Dirt on the printhead which causes problems is often too small to see.

• Exercise care in handling printheads as they are very susceptible to static. Use the wrist grounding strap

and anti-static gloves when handling.

• It is OK to scrub the printhead HARD to clean it. Use rubbing alcohol and the “loop side” or “wool side” of

Velcro, followed by drying with rough, brown paper towels.

• If the printhead doesn’t work, take it out and clean it again.

• For maximum printhead life, clean the printhead after every roll change of ink or every 20,000 inches.

In Machine Cleaning Procedure

1. Stop the machine after the last batch has printed to
avoid loosing data.

2. Turn the machine off.

3. Open the printhead carriage assembly.

4. Soak a small amount of rubbing alcohol on a cotton
swab and apply to the printhead.

5. Scrub the printhead several times with hard force
using the “wool side” of Velcro.

6. Dry the printhead with a dry, brown paper towel.

7. Shut the printhead carriage assembly and resume
printing.

8. If a problem continues, remove the printhead and
clean it.

Dirt along the

print line.

Printhead cleaning when removed from the printer

1. Remove the printhead.

2. Place the printhead upside down on the edge of a
clean table with the connector pug over the edge of
the table.

3. Soak a small amount of rubbing alcohol a cotton
swab and apply to the print line.

4. Scrub the printhead several times using HARD
pressure with the “loop side” of Velcro.

5. Dry with a dry, brown paper towel.

6. Replace the printhead.

Heavy finger

pressure here

Thumb here to

hold against

the table

Scrub here,

hard pressure

Table edge

72 • Appendix E

Printhead Installation and Removal Procedures

Printhead removal procedure

1. Attach the grounding strap to your wrist and the printer.

2. Turn the machine off.

3. Leaving the printhead shut, completely loosen the two tangent

locking screws but leave them loose in the holes.

4. Slowly open the printhead carriage assembly. Maneuver the

printhead down and to the right, pulling the wire pack out from the
shield.

5. Disconnect the wire pack and carefully remove the printhead.

Printhead carriage assembly

Printhead installation procedure

Tangent locking

screw locations

1. Position the printhead loosely under the printhead

carriage assembly.

2. Connect the wire pack.

3. Position the printhead in the printhead carriage

assembly so that the alignment pegs match up and
the printhead fits snugly.

4. Shut the printhead while maintaining snug fit on the

printhead.

5. Tighten the tangent set screws.

Shield

Printhead
alignment

pegs

Wire pack

Open printhead carriage

Users Manual Model 676 Appendix E • 73

Static Checks for 636/656 Printers

1. Stacker: With an ohmmeter, check continuity between the main stacker
roller, which has the belts on it, and the chassis ground. Chassis ground
can be any screw near the serial cable. Check that these two important
enhancements are functioning:

a) Check the grounding clip is

installed and making physical
contact with the main stacker
roller. Sometimes, the clip is
installed but moved off the roller.

b) Check the stacker mounting knob has a

Washer

Stacker knob removed

large washer installed. Make sure to
tighten the knob all the way.

2. Ink arbors: With an ohmmeter, check
for continuity on the two ink arbors and
three ink turn rollers. Place one lead of
the ohmmeter on the arbor and the other
on the chassis ground screw.

WRONG!

RIGHT!

Grounding

clip

Machine side of the

stacker

Ink arbors

Ink turn rollers

3. Printhead static protections. Check for proper installation.

a) Static brushes. Make sure the brushes

are installed and just barely touching the
stock and ink. Too much dragging and
they wear, too little contact and they don’t
dissipate the static.

b) Static shield. Make sure the static shield

is installed and the screws are tight.

74 • Appendix E

Static

brushes

Shield

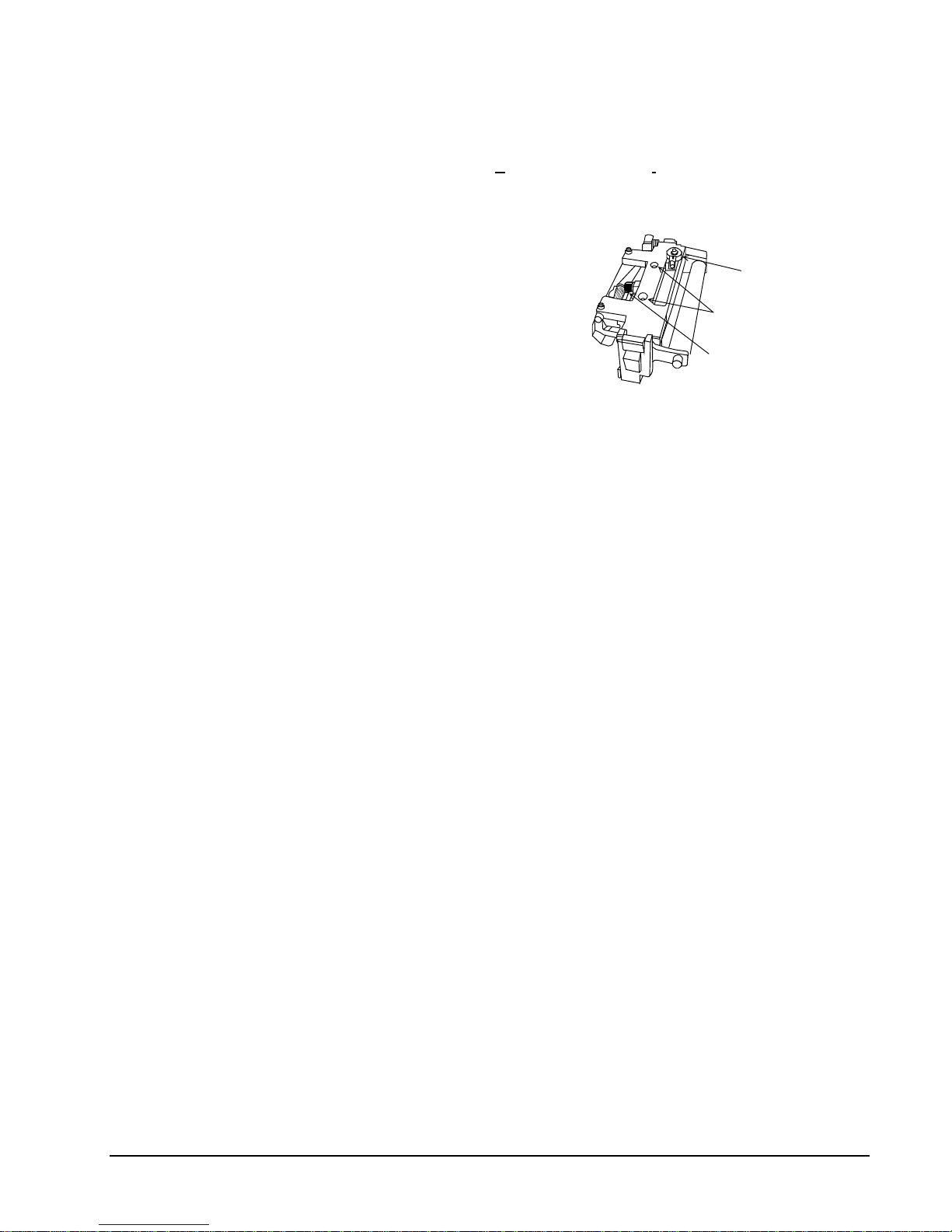

Steps for initial set up on a Paxar 636 or 656

1. Software: In Formatter, open the format. From the Format menu, select Attributes. Select the “Ink
Setup” tab. Check that the combination of stock and ink types matches what is running on the machine.

2. Pressure: Open the printhead such that it hangs at an angle.
Loosen the printhead pressure knob enough to that it just
sticks and does not slide from gravity. Position the knob in
the center of the ink. Close the printhead, tighten 3/4 of a turn.

3. Tangent: Set the tangent so that the locking screw is
centered when looking down on the printhead.

4. Strobe: Using the arrow keys, select “Setup” on the front
panel. Using the arrow keys again, select “Strobe”. If not 0,
return the strobe setting to zero using the arrow keys, and
then the “Enter” key.

Printhead Carriage Assembly

5. Ink tension: Back the tension on the ink unwind and take up to minimal. Turn the tension knobs left or
counter-clockwise.

6. Stock widths: The width of the ribbon must be greater than the supply width. Since some supplies are
more abrasive to printheads than others, using a ribbon wider than your supply helps protect the
printhead. Failure to do this may void your warranty. Replacement printheads are expensive.

7. Cleaning: Clean the printhead with an approved printhead cleaning method. Use rubbing alcohol on a
lint free cloth or the “Hook side” or Velcro. Always turnoff the machine and wear the wrist grounding
strap. Never touch the printhead with a metal object like a knife or screwdriver.

Pressure

adjustment knob

Tangent locking

screw locations

Tangent

adjustment knob

Users Manual Model 676 Appendix E • 75

Print Quality Adjustment

!. Tangent - Move the tangent adjust knob left or right to improve print quality. In general, the best print will

be slightly to the left of center.

Printhead

Stock

Platten

roller

Ink

Tangent too far left

Specialty

Brand

Style: Fall
Color: Rose

23456 78901

Printhead

Stock

Platten

roller

Ink

Specialty

Brand

Style: Fall
Color: Rose

23456 78901

$5.95

Printhead

Ink

Stock

Platten

roller

Tangent too far right

Specialty

Brand

Tangent properly adjusted

2. Pressure - Adjust printhead pressure to get desired print definition. If the pressure seems like it is getting
too tight, readjust tangent. Don’t tighten the printhead to maximum or damage to the printhead could
occur.

3. Strobe - Adjust strobe for print darkness and bar code scanability. Adjust one increment at a time.

4. Ink - Use ink unwind and take-up tensions adjustments to eliminate any ink wrinkles or skid marks.

76 • Appendix E

Appendix F

Platen Rollers for 6x6 and 676 Printers

There are several types of platen rollers made for the 6x6 and the 676 series of
controlled printers. The material printed will determine the color (hardness) of the
roller as well as width of the cut down part of the platen. The green rollers are
harder and used for fabric applications. The red rollers are softer and are used for
tag applications. The rollers are determined by tapes / tags and is not dependant on
the ink selection. The width of the fabric will determine the width of the cut down
part of the green platen roller. The ink should not extend beyond the edge of the cut
down part of the platen. The 1 3/8” roller can be used for fabric from the minimum
1” to 1 1/8” wide. The 3” cut down platen roller can be used from 1 1/8” to 2 ½” in
width. Fabric from 2 ½” wide up to the full 5” width of the printer should use the
regular full size platen rollers.

The following pages will show the platen rollers used in the 6x6 and 676 controlled
printers. They are approximately full size. Just compare the roller you are using to
one of the pictures and using the following chart – select the replacement part
number. The first 6x6 machines had beige colored covers and the web path was
back justified. The later model of 6x6 has gray colored covers and has a web path
that is centered on the platen rollers in the same way as the 676.

Machine Part Number Platen Roller Description and Use

636/656 Beige Covers

Back Justified Web Path 355096 Standard Full Width Tag Stock - Red – w / Ink Save (656)

636/656 Gray Covers

Center Justified Web Path 355096 Standard Full Width Tag Stock - Red – w / Ink Save (656)

676

Center Justified Web Path 355096 Standard Full Width Tag Stock - Red – w / Ink Save

355009 Standard Full Width Tag Stock - Red – wo / Ink Save

355029 Standard Full Width Green - Fabric – wo / Ink Save
355083 Standard Full Width Green - Fabric – w / Ink Save (656)
355044 3” Cut Down Green - Fabric – wo / Ink Save
355082 3” Cut Down Green - Fabric – w / Ink Save (656)
355009 Standard Full Width Tag Stock - Red – wo / Ink Save

355029 Standard Full Width Green - Fabric – wo / Ink Save
355083 Standard Full Width Green - Fabric – w / Ink Save (656)
375030 1 3/8” Cut Down Green - Fabric – wo / Ink Save
375031K 1 3/8” Cut Down Green - Fabric – Ink Save (656)
375026 3” Cut Down Green - Fabric – wo / Ink Save
375025K 3” Cut Down Green - Fabric – w / Ink Save (656)
355009 Standard Full Width Tag Stock - Red – wo / Ink Save

355029 Standard Full Width Green - Fabric – wo / Ink Save
355083 Standard Full Width Green - Fabric – w / Ink Save
375030 1 3/8” Cut Down Green - Fabric – wo / Ink Save
375031K 1 3/8” Cut Down Green - Fabric – w / Ink Save
375026 3” Cut Down Green - Fabric – wo / Ink Save
375025K 3” Cut Down Green - Fabric – w / Ink Save

Users Manual Model 676 Appendix F • 77

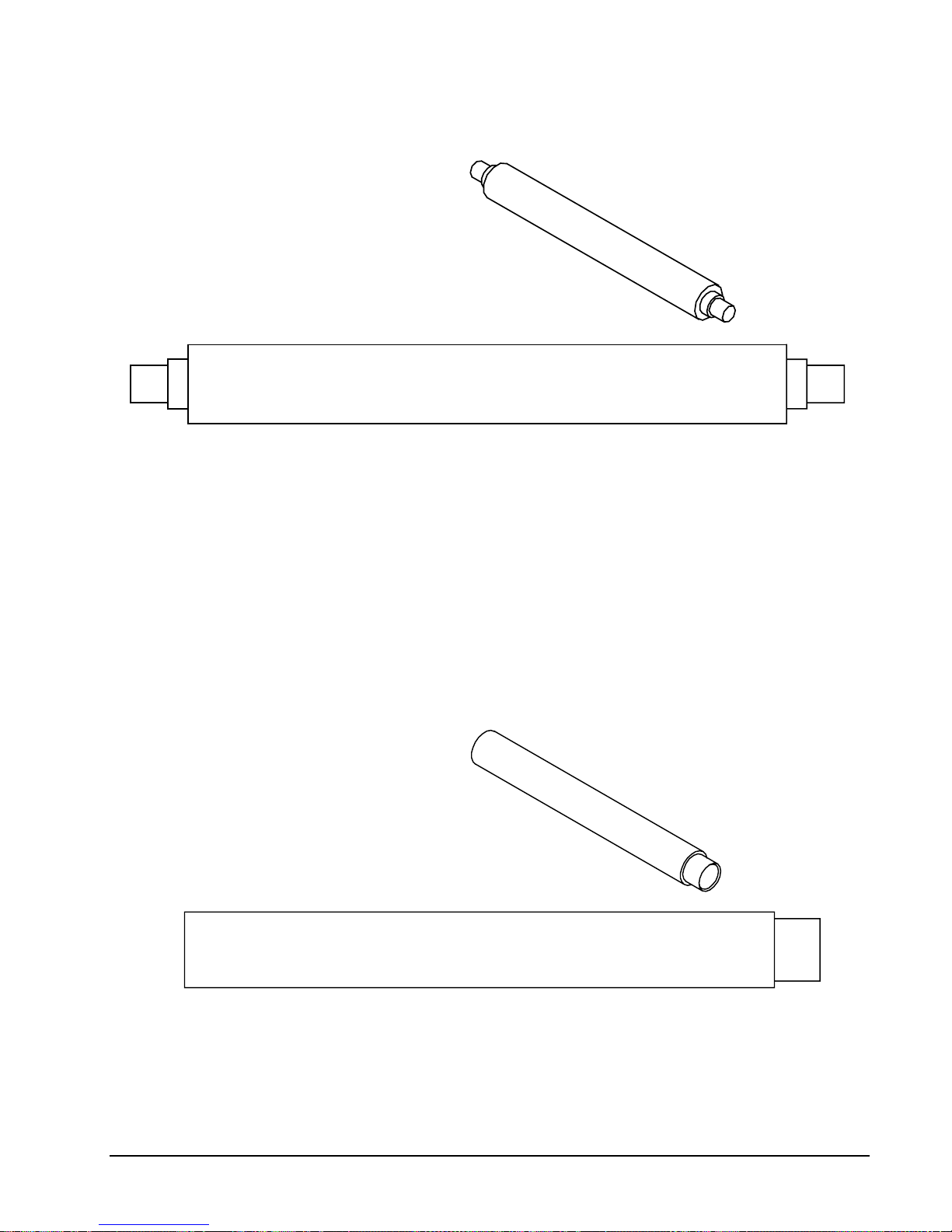

Standard Platen Roller

Non Ink Save

636 / 656 All

676

Part Number 355009 – Red
Part Number 355029 - Green

_____________________________________________________________________________________________

Part Number 355096 – Red
Part Number 355083 – Green

78 • Appendix F

Standard Platen Roller

Ink Save

656 All

676

Back Justified Platen Roller

3” Cut Down

Non Ink Save

636 / 656 w/ Beige Covers

Part Number 355044 - Green

_____________________________________________________________________________________________

Back Justified Platen Roller

3” Cut Down

w / Ink Save

656 w/ Beige Covers

Part Number 355082 - Green

Users Manual Model 676 Appendix F • 79

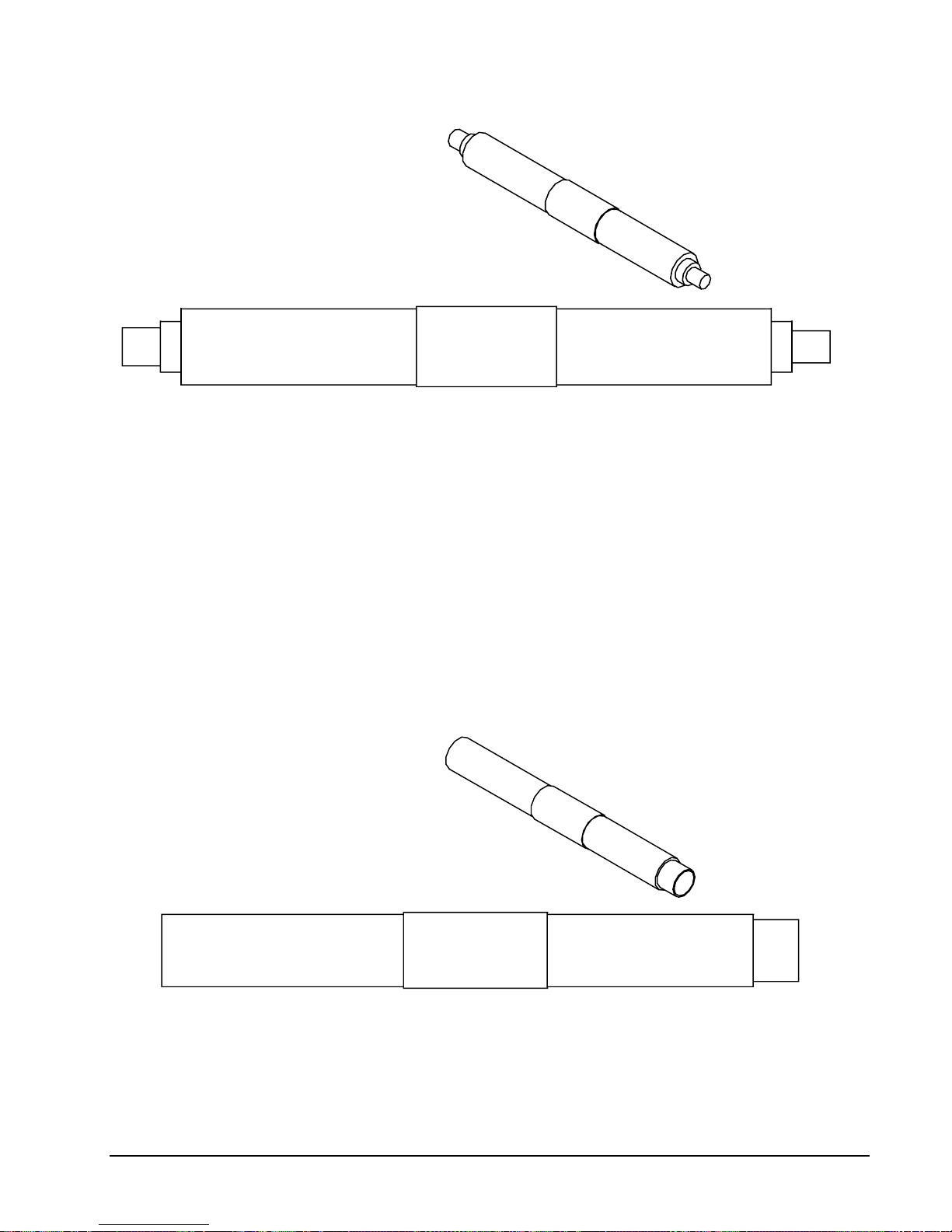

Center Justified Platen Roller

1 3/8” Cut Down

Non Ink Save

636 / 656 w/ Gray Covers

676

Part Number 375030 - Green

_____________________________________________________________________________________________

Center Justified Platen Roller

1 3/8” Cut Down

w / Ink Save

656 w/ Gray Covers

676

Part Number 375031K - Green

80 • Appendix F

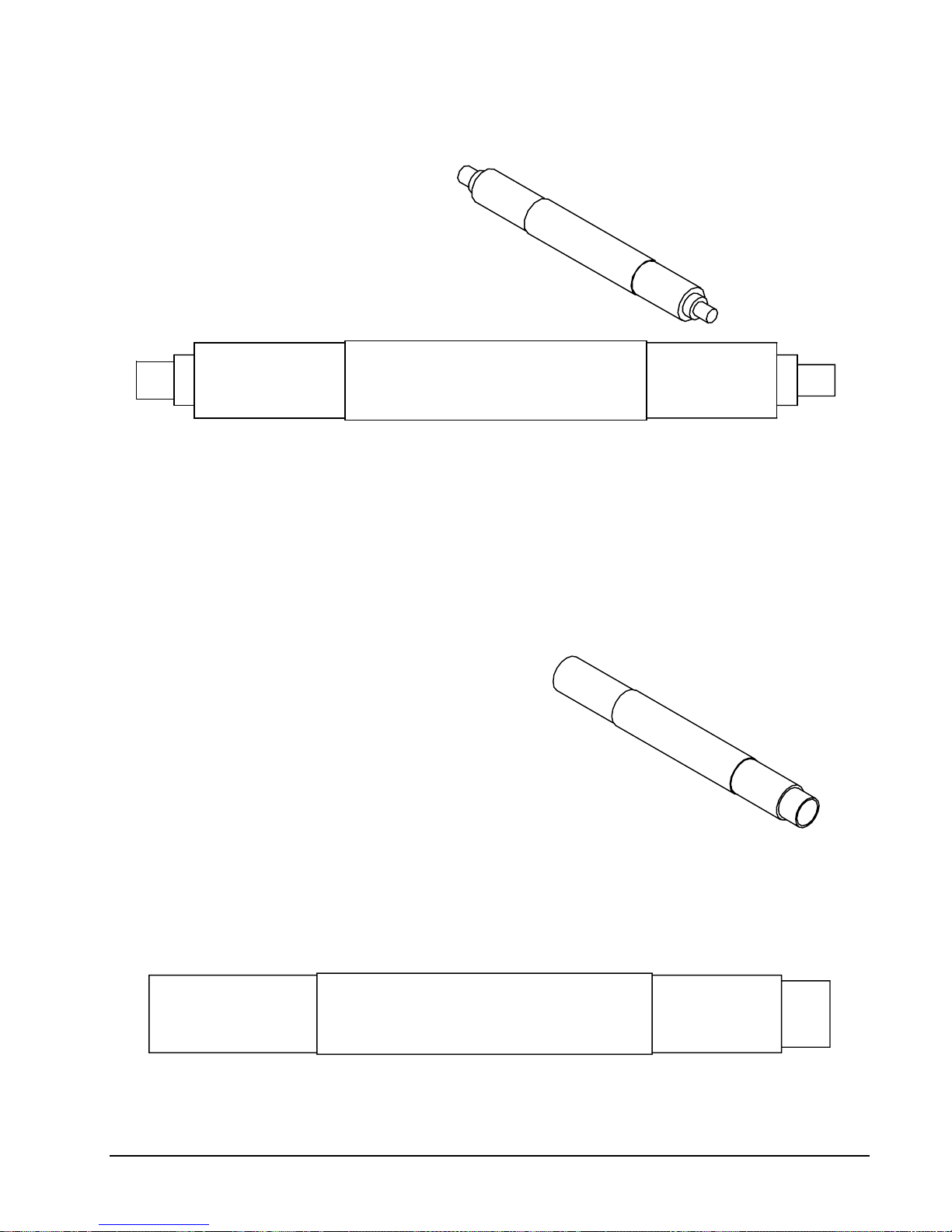

Center Justified Platen Roller

3” Cut Down

Non Ink Save

636 / 656 w/ Gray Covers

676

Part Number 375026 - Green

_____________________________________________________________________________________________

Center Justified Platen Roller

3” Cut Down

Ink Save

656 w/ Gray Covers

676

Part Number 375025K - Green

Users Manual Model 676 Appendix F • 81

82 • Electrical Assembly Drawings Users Manual Model 676

Electrical Assembly Drawings

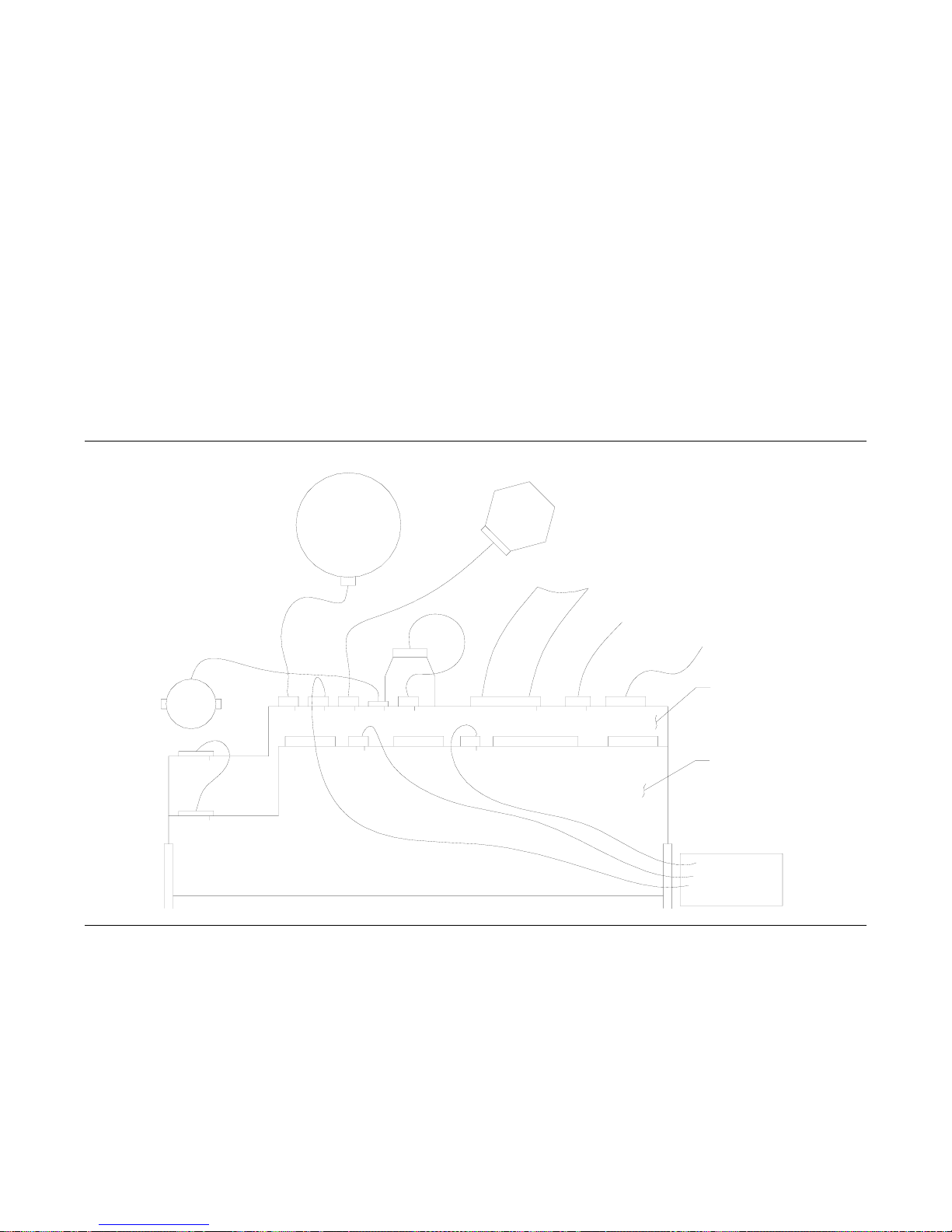

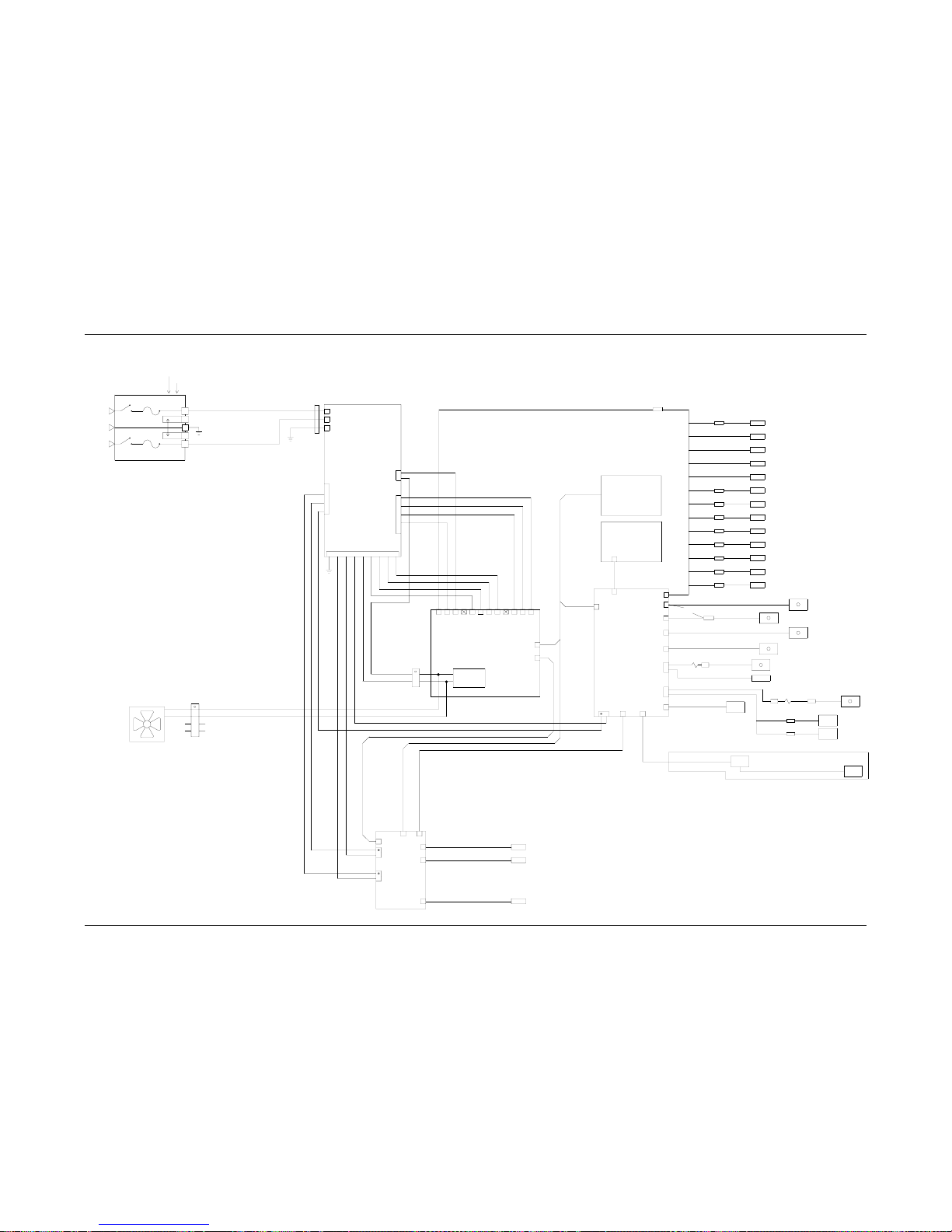

Machine Wiring

SYSTEM HARNESS

(NOT USED)

INK

SAVE

(TWO)

ROLLER

DROP

BROWN

BROWN

KNIFE

RED

PH3

GRAY

GRAYORANGE ORANGE

PH2

GRAY

ORANGE

FEED

POWER
SUPPLY

PH1

BROWNRED

HEAD DRIVER
BOARD
(FRONT)
371106TT

VERIFIER

THERMAL

CONTROL
BOARD (REAR)
371105TT

FRONT PANEL

Users Manual Model 676 Electrical Assembly Drawings • 83

Electrical System Schematic

A

+5V

RETURN

+24V

+12V

POWER SUPPLY

G

N

L

371116

230V

115V

FEED MOTOR

J14

11 1291078

ROLLER DROP
MOTOR

HARNESS 351159

371102

PRINTHEAD
371102

PRINTHEAD
371102

THRMAL CONTROL

PRINTHEAD

TCB TO HDB

351121

VL
BUS

AT
BUS

J7

J2 J5

BOARD

371105TT

OPTIONAL IN LINE VERIFIER 351144

TCB TO VERIFIER
HARNESS 371158

CONN 3

PCB
351184

VERIFIER

VERIFIER

KNIFE FUSE HARNESS 359007

STEPPER MOTOR CABLE

351132

351125

STACKER HARNESS

SERIAL CABLE

EXTERNAL 351124

J6

J9

(FUSE 990755)

STEPPER MOTOR CABLE

J10

J12

J11

371132

KNIFE SOLENOID

HARNESS 359006

(FUSE 990915)

STACKER FUSE

HARNESSED 351123

CONN 3

CONN 2

351141

KNIFE MOTOR
HARNESSED 351171

HARNESSED 421123

INK MOTOR

JAM SENSOR
HARNESSED 371133

351144

SCANNER

STACKER MOTOR

FULL STKR SWITCH
HARNESSED 351160

HARNESSED 351161

SCIENTIFIC

371165A

PACIFIC

351157

SUPERIOR

510014 SICK OR 510012 OMRON OPTIONS

HARNESS 371142 SWITCH 191120

FEED MOTOR
HARNESSED 371111

J3/J4

J1

CABLE

TCB TO FP

371119

FRONT PANEL

511108

J1

351181

OPTIONAL

PCMCIA
BOARD

POWER GOOD

TOP 2 INK-OUT

371140 FEED MOTOR CROSSOVER

SYSTEM HARNESS
ASSEMBLY 371126

J13

J8

CONN 4

CONN 3

CONN 4

CONN 4

CONN 4

CONN 2

SENSOR 371128 OPTION

TOP CONTRAST SENSOR

ROLLER DROP
SENSOR 371130

TOP REGISTRATION
SENSOR 371128

LIGHT-BAR 371120

BOTTOM INK-OUT
SENSOR 371118

SENSOR 371118

BOTTOM REGISTRATION

CONN 4

CONN 4

CONN 2

TOP 1 INK-OUT

BOTTOM HEAD-OPEN
SWITCH 375018

TOP 2 HEAD-OPEN
SWITCH 375018

TOP 1 HEAD-OPEN
SWITCH 375018

SENSOR 371118

FEED OPEN

STOCKOUT SWITCH

SWITCH 191120

371170

6

PROCESSOR

MOTHER BOARD

TOP PRINTHEAD 1

CABLE 371123

TOP PRINTHEAD 2

CABLE 371123

BOTTOM PRINTHEAD

CABLE 371124

53412

FAN 511120

MACHINE COOLING

J8

371106TT

J7

J6

BOARD

J10

J9

HEAD

DRIVER

CONN 4

J4

J2/J3 J1

371137

FAN

CONN 4

AC ENTRY

341111

115V OPERATION

1/4 X 1 1/4 FUSE

230V OPERATION
TWO 10.0A 250V
5 X 20MM FUSES

ONE 10.0A 250V

NEUTRAL

GROUND

LINE

HARNESSED +5V/+12V/+24V

CONN 3

D

C

B

LINE CORD

181134

84 • Electrical Assembly Drawings Users Manual Model 676

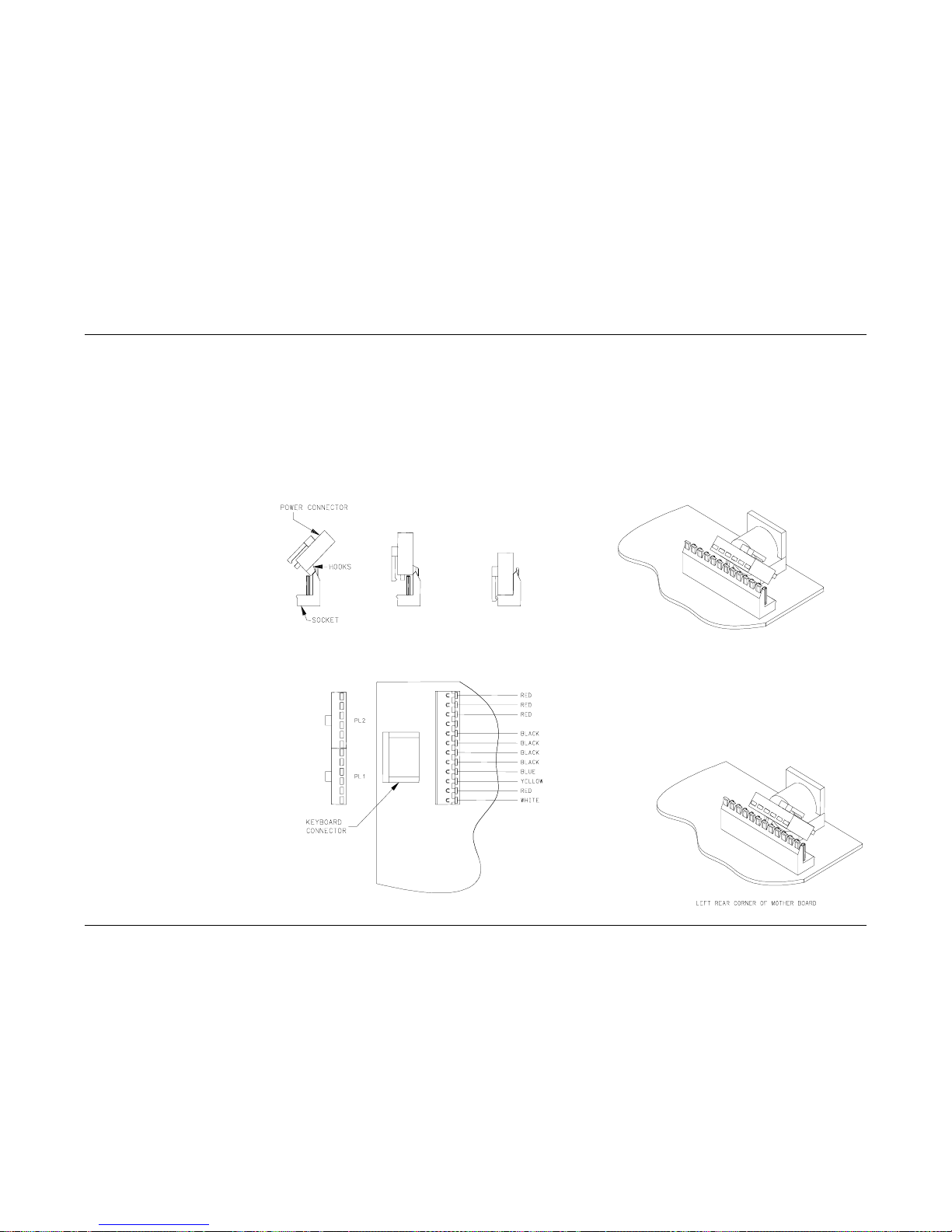

Motherboard Power Connectors

The power supply connector on any PC / XT or PC / AT compatible motherboard is made up of dual six-pin male
connectors. Two female connectors from the power supply plug directly onto these male connectors. The following
diagrams illustrates the proper method of attaching the connectors.

Ensure that all of the black wires are located next to each other in the center of the two connectors (as shown in the diagram
below), and that the clamps on the back side of the connectors ate secured along the PCB header. All pins should be covered.

Warning: Connecting the power supply incorrectly may cause irreversible (unwarranted) damage! Ensure that the power is
turned off before connecting the power supply. Make certain that the 115 / 230VAC fuse drawer is in the correct position

Users Manual Model 676 Mechanical Assembly Drawings • 85

Mechanical Assembly Drawings

86 • Mechanical Assembly Drawings Users Manual Model 676

Unwind Assembly Drawing

Users Manual Model 676 Mechanical Assembly Drawings • 87

Unwind Parts List

Item Part # Description Qty

1 373012 Web Guide, Rear 1
2 373009 Lead screw, Tape unwind 1
3 373011 Adjuster, Outer web guide 1
4 373010 Rod, Web guide, Outer 1
5 353002 Bracket, Unwind 1
6 105023 Impression adj, Knob/SS Kit 1
7 373014 Bracket, Sensor mount 1
8 373013 Bracket, Stock out 1

9 191120 Micro switch 1
10 989973 4-40 x ½ Cap screw 2
11 990069 8-32 Hex nut 1
12 990000 2-56 x ¼ Cap screw 2
13 990065 8-32 x 3/8 Button head screw 1
14 371142 Stock out switch, Harness (*NS) 1
15 990513 Small wire tie (*NS) 1

(*NS) = Not Shown

88 • Mechanical Assembly Drawings Users Manual Model 676

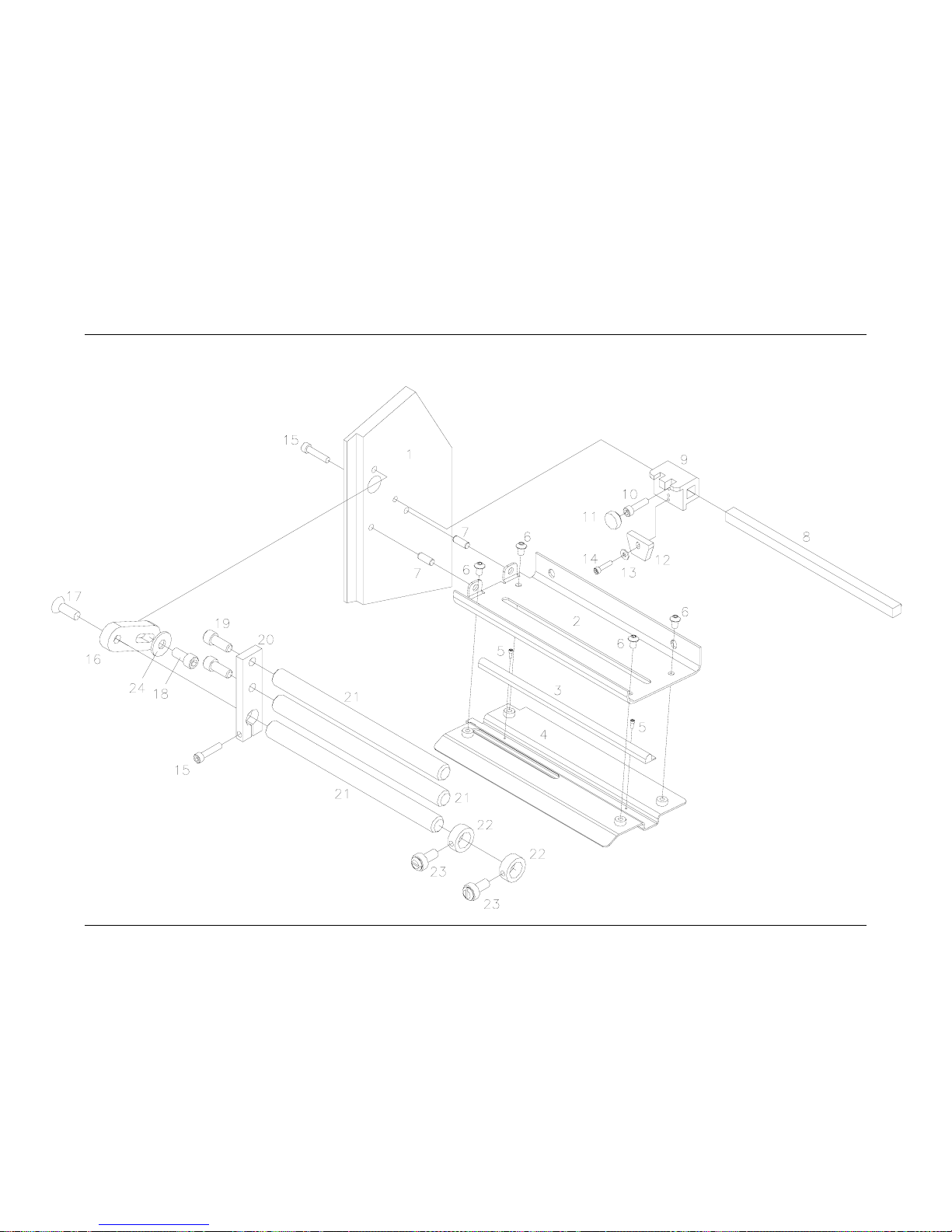

Web Guide / Light Bar Assembly Drawing

Users Manual Model 676 Mechanical Assembly Drawings • 89

Web Guide / Light Bar Parts List

Item Part # Description Qty

1 371001 Plate, Upright 1

2 374003 Bracket, Web upper 1

3 371120 Light bar, Harnesses 1

4 374004 Bracket, Sensor mount 1

5 990438 1-72 x .188 Cap screw 2

6 991001 8-32 x .188 Cap screw 4

7 990268 Dowel pin 2

8 351139 Bar, Sensor mount 1

9 354023 Sensor block 1
10 989974 8-32 x 5/8 Cap screw 1
11 990314 #8 Thumb screw knob 1
12 371128 Sensor assembly 1
13 990448 Washer 1
14 989973 4-40 x ½ Cap screw 1
15 990053 8-32 x ¾ Cap screw 2
16 353004 Roller, Unwind 1
17 990133 ¼-20 x ¾ Flat head screw 1
18 990120 ¼-20 x ½ Cap screw 1
19 990121 ¼-20 x 5/8 Cap screw 2
20 354025 Bracket, Fabric weave 1
21 194020 Web, Turn shaft 3
22 990374 Collar 2
23 990484 ¼-20 x ½ Nylon slotted screw 2
24 990167 Washer, ¼ SAE 1

90 • Mechanical Assembly Drawings Users Manual Model 676

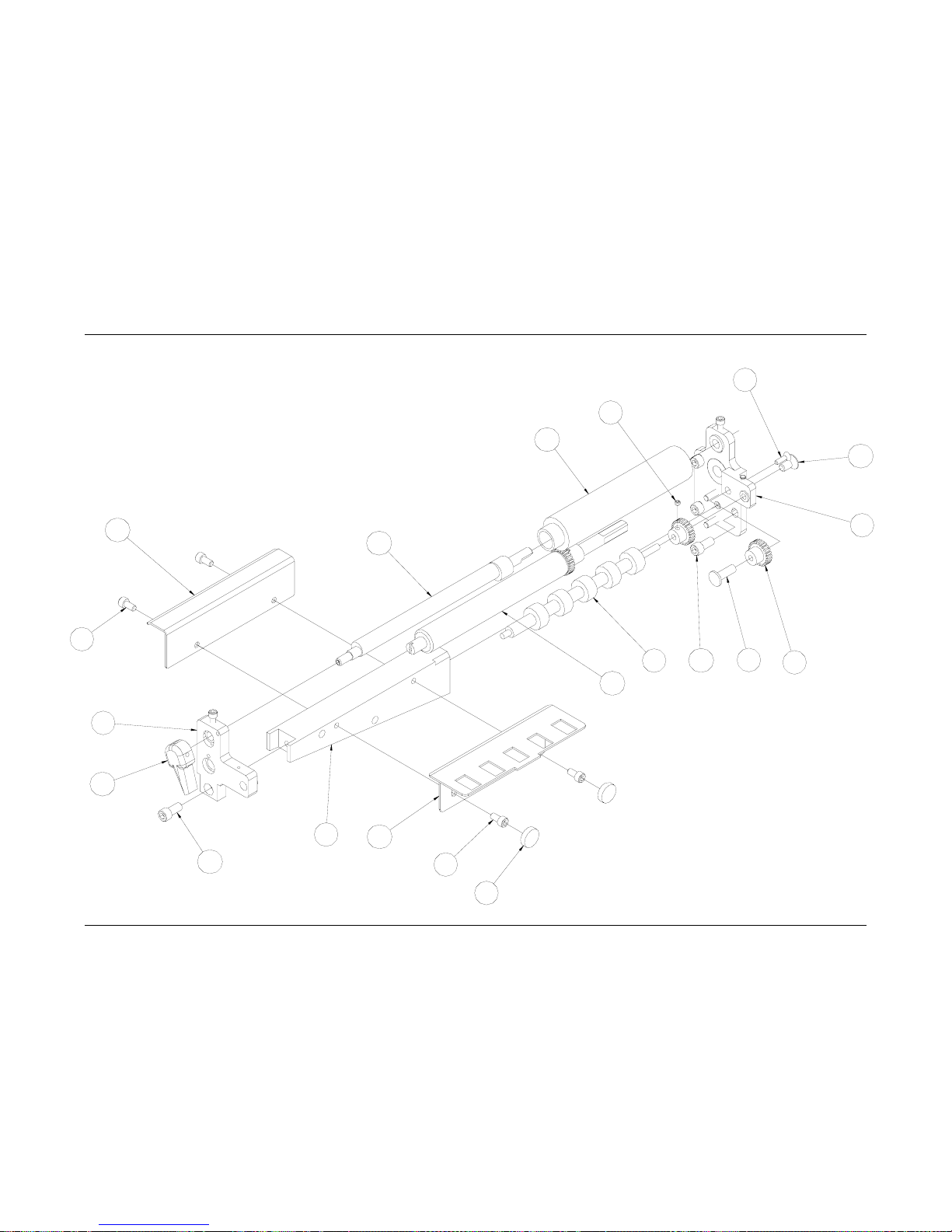

Drive Assembly Drawing

5

13

4

17

2

1

19

14

4

12

15

9

19

6

8

11

16

18

3

7

Users Manual Model 676 Mechanical Assembly Drawings • 91

Drive Parts List

Item Part # Description Qty

1 355018 Support, Knife / Drive / Print 1

2 374039 Support, Drive, Front assy 1

3 374092 Support, Drive, Rear assy 1

4 990080 10-32 x 3/8 Cap screw 4

5 990313 #10 Thumb screw knob 2

6 354017 Shaft, Idler gear 1

7 990023 6-32 x 1/2 Flat head screw 1

8 354008A Gear, Idler 1

9 354014 Driven roller, Molded 1
10 354009A Gear, Driven 1
11 990057 8-32 x 1/8 Knurled cup point 1
12 374017 Bridge blade, Short 1
13 354094 Roller, Drive assy 1
14 374016 Bridge blade, Lower 1
15 354021 Shaft, Eccentric (Drive) 1
16 354095 Tape roller, Molded, Assy 1
17 244024 Feed knob 1
18 990416 1/4-20 x 1/2 Flat head screw 1
19 990120 1/4-20 x 1/2 Cap screw 4

92 • Mechanical Assembly Drawings Users Manual Model 676

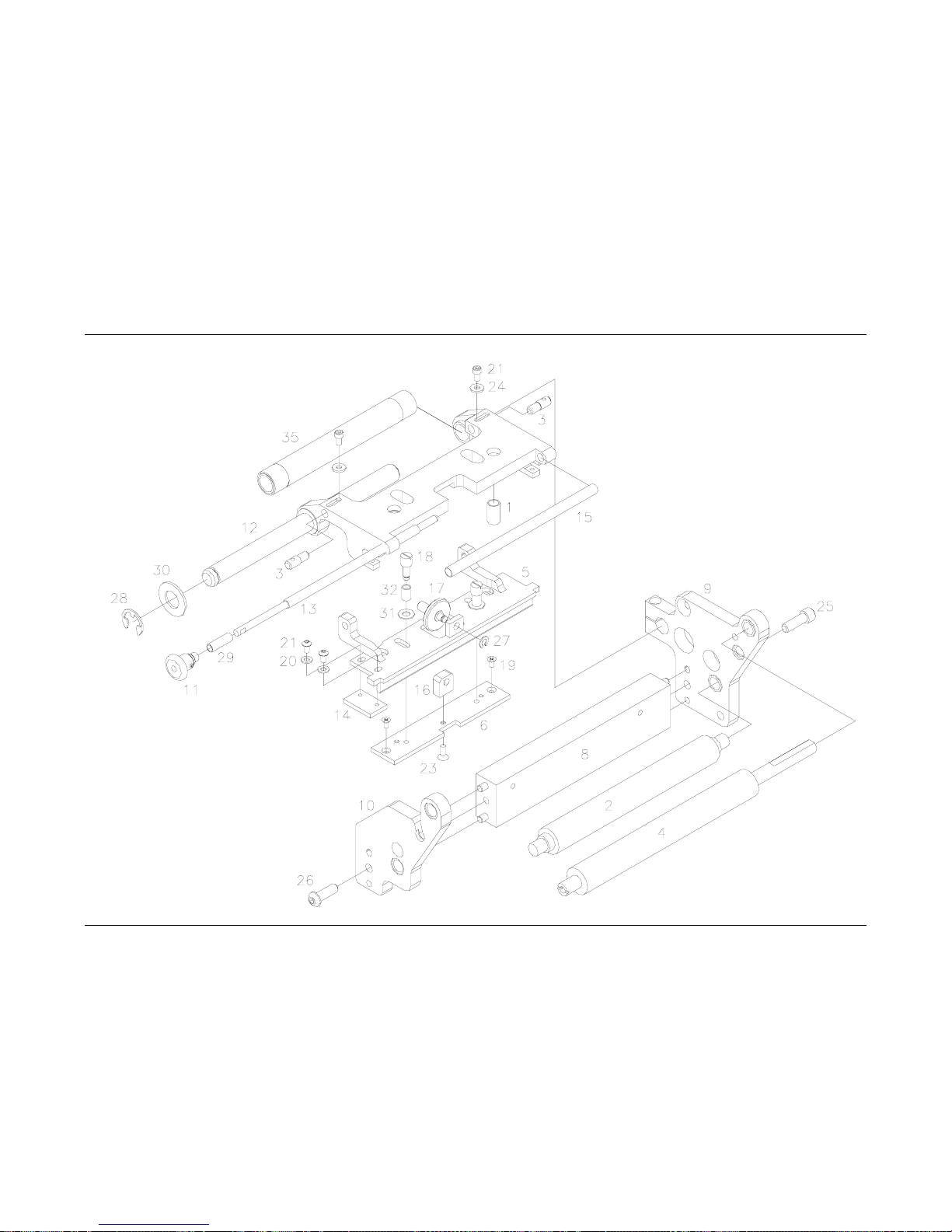

Top - Printhead Assembly Drawing

Users Manual Model 676 Mechanical Assembly Drawings • 93

Top - Printhead Parts List

Item Part # Description Qty Item Part # Description Qty

1 991124 Pressure spring 2 19 989543 3mm x 6mm Flat head screw 2
2 355009 Roller, Molded, Printhead 1 20 989976 #6 Star washer 2
3 355037 Pin pivot 2 21 990015 6-32 x .25 Cap screw 2
4 356020 Roller, Molded (Ink) 1 22 990019 6-32 x .25 Button head screw 2
5 375005 Plate, Printhead mount 1 23 990028 6-32 x .38 Flat head screw 1
6 375086 Plate, Head adjust assembly 1 24 990037 #6 SAE Washer 2
7 375008 Holder, Printhead 1 25 990122 1/4-20 x .75 Cap screw 1
8 375085 Support beam, Print assembly 1 26 990135 1/4-20 x .75 Button head screw 1

9 375087 Support rear, Print module assy 1 27 990325 3/16 “E” Snap ring 1
10 375088 Support front, Print module assy 1 28 990328 1/2 “E” Snap ring 1
11 375013 Knob, Shaft lock 1 29 990496 Spring, Head lock 1
12 375014 Shaft, Head mount 1 30 990497 1/2” Wave washer 1
13 375015 Pin lock, Printhead 1 31 990729 3/16 x 7/16 Nylon washer 2
14 375016 Plate locator, Printhead 1 32 991014 Spring, Head mount 2
15 375017 Tube, Spring housing 1 33 991025 6-32 Cone point, Set screw (*NS) 2
16 375021 Block, Head adjust 1 34 371102 300 DPI Convex Head(*NS) 1
17 375022 Knob, Head adjust 1 35 376032 Assy, Ink turn roller 1
18 375024 Screw, Head mount 2

(*NS) = Not Shown

94 • Mechanical Assembly Drawings Users Manual Model 676

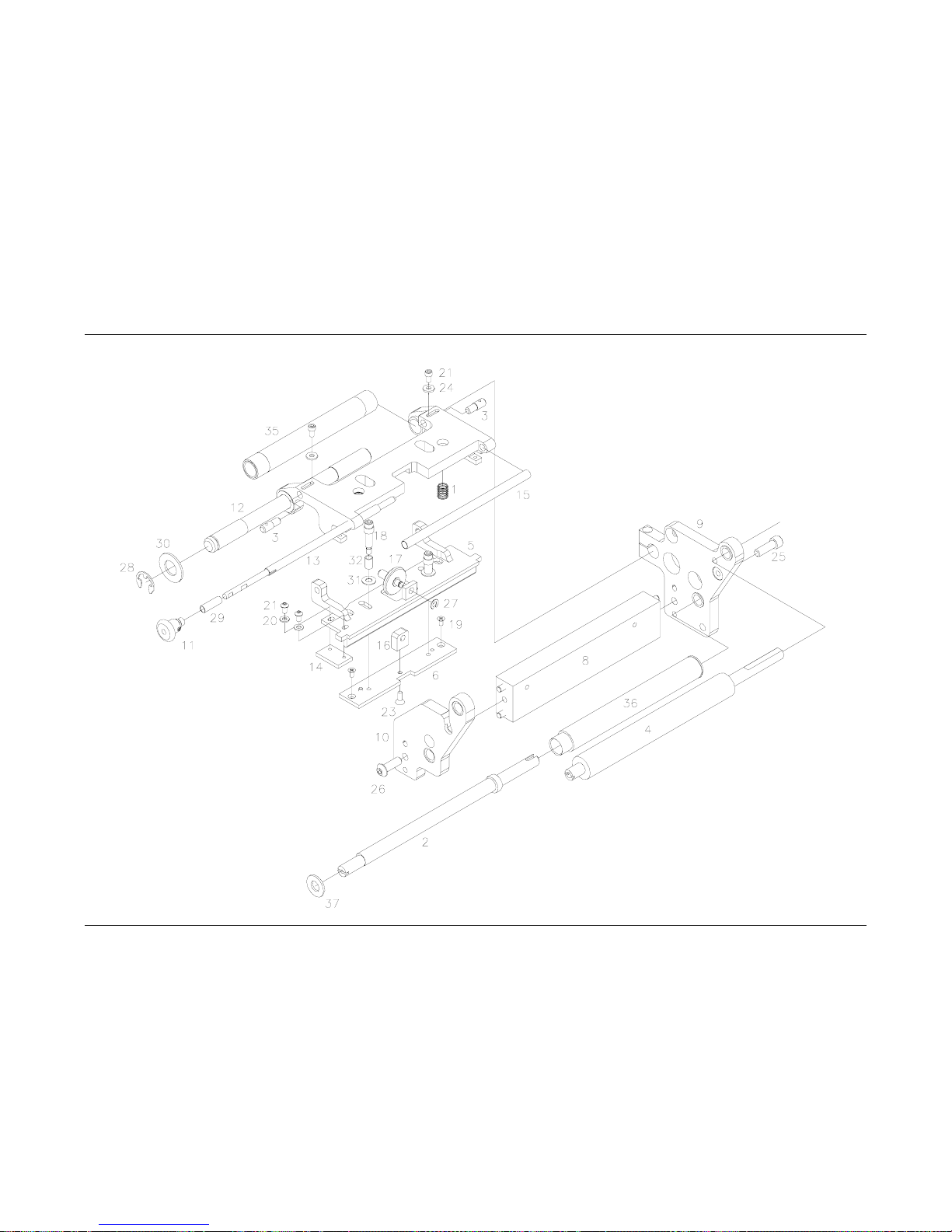

Ink-Save Printhead Assembly Drawing

Users Manual Model 676 Mechanical Assembly Drawings • 95

Ink - Save Printhead Parts List

Item Part # Description Qty Item Part # Description Qty

1 991124 Pressure spring 2 20 989976 #6 Star washer 2

2 355004 Shaft, Eccentric 1 21 990015 6-32 x .25 Cap screw 2

3 355037 Pin pivot 2 22 990019 6-32 x .25 Button head screw 2

4 356020 Roller, Molded (Ink) 1 23 990028 6-32 x .38 Flat head screw 1

5 375005 Plate, Printhead mount 1 24 990037 #6 SAE Washer 2

6 375086 Plate, Head adjust assembly 1 25 990122 1/4-20 x .75 Cap screw 1

7 375008 Holder, Printhead 1 26 990135 1/4-20 x .75 Button head screw 1

8 375085 Support beam, Print assembly 1 27 990325 3/16 “E” Snap ring 1

9 375087 Support, Rear print module assy 1 28 990328 1/2 “E” Snap ring 1
10 375088 Support, Front print module assy 1 29 990496 Spring, Head lock 1
11 375013 Knob, Shaft lock 1 30 990497 1/2” Wave washer 1
12 375014 Shaft, Head mount 1 31 990729 3/16 x 7/16 Nylon washer 2
13 375015 Pin lock, Printhead 1 32 991014 Spring, Head mount 2
14 375016 Plate locator, Printhead 1 33 991025 6-32 Cone point set screw (*NS) 2
15 375017 Tube, Spring housing 1 34 371102 300 DPI Convex head(*NS) 1
16 375021 Block, Head adjust 1 35 376032 Assy, Ink turn roller 1
17 375022 Knob, Head adjust 1 36 355083 Roller assembly 1
18 375024 Screw, Head mount 2 37 991019 Bushing, .375 x .750 x .062 1
19 989543 3mm x 6mm Flat head screw 2

(*NS) = Not Shown

96 • Mechanical Assembly Drawings Users Manual Model 676

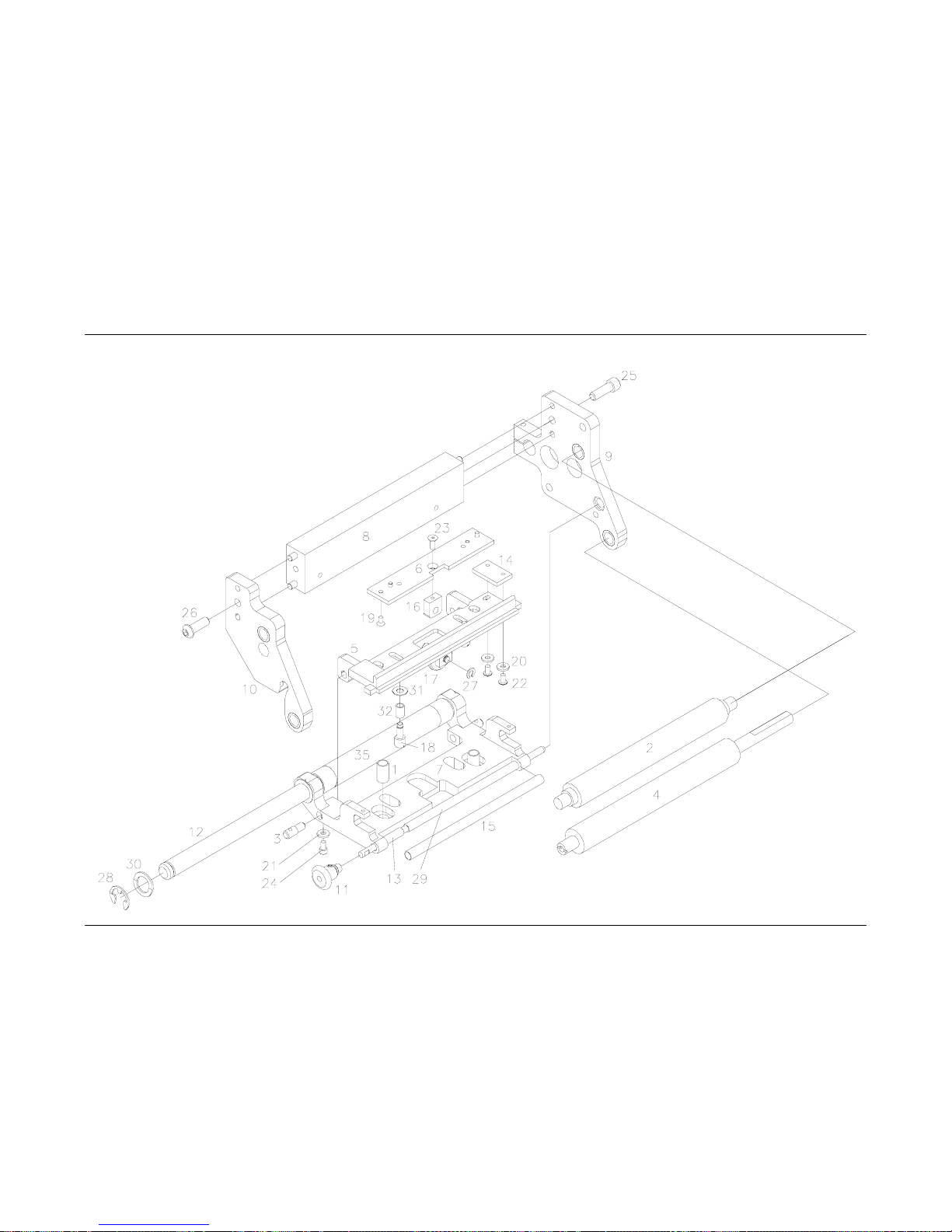

Bottom - Printhead Assembly Drawing

Users Manual Model 676 Mechanical Assembly Drawings • 97

Bottom - Printhead Parts List

Item Part # Description Qty Item Part # Description Qty

1 991124 Pressure Spring 2 19 989943 3mm x 6mm Flat Head Screw 2

2 355009 Roller Molded Printhead 636 1 20 989976 #6 Star Washer 2

3 355037 Pin Pivot 2 21 990015 6-32 x ¼ Cap Screw 2

4 356020 Roller Molded (Ink) 1 22 990019 6-32 x ¼ Button Head Screw 2

5 375005 Plate Printhead Mount 1 23 990028 6-32 x 3/8 Flat Head Screw 1

6 375086 Plate Head Adjust Assembly 1 24 990037 #6 SAE Washer 2

7 375008 Holder Printhead 1 25 990122 ¼-20 x ¾ Cap Screw 1

8 375085 Support Beam Print Assembly 1 26 990135 ¼-20 x ¾ Button Head Screw 1

9 375084 Support Rear Assy (Bottom Part) 1 27 990325 3/16 “E” Snap Ring 1
10 375083 Support Front Assy (Bottom Part) 1 28 990328 ½” “E” Snap Ring 1
11 375013 Knob Shaft Lock 1 29 990496 Spring Head Lock 1
12 375014 Shaft Head Mount 1 30 990497 ½” Wave Washer 1
13 375015 Pin Lock Printhead 1 31 990729 3/16 x 7/16 Nylon Washer 2
14 375016 Plate Locator Printhead 1 32 991014 Spring Head Mount 2
15 375017 Tube Spring Housing 1 33 991025 6-32 x 3/16 Cone Pt. St Scr. (*NS) 2
16 375021 Block Head Adjust 1 34 371102 300 DPI Convex Head (*NS) 1
17 375022 Knob Head Adjust 1 35 376032 Assy, Ink Turn Roller 1
18 375024 Screw Head Mount 2

(*NS) = Not Shown

98 • Mechanical Assembly Drawings Users Manual Model 676

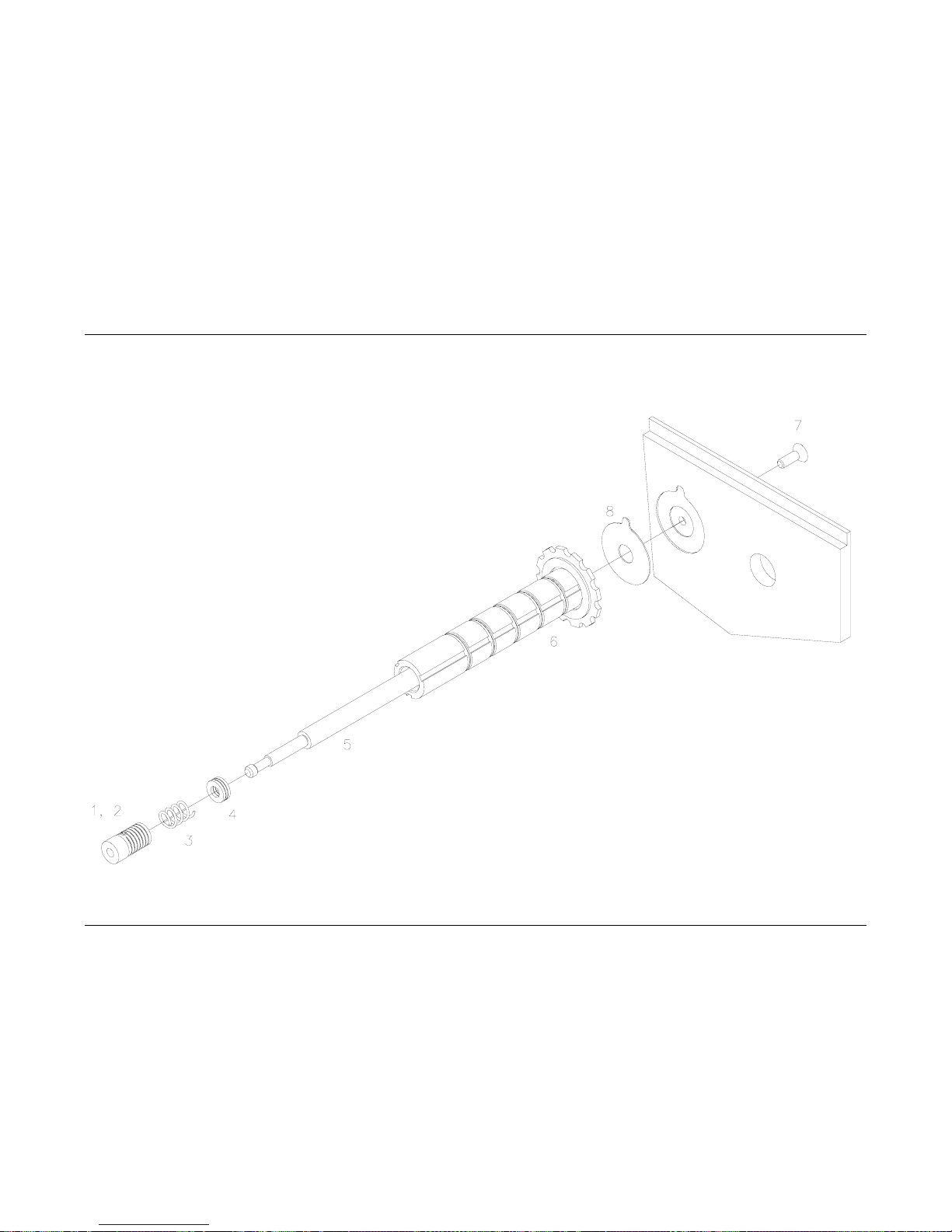

Ink Unwind Assembly Drawing

Users Manual Model 676 Mechanical Assembly Drawings • 99

Ink Unwind Parts List

Item Part # Description Qty

1 356010 Shaft, lock 1
2 990042 8-32 x 3/16 Knurled Cup Point 1
3 990490 Spring, Comp 1
4 999009 5/16 Thrust Bearing 1
5 356053 Shaft, Unwind 1
6 376088 Arbor, Unwind Assembly 1
7 990133 ¼-20 x ¾ Flat Head Screw 1
8 376026 Unwind Fiber Spacer 1

(*NS) = Not Shown

100 • Mechanical Assembly Drawings Users Manual Model 676

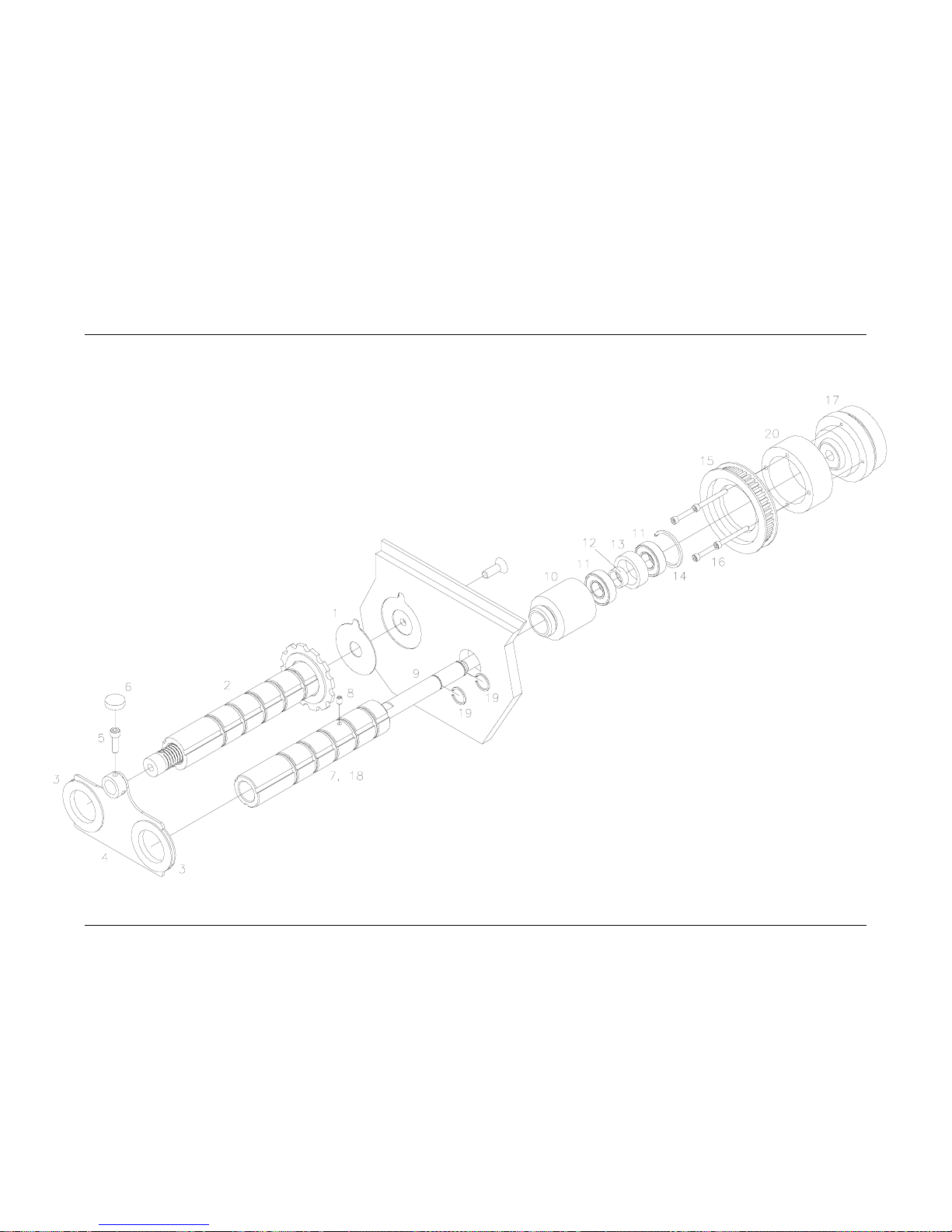

Ink Rewind Assembly Drawing
