Features
➢ 12 or 24 hour clock display
➢ Feeds according to your set times
➢ Adjustable food volumes
➢ 6 second personal voice message recorder
➢ Personal voice message calls your pet when it is feeding time
➢ 4 feeding times can be set for any time of the day or night
➢ Four D-size alkaline batteries will last for over 1 year of usage
➢ Red LED indicates low batteries
Control Panel Keys
• CLOCK – displays clock (current time)
• TIMER – switches between preset feeding times
• VOL – sets the feeding volume/portion size
• SET – enters SET mode, and confirms any feeding times you enter, then
advances to the next setting. Also used with the VOL key to perform a
manual feed
• START – starts the feeding schedule, confirms the clock and feeding-time
settings
• DAY – sets the number of days to feed
• REC – records your personal voice message
• PLAY – plays back your personal voice message
• ON SWITCH – turns the feeder off. For when the feeder will not be used
for an extended period of time. Turning this switch off WILL RESET all
time and feeding settings
Getting Started
1. Open the battery door (under the unit).
2. Insert four D size alkaline batteries into the battery tray. Do NOT use old
or cheap carbon batteries.
3. Close the battery door and switch the feeder ON. The ON switch is next to
the battery door under the unit.
4. The feeder will cycle once until 12:00 is flashing on the LCD display.
5. You now have 90 seconds to set the current-time in order for the feeder
to work properly. If you take longer than 90 seconds to set the time, 1 07
will be displayed on the LCD. Simply turn the unit OFF, wait one minute,
then repeat from step 3.
1
Digit 1
Digit 2 Digit 3
Digit 4
TIMER
CLOCK
LOW
BATTERY
PM
CONTROL PANEL
LCD CONTROL PANEL DISPLAY
Reviewing your Settings
1. Press the TIMER key to cycle through and view the feeding times.
Only the feeding times per day that are set will be displayed. Digit-1 is the
feeding number each day. Digits-3 & 4 are the feeding times in hours.
Example (1 07) means that the 1st feed of the day will be at 7am.
2. Press the VOL key once to view the volume/portion-size and feeding
day(s) remaining.
3. Press the DAY key to display the feeding day(s) remaining.
4. Press the CLOCK key once to display the current clock time. The CLOCK
icon will be displayed.
5. If no key is pressed for longer than 8 seconds, the display will switch back
to show the next feeding time with the timer icon flashing.
Note:
a) Using the TIMER key to cycle through the feeding times will only display to
the number of feedings you set. The sequence will repeat after the last one is
displayed.
b) Only the 1st feeding time will be displayed if you have only set 1 feeding.
c) A flashing timer-icon means the feeding-time has not yet been reached,
while a solid timer icon means the feeding-time has already passed.
d) The volume and day display shares the same screen, so digits-1 & 2 are the
feeding day(s) remaining, while digit-4 is the volume/portion size.
Setting the Current Time
1. Press the CLOCK key to display the clock.
The time and clock icon will now be displayed.
2. Press and hold the SET key for 2 seconds until all digits blink.
3. Press the CLOCK key to set the HOUR.
4. Press the TIMER key to set the MINUTE.
5. Press the SET key once to confirm the time.
Note: the display will show either 12 or 24 to indicate the display mode.
6. Press the CLOCK key to change between 12 or 24-hour display mode.
7. Press the START key to CONFIRM the clock setup.
8. (1 07) will be flashing and you must now set the feeding times.
Setting the Feed Time and Number of Feeds per Day
1. Press the TIMER key to display the feeding-time.
2. Press and hold the SET key for two seconds until digits-3 & 4 start
flashing. The display will show the 1st feeding time (1 07) = 1st feeding at
7am.
3. Press the TIMER key to set the desired hour for feeding. Note the ( P ) in
the top left corner stands for PM when using 12 hour time.
4. Press the SET key to confirm your setting and proceed to the 2nd feeding
time.
5. Repeat step 3 to set the desired hour for the SECOND feeding time.
6. At this point, if you only want 2 feed times per day, press the START key
and you are finished.
The last feeding-number shown is the number of times to feed per day.
The timer will now automatically start and the TIMER icon will be on.
2
7. If you wish to set a 3rd or 4th feed time each day, do NOT press the START
key and instead, repeat from step 3.
TIP: if you pressed the SET key a 3rd time but did not want to set a 3rd feed time
for the day, just press the TIMER key, then press and hold the SET key for 2
seconds to start over, then remember not to press the SET key after the second
feeding.
Note:
a) If all four feeding-times have been set, the process will terminate and the
schedule will start automatically. The next feeding time will then be displayed.
(If only one feeding-time has been set, then the feeding timer display will not
change, even if you press the
TIMER
key.)
b) Feeding-times must be SET in ascending order, otherwise the remaining
number of feeding(s) will not be served.
Setting the Volume/Portion Size
1. Press the VOL key to display the feed-volume/portion-size.
2. Press and hold the SET key for 2 seconds until digit-4 blinks.
3. Press the VOL key to set the desired volume.
a) A feed-volume of 1 equals cup (120cc) of food, 2 means 1 cup ½
(240cc) of food, 3 means 1.5 cups (360cc) of food, and so on.
b) The number 0 represents 10 portions, which is equal to 5 cups (1.2
litres).
4. Press the START key to confirm the volume/portion size.
Setting the Number of Days to Feed
1. Press the DAY key and the left side of the LCD screen will show the
number of days your pet feeder will feed for until it stops. The default
setting of (0) means the feeder will feed continuously and never stop.
2. To change the number of days to feed, press the DAY key, then hold the
SET key for two seconds until the days flash on the LCD.
3. Press the DAY key to change the number of days. Hold down the DAY key
to speed through the numbers.
4. Setting the DAY to 0 (zero) sets the feeder to continuous mode so that it
will never stop. Under this setting, you just need to add food to the tank
when it is low.
5. If you set a number of days to feed (1 to 99 days), then at 6am after the
last day the feeder alarm will start beeping to remind you that your set
number of days has been reached.
6. To repeat the same schedule without making any changes, simply press
the START key.
Note:
a) When the timer-icon and all the numbers on the LCD display are
continuously on, the feeding schedule has started.
b) Once a feeding schedule has started, you can force it to end by pressing the
SET
and
START
keys together.
3
Record Voice Message to be played at feeding times
1. Press and hold the REC key, at which point the red LED will light up.
2. Speak your message. The limit is 6 seconds of audio.
3. When your message is finished, release the REC key.
Play back your Recorded Voice Message
1. Press the PLAY key.
2. Your recorded message will now play.
3. At feeding time, your recorded message will play and repeat 3 times.
Feeding Alarm
1. The Automatic Pet Feeder has an ALARM (continuous beeping) to alert
you when your feeding schedule has ended and no more food will be
dispensed.
2. The feeding alarm will start at 6:00am the next day to avoid disturbing
anyone during the night.
3. You can press any key to stop the alarm.
4. To restart your original feeding schedule, press the START key and your
original schedule will be repeated.
Manually Feeding your Pet
Press the SET and VOL keys together once.
Only of a cup (60cc) will be dispensed. The normal schedule and quantity will not¼
be affected.
Important Notes
1. Power-on default settings are a) number of days to feed = 0 days
(continuous), b) number of feedings per day = 4 feedings, c) volume/portion
size = 1 ( cup)½
2. The feeder will vibrate for about 15 seconds during food delivery to help the
unit dispense the food more efficiently.
3. If you hear a beep sound and the food drum isn't moving, then the tray-full
detector has been triggered. Ensure that the food slide area is clear.
4. Do not use the feeder under strong sunlight, as the bowl-full detector can be
activated by bright light. The feeder will think the food bowl is full and stop
delivering food.
Opening and Closing the Food Cover

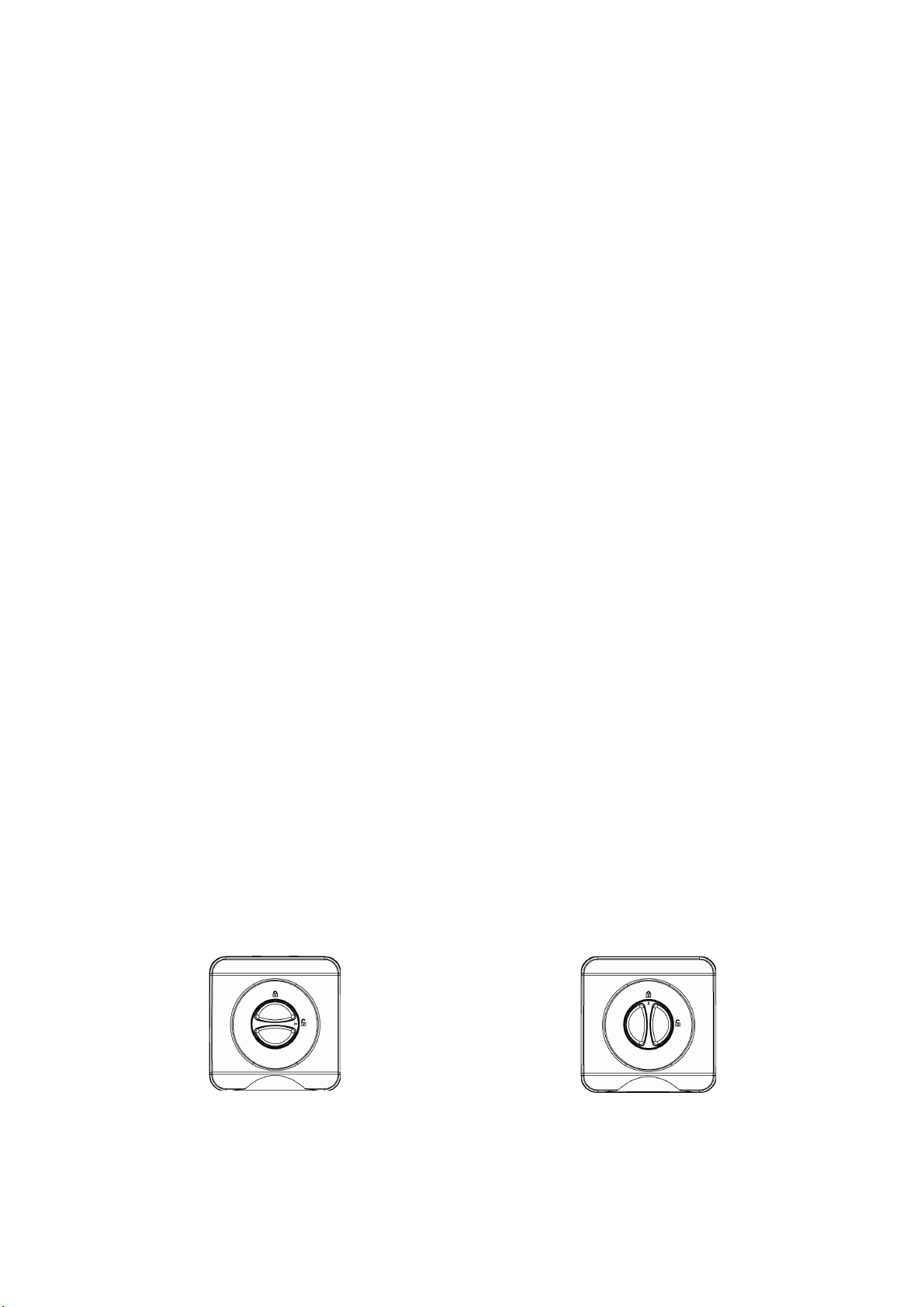

To open/unlock the food cover, rotate
the dial until the ARROW points to the
Open Lock.
To close/lock the food cover, rotate the dial
until the ARROW points towards the Closed
Lock.
4
Care and Cleaning
When the food tank starts getting dirty and there is a lot of loose food at the
bottom of the food tank, you can remove the food cover and food tank for
cleaning.
Use a soft damp cloth to clean the feeder base which contains the control panel
and batteries. Never get this part wet and do NOT wash with running water.
You can wash the Food Cover and Food Tank in warm soapy water. DO NOT
put these parts in the dishwasher, as they will be permanently damaged!
Assembly and Disassembly of the Food Tank
Disassembly
You need to open the spring loaded locks. Use both hands
and your thumbs to push both locks down to release the
food tank. As you push the locks down, use your fingers to
lift the food tank up.
The springs are very strong, to be careful to not let the locks
snap back and hurt your fingers.
Assembly
Line up the food tank with the feeder base, then press the
locks out with your thumbs so that the food tank can seat
onto the feeder base. The locks are spring loaded so be
careful not to pinch your fingers. Make sure the locks
securely lock into the food tank.
FAQ and Troubleshooting
• The clock can display either 12 or 24 hour format.
• Feeding days can be changed at any time but the previous schedule will be replaced.
• The feeding times and volumes can be changed at any time and the new settings will
be active for the rest of the feeding day(s) schedule.
• Once the schedule has started, the DAYS displayed will reduce by one every day at
0:00 (midnight), until the end is reached.
• If the timer-icon is OFF and all numbers are flashing, then no feeding schedule has
been set.
• If the timer-icon is ON and all numbers are not flashing, then the schedule has
started.
• When the CLOCK icon is ON, then the current time is displayed.
• When the Red (LOW BATT) light flashes, the batteries are low and need replacing.
Change the batteries as soon as possible. You will need to reprogram all of your
settings again when the batteries are changed.
• When the LCD display shows (Err), the food delivery door is not closing properly, so
you will need to remove any food that is jamming the door.
1. Switch the unit OFF, remove all food, then turn the feeder upside-down.
2. Clean both doors hinges with a soft brush.
3. After cleaning, switch unit ON and refill with food.
Note: you will need to reprogram all of your original settings before you can
use your feeder again.
• Always use the Quick Start Guide for fast easy programming. For more advanced
settings, refer to this user manual.
5
Food Tank Locks
