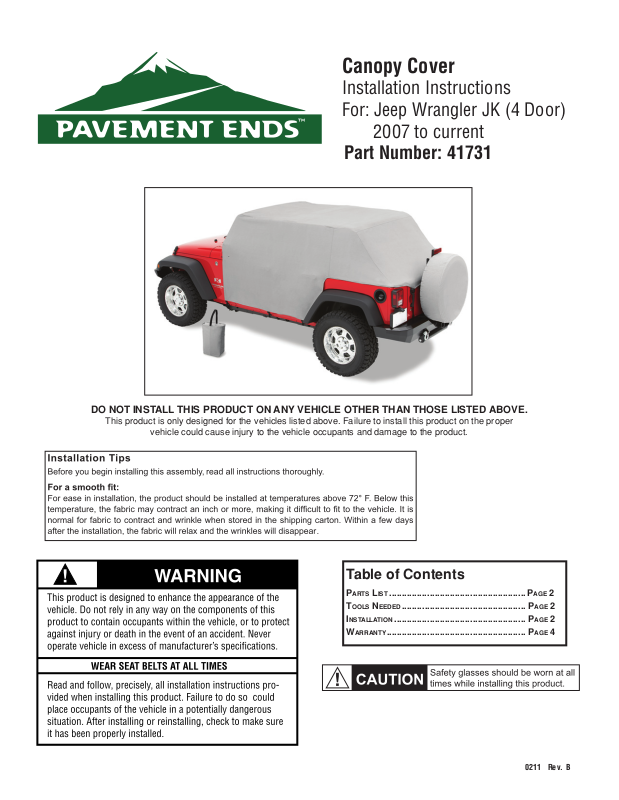

Page 1
Canopy Cover
Installation Instructions
For: Jeep Wrangler JK (4 Door)
2007 to current
Part Number: 41731
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 4
41731 pg 1
0211 Rev. B
Page 2
Canopy Cover Qty - 1
Parts List
Stuff Sack Qty - 1
Step Two
PLACE CANOPY COVER ON VEHICLE
Drape the Canopy Cover over the vehicle orienting the
Canopy correctly with the side mirror darts over the side
mirrors on the doors.
Step One
PREPARING THE VEHICLE
• Make certain that the vehicle engine
and all lights are turned off.
• Set the Emergency (Parking) Brake.
• Remove all personal possessions from
the vehicle
Step Three
SECURE SIDE STRAPS
Locate the three adjustable straps sewn on each
side of the Canopy Cover. Pull the straps down
and hook them to the bottom of the vehicle.
Make sure that the fabric fl ap inside the cover
lays fl at behind the lower grommet.
Pull the end of each strap to tighten the straps
so that the cover fi ts snugly on the vehicle.
Hook Straps to
Bottom of Vehicle
Pull Strap to
adjust Straps
Step Four
SECURE PLASTIC STRIPS –
OFT TOP VEHICLES ONLY
S
There are four (4) plastic strips sewn to each side
of the Canopy Cover. Slip them into the belt rail
retainer on the side of the vehicle.
If you have a Cargo Cover installed on
your vehicle, use only the adjustable
straps to hold the Canopy Cover in place.
Pull down gently
and slip plastic
into retainer
41731 pg 2
0211 Rev. B
Page 3
Step Five
SECURE REAR OF COVER
Locate the two adjustable straps
sewn on the rear of the Canopy
Cover. Pull the straps down and
hook them to the bottom of the
tailgate. Adjust the tension as
needed.
Pull Strap
to Adjust
Step Six – Optional
INSTALL CABLE LOCK
The grommet on each side of the vehicle is
to secure the cover to the vehicle. Thread
a cable and lock through the grommet and
through the mirror to secure the cover.
Install Cable
Lock
Hook Strap to
Bottom of Tailgate
Hook Straps to
Bottom of Tailgate
41731 pg 3
0211 Rev. B
Page 4
Care and Maintenance of your New Canopy Cover
Your Canopy Cover is made of the fi nest materials available. To keep it looking new and for the maximum possible wear, it will need
periodic cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all
traces of soap.
Water: Seeping through at the seams may be stopped by applying 3-M Scotchgard® on the inside of the seams. Rips in the fabric
may be repaired with Bondex® iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex® instructions.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for terms specifi ed below, provided
there has been normal use and proper mainte nance. This warranty applies to the original purchaser only. All
remedies under this warranty are limited to the repair or replacement of any item or items found by the factory to
be defective within the time period specifi ed.
If you have a warranty claim, fi rst you must call our factory at the number below for instructions. You must retain
proof of purchase and submit a copy with any items returned for warranty work. Upon completion of warranty
work, if any, we will return the repaired or replaced item or items to you freight prepaid. Damage to our products
caused by accidents, fi re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective parts not
manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “GOODS” MANUFACTURED BY OUR COMPANY: ONE
YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE
CREATED HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS
WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
For further information, please contact: Customer Service
877-638-9509
41731 pg 4
All or a portion of this product may have been made in China
0211 Rev. B
.
