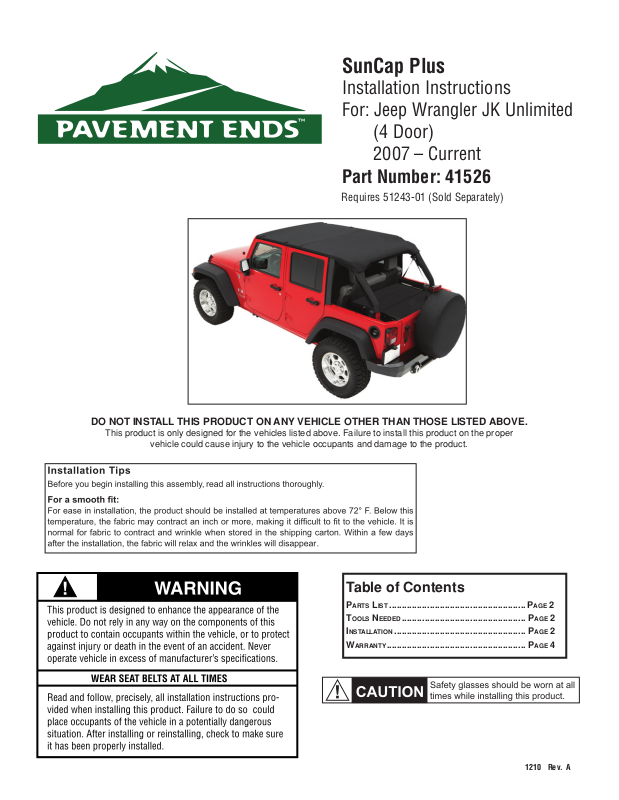

Page 1
SunCap Plus
Installation Instructions
For: Jeep Wrangler JK Unlimited
(4 Door)
2007 – Current
Part Number: 41526
Requires 51243-01 (Sold Separately)
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
TOOLS NEEDED ................................................. PAGE 2
INSTALLATION .................................................... PAGE 2
WARRANTY ....................................................... PAGE 4
41526 pg 1
1210 Rev. A
Page 2
SunCap Qty - 1
Front Tension Strap, Part Number 424.14 Qty - 2
Rear Tension Strap, Part Number 457.92 Qty - 2
Parts List
Step One
REMOVE TOP AND HARDWARW
Remove all factory hardtop and soft top hardware.
Step Two
SNAP SUNCAP TO HEADER
Slide the pocket sewn along the front of the
SunCap over the edge of the header and
snap it to the snaps.
Snap Fabric
to Header
Step Four
SECURE HEADER TO WINDSHIELD
Center the SunCap on the vehicle. Place the tabs on
the Header Knob Bases above the footman loops in the
windshield frame. Place a Header Knob Plate under a
footman loop. Install a Header Knob through the plate
and footman loop and thread it into the Header Knob
Base. Repeat this with both Header Knob Bases.
Step Three
DRAPE SUNCAP OVER VEHICLE
Drape the SunCap over the vehicle.
41526 pg 2
Header
Knob Base
Footman
Loop
Header
Knob Plate
Header
Knob
Windshield
Header
Step Five
SECURE B-PILLAR STRAPS
Wrap the strap around the B-Pillar between
the front and rear door. Thread the strap
through the buckle and pull it tight. Repeat on
both sides.
Wrap Strap around
B-Pillar and thread
through Buckle
1210 Rev. A
Page 3
Step Six
SECURE FLAPS
Wrap the fl ap above the door opening around
the horizontal sport bar and fasten the hook
and loop. Repeat on both sides.
Step Seven
INSTALL SIDE TENSION STRAPS
Thread a Tension Strap through the buckle on the
side of the SunCap.
Hook the end of the strap under the beltrail and pull
the strap tight.
Thread Strap
through Buckle
Tension Strap
Wrap Flaps around
bars and fasten
Hook and Loop
Hook Tension
Strap to Beltrail
Step Eight
INSTALL REAR TENSION STRAPS
Thread a Tension Strap through the buckle on the rear
of the SunCap. Clip the end of the strap into the hole
in the sport bar. Pull the strap tight.
Make sure the Rear Tension Strap does
not interfere with the seat belt operation.
Thread Strap
through Buckle
Rear Tension
Strap
Clip Strap into
hole in Sport Bar
Rear Tension
Strap
Sport
Bar
41526 pg 3
Seat
Belt
1210 Rev. A
Page 4
Care and Maintenance of your New SunCap
Your SunCap is made of the fi nest materials available. To keep it looking new and for the maximum possible wear, it will need periodic
cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all
traces of soap.
Water: Seeping through at the seams may be stopped by applying 3-M Scotchgard® on the inside of the seams. Rips in the fabric
may be repaired with Bondex® iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex® instructions.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for terms specifi ed below, provided
there has been normal use and proper mainte nance. This warranty applies to the original purchaser only. All
remedies under this warranty are limited to the repair or replacement of any item or items found by the factory to
be defective within the time period specifi ed.
If you have a warranty claim, fi rst you must call our factory at the number below for instructions. You must retain
proof of purchase and submit a copy with any items returned for warranty work. Upon completion of warranty
work, if any, we will return the repaired or replaced item or items to you freight prepaid. Damage to our products
caused by accidents, fi re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective parts not
manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “GOODS” MANUFACTURED BY OUR COMPANY: ONE
YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE
CREATED HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS
WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
For further information, please contact: Customer Service
877-638-9509
41526 pg 4
All or a portion of this product may have been made in China
1210 Rev. A
.
