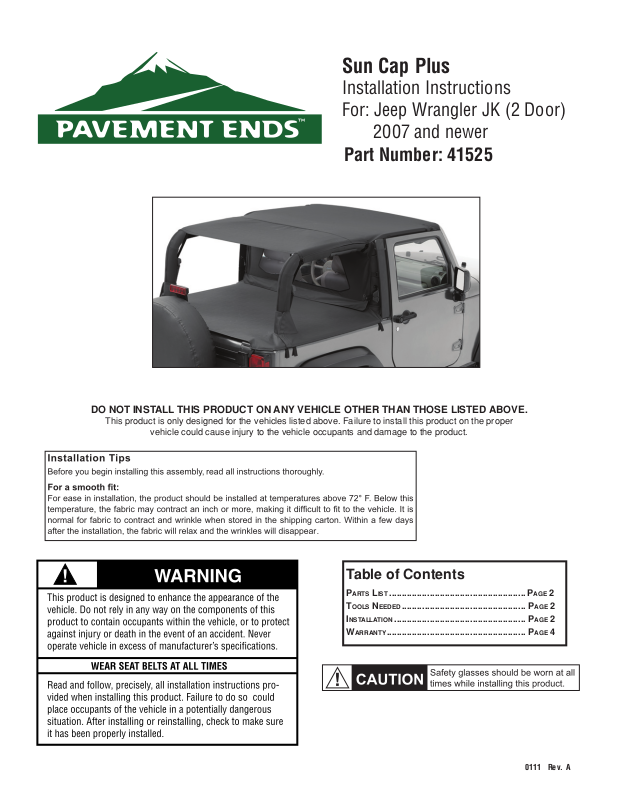

Page 1
Sun Cap Plus
Installation Instructions
For: Jeep Wrangler JK (2 Door)
2007 and newer
Part Number: 41525
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 4
41525 pg 1
0111 Rev. A
Page 2
Sun Cap Qty - 1
Parts List
Front Tension Strap, Part Number 424.14 Qty - 2
Rear Tension Strap, Part Number 457.92 Qty - 2
Step One
SNAP SUN CAP TO HEADER
Slide the pocket sewn along the front of the
Sun Cap over the edge of the header and
snap it to the snaps.
Snap Fabric
to Header
Step Two
DRAPE SUN CAP OVER VEHICLE
Drape the Sun Cap over the vehicle.
Step Three
SECURE HEADER TO WINDSHIELD
Center the Sun Cap on the vehicle. Place the tabs on
the Header Knob Bases above the footman loops in the
windshield frame. Place a Header Knob Plate under a
footman loop. Install a Header Knob through the plate
and footman loop and thread it into the Header Knob
Base. Repeat this with both Header Knob Bases.
Header
Header
Knob Base
Footman
Loop
Header
Knob Plate
Header
Knob
Step Four
SECURE FLAPS
Wrap the fl ap above the door opening around
the horizontal sport bar and fasten the hook
and loop. Repeat on both sides.
41525 pg 2
Wrap Flaps around
bars and fasten
Hook and Loop
0111 Rev. A
Page 3

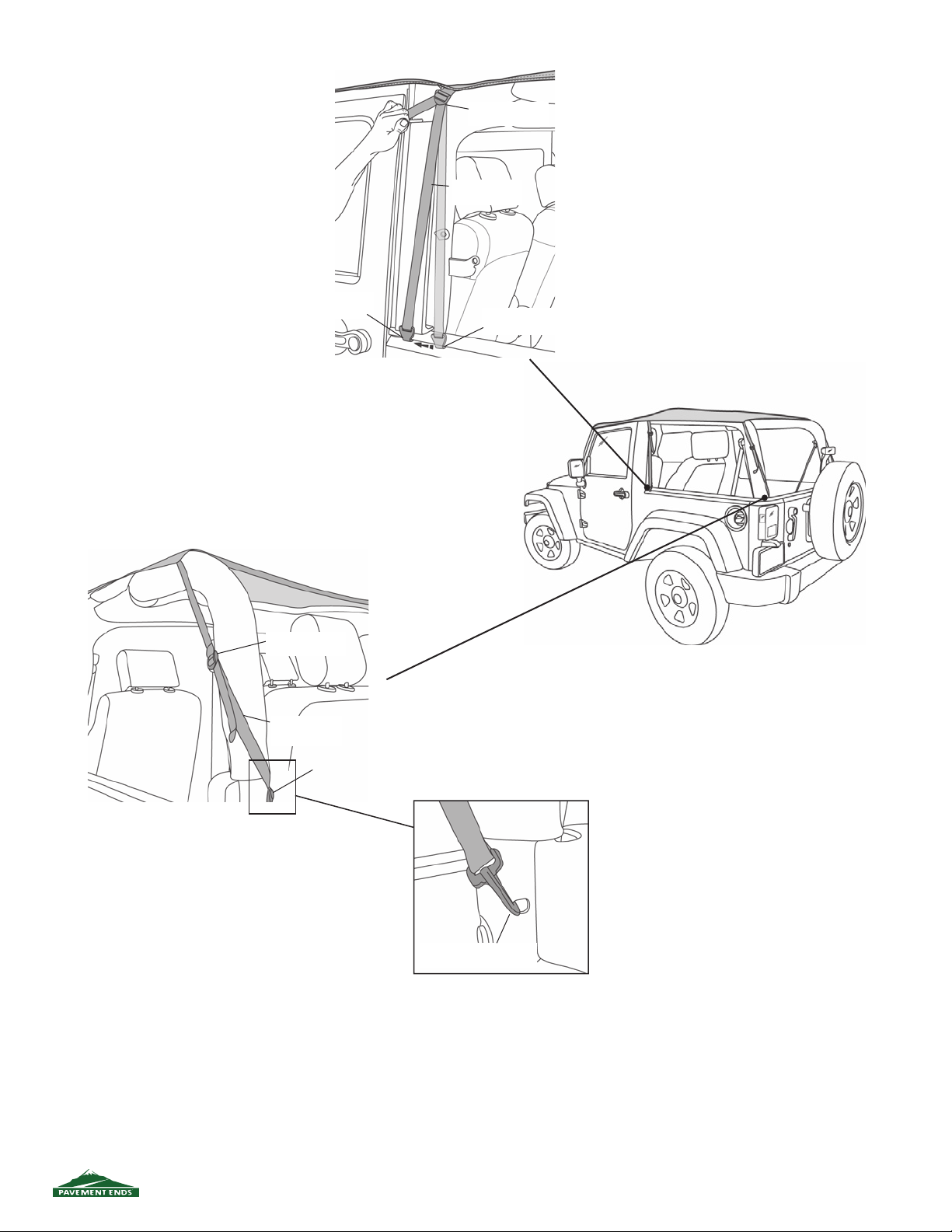

Step Five
INSTALL SIDE TENSION STRAPS
Thread a Tension Strap through the
buckle on the side of the Sun Cap.
Hook the end of the strap under the
beltrail and slide it under the door
surround. Pull the strap tight.
Slide under
Door Surround
Step Six
INSTALL REAR TENSION STRAPS
Thread a Tension Strap through the buckle on
the rear of the Sun Cap.
Clip the end of the strap into the hole in the
sport bar. Pull the strap tight.
Thread Strap
through Buckle
Front Tension
Strap
Hook Tension
Strap to Beltrail
Thread Strap
through Buckle
Rear Tension
Strap
Clip Rear Tension
Strap into Hole in
Sport Bar
Clip Rear Tension Strap
into Hole in Sport Bar
41525 pg 3
0111 Rev. A
Page 4
Care and Maintenance of your New Sun Cap
Your Sun Cap is made of the fi nest materials available. To keep it looking new and for the maximum possible wear, it will need periodic
cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all
traces of soap.
Water: Seeping through at the seams may be stopped by applying 3-M Scotchgard® on the inside of the seams. Rips in the fabric
may be repaired with Bondex® iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex® instructions.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for terms specifi ed below, provided
there has been normal use and proper mainte nance. This warranty applies to the original purchaser only. All
remedies under this warranty are limited to the repair or replacement of any item or items found by the factory to
be defective within the time period specifi ed.
If you have a warranty claim, fi rst you must call our factory at the number below for instructions. You must retain
proof of purchase and submit a copy with any items returned for warranty work. Upon completion of warranty
work, if any, we will return the repaired or replaced item or items to you freight prepaid. Damage to our products
caused by accidents, fi re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective parts not
manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “GOODS” MANUFACTURED BY OUR COMPANY: ONE
YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE
CREATED HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS
WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
For further information, please contact: Customer Service
877-638-9509
41525 pg 4
All or a portion of this product may have been made in China
0111 Rev. A
.
