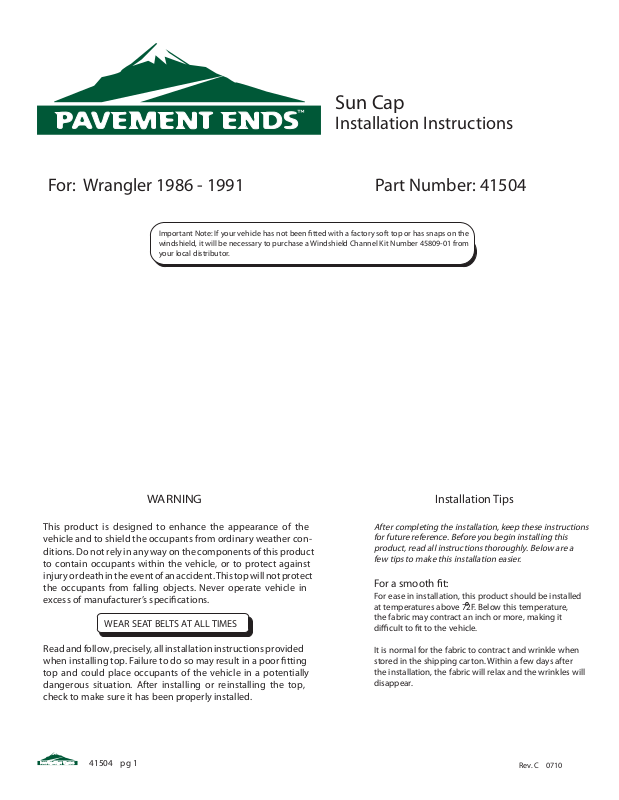

Page 1
Sun Cap
Installation Instructions
For: Wrangler 1986 - 1991 Part Number: 41504
Important Note: If your vehicle has not been tted with a factory soft top or has snaps on the
windshield, it will be necessary to purchase a Windshield Channel Kit Number 45809-01 from
your local distributor.
WARNING
This product is designed to enhance the appearance of the
vehicle and to shield the occupants from ordinary weather conditions. Do not rely in any way on the components of this product
to contain occupants within the vehicle, or to protect against
injury or death in the event of an accident. This top will not protect
the occupants from falling objects. Never operate vehicle in
excess of manufacturer’s specications.
WEAR SEAT BELTS AT ALL TIMES
Read and follow, precisely, all installation instructions provided
when installing top. Failure to do so may result in a poor tting
top and could place occupants of the vehicle in a potentially
dangerous situation. After installing or reinstalling the top,
check to make sure it has been properly installed.
41504 pg 1
Installation Tips
After completing the installation, keep these instructions
for future reference. Before you begin installing this
product, read all instructions thoroughly. Below are a
few tips to make this installation easier.
For a smooth t:
For ease in installation, this product should be installed
at temperatures above 72 F. Below this temperature,
the fabric may contract an inch or more, making it
dicult to t to the vehicle.
It is normal for the fabric to contract and wrinkle when
stored in the shipping carton. Within a few days after
the installation, the fabric will relax and the wrinkles will
disappear.
Rev. C 0710
Page 2
Step One
Locate the Sun Cap and orient it on the vehicle. Drape it
over the sport bar and insert the front of the Sun Cap into
the windshield channel.
Note: If your vehicle has snaps on the windshield, it will
be necessary to remove them and install a Windshield
Retainer Kit number 45809-01.
Fabric Wrapped
Plastic Strip
Windshield Channel
Step Two
Pull the Sun Cap back over the sport bar. Loop the
two web straps under the sport bars and thread
them through the buckles, sewn to the straps.
Front
Web St rap
Fabr ic
Buckle
Windshield
Driver's Side of Vehicle
Threading Strap
through Buckle
Buckle
Strap
Step Three
Locate the long web strap sewn to the rear of the top.
Wrap the strap around the sport bar and pull it toward
the front of the top. Thread it through the footman loop
located above the windshield. Pull the end of the strap
back and thread it through the buckle on the strap. Pull
the strap tight.
Rear
Rear Sport Bar
Step Four
Wrap the Hook and Loop Strips around the bars on
each side of the vehicle, above the door openings.
Fasten the Hook and Loop Strips to each other.
41504 pg 2
Sport Bars
Hook and
Loop Strips
Inside of Sun Cap
Windshield
Threading Strap
through Buckle
Web St rap
Buckle
Footman Loop
Buckle
Strap
Rev. C 0710
Page 3
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for the terms specied below, provided there has b
proper maintenance. This warranty applies to the original purchaser only. All remedies under this warranty are limited to the repair or replacement of
any item or items found by the factory to be defective within the time period specied.
If you have a warranty claim, rst you must call our factory at the number below for instructions. You must retain proof of purchase and submit a
copy with any items returned for warranty work. Upon completion of warranty work, if any, we will return the repaired or replaced item or items to
you freight prepaid. Damage to our products caused by accidents, re, vandalism, negligence, misinstallation, misuse, Acts of
parts not manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “SOFT GOODS” MANUFACTURED BY OUR COMPANY (USING PRIMARILY VINYLS, PLASTICS, AND/OR FOAM): ONE YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE CREATED HEREBY ARE LIMITED IN
DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY
INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so
so the above limitations or exclusions may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For further information or request for warranty work, please contact: Customer Service
877-638-9509
een normal use and
God, or by defective
41504 pg 3
*All or a portion of this product may have been produced in China
Rev. C 0710
