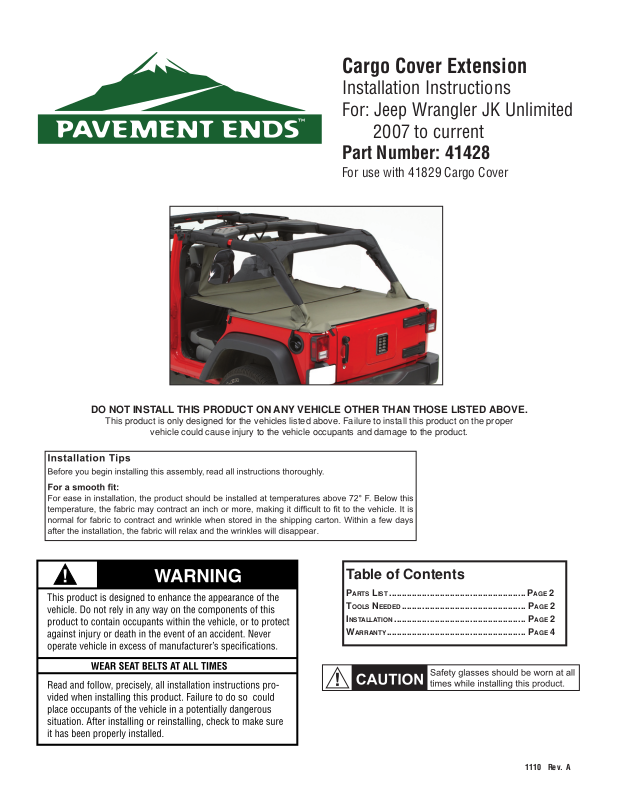

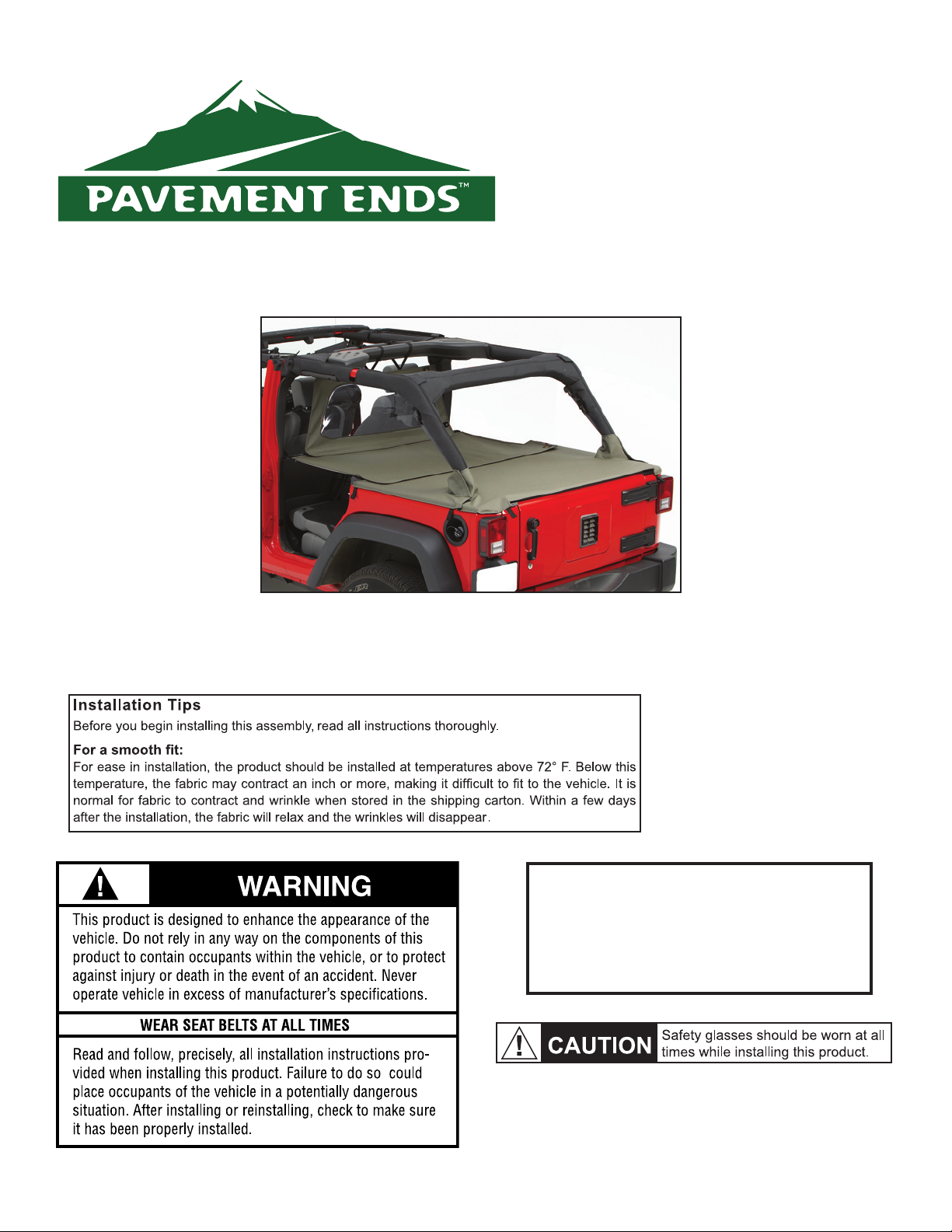

Page 1
Cargo Cover Extension
Installation Instructions
For: Jeep Wrangler JK Unlimited
2007 to current
Part Number: 41428
For use with 41829 Cargo Cover
DO NOT INSTALL THIS PRODUCT ON ANY VEHICLE OTHER THAN THOSE LISTED ABOVE.
This product is only designed for the vehicles listed above. Failure to install this product on the proper
vehicle could cause injury to the vehicle occupants and damage to the product.
Table of Contents
PARTS LIST ...................................................... PAGE 2
T
OOLS NEEDED ................................................. PAGE 2
NSTALLATION .................................................... PAGE 2
I
W
ARRANTY ....................................................... PAGE 4
41428 pg 1
1110 Rev. A
Page 2
Cargo Cover Extension Qty - 1
Acorn Locknut, Part Number 427.11 Qty - 3
Snap Head Screw, Part Number 200.49 Qty - 3
Tools Needed
Parts List
Phillips Screwdriver
Chalk
Safety Glasses

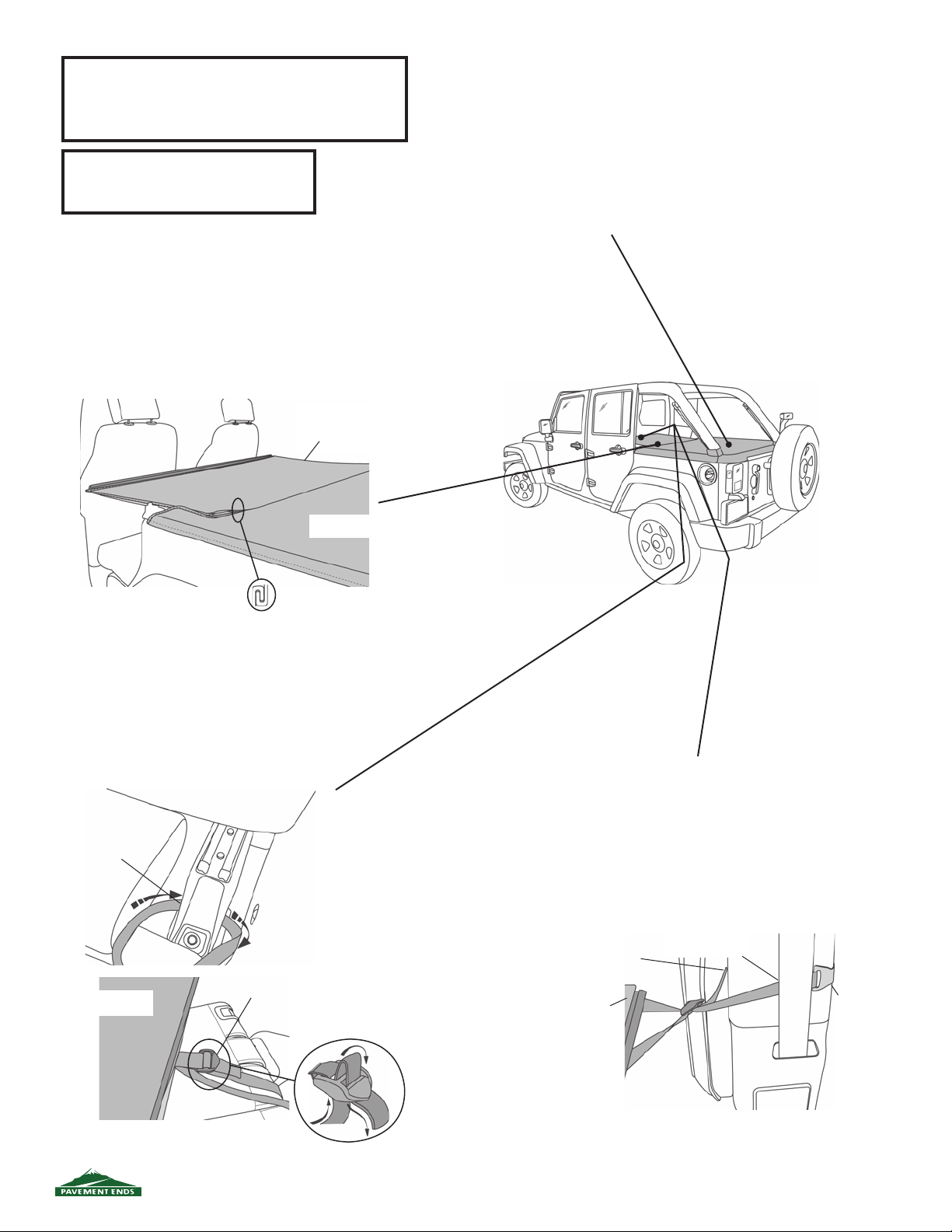

Step Two
INSTALL EXTENSION ON CARGO COVER
Orient the Cargo Cover Extension with the straps toward the
front. Slide the plastic hook on the rear of the Extension onto
the plastic hook on the front of the Cargo Cover, centering the
Extension.
Cargo Cover
Extension
Cargo Cover
Step One
INSTALL CARGO COVER
Make sure your Cargo Cover is installed
on the vehicle and the seat belts are
tucked into the collars.
Fold down the rear seat and slide the front
seats all the way forward.
Step Three
SECURE CENTER STRAPS
Locate the two (2) long straps in the center of
the Cargo Cover Extension. Wrap them under
the seat brackets. Thread the end of each strap
through the buckle and tighten.
Thread Strap under
Seat Bracket
Thread Strap
Cargo Cover
Extension
through Buckle
Step Four
INSTALL SIDE STRAPS
Locate the outside straps, one (1) on each front
corner of the Cargo Cover Extension. Slip each
strap between the seat belt and the front pillar.
Hook the end of the strap to the front pillar so that
the hook is level with the Cargo Cover Extension.
Pull the end of the strap to tighten.
Strap must be
Pull Strap
to tighten
Cargo Cover
Extension
behind Seat Belt
Hook to
Pillar
41428 pg 2
1110 Rev. A
Page 3

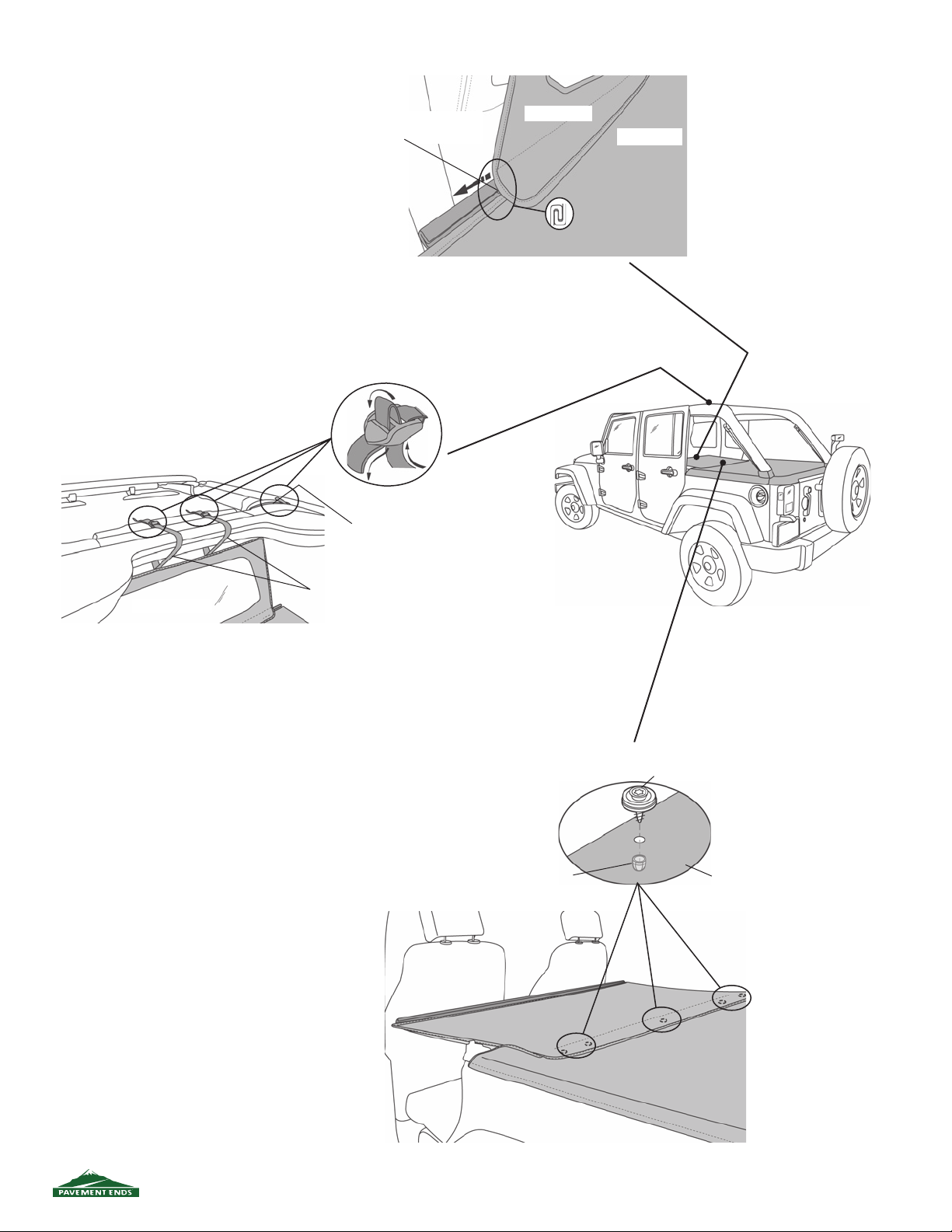

Step Five – Optional
INSTALL CAB COVER
If you wish to install a Cab Cover on your
vehicle, slide the plastic hook inside the
bottom of the Cab Cover onto the plastic hook
along the front of the Cargo Cover Extension.
Center the Cab Cover and fasten the webbing
straps.
Step Six – Optional
SECURE CAB COVER STRAPS
Start with the center straps and thread the
end of each strap around the sport bar and
through each buckle. Loosely tighten each
strap to hold the Cab Cover in position.
Wrap the outside straps around the sport bar
to the outside and thread the ends through
the buckles.
Tighten the straps.
Slide Cab Cover on to
Cargo Cover
Outside Strap
Cab Cover
Cargo Cover
Front Sport
Bar
Cab Cover
Center Straps
Step Seven – Optional
INSTALL SNAPS TO SECURE CARGO COVER
E
XTENSION TO CARGO COVER
Pull the fl ap on the rear of the Cargo Cover
Extension out over the top of the front edge of
the Cargo Cover.
Rub chalk on the snaps on the Cargo Cover
Extension fl ap. Pull up on the front reinforced
edge of the Cargo Cover and press the
snaps against the Cargo Cover to mark the
locations.
At the marked locations, push the sharp end
of a Snap Head Screw through through both
layers of fabric, to make a hole. Then push
the screw through the hole from the vinyl side
so that the snap is on top of the vinyl. Install
an Acorn Locknut over the pointed end of the
Snap Head Screw.
Acorn Locknut –
Under Fabric
Snap Head
Screw
Fabric –
Vinyl Up
41428 pg 3
1110 Rev. A
Page 4
Care and Maintenance of your New Cargo Cover
Your Cargo Cover is made of the fi nest materials available. To keep it looking new and for the maximum possible wear, it will need
periodic cleaning and maintenance.
Washing: The fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all
traces of soap.
Water: Seeping through at the seams may be stopped by applying 3-M Scotchgard® on the inside of the seams. Rips in the fabric
may be repaired with Bondex® iron on patches. Iron the patches to the Inside of the top, carefully following the Bondex® instructions.
LIMITED WARRANTY
We warrant our product to be free from defects in material and workmanship, for terms specifi ed below, provided
there has been normal use and proper mainte nance. This warranty applies to the original purchaser only. All
remedies under this warranty are limited to the repair or replacement of any item or items found by the factory to
be defective within the time period specifi ed.
If you have a warranty claim, fi rst you must call our factory at the number below for instructions. You must retain
proof of purchase and submit a copy with any items returned for warranty work. Upon completion of warranty
work, if any, we will return the repaired or replaced item or items to you freight prepaid. Damage to our products
caused by accidents, fi re, vandalism, negligence, misinstallation, misuse, Acts of God, or by defective parts not
manufactured by us, is not covered under this warranty.
THE WARRANTY TIME PERIOD IS AS FOLLOWS: ALL “GOODS” MANUFACTURED BY OUR COMPANY: ONE
YEAR FROM DATE OF PURCHASE.
ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE
CREATED HEREBY ARE LIMITED IN DURATION TO THE SAME DURATION AND SCOPE AS THE EXPRESS
WRITTEN WARRANTY. OUR COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
For further information, please contact: Customer Service
877-638-9509
41428 pg 4
All or a portion of this product may have been made in China
1110 Rev. A
.
