Paul mitchell PS12NAV17 User Manual

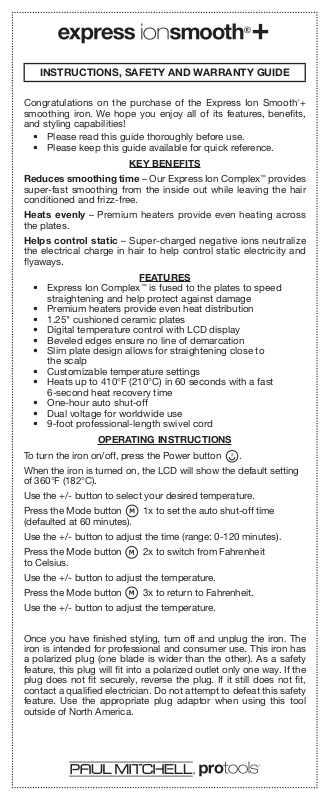

INSTRUCTIONS, SAFETY AND WARRANTY GUIDE
Congratulations on the purchase of the Express Ion Smooth®+
smoothing iron. We hope you enjoy all of its features, benets,
and styling capabilities!
• Please read this guide thoroughly before use.
• Please keep this guide available for quick reference.
KEY BENEFITS
Reduces smoothing time – Our Express Ion Complex™ provides
super-fast smoothing from the inside out while leaving the hair
conditioned and frizz-free.
Heats evenly – Premium heaters provide even heating across
the plates.
Helps control static – Super-charged negative ions neutralize
the electrical charge in hair to help control static electricity and
yaways.
• Express Ion Complex™ is fused to the plates to speed
straightening and help protect against damage
• Premium heaters provide even heat distribution
• 1.25" cushioned ceramic plates
• Digital temperature control with LCD display
• Beveled edges ensure no line of demarcation
• Slim plate design allows for straightening close to
the scalp
• Customizable temperature settings
• Heats up to 410°F (210°C) in 60 seconds with a fast
6-second heat recovery time
• One-hour auto shut-off
• Dual voltage for worldwide use
• 9-foot professional-length swivel cord
OPERATING INSTRUCTIONS
To turn the iron on/off, press the Power button .
When the iron is turned on, the LCD will show the default setting
of 360°F (182°C).
Use the +/- button to select your desired temperature.
Press the Mode button 1x to set the auto shut-off time
(defaulted at 60 minutes).
Use the +/- button to adjust the time (range: 0-120 minutes).
Press the Mode button 2x to switch from Fahrenheit
to Celsius.
Use the +/- button to adjust the temperature.
Press the Mode button 3x to return to Fahrenheit.
Use the +/- button to adjust the temperature.
FEATURES
Once you have nished styling, turn off and unplug the iron. The
iron is intended for professional and consumer use. This iron has
a polarized plug (one blade is wider than the other). As a safety
feature, this plug will t into a polarized outlet only one way. If the
plug does not t securely, reverse the plug. If it still does not t,
contact a qualied electrician. Do not attempt to defeat this safety
feature. Use the appropriate plug adaptor when using this tool
outside of North America.
STYLING TIPS
• Make sure hair is completely dry before use for best results.
• Take small sections of hair for optimum results.
TEMPERATURE SETTING HAIR TYPE
250-290°F (121-143°C) Fragile, Very Fine
290-330°F (143-166°C) Fine
330-370°F (166-188°C) Medium-Textured
370-410°F (188-210°C) Thick
410°F (210°C) Coarse, Very Thick
GENERAL SPECIFICATIONS
Model: PS12NAV17
Rated Voltage: 110-240VAC
Frequency (Hz): 50/60Hz
Rated Wattage: 40W
Length of A.C. Cord: 9 ft./2.7 m
Weight: 9.52 oz. (0.59 lbs.)/270 g
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING.
DANGER – Every appliance is electrically live, even when the
switch is off. When not in use, always unplug the iron to prevent
the risk of re.
WARNING – To reduce the risk of burns, electrocution, re, or
injury to persons and/or personal property:
• Use the iron only for the purpose described in this guide
to prevent accidents, damage, or malfunction.
• This appliance should never be left unattended when
plugged in.
• Avoid multiple cables to a plug or use of an extension cord
to prevent starting a re from overheating.
• KEEP AWAY FROM WATER to prevent re, electric shock,
damage, or malfunction.
• KEEP AWAY FROM CHILDREN.
• Do not handle the iron or cord with wet hands, as this may
cause electric shock.
• Do not leave the iron in a position where it can fall or be
pulled into a tub or sink.
• Keep the cord away from heated surfaces.
• DO NOT WRAP THE CORD AROUND THE IRON.
• Never place or insert objects on the iron plates due to the
risk of causing re, accidents, or malfunction.
• Do not operate where oxygen is being administered to
avoid the risk of re.
• DO NOT USE WHEN CORD HAS BEEN DAMAGED OR IF
PLUG IS LOOSE.
• DO NOT REPAIR, TAMPER WITH, OR TRY TO
RECONSTRUCT the iron, otherwise electric shock,
malfunction, or accidents may result.
• When inserting or pulling out the plug, hold the plug rmly
to prevent the cord from peeling and to prevent accidents
or malfunction.
• Stop using immediately if you smell an offensive odor. If
ignored, it could cause a re or other accidents.
• Do not keep the iron in a damp place, such as a bathroom,
or it may malfunction.
• Stop using the iron and remove from the power source
when there is an earthquake or thunder.
• Unplug the iron from the power source when cleaning or
wiping to prevent re or electric shock.
