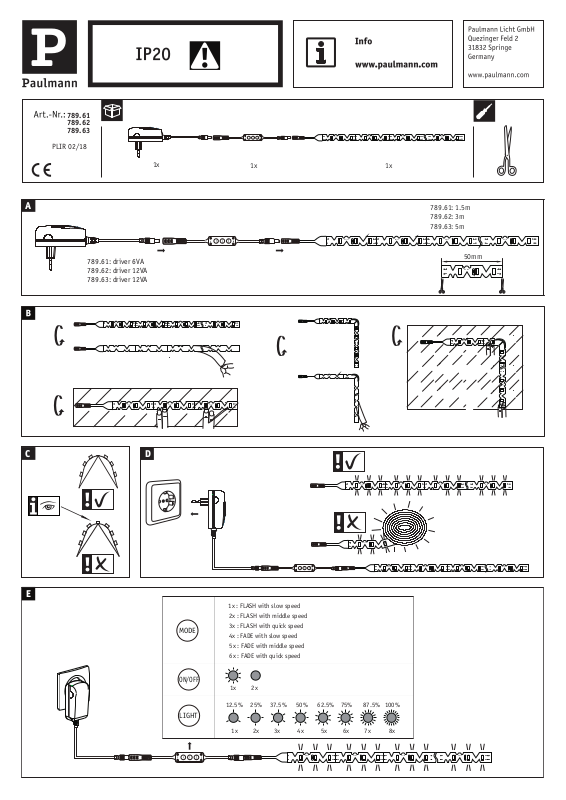

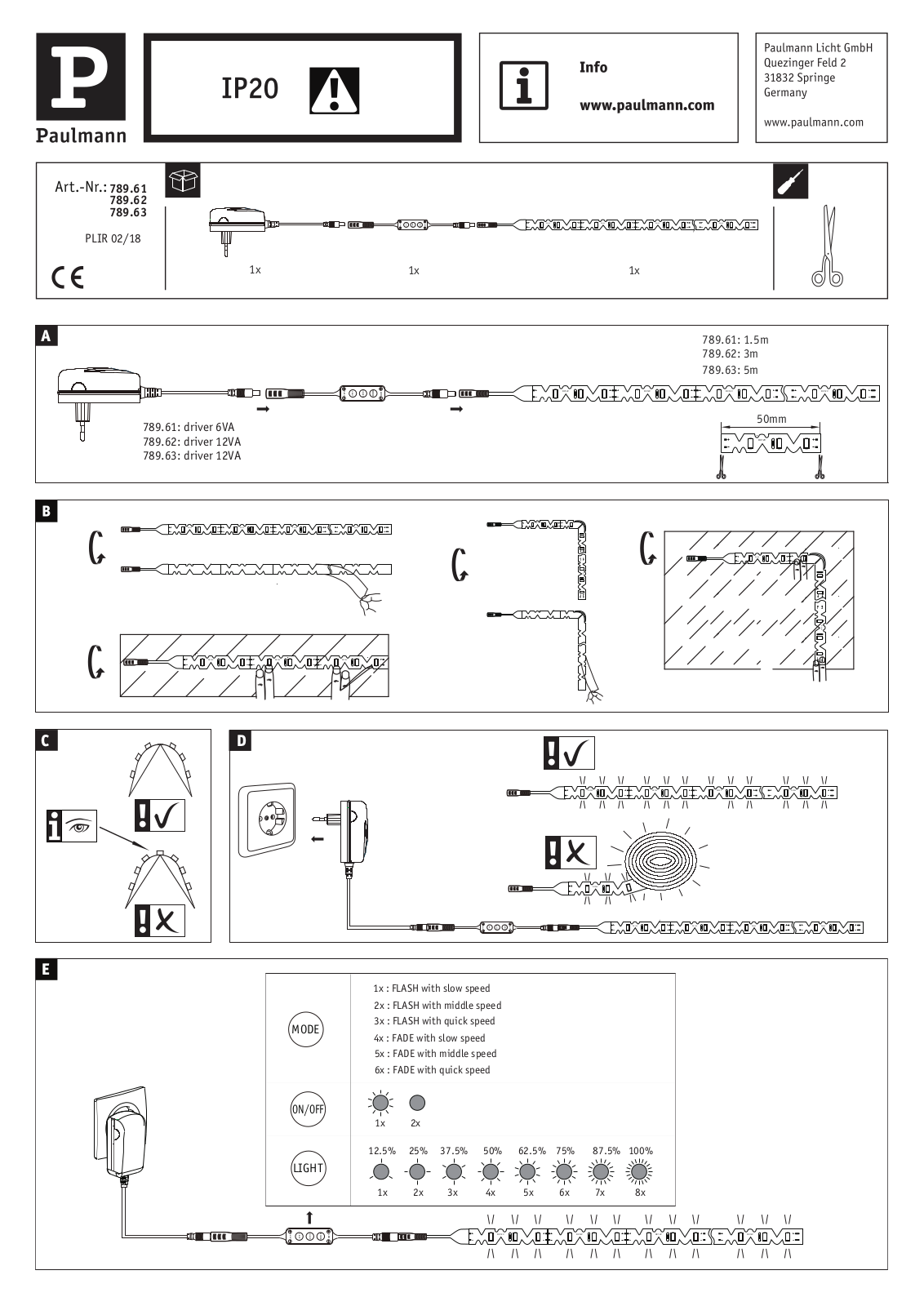

Page 1
789.61
789.62
789.63
PLIR 02/18
ON/OFF
MODE
LIGHT
5-24V
LED
DC12V DC12V DC12V DC12V
1x
A
1x 1x
789.61: 1.5m
789.62: 3m
789.63: 5m
ON/OFF
MODE
LIGHT
5-24V
LED
789.61: driver 6VA
789.62: driver 12VA
DC12V DC12V DC12V DC12V
50mm
DC12V
789.63: driver 12VA
DC12V DC12V DC12V DC12V
DC12V DC12V DC12V
DC12V
DC12V
DC12V
DC12V
C
D
DC12V DC12V DC12V DC12V
DC12V
ON/OFF
MODE
LIGHT
5-24V
LED
DC12V DC12V DC12V DC12V
E
1x : FLASH with slow speed
2x : FLASH with middle speed
MODE
ON/OFF
LIGHT
3x : FLASH with quick speed
4x : FADE with slow speed
5x : FADE with middle speed
6x : FADE with quick speed
1x 2x
12.5% 25%
1x 2x
37.5% 50% 62.5% 75% 87.5% 100%
3x 4x 5x 6x 7x 8x
ON/OFF
MODE
LIGHT
5-24V
LED
DC12V DC12V DC12V DC12V
