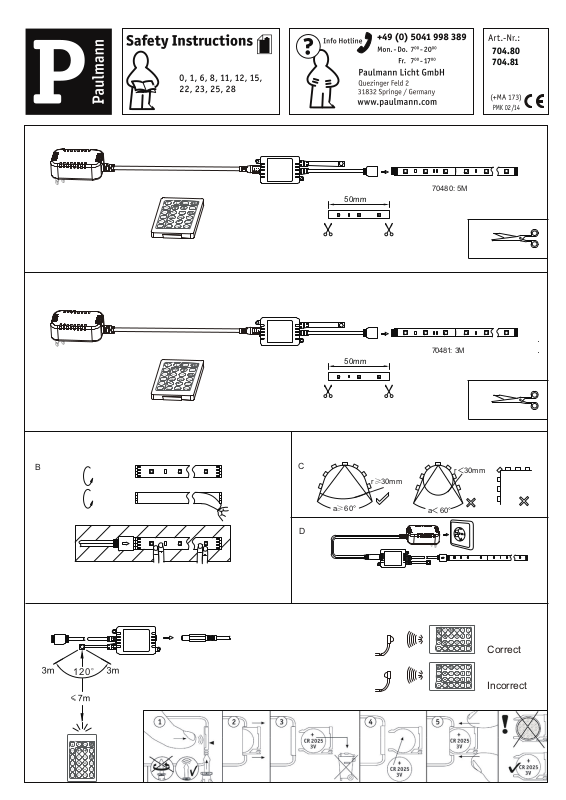

Paulmann 70481 Installation manual

50mm

704.80

704.81

PMK 02/14

70480: 5M

70481: 3M

50mm

B

C

r 30mm≥

a 60°≥

a 60

r 30mm＜

°＜

D

12 0°

Correct

Incorrect

On / Off

Light increases when in static mode,speed

Light decrease when in static mode, speed

Function of digital RGB strip controller

Dimm Speed

Length setting

increases when in dynamic mode and IC
number increases when in IC setting mode

W/WW shift key ON/OFF key

IC number setting

flow to centre from two terminals
(CS,C3,C7,C 16)

eight-color choice key in static model

Trail into right č CS,C3,C7,C16Ď

three-color choice key in static model Horse race to left direction (CS,C3,C7,C16)

www.paulmann.com/manual-digled/all

decrease when in dynamic mode and IC
number decreases when in IC setting mode

flow to two terminals from centre
(CS,C3,C7,C1 6)

Auto-cycle mode

Trail into left č CS,C3,C7,C16 Ď

Trail from two directions in turn

White

Light effects

Choose color

3 color

7 color

16 color

Mix of all effects Mix of

„Flow“

„Trail“

„Horse Race“

„Spread“

„Queued“

Fade Color jump

Horse race to right direction (CS,C3,C7,C1 6) Flash function key (CS,C3,C7,C16)

seven-color choice key in static model spread to left (CS,C3,C7,C1 6)

spread to right (CS,C3,C7,C1 6) Jump efficient key (CS,C3,C7,C1 6)

sixteen-color choice key in static model

Queued color running to right with a tag
(CS,C3,C7,C1 6)

Queued color running to left with a tag
(CS,C3,C7,C1 6)

Queued color running with a tag from two
directions in turn

Mix of
