USER
MANUAL
MODEL 1095
NetLink™ mDSL
Multi-Rate
Symmetric DSL Modem
Part# 07M1095-F
Doc# 033051UF
Revised 06/08/00
SALES OFFICE
(301)975-1000
TECHNICAL SUPPORT
(301)975-1007
http://www.patton.com
CERTIFIED
An ISO-9001
Certified
Company
TABLE OF CONTENTS
Section Page
1.0 Warranty Information.............................................................2
1.1 Radio and TV Interference
1.2. CE Notice
1.3 Service
2.0 General Information...............................................................4
2.1 Features
2.2 Description
3.0 Configuration..........................................................................5
3.1 Configuring the Hardware DIP Switches
3.1.1 Configuration DIP Switch Set “S1”
3.1.2 Configuration DIP Switch Set “S2”
3.1.3 Configuration DIP Switch Set “S3”
3.2 Configuring the Software Switches
3.3 VT100 Terminal Configuration
3.4 NetLink Plug-and-Play
4.0 Installation ...........................................................................16
4.1 Connecting the Twisted Pair Interface
4.2 Connecting the Serial Port
4.2.1 Changing
QuikConnect™
Modules
4.2.2 Connecting a “DTE” Device
4.2.3 Connecting a “DCE” Device
4.2.4 Configuring the X.21
QuikConnect™
Module
4.3 Connecting Power
4.3.1 Connecting to an AC Power Source
4.3.2 Connecting to a DC Power Source
5.0 Operation .............................................................................21
5.1 Power-Up
5.2 LED Status Monitors
5.3 Test Modes
5.3.1 Overview
5.3.2 Loops and Patterns
5.3.3 Using the V.52 (BER) Test Pattern Generator
Appendix A - Specifications........................................................32
Appendix B - Factory Replacement Parts and Accessories.......33
Appendix C - Interface Pin Assignments....................................34
Appendix D - Transmission Distance Chart................................36
Appendix E - LED Descriptions...................................................37
Appendix F - EIA-561 Control Port Pin Out.................................38
1
1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 1095 components to be
free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials,
and does not cover customer damage, abuse or unauthorized modification. If this product fails or does not perform as warranted, your sole
recourse shall be repair or replacement as described above. Under no
condition shall Patton Electronics be liable for any damages incurred
by the use of this product. These damages include, but are not limited
to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall
be deemed an acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 1095 generates and uses radio frequency energy, and
if not installed and used properly—that is, in strict accordance with the
manufacturer's instructions—may cause interference to radio and television reception. The Model 1095 has been tested and found to comply with the limits for a Class A computing device in accordance with
the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that interference will not occur in a particular installation. If the Model 1095 does
cause interference to radio or television reception, which can be determined by disconnecting the unit, the user is encouraged to try to correct the interference by one or more of the following measures: moving the computing equipment away from the receiver, re-orienting the
receiving antenna and/or plugging the receiving equipment into a different AC outlet (such that the computing equipment and receiver are
on different branches).
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the European Union
(EU). A Certificate of Compliance is available by contacting Technical
Support.
2
1.3 SERVICE
All warranty and non-warranty repairs must be returned freight
prepaid and insured to Patton Electronics. All returns must have a
Return Materials Authorization number on the outside of the shipping
container. This number may be obtained from Patton Electronics
Technical Service at:
tel: 301-975-1007
email: support@patton.com
www: http://www.patton.com
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 1095. Technical Service hours: 8AM to 5PM EST, Monday
through Friday.
3
2.0 GENERAL INFORMATION
Thank you for purchasing this Patton Electronics product.If questions or problems arise during installation or use of this product, please
do not contact Patton Electronics Technical Support at (301) 975-1007.
2.1 FEATURES
• DSL Distances on just two wires using mDSL technology
• DTE Speeds from 64 kbps to 2.3 Mbps
• NetLink Plug-and-Play Master or Slave
• Standalone (QuikConnect™) and Rackmount Versions Available
• SNMP Network Management with In-Band Management of Remote
Units plus Advanced Diagnostics & Statistics using Patton Model
1000MC
• Internal, external or receive recovered clocking options
• LED indicators for TD, RD, CTS, CD, DTR, TM, ER and NS
2.2 DESCRIPTION
The Patton Electronics
NetLinkTMModel 1095 mDSL
Multi-Rate
DSL Modem provides high speed 2-wire connectivity to ISPs, PTTs,
and corporations using mDSL (Multi-rate Digital Subscriber Line) technology. Multi-rate DSL offers the ability to deliver the maximum bit rate
that a twisted pair line can accommodate. Supporting multiple line rates
from 144kbps to 2.320Mbps, the NetLink provides “megabyte”speeds
to leased line, LAN to LAN interconnection, and WAN access networks
over 3.6 miles/5.8km (1.054Mbps on 24AWG/.5mm wire). The Model
1095 mDSL standalone allows DTE speeds from 64 kbps to 2.3 Mbps
in increments of 64kbps. Features include loopback diagnostics, in-band
SNMP/HTTP remote management capabilities using NetLink Plug-andPlay, and externally accessible configuration switches.
A high density 2U-high rack card version of the Model 1095 mDSL
is also available.As a symmetric DSL NTU, the Model 1095 offers the
same data rates in both directions over a single pair of voice-grade
telephone lines using Carrierless Amplitude and Phase (CAP) modulation. Featuring replaceable DCE-DTE interface modules, the NetLink
mDSL can be configured for a huge range of V.24/RS-232, V.35, RS422/530, G.703 and X.21 applications.The standard Model 1095 is
powered by a 100/230 VAC (Universal) supply. The DC power supply
option supports any DC input between 36–72 VDC.Using the NetLink
Plug-and-Play feature, the standalone unit at the Customer Premise
site will automatically configure itself to the DTE rate of the rack card
at the Central Office. Other configuration parameters fall to the default
state.This allows changes in the configuration to be handled from a
single end of the link.
4
IMPORTANT: The Model 1095 is equipped with flash
upgrade. Please refer to Patton website, or contact Technical
Support for the latest version of the software.
NOTE: Packages received without an RMA number will not be
accepted.
3.0 CONFIGURATION
The Model 1095 is equipped with three sets of eight DIP switches,
which allow configuration of the unit for a wide variety of applications.
This section describes switch locations and explains all possible configurations.
3.1 CONFIGURING THE HARDWARE DIP SWITCHES
The 24 external switches are grouped into three eight-switch sets,
and are externally accessible from the underside of the Model 1095
(See Figure 1).
3.1.1 Configuration DIP Switch Set “S1”
All switches in Switch Set S1 are reserved for future use.
These switches must remain in the ON position (See Figure 2).
5
Figure 2. Close Up of Configuration Switches (all sets are identical in appearance)
Figure 1. Underside of Model 1095, Showing Location of DIP Switches
Front
Back
On
S3
S2
S1
Off
3.1.2 Configuration DIP Switch Set “S2”
The configuration switches on S2 allow you to specify the Clocking
Mode and response to DTE Loop Enable. Default settings of S2 are
shown in the table below.
Switch S2-1, S2-2, S2-3, S2-4, and S-5: Reser ved for future use and
should remain in the Off position.
6
S2 SUMMARY TABLE
Position Function Factory Default
S2-1 Reserved Off
S2-2 Reserved Off
S2-3 Reserved Off
S2-4 Reserved Off
S2-5 Reserved Off
S2-6 Clock Mode On Receive
S2-7 Clock Mode Off Recovered Clock
S2-8 Enable Loop from DTE Off Disable
12345678
ON
OFF
ON
7
Switches S2-6 and S2-7: Clock Mode
Use Switches S2-6 and S2-7 to configure the 1095 for internal,
external, or receive recover clock mode.
Switch S2-8: Enable/Disable Loop Tests from DTE
Use Switch S2-8 to allow Model 1095 to enter loopback tests
when the DTE raises the appropriate loop request pin.
S2-8
Setting
On Response to DTE Loopback Request Enabled
Off Response to DTE Loopback Request Disabled
CO/CP
Unit S2-6 S2-7 Clock Mode Description
CO On On Internal Transmit clock
generated internally
CO Off On External (DTE) Transmit clock
derived from
terminal interface
CP On Off Receive Recover Transmit clock
derived from the
received line
Off Off
Reserved
3.1.3 Configuration Switch Set “S3”
Use the eight DIP Switches in Switch S3 to enable the DTE connection rate.The following table summarizes default positions of DIP
Switch S3. Detailed descriptions of each switch follow the table.
Switch S3-1: DTE Rate
Use Switch S3-1 through S3-6 to set the DTE bit rate.
S3-1
S3-2 S3-3 S3-4 S3-5 S3-6 DTE Rate (kbps)
Off Off On On On On 64
On On Off On On On 128
Off On Off On On On 192
On Off Off On On On 256
Off Off Off On On On 320
On On On Off On On 384
Off On On Off On On 448
On Off On Off On On 512
Off Off On Off On On 576
On On Off Off On On 640
Off On Off Off On On 704
On Off Off Off On On 768
Off Off Off Off On On 832
On On On On Off On 896
Off On On On Off On 960
On Off On On Off On 1024
Off Off On On Off On 1088
Off On Off On Off On 1216
On Off Off On Off On 1280
Off Off Off On Off On 1344
On On On Off Off On 1408
Off On On Off Off On 1472
8
S3 SUMMARY TABLE
Position Function Factory Default
S3-1 DTE Rate On
S3-2 DTE Rate Off
S3-3 DTE Rate Off
S3-4 DTE Rate Off
S3-5 DTE Rate On
S3-6 DTE Rate On
S3-7 Reset Software Defaults On
Normal Operation
S3-8
Transmit Data Sample Point
On Normal Operation
}
768 kbps
3.2 CONFIGURING THE SOFTWARE SWITCHES
The Model 1095 features a menu-driven command system that
allows you to monitor and configure your Model 1095 stand alone unit.
There are two modes of operation for the Model 1095 control port:
Monitor and Configuration.These are described in more detail below.
Following the Model 1095 setup is a description of how to setup your
VT100, or equivalent, control port for use with the Model 1095.
3.2.1 Monitor
If you are configuring your Model 1095 through the dip-switches
and you wish to check your configuration or view the status of the
modem you can do so by accessing the control port. In this setup the
user is not able to make configuration changes to the unit because the
hardware dip-switch settings are controlling the configuration of the
unit. If you would like to use the control port to configure your unit see
the Configuration section below for setup information.
3.2.2 Configuration
If you plan to use the Model 1095 control port to configure your
unit, you mus set all of the DIP switches to the ON position.This will
force the 1095 into plug-and-play mode (this configuration is also
required if you intend to have the Model 1095 work in a plug-and-play
environment or use the Model 1001MC to configure the unit).
3.2.3 VT100 Terminal Setup
1) Connect the serial RS-232 port of a VT100 or similar DTE with terminal emulation to the EIA/TIA-561 port of the Model 1095. To construct
an RS-232 to EIA-561 patch cable, refer to the control port pinout diagram in Appendix F.Refer to Appendix B to order a pre-made cable.
2) Power up the terminal and set its RS-232 port as follows:
9600 Baud
8 data bits, 1 stop bit, no parity
Local echo
CR-CR/LF on inbound data
ANSI, VT-100 emulation
3) Power up the Model 1095
4) After power up, the control port displays the Main Menu screen.If the
Main Menu is not shown please review your VT100 setup as described
above.
9
On Off On Off Off On 1536
On On Off Off Off On 1600
Off On Off Off Off On 1664
On Off Off Off Off On 1728
Off Off Off Off Off On 1792
On On On On On Off 1856
Off On On On On Off 1920
On Off On On On Off 1984
Off Off On On On Off 2048
On On Off On On Off 2112
Off On Off On On Off 2176
On Off Off On On Off 2240
Off Off Off On On Off 2304
Switch S3-7: Reset Software Defaults
Switch S3-7 allows the user to reset the software configured factory defaults. This will only be needed when using the Model 1001MC to
SNMP manage your units. For more information, please refer to the
Model 1001MC Operations Manual.
S3-7
Setting
On Normal Operation
Off Reset
Switch S3-8:Transmit Data (TD) Sampling Point
Switch 3-8 controls the Transmit Data (TD) sampling point.
S3-8
Setting Description
On Nor mal TD sampled on the falling
edge of the 1095 Transmit
Clock (TC)
Off Invert TD sampled on the rising
edge of the 1095 Transmit
Clock.
10
NOTE: Based on the DTE rate chosen, the Model 1095 will
automatically select the optimum line rate for the distance. This
selection is based on the lowest line rate that will support the
DTE rate.
3.3 VT100 TERMINAL CONFIGURATION
With software version 2.3.1 or higher, you can configure the 1095 using a
VT100 compatible terminal (or program).With the VT100 Interface, you can
perform all functions available via the DIP switches.The VT100 operation is
available from the main menu page.
3.3.1 Main Menu Screen
The Main Menu screen for the Model 1095 is displayed below.The user
can hit 'Esc' to refresh this screen at any time. If you are running in the
Monitor mode, the Model 1095 will not require a password.If you wish to run
in the Configuration mode, you will be required to enter a password to access
the configuration menus.
The default password shipped with the Model 1095 is all lower case "pat-
ton".The Model 1095 is case sensitive and will not work if the correct password is not installed. If the incorrect password is entered, you will receive an
error message and be prompted for the password again.It is suggested that
you change your password after setting up your unit to ensure security for your
network.
After entering the correct password the Model 1095 will display the
Software Configuration Menu described below.
3.3.2 Software Configuration Menu
When the correct password is entered, the Software Configuration
Menu will be displayed.Select the option that you would like to change.
NOTE: After making any configuration changes you are required to
select the Exit and Save Changes if you would like the changes to be
implemented into the unit.The Software Configuration Menu is shown
below.
3.3.3 Option #1 DTE Rate
If option 1 is selected in the Software Configuration Menu, a DTE Rate
sub-menu will be displayed to select the DTE Rate of the unit.After
selecting the required DTE rate, the Software Configuration Menu will
be displayed.NOTE: The Model 1095 is currently set for NetLink PlugAnd-Play, all dip-switches in the ON position, if you are connecting your
Model 1095 to a Model 1095RC the stand alone unit will automatically
configure itself for the DTE rate selected on the 1095RC.For more
information on the NetLink Plug-And-Play setup please refer to the
Patton Electronics web site (www.patton.com).
11 12
3.3.4 Option #2 Clock Mode Selection Menu
If option 2 is selected in the Software Configuration Menu, the Model
1095 will display the Clock Mode Selection Menu.This menu will allow
the user to set the clock mode for the Model 1095 stand alone unit.
After making your selection the Model 1095 will display the Software
Configuration Menu.
3.3.5 Option #3 DTE Interface Type
If option 3 is selected in the Software Configuration Menu, the Model
1095 will display the DTE Interface Type Menu.This menu allows the
user to select the type of Quick Connect Module that is installed in the
unit. By default, the Model 1095 is set for Serial/Ethernet Interface.This
selection will cover almost all of the Patton Quick Connect Modules
except the IM1/K G.703/G.704 Quick Connect Module.
If you are using this interface, and it supports n x 64K G.704 network
extension, then you should set your Interface Type for 2) G.703/G.704
Interface.
NOTE: Ear ly versions of the Model IM1/K do not support G.704
network extension. Review your manual to be sure. If your IM1/K is
revision B or earlier, it does not support G.704 extension.Leave your
Model 1095 set for Serial/Ethernet Interface.
3.3.6 Option #4 DTE Loopback Requests
If option 4 is selected the Model 1095 will display the DTE Loopback
Request menu.This menu will allow the user to enable or disable loopbacks from the DTE interface.The DTE Loopback Request menu is
shown in the following diagram.If the IM1/I Quick Connect Module is
installed, select 2) Disable Response to DTE Loopback Request.
3.3.7 Option #5 Transmit Data Sampling Point
If option 5 is selected the Model 1095 will display the Transmit Data
Sampling Point menu.This menu allows the user to set the sampling
point for the transmit data entering the Model 1095 from the DTE interface.Under nor mal conditions this variable should be set to normal.
The Transmit Data Sampling Point menu is shown in the following diagram.
3.3.8 Option #6 CO/CP Mode
If option 6 is selected the Model 1095 will display the CO/CP Mode
menu.This option is only needed when the Model 1095 is using the
IM1/K and it is connected to another DSL modem using the
G.703/G.704 interface module (i.e.1088/K, 1095RC/K, 1095/K, etc). In
that particular application, both the 1095 units should be set for the
external clock mode and one unit will need to be forced into the CP
mode for the DSL line to function properly.
3.3.9 Option #7 Change Password
If option 7 is selected the Model 1095 will request a new password
from the user.After the password is entered the Model 1095 will
request that you confirm the changes.
3.3.10 Exiting the Configuration Mode
After making configuration changes, select option #9 (Exit and Save
Changes) to implement the configuration changes. If you do not want
the configuration changes to be implemented, select option #8 (Exit
Without Saving Changes).
13 14
3.4 NETLINK PLUG-AND-PLAY
The NetLink Plug-and-Play application allows ISPs and PTTs to
quickly upgrade the link speed for a customer without re-configuring
the Customer Premise (CP) Model 1095. It will also allow ISPs and
PTTs to set up all of the configurations at the Central Office (on the
rack cards) before installation of the stand alone units, thus saving time
spent configuring and re-configuring DIP switch settings.
The NetLink Plug-and-Play feature allows the user to configure the
DTE rate for the link from the rack card at the Central Office (CO). The
stand alone unit at the Customer Premise (CP) site will automatically
configure itself to the DTE rate of the rack card. Other configuration
parameters fall to the default state. This allows changes in the configuration to be handled from a single end of the link.
When installing a CO/CP style application, the local end of the link
is comprised of a CO unit (1095RC) set to either Internal or External
clocking mode and a CP unit (1095) set as a NetLink Plug-and-Play
CP.
The NetLink Plug-and-Play CP stand alone will have all of its
DIP switches set to the ON position
(as indicated below in Figure 3).
When the units are connected, the CP will come up with a predefined default configuration (Receive Recovered Clocking). During the
handshaking process between the units, the CO unit will set the DTE
rate/line rate of the CP unit to match its DIP switch configuration settings. If the DTE rate for the link requires a change, the change is
needed only at the CO side of the link.
The NetLink Plug and Play application will also work in the managed system using the Model 1001MC and 1095RC cards installed in
Patton’s 2U rack system. In this application, the system administrator
can configure the entire rack through the Network Management Station
(NMS) before the stand alone (CP) units are installed. For more information on the SNMP management of your rack, please refer to the
Model 1001MC Operations Manual.
1095RC
(CO)
1095
(CP)
DIP Switches all in ON position
DIP Switches configured according
to specific application requirements
Figure 3. Typical NetLink Plug-and-Play Application
15
16
4.0 INSTALLATION
Once the Model 1095 is properly configured, it is ready to connect
to the twisted pair interface, to the serial port, and to the power source.
This section tells you how to make these connections.
4.1 CONNECTING THE TWISTED PAIR INTERFACE
The Model 1095 supports communication between two DTE
devices at distances to 5 miles (8 km) over 24 AWG (.5mm) twisted
pair wire. There are two essential requirements for installing the Model
1095:
1. These units work in pairs. Both units at the end of the twisted
pair must have the same 2-Wire connection and DTE rate.
2. To function properly, the Model 1095 needs one
twisted pair of metallic wire. This twisted pair must be
unconditioned, dry, metallic wire, between 19 (.9mm) and 26
AWG (.4mm) (the higher number gauges will limit distance).
Standard dial-up telephone circuits, or leased circuits that run
through signal equalization equipment, or standard, flat modular telephone type cable, are
not acceptable
.
The RJ-45 connector on the Model 1095’s twisted pair interface is
polarity insensitive and is wired for a two-wire interface. The signal/pin
relationships are shown in Figure 4 below.

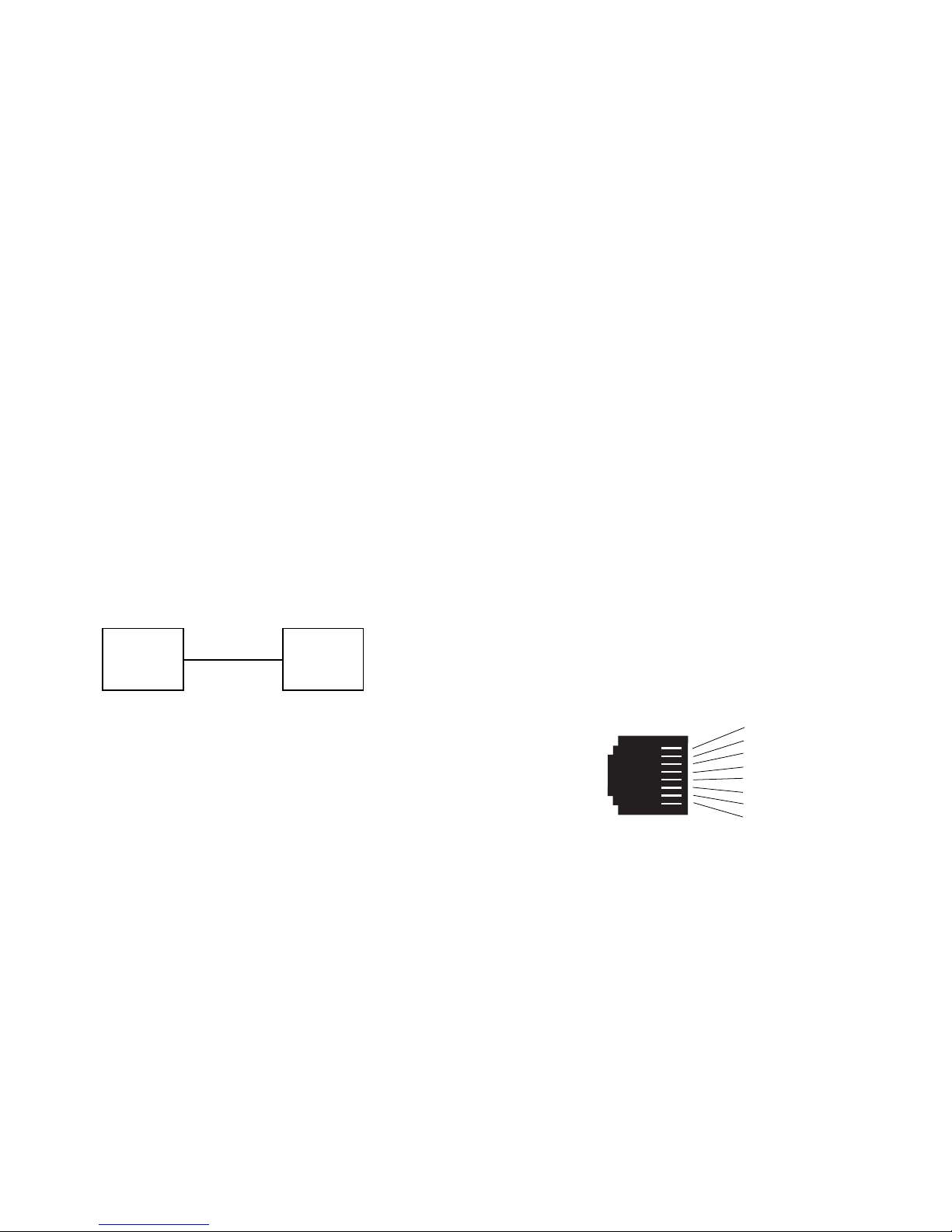

Figure 4. Model 1095 twisted pair line interface.
1 (N/C)
2 (N/C)
3 (N/C)
4 (2-Wire TIP)
5 (2-Wire RING)
6 (N/C)
7 (N/C)
8 (N/C)
1
2
3
4
5
6
7
8
4.2 CONNECTING THE SERIAL PORT
The serial port interface on the Model 1095 uses interchangeable
QuikConnect™
Modules. Each
QuikConnect™
Module has a 50-pin
card edge connector on one side and a serial port interface on the
other. Figure 4 below shows how a
QuikConnect™
Module plugs into
the back of the Model 1095.
4.2.1 Changing
QuikConnect™
Modules
When you purchase a particular version of the Model 1095, it
should be shipped to you with the appropriate
QuikConnect™
Module
already installed. If you need to install a different
QuikConnect™
Module, follow these steps:
Removing the Existing
QuikConnect™
Module
1) Turn the power switch off. Leave the power cord plugged into a
grounded outlet to keep the unit grounded.
2) Loosen the two thumbscrews on the module by turning them
counterclockwise.
3) Grasp the two thumbscrews and gently pull the module from
the unit. Apply equal force to the thumbscrews to keep the
module straight during the removal process
Installing the New
QuikConnect™
Module
1) Make sure the power switch is off. Leave the power cord
plugged into a grounded outlet to keep the unit grounded.
18
0 OFF
1 ON
Line
Interface Port
Figure 5. Installation of Model 1095 Plug-in Serial Interface Module
17
2) Hold the module with the faceplate toward you and align the
module with the guide slots in the rear panel of the Model
1095.
3) While keeping the module’s faceplate parallel with the Model
1095 rear panel, slide the module straight in – so that the card
edge contacts line up with the socket inside the chassis.
4) With the card edge contacts aligned with the socket, firmly seat
the module by using your thumbs to apply pressure directly to
the right and left edges of the module faceplate. Applying moderate and
even
pressure should be sufficient to seat the mod-
ule. You should hear it “click” into place.
5) To secure the module in place, push the thumbscrews into the
chassis and turn the screws clockwise to tighten.
4.2.2 Connecting to a “DTE”Device
The serial port on most
QuikConnect™
interface modules (all
except the X.21 module) is hard-wired as a DCE. Therefore these
modules “want” to plug into a DTE such as a ter minal, PC or host.
When making the connection to your DTE device, use a straight
through cable of the shortest possible length—we recommend 6 feet
or less. When purchasing or constructing an interface cable, please
refer to the pin diagrams in Appendix C as a guide.
4.2.3 Connecting to a “DCE”Device
If the Model 1095’s QuikConnect™ interface module is hard-wired
as a DCE (all except the X.21 module), you must use a
null modem
cable when connecting to a modem, multiplexer or other DCE device.
This cable should be of the shortest possible length—we recommend
6 feet or less. When purchasing or constructing a null modem interface cable, use the pin diagrams in Appendix C as a guide.
NOTE: The card edge connector should meet the socket when
it is almost all the way into the chassis. If you encounter a lot of
resistance, remove the module and repeat steps 2 & 3.
NOTE: Pin-out requirements for null modem applications vary
widely between manufacturers. If you have any questions about
a specific application, contact Patton Electronics Technical
Support.
4.2.4 Configuring the X.21
QuikConnect™
Module
The serial port on the X.21
QuikConnect™
Module is default wired
as a DCE, but may be switched to a DTE. This is done by reversing
the orientation of the DCE/DTE strap, as described below:
To reverse DCE/DTE orientation, remove the module according to
the instructions in Section 4.2.1. The DCE/DTE strap is located on the
bottom side of the module’s PC board. The arrows on the top of the
strap indicate the configuration of the X.21 port (for example, if the
DCE arrows are pointing toward the DB-15 connector, the X.21 port is
wired as a DCE). Reverse the DCE/DTE orientation by pulling the
strap out of its socket, rotating it 180º, then plugging the strap back
into the socket. You will see that the DCE/DTE arrows now point in the
opposite directions, showing the new configuration of the X.21 port.
Reinstall the module according to the instructions in Section 4.2.1.
4.3 CONNECTING POWER
The Model 1095 is available with two power supply options:
Universal Interface AC Power Supply option (Model 1095-UI)
operates in environments ranging from 100 to 253 VAC, with no reconfiguration necessary (see Appendix B for available domestic and
international power cords).
DC Power Supply option (Model 1095-DC) operates in 48 VDC
environments and is equipped with a 3-pin “terminal strip” style connector.
4.3.1 Connecting to an AC Power Source
The Universal Interface AC Supply is equipped with a male IEC-
320 power connection. A domestic (US) power supply cord is supplied with the unit at no extra charge. To connect the standard or universal power supply, follow these steps:
1) Attach the power cord (supplied) to the shrouded male IEC320 connector on the rear of the Model 1095.
2) Plug the power cord into a nearby AC power outlet.
3) Turn the rear power switch ON.
19
20
4.3.2 Connecting to a DC Power Source
The 48 VDC power supply option uses a 3-pin terminal block with
spring-type connectors. Please refer to the Model 1090 Series Service
Manual for the power line voltage connections.
WARNING! There are no user-serviceable parts in the
power supply section of the Model 1095. Fuse replacement
should only be performed by qualified service personnel.
Contact Patton Electronics Technical support at
(301)975-
1007
, via our web site at http://www.patton.com, or by e-mail
at support@patton.com, for more information.
5.0 OPERATION
Once the Model 1095 is properly configured and installed, it
should operate transparently. This sections describes power-up, reading the LED status monitors, and using the built-in loopback test
modes.
5.1 POWER-UP
To apply power to the Model 1095, first be sure that you have read
Section 4.3, and that the unit is connected to the appropriate power
source. Then power-up the unit using the rear power switch.
5.2 LED STATUS MONITORS
The Model 1095 features eight front panel LEDs that monitor
power, the DTE signals, network connection and test modes. Figure 6
(below) shows the front panel location of each LED. Following Figure
5 is a description of each LEDs function. (See also, Appendix E.)
TD & RD Glows yellow to indicate an idle condition of Binary
“1” data on the respective terminal interface signals. Green indicates Binary “0” data
CTS Glows green to indicate that the Clear to Send sig-
nal from the modem is active.
CD Glows yellow if no carrier signal is being received
from the remote modem. Green indicates that the
remote modem’s carrier is being received.
DTR Glows green to indicate that the Data Terminal
Ready signal from the terminal is active.
Model 1092
KiloModem 2W
High Speed 2-Wire Short Range Modem
RDTD CTS CD DTR ERNS TM
Test Modes
Control Port
Local -
Normal -
Remote -
- 511E
- Normal
- 511
Figure 6. Model 1095 Front Panel
NetLinkTMmDSL Model 1095 High Speed Modem
21
22
ER - blinks ON/OFF after a 511/511E test has timed
out. See Section 5.3.3 (Test Pattern Generator) for
more information.
- flashes once to indicate that a CRC error has
occurred (during normal operation) or bit errors
have occurred (during 511/511E tests).
- Only at power up, blinks once every 200 ms if
the DTE Rate is set to an unsupported settings
TM glows yellow to indicate that the Model 1095
has been placed in Test Mode. The unit can be
placed in test mode by the local user or by the
remote user. The TM LED will flash for 400msec
when a valid packet is received from the Model
1001MC.
NS (No Signal) glows red to indicate that the local
Model 1095 is not connected with the remote
Model 1095.
5.3 TEST MODES
The Model 1095 offers two proprietary loopback test modes, plus
a built-in V.52 BER test pattern generator to evaluate the condition of
the modems and the communication link. These tests can be activated
physically from the front panel or via the DTE interface.
5.3.1 Overview
Figure 6 below shows the major elements used in the loop-back
and pattern tests available in the Model 1095.Each block has several
functions. Following Figure 7 are descriptions that show how the elements are used during Test Modes.
Figure 7: Block Diagram Model 1095
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Framer The framer is used to determine the status of
the line. In normal operation the framer transmits
and expects to receive framed packets from the
far end. If the framer receives framed packets
from the far end, CTS and CD will be active.If
framed packets are not received, CTS and CD
will be inactive.The restart procedure uses this
information to determine if a valid connection is
made (cable disconnect, poor cable quality, etc).
In normal Data Mode, if the box receives 4 seconds of unframed packets it will restart the box
and begin trying to re-establish a connection
with the far end.The distinction between framed
packets and unframed packets becomes important when we discuss the Pattern Generator.
Pattern Gen/Det This par t of the Processor generates and
detects the 511/511E patterns. When transmitting 511 patterns, the information is unframed
(because it originates after the framer) and is
intended to be evaluated only by another
Processor.If the units are in Data Mode and the
pattern generator is enabled on one end of the
link, the far end will begin receiving unframed
packets and assume that the line has gone
down. During test modes, we force the pattern
generator to time out before it can cause the link
to be killed.
Loop Control This part of the Processor is used to control
loop-backs.In a Local Loop, the data is looped
back towards the local DTE.In a Remote Loop,
the data is looped back to the line, but it is also
allowed to pass through to the framer and to the
remote DTE.
23
24
Restart Procedure The restart procedure is in place to allow the
and Time Outs units to re-establish a connection after the
framer begins seeing unframed packets. The
Test Model Timing Chart below shows the
amount of time the framer must see consecutive
unframed packets before the unit will restart and
try to establish a new line connection.The reason that there are different Restart Times will
become apparent after reading the rest of the
document.The 511/511E Time Out shown refers
to the amount of time the 511/511E pattern will
be valid. At the end of this time the patter n will
automatically turn itself off and the normal data
path will be re-established.The ER led will flash
indicating to the user that the test has timed out.
The ER led will stop flashing once the 511/511E
switch is placed into the normal position.
Symbol Indicators
This symbol designates the origination or the
termination of a data path. The direction of the
arrow connected distinguish the two data paths.
This symbol designates an invalid data path.If
there is data present it should be ignored.
Test Mode Timing
Item Elapsed Time (seconds)
Start Up 50
Data Mode 4
511/511E Generator Enabled 60 (The generator will stop after 45 seconds.)
Remote End of an RDL 60
511/511E Time Out 45 (The pattern generator will automatically turn
off after 45 seconds. The ER LED will flash until
the user turns off the 511/511E switch.)
5.3.2 Loops and Patterns
The following section describes the Test Modes used in the Model
1095. At the bottom of each Test Mode, a figure is included to show
the data path.
Local Loop There are two different modes of operation for a
Local Loop depending on the status of the units
at the time that the Local Loop is initiated. If the
units are not in linked (NS LED on) and the
Local Loop is initiated, either by the front panel
switch or the DTE interface, the unit will enter
mode 1. If the units are linked, NS LED off, then
the unit will enter a mode 2 Local Loop.
A Mode 1 Local Loop is shown in Figure 7.
When the Local Loop is initiated, either by the
front panel switch or the DTE interface, the loop
will be activated within the local Processor. The
data present at the local DTE interface will be
looped back to the local DTE by the Loop
Control block within the Processor.Any data
present on the line or at the far end DTE interface is invalid. The remote unit will remain in the
StartUP mode, NS LED on, CTS LED yellow,
and CD LED yellow, until the local unit is taken
out of the Local Loop mode. After the Local
Loop is deselected, the units will both be in
StartUP mode and the link will be established.
A mode 2 Local Loop is shown in Figure 8.
When the Local Loop is initiated, either by the
front panel switch or the DTE interface, two separate loop paths will be started. In the first path,
data presented to the local DTE interface will be
looped back to the local DTE within the framer.
In the second path, data presented at the far
end DTE will be transmitted to the local DTE
and then looped back within the local DTE Loop
Control block with the Processor.After the Local
Loop is deselected, the units will be placed back
into DataMode and the normal data paths will
be re-established.
25
26
Figure 8. Block Diagram Local Loop Mode 1
Figure 9. Block Diagram Local Loop Mode 2
Local Loop When the unit is placed into a Mode 1. Local
with 511/511E Loop and the 511/511E pattern generator is
activated, the local pattern generator begins
sending out a 511/511E pattern to the Loop
Control block.The Loop Control block will loop
this data back to the 511/511E pattern detector
block, which will evaluate the data for errors.
Because the 511/511E pattern generator is contained within the Processor the data is unframed
so the framer will begin seeing unframed packets.The framer receives this unframed data and
can not distinguish this information from a line
disconnection (this would cause the units'
Restart procedure to start). What we have done
to allow this mode to work is to add time outs for
the pattern generators.When the 511/511E is
initiated, the line restart procedure is changed to
one minute.The 511/511E pattern will timeout
after 45 seconds. So if the 511/511E is turned
on during a local loop, the restart procedure is
set to one minute, but the 511/511E pattern will
time out after 45 seconds, allowing the framer to
begin seeing framed packets (and not restart
the box).
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Pattern
Gen/Det
Loop Contr
ol
Loop Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Local Loop After the 511/511E pattern times out, the ER led
with 511/511E will begin flashing. It will remain this way until
(continued) the pattern generator switch is turned off. Note
that the data at the local DTE and the remote
DTE are not valid. Because the data is unframed
there is no way for the framer to send this data
out to the DTE.This is an impor tant distinction
because other Patton units will send out the 511
pattern.
When the unit is placed into a Mode 2 Local
Loop, the 511/511E pattern generator on the
local unit is unavailable for transmission. As can
be seen from Figure 11, the 511/511E pattern
generator has no data path connections available.The 511/511E pattern generator is still
available on the remote unit.For more information on the proper operation of this pattern generator please refer to the "Remote Digital Loop
with 511/511E" section.
Figure 10. Block Diagram Local Loop Mode 1 with 511/511E
Figure 11. Block Diagram Local Loop Mode 2 with 511/511E
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
27
28
Remote Digital The Remote Loop uses the EOC channel (an
Loop out-of-band signaling channel) to establish the
remote link. Upon the RDL switch being thrown
or DTE initiation, a RDL_ON Request signal is
sent to the remote unit.The Remote unit then
responds with an RDL Acknowledge command
and the link is established. Data originates at the
local DTE and is looped at the Remote
PROCESSOR back to the Local DTE.Note that
the data is also passed through to the Remote
DTE and is not squelched.When a Remote unit
enters RDL, it changes its' Restart timeout to
one minute (the reason will be explain in the
RDL with 511/511E section). If the line is disconnected, the local unit will Restart (NS led activated) after 4 - 6 seconds, but the Remote unit will
wait for one minute before it Restarts.Note that
the transmit data at the Remote DTE is ignored.
When the switch is thrown or the DTE removes
the RDL request, the local unit will transmit an
RDL_OFF Request to the Remote unit.The
local unit will keep its' TM led active until this
request has been completely sent out. If the
switch is thrown again before the completion of
the termination phase the switch will be ignored
until it is placed back into the normal position.
Figure 12. Block Diagram Remote Loop
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Remote Digital The Remote Digital Loop with 511/511E is
Loop with shown above.After RDL is established the
511/511E Remote units' Restart Timer is set to one
minute.This has been done because when the
511/511E generator is started on the local unit,
the Remote framer begins seeing unframed
packets.The Remote unit can not distinguish
the 511/511E pattern from the line being disconnected so the Restart Timer has been
lengthened to allow the pattern generator to
function. Once the 511/511E test is started, the
Local unit changes its' Restart Timer to one
minute.The pattern originates within the
Processor and is sent to the Remote unit. It is
then looped back to the Local unit where it is
evaluated for errors. After 45 seconds, the
Pattern Generator will timeout and stops sending the pattern. The ER led will begin blinking
until the user turns off the 511/511E switch.
Figure 13. Block Remote Loop with 511/511E
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
29
30
Data Mode with When the units enter DataMode it is possible to
511/511E Pattern tur n on the 511/511E patter n generators on
Generators both ends of the link. Once a 511/511E pattern
is selected on one end of the link, the pattern
generator will begin transmitting unframed
511/511E through the line to the Remote end. A
possible problem with this test can occur due to
the Restart procedure. Once the Local 511/511E
is turned on, the Remote unit begins receiving
an unframed 511 pattern. If the Remote unit
does not turn on the 511/511E-pattern generator
within 4 seconds, the Remote unit will Restart
and enter the StartUp mode. Note that once the
511/511E-pattern generator is started the
Restart timer is changed to one minute (only on
the unit which has the pattern enabled). If both
units enable the 511/511E pattern within 4 seconds of each other, both units will be transmitting and receiving the 511/511E pattern. Both
framers are now receiving unframed data and
will restart after one minute.The 511/511E pattern generators will TimeOut after 45 seconds
re-enabling the normal data path.The ER led
will begin flashing until the user terminates the
test.
Figure 14. Block Diagram DataMode with 511/511E
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
5.3.3 Using the V.52 (BER) Test Pattern Generator
To use the V.52 BER tests in conjunction with the Remote Digital
Loopback tests (or with Local Line Loopback tests), follow these
instructions:
1. Locate the “511/511E” toggle switch on the front panel of the
1095 and move it DOWN. This activates the V.52 BER test
mode and transmits a “511” test pattern into the loop. If any
errors are present, the local modem’s red “ER”LED will blink
sporadically.
2. If the above test indicates no errors are present, move the
V.52 toggle switch UP, activating the “511/E” test with
errors present. If the test is working properly, the local
modem's red “ER” LED will blink. A successful “511/E” test
will confirm that the link is in place, and that the Model
1095’s built-in “511” generator and detector are working
properly.
NOTE:The above V.52 BER tests can be used independently of
the Remote Digital Loopback tests. This requires two operators:
(1) to initiate and monitor the tests at the local Model 1095, and
(2) to do the same at the remote Model 1095. In this case, the
test pattern sent by each Model 1095 will not be looped back, but
will be transmitted down the line to the other Model 1095. While
one operator initiates test, the other monitors for errors.
31 32
APPENDIX A
PATTON ELECTRONICS MODEL 1095
SPECIFICATIONS
Transmission Format: Synchronous
Transmission Line: Two-Wire unconditioned twisted pair
Clocking: Inter nal, external or receive recovered clock
Interface Modules: EIA RS-232/ITU/T V.24, RS-232/530,
ITU/T V.35 and ITU/T X.21
Line Rates: 144, 272, 400, 528, 784, 1040, 1552,
2064, and 2320 kbps
DTE Rates: 64, 128, 192, 256, 320, 384,448, 512, 576,
640, 704, 768, 832, 896, 960, 1024, 1088,
1152, 1216, 1280, 1344,1408, 1472, 1536,
1544, 1600, 1664, 172, 1792, 1856, 1920,
1984, 2048, 2112, 2176, 2240, and 2304 kbps
Diagnostics: V.52 compliant bit error rate pattern
(511/511E pattern) generator and detector
with error injection mode; Local Line
Loopback and Remote Digital Loopback,
activated by front panel switch or via serial
interface
LED Status Indicators: TD, RD, CTS, CD, DTR, NS(no signal), ER
(error) and TM (test mode)
Connectors: RJ-45 on line side; DB-25 female, M/34
female or DB-15 female depending upon
which serial interface module is installed.
Power: 100-253 VAC, 50-60 Hz (universal input);
48 VDC (option), 10 watts.
Line Protection: Surge Arrestor standard on all units
Temperature Range: 32-122°F (0° -50°C)
Altitude: 0-15,000 feet
Humidity: 5 to 95% non-condensing
Dimensions:
7.3” x 6.6” x 1.62” (185mm x 168mm x 41mm
Weight: 2.01 lbs. (1.0kg)
APPENDIX B
PATTON ELECTRONICS MODEL 1095
FACTORY REPLACEMENT PARTS
AND ACCESSORIES
P
atton Electronics Model # Description
IM1/A...............................V.24 with DB25F
IM1/B...............................RS422/RS530 with DB25F
IM1/C...............................V.35 with M34F
IM1/D...............................X.21 with DB15F
IM1/E...............................V.35 with DB25F
IM1/F...............................G.703 with RJ45
IM1/I ................................Ethernet Bridge Module
IM1/J................................Voice/Data Module
0805US ...........................American Power Cord
0805EUR.........................European Power Cord CEE 7
0805UK ...........................United Kingdom Power Cord
0805AUS.........................Australia/New Zealand Power Cord
0805DEN.........................Denmar k Power Cord
0805FR............................France/Belgium Power Cord
0805IN.............................India Power Cord
0805IS.............................Israel Power Cord
0805JAP..........................Japan Power Cord
0805SW...........................Switzerland Power Cord
07M1090SVC..................1090 Series Service Manual
12F-561............................DB-25 to EIA-561
12M-561............................DB-25 to EIA-561
33 34
APPENDIX C
PATTON ELECTRONICS MODEL 1095
INTERFACE PIN ASSIGNMENT
RS-232, RS-530 Interface Pin Description
(DB-25 Female Connector)
(DCE Configuration)
Pin # Signal
1 FG (Frame Ground)
2 TD (Transmit Data)
3 RD (Receive Data)
4 RTS (Request to Send)
5 CTS (Clear to Send)
6 DSR (Data Set Ready)
7 SGND (Signal Ground)
8 CD (Carrier Detect)
9 RC/ (Receive Timing-B)
10 CD/ (Carr ier Detect-B)
11 XTC/ (External Transmit Clock)
12 TC/ (Transmit Clock-B)
13 CTS/ (Clear to Send)
14 TD/ (Transmit Data-B)
15 TC (Transmit Clock-A)
16 RD (Receive Data)
17 RC (Receive Timing)
18 LLB (Local Line Loop)
19 RTS/ (Request to Send)
20 DTR (Data Terminal Ready)
21 DL (Remote Digital Loop)
22 DSR/ (Data Set Ready)
23 DTR/ (Data Terminal Ready)
24 XTC (External Transmit Clock)
25 TM (Test Mode)
V.35 Interface
(M/34F Female Connector)
(DCE Configuration)
Pin # Signal
B ...........................SGND (Signal Ground)
C ...........................RTS (Request to Send)
D ...........................CTS (Clear to Send)
E ...........................DSR (Data Set Ready)
F............................CD (Carrier Detect)
H ...........................DTR (Data T erminal Ready)
L............................LLB (Local Line Loop)
M...........................TM (Test Mode)
N ...........................RDL (Remote Digital Loop)
P ...........................TD(Transmit Data)
R ...........................RD (Receive Data)
S ...........................TD/ (Transmit Data-B)
T............................RD/ (Receive Data-B)
U ...........................XTC (External Transmit Clock)
V ...........................RC(Receive Timing)
W...........................XTC/ (External Transmit Clock)
X ...........................RC/ (Receive Timing)
Y ...........................TC(Transmit Clock-A)
AA ..........................TC/ (Transmit Clock-B)
X.21 Interface
(DB-15 Female Connector)
(DTE /DCE Configuration)
Pin # Signal
1. . . . . . . . . . . . Frame Ground
2. . . . . . . . . . . . T (Transmit Data-A)
3. . . . . . . . . . . . C (Control-A)
4. . . . . . . . . . . . R (Receive Data-A)
5. . . . . . . . . . . . I (Indication-A)
6. . . . . . . . . . . . S (Signal Element Timing-A)
7 . . . . . . . . . . . BT (Byte Timing-A)
8 . . . . . . . . . . . SGND (Signal Ground)
9 . . . . . . . . . . . T/ (Transmit Data-B)
10 . . . . . . . . . . . C/ (Control-B)
11 . . . . . . . . . . . R/ (Receive Data-B)
12 . . . . . . . . . . . I/ (Indication-B)
13 ........................S/ (Signal Element Timing-B)
14 .......................BT/ (Byte Timing-B)
35 36
Line Rate DTE Rates
kbps kbps feet miles km feet miles km feet miles km feet miles km feet miles km feet miles km feet miles km
144 64, 128 21400 4.0 6.6 30700 5.8 9.4 42980 8.1 13.2 55260 10.4 17.0 64470 12.2 19.8 70610 13.4 21.7 90784 17.2 27.9
272 192, 256 20300 3.8 6.2 30600 5.8 9.4 42840 8.1 13.2 55080 10.4 16.9 61200 11.6 18.8 70380 13.3 21.7 90488 17.1 27.8
400 320, 384 18600 3.5 5.7 29100 5.5 9.0 40740 7.7 12.5 52380 9.9 16.1 55290 10.5 17.0 66930 12.7 20.6 86053 16.3 26.5
528 448, 512 17400 3.3 5.4 26100 4.9 8.0 36540 6.9 11.2 46980 8.9 14.5 49590 9.4 15.3 60030 11.3 18.5 77181 14.6 23.7
784 576-768 15800 3.0 4.9 22600 4.3 7.0 29380 5.6 9.0 38420 7.3 11.8 42940 8.1 13.2 51980 9.8 16.0 67974 12.9 20.9
1040 832-1024 15500 2.9 4.8 22100 4.2 6.8 28730 5.4 8.8 37570 7.1 11.6 41990 7.9 12.9 50830 9.6 15.6 66470 12.6 20.5
1552 1088 - 1536 13600 2.6 4.2 19200 3.6 5.9 24960 4.7 7.7 32640 6.2 10.0 34560 6.5 10.6 44160 8.3 13.6 57748 10.9 17.8
2064 1600 - 2048 12200 2.3 3.8 17200 3.3 5.3 22360 4.2 6.9 29240 5.5 9.0 30960 5.9 9.5 39560 7.5 12.2 51732 9.8 15.9
2320 2112 - 2304 11500 2.2 3.5 15800 3.0 4.9 20540 3.9 6.3 26860 5.1 8.3 28440 5.4 8.8 36340 6.9 11.2 47522 9.0 14.6
Distance Table Model 1095/1088 mDSL Modem Standalone and Rack card
18g (1.0mm) 16g (1.2mm)
NO NOISE
19g (0.9mm)20g (0.8mm)26g (0.4mm) 24g (0.5mm) 22g (0.6mm)
APPENDIX D
Transmission Distance Chart
37 38
APPENDIX E
LED DESCRIPTIONS
Model 1095RC RS-530 DTE interface
Clock (CO) Internal 768Kb No DTE Clock (CP) R/R No DTE
TD RD CTS CD DTR NS ER TM TD RD CTS CD DTR NS ER TM
Power ON G O Y Y G ON off off O O Y Y off ON off off
DSL Link G O G G G off off off O G G G off off off off
Link Brk G O Y Y G off off off O O Y Y off off off off
Brk+ 10s G G Y Y G ON off off O O Y Y off ON off off
RDL G G G G G off off ON O G G G off off off ON
RDL+511 G G Y Y G off off ON O G Y Y off off off ON
With DTE Connected With DTE Connected
Mark O O G G G off off off O O G G G off off off
Space G G G G G off off off G G G G G off off off
Data GO GO G G G off off off GO GO G G G off off off
Link Brk = DSL Link Broken
Brk+10s = 10 Seconds following Link Break
G= GREEN
O= ORANGE
ON= ON
off= OFF
Y= yellow
APPENDIX F
PATTON MODEL 1095 PIN OUT CONTROL PORT
The Model 1095 control port is an eight position connector, compliant with EIA/TIA-561. Use the following diagram to create a cable to connect your VT100 terminal to the 1095 Control port.
Pin Function
DB-25 (RS-232) RJ45 Pin No.
Ground 7-----------------------------------4
Receive data (to DTE) 3-----------------------------------5
Transmit data (from DTE) 2-----------------------------------6
Copyright ©2000
Patton Electronics Company
All Rights Reserved
Loading...
