MODEL 1094ARC
NetLink™ HDSL
Symmetric DSL
Rack Mount Modem Card
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007
http://www.patton.com
Part# 07M1094ARC-A
Doc# 032052UA
Revised 06/24/99
CERTIFIED
An ISO-9001
Certified
Company
USER
MANUAL
1
2
TABLE OF CONTENTS
SECTION PAGE
1.0 Warranty Information.............................................................2
1.1 Radio and TV Interference
1.2 CE Notice
1.3 Service Information
2.0 General Information...............................................................4
2.1 Features
2.2 Description
3.0 Configuration .........................................................................5
3.1 Configuring the Hardware Switches
3.1.1 Reversible Interface Driver Board
3.1.2 Connecting to a “DTE” Device
3.1.3 Connecting to a “DCE Device
3.1.4 Configuring the X.21 Interface Module
3.1.5 Configuration Switch Set “S1”
3.1.6 Configuration Switch Set “S2”
3.1.7 Configuration Switch Set “S3”
3.2 Configuring the Rear Interface Card
3.2.1 Model 1001RCM12545 & 1001RCM125TB Strap
Settings
3.2.2 Model 1001RCM13445 & 1001RCM134TB Strap
Settings
3.2.3 Model 1001RCM11545 & 1001RCM115TB Strap
Settings
4.0 Installation ...........................................................................18
4.1 The Model 1001R14P Rack Chassis
4.1.1 The Rack Power Supply
4.2 Installing the Model 1094ARC Series Into Chassis
4.3 Wiring the Model 1094ARC Series
4.3.1 Connection to the Twisted Pair Interface
4.3.2 Two-Wire Cable Connection Via RJ-45
4.3.3 Two-Wire Cable Connection Via Terminal Block
5.0 Operation .............................................................................22
5.1 LED Status Indicators
5.2 Test Modes
5.2.1 Overview
5.2.2 Loops and Patterns
5.2.3 Using the V.52 (BER) Test Pattern Generator
Appendix A - Specifications........................................................33
Appendix B - Factory Replacement Parts and Accessories.......34
Appendix C - Terminal Interface Pin Assignments.....................35
Appendix D - Transmission Distance Chart ...............................38
Appendix E - Line Interface Pin Assignments............................39
1.0 WARRANTY INFORMATION
Patton Electronics warrants all Model 1094ARC components to
be free from defects, and will—at our option—repair or replace the
product should it fail within one year from the first date of shipment.
This warranty is limited to defects in workmanship or materials,
and does not cover customer damage, abuse or unauthorized modification. If this product fails or does not perform as warranted, your sole
recourse shall be repair or replacement as described above. Under no
condition shall Patton Electronics be liable for any damages incurred
by the use of this product. These damages include, but are not limited
to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
Patton Electronics specifically disclaims all other warranties,
expressed or implied, and the installation or use of this product shall
be deemed an acceptance of these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 1094ARC generates and uses radio frequency energy,
and if not installed and used properly—that is, in strict accordance with
the manufacturer's instructions—may cause interference to radio and
television reception. The Model 1094ARC has been tested and found
to comply with the limits for a Class A computing device in accordance
with the specifications in Subpart J of Part 15 of FCC rules, which are
designed to provide reasonable protection from such interference in a
commercial installation. However, there is no guarantee that interference will not occur in a particular installation. If the Model 1094ARC
does cause interference to radio or television reception, which can be
determined by disconnecting the unit, the user is encouraged to try to
correct the interference by one or more of the following measures:
moving the computing equipment away from the receiver, re-orienting
the receiving antenna and/or plugging the receiving equipment into a
different AC outlet (such that the computing equipment and receiver
are on different branches). In the event the user detects intermittent or
continuous product malfunction due to nearby high power transmitting
radio frequency equipment, the user is strongly advised to take the following steps: use only data cables with an external outer shield bonded to a metal or metalized connector; and, configure the rear card as
shown in section 3.2 of this manual.
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates
that it is in compliance with the Electromagnetic Compatibility (EMC)
directive and the Low Voltage Directive (LVD) of the European Union.
A Certificate of Compliance is available by contacting Technical
Support.
3
4
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight prepaid and insured to Patton Electronics. All returns must have a Return
Materials Authorization number on the outside of the shipping container. This number may be obtained from Patton Electronics Technical
Support:
Tel: (301) 975-1007
Email: support@patton.com
www: http://www.patton.com
Patton Electronics' technical staff is also available to answer any
questions that might arise concerning the installation or use of your
Model 1094ARC. Technical Service hours: 8AM to 5PM EST,
Monday through Friday.
22..00 GGEENNEERRAALL IINNFFOORRMMAATTIIOONN
Thank you for your purchase of this Patton Electronics product.
This product has been thoroughly inspected and tested and is warranted for One Year parts and labor. If any questions arise during installation or use of this product, please contact Patton Electronics Technical
Support at: (301) 975-1007.
2.1 FEATURES
• DSL Distances on just two wires using HDSL technology
• DTE Speeds n x 64 to 1.152 Mbps
• 2-wire Operation
• Fits in Patton’s 2U Rackmount Chassis
• SNMP Network Management with In-Band Management of Remote
Units plus Advanced Diagnostics & Statistics using Patton Model
1001MC
• Internal, external or receive recovered clocking options
• LED indicators for TD, RD, CTS, CD, DTR, TM, ER and NS
2.2 DESCRIPTION
The Patton Electronics
NetLinkTMHDSL
Model 1094ARC Multi-
Rate DSL Modem provides high speed 2-wire connectivity to ISPs,
PTTs, and corporations using HDSL technology. HDSL offers the ability to deliver the maximum bit rate that a twisted pair line can accommodate. Supporting
multiple line
rates from 144kbps to 1168Mbps, the
NetLink provides “megabit” speeds to leased line, LAN to LAN interconnection, and WAN access networks over 2.9 miles/4.7 km
(1.152Mbps on 24AWG/.5mm wire).
The
NetLink
TM
HDSL
rack card allows
DTE speeds
from 64kbps
to 1.152Mbps in increments of 64kbps. Features include loopback
diagnostics, out-of-band SNMP/HTTP remote management capabilities, using Model 1000MC, and externally accessible configuration
switches.
As a symmetric DSL NTU,
NetLink
TM
HDSL
offers the same data
rates in both directions over a single pair of regular telephone lines
using 2B1Q modulation. The Model 1094ARC is designed to fit into
Patton’s 2U (3.5”) high rack chassis. This chassis uses a mid-plane
architecture allowing front cards to be plugged into different rear cards.
Please see the Model 1001RP14 manual for more information on the
power supply options that are available.
IMPORTANT: The Model 1094ARC is equipped with flash
upgrade. Refer to Patton website http://www.patton.com or
contact Technical Support for the latest version of the software.
NOTE: Packages received without an RMA number will not be
accepted.
5
6
33..00 CCOONNFFIIGGUURRAATTIIOONN
This section describes the location and orientation of the Model
1094ARC’s configuration switches and jumpers, and provides detailed
instructions for all possible settings.
3.1 CONFIGURING THE HARDWARE SWITCHES
The Model 1094ARC Series front card uses hardware switches for
configuration. There is an interface driver board strap, and three eightposition DIP switches, on the bottom side of the front card (see Figure
1, below).
Figure 2 shows the orientation of the DIP switches with respect to
the “ON” and “OFF” positions.
3.1.1 Reversible Interface Driver Board
The Model 1094ARC Series features switchable interface driver
boards that allow a wide range of DTE interface connections. Figure 3
shows the Interface Driver Board on the top of the 1094ARC PC
board.
Follow the instructions below to select the correct interface for your
application:
1. With the 1094ARC front card pulled out of the rack or clusterbox chassis, locate the driver board on the top of the
1094ARC front card.
2. Lift the interface board gently off of the PC board.
3. Locate the correct interface on the bottom of the driver board.
For example, the RS-232/V.35 interface board is marked
“THIS SIDE UP FOR RS-232” on one side and “THIS SIDE
UP FOR V.35” on the other side . Other “single” interface
boards are marked with “FRONT” on one side of the board.
4. Re-orient the interface board into the socket with the appropriate interface pointed UP and with the arrow pointing toward
the front panel of the Model 1094ARC PC board.
5. Push the Interface Driver Board gently onto the socket and reinstall into the rack or cluster system.

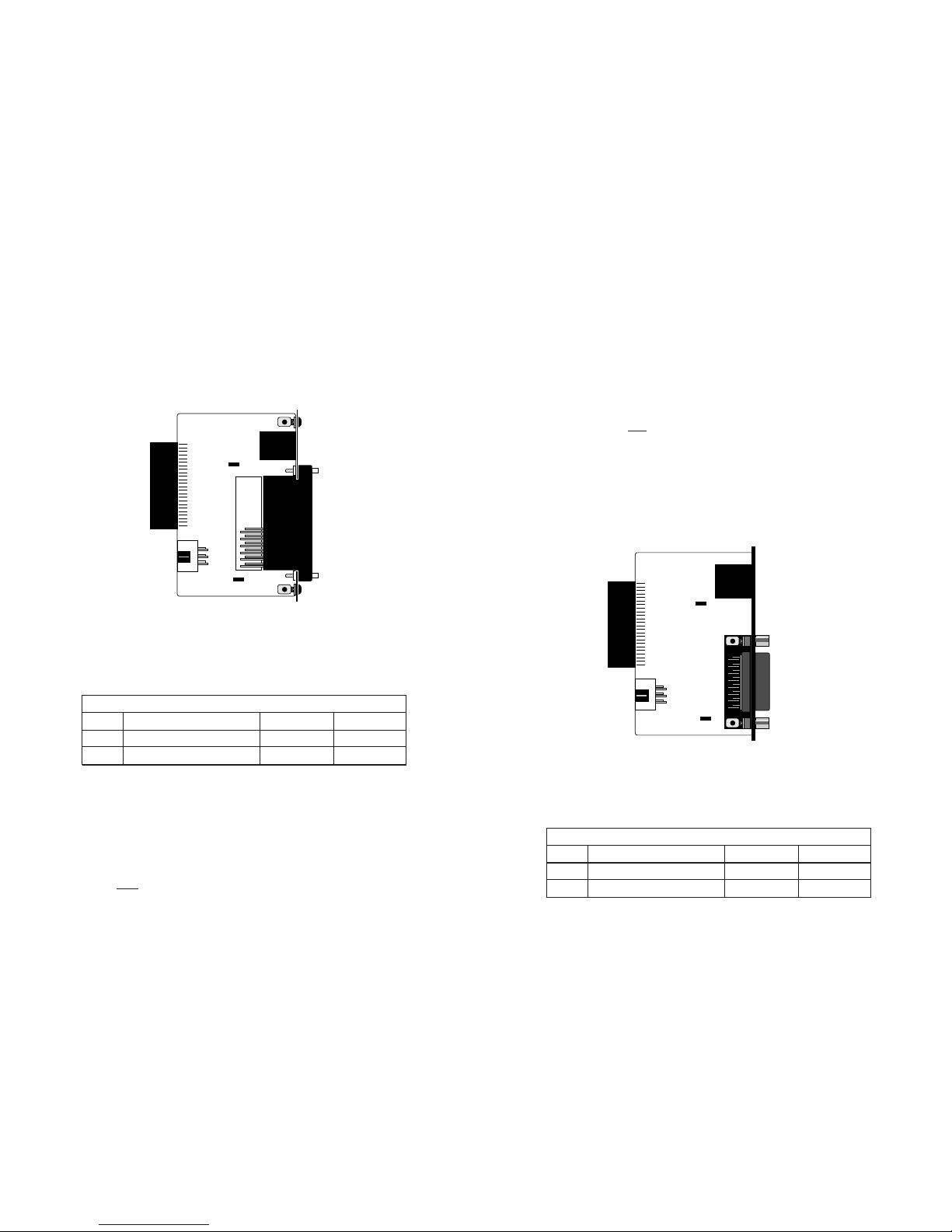

Figure 1. Model 1094ARC, showing configuration switches and interface board
Figure 2. Close up of configuration switches (both sets are identical in appearance)
12345678
ON
OFF
ON
SW3
SW2
SW1
ON
OFF
Figure 3. Closeup of Top Side of Model 1094ARC Interface Driver Board
ON
12345678
ON
12345678
Interface
Driver
Board
FRONT
THIS SIDE UP FOR V.35
7
8
3.1.2 Connecting to a “DTE” Device
The serial port on most interface modules (all except the X.21
module) is hard-wired as a DCE. Therefore these modules “want” to
plug into a DTE such as a terminal, PC or host. When making the
connection to your DTE device, use a straight through cable of the
shortest possible length—we recommend 6 feet or less. When purchasing or constructing an interface cable, please refer to the pin diagrams in Appendix C as a guide.
3.1.3 Connecting to a “DCE” Device
If the Model 1094ARC interface module is hard-wired as a DCE
(all except the X.21 module), you must use a
null modem
cable when
connecting to a modem, multiplexer or other DCE device. This cable
should be of the shortest possible length—we recommend 6 feet or
less. When purchasing or constructing a null modem interface cable,
use the pin diagrams in Appendix C as a guide.
3.1.4 Configuring the X.21 Interface Module IM2RC/D
The serial port on the X.21 Interface Module is default wired as a
DCE, but may be switched to a DTE. This is done by reversing the orientation of the DCE/DTE strap, as described below:
To reverse DCE/DTE orientation, remove the interface module
according to the instructions in Section 3.1.1. The DCE/DTE strap is
located on the top side of the interface module’s PC board. The
arrows on the top of the strap indicate the configuration of the X.21
port (for example, if the DCE arrows are pointing toward the rear card
connector, the X.21 port is wired as a DCE). Reverse the DCE/DTE
orientation by pulling the strap out of its socket, rotating it 180º, then
plugging the strap back into the socket. You will see that the
DCE/DTE arrows now point in the opposite directions, showing the
new configuration of the X.21 port. Reinstall the module according to
the instructions in Section 3.1.1.
3.1.5 Configuration DIP Switch Set “S1” - Management Address
Switch S1 is used to set the address of the card in the NetLink
Network Management System. When the 1094ARC is installed with a
Model 1001MC, the cards and their remote units can be SNMP managed using a standard Network Management Station (NMS) or a standard web browser (i.e. Netscape, Internet Explorer, etc.). For more
information on setting the address, please see Appendix A of the
Model 1001MC Operations Manual.
NOTE: If you are not using your Model 1094ARC in an SNMP
managed environment, S1 switches should all be set to the ON
position.
3.1.6 Configuration DIP Switch Set “S2”
The configuration switches on S2 allow you to specify the Line
Rate, Clocking Mode and response to DTE Loop Enable. Default settings of S2 are shown in the table below.
Switches S2-1, S2-2, S2-3, S2-4, S2-5: Reserved for Future Use
and Should Remain in the Off Position.
S2 SUMMARY TABLE
Function Factory Default
Position
Reserved Off
S2-1
Reserved Off
S2-2
Reserved Off
S2-3
Reserved Off
S2-4
Reserved Off
On
On
S2-5
Enable Loop from DTE Off Disable
S2-8
Clock Mode
S2-6
Clock Mode
S2-7
Internal
}
NOTE: Pin-out requirements for null modem applications
vary widely between manufacturers. If you have any questions
about a specific application, contact Patton Electronics
Technical Support
9
10
Switches S2-6 and S2-7: Clock Mode
Use Switches S2-6 and S2-7 to configure the 1094ARC for inter-
nal, external, or receive recover clock mode.
Switch S2-8: Enable/Disable Loop Tests from DTE
Use Switch S2-8 to allow Model 1094ARC to enter loopback tests
when the DTE raises the appropriate loop request pin.
S2-8
Setting
On Response to DTE Loopback Request Enabled
Off Response to DTE Loopback Request Disabled
3.1.7 Configuration Switch Set “S3”
Use the eight DIP Switches in Switch S3 to enable the DTE connection rate. The following table summarizes default positions of DIP
Switch S3. Detailed descriptions of each switch follow the table.
Switch S3-1: DTE Rate
Use Switch S3-1 through S3-6 to set the rate adaptive DTE bit
rate.
S3-1
S3-2 S3-3 S3-4 S3-5 S3-6 DTE Rate (kbps)
Off Off On On On On 64
On On Off On On On 128
Off On Off On On On 192
On Off Off On On On 256
Off Off Off On On On 320
On On On Off On On 384
Off On On Off On On 448
On Off On Off On On 512
Off Off On Off On On 576
On On Off Off On On 640
Off On Off Off On On 704
On Off Off Off On On 768
Off Off Off Off On On 832
On On On On Off On 896
Off On On On Off On 960
On Off On On Off On 1024
Off Off On On Off On 1088
On On Off On Off On 1152
CO/CP
Unit S2-6 S2-7 Clock Mode Description
CO On On Internal Transmit clock
generated internally
CO Off On External (DTE) Transmit clock
derived from
terminal interface
CP On Off Receive Recover Transmit clock
derived from the
received line
Off Off
Reserved
Position Function Factory Default
S3-1 DTE Rate Off
S3-2 DTE Rate Off
S3-3 DTE Rate On
S3-4 DTE Rate On
S3-5 DTE Rate On
S3-6 DTE Rate On
S3-7 Reset Software Defaults On
Normal Operation
S3-8 Transmit Data Sample Point On Normal Operation
S3 SUMMARY TABLE
}
64Kbps
11
12
Switch S3-7: Reset Software Defaults
Switch S3-7 allows the user to reset the software configured facto-
ry defaults.
S3-7 Factory Test
On Normal operation
Off Reset to factory default configuration
Switch S3-8: Transmit Data (TD) Sampling Point
Switch 3-8 controls the Transmit Data (TD) sampling point.
S3-8
Setting Description
On Normal TD sampled on the falling
edge of the 1094ARC
Transmit
Clock (TC)
Off Invert TD sampled on the rising
edge of the 1094ARC
Transmit
Clock.
3.2 CONFIGURING THE REAR INTERFACE CARD
The Model 1094ARC Series has six interface card options: the
Model 1001RCM12545 (DB-25/RJ-45), the Model 1001RCM13445
(M/34/RJ-45), the Model 1001RCM125TB (DB25/TB), the Model
1001RCM134TB (M/34/TB), the Model 1001RCM11545, and the Model
1001RCM115TB. Each of these options supports one DTE interface
connection and one 2-wire line connection. Figure 4 below illustrates
the six different interface options for the Model 1094ARC Series.
Figure 4. Model 1094ARC Series interface card options
DB-25 F
DB-15 F
DB-15 F
M/34 F
DB-25 F
M/34 F
Model
1001RCM12545
Model
1001RCM11545
Model
1001RCM115TB
Model
1001RCM13445
Model
1001RCM134TB
Model
1001RCM125TB
Terminal Block
RJ-45RJ-45 RJ-45
Terminal Block
Terminal Block
NOTE: The 1094ARC Series rear cards are specifically
designed to operate with the Model 1094ARC function card and
must not be swapped with other Patton function cards.
NOTE: Based upon the chosen DTE rate, the Model 1095RC
will automatically select the optimum line rate for distance. This
selection is based on the lowest line rate that will support the
DTE rate.
13
14
Prior to installation, you will need to examine the rear card you
have selected and make sure it is properly configured for your application. Each rear card is configured by setting straps located on the PC
board. To configure the rear cards, you must set the configuration
straps. Figure 5 below shows the orientation of these straps. Each
strap can either be on pegs 1 and 2, or on pegs 2 and 3.
Sections 3.2.1, 3.2.2, and 3.2.3 describe the strap locations and possible settings for each rear card.
3.2.1 Model 1001RCM12545 & 1001RCM125TB Strap Settings
Figure 6 shows strap locations for the Model 1001RCM125XX (DB-
25) rear cards. These straps determine various grounding characteristics for the terminal interface and twisted pair lines. JB3 and JB4 are
user configurable.
The table below provides an overview of interface strap functions
for the rear interface cards. Following the table overview are detailed
descriptions of each strap’s function.
DTE Shield (DB-25 Pin 1) & FRGND (JB3)
In the connected position, this strap links DB-25 pin 1 & frame
ground. In the open position, pin 1 is disconnected from frame ground.
JB3
Position 1&2 = DTE Shield (Pin 1) and FRGND Connected
Position 2&3 = DTE Shield (Pin 1) and FRGND Not Connected
SGND & FRGND (JB4)
In the connected position, this strap links DB-25 pin 7 (Signal
Ground) and frame ground through a 100 ohm resistor. In the open
position, pin 7 is connected directly to frame ground.
JB4
Position 1&2 = SGND (Pin 7) and FRGND Connected through
a 100 ohm resistor
Position 2&3 = SGND (Pin 7) and FRGND Directly Connected
123
JB3
JB4
123
Figure 6. 1001RCM125XX strap locations
123 123 123
Figure 5. Orientation of Interface Card Straps
INTERFACE CARD STRAP SUMMARY TABLE #1
Strap Function Position 1&2 Position 2&3
JB3 DTE Shield (Pin1) & FRGND Connected Open*
JB4 FRGND & SGND Connected Open*
* Indicates default setting
15
16
3.2.2 Model 1001RCM13445 & 1001RCM134TB Strap Settings
Figure 7 shows the strap location for the Model 1001RCM134XX
(M/34) rear card. This strap determines whether Signal Ground and
Frame Ground will be connected.
The table below provides an overview of interface strap functions
for the rear interface cards. Following the table overview are detailed
descriptions of each strap’s function.
DTE Shield (M/34 Pin A) & FRGND (JB3)
In the connected position, this strap links M/34 pin A & frame
ground. In the open position, pin A is disconnected from frame
ground.
JB3
Position 1&2 = DTE Shield (Pin A) and FRGND Connected
Position 2&3 = DTE Shield (Pin A) and FRGND Not Connected
SGND & FRGND (JB4)
In the connected position, this strap links Signal Ground and frame
ground through a 100 ohm resistor. In the open position, signal ground
is disconnected from frame ground.
JB4
Position 1&2 = SGND and FRGND Connected
Position 2&3 = SGND and FRGND Not Connected
3.2.3 Model 1001RCM11545& 1001RCM115TB Strap Settings
Figure 8 shows strap locations for the Model 1001RCM115XX (DB-
15) rear cards. These straps determine various grounding characteristics for the terminal interface and twisted pair lines. JB3 and JB4 are
user configurable.
The table below provides an overview of interface strap functions
for the rear interface cards. Following the table overview are detailed
descriptions of each strap’s function.
123
123
JB3
JB4
Figure 7. 1001RCM134XX strap locations
INTERFACE CARD STRAP SUMMARY TABLE #2
Strap Function Position 1&2 Position 2&3
JB3 DTE Shield (Pin A) & FRGND Connected Open*
JB4 FRGND & SGND (Pin B) Connected Open*
* Indicates default setting
123
JB3
JB4
123
Figure 8. 1001RCM115XX strap locations
INTERFACE CARD STRAP SUMMARY TABLE #3
Strap Function Position 1&2 Position 2&3
JB3 DTE Shield (Pin1) & FRGND Connected Open*
JB4 FRGND & SGND (Pin 8) Connected Open*
* Indicates default setting
17
18
DTE Shield (DB-15 Pin 1) & FRGND (JB3)
In the connected position, this strap links DB-15 pin 1 & frame
ground. In the open position, pin 1 is disconnected from frame ground.
JB3
Position 1&2 = DTE Shield (Pin 1) and FRGND Connected
Position 2&3 = DTE Shield (Pin 1) and FRGND Not Connected
SGND & FRGND (JB4)
In the connected position, this strap links DB-15 pin 8 (Signal
Ground) and frame ground through a 100 ohm resistor. In the open
position, pin 8 is connected directly to frame ground.
JB4
Position 1&2 = SGND (Pin 8) and FRGND Connected through
a 100 ohm resistor
Position 2&3 = SGND (Pin 8) and FRGND Directly Connected
44..00 IINNSSTTAALLLLAATTIIOONN
This section describes the functions of the Model 1001R14 rack
chassis, tells how to install front and rear Model 1094ARC Series cards
into the chassis, and how to connect to the twisted pair interface and
the serial interface.
4.1 THE MODEL 1001R14 RACK CHASSIS
The Model 1001R14 Rack Chassis (Figure 9, below) has fourteen
short range modem card slots, plus its own power supply. Measuring
only 3.5” high, the Model 1001R14 is designed to occupy only 2U in a
19” rack. Sturdy front handles allow the Model 1001R14 to be extracted and transported conveniently.
4.1.1 The Rack Power Supply
The power supply included in the Model 1001R14 rack uses the
same mid-plane architecture as the modem cards. The front card of
the power supply slides in from the front, and the rear card slides in
from the rear. They plug into one another in the middle of the rack.
The front card is then secured by thumb screws and the rear card by
conventional metal screws.
Figure 9: Model 1001R14 Rack Chassis with power supply
WARNING! There are no user-serviceable parts in the
power supply section of the Model 1094ARC Series.
Voltage setting changes and fuse replacement should
only be performed by qualified service personnel.
Contact Patton Electronics Technical support at (301)975-
1007 for more information.
19
20
Powering the 1001R14 Rack
The power supplies that are shipped with your 1001R14 rack system are equipped with a power entry connector on the rear cards. The
power supplies are Hot-Swappable, so you are not required to remove
the cards from the rack when applying power to the system. Patton
Electronics recommends that if you wish to power OFF the rack, that
you remove the front card instead of removing the power cable from
the back of the rack. Keeping the power cable connected allows the
rack to remain grounded.
4.2 INSTALLING MODEL 1094ARC SERIES INTO THE CHASSIS
The Model 1094ARC Series is comprised of a front card and a
rear card. The two cards meet inside the rack chassis and plug into
each other by way of mating 50 pin card edge connectors. Use the following steps as a guideline for installing each Model 1094ARC Series
into the rack chassis:
1. Slide the rear card into the back of the chassis along the
metal rails provided.
2. Secure the rear card using the metal screws provided.
3. Slide the front card into the front of the chassis. It should
meet the rear card when it’s almost all the way into the chassis.
4. Push the front card
gently
into the card-edge receptacle of the
rear card. It should “click” into place.
5. Secure the front card using the thumb screws.
4.3 WIRING THE MODEL 1094ARC SERIES
Each of the rear interface cards compatible with the Model
1094ARC Series has one terminal interface port and one 2-wire (twisted pair) port. For specific interface pin-outs, refer to the diagrams in
Appendix C and E of this manual.
.
4.3.1 Connection to the Twisted Pair Interface
The Model 1094ARC supports communication between two DTE
devices at distances to 5 miles (8 km) over 24AWG (.5mm) twisted pair
wire. There are two essential requirements for installing the Model
1094ARC:
1. These units work in
pairs
. Therefore, you must have one
Model 1094ARC (or a compatible model) at each end of a single twisted pair interface.
2. To function properly, the Model 1094ARC needs one twisted
pair of metallic wire. This twisted pair must be
uncondi-
tioned
, dry, metallic wire, between 19 (.9mm) and 26 AWG
(.4mm) (the higher number gauges may limit distance some
what). Standard dial-up telephone circuits, or leased circuits
that run through signal equalization equipment, or standard,
flat modular telephone type cable, are
not acceptable
.
4.3.2 Two-Wire Cable Connection Via RJ-45
1. The RJ-45 connector on the Model 1094ARC’s twisted pair
interface is polarity insensitive and is wired for a two-wire
interface.The signal/pin relationships are shown in Figure 10
below.
NOTE: Please refer to the Model 1001RP14 Series User
Manual
AC and DC Rack Mount Power Supplie
s for fuse and
power card replacement information.
Figure 10. Model 1094ARC twisted pair line interface.
1 (N/C)
2 (N/C)
3 (N/C)
4 (Tip)
5 (Ring)
6 (N/C)
7 (N/C)
8 (N/C)
1
2
3
4
5
6
7
8
IMPORTANT!: The Model 1094ARC has been optimized for
performance at high bitrates (DTE rates greater than 512 kbps).
To ensure accurate performance at these bit rates, please use
twisted pair line interface cable that is at least 330ft (100m) in
length.
21
22
4.3.3 Two-Wire Cable Connection Via Terminal Block
The two pin terminal block connector on the Model 1094ARC’s twisted
pair interface (TB rear card option) is polarity sensitive. Connection to the terminal block is made by connecting your two-wire cable to the connector supplied with your unit. For replacement parts please see Appendix B.
55..00 OOPPEERRAATTIIOONN
Once the Model 1094ARC is properly configured and installed, it
should operate transparently. These sections describes functions of
the LED status indicators, and the use of the built-in loopback test
modes.
5.1 LED STATUS INDICATORS
The Model 1094ARC features twelve front panel LEDs that monitor power, the DTE signals, network connection and test modes.
Figure 11 (below) shows the front panel location of each LED.
Following Figure 10 is a description of each LEDs function.
TD & RD glows yellow to indicate an idle condition of Binary
“1” data on the respective terminal interface
signals. Green indicates Binary “0” data.
CTS consists of 2 LEDs, 1 yellow, 1 green. CTS glows
green to indicate that the Clear to Send signal
from the modem is active. Yellow indicates inactive CTS.
CD consists of 2 LEDs, 1 yellow, 1 green. CD glows
yellow if no carrier signal is being received from
the remote modem. Green indicates that the
remote modem’s carrier is being received.
DTR glows green to indicate that the Data Terminal
Ready signal from the terminal is active.
Notice! Any modular twisted pair cable connected to
the Model 1094ARC must be shielded cable, and the outer
shield must be properly terminated to a shielded modular
plug on both ends of the cable.
Figure 11. The Model 1094ARC Series' front panel LEDs
Model 1092RC
TD
RD
NS
CTS
ER
LLB
511
RDL
511ER
CD
TM
DTR
Model 1094ARC
23
24
ER - blinks ON/OFF after a 511/511E test has timed
out. See Section 5.2.3 (Test Pattern Generator) for
more information.
- flashes once to indicate that a CRC error has
occurred (during normal operation) or bit errors
have occurred (during 511/511E test).
- Only at power up, blinks once every 200 ms if
the DTE Rate is set to an unsupported setting.
TM glows yellow to indicate that the Model 1094ARC
has been placed in Test Mode. The unit can be
placed in test mode by the local user or by the
remote user. The TM LED will flash for 400msec
when a valid packet is received from the Model
1001MC.
NS (No Signal) glows red to indicate that the local
Model 1094ARC is not connected with the remote
Model 1094ARC.
5.2 TEST MODES
The Model 1094ARC offers two proprietary loopback test modes,
plus a built-in V.52 BER test pattern generator to evaluate the condition
of the modems and the communication link. These tests can be activated physically from the front panel or via the interface.
5.2.1 Overview
Figure 12 below shows the major elements used in the loop-back
and pattern tests available in the Model 1094ARC. Each block has
several functions. Following Figure 12 are descriptions that show how
the elements are used during Test Modes.
Figure 12: Block Diagram Model 1094ARC
Framer The framer is used to determine the status of
the line. In normal operation the framer transmits
and expects to receive framed packets from the
far end. If the framer receives framed packets
from the far end, CTS and CD will be active. If
framed packets are not received, CTS and CD
will be inactive. The restart procedure uses this
information to determine if a valid connection is
made (cable disconnect, poor cable quality, etc).
In normal Data Mode, if the box receives 4 seconds of unframed packets it will restart the box
and begin trying to re-establish a connection
with the far end. The distinction between framed
packets and unframed packets becomes important when we discuss the Pattern Generator.
Pattern Gen/Det This part of the Processor generates and
detects the 511/511E patterns. When transmitting 511 patterns, the information is unframed
(because it originates after the framer) and is
intended to be evaluated only by another
Processor. If the units are in Data Mode and the
pattern generator is enabled on one end of the
link, the far end will begin receiving unframed
packets and assume that the line has gone
down. During test modes, we force the pattern
generator to time out before it can cause the link
to be killed.
Loop Control This part of the Processor is used to control
loop-backs. In a Local Loop, the data is looped
back towards the local DTE. In a Remote Loop,
the data is looped back to the line, but it is also
allowed to pass through to the framer and to the
remote DTE.
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
25
26
Restart Procedure The restart procedure is in place to allow the
and Time Outs units to re-establish a connection after the
framer begins seeing unframed packets. The
Test Model Timing Chart below shows the
amount of time the framer must see consecutive
unframed packets before the unit will restart and
try to establish a new line connection. The reason that there are different Restart Times will
become apparent after reading the rest of the
document. The 511/511E Time Out shown refers
to the amount of time the 511/511E pattern will
be valid. At the end of this time the pattern will
automatically turn itself off and the normal data
path will be re-established. The ER led will flash
indicating to the user that the test has timed out.
The ER led will stop flashing once the 511/511E
switch is placed into the normal position.
Symbol Indicators
This symbol designates the origination or the
termination of a data path. The direction of the
arrow connected distinguish the two data paths.
This symbol designates an invalid data path. If
there is data present it should be ignored.
5.2.2 Loops and Patterns
The following section describes the Test Modes used in the Model
1094ARC. At the bottom of each Test Mode, a figure is included to
show the data path.
Local Loop There are two different modes of operation for a
Local Loop depending on the status of the units
at the time that the Local Loop is initiated. If the
units are not linked (NS LED on) and the Local
Loop is initiated, either by the front panel switch
or the DTE interface, the unit will enter mode 1.
If the units are linked, NS LED off, then the unit
will enter a mode 2 Local Loop.
A Mode 1 Local Loop is shown in Figure 13.
When the Local Loop is initiated, either by the
front panel switch or the DTE interface, the loop
will be activated within the local DSP. The data
present at the local DTE interface will be looped
back to the local DTE by the Loop Control block
within the Processor. Any data present on the
line or at the far end DTE interface is invalid.
The remote unit will remain in the StartUP
mode, NS LED off, CTS LED yellow, and CD
LED yellow, until the local unit is taken out of the
LocalLoop mode. After the Local Loop is deselected, the units will both be in StartUP mode
and the link will be established.
A mode 2 Local Loop is shown in Figure 14.
When the Local Loop is initiated, either by the
front panel switch or the DTE interface, two separate loop paths will be started. In the first path,
data presented to the local DTE interface will be
looped back to the local DTE within the framer.
In the second path data presented at the far end
DTE will be transmitted to the local DTE then
looped back within the local DTE Loop Control
block with the Processor. After the Local Loop is
deselected, the units will be placed back into
DataMode and the normal data paths will be reestablished.
Test Mode Timing
Item Elapsed Time (seconds)
Start Up 50
Data Mode 4
511/511E Generator enabled 60 (The generator will stop after 45 Secs.)
Remote End of an RDL 60
511/511E Time Out 45 (The pattern generator will automatically
turn off after 45 seconds. The ER LED will
flash until the user turns the 511/511E switch.)
27
28
Figure 13. Block Diagram Local Loop Mode 1
Figure 14. Block Diagram Local Loop Mode 2
Local Loop When the unit is placed into a Mode 1 Local
with 511/511E Loop and the 511/511E pattern generator is acti-
vated, the local pattern generator begins sending out a 511/511E pattern to the Loop Control
block. The Loop Control block will loop this data
back to the 511/511E pattern detector block,
which will evaluate the data for errors. Because
the 511/511E pattern generator is contained
within the Processor the data is unframed so the
framer will begin seeing unframed packets. The
framer receives this unframed data and can not
distinguish this information from a line disconnection (this would cause the units' Restart procedure to start). What we have done to allow
this mode to work is to add time outs for the pattern generators. When the 511/511E is initiated
the line restart procedure is changed to one
minute. The 511/511E pattern will timeout after
45 seconds. So if the 511/511E is turned on during a local loop, the restart procedure is set to
one minute, but the 511/511E pattern will timeout after 45 seconds, allowing the framer to
begin seeing framed packets (and not restart the
box). After the 511/511E pattern times out, the
ER led will begin flashing.
Local Loop It will remain this way until the pattern generator
with 511/511E switch is turned off. Note that the data at the
(continued) local DTE and the remote DTE are not valid.
Because the data is unframed there is no way
for the framer to send this data out to the DTE.
This is an important distinction because other
Patton units will send out the 511 pattern.
When the unit is placed into a Mode 2 Local
Loop, the 511/511E pattern generator on the
local unit is unavailable for transmission. As can
be seen from Figure 14, the 511/511E pattern
generator has no data path connections available. The 511/511E pattern generator is still
available on the remote unit. For more information on the proper operation of this pattern generator please refer to the "Remote Digital Loop
with 511/511E" section.
Figure 15. Block Diagram Local Loop Mode 1 with 511/511E
Figure 16. Block Diagram Local Loop Mode 2 with 511/511E
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
29
30
Remote Digital The Remote Loop uses the EOC channel (an
Loop out-of-band signaling channel) to establish the
remote link. Upon the RDL switch being thrown
or DTE initiation, a RDL_ON Request signal is
sent to the remote unit. The Remote unit then
responds with an RDL Acknowledge command
and the link is established. Data originates at the
local DTE and is looped at the Remote DSP
back to the Local DTE. Note that the data is also
passed through to the Remote DTE and is not
squelched. When a Remote unit enters RDL, it
changes its' Restart timeout to one minute (the
reason will be explained in the RDL with
511/511E section). If the line is disconnected,
the local unit will Restart (NS led activated) after
4 - 6 seconds, but the Remote unit will wait for
one minute before it Restarts. Note that the
transmit data at the Remote DTE is ignored.
When the switch is thrown or the DTE removes
the RDL request, the local unit will transmit an
RDL_OFF Request to the Remote unit. The
local unit will keep its' TM led active until this
request has been completely sent out. If the
switch is thrown again before the completion of
the termination phase the switch will be ignored
until it is placed back into the normal position.
Figure 17. Block Diagram Remote Loop
Remote Digital The Remote Digital Loop with 511/511E is
Loop with shown below. After RDL is established the
511/511E Remote units' Restart Timer is set to one
minute. This has been done because when the
511/511E generator is started on the local unit,
the Remote framer begins seeing unframed
packets. The Remote unit can not distinguish
the 511/511E pattern from the line being disconnected so the Restart Timer has been lengthened to allow the pattern generator to function.
Once the 511/511E test is started, the Local unit
changes its' Restart Timer to one minute. The
pattern originates within the DSP and is sent to
the Remote unit. It is then looped back to the
Local unit where it is evaluated for errors. After
45 seconds, the Pattern Generator will timeout
and stops sending the pattern. The ER led will
begin blinking until the user turns off the
511/511E switch.
Figure 18. Block Remote Loop with 511/511E
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
31
32
Data Mode with When the units enter DataMode it is possible to
511/511E Pattern turn on the 511/511E pattern generators on both
Generators ends of the link. Once a 511/511E pattern is
selected on one end of the link, the pattern generator will begin transmitting unframed 511/511E
through the line to the Remote end. A possible
problem with this test can occur due to the
Restart procedure. Once the Local 511/511E is
turned on, the Remote unit begins receiving an
unframed 511 pattern. If the Remote unit does
not turn on the 511/511E-pattern generator within 4 seconds, the Remote unit will Restart and
enter the StartUp mode. Note that once the
511/511E-pattern generator is started the
Restart timer is changed to one minute (only on
the unit which has the pattern enabled). If both
units enable the 511/511E pattern within 4 seconds of each other, both units will be transmitting and receiving the 511/511E pattern. Both
framers are now receiving unframed data and
will restart after one minute. The 511/511E pattern generators will TimeOut after 45 seconds
re-enabling the normal data path. The ER led
will begin flashing until the user terminates the
test.
Figure 19. Block Diagram DataMode with 511/511E
5.2.3 Using the V.52 (BER) Test Pattern Generator
To use the V.52 BER tests in conjunction with the Remote Digital
Loopback tests* (or with Local Line Loopback tests), follow these
instructions:
1. Locate the “511/511E” toggle switch on the front panel of the
1094ARC and move it to the left. This activates the V.52 BER
test mode and transmits a “511” test pattern into the
loop. If any errors are present, the local modem’s red “ER”
LED will blink sporadically.
2. If the above test indicates no errors are present, move the
V.52 toggle switch to the right, activating the “511/E” test with
errors present. If the test is working properly, the local
modem's red “ER” LED will glow. A successful “511/E” test
will confirm that the link is in place, and that the Model
1094ARC’s built-in “511” generator and detector are working
properly.
Pattern
Gen/Det
Loop
Contr
ol
Loop
Contro
l
Pattern
Gen/Det
Processor
Processor
Framer
Framer
Line
*NOTE: The above V.52 BER tests can be used independently
of the Remote Digital Loopback tests. This requires two operators: one to initiate and monitor the tests at the local Model
1094ARC, and one to do the same at the remote Model 1094ARC.
In this case, the test pattern sent by each Model 1094ARC will
not be looped back, but will be transmitted down the line to the
other Model 1094ARC.
33
34
AAPPPPEENNDDIIXX AA
PATTON ELECTRONICS MODEL 1094ARC
SPECIFICATIONS
Transmission Format: Synchronous
Transmission Line: Two-Wire unconditioned twisted pair
Clocking: Internal, external or receive recovered clock
Interface Modules: EIA RS-232/ITU/T V.24, RS-232/530,
ITU/T V.35 and ITU/T X.21
Line Rates: 144, 272, 400, 528, 784, 1040, and
1168 kbps
DTE Rates: 64, 128, 192, 256, 320, 384, 448, 512, 576,
640, 704, 768, 832, 896, 960, 1024, 1088,
and 1152 kbps
Diagnostics: V.52 compliant bit error rate pattern
(511/511E pattern) generator and detector
with error injection mode; Local Line
Loopback and Remote Digital Loopback,
activated by front panel switch or via serial
interface
LED Status Indicators: TD, RD, CTS, CD, DTR, NS(no signal), ER
(error) and TM (test mode)
Connectors: RJ-45 on line side; DB-25 female, M/34
female or DB-15 female on serial interface
side, depending upon which interface
module is installed.
Power: 100-253 VAC, 50-60 Hz (universal input);
48 VDC (option). 10 watts.
Temperature Range: 32-122°F (0° -50°C)
Altitude: 0-15,000 feet
Humidity: 5 to 95% non-condensing
Dimensions: Front Card: 4.81” x 3.10” x 0.95”
(12.2 x 7.8 x 2.4cm)
Rear Card: 3.33” x 2.8” x 0.95”
(8.4 x 7.1 x 2.4cm)
Weight: Front Card: 0.22 lbs (.10Kg)
Rear Card (M/34 with V.35 interface): 0.16
lbs (.07Kg)
Rear Card (DB-25/RS-232 interface): 0.12
lbs. (.05Kg)
AAPPPPEENNDDIIXX BB
PATTON ELECTRONICS MODEL 1094ARC
FACTORY REPLACEMENT PARTS AND ACCESSORIES
Patton Model #
Description
1001RPEM-RAC .................120/240V Rear Power Entry Module
1001RPSM-RUI...................120/240V Front Power Supply Module
1001RPEM-RDC.................DC Rear Power Entry Module
1001RPSM-R48A................48V Front Power Supply Module
1001R14P...........................Rack 14 Slot 2U Chassis Only
1001R14P/R48V.................Rack 14 Slot 2U w/Dual Universal
Input 48VDC Power Supplies
1001R14P/RUIA..................Rack 14 Slot 2U w/Dual Universal
Input 90-260VAC Power Supplies
European Power Cord
1001R14P/RUIC .................Rack 14 Slot 2U w/Dual Universal
Input 90-260VAC Power Supplies
Australia Power Cord
1001R14P/RUID .................Rack 14 Slot 2U w/Dual Universal
Input 90-260VAC Power Supplies
UK Power Cord
1001R14P/RUIG.................Rack 14 Slot 2U w/Dual Universal
Input 90-260VAC Power Supplies
India Power Cord
1001R14P/RUIK..................Rack 14 Slot 2U w/Dual Universal
Input 90-260VAC Power Supplies
US Power Cord
1001RCM12545 ..................DB-25/RJ-45 Rear Card
1001RCM125TB .................DB-25/TB Rear Card
1001RCM13445 ..................M/34/RJ-45 Rear Card
1001RCM134TB .................M/34/TB Rear Card
1001RCM11545..................DB-15/RJ-45 Rear Card
1001RCM115TB..................DB-15/TB Rear Card
1000MC...............................Management Card
IM2RC/F..............................64K/G703 Rear Card
IM2RC/B..............................RS-530 Interface Rear Card
IM2RC/D .............................X.21 Interface Rear Card
1180RC DB.........................V.35 Daughter Board
0516FPB1...........................Single Width Blank Front Panel
0516FPB4...........................4-Wide Blank Front Panel
0516RPB1...........................Single Width Blank Rear Panel
0516RPB4...........................4-Wide Blank Rear Panel
056S1..................................Set of 16 #4 pan head screws/washers
10-25M/35M-1.....................Cable, 6 ft, DB-25 male to M/34 male
1010-10 ...............................Terminal Block, 2 Position, Male
07M1094ARC......................User Manual
35
36
AAPPPPEENNDDIIXX CC
PATTON ELECTRONICS MODEL 1094ARC
TERMINAL INTERFACE PIN ASSIGNMENTS
M/34F Connector-DCE
(V.35 Interface)
Pin # Signal
B ...........................SGND (Signal Ground)
C ...........................RTS (Request to Send)
D ...........................CTS (Clear to Send)
E ...........................DSR (Data Set Ready)
F............................CD (Carrier Detect)
H ...........................DTR (Data Terminal Ready)
L....................................LLB (Local Line Loop)
M...........................TM (Test Mode)
N ...........................RDL (Remote Digital Loop)
P ...........................TD (Transmit Data-A)
R ...........................RD (Receive Data-A)
S ...........................TD/ (Transmit Data-B)
T............................RD/ (Receive Data-B)
U ...........................XTC (External Transmit Clock-A)
V ...........................RC (Receive Timing-A)
W...........................XTC/ (External Transmit Clock-B)
X ...........................RC/ (Receive Timing-B)
Y ...........................TC (Transmit Clock-A)
AA ..........................TC/ (Transmit Clock-B)
AAPPPPEENNDDIIXX CC
PATTON ELECTRONICS MODEL 1094ARC
TERMINAL INTERFACE PIN ASSIGNMENTS
(Continued)
RS-232, RS-530 Interface Pin Description
(DB-25 Female Connector)
(DCE Configuration)
Pin #
Signal
1 FG (Frame Ground)
2 TD (Transmit Data-A)
3 RD (Receive Data-A)
4 RTS (Request to Send-A)
5 CTS (Clear to Send-A)
6 DSR (Data Set Ready-A)
7 SGND (Signal Ground)
8 CD (Carrier Detect-A)
9 RC/ (Receive Timing-B)
10 CD/ (Carrier Detect-B)
11 XTC/ (External Transmit Clock-B)
12 TC/ (Test Control-B)
13 CTS/ (Clear to Send-B)
14 TD/ (Transmit Data-B)
15 TC (Test Control)
16 RD (Receive Data-A)
17 RC (Receive Timing-A)
18 LLB (Local Line Loop)
19 RTS/ (Request to Send-B)
20 DTR (Data Transfer Rate-A)
21 DL (Remote Digital Loop)
22 DSR/ (Data Set Ready-B)
23 DTR/ (Data Transfer Rate-B)
24 XTC (External Transmit Clock-A)
25 TM (Test Mode)
37
38
AAPPPPEENNDDIIXX CC
PATTON ELECTRONICS MODEL 1094ARC
TERMINAL INTERFACE PIN ASSIGNMENTS
(Continued)
X.21 Interface
(DB-15 Female Connector)
(DTE /DCE Configuration)
Pin #
Signal
1 ....................... Frame Ground
2 ...................... T (Transmit Data-A)
3 ...................... C (Control-A)
4 ...................... R (Receive Data-A)
5 ...................... I (Indication-A)
6 ...................... S (Signal Element Timing-A)
7 ...................... BT (Byte Timing-A, Not Used)
8 ...................... SGND (Signal Ground)
9 ...................... T/ (Transmit Data-B)
10 ...................... C/ (Control-B)
11...................... R/ (Receive Data-B)
12 ...................... I/ (Indication-B)
13 ...................... S/ (Signal Element Timing-B)
14 ...................... BT/ (Byte Timing-B, Not Used)
AAPPPPEENNDDIIXX DD
PATTON ELECTRONICS MODEL 1094ARC
DISTANCE TABLES
Line RateDTE Rates
kbps feet m iles km feet m iles km
144 64, 128 20700 3.96.2 24500 4.67.3
272 192, 256 17400 3.35.2 24200 4.57.2
400 320, 384 15100 2.94.6 22600 4.26.7
528 448, 512 14900 2.84.4 21000 3.96.2
784 576, 640, 704, 768 13500 2.64.2 18000 3.45.4
1040 832, 896, 960, 1024 11900 2.33.6 15500 2.94.6
1168 1088 - 1152 11000 2.13.3 15200 2.84.4
Line RateDTE Rates
kbps feet m iles km feet m iles km
144 64, 128 18600 3.55.6 22100 4.26.7
272 192, 256 15700 2.94.6 21800 4.16.5
400 320, 384 12800 2.43.8 19200 3.65.7
528 448, 512 13000 2.5 4 18300 3.45.4
784 576, 640, 704, 768 12200 2.33.6 16200 3.14.9
1040 832, 896, 960, 1024 10500 1.9 3 13600 2.54
1168 1088 - 1152 94000 1.72.7 12900 2.43.8
Cross Talk (49 adjacent CAP pairs)
26 AW G (0.4mm)
24 AW G (0.5mm)
Tr ansm ission Distance - Patton NetLink HDSL M odel 1094A R C
No Cross Talk
26 AW G (0.4mm)
24 AW G (0.5mm)
39
AAPPPPEENNDDIIXX EE
PATTON ELECTRONICS MODEL 1094ARC
LINE INTERFACE PIN ASSIGNMENTS
(RJ45 Connector)
Pin Number
Signal
1...................................................N/C (No Connection)
2...................................................N/C (No Connection)
3...................................................N/C (No Connection)
4...................................................Tip
5....................................................Ring
6....................................................N/C (No Connection)
7....................................................N/C (No Connection)
8....................................................N/C (No Connection)
Copyright © 1999
Patton Electronics Company
All Rights Reserved
Loading...
