USER
MANUAL
MODEL 1058
VDSL Modem
Part# 07M1058-A
Doc# 058091UA
Revised 10/12/01
An ISO-9001Certified
Company
SALES OFFICE
(301) 975-1000
TECHNICAL SUPPORT
(301) 975-1007
1.0 Warranty Information .................................................................. 3
1.1 Radio and TV Interference............................................................ 3
1.2 CE Notice...................................................................................... 4
1.3 Service.......................................................................................... 4
2.0 General Information..................................................................... 5
2.1 Features........................................................................................ 5
2.2 Description.................................................................................... 5
3.0 Installation.................................................................................... 7
3.1 Connecting the Twisted-Pair Line Interface.................................. 7
3.2 Connecting the 10/100Base-T Ethernet Interface ........................ 9
Connecting the 10/100Base-T Ethernet Port to a Hub ................. 9
Connecting the 10/100Base-T Ethernet Port to a PC (DTE) ...... 10
3.3 Connecting the POTS/ISDN line................................................. 10
3.4 Connecting Power ...................................................................... 11
4.0 Operation.................................................................................... 12
4.1 Power Up .................................................................................... 12
4.2 Front Panel LED Status Monitors ............................................... 12
A Specifications ............................................................................ 14
A.1 LAN Connection ..........................................................................14
A.2 Transmission Line ........................................................................14
A.3 VDSL Line Rate ............................................................................14
A.4 Actual Data Rate ..........................................................................14
A.5 VDSL Distance .............................................................................14
A.6 VDSL Surge Suppressor ..............................................................14
A.7 LED Status Indicators ..................................................................14
A.8 Power Supply ...............................................................................14
A.9 Temperature Range .....................................................................14
A.10 Humidity .......................................................................................14
A.11 Dimensions ..................................................................................14
B Model 1058 Series Factory
Replacement Parts and Accessories....................................... 15
C Model 1058 Series Interface Pin Assignment ......................... 16
C.1 10/100Base-T Interface: ..............................................................16
RJ-45 .......................................................................................... 16
C.2 VDSL Interface: ............................................................................16
RJ-45 .......................................................................................... 16
Terminal Block............................................................................ 16
C.3 POTS/ISDN Interface: ..................................................................16
RJ-45 .......................................................................................... 16
2
1.0 WARRANTY INFORMATION
Patton Electronics
warrants all Model 1058 components to be free from
defects, and will—at our option—repair or replace the product should it
fail within one year from the first date of the shipment.
This warranty is limited to defects in workmanship or materials, and does
not cover customer damage, abuse or unauthorized modification. If this
product fails or does not performs as warranted, your sole recourse shall
be repair or replacement as described above. Under no condition shall
Patton Electronics
be liable for any damages incurred by the use of this
product. These damages include, but are not limited to, the following: lost
profits, lost savings and incidental or consequential damages arising
from the use of or inability to use this product.
Patton Electronics
specifically disclaims all other warranties, expressed or implied, and the
installation or use of this product shall be deemed an acceptance of
these terms by the user.
1.1 RADIO AND TV INTERFERENCE
The Model 1058 generates and uses radio frequency energy, and if not
installed and used properly-that is, in strict accordance with the manufacturer’s instructions-may cause interference to radio and television reception. The Model 1058 has been tested and found to comply with the limits
for a Class A computing device in accordance with specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable
protection from such interference in a commercial installation. However,
there is no guarantee that interference will not occur in a particular installation. If the Model 1058 does cause interference to radio or television
reception, which can be determined by disconnecting the unit , the user
is encouraged to try to correct the interference by one or more of the following measures: moving the computing equipment away from the
receiver, re-orienting the receiving antenna and/or plugging the receiving
equipment into a different AC outlet (such that the computing equipment
and receiver are on different branches).
3
1.2 CE NOTICE
The CE symbol on your Patton Electronics equipment indicates that it is
in compliance with the Electromagnetic Compatibility (EMC) directive
and the Low Voltage Directive (LVD) of the European Union (EU). A Certificate of Compliance is available by contacting Technical Support.
This device is not intended to be connected to the public
telephone network.
Caution
Note
The Model 1058DV is currently awaiting Part 68 approval.
1.3 SERVICE
All warranty and nonwarranty repairs must be returned freight prepaid
and insured to Patton Electronics. All returns must have a Return Materials Authorization number on the outside of the shipping container. This
number may be obtained from Patton Electronics Technical Services at:
• Tel: +1
• Email:
• URL:
(301) 975-1007
support@patton.com
http://www.patton.com
Note
Packages received without an RMA number will not be
accepted.
4
2.0 GENERAL INFORMATION
Thank you for your purchase of this Patton Electronics product. This
product has been thoroughly inspected and tested and is warranted for
one year for parts and labor. If any questions or problems arise during
installation or use of this product, contact Patton Electronics Technical
Support at +1 (301) 975-1007.
2.1 FEATURES
• Easy to install standalone VDSL modems—
no configuration required
• Auto-sensing full or half-duplex Ethernet
• Auto-sensing 10/100Base-T
• Extends network connections up to 4,652 ft (1,418 m) over 2-wire 24-
AWG unconditioned lines
• 12.5 Mbps symmetric line rate; 10 Mbps data rate
• POTS/ISDN splitter on board
• Transparent operation
• LED indicators for Power, Ethernet Link & Activity, VDSL Link & Error
• Surge supression up to 20 kA (8120 µs)
• Available in rack-mount or standalone configurations
• Made in the USA
2.2 DESCRIPTION
The Patton Electronics Model 1058/CO* and 1058/CP VDSL* modems
provide high-speed LAN connections between peered Ethernet LANs,
remote PC’s, or any other network enabled 10/100Base-T device.
Operating in pairs with a Model 1058/CO (central office) located at one
end of the LAN extension and a Model 1058/CP (customer premise) at the
other end, these units can automatically forward LAN broadcasts, multicasts, and frames across a 2-wire twisted pair link. The data is passed
transparently (that is, unmodified) through the 1058s. What’s more, the
1058s automatically add and delete MAC addresses, only passing packets
across the VDSL link that are meant for the remote peered LAN.
* Only Models 1058DV/CO and 1058DV/CP have POTS/ISDN split-
ters on board.
5
Figure 1.
Typical application
The 1058DV/CO and 1058DV/CP work together to create a transparent
extension between two peered Ethernet LANs. POTS/ISDN calls can be
made over the VDSL link without interfering with the data. Figure 1 shows
a typical point-to-point application.
6
3.0 INSTALLATION
Because the Model 1058 requires no configuration, it can be installed
and made operational quickly. Installation takes place as follows:
1. Connecting the line interface between the units (refer to section 3.1,
“Connecting the Twisted-Pair Line Interface” on page 7)
Note
See Figure 2 for the rear panel arrangements.
2. Connecing the Ethernet interface (refer to section 3.2, “Connecting
the 10/100Base-T Ethernet Interface” on page 9).
3. Connecting the power plug (refer to section 3.4, “Connecting Power”
on page 11).
1058DV
1058D
A
S
U
the
in
de
a
M
A
VDSL Link
M
Power
S
U
in the
e
d
a
Ethernet
VDSL Link
POTS/ISDN
Power
Power
jack
Ethernet
VDSL twisted-pair
Ethernet
port
RJ-45 interface
POTS/ISDN
twisted-pair
terminal block
VDSL twisted-pair
interface
terminal block
interface
Figure 2.
Model 1058 standalone rear panel
3.1 CONNECTING THE TWISTED-PAIR LINE INTERFACE
The Model 1058 supports communication between two peer Ethernet
LAN sites over a distance of up to 4,652 ft (1,418 m) over 24 AWG (0.5
mm) twisted-pair wire.
Note
Actual distance and link performance may vary depending on
the environment and type/guage of wire used.
7
Follow the steps below to connect the Model 1058 VDSL Interfaces.
Note
The Model 1058 units work in pairs. One of the units must be a
Model 1058/CO (Central Office), and the other unit must be a
Model 1058/CP (Customer Premise). It does not matter which
end is the 1058/CO and which is the 1058/CP. The link is always
initiated by the 1058/CP. As long as the 1058/CO is powered on,
the 1058/CP can establish a link by being powered on or by having its power reset.
1. To function properly, the two Model 1058's must be connected
together using twisted-pair, unconditioned, dry, metal wire, between
19 (0.9mm) and 26 AWG (0.4mm). Leased circuits that run through
signal equalization equipment are not acceptable.
2. The Model 1058 is equipped with two interface jacks that can be used
on the VDSL interface, an RJ-45 or a terminal block. These VDSL
interfaces are a two-wire interface. Observe the signal/pin relationships on the Model 1058's VDSL interface jacks.
The RJ-45 connector on the Model 1058's twisted pair interface is polarity insensitive and is wired for a two-wire interface. The signal/pin relationship is shown in Figure 3.
1 (no connection)
1
2
2 (no connection)
3 (no connection)
3
4
5
6
7
8
4 (2-Wire RING)
5 (2-Wire TIP)
6 (no connection)
7 (no connection)
8 (no connection)

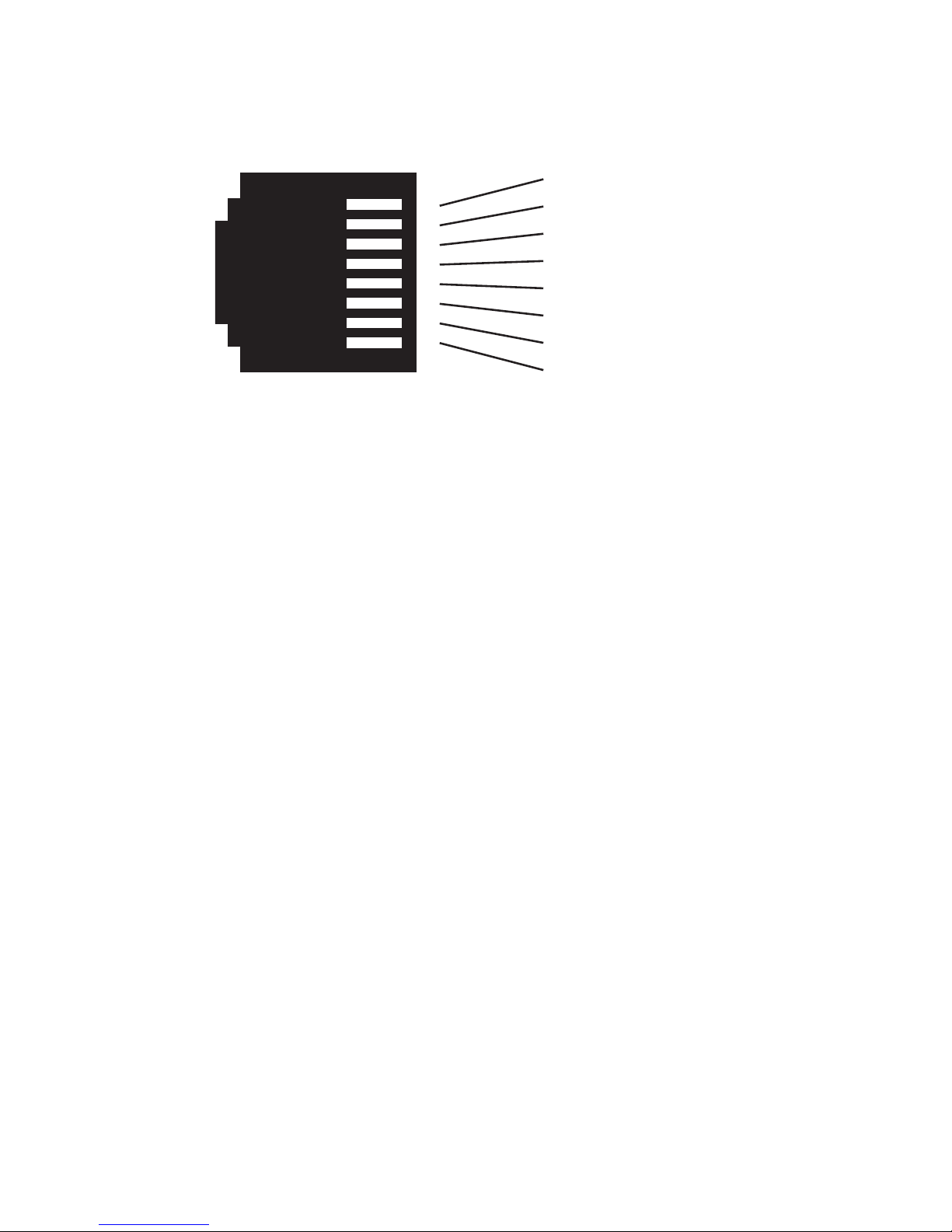

Figure 3.
Model 1058 (RJ-45) twisted pair line interface.
The terminal block connector on the Model 1058's twisted pair interface
is polarity insensitive and is wired for a two-wire interface. The signal/pin
relationships is shown in Figure 4.
8
Made in the USA
r
e
ow
P
k
Lin
L
S
D
V
et
rn
the
E
RING TIP
Figure 4.
Model 1058D (Terminal Block) twisted pair line interface.
3.2 CONNECTING THE 10/100BASE-T ETHERNET INTERFACE
The shielded RJ-45 port labeled
Ethernet
is the 10/100Base-T interface.
This port is designed to connect directly to a 10/100Base-T network.
Figure 5 shows the signal/pin relationships on this interface. You may
connect this port to another Ethernet device via a Type 4 or Type 5 cable
that is up to 328 ft long.
1 TX+ (data output from 1058)
1
2
2 TX- (data output from 1058)
3 RX+ (data input to 1058)
3
4
5
6
7
8
4 (no connection)
5 (no connection)
6 RX- (data input to 1058)
7 (no connection)
8 (no connection)
Figure 5.
Connecting the 10/100Base-T Ethernet Port to a Hub
The Model 1058 10/100Base-T interface is configured as DTE (Data Terminal Equipment), just like a 10/100Base-T network interface card in a
PC. Therefore, it "expects" to connect to a 10/100Base-T Hub using a
Model 1058 10/100Base-T RJ-45 Connector Pinout.
9
straight-through RJ-45 cable. Figure 6 diagrams the cable wiring for connecting the Model 1058 to a 10/100Base-T hub.
1058 10/100Base-T Port
RJ-45 Pin No.
10/100Base-T Hub
RJ-45 Pin No.
1 (TX+)--------------------------------------------------1 (RX+)
2 (TX-)---------------------------------------------------2 (RX-)
3 (RX+)--------------------------------------------------3 (TX+)
6 (RX-)---------------------------------------------------6 (TX-)
Figure 6.
Wiring diagram for connecting the Model 1058 to a 10/100Base-T hub
Connecting the 10/100Base-T Ethernet Port to a PC (DTE)
The Model 1058 10/100Base-T interface is configured as DTE (Data Terminal Equipment). If you wish to connect the 1058 to another DTE
devices such as 10/100Base-T network interface card in a PC (or 1058s
in a back-to-back arrangement), you must construct a 10/100Base-T
crossover cable as shown in Figure 7.
1058 10/100Base-T Port
RJ-45 Pin No.
10/100Base-T DTE
RJ-45 Pin No.
1 (TX+) 1 (TX+)
2 (TX-) 2 (TX-)
3 (RX+) 3 (RX+)
6 (RX-) 6 (RX-)
Figure 7.
10/100Base-T crossover cable
3.3 CONNECTING THE POTS/ISDN LINE
The RJ-45 port labeled “POTS/ISDN” is the POTS/ISDN interface. A tele-
phone or an ISDN device may be connected to this port and carried over
the VDSL line. The units do not need power for the POTS interface to
10
work. The RJ-45 connector in the model 1058’s POTS/ISDN interface is
wired as shown in Figure 8.
1 (no connection)
1
2
2 (no connection)
3 (no connection)
3
4
5
6
7
8
4 (2-wire RING)
5 (2-wire TIP)
6 (no connection)
7 (no connection)
8 (no connection)
Figure 8.
Model 1058DV (RJ-45) POTS/ISDN interface
3.4 CONNECTING POWER
An external AC or DC power supply is available separately. This connection is made via the barrel jack on the rear panel of the Model 1058. No
configuration is necessary for the power supply (See Appendix B for
domestic and international power supply and cord options).
DC power (supplied via the power supply jack to the 1058) must meet
the following requirements; DC power supplied must be regulated
+5VDC ±5%, 1.0A minimum. Center pin is +5V. The barrel type plug has
a 2.5/5.5/10mm I.D./O.D./Shaft Length dimensions.
The Model 1058 does not have a power switch, so it powers up as soon
as it is plugged in.
11
4.0 OPERATION
Once the Model 1058s are properly installed, they should operate transparently. No user settings required. This section describes reading the
LED status monitors.
4.1 POWER UP
Before applying power to the Model 1058, please review section 3.4,
“Connecting Power” on page 11 to verify that the unit is connected to the
appropriate power source.
4.2 FRONT PANEL LED STATUS MONITORS
The Model 1058 features five front panel LEDs that monitor power, the
Ethernet signals, and the VDSL Connection. Figure 9 shows the front
panel location of each LED. Table 1 on page 13 describes the LED functions.
Figure 9.
V
t
e
rn
e
th
E
ctivity
A
k
in
k
L L
in
S
L
D
V
r
rro
E
ink
L
er
w
o
P
Power
LED
VDSL
Error LED
VDSL
Link LED
Front panel standalone Model 1058
m
e
d
o
M
L
S
D
Ethernet
Activity LED
Ethernet
Link LED
12
Table 1:
Front panel LED description
LED Description
Power Solid GREEN to indicate the unit is powered on.
VDSL Link (Active Green) Solid green (ON) to indicate that the
end-to-end VDSL link between the Model 1058s is
established. The VDSL LED is OFF when the link is
down.
VDSL Error (Active Red) Flashes Red to indicate errors have
occurred on the VDSL link.
Ethernet Link (Active Green) Solid Green indicates that 10/
100Base-T Ethernet link has been established.
Ethernet Activity (Active Yellow) Flashes yellow to indicate Ethernet
activity on the Model 1058's 10/100Base-T Ethernet
port.
13
APPENDIX A
SPECIFICATIONS
A.1 LAN CONNECTION
• Shielded RJ-45, 10/100Base-T, IEEE 802.3 Ethernet
• VDSL Connection: RJ-45 and Terminal Block
A.2 TRANSMISSION LINE
Two-wire unconditioned twisted pair
A.3 VDSL LINE RATE
12.5 Mbps, symmetric upstream/downstream.
A.4 ACTUAL DATA RATE
10 Mbps, symmetric upstream/downstream.
A.5 VDSL DISTANCE
4,000 ft (1,219 m)
A.6 VDSL SURGE SUPPRESSOR
Gas tube with maximum current surge: 20 kA (8120 µs)
A.7 LED STATUS INDICATORS
• Power (Green)
• VDSL: Link (Green) & Error (Red)
• Ethernet: Link (Green) & Activity (Yellow)
A.8 POWER SUPPLY
External AC and DC options
• AC: 120 VAC, 220 VAC, and UI (120–240 VAC)
• DC: 12 VDC, 24 VDC and 48 VDC
A.9 TEMPERATURE RANGE
0–50°C
A.10 HUMIDITY
Up to 90% non-condensing
A.11 DIMENSIONS
1.58H x 4.16W x 3.75D in. (10.6H x 4.1W x 8.8D cm)
14
APPENDIX B
MODEL 1058 SERIES FACTORY
REPLACEMENT PARTS AND ACCESSORIES
Patton Model # Description
Base Models
1058D/CO CO VDSL Modem, data only, no power supply
1058D/CP CP VDSL Modem, data only, no power supply
1058D-2PK VDSL MODEM Kit: includes one central office (CO)
and one customer premise (CP) Model 1058, data
only, no power supply
1058DV/CO CO VDSL Modem, voice & data, no power supply
1058DV/CP CP VDSL Modem, voice & data, no power supply
1058DV-2PK VDSL MODEM Kit: includes one central office (CO)
and one customer premise (CP) Model 1058, voice
& data, no power supply
07M1058 User Manual
Power Supplies
08055DCUI
100-240VAC (+5V reg. DC/2A) Universal Input
Adapter.
08055-120-5-1
120 VAC (+5V reg. DC/1A) Input Adapter
12V-PSM 12 VDC Input Adapter
24V-PSM 24 VDC Input Adapter
48V-PSM 48 VDC Input Adapter
Power Cords*
0805US American Power Cord
0805EUR European Power Cord CEE 7
0805UK United Kingdom Power Cord
0805AUS Australian Power Cord
0805DEN Denmark Power Cord
0805FR France/Belgium Power Cord
0805IN India Power Cord
0805IS Israel Power Cord
0805JAP Japan Power Cord
0805SW Switzerland Power Cord
*Only required with optional UI power supply (08055DCUI)
15
APPENDIX C
MODEL 1058 SERIES INTERFACE PIN ASSIGNMENT
C.1 10/100BASE-T INTERFACE:
RJ-45
• Pin 1: TX+
• Pin 2: TX-
• Pin 3: RX+
• Pin 6: RX-
• Pins 4, 5, 7, 8: no connection
C.2 VDSL INTERFACE:
RJ-45
• Pin 4: RING
• Pin 5: TIP
• Pins 1, 2, 3, 6, 7, 8: no connection
Terminal Block
See Figure 4 on page 9.
C.3 POTS/ISDN INTERFACE:
RJ-45
• Pin 4: 2-wire RING
• Pin 5: 2-wire TIP
• Pins 1, 2, 3, 6, 7, 8: no connection
Copyright © 2001
Patton Electronics Company
All Rights Reserved.
16
17
Loading...
