Page 1
For Quick
Start Installation
SmartNode™ 4980 & 4990 Series
Multi-Port T1/E1/PRI VoIP
IPV6-Ready Gateway Router, IAD
User Manual
Important
This is a Class A device and is not intended for use in a residential environment.
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: [email protected]
WWW: www.patton.com
Part Number: 07MSN4980-90, Rev. B
Revised: December 21, 2012
Page 2
Patton Electronics Company, Inc.
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
Tel: +1 (301) 975-1000
Fax: +1 (301) 869-9293
Support: +1 (301) 975-1007
Web: www.patton.com
E-mail: [email protected]
Trademark Statement
The terms SmartNode and SmartWare are trademarks of Patton Electronics Company.
All other trademarks presented in this document are the property of their
respective owners.
Copyright © 2012, Patton Electronics Company. All rights reserved.
The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document.
Important Information
To use virtual private network (VPN) and/or AES/DES/3DES encryption capabilities
with the SmartNode 4980 and 4990 Series, you may need to purchase additional
licenses, hardware, software, network connection, and/or service. Contact sales@patton.com or +1 (301) 975-1000 for assistance.
Warranty Information
The software described in this document is furnished under a license and may be used
or copied only in accordance with the terms of such license. For information about the
license, see Appendix F, "End user license agreement" on page 62 or go to
www.patton.com.
Patton Electronics warrants all SmartNode components to be free from defects, and
will—at our option—repair or replace the product should it fail within one year from
the first date of the shipment.
This warranty is limited to defects in workmanship or materials, and does not cover
customer damage, abuse or unauthorized modification. If the product fails to perform
as warranted, your sole recourse shall be repair or replacement as described above.
Under no condition shall Patton Electronics be liable for any damages incurred by the
use of this product. These damages include, but are not limited to, the following: lost
profits, lost savings and incidental or consequential damages arising from the use of or
inability to use this product. Patton Electronics specifically disclaims all other warranties, expressed or implied, and the installation or use of this product shall be deemed
an acceptance of these terms by the user.
Page 3
Summary Table of Contents
1 General information...................................................................................................................................... 13
2 Applications overview.................................................................................................................................... 24
3 SmartNode installation.................................................................................................................................. 26
4 Initial configuration ...................................................................................................................................... 31
5 Contacting Patton for assistance ................................................................................................................... 36
A Compliance information .............................................................................................................................. 39
B Specifications ................................................................................................................................................ 43
C Cabling ......................................................................................................................................................... 50
D Port pin-outs ................................................................................................................................................ 55
E SmartNode factory configuration ................................................................................................................. 59
F End user license agreement ........................................................................................................................... 62
3
Page 4
Table of Contents
Summary Table of Contents ........................................................................................................................... 3
Table of Contents ........................................................................................................................................... 4
List of Figures ................................................................................................................................................. 7
List of Tables .................................................................................................................................................. 8
About this guide ............................................................................................................................................. 9
Audience................................................................................................................................................................. 9
Structure................................................................................................................................................................. 9
Precautions........................................................................................................................................................... 10
Safety when working with electricity ...............................................................................................................11
.......................................................................................................................................................................12
General observations .......................................................................................................................................12
Typographical conventions used in this document................................................................................................ 12
General conventions .......................................................................................................................................12
1 General information...................................................................................................................................... 13
SmartNode 4980 and 4990 Series overview...........................................................................................................14
SN4980 Series model codes ............................................................................................................................15
SN4990 Series model codes ............................................................................................................................16
SmartNode 4980 and 4990 Series rear panels........................................................................................................18
SN4980 Series rear panels ...............................................................................................................................18
SN4990 Series rear panels ...............................................................................................................................19

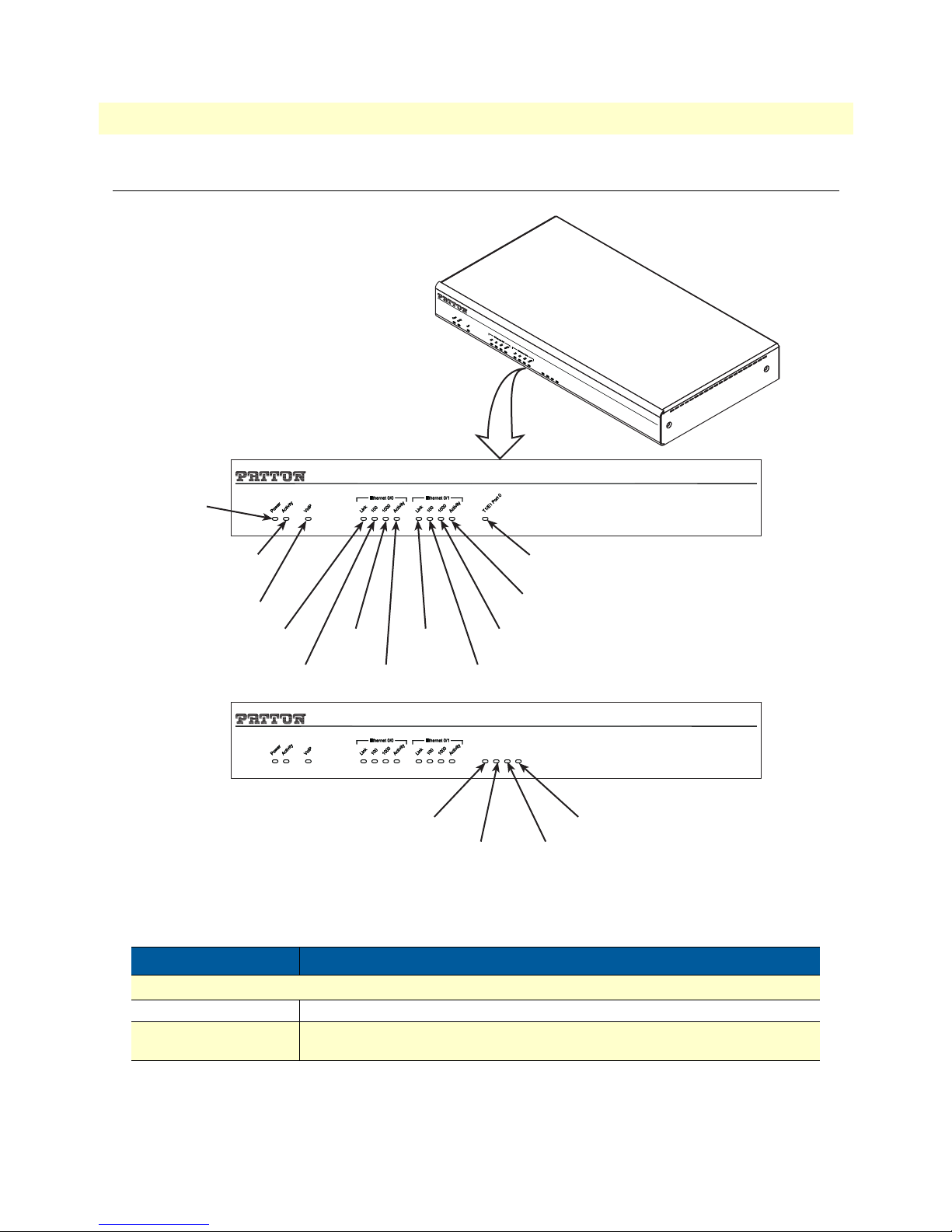

SmartNode 4980 and 4990 Series front panel .......................................................................................................22
2 Applications overview.................................................................................................................................... 24

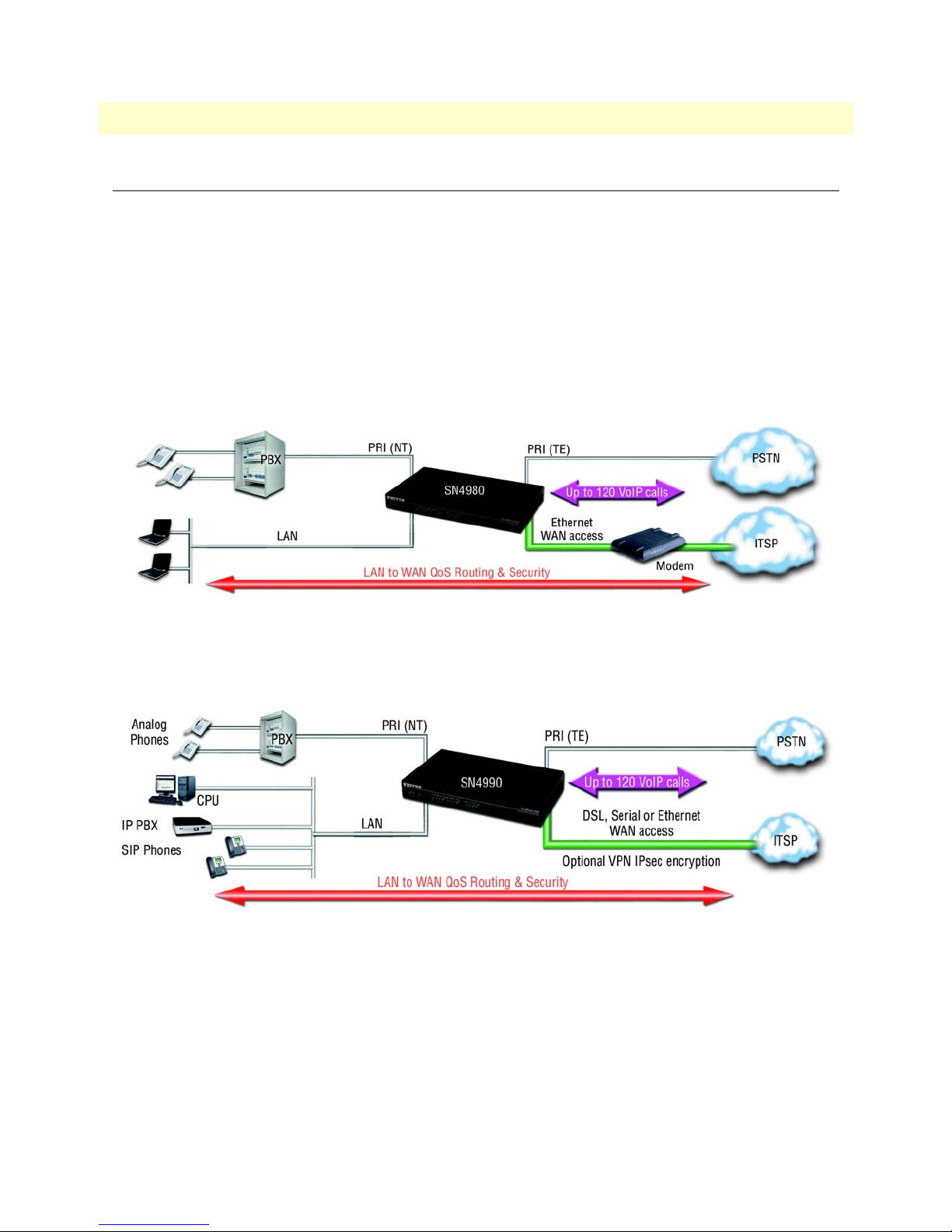

Typical application ................................................................................................................................................25
3 SmartNode installation.................................................................................................................................. 26
Planning the installation ........................................................................................................................................27
Site log ............................................................................................................................................................27
Network information ......................................................................................................................................27
Network Diagram ...........................................................................................................................................27
IP related information .....................................................................................................................................27
Software tools .................................................................................................................................................28
AC Power Mains .............................................................................................................................................28
Location and mounting requirements .............................................................................................................28
Installing the SmartNode.......................................................................................................................................28
Placing the SmartNode ...................................................................................................................................28
Installing cables ...............................................................................................................................................28
Connecting the PRI ..................................................................................................................................29
Connecting the 10/100/1000Base-T Ethernet LAN and WAN cables ......................................................29
Installing the DSL WAN cable (SN4991 /2GS Models) ...........................................................................29
Installing the X.21 WAN cable (SN4991 /D Models) ...............................................................................29
4
Page 5
SmartNode 4980 & 4990 User Manual Table of Contents
Installing the SFP for Fiber WAN module (SN4991) ...............................................................................30
Connecting the power supply ....................................................................................................................30
4 Initial configuration ...................................................................................................................................... 31
Introduction..........................................................................................................................................................32

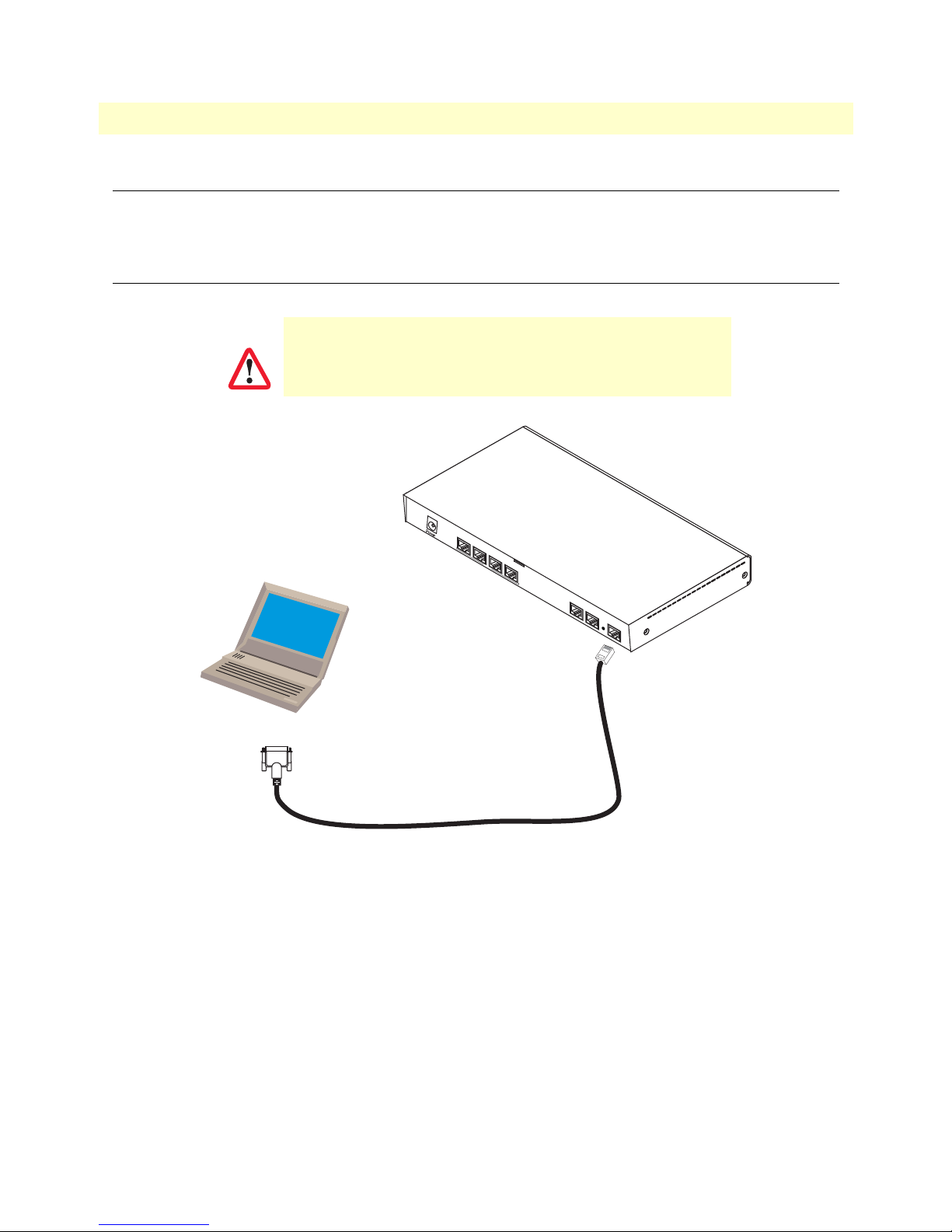

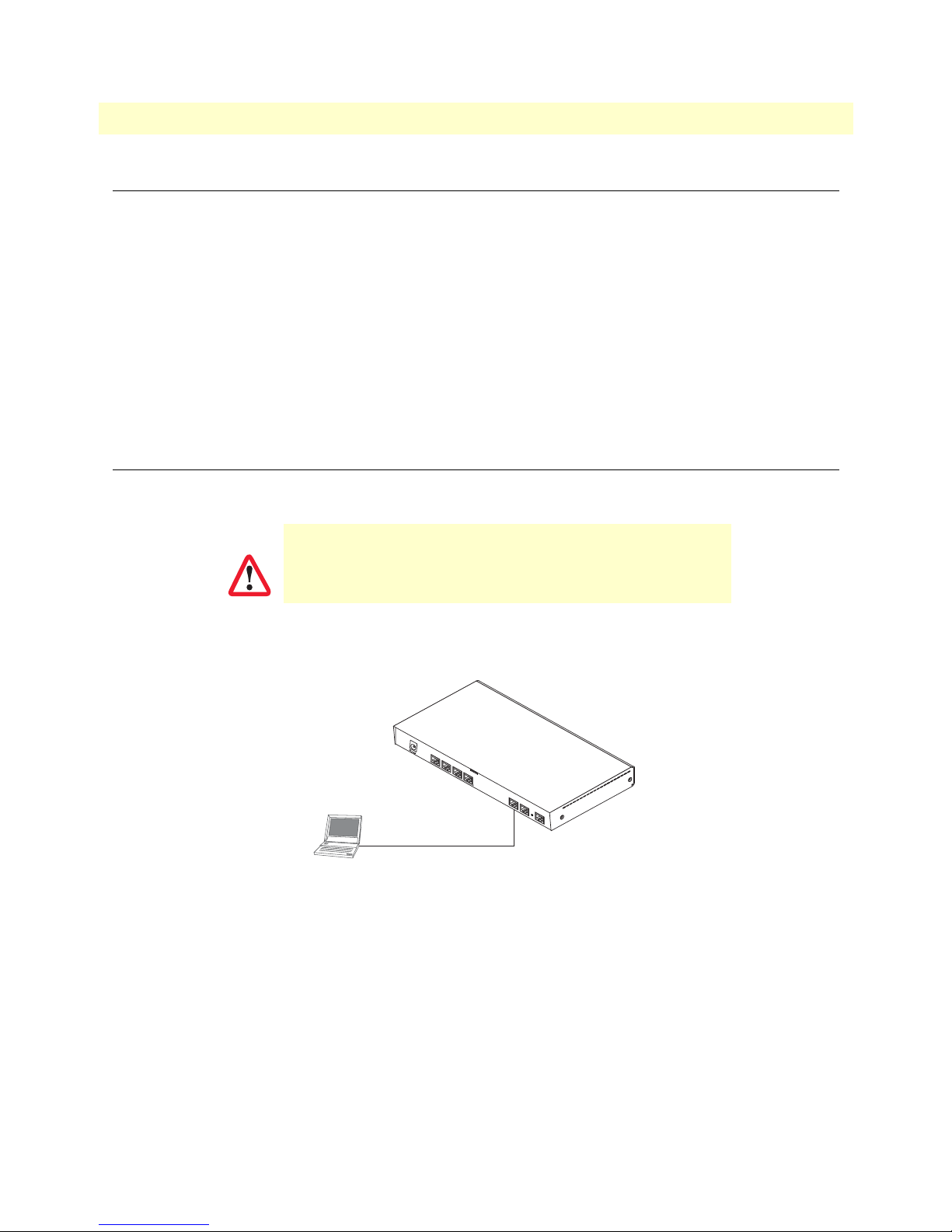

1. Connecting the SmartNode to your laptop PC..................................................................................................32
2. Configuring the desired IP address ....................................................................................................................33
Factory-default IP settings ...............................................................................................................................33
Login ..............................................................................................................................................................33
Changing the WAN IP address .......................................................................................................................33
3. Connecting the SmartNode to the network .......................................................................................................34
4. Loading the configuration (optional).................................................................................................................35
Additional information..........................................................................................................................................35
5 Contacting Patton for assistance ................................................................................................................... 36
Introduction..........................................................................................................................................................37
Contact information..............................................................................................................................................37
Patton support headquarters in the USA .........................................................................................................37
Alternate Patton support for Europe, Middle East, and Africa (EMEA) ..........................................................37
Warranty Service and Returned Merchandise Authorizations (RMAs)...................................................................37
Warranty coverage ..........................................................................................................................................37
Out-of-warranty service .............................................................................................................................38
Returns for credit ......................................................................................................................................38
Return for credit policy .............................................................................................................................38
RMA numbers ................................................................................................................................................38
Shipping instructions ................................................................................................................................38
A Compliance information .............................................................................................................................. 39
Compliance ...........................................................................................................................................................40
EMC ...............................................................................................................................................................40
Safety ..............................................................................................................................................................40
PSTN Regulatory ............................................................................................................................................40
Radio and TV Interference ....................................................................................................................................40
FCC Part 68 (ACTA) Statement ...........................................................................................................................41
Industry Canada Notice ........................................................................................................................................41
CE Declaration of Conformity..............................................................................................................................42
Authorized European Representative.....................................................................................................................42
B Specifications ................................................................................................................................................ 43
Voice connectivity .................................................................................................................................................44
Data connectivity ...............................................................................................................................
...................44
Voice processing (signaling dependent) .................................................................................................................44
Fax and modem support........................................................................................................................................44
Voice signalling .....................................................................................................................................................45
Voice routing—session router................................................................................................................................45
IP services..............................................................................................................................................................45
5
Page 6
SmartNode 4980 & 4990 User Manual Table of Contents
Management .........................................................................................................................................................46
System...................................................................................................................................................................46
Physical .................................................................................................................................................................46
WAN Daughter Card (if applicable)......................................................................................................................47
Identification of the SmartNode devices via SNMP...............................................................................................48
C Cabling ......................................................................................................................................................... 50
Introduction..........................................................................................................................................................51
Console .................................................................................................................................................................51
Ethernet ................................................................................................................................................................52
E1 PRI ..................................................................................................................................................................53
T1 PRI ..................................................................................................................................................................54
D Port pin-outs ................................................................................................................................................ 55
Introduction..........................................................................................................................................................56
Console port..........................................................................................................................................................56
Ethernet ................................................................................................................................................................56
PRI port ................................................................................................................................................................57
G.SHDSL port (/2GS models only) ......................................................................................................................57
ADSL port (/A models only) .................................................................................................................................58
Fiber ports (/F models only) ..................................................................................................................................58

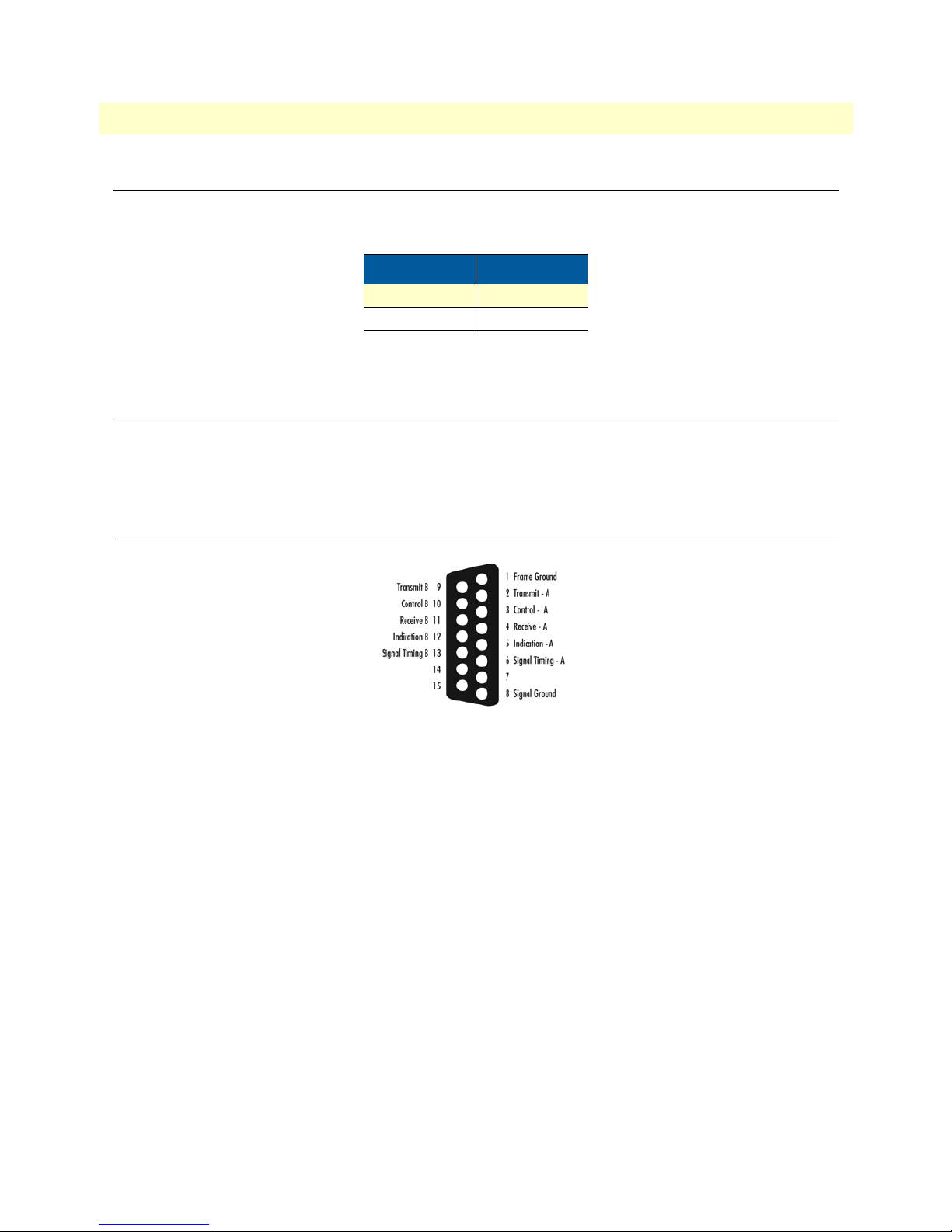

X.21 DB-15 connector (/D models only) ..............................................................................................................58
E SmartNode factory configuration ................................................................................................................. 59
Introduction..........................................................................................................................................................60
F End user license agreement ........................................................................................................................... 62
End User License Agreement.................................................................................................................................63
1. Definitions ..................................................................................................................................................63
2. Title ............................................................................................................................................................63
3. Term ...........................................................................................................................................................63
4. Grant of License ..........................................................................................................................................63
5. Warranty ....................................................................................................................................................63
6. Termination ................................................................................................................................................64
7. Other licenses .............................................................................................................................................64
8. SmartWare licenses .....................................................................................................................................64
6
Page 7
List of Figures

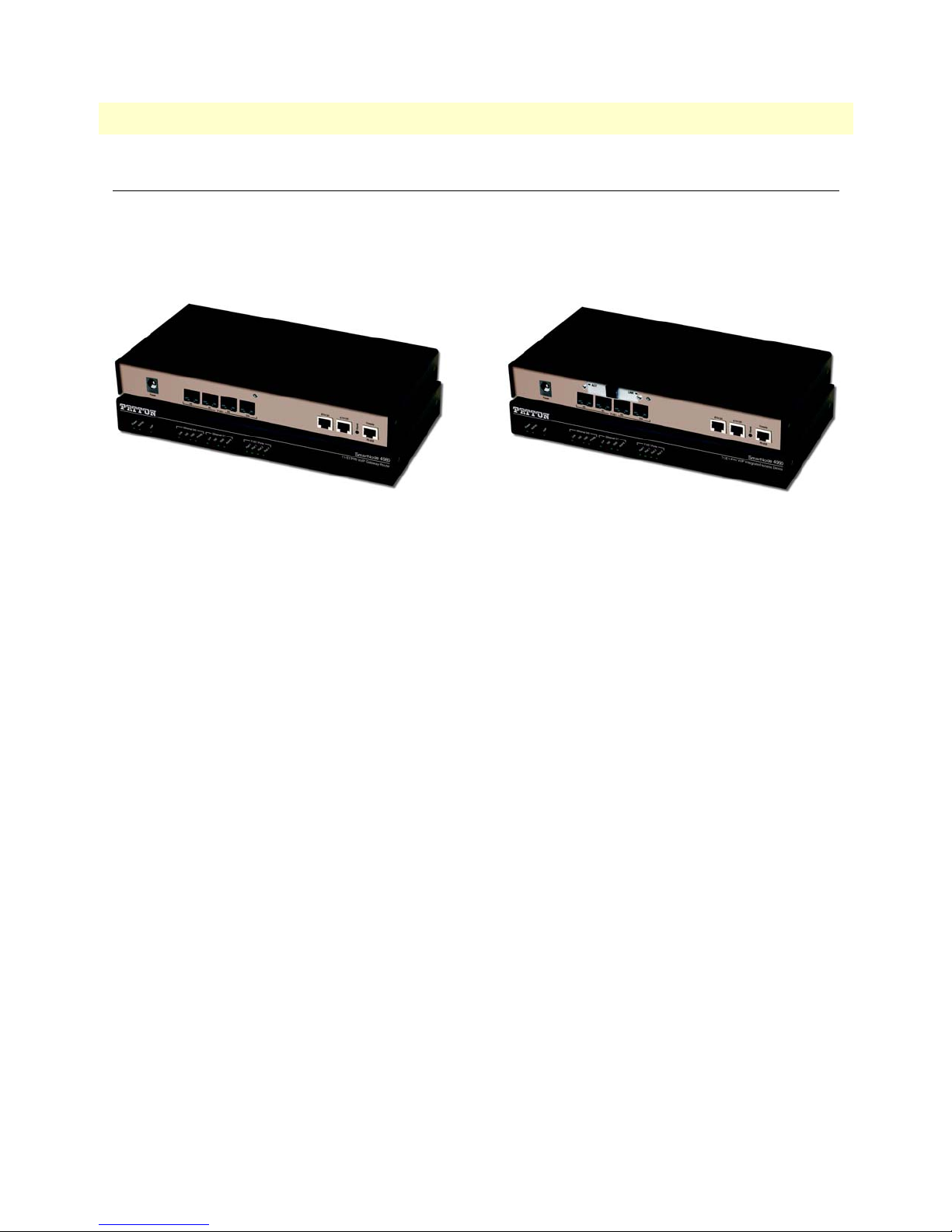

1 SmartNode 4980 (left) and SmartNode 4990 (right) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

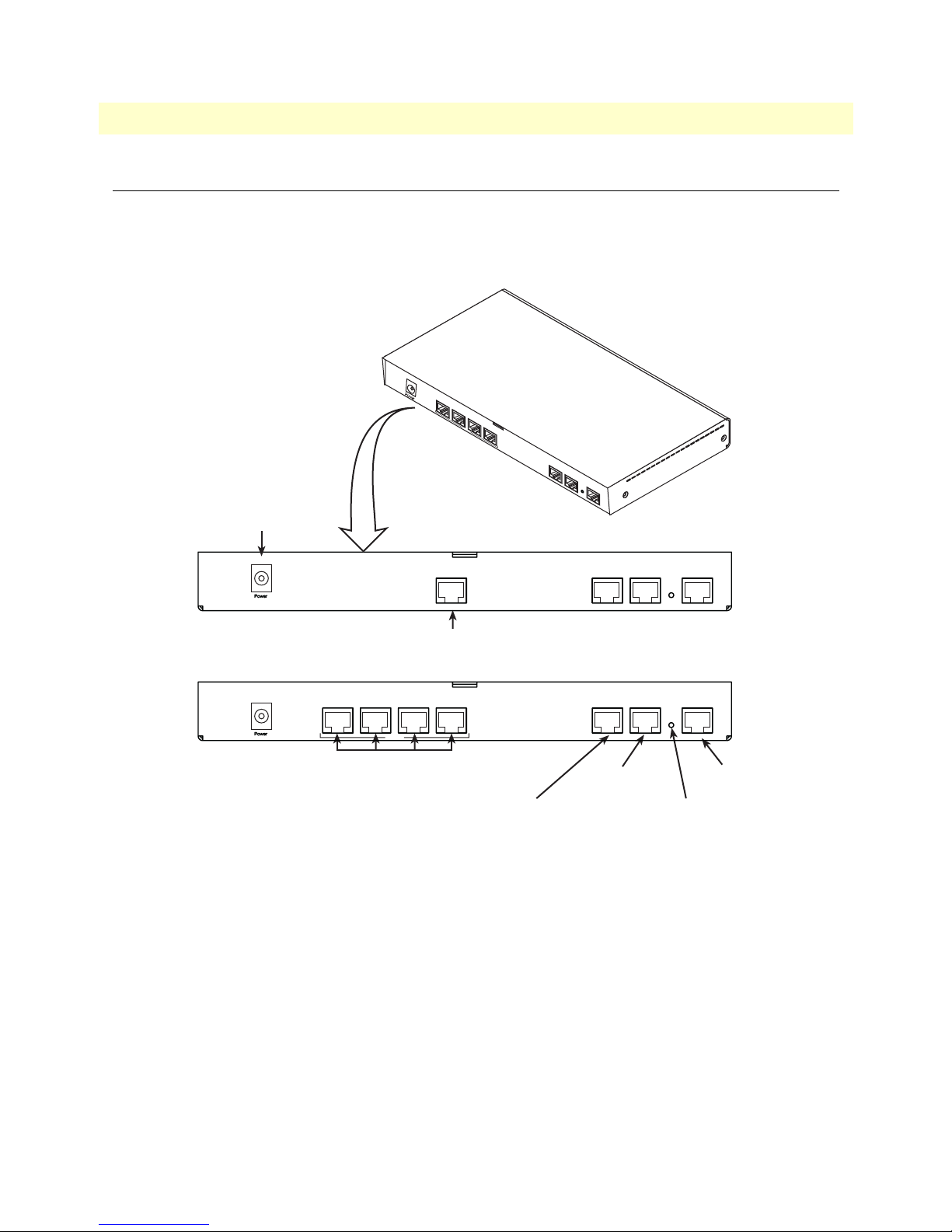

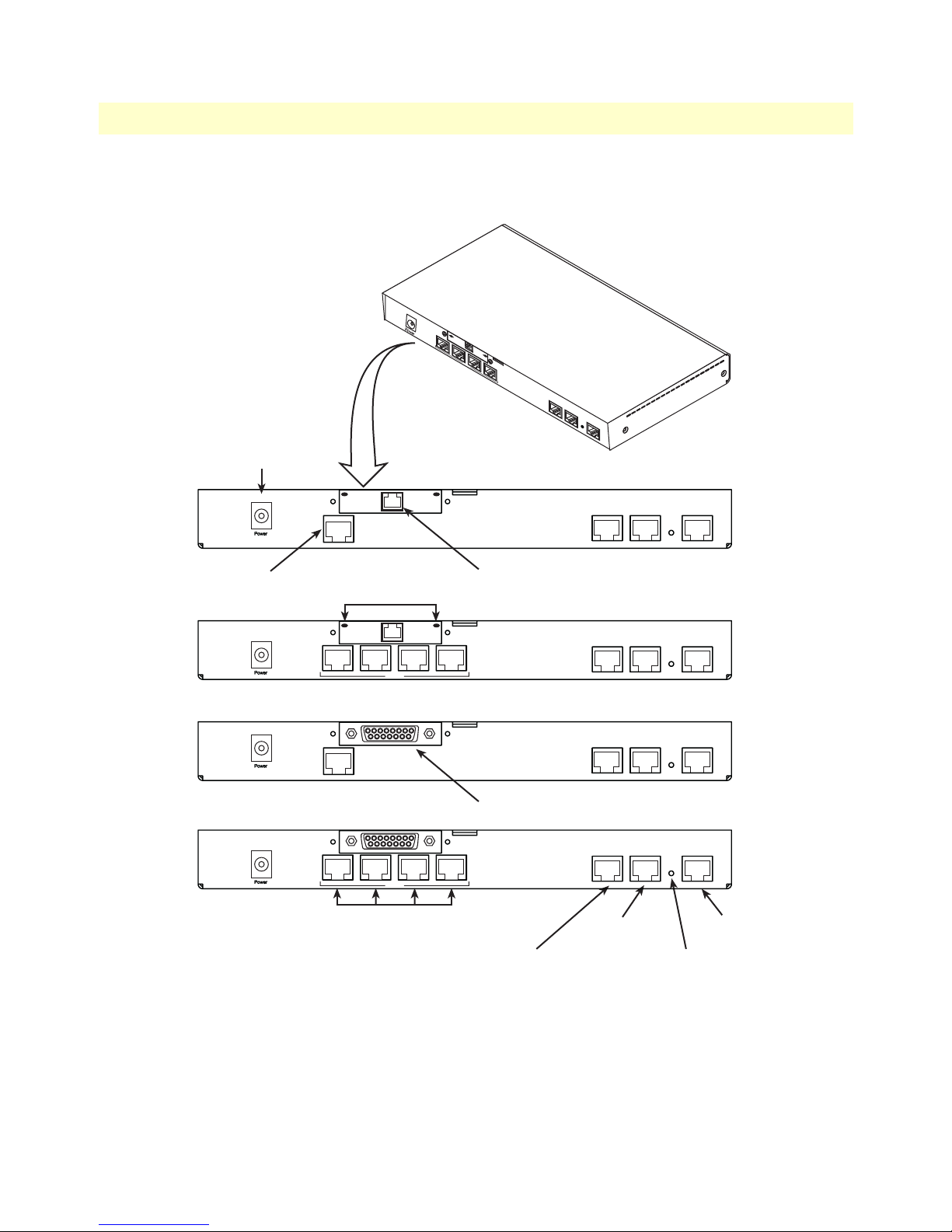

2 SN4980/SN4981 rear panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3 SN4991 rear panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 SmartNode 4980/4990 front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5 SN4980 application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6 SN4990 application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

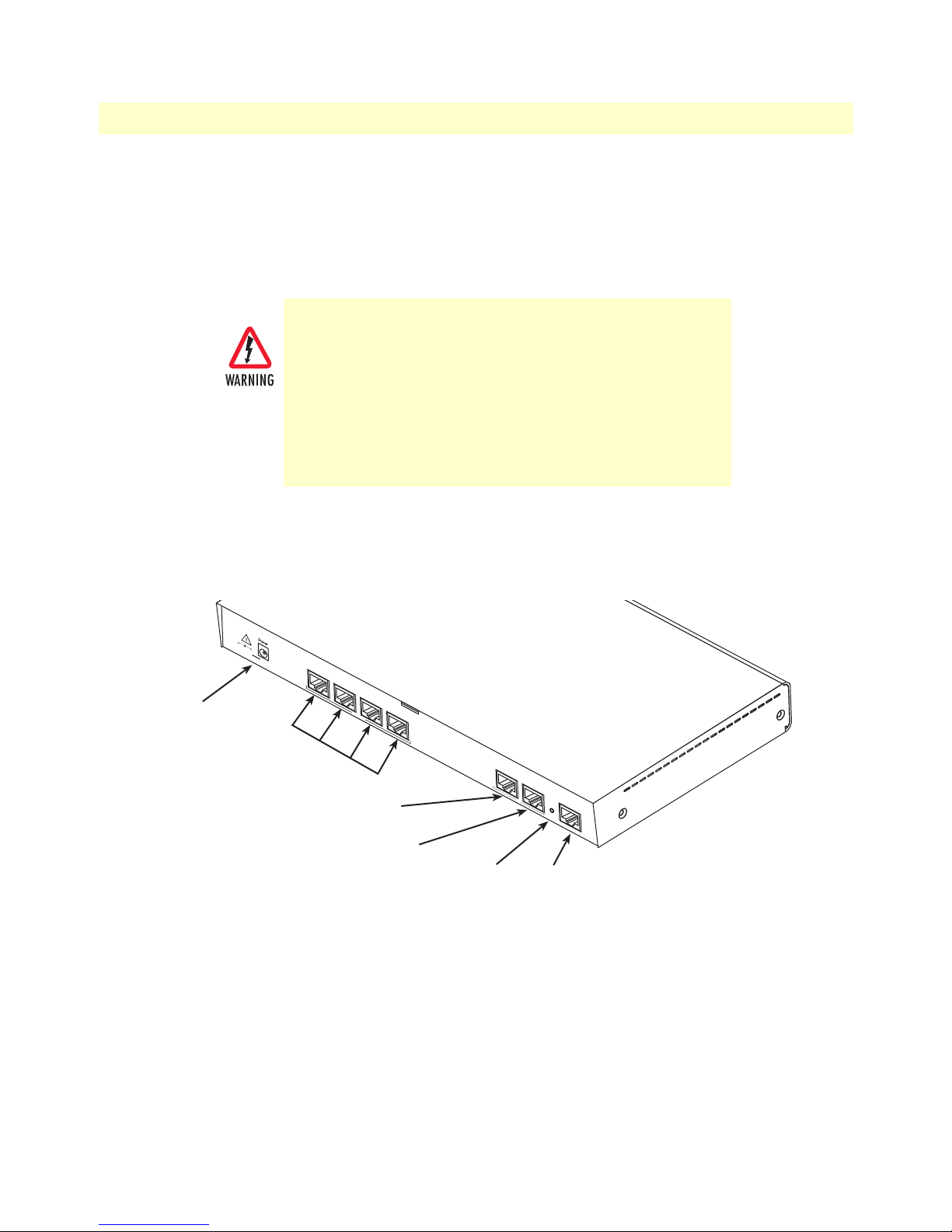

7 Power connector location on rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8 Connecting the SmartNode to your laptop PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

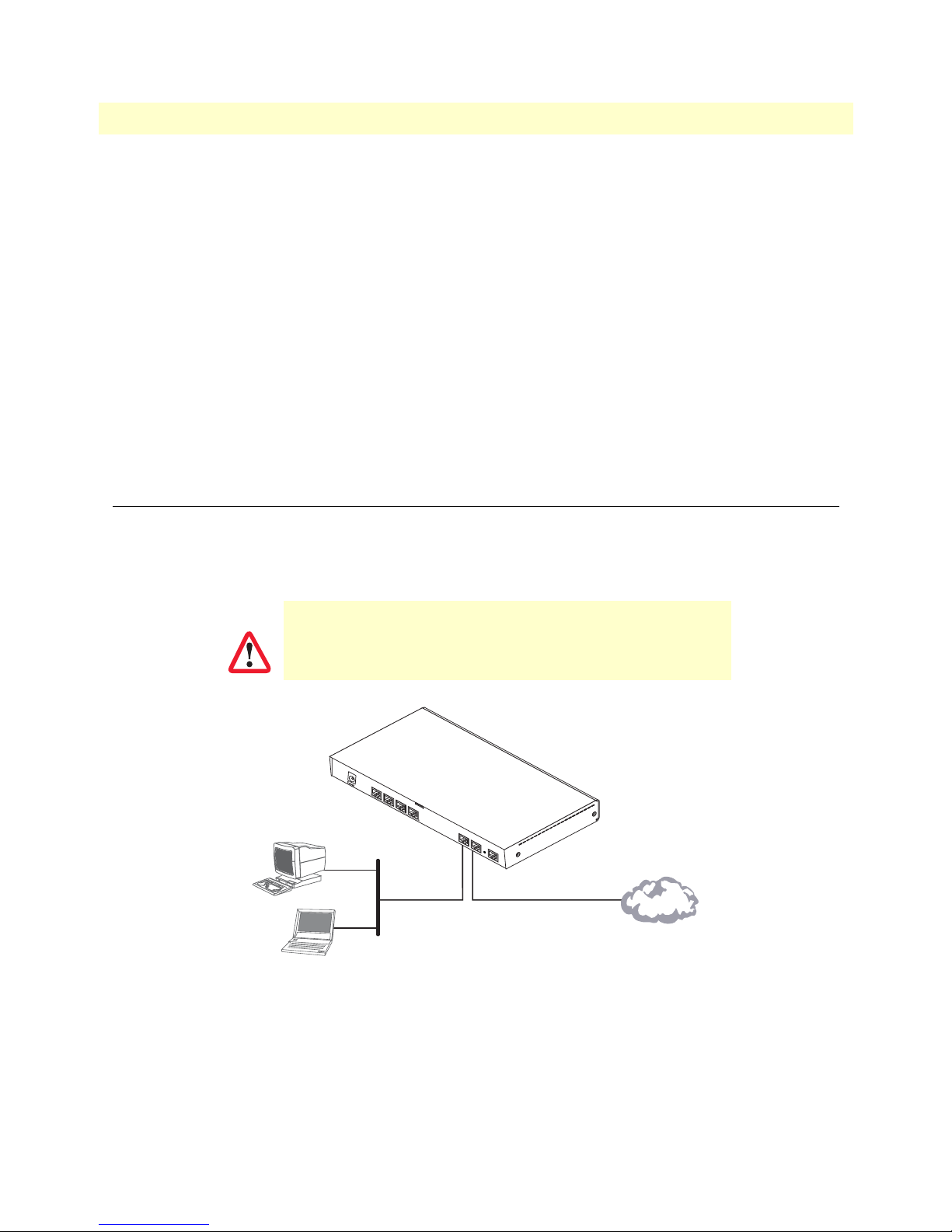

9 Connecting the SmartNode to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
10 Connecting a serial terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
11 Typical Ethernet straight-through cable diagram for 10/100Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
12 Typical Ethernet straight-through cable diagram for 1000Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
13 Connecting an E1 PRI port to an NT1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

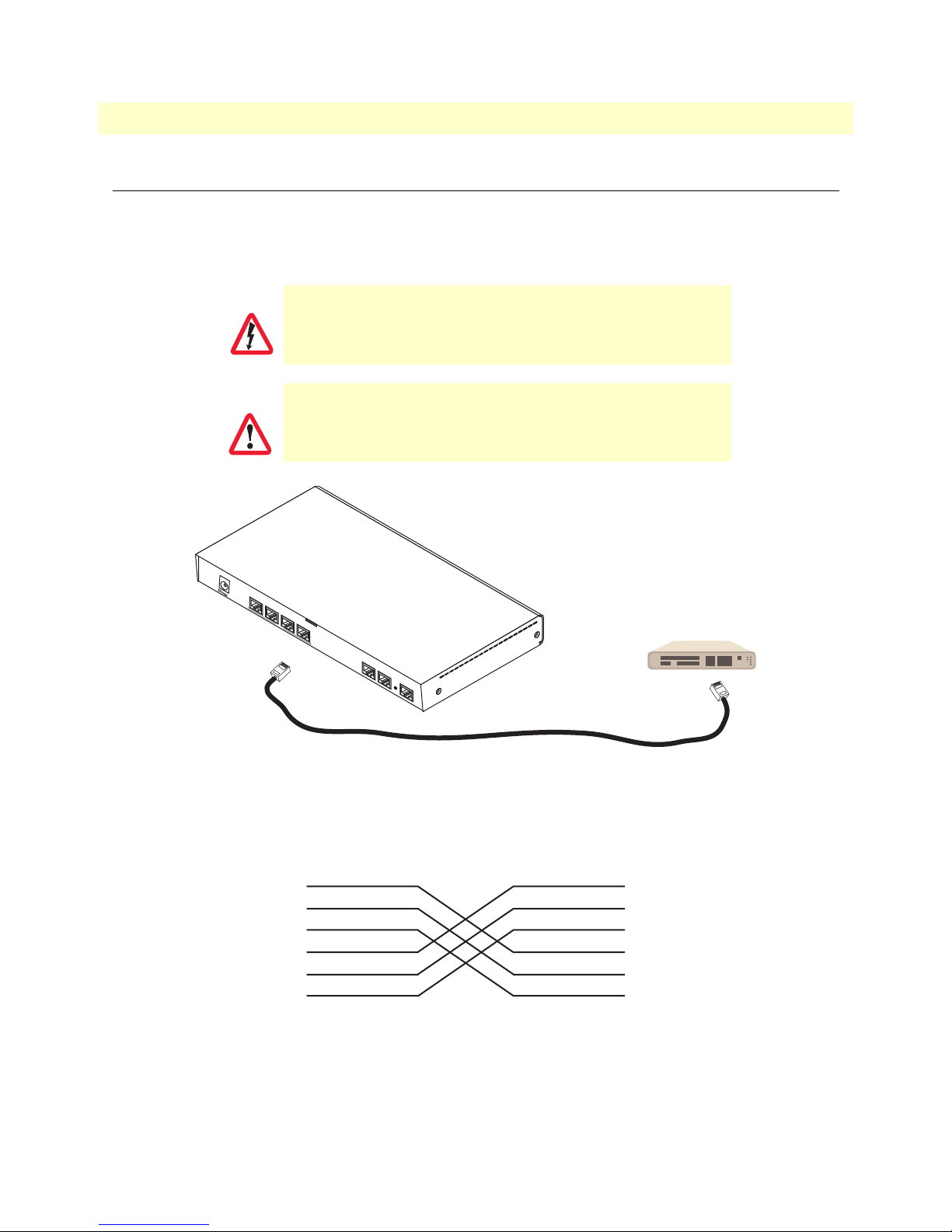

14 E1 PRI port crossover cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
15 Connecting a T1 PRI port to an NT device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
16 T1 PRI crossover cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

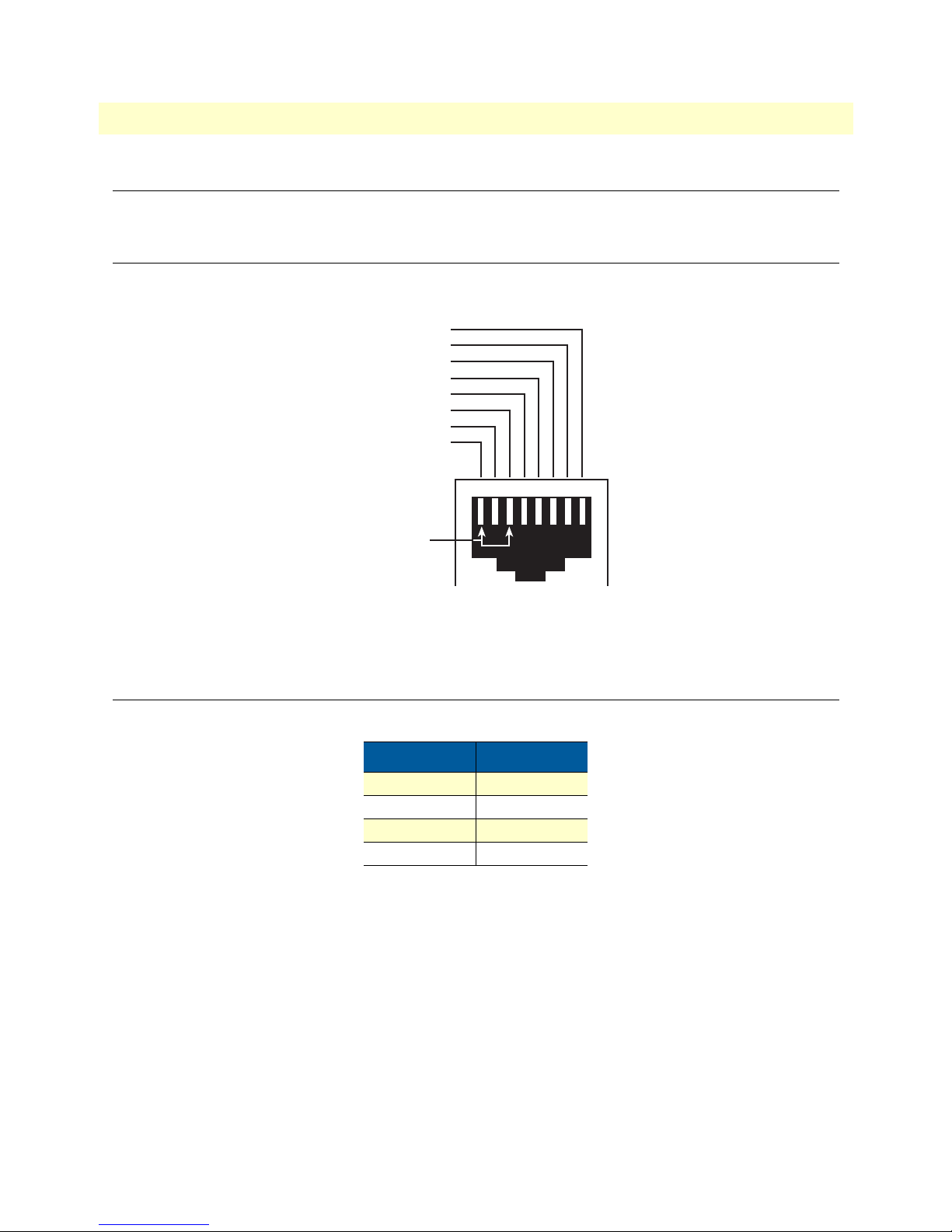

17 EIA-561 (RJ-45 8-pin) port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
7
Page 8
List of Tables
1 General conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2 SmartNode 4980 PRI Ports and Voice Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3 SmartNode 4981 PRI Ports and Voice Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 SmartNode 4991 G.SHDSL Models: PRI Ports and Voice Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5 SmartNode 4991 Fiber Model: PRI Ports and Voice Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6 SmartNode 4991 ADSL Models: PRI Ports and Voice Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7 SmartNode 4991 X.21 Models: PRI Ports and Voice Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
8 Rear panel ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
9 LED Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
10 Sample site log entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
11 Factory default IP address and network mask configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
12 G.SHDSL Daughter Card Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
13 SmartNode Models and their Unique sysObjectID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
14 RJ45 socket 10/100Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
15 RJ45 socket 1000Base-T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
16 RJ-45 socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
17 RJ-45 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
18 ADSL Port: RJ-45 connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
8
Page 9
About this guide
This guide describes the SmartNode 4980 and 4990 Series hardware, installation and basic configuration. For
detailed software configuration information refer to the SmartWare Software Configuration Guide and the available Configuration Notes.
Audience
This guide is intended for the following users:
• Operators
• Installers
• Maintenance technicians
Structure
This guide contains the following chapters and appendices:
• Chapter 1 on page 13 provides information about SmartNode features and capabilities
• Chapter 2 on page 24 contains an overview describing SmartNode operation and applications
• Chapter 3 on page 26 provides hardware installation procedures
• Chapter 4 on page 31 provides quick-start procedures for configuring the SmartNode
• Chapter 5 on page 36 contains information on contacting Patton technical support for assistance
• Appendix A on page 39 contains compliance information for the SmartNode
• Appendix B on page 43 contains specifications for the SmartNodes
• Appendix C on page 50 provides cable recommendations
• Appendix D on page 55 describes the SmartNode’s ports and pin-outs
• Appendix E on page 59 lists the factory configuration settings for the SmartNode
• Appendix F on page 62 provides license information that describes acceptable usage of the software pro-
vided with the SmartNode
For best results, read the contents of this guide before you install the SmartNode.
9
Page 10
SmartNode 4980 & 4990 User Manual
Precautions
Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you
become aware of potential problems. Warnings are intended to prevent safety hazards that could result in personal injury. Cautions are intended to prevent situations that could result in property damage or
impaired functioning.
Note
A note presents additional information or interesting sidelights.
The alert symbol and IMPORTANT heading calls attention to
important information.
The alert symbol and CAUTION heading indicate a potential hazard. Strictly follow the instructions to avoid property damage.
The shock hazard symbol and CAUTION heading indicate a
potential electric shock hazard. Strictly follow the instructions to
avoid property damage caused by electric shock.
The alert symbol and WARNING heading indicate a potential safety hazard.
Strictly follow the warning instructions to avoid personal injury.
The shock hazard symbol and WARNING heading indicate a potential electric
shock hazard. Strictly follow the warning instructions to avoid injury caused
by electric shock.
10
Page 11
SmartNode 4980 & 4990 User Manual
Safety when working with electricity
•
Do not open the device when the power cord is connected. For systems
without a power switch and without an external power adapter, line voltages are present within the device when the power cord is connected.
•
For devices with an external power adapter, the power adapter shall be a
listed Limited Power Source The mains outlet that is utilized to power the
device shall be within 10 feet (3 meters) of the device, shall be easily
accessible, and protected by a circuit breaker in compliance with local regulatory requirements.
•
For AC powered devices, ensure that the power cable used meets all applicable standards for the country in which it is to be installed.
•
For AC powered devices which have 3 conductor power plugs (L1, L2 &
GND or Hot, Neutral & Safety/Protective Ground), the wall outlet (or
socket) must have an earth ground.
•
For DC powered devices, ensure that the interconnecting cables are rated
for proper voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
•
WAN, LAN & PSTN ports (connections) may have hazardous voltages
present regardless of whether the device is powered ON or OFF. PSTN
relates to interfaces such as telephone lines, FXS, FXO, DSL, xDSL, T1, E1,
ISDN, Voice, etc. These are known as “hazardous network voltages” and
to avoid electric shock use caution when working near these ports. When
disconnecting cables for these ports, detach the far end connection first.
•
Do not work on the device or connect or disconnect cables during periods of
lightning activity
This device contains no user serviceable parts. This device can only be
repaired by qualified service personnel.
This device is NOT intended nor approved for connection to the PSTN. It is
intended only for connection to customer premise equipment.
In accordance with the requirements of council directive 2002/
96/EC on Waste of Electrical and Electronic Equipment (WEEE),
ensure that at end-of-life you separate this product from other
waste and scrap and deliver to the WEEE collection system in
your country for recycling.
11
Page 12
SmartNode 4980 & 4990 User Manual
Always follow ESD prevention procedures when removing and
replacing cards.
Wear an ESD-preventive wrist strap, ensuring that it makes good
skin contact. Connect the clip to an unpainted surface of the
chassis frame to safely channel unwanted ESD voltages
to ground.
To properly guard against ESD damage and shocks, the wrist
strap and cord must operate effectively. If no wrist strap is available, ground yourself by touching the metal part of the chassis.
General observations
• Clean the case with a soft slightly moist anti-static cloth
• Place the unit on a flat surface and ensure free air circulation
• Avoid exposing the unit to direct sunlight and other heat sources
• Protect the unit from moisture, vapors, and corrosive liquids
Typographical conventions used in this document
This section describes the typographical conventions and terms used in this guide.
General conventions
The procedures described in this manual use the following text conventions:

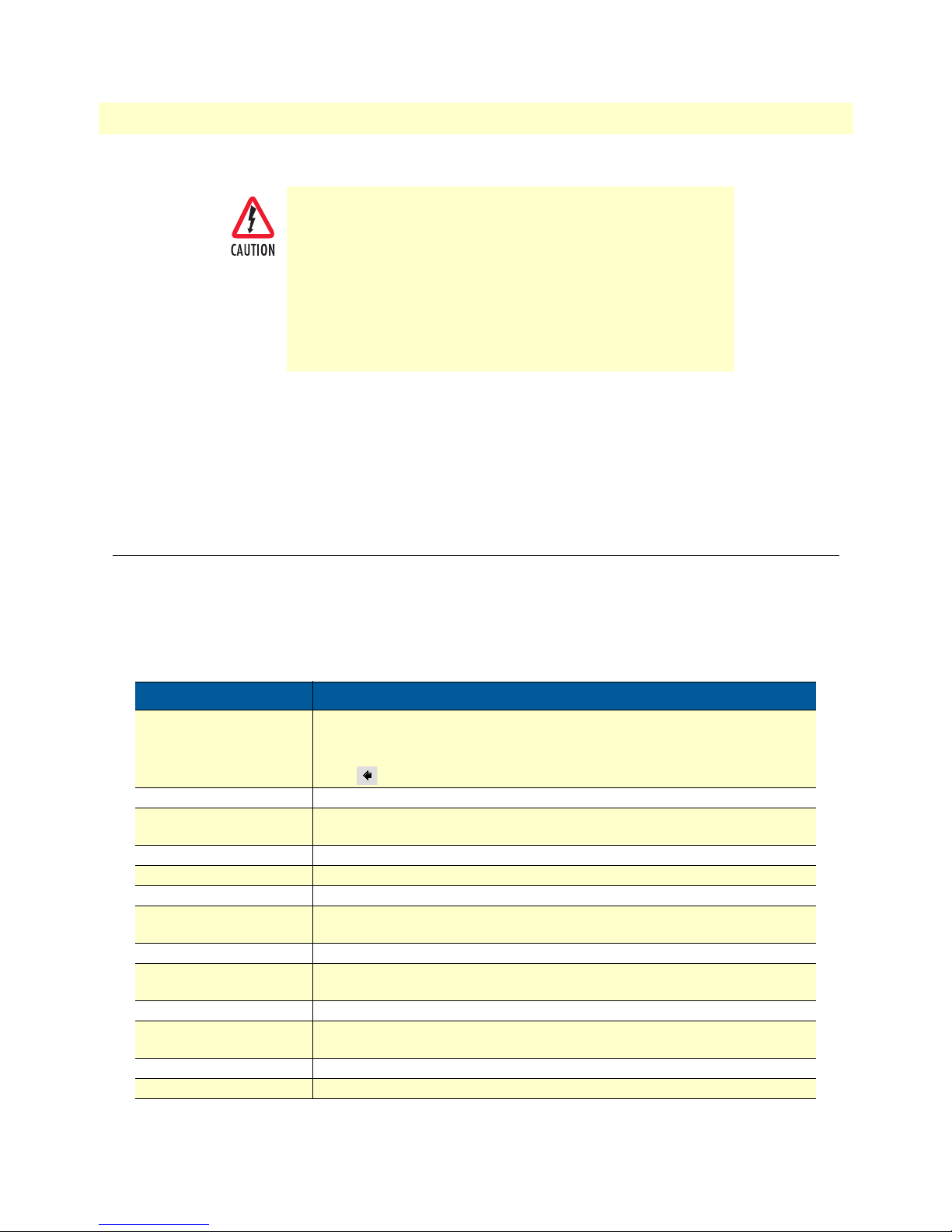

Table 1. General conventions
Convention Meaning
Garamond blue type
Futura bold type Commands and keywords are in boldface font.
Futura bold-italic type Parts of commands, which are related to elements already named by the user, are
Italicized Futura type Variables for which you supply values are in italic font
Futura type Indicates the names of fields or windows.
Garamond bold type Indicates the names of command buttons that execute an action.
< > Angle brackets indicate function and keyboard keys, such as <SHIFT>, <CTRL>,
[ ] Elements in square brackets are optional.
{a | b | c} Alternative but required keywords are grouped in braces ({ }) and are separated
screen
node The leading IP address or nodename of a SmartNode is substituted with node in
SN The leading SN on a command line represents the nodename of the SmartNode
# An hash sign at the beginning of a line indicates a comment line.
Indicates a cross-reference hyperlink that points to a figure, graphic, table, or section heading. Clicking on the hyperlink jumps you to the reference. When you
have finished reviewing the reference, click on the Go to Previous View
button in the Adobe® Acrobat® Reader toolbar to return to your starting point.
in boldface italic font.
<C>, and so on.
by vertical bars ( | )
Terminal sessions and information the system displays are in
boldface italic font.
screen font
.
12
Page 13
Chapter 1 General information
Chapter contents
SmartNode 4980 and 4990 Series overview...........................................................................................................14
SN4980 Series model codes ............................................................................................................................15
SN4990 Series model codes ............................................................................................................................16
SmartNode 4980 and 4990 Series rear panels........................................................................................................18
SN4980 Series rear panels ...............................................................................................................................18
SN4990 Series rear panels ...............................................................................................................................19
SmartNode 4980 and 4990 Series front panel .......................................................................................................22
13
Page 14
SmartNode 4980 & 4990 User Manual 1 • General information
SmartNode 4980 and 4990 Series overview
The SmartNode 4980 and 4990 T1/E1 PRI VoIP Router (see Figure 1) combines Universal SIP Trunking, IP
routing, VPN/Security, and Quality of Service with high-quality Voice over IP (VoIP) delivered on 1 to 4 Primary Rate Interfaces (PRI T1/E1). This combination paves the way for enterprises’ migration to unified communications by integrating legacy telephone systems with PSTN and VoIP networks.
Figure 1. SmartNode 4980 (left) and SmartNode 4990 (right)
The SmartNode 4980 Gateway-Router and SmartNode 4990 IAD perform the following major functions:
• Up to 120 VoIP Calls—Up to 120 simultaneous voice or T.38 fax calls with one to four T1/E1/PRI ports
and dual Gigabit Ethernet ports. Use any CODEC or fax on any port, any time.
• Unified Communications Agent™—Provides any-to-any multi-path switching with VoIP and data sur-
vivability, VoIP-over-VPN security with AES/DES strong encryption, Internet Key Exchange (IKE), and
SIP Registrar
• Universal SIP and T.38 Support—Softswitch-certified signaling support between all T1 RBS CAS, ISDN
PRI, Q.SIG, SIP and H.323.
• Secure Toll-Quality VoIP—Patton’s DownStreamQoS™ and Voice-over-VPN with adaptive traffic
management and shaping for maximum voice quality and secure voice communication.
• IP Routing—RIP v1/v2, VRRP, policy-based routing, and loopback interface
• Transparent Telephony Features—Complex number manipulation and mapping for seamless integration
with existing infrastructures, CLIP, CLIR, hold, transfer and much more.
• Management & Provisioning—Web-based management, SNMP, Command Line Interface. Automated
provisioning for easy large-scale deployments.
• Optional High Precision Clock—Delivers DECT PBX interoperability with reliable fax performance.
• G.SHDSL, ADSL, X.21 or Fiber Broadband Access—Complete Access Router with integrated
G.SHDSL.bis WAN interface delivers symmetrical throughput up to 11.4 Mbps over four wires or up to
5.7 Mbps over two wires, 14 Mbps ADSL WAN interface, up to 2 Mbps X.21 interface or 100 Mbps /
1000 Mbps Fiber interface. Supports ATM QoS with multiple PVCs and outstanding DSLAM interoperability.
SmartNode 4980 and 4990 Series overview 14
Page 15
SmartNode 4980 & 4990 User Manual 1 • General information
SN4980 Series model codes
The SmartNode 4980 series consists of several models. They differ in the number of PRI ports and voice channels supported. All models come equipped with two 10/100/1000Base-T Ethernet ports. The SmartNode
4980 PRI ports and voice channels are listed in Table 2, and high precision clock models are listed in Table 3.
Table 2. SmartNode 4980 PRI Ports and Voice Channels
Model PRI Ports
SN4980/1E15V/EUI 1 15 – – –
SN4980/1E24V/EUI 1 24 – – –
SN4980/1E30V/EUI 1 30 – – –
SN4980/4E15VR/EUI 4 15
SN4980/4E24VR/EUI 4 24
SN4980/4E30VR/EUI 4 30
SN4980/4E48VR/EUI 4 48
SN4980/4E60VR/EUI 4 60
SN4980/4E96VR/EUI 4 96
SN4980/4E120VR/EUI 4 120
SN4980/4E30V120R/EUI 4 30
SN4980/4E30V120R/UI 4 30
Voice
Channels
Relay
9
9
9
9
9
9
9
9
9 9
Internal
Power
– –
– –
– –
– –
– –
– –
– –
– –
High Precision
Clock
–
The high precision SmartNode 4981 models have a Stratum III clock that provides a clock source of < 5 ppm.
The SN4981 can provide a PSTN-equivalent clock for PBXs that used to rely on PSTN for an accurate clock
source. The popular DECT PBX needs such high precision clocks
Table 3. SmartNode 4981 PRI Ports and Voice Channels
.
Model PRI Ports
SN4981/1E15V/EUI 1 15 – –
SN4981/1E24V/EUI 1 24 – –
SN4981/1E30V/EUI 1 30 – –
SN4981/4E15VR/EUI 4 15
SN4981/4E24VR/EUI 4 24
SN4981/4E30VR/EUI 4 30
SN4981/4E48VR/EUI 4 48
SN4981/4E60VR/EUI 4 60
SN4981/4E96VR/EUI 4 96
SN4981/4E120VR/EUI 4 120
SN4981/4E30V120R/EUI 4 30
SN4981/4E30V120R/UI 4 30
SmartNode 4980 and 4990 Series overview 15
Voice
Channels
Relay
9
9
9
9
9
9
9
9
9 9 9
Internal
Power
–
–
–
–
–
–
–
–
High Precision
Clock
9
9
9
9
9
9
9
9
9
9
9
Page 16
SmartNode 4980 & 4990 User Manual 1 • General information
SN4990 Series model codes
The SmartNode 4990 series consists of several models. They differ in the number of PRI ports and voice channels supported. All SN4991 models come equipped with two 10/100/1000Base-T Ethernet ports and a high
precision clock. The SmartNode 4991 models are listed in Table 4, Table 5, Table 6 and Table 7.
For SN4991 models, the Stratum III high precision clock provides a clock source of < 5 ppm. For PBXs that
used to rely on PSTN for accurate clock source, the SmartNode 4991 can provide a PSTN-equivalent high
precision clock. The popular DECT PBX needs such high precision clocks
Table 4. SmartNode 4991 G.SHDSL Models: PRI Ports and Voice Channels
.
Model PRI Ports
SN4991/1E15V2GS/EUI
SN4991/1E24V2GS/EUI
SN4991/1E30V2GS/EUI
SN4991/4E15VR2GS/EUI
SN4991/4E24VR2GS/EUI
SN4991/4E30VR2GS/EUI
SN4991/4E48VR2GS/EUI
SN4991/4E60VR2GS/EUI
SN4991/4E96VR2GS/EUI
SN4991/4E120VR2GS/EUI
SN4991/4E30V120R2GS/EUI
Table 5. SmartNode 4991 Fiber Model: PRI Ports and Voice Channels
Model PRI Ports
SN4991/1E15VF/EUI
SN4991/1E24VF/EUI
SN4991/1E30VF/EUI
SN4991/4E120VRF/EUI
SN4991/4E24VRF/EUI
SN4991/4E24VRF/EUI
SN4991/4E30V120RF/EUI
SN4991/4E30VRF/EUI
SN4991/4E48VRF/EUI
SN4991/4E60VRF/EUI
SN4991/4E96VRF/EUI
Voice
Channels
1 15 –
1 24 –
1 30 –
4 15
4 24
4 30
4 48
4 60
4 96
4 120
4 30
Voice
Channels
1 15 –
1 24 –
1 30 –
4 120
4 15
4 24
4 120
4 30
4 48
4 60
4 96
Relay G.SHDSL
Relay X.21
High Precisio n
Clock
9 9
9 9
9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
High Precision
Clock
9 9
9 9
9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
9 9 9
SmartNode 4980 and 4990 Series overview 16
Page 17
SmartNode 4980 & 4990 User Manual 1 • General information
Table 6. SmartNode 4991 ADSL Models: PRI Ports and Voice Channels
Model PRI Ports
Voice
Channels
Relay ADSL
High Precision
Clock
SN4991/1E15VA/EUI 1 15 – D D
SN4991/1E30VA/EUI 1 30 – D D
SN4991/4E15VRA/EUI 4 15 D D D
SN4991/4E30VRA/EUI 4 30 D D D
Table 7. SmartNode 4991 X.21 Models: PRI Ports and Voice Channels
Models PRI Ports
Voice
Channels
Relay X.21
High Precision
Clock
SN4991/1E15VD/EUI 1 15 – D D
SN4991/1E24VD/EUI 1 24 – D D
SN4991/1E30VD/EUI 1 30 D D D
SN4991/4E15VRD/EUI 4 15 D D D
SN4991/4E24VRD/EUI 4 24 D D D
SN4991/4E30VRD/EUI 4 30 D D D
SN4991/4E48VRD/EUI 4 48 D D D
SN4991/4E60VRD/EUI 4 60 D D D
SN4991/4E96VRD/EUI 4 96 D D D
SN4991/4E120VRD/EUI 4 120 D D D
SN4991/4E30V120RD/EUI 4 30 D D D
SmartNode 4980 and 4990 Series overview 17
Page 18
SmartNode 4980 & 4990 User Manual 1 • General information
SmartNode 4980 and 4990 Series rear panels
The SmartNode 4980 and 4990 rear panel ports are described in Table 8 on page 20.
SN4980 Series rear panels
0
/3
0/2
0
/1
T1/E1
0
/0
E
TH
0/1
ET
H
0
/0
C
onso
Reset
le
RS
-23
2
Power
/1E30V
0/0
T1/E1
T1/E1
PRI port 0/0
0/00/10/20/3
T1/E1
T1/E1
PRI ports 0/3–0/0
10/100/1000Base-T port
ETH 0/0
10/100/1000Base-T port
Figure 2. SN4980/SN4981 rear panels
ETH 0/1
ConsoleETH 0/0ETH 0/1
Reset
RS-232
/4E120V
ConsoleETH 0/0ETH 0/1
Reset
RS-232
Console
RS-232 port
RESET
button
SmartNode 4980 and 4990 Series rear panels 18
Page 19
SmartNode 4980 & 4990 User Manual 1 • General information
SN4990 Series rear panels
0/3
A
C
T
0/2
L
I
N
K
0
/1
T
0/0
1/E1
E
TH 0
/1
E
T
H
0/0
Con
sole
Reset
R
S-232
Power
ACT LINK
T1/E1
/1E30V2GS
ConsoleETH 0/0ETH 0/1
Reset
RS-232
T1/E1
PRI port 0/0
DSL port
DSL LEDs (ACT & LINK)
ACT LINK
T1/E1
T1/E1
0/00/10/20/3
X.21 interface
T1/E1
0/00/10/20/3
T1/E1
PRI ports 0/3–0/0
10/100/1000Base-T port
Figure 3. SN4991 rear panels
ETH 0/0
ETH 0/1
10/100/1000Base-T port
/4E120V2GS
ConsoleETH 0/0ETH 0/1
Reset
RS-232
/1E30VD
ConsoleETH 0/0ETH 0/1
Reset
RS-232
/4E120VD
ConsoleETH 0/0ETH 0/1
Reset
RS-232
Console
RS-232 port
RESET
button
SmartNode 4980 and 4990 Series rear panels 19
Page 20
SmartNode 4980 & 4990 User Manual 1 • General information
Table 8. Rear panel ports
Port Description
WAN ETH 0/0-0/1
(SN4991
models only)
LAN ETH 0/1-0/1
(SN4980/4981
models only)
PRI 0/0 RJ-45 connector providing E1 (2.048Mbps) or T1(1.533 Mbps) PRI interface, meet-
PRI 0/1 RJ-45 connector providing E1 (2.048Mbps) or T1(1.533 Mbps) PRI interface, meet-
PRI 0/2 RJ-45 connector providing E1 (2.048Mbps) or T1(1.533 Mbps) PRI interface, meet-
PRI 0/3 RJ-45 connector providing E1 (2.048Mbps) or T1(1.533 Mbps) PRI interface, meet-
Console
DC power input
Reset
G.SHDSL port
(SN4991 /2GS
models only)
Fiber SFP slot for Fiber WAN uplink, 100 Mbps and 1000 Mbps support,100 bT and
Auto-MDX Gigabit-Ethernet port, RJ-45 (see
net WAN device (for example, a cable modem, DSL modem, or fiber modem).
Note: Only full duplex modes are supported.
Auto-MDX Gigabit-Ethernet port, RJ-45 (see
LAN (for example, a PC, printer, or wireless bridge). Note: Only full duplex modes
are supported.
ing all requirements of ITU-T recommendations for G.703. Use a shielded E1 or T1
interface cable for 120 Ohm balanced connections to connect the SmartNode with
an NT or ET, e.g. a PBX or LE.
ing all requirements of ITU-T recommendations for G.703. Use a shielded E1 or T1
interface cable for 120 Ohm balanced connections to connect the SmartNode with
an NT or ET, e.g. a PBX or LE.
ing all requirements of ITU-T recommendations for G.703. Use a shielded E1 or T1
interface cable for 120 Ohm balanced connections to connect the SmartNode with
an NT or ET, e.g. a PBX or LE.
ing all requirements of ITU-T recommendations for G.703. Use a shielded E1 or T1
interface cable for 120 Ohm balanced connections to connect the SmartNode with
an NT or ET, e.g. a PBX or LE.
Used for service and maintenance, the Console port (see
connector, connects the product to a serial terminal such as a PC or ASCII terminal
(also called a dumb terminal).
Electricity supply socket. (see
The reset button (see
•
Restart the unit with the current startup configuration—Press (for less than 1 second)
and release the Reset button to restart the unit with the current startup configuration.
•
Restart the unit with factory default configuration—Press the Reset button for
5 seconds until the Power LED (see
the unit with factory default configuration.
•
Restart the unit in bootloader mode (to be used only by trained SmartNode technicians)—Starting with the unit powered off, press and hold the Reset button as
you apply power to the unit. Release the Reset button when the Power LED starts
blinking so the unit will enter bootloader mode.
Provides symmetrical throughput up to 11.4 Mbps over four wires or 5.7 Mbps over
two wires. Supports ATM QoS with multiple PVCs and outstanding DSLAM interoperability. The G.SHDSL LEDs are located on either side of the DSL port. ACT (when lit
or blinking) shows Activity, and LINK (when lit) shows that the DSL port is connected.
GigE support, up to 8 VLANS, PPPoE.
Figure 2
Figure 2
) has three functions:
Figure 2
Figure 2
).
Figure 4
), connects the unit to an Ether-
), connect the unit to an Ethernet
Figure 2
on page 22) starts blinking to restart
), an RS-232 RJ-45
SmartNode 4980 and 4990 Series rear panels 20
Page 21
SmartNode 4980 & 4990 User Manual 1 • General information
Table 8. Rear panel ports
Port Description
ADSL ADSL2+ITU-T G.992.5; Annex A, M, B; up to 24 Mbps; PPoE; PPPoA; IPoA; 8
PVCs, each UBR, CBR or VBR-rt selectable; 1.610 OAM F4/F5 support; G.0041
(G.hs)
X.21 serial port
(SN4991 /D
DB-15 connector providing data rates up to 2 Mbps, Frame Relay or PPP protocols,
Status and Activity LED indicators, configured as DTE.
models only)
SmartNode 4980 and 4990 Series rear panels 21
Page 22
SmartNode 4980 & 4990 User Manual 1 • General information
SmartNode 4980 and 4990 Series front panel
Figure 4 shows the SmartNode’s front panel LEDs. The LED definitions are listed in Table 9.
rt 0
o
P
1
/E
1
T
t 1
r
o
P
1
E
/
1
T
rt 2
o
P
1
/E
1
3
T
rt
o
P
1
/E
1
T
E
n
t
e
r
p
r
is
e
T
1
/
E
1
SmartNode
V
o
I
P
G
a
t
e
w
a
y
R
o
u
t
e
r
/1E30V
Enterprise T1/E1 VoIP Gateway-Router
Power
SmartNode
Activity
VoIP
Ethernet 0/0
Link
Ethernet 0/0
100
Ethernet 0/0
1000
Ethernet 0/0
Activity
Ethernet 0/1
Link
Ethernet 0/1
100
T1/E1 Port 0
Ethernet 0/1
Activity
Ethernet 0/1
1000
T1/E1 Port 1
T1/E1 Port 2
T1/E1 Port 3
T1/E1 Port 0
T1/E1 Port 0
T1/E1 Port 3
/4E120V
Enterprise T1/E1 VoIP Gateway-Router
SmartNode
T1/E1 Port 1 T1/E1 Port 2
Figure 4. SmartNode 4980/4990 front panel
Table 9. LED Definitions
LED Description
Note
Power When lit, indicates power is applied.
Run When lit, the unit is in normal operation; flashes once per second during boot (star-
If an error occurs, all LEDs will flash once per second.
tup).
SmartNode 4980 and 4990 Series front panel 22
Page 23
SmartNode 4980 & 4990 User Manual 1 • General information
Table 9. LED Definitions
LED Description
VoIP Link
Ethernet Link
•
On indicates the gateway is registered to an H.323 gatekeeper/SIP server, or, in
the case of direct routing, has at least one active VoIP connection.
•
Off indicates the unit is not configured or registered, or has no active direct-routed
VoIP connection.
•
Flashing green indicates that the unit is attempting to register or has failed to register.
•
On when the Ethernet connection on the corresponding port has a link
indication.
Ethernet Speed
10/100
Ethernet Speed
1000
Ethernet Activity
PRI Link/Status
G.SHDSL ACT
(Rear panel)
G.SHDSL Link
(Rear panel)
*note: Fiber, ADSL or
X.21
When the Ethernet Link LED is on, then:
•
On when the Ethernet is connected to a 100Mb network.
•
Off when the Ethernet is connected to a 10Mb network.
•
On when the Ethernet is connected to a 1000Mb network.
•
Flashes when data is received or transmitted at the corresponding Ethernet port.
•
On = in frame, no errors
•
Flash = Error
•
Fast Flash = Signal detected but no frame synchronization or acquisition is in process
•
Slow Flash = Framing synchronized, Signaling not established
•
Flashes when data is received or transmitted
•
Off = No activity
•
On when the G.SHDSL connection on the corresponding port has a link indication.
•
Off = No G.SHDSL connection
SmartNode 4980 and 4990 Series front panel 23
Page 24
Chapter 2 Applications overview
Chapter contents
Typical application ................................................................................................................................................25
24
Page 25
SmartNode 4980 & 4990 User Manual 2 • Applications overview
Typical application
IP-enable legacy PBX systems with an Enterprise-class SmartNode 4980 VoIP Gateway-Router or SmartNode
4990 Integrated Access Device.The SN4980 and SN4990 support up to 120 concurrent VoIP calls.
The SN4980 with built-in IP Router enables Enterprises to connect existing PBX systems with advanced IP
telephony services and the PSTN. With built-in G.SHDSL, ADSL, Fiber or X.21, the SN4990 enables Broadband Providers to connect existing PBX systems with advanced IP telephony services and the PSTN.
Combining a VoIP gateway with an IP router, the SmartNode 4980 and 4990 Series adds QoS and VPN security, making it the ideal solution for secure prioritized communications.
Figure 5. SN4980 application
Figure 6. SN4990 application
Typical application 25
Page 26
Chapter 3 SmartNode installation
Chapter contents
Planning the installation ........................................................................................................................................27
Site log ............................................................................................................................................................27
Network information ......................................................................................................................................27
Network Diagram ...........................................................................................................................................27
IP related information .....................................................................................................................................27
Software tools .................................................................................................................................................28
AC Power Mains .............................................................................................................................................28
Location and mounting requirements .............................................................................................................28
Installing the SmartNode.......................................................................................................................................28
Placing the SmartNode ...................................................................................................................................28
Installing cables ...............................................................................................................................................28
Connecting the PRI ..................................................................................................................................29
Connecting the 10/100/1000Base-T Ethernet LAN and WAN cables ......................................................29
Installing the DSL WAN cable (SN4991 /2GS Models) ...........................................................................29
Installing the X.21 WAN cable (SN4991 /D Models) ...............................................................................29
Installing the SFP for Fiber WAN module (SN4991) ...............................................................................30
Connecting the power supply ....................................................................................................................30
26
Page 27
SmartNode 4980 & 4990 User Manual 3 • SmartNode installation
Planning the installation
Before installing the SmartNode, the following tasks should be completed:
• Create a network diagram (see section “Network information” on page 27)
• Gather IP related information (see section “IP related information” on page 27 for more information)
• Install the hardware and software needed to configure the SmartNode. (See section “Software tools” on
page 28)
• Verify power source reliability (see section “AC Power Mains” on page 28).
After you have finished preparing for installation, go to the section “Installing the SmartNode” on page 28 to
install the device.
Site log
Patton recommends that you maintain a site log to record all actions relevant to the system, if you do not
already keep such a log. Site log entries should include information such as listed in Table 10.
Table 10. Sample site log entries
Entry Description
Installation Make a copy of the installation checklist and insert it into the site log
Upgrades and maintenance Use the site log to record ongoing maintenance and expansion history
Configuration changes Record all changes and the reasons for them
Maintenance Schedules, requirements, and procedures performed
Comments Notes, and problems
Software Changes and updates to SmartWare software
Network information
Network connection considerations that you should take into account for planning are provided for several
types of network interfaces are described in the following sections.
Network Diagram
Draw a network overview diagram that displays all neighboring IP nodes, connected elements and
telephony components.
IP related information
Before you can set up the basic IP connectivity for your SmartNode, you should have the following information:
• IP addresses used for Ethernet LAN and WAN ports
• Subnet mask used for Ethernet LAN and WAN ports
Planning the installation 27
Page 28
SmartNode 4980 & 4990 User Manual 3 • SmartNode installation
• IP addresses of central H.323 gatekeeper (if used)
• IP addresses and/or URL of SIP servers or Internet telephony services (if used)
• Login and password for PPPoE
Access
• Login and password for SIP or H.323 based telephony services
• IP addresses of central TFTP server used for configuration upload and download (optional)
Software tools
You will need a PC (or equivalent) with Windows Telnet or a program such as Tera Term Pro Web to configure the software on your SmartNode.
AC Power Mains
If you suspect that your AC power is not reliable, for example if room lights flicker often or there is machinery
with large motors nearby, have a qualified professional test the power. Patton recommends that you include an
uninterruptible power supply (UPS) in the installation to ensure that VoIP service is not impaired if the
power fails. Refer to “Connecting the power supply” on page 30.
Location and mounting requirements
The SmartNode is intended to be placed on a desktop or similar sturdy, flat surface that offers easy access to
the cables. Allow sufficient space at the rear of the chassis for cable connections. Additionally, you should consider the need to access the unit for future upgrades and maintenance.
Note
Under the rack mount option, the chassis can be equipped with rack mount
ears that allow for use in a 19” rack.
Installing the SmartNode
SmartNode hardware installation consists of the following:
• Placing the device at the desired installation location (see section “Placing the SmartNode” on page 28)
• Connecting the interface and power cables (see section “Installing cables”)
When you finish installing the SmartNode, go to chapter 4, “Initial configuration” on page 31.
Placing the SmartNode
Place the unit on a desktop or similar sturdy, flat surface that offers easy access to the cables. The unit should
be installed in a dry environment with sufficient space to allow air circulation for cooling.
Note
Installing cables
Installing the SmartNode 28
For proper ventilation, leave at least 2 inches (5 cm) to the left, right, front,
and rear of the unit.
Do not work on the system or connect or disconnect cables during periods of
lightning activity.
Page 29
SmartNode 4980 & 4990 User Manual 3 • SmartNode installation
Connect the cables in the following order:
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
1. Connect the T1/E1 cables to the PRI T1/E1 ports (see Appendix C on page 50 and Appendix D on
page 55).
2. Connect the 10/100/1000Base-T Ethernet LAN and WAN (see section “Connecting the
10/100/1000Base-T Ethernet LAN and WAN cables” on page 29)
3. Connect the power mains cable (see section “Connecting the power supply” on page 30)
Connecting the PRI
The SmartNode comes with one or four PRI ports. These ports are usually connected to a PBX or switch (local
exchange (LE) ). Each PRI T1/E1 port is a RJ-48C receptacle. In most cases, a straight-through RJ-45 can be used
to connect the PRI. Each port can be configured as NT (clock master) or TE (clock slave).
For details on the PRI port pin-out and ISDN cables, refer to Appendix C, “Cabling” on page 43 and Appendix D, “port pin-outs” on page 47.
Connecting the 10/100/1000Base-T Ethernet LAN and WAN cables
The SmartNode has automatic MDX (auto-crossover) detection and configuration on all Ethernet ports. Any
of the ports can be connected to a host or hub/switch with a straight-through or cross-over wired cable.
1. Connect to the subscriber port of the broadband access modem (DSL, cable, WLL) to ETH 0/0.
Note
The SmartNode Ethernet ports operate in Full Duplex mode only. Do not
connect to Half Duplex ports. For best results, use auto-negotiation. Auto
negotiation is mandatory when using 1000BaseT (Gigabit) Ethernet.
2. Connect port ETH 0/1 to your LAN.
For details on the Ethernet port pinout and cables, refer to Appendix C, “Cabling” on page 50 and Appendix
D, “Port pin-outs” on page 55.
Installing the DSL WAN cable (SN4991 /2GS Models)
The SmartNode Model 4991 comes with an option for a G.SHDSL or ADSL WAN interface. Use a straightthrough RJ-45 cable to connect the G.SHDSL port.
For details on the G.SHDSL port pinout, refer to “G.SHDSL port (/2GS models only)” on page 57.
Installing the X.21 WAN cable (SN4991 /D Models)
The SmartNode Model 4991 comes with an option for an X.21 serial interface. Insert the X.21 WAN cable’s
DB-15 male end into the DB-15 connector on the SN4991. Plug the other end of the cable into the X.21
device.
For details on the X.21interface pinout, refer to “X.21 DB-15 connector (/D models only)” on page 58.
Installing the SmartNode 29
Page 30
SmartNode 4980 & 4990 User Manual 3 • SmartNode installation
Installing the SFP for Fiber WAN module (SN4991)
The SmartNode Model 4991 comes with an option for an SFP for Fiber WAN module. For details about the
tested and compatible SFP modules see http://www.patton.com/products/sfpmodules.asp.
Connecting the power supply
•
Do not connect power to the AC Mains at this time.
•
The external power adapter shall be a listed Limited Power
Source.
•
The 4980 external power supply automatically adjusts to
accept an input voltage from 100 to 240 VAC (50/60 Hz).
Verify that the proper voltage is present before plugging the
power cord into the receptacle. Failure to do so could result in
equipment damage.
1. Insert the barrel type connector end of the AC power cord into the external power supply connector (see
Figure 7).
2. Insert the female end of the power cord into the internal power supply connector.
– +
12V, 1.25A
Power
0
1
2
T1/E1
3
T1/E1
Ports 0-3
ETH 0
10/100/1000Base-T port
0
1
ETH
Console
Reset
RS-232
ETH 1
10/100/1000Base-T port
RESET
button
Console
RS-232 port
Figure 7. Power connector location on rear panel
3. Verify that the AC power cord included with your SmartNode is compatible with local standards. If it is
not, refer to chapter 5, “Contacting Patton for assistance” on page 36 to find out how to replace it with a
compatible power cord.
4. Connect the male end of the power cord to an appropriate power outlet.
5. Verify that the green Power LED is lit (see Figure 7).
Installing the SmartNode 30
Page 31
Chapter 4 Initial configuration
Chapter contents
Introduction..........................................................................................................................................................32
1. Connecting the SmartNode to your laptop PC..................................................................................................32
2. Configuring the desired IP address ....................................................................................................................33
Factory-default IP settings ...............................................................................................................................33
Login ..............................................................................................................................................................33
Changing the WAN IP address .......................................................................................................................33
3. Connecting the SmartNode to the network .......................................................................................................34
4. Loading the configuration (optional).................................................................................................................35
Additional information..........................................................................................................................................35
31
Page 32
SmartNode 4980 & 4990 User Manual 4 • Initial configuration
Introduction
This chapter leads you through the basic steps to set up a new SmartNode and to download a configuration.
Setting up a new SmartNode consists of the following main steps:
Note
If you haven’t already installed the SmartNode, refer to chapter 3,
“SmartNode installation” on page 26.
• Connecting the SmartNode to your laptop PC
• Configuring the desired IP address
• Connecting the SmartNode to the network
• Loading the configuration (optional)
1. Connecting the SmartNode to your laptop PC
First the SmartNode must be connected to the mains power supply with the power cable. Wait until the Power
LED stops blinking and stays lit constantly. Now the SmartNode is ready.
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
The SmartNode 4980 and 4990 Series is equipped with Auto-MDX Ethernet ports, so you can use straightthrough cables for host or hub/switch connections (see Figure 8).
0
/
3
0
/
2
0
/
1
T
0
1
/
/
0
E
1
E
T
H
0
/
1
E
T
H
0
/
0
C
o
n
s
Reset
o
l
e
R
S
2
3
2
LAN (connect to ETH 0/1)
Laptop PC
Ethernet
Figure 8. Connecting the SmartNode to your laptop PC
The SmartNode comes with a built-in DHCP server to simplify configuration. Therefore, to automatically
configure the PC for IP connectivity to the SmartNode, the laptop PC must be configured for DHCP. The
SmartNode will provide the PC with an IP address. You can check the connection to the SmartNode by executing the ping command from the PC command window as follows:
ping 192.168.1.1
Introduction 32
Page 33
SmartNode 4980 & 4990 User Manual 4 • Initial configuration
2. Configuring the desired IP address
Factory-default IP settings
The factory default configuration for the Ethernet interface IP addresses and network masks are listed in
Table 11. Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a
default DHCP server, the WAN interface uses DHCP client to automatically assign the IP address and
network mask.
Table 11. Factory default IP address and network mask configuration
IP Address Network Mask
WAN interface Ethernet 0 (ETH 0/0) DHCP DHCP
LAN interface Ethernet 1 (ETH 0/1) 192.168.1.1 255.255.255.0
DHCP address range 192.168.1.10–192.168.1.99 255.255.255.0
If these addresses match with those of your network, go to section “3. Connecting the SmartNode to the net-
work” on page 34. Otherwise, refer to the following sections to change the addresses and network masks.
Note
For configuring the IP address of the integrated WAN interface
(G.SHDSL), please refer to Chapter 5, “G.SHDSL Basic Configuration” on
page 36.
Login
To access the SmartNode, start the Telnet application. Type the default IP address for the SmartNode into the
address field: 192.168.1.1. Accessing your SmartNode via a Telnet session displays the login screen. Type the
factory default login: administrator and leave the password empty. Press the Enter key after the password
prompt.
login:administrator
password: <Enter>
192.168.1.1>
After you have successfully logged in you are in the operator execution mode, indicated by > as command line
prompt. With the commands enable and configure you enter the configuration mode.
192.168.1.1>enable
192.168.1.1#configure
192.168.1.1(cfg)#
Changing the WAN IP address
Select the context IP mode to configure an IP interface.
192.168.1.1(cfg)#context ip router
192.168.1.1(ctx-ip)[router]#
2. Configuring the desired IP address 33
Page 34
SmartNode 4980 & 4990 User Manual 4 • Initial configuration
Now you can set your IP address and network mask for the interface ETH 0/0 (WAN). Within this example a
network 172.16.1.0/24 address is assumed. The IP address in this example is set to 172.16.1.99 (you should
set this the IP address given to you by your network provider).
192.168.1.1(ctx-ip)[router]#interface WAN
192.168.1.1(if-ip)[WAN]#ipaddress 172.16.1.99 255.255.255.0
2002-10-29T00:09:40 : LOGINFO : Link down on interface WAN.
2002-10-29T00:09:40 : LOGINFO : Link up on interface WAN.
172.16.1.99(if-ip)[WAN]#
Copy this modified configuration to your new start-up configuration. This will store your changes in non-volatile memory. Upon the next start-up the system will initialize itself using the modified configuration.
172.16.1.99(if-ip)[WAN]#copy running-config startup-config
172.16.1.99(if-ip)[WAN]#
The SmartNode can now be connected to your network.
3. Connecting the SmartNode to the network
In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. This enables the SmartNode to offer routing services to the PC hosts on LAN (ETH 0/1) port. The SmartNode 4980 and 4990 Series
is equipped with Auto-MDX Ethernet ports, so you can use straight-through or crossover cables for host or
hub/switch connections (see Figure 9).
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
/
3
/
20
0
/
10
T
0
1
/
/
0
E
1
E
T
H
0
/
1
E
T
H
0
/
0
C
o
n
s
Reset
o
l
LAN
LAN (ETH 0/1)
e
R
S
2
3
2
WAN (ETH 0/0)
Straight-through wired or crossover cable
Network
Figure 9. Connecting the SmartNode to the network
You can check the connection with the ping command from the SmartNode to another host on the network.
172.16.1.99(if-ip)[WAN]#ping <IP Address of the host>
3. Connecting the SmartNode to the network 34
Page 35
SmartNode 4980 & 4990 User Manual 4 • Initial configuration
Note
If the WAN address is not set to DHCP, to ping a device outside your local
LAN you must first configure the default gateway. (For information on configuring the default gateway, refer to section “Set IP addresses” in Appendix
C, “Command Summary” of the SmartNode Series SmartWare Software Con-
figuration Guide.)
4. Loading the configuration (optional)
Patton provides a collection of configuration templates on the support page at www.patton.com/smartnode—one of which may be similar enough to your application that you can use it to speed up configuring the
SmartNode. Simply download the configuration note that matches your application to your PC. Adapt the
configuration as described in the configuration note to your network (remember to modify the IP address) and
copy the modified configuration to a TFTP server. The SmartNode can now load its configuration from this
server.
Note
In this example we assume the TFTP server on the host with the IP address 172.16.1.11 and the configuration
named SN.cfg in the root directory of the TFTP server.
If your application is unique and not covered by any of Patton’s configuration templates, you can manually configure the SmartNode instead of loading a configuration file template. In that case, refer to the SmartNode Series
SmartWare Software Configuration Guide for information on configuring the
SmartNode device.
172.16.1.99(if-ip)[WAN]#copy tftp://172.16.1.11/SN.cfg startup-config
Download...100%
172.16.1.99(if-ip)[WAN]#
After the SmartNode has been rebooted the new startup configuration will be activated.
When you issue the reload command, the SmartNode will ask
if you want to copy the running configuration to the startup configuration. Since you just downloaded a configuration file to the
startup configuration you must answer this question with NO.
Otherwise, the downloaded configuration will be overwritten
and lost!
172.16.1.99(if-ip)[WAN]#reload
Running configuration has been changed.
Do you want to copy the 'running-config' to the 'startup-config'?
Press 'yes' to store, 'no' to drop changes : no
Press 'yes' to restart, 'no' to cancel : yes
The system is going down
Additional information
For detailed information about configuring and operating guidance, set up procedures, and troubleshooting,
refer to the SmartNode Series SmartWare Software Configuration Guide available online at www.patton.com/
manuals.
4. Loading the configuration (optional) 35
Page 36
Chapter 5 Contacting Patton for assistance
Chapter contents
Introduction..........................................................................................................................................................37
Contact information..............................................................................................................................................37
Patton support headquarters in the USA .........................................................................................................37
Alternate Patton support for Europe, Middle East, and Africa (EMEA) ..........................................................37
Warranty Service and Returned Merchandise Authorizations (RMAs)...................................................................37
Warranty coverage ..........................................................................................................................................37
Out-of-warranty service .............................................................................................................................38
Returns for credit ......................................................................................................................................38
Return for credit policy .............................................................................................................................38
RMA numbers ................................................................................................................................................38
Shipping instructions ................................................................................................................................38
36
Page 37
SmartNode 4980 & 4990 User Manual 5 • Contacting Patton for assistance
Introduction
This chapter contains the following information:
• “Contact information”—describes how to contact Patton technical support for assistance.
• “Warranty Service and Returned Merchandise Authorizations (RMAs)”—contains information about the
warranty and obtaining a return merchandise authorization (RMA).
Contact information
Patton Electronics offers a wide array of free technical services. If you have questions about any of our other
products we recommend you begin your search for answers by using our technical knowledge base. Here, we
have gathered together many of the more commonly asked questions and compiled them into a searchable
database to help you quickly solve your problems.
Patton support headquarters in the USA
• Online support: available at www.patton.com
• E-mail support: e-mail sent to [email protected] will be answered within 1 business day
• Telephone support: standard telephone support is available five days a week—from 8:00 am to
5:00 pm EST (1300 to 2200 UTC/GMT)—by calling +1 (301) 975-1007
• Fax: +1 (301) 869-9293
Alternate Patton support for Europe, Middle East, and Africa (EMEA)
• Online support: available at www.patton-inalp.com
• E-mail support: e-mail sent to [email protected] will be answered within 1 business day
• Telephone support: standard telephone support is available five days a week—from 9:00 am to
5:30 pm CET (0800 to 1630 UTC/GMT)—by calling +41 (0)31 985 25 55
• Fax: +41 (0)31 985 25 26
Warranty Service and Returned Merchandise Authorizations (RMAs)
Patton Electronics is an ISO-9001 certified manufacturer and our products are carefully tested before shipment. All of our products are backed by a comprehensive warranty program.
Note
Warranty coverage
Our products are under warranty to be free from defects, and we will, at our option, repair or replace the product should it fail within one year from the first date of shipment. Our warranty is limited to defects in workmanship or materials, and does not cover customer damage, lightning or power surge damage, abuse, or
unauthorized modification.
If you purchased your equipment from a Patton Electronics reseller, ask your
reseller how you should proceed with warranty service. It is often more convenient for you to work with your local reseller to obtain a replacement.
Patton services our products no matter how you acquired them.
Introduction 37
Page 38
SmartNode 4980 & 4990 User Manual 5 • Contacting Patton for assistance
Out-of-warranty service
Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no
longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastrophes may require replacement.
Returns for credit
Customer satisfaction is important to us, therefore any product may be returned with authorization within 30
days from the shipment date for a full credit of the purchase price. If you have ordered the wrong equipment or
you are dissatisfied in any way, please contact us to request an RMA number to accept your return. Patton is
not responsible for equipment returned without a Return Authorization.
Return for credit policy
• Less than 30 days: No Charge. Your credit will be issued upon receipt and inspection of the equipment.
• 30 to 60 days: We will add a 20% restocking charge (crediting your account with 80% of the purchase price).
• Over 60 days: Products will be accepted for repairs only.
RMA numbers
RMA numbers are required for all product returns. You can obtain an RMA by doing one of the following:
• Completing a request on the RMA Request page in the Support section at www.patton.com
• By calling +1 (301) 975-1007 and speaking to a Technical Support Engineer
• By sending an e-mail to [email protected]
All returned units must have the RMA number clearly visible on the outside of the shipping container. Please use
the original packing material that the device came in or pack the unit securely to avoid damage during shipping.
Shipping instructions
The RMA number should be clearly visible on the address label. Our shipping address is as follows:
Patton Electronics Company
RMA#: xxxx
7622 Rickenbacker Dr.
Gaithersburg, MD 20879-4773 USA
Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return
shipping costs.
Warranty Service and Returned Merchandise Authorizations (RMAs) 38
Page 39
Appendix A Compliance information
Chapter contents
Compliance ...........................................................................................................................................................40
EMC ...............................................................................................................................................................40
Safety ..............................................................................................................................................................40
PSTN Regulatory ............................................................................................................................................40
Radio and TV Interference ....................................................................................................................................40
FCC Part 68 (ACTA) Statement ...........................................................................................................................41
Industry Canada Notice ........................................................................................................................................41
CE Declaration of Conformity..............................................................................................................................42
Authorized European Representative.....................................................................................................................42
39
Page 40
SmartNode 4980 & 4990 User Manual A • Compliance information
Compliance
EMC
• FCC Part 15, Class A
• EN55022, Class A
• EN55024
Safety
• UL 60950-1/CSA C22.2 N0. 60950-1
• IEC/EN60950-1
• AS/NZS 60950-1
PSTN Regulatory
• FCC Part 68
• CS-03
• TBR 4
• TBR 12 & 13
• AS/ACIF S016
• AS/ACIF S038
• AS/ACIF S043 (G.SHDSL card)
• NZ ISDN Layer 3 Supplement
Radio and TV Interference
The SmartNode router generates and uses radio frequency energy, and if not installed and used properly—that
is, in strict accordance with the manufacturer’s instructions—may cause interference to radio and television
reception. The SmartNode router has been tested and found to comply with the limits for a Class A computing
device in accordance with specifications in Subpart B of Part 15 of FCC rules, which are designed to provide
reasonable protection from such interference in a commercial installation. However, there is no guarantee that
interference will not occur in a particular installation. If the SmartNode router does cause interference to radio
or television reception, which can be determined by disconnecting the unit, the user is encouraged to try to
correct the interference by one or more of the following measures: moving the computing equipment away
from the receiver, re-orienting the receiving antenna and/or plugging the receiving equipment into a different
AC outlet (such that the computing equipment and receiver are on different branches).
Compliance 40
Page 41
SmartNode 4980 & 4990 User Manual A • Compliance information
FCC Part 68 (ACTA) Statement
This equipment complies with Part 68 of FCC rules and the requirements adopted by ACTA. On the bottom
side of this equipment is a label that contains—among other information—a product identifier in the format
US: AAAEQ##TXXXX. If requested, this number must be provided to the telephone company.
The method used to connect this equipment to the premises wiring and telephone network must comply with
the applicable FCC Part 68 rules and requirements adopted by the ACTA.
If this equipment causes harm to the telephone network, the telephone company will notify you in advance
that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone
company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint
with the FCC if you believe it is necessary.
The telephone company may make changes in its facilities, equipment, operations or procedures that could
affect the operation of the equipment. If this happens the telephone company will provide advance notice in
order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please contact our company.
If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
Connection to party line service is subject to state tariffs. Contact the state public utility commission, public
service commission or corporation commission for information.
Industry Canada Notice
This equipment meets the applicable Industry Canada Terminal Equipment Technical Specifications. This is
confirmed by the registration number. The abbreviation, IC, before the registration number signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.
This Declaration of Conformity means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to
the user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using
an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line
individual service may be extended by means of a certified connector assembly (telephone extension cord). The
customer should be aware that compliance with the above condition may not prevent degradation of service in
some situations. Repairs to some certified equipment should be made by an authorized maintenance facility
designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the ground connections of the power utility, telephone lines
and internal metallic water pipe system, are connected together. This protection may be particularly important
in rural areas.
FCC Part 68 (ACTA) Statement 41
Page 42
SmartNode 4980 & 4990 User Manual A • Compliance information
CE Declaration of Conformity
This equipment conforms to the requirements of Council Directive 1999/5/EC on the approximation of the
laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recognition of their conformity.
The safety advice in the documentation accompanying this product shall be obeyed. The conformity to the
above directive is indicated by CE sign on the device.
The signed Declaration of Conformity can be downloaded at www.patton.com/certifications.
Authorized European Representative
D R M Green
European Compliance Services Limited.
Oakdene House, Oak Road
Watchfield,
Swindon, Wilts SN6 8TD, UK
CE Declaration of Conformity 42
Page 43
Appendix B Specifications
Chapter contents
Voice connectivity .................................................................................................................................................44
Data connectivity ..................................................................................................................................................44
Voice processing (signaling dependent) .................................................................................................................44
Fax and modem support........................................................................................................................................44
Voice signalling .....................................................................................................................................................45
Voice routing—session router................................................................................................................................45
IP services..............................................................................................................................................................45
Management .........................................................................................................................................................46
System...................................................................................................................................................................46
Physical .................................................................................................................................................................46
WAN Daughter Card (if applicable)......................................................................................................................47
Identification of the SmartNode devices via SNMP...............................................................................................48
43
Page 44
SmartNode 4980 & 4990 User Manual B • Specifications
Note
Refer to the software feature matrix for the most up-to-date specifications.
Voice connectivity
1 or 4 PRI T1/E1 ports on RJ48C connectors
Net/User configurable per port
Each port can be slave or master clock
Each port can be used to synchronize to an external clock master
Failover relay between ports 0/0 and 0/1 for specific models
Data connectivity
Two 10/100/1000Base-Tx Gigabit Ethernet ports
All ports full duplex, autosensing, auto-MDX
Voice processing (signaling dependent)
Up to 120 full-duplex channels with Voice CODECS:
• G.711 A-Law/ -Law (64 kbps)
• G.726 (ADPCM 16, 24, 32, 40 kbps)
• G.723.1 (5.3 or 6.3 kbps)
• G.729ab (8 kbps)
• Transparent ISDN data
G.168 echo cancellation (128 ms)
Up to 120 simultaneous voice or T.38 fax calls
DTMF detection and generation
Carrier tone detection and generation
Silence suppression and comfort noise
Adaptive and configurable dejitter buffer
Configurable tones (dial, ringing, busy)
Configurable transmit packet length
RTP/RTCP (RFC 1889)
Fax and modem support
Automatic fax and modem detection
Codec fallback for modem-bypass
T.38 Fax-Relay (Gr. 3 Fax, 9.6 k, 14.4 k)
Voice connectivity 44
Page 45
SmartNode 4980 & 4990 User Manual B • Specifications
G.711 Fax-Bypass
Voice signalling
SIPv2
H.323v4
SIP call transfer, redirect
Overlap or en-bloc dialing
DTMF in-band, out-of-band
Configurable progress tones
Voice routing—session router
Local switching (hairpinning)
Least cost routing
Interface huntgroups
Call-Distribution groups
Number blocking
Call Routing Criteria:
• Interface
• Calling/called party number
• Time of day, day of week, date
• ISDN bearer capability
• Various other information elements (IEs) of the ISDN setup
• Wildcard and regular expression matching
Regular expression number manipulation functions:
• Replace numbers
• Add/remove digits
• Pattern matching and replacement
IP services
IPv4 router; RIPv1, v2 (RFC 1058 and 2453)
Programmable static routes
ICMP redirect (RFC 792); Packet fragmentation
DiffServe/ToS set or queue per header bits
Packet Policing discards excess traffic
Voice signalling 45
Page 46
SmartNode 4980 & 4990 User Manual B • Specifications
802.1p VLAN tagging
IPSEC AH & ESP Modes
Manual Key; IKE
AES/DES/3DES Encryption
Management
Web-based GUI
Industry standard CLI with local console (RJ-45, RJ-231, 9600 bps, 8, N, 1) and remote Telnet access, fully
documented
HTTP web management and firmware loading
TFTP configuration & firmware loading
SNMP v1 agent (MIB II and private MIB)
Built-in diagnostic tools (trace, debug)
Secure Auto-provisioning
System
CPU Motorola MPC8360 series operating at 400 MHz
Memory:
• 256 Mbytes RAM (DDR, 400MHz)
• 32 Mbytes Flash
Physical
Dimensions: 11.9W x 1.71H x 7.16D inch (302W x 44H x 182mm)
Weight: <21 oz. (<600g)
Power Consumption: < 16W
Operating temperature: 32–104°F (0–40°C)
Operating humidity: up to 90%, non condensing
Management 46
Page 47
SmartNode 4980 & 4990 User Manual B • Specifications
WAN Daughter Card (if applicable)
Note
For information on configuring the WAN daughter card,
see Chapter 5, “G.SHDSL Basic Configuration” on page 36.
Table 12. G.SHDSL Daughter Card Specifications
Factor Specs
DSL • ITU-T G.991.2 (and Amendment 2)
• ITU-T G.991.2, Annex A, B, F, G
• Upgradable to ITU-T G.shdsl.bis—Annex F and G
• G.991.2 2/4 (1/2 pair) operation
• G.994.1 (G.hs) (per G.991.2)
• ITU-T G.991.2 Section E.9
(TPS-TC for ATM transport)
• ITU-T G.991.2 Section E.11
(TPS-TC for PTM transport)
DSL Connection RJ-45
Management • I.610 OAM F4/F5
• Management interfaces: GUI and Telnet
• Software upgrade: GUI and TFTP
ATM Support • Classical IPoA (RFC 1577/2225)
• PPPoE Client (over ATM) (RFC 2516)
• IPoA (RFC 2684/1483)
• ATM AAL5 encapsulation
•Max. 8 PVCs
• User selectable VC MUX and LLC MUX (default)
• Configurable auto-connection
• ATM QoS: UBR (default), CBR, and VBR-rt, VBR-nrt,
UBR: per VC queuing
• Auto-configuration: TR-037 & ILMI 4.0
Interworking/Interoperability • G.SHDSL Interoperability:
-
Alcatel
Fiber • 100Mbps and 1000Mbps Fiber SFP.
WAN Daughter Card (if applicable) 47
-
NEC
-
Lucent Anymedia
-
Lucent Stinger
• BRAS Interoperability:
-
Cisco
-
Redback
(For a list of tested SFP modules, please refer to http://
www.patton.com/products/sfpmodules.asp)
Page 48
SmartNode 4980 & 4990 User Manual B • Specifications
Identification of the SmartNode devices via SNMP
All SmartNode devices have assigned sysObjectID (.iso.org.dod.internet.mgmt.mib-2.system.sysObjectID)
numbers (see Table 13).
Table 13. SmartNode Models and their Unique sysObjectID
SmartNode Model SysObjectID
SN4980/1E15V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.1
1.3.6.1.4.1.1768.100.4.22.1
SN4980/1E24V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.2
1.3.6.1.4.1.1768.100.4.22.2
SN4980/1E30V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.3
1.3.6.1.4.1.1768.100.4.22.3
SN4980/4E15V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.4
1.3.6.1.4.1.1768.100.4.22.4
SN4980/4E24V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.5
1.3.6.1.4.1.1768.100.4.22.5
SN4980/4E30V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.6
1.3.6.1.4.1.1768.100.4.22.6
SN4980/4E48V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.7
1.3.6.1.4.1.1768.100.4.22.7
SN4980/4E60V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.8
1.3.6.1.4.1.1768.100.4.22.8
SN4980/4E96V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.9
1.3.6.1.4.1.1768.100.4.22.9
SN4980/4E120V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.10
1.3.6.1.4.1.1768.100.4.22.10
SN4980/4E30V120R .iso.org.dod.internet.private.enterprises.patton.products.sn4970.21
1.3.6.1.4.1.1768.100.4.22.21
SN4981/1E15V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.11
1.3.6.1.4.1.1768.100.4.22.11
SN4981/1E24V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.12
1.3.6.1.4.1.1768.100.4.22.12
SN4981/1E30V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.13
1.3.6.1.4.1.1768.100.4.22.13
SN4981/4E15VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.14
1.3.6.1.4.1.1768.100.4.22.14
SN4981/4E24VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.15
1.3.6.1.4.1.1768.100.4.22.15
SN4981/4E30VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.16
1.3.6.1.4.1.1768.100.4.22.16
SN4981/4E48VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.17
1.3.6.1.4.1.1768.100.4.22.17
SN4981/4E60VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.18
1.3.6.1.4.1.1768.100.4.22.18
Identification of the SmartNode devices via SNMP 48
Page 49
SmartNode 4980 & 4990 User Manual B • Specifications
Table 13. SmartNode Models and their Unique sysObjectID (Continued)
SmartNode Model SysObjectID
SN4981/4E96VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.19
1.3.6.1.4.1.1768.100.4.22.19
SN4981/4E120VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.20
1.3.6.1.4.1.1768.100.4.22.20
SN4981/4E30V120R .iso.org.dod.internet.private.enterprises.patton.products.sn4970.22
1.3.6.1.4.1.1768.100.4.22.22
SN4991/1E15V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.1
1.3.6.1.4.1.1768.100.4.22.11
SN4991/1E24V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.2
1.3.6.1.4.1.1768.100.4.22.12
SN4991/1E30V .iso.org.dod.internet.private.enterprises.patton.products.sn4970.3
1.3.6.1.4.1.1768.100.4.22.13
SN4991/4E15VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.4
1.3.6.1.4.1.1768.100.4.22.14
SN4991/4E24VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.5
1.3.6.1.4.1.1768.100.4.22.15
SN4991/4E30VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.6
1.3.6.1.4.1.1768.100.4.22.16
SN4991/4E48VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.7
1.3.6.1.4.1.1768.100.4.22.17
SN4991/4E60VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.8
1.3.6.1.4.1.1768.100.4.22.18
SN4991/4E96VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.9
1.3.6.1.4.1.1768.100.4.22.19
SN4991/4E120VR .iso.org.dod.internet.private.enterprises.patton.products.sn4970.10
1.3.6.1.4.1.1768.100.4.22.20
SN4991/4E30V120R .iso.org.dod.internet.private.enterprises.patton.products.sn4970.21
1.3.6.1.4.1.1768.100.4.22.22
Note
The SysObjectIDs for the SN4991 G.SHDSL, ADSL, Fiber and X.21 models are the same as the corresponding SN4991 models listed above.
According to Table 13, an SNMP get request to .iso.org.dod.internet.mgmt.mib-2.system.sysObjectID of a SmartNode 4980/1E15V/EUI device reads out a numeric OID of 1.3.6.1.4.1.1768.100.4.22.1, which represents a
SmartNode 4980/1E15V/EUI device. The mapping of the sysObjectID to each of the SmartNode model is
realized with the SmartNode product identification MIB.
The SNMP agent running in SmartWare is SNMP version 1
(SNMPv1) compliant. SNMP version 2 (SNMPv2) and SNMP
version 3 (SNMPv3) are not currently supported.
Identification of the SmartNode devices via SNMP 49
Page 50
Appendix C Cabling
Chapter contents
Introduction..........................................................................................................................................................51
Console .................................................................................................................................................................51
Ethernet ................................................................................................................................................................52
E1 PRI ..................................................................................................................................................................53
T1 PRI ..................................................................................................................................................................54
50
Page 51
SmartNode 4980 & 4990 User Manual C • Cabling
Introduction
This section provides information on the cables used to connect the SmartNode and the interface cards to the
existing network infrastructure and to third party products.
Console
The SmartNode can be connected to a serial terminal over its serial console port, as depicted in Figure 10.
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
0/3
0/2
0
/1
T1/E1
0/0
Note
ETH
0/1
E
TH 0/0
Serial Terminal
Note A Patton Model 16F-561 RJ45 to DB-9 adapter is included with
each SmartNode device.
Figure 10. Connecting a serial terminal
See section “Console port” on page 56 for console port pin-outs.
C
onsole
Reset
RS-232
Introduction 51
Page 52
SmartNode 4980 & 4990 User Manual C • Cabling

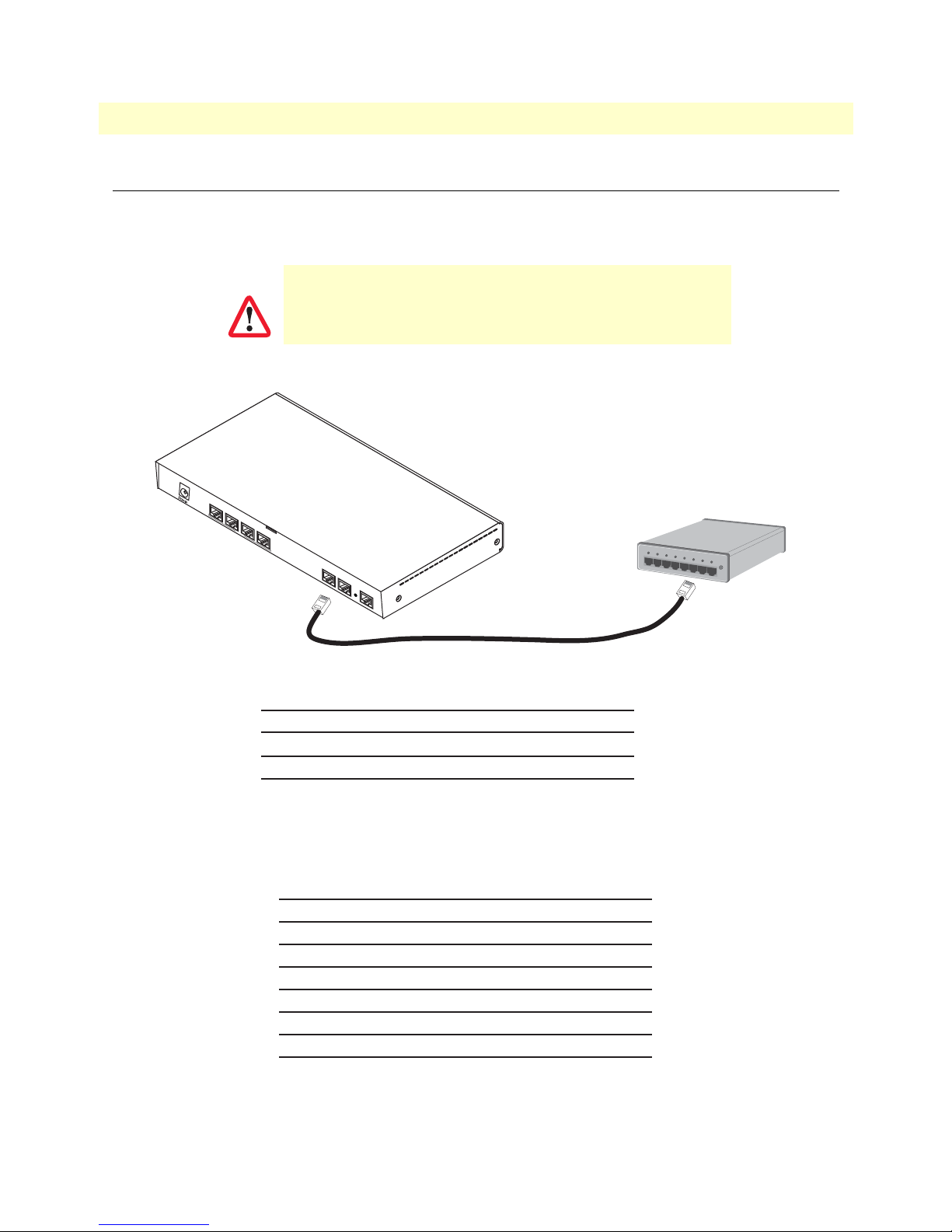

Ethernet
Ethernet devices (10Base-T/100Base-T/1000Base-T) are connected to the SmartNode over a cable with RJ-45
plugs. All Ethernet ports on the SmartNode are Auto-MDX use any straight or crossover cable to connect to
hubs, switches, PCs or other devices.
The interconnecting cables shall be acceptable for external use
and shall be rated for the proper application with respect to voltage, current, anticipated temperature, flammability, and
mechanical serviceability.
0/3
0/2
0/1
T1/E1
0/0
E
TH 0
/1
ETH
0/0
Console
Reset
R
S-2
32
Hub
Straight-through cable
RJ-45, male
1
2
3
6
RJ-45, male
1
2
3
6
Note: Other pins are not used.
Figure 11. Typical Ethernet straight-through cable diagram for 10/100Base-T
RJ-45, male
1
2
3
6
4
5
7
8
RJ-45, male
1
2
3
6
4
5
7
8
Figure 12. Typical Ethernet straight-through cable diagram for 1000Base-T
Ethernet 52
Page 53
SmartNode 4980 & 4990 User Manual C • Cabling
E1 PRI
The E1 PRI is usually connected to a PBX or switch—local exchange (LE). Type and pin outs of these devices
vary depending on the manufacturer. In most cases, a straight-through RJ-45 to RJ-45 can be used to connect
the PRI with a PBX. A cross-over cable is required to connect to an NT device, as illustrated in Figure 13 on
page 53.
Hazardous network voltages are present in the PRI cables. If you detach the
cable, detach the end away from the SmartNode or interface card first to avoid
possible electric shock. Network hazardous voltages may be present on the
device in the area of the PRI port, regardless of when power is turned OFF.
To prevent damage to the system, make certain you connect the
PRI cable to the PRI port only and not to any other RJ-45 socket.
0/3
RJ-48C, male
RX Ring
RX Tip
RX Shield
TX Ring
TX Tip
TX Shield
N/C
N/C
0/2
0/1
T
0/0
1/E1
E
TH
0/1
ETH
0/0
C
on
sole
Reset
R
S-232
Cross-over cable
Figure 13. Connecting an E1 PRI port to an NT1
1
2
3
4
5
6
7
8
*N/C = No connection*
NT
1
2
3
4
5
6
7
8
RJ-48C, male
RX Ring
RX Tip
RX Shield
TX Ring
TX Tip
TX Shield
N/C
N/C
E1 PRI 53
Figure 14. E1 PRI port crossover cable
Page 54
SmartNode 4980 & 4990 User Manual C • Cabling

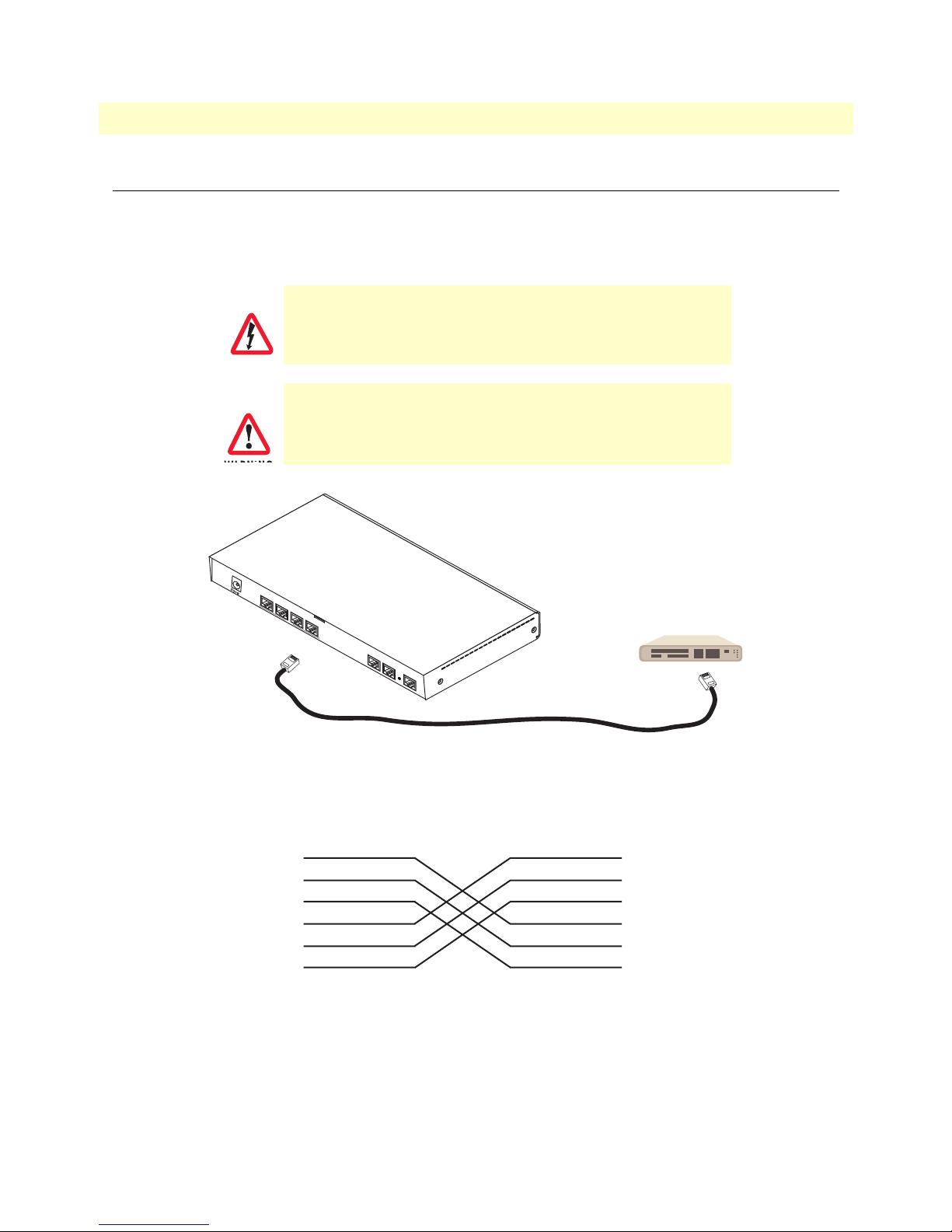

T1 PRI
The T1 PRI is usually connected to a PBX or switch—local exchange (LE). Type and pin outs of these devices
vary depending on the manufacturer. In most cases, a straight-through RJ-45 to RJ-45 can be used to connect
the PRI with a PBX. A cross-over cable is required to connect to an NT device, as illustrated in Figure 15 on
page 54.
Hazardous network voltages are present in the PRI cables. If you detach the
cable, detach the end away from the SmartNode or interface card first to avoid
possible electric shock. Network hazardous voltages may be present on the
device in the area of the PRI port, regardless of when power is turned OFF.
To prevent damage to the system, make certain you connect the
PRI cable to the PRI port only and not to any other RJ-45 socket.
0/3
0/2
RJ-45, male
RX Ring
RX Tip
RX Shield
TX Ring
TX Tip
TX Shield
N/C
N/C
0/1
T1/E1
0/0
ETH
0/1
ET
H 0/0
Console
Reset
R
S-232
Cross-over cable
Figure 15. Connecting a T1 PRI port to an NT device
1
2
3
4
5
6
7
8
*N/C = No connection*
NT
1
2
3
4
5
6
7
8
RJ-45, male
RX Ring
RX Tip
RX Shield
TX Ring
TX Tip
TX Shield
N/C
N/C
T1 PRI 54
Figure 16. T1 PRI crossover cable
Page 55
Appendix D Port pin-outs
Chapter contents
Introduction..........................................................................................................................................................56
Console port..........................................................................................................................................................56
Ethernet ................................................................................................................................................................56
PRI port ................................................................................................................................................................57
G.SHDSL port (/2GS models only) ......................................................................................................................57
ADSL port (/A models only) .................................................................................................................................58
Fiber ports (/F models only) ..................................................................................................................................58
X.21 DB-15 connector (/D models only) ..............................................................................................................58
55
Page 56
SmartNode 4980 & 4990 User Manual D • Port pin-outs
Introduction
This section provides pin-out information for the ports of the SmartNode.
Console port
Configuration settings: 9600 bps, 8 bits, no parity, 1 stop bit, no flow control
8–RTS (N/C)
7–CTS (N/C)
6–TD
5–RD
4–SG
3–DTR
2–CD (N/C)
1–DSR
12345678
Pins 1 & 3 are
connected together
Note
Ethernet
Note
Figure 17. EIA-561 (RJ-45 8-pin) port
N/C means no internal electrical connection.
Table 14. RJ45 socket 10/100Base-T
Pin Signal
1 TX+
2 TX3 RX+
6 RX-
Pins not listed are not used.
Introduction 56
Page 57
SmartNode 4980 & 4990 User Manual D • Port pin-outs
Table 15. RJ45 socket 1000Base-T
Pin Signal
1 TRD0+
2 TRD03 TRD1+
6 TRD14 TRD2+
5 TRD27 TRD3+
8 TRD3-
PRI port
Table 16. RJ-45 socket
Pin USR
1 RX Ring
2 RX Tip
3 RX Shield
4 TX Ring
5 TX Tip
6 TX Shield
Note
Pins not listed are not used.
G.SHDSL port (/2GS models only)
Table 17. RJ-45 connector
Pin Signal
3 Tip 2
4 Tip 1
5 Ring 1
6 Ring 2
Note
Pins not listed are not used.
PRI port 57
Page 58
SmartNode 4980 & 4990 User Manual D • Port pin-outs
ADSL port (/A models only)
Table 18. ADSL Port: RJ-45 connector
Pin Signal
4 Tip
5 Ring
Note
Pins not listed are not used
Fiber ports (/F models only)
For tested and approved modules, please refer to the list of SFP’s Patton has tested at http://www.patton.com/
products/sfpmodules.asp
X.21 DB-15 connector (/D models only)
ADSL port (/A models only) 58
Page 59
Appendix E SmartNode factory configuration
Chapter contents
Introduction..........................................................................................................................................................60
59
Page 60
SmartNode 4980 & 4990 User Manual E • SmartNode factory configuration
Introduction
The factory configuration settings for the SmartNode 4980 and 4990 are as follows:
#----------------------------------------------------------------#
# #
# Factory configuration file #
# #
#----------------------------------------------------------------#
dns-relay
timer PROVISIONING now + 1 minute "provisioning execute PF_PROVISIONING_CONFIG"
sntp-client
sntp-client server primary pool.ntp.org
profile provisioning PF_PROVISIONING_CONFIG
destination configuration
activation reload immediate
location 1 http://redirect.patton.com/
$(system.mac);mac=$(system.mac);serial=$(system.serial);hwMajor=$(system.hw.major);hwMi
nor=$(system.hw.minor);swMajor=$(system.sw.major);swMinor=$(system.sw.minor);swDate=$(s
ystem.sw.date);productName=$(system.product.name);cliMajor=$(cli.major);cliMinor=$(cli.
minor);osName=$(cli.major>=4|Trinity|SmartWare);subDirTrinity=$(cli.major>=4|/Trinity);subDirSmartWare=$(cli.major<4|/SmartWare);dhcp66=$(dhcp.66);dhcp67=$(dhcp.67)
location 2 $(dhcp.66)
location 3 $(dhcp.66)/$(system.mac).cfg
location 4 http://$(dhcp.66)/$(dhcp.67)
location 5 http://$(dhcp.66)/$(system.mac).cfg
location 6 tftp://$(dhcp.66)/$(dhcp.67)
location 7 tftp://$(dhcp.66)/$(system.mac).cfg
system
ic voice 0
profile napt NAPT_WAN
profile dhcp-server DHCPS_LAN
network 192.168.1.0 255.255.255.0
include 1 192.168.1.10 192.168.1.99
lease 2 hours
default-router 1 192.168.1.1
domain-name-server 1 192.168.1.1
Introduction 60
Page 61
SmartNode 4980 & 4990 User Manual E • SmartNode factory configuration
context ip router
interface WAN
ipaddress dhcp
use profile napt NAPT_WAN
tcp adjust-mss rx mtu
tcp adjust-mss tx mtu
interface LAN
ipaddress 192.168.1.1 255.255.255.0
tcp adjust-mss rx mtu
tcp adjust-mss tx mtu
context ip router
dhcp-server use DHCPS_LAN
port ethernet 0 0
medium auto
encapsulation ip
bind interface WAN router
no shutdown
port ethernet 0 1
medium auto
encapsulation ip
bind interface LAN router
no shutdown
Introduction 61
Page 62
Appendix F End user license agreement
Chapter contents
End User License Agreement.................................................................................................................................63
1. Definitions ..................................................................................................................................................63
2. Title ............................................................................................................................................................63
3. Term ...........................................................................................................................................................63
4. Grant of License ..........................................................................................................................................63
5. Warranty ....................................................................................................................................................63
6. Termination ................................................................................................................................................64
7. Other licenses .............................................................................................................................................64
8. SmartWare licenses .....................................................................................................................................64
62
Page 63
SmartNode 4980 & 4990 User Manual F • End user license agreement
End User License Agreement
By opening this package, operating the Designated Equipment or downloading the Program(s) electronically,
the End User agrees to the following conditions:
1. Definitions
A) Effective Date shall mean the earliest date of purchase or download of a product containing the Patton
Electronics Company Program(s) or the Program(s) themselves.
B) Program(s) shall mean all software, software documentation, source code, object code, or executable code.
C) End User shall mean the person or organization which has valid title to the Designated Equipment.
D) Designated Equipment shall mean the hardware on which the Program(s) have been designed and pro-
vided to operate by Patton Electronics Company.
2. Title
Title to the Program(s), all copies of the Program(s), all patent rights, copyrights, trade secrets and proprietary
information in the Program(s), worldwide, remains with Patton Electronics Company or its licensors.
3. Term
The term of this Agreement is from the Effective Date until title of the Designated Equipment is transferred by
End User or unless the license is terminated earlier as defined in section “6. Termination” on page 64.
4. Grant of License
A) During the term of this Agreement, Patton Electronics Company grants a personal, non-transferable,
non-assignable and non-exclusive license to the End User to use the Program(s) only with the Designated
Equipment at a site owned or leased by the End User.
B) The End User may copy licensed Program(s) as necessary for backup purposes only for use with the Des-
ignated Equipment that was first purchased or used or its temporary or permanent replacement.
C) The End User is prohibited from disassembling; decompiling, reverse-engineering or otherwise attempt-
ing to discover or disclose the Program(s), source code, methods or concepts embodied in the Program(s)
or having the same done by another party.
D) Should End User transfer title of the Designated Equipment to a third party after entering into this
license agreement, End User is obligated to inform the third party in writing that a separate End User
License Agreement from Patton Electronics Company is required to operate the Designated Equipment.
5. Warranty
The Program(s) are provided as is without warranty of any kind. Patton Electronics Company and its licensors
disclaim all warranties, either express or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose or non-infringement. In no event shall Patton Electronics Company or its licensors be liable for any damages whatsoever (including, without limitation, damages for loss of
business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the
use of or inability to use the Program(s), even if Patton Electronics Company has been advised of the possibility of such damages. Because some states do not allow the exclusion or limitation of liability for consequential
or incidental damages, the above limitation may not apply to you.
End User License Agreement 63
Page 64
SmartNode 4980 & 4990 User Manual F • End user license agreement
If the Program(s) are acquired by or on behalf of a unit or agency of the United States Government, the Government agrees that such Program(s) are commercial computer software or computer software documentation and
that, absent a written agreement to the contrary, the Government’s rights with respect to such Program(s) are
limited by the terms of this Agreement, pursuant to Federal Acquisition Regulations 12.212(a) and/or DEARS
227.7202-1(a) and/or sub-paragraphs (a) through (d) of the “Commercial Computer Software - Restricted
Rights” clause at 48 C.F.R. 52.227-19 of the Federal Acquisition Regulations as applicable.
6. Termination
A) The End User may terminate this agreement by returning the Designated Equipment and destroying all
copies of the licensed Program(s).
B) Patton Electronics Company may terminate this Agreement should End User violate any of the provi-
sions of section “4. Grant of License” on page 63.
C) Upon termination for A or B above or the end of the Term, End User is required to destroy all copies of
the licensed Program(s)
7. Other licenses
The Program may be subject to licenses extended by third parties. Accordingly, Patton Electronics Company
licenses the Programs subject to the terms and conditions dictated by third parties. Third party software identified to the Programs includes:
• The LGPL (Lesser General Public License) open source license distributed to you pursuant to the LGPL
license terms (http://www.gnu.org/licenses/lgpl.html).
8. SmartWare licenses
• A routing license is included at no charge.
• MGCP and VPN capabilities will require the purchase of an additional license.
RedBoot (Red Hat Embedded Debug and Bootstrap) embedded system debug/bootstrap environment from
Red Hat distributed to you pursuant to the eCos license terms (http://ecos.sourceware.org/license-
overview.html) and GNU General Public License (GPL) terms (http://www.gnu.org/copyleft/gpl.html).
Source code is available upon request.
End User License Agreement 64
