Patton 5200 User Manual

Download
For Quick
For Quick
SmartNode 5200
Enterprise Session Border Router
Getting Started Guide
Important
This is a Class A device and is intended for use in a light industrial (commercial) environment only. It is not intended nor approved for use in a heavy industrial or residential environment.
This device is approved for connection to the public ISDN telecommunication network, over BRI/S0-ISDN interfaces.
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Part Number: 07MSN5200-GSG, Rev. A
Patton Electronics Company, Inc.
7622 Rickenbacker Drive
Gaithersburg, MD 20879 USA
Tel: +1 (301) 975-1000 Fax: +1 (301) 869-9293
Support: +1 (301) 975-1007
Web: www.patton.com
E-mail: support@patton.com
Trademark Statement
The terms SmartNode, SmartWare and SmartView are trademarks of Patton Electronics Company. All other trademarks presented in this document are the prop­erty of their respective owners.
Copyright © 2010, Patton Electronics Company. All rights reserved.
The information in this document is subject to change without notice. Patton Elec­tronics assumes no liability for errors that may appear in this document.
Warranty Information
The software described in this document is furnished under a license and may be used or copied only in accordance with the terms of such license. For information about the license, see Appendix F, "End user license agreement" on page 48 or go to www.patton.com.
Patton Electronics warrants all SmartNode router components to be free from defects, and will—at our option—repair or replace the product should it fail within one year from the first date of the shipment.
This warranty is limited to defects in workmanship or materials, and does not cover customer damage, abuse or unauthorized modification. If the product fails to perform as warranted, your sole recourse shall be repair or replacement as described above. Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product. Patton Electronics specifically disclaims all other warran­ties, expressed or implied, and the installation or use of this product shall be deemed an acceptance of these terms by the user.

Summary Table of Contents

1 General information...................................................................................................................................... 14
2 Applications overview.................................................................................................................................... 18
3 SmartNode installation.................................................................................................................................. 20
4 Initial configuration ...................................................................................................................................... 25
5 Contacting Patton for assistance ................................................................................................................... 31
A Compliance information .............................................................................................................................. 34
B Specifications ................................................................................................................................................ 36
C Cabling ......................................................................................................................................................... 39
D Port pin-outs ................................................................................................................................................ 41
E SmartNode 5200 factory configuration ........................................................................................................ 43
F End user license agreement ........................................................................................................................... 48
3

Table of Contents

Summary Table of Contents ........................................................................................................................... 3
Table of Contents ........................................................................................................................................... 4
List of Figures ................................................................................................................................................. 7
List of Tables .................................................................................................................................................. 8
About this guide ............................................................................................................................................. 9
Audience................................................................................................................................................................. 9
Structure................................................................................................................................................................. 9
Precautions........................................................................................................................................................... 10
Safety when working with electricity ...............................................................................................................11
General observations .......................................................................................................................................12
Typographical conventions used in this document................................................................................................ 13
General conventions .......................................................................................................................................13
1 General information...................................................................................................................................... 14
SmartNode 5200 overview ....................................................................................................................................15
SmartNode 5200 rear panel ............................................................................................................................16
SmartNode 5200 front panel ..........................................................................................................................17
2 Applications overview.................................................................................................................................... 18
Introduction..........................................................................................................................................................19
Typical application ................................................................................................................................................19
3 SmartNode installation.................................................................................................................................. 20
Planning the installation ........................................................................................................................................21
Site log ............................................................................................................................................................21
Network information ......................................................................................................................................21
Network Diagram ...........................................................................................................................................21
IP related information .....................................................................................................................................22
Software tools .................................................................................................................................................22
Power source ...................................................................................................................................................22
Location and mounting requirements .............................................................................................................22
Installing the gateway router..................................................................................................................................22
Placing the SmartNode ...................................................................................................................................22
Installing cables ...............................................................................................................................................23
Connecting the 10/100Base-T Ethernet LAN and WAN cables ................................................................23
Connecting the power supply ....................................................................................................................23
4 Initial configuration ...................................................................................................................................... 25
Introduction..........................................................................................................................................................26
Connecting the SmartNode to your laptop PC......................................................................................................26
Configuring the desired IP address ........................................................................................................................27
Factory-default IP settings ...............................................................................................................................27
Login ..............................................................................................................................................................27
4
SmartNode 5200 Getting Started Guide Table of Contents
Changing the WAN IP address .......................................................................................................................27
Connecting the SmartNode to the network...........................................................................................................28
Loading the configuration (optional) .....................................................................................................................29
Additional information..........................................................................................................................................30
5 Contacting Patton for assistance ................................................................................................................... 31
Introduction..........................................................................................................................................................32
Contact information..............................................................................................................................................32
Patton support headquarters in the USA .........................................................................................................32
Alternate Patton support for Europe, Middle East, and Africa (EMEA) ..........................................................32
Warranty Service and Returned Merchandise Authorizations (RMAs)...................................................................32
Warranty coverage ..........................................................................................................................................32
Out-of-warranty service .............................................................................................................................33
Returns for credit ......................................................................................................................................33
Return for credit policy .............................................................................................................................33
RMA numbers ................................................................................................................................................33
Shipping instructions ................................................................................................................................33
A Compliance information .............................................................................................................................. 34
Compliance ...........................................................................................................................................................35
EMC ...............................................................................................................................................................35
Low-Voltage Directive (Safety) .......................................................................................................................35
PSTN Regulatory ............................................................................................................................................35
CE Declaration of Conformity..............................................................................................................................35
Authorized European Representative.....................................................................................................................35
B Specifications ................................................................................................................................................ 36
Data connectivity ..................................................................................................................................................37
Voice signalling .....................................................................................................................................................37
IP services..............................................................................................................................................................37
Management .........................................................................................................................................................37
Operating environment .........................................................................................................................................38
Operating temperature ....................................................................................................................................38
Operating humidity ........................................................................................................................................38
System...................................................................................................................................................................38
Dimensions ...........................................................................................................................................................38
Weight and power dissipation ...............................................................................................................................38
C Cabling ......................................................................................................................................................... 39
Introduction
..........................................................................................................................................................40
Ethernet ................................................................................................................................................................40
D Port pin-outs ................................................................................................................................................ 41
Introduction..........................................................................................................................................................42
Ethernet ................................................................................................................................................................42
E SmartNode 5200 factory configuration ........................................................................................................ 43
Introduction..........................................................................................................................................................44
5
SmartNode 5200 Getting Started Guide Table of Contents
F End user license agreement ........................................................................................................................... 48
End User License Agreement.................................................................................................................................49
1. Definitions ..................................................................................................................................................49
2. Title ............................................................................................................................................................49
3. Term ...........................................................................................................................................................49
4. Grant of License ..........................................................................................................................................49
5. Warranty ....................................................................................................................................................49
6. Termination ................................................................................................................................................50
7. Other licenses .............................................................................................................................................50
6

List of Figures

1 SmartNode 5200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

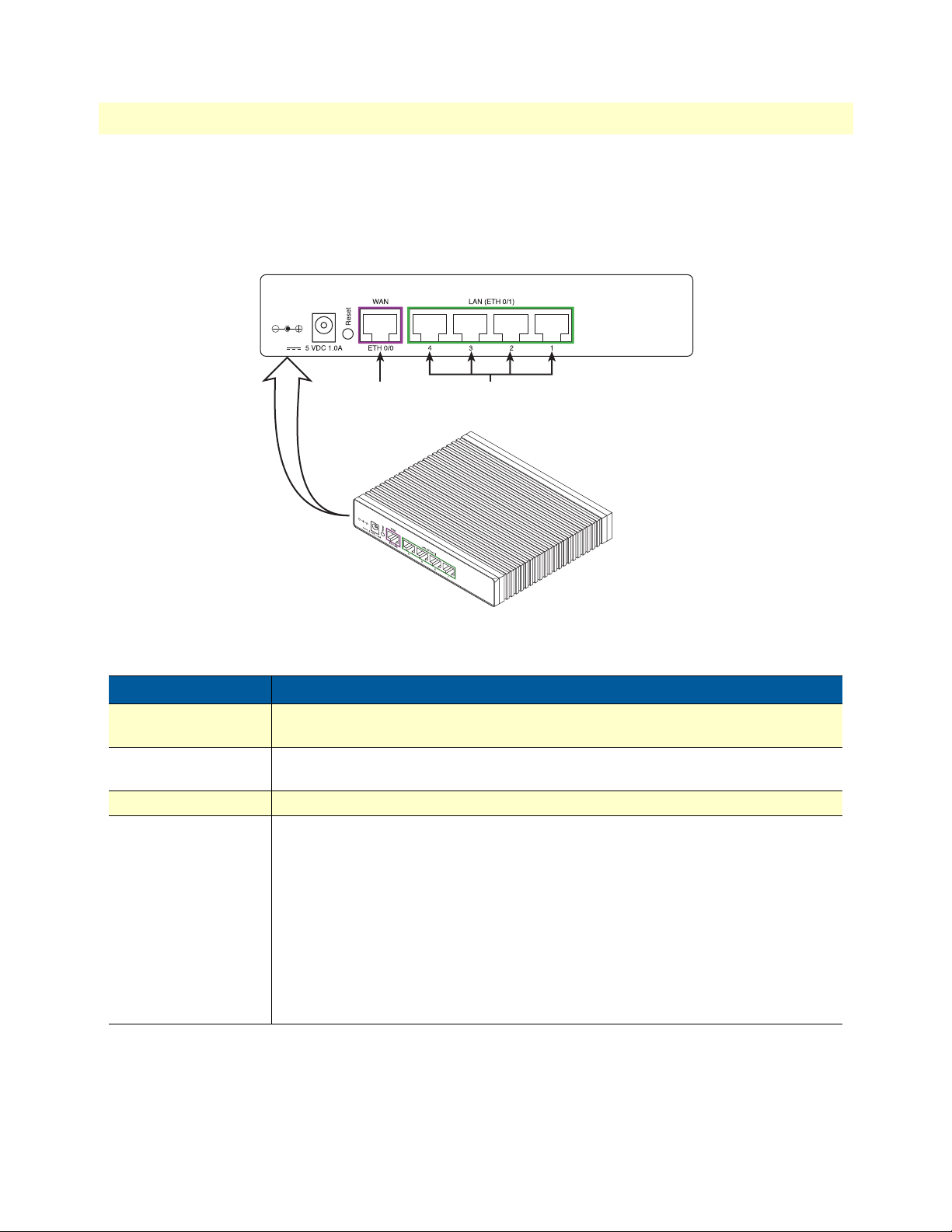

2 SmartNode 5200 rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3 SmartNode 5200 front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 Internet telephony IAD application (SN5200 shown) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Router front panel LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6 Connecting the SmartNode to your laptop PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7 Connecting the SmartNode to the network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8 Typical Ethernet straight-through cable diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7

List of Tables

1 General conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2 Rear panel ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3 SmartNode 5200 LED definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4 Sample site log entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5 Factory default IP address and network mask configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
6 SmartNode weight and maximum power specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
7 RJ-45 socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8

About this guide

This guide describes the SmartNode 5200 hardware, installation and basic configuration. For detailed software configuration information refer to the SmartWare Software Configuration Guide and the available Configura- tion Notes.

Audience

This guide is intended for the following users:
• Operators
• Installers
• Maintenance technicians

Structure

This guide contains the following chapters and appendices:
• Chapter 1 on page 14 provides information about router features and capabilities
• Chapter 2 on page 18 contains an overview describing router operation and applications
• Chapter 3 on page 20 provides hardware installation procedures
• Chapter 4 on page 25 provides initial procedures for configuring the SmartNode router
• Chapter 5 on page 31 contains information on contacting Patton technical support for assistance
• Appendix A on page 34contains compliance information for the SmartNode
• Appendix B on page 36 contains specifications for the routers
• Appendix C on page 39 provides cable recommendations
• Appendix D on page 41 describes the router’s ports and pin-outs
• Appendix E on page 43 lists the factory configuration settings for SmartNode 5200
• Appendix F on page 48 provides license information that describes acceptable usage of the software pro-
vided with the SmartNode 5200
For best results, read the contents of this guide before you install the router.
9
SmartNode 5200 Getting Started Guide About this guide

Precautions

Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per­sonal injury. Cautions are intended to prevent situations that could result in property damage or impaired functioning.
Note
A note presents additional information or interesting sidelights.
The alert symbol and IMPORTANT heading calls attention to important information.
The alert symbol and CAUTION heading indicate a potential haz­ard. Strictly follow the instructions to avoid property damage.
The shock hazard symbol and CAUTION heading indicate a potential electric shock hazard. Strictly follow the instructions to avoid property damage caused by electric shock.
The alert symbol and WARNING heading indicate a potential safety hazard. Strictly follow the warning instructions to avoid personal injury.
The shock hazard symbol and WARNING heading indicate a potential electric shock hazard. Strictly follow the warning instructions to avoid injury caused by electric shock.
10
SmartNode 5200 Getting Started Guide About this guide

Safety when working with electricity

•
Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line volt­ages are present within the device when the power cord is connected.
•
For devices with an external power adapter, the power adapter shall be a listed Limited Power Source The mains outlet that is utilized to power the device shall be within 10 feet (3 meters) of the device, shall be easily accessible, and protected by a circuit breaker in compliance with local regu­latory requirements.
•
For AC powered devices, ensure that the power cable used meets all appli­cable standards for the country in which it is to be installed.
•
For AC powered devices which have 3 conductor power plugs (L1, L2 & GND or Hot, Neutral & Safety/Protective Ground), the wall outlet (or socket) must have an earth ground.
•
For DC powered devices, ensure that the interconnecting cables are rated for proper voltage, current, anticipated temperature, flammability, and mechanical serviceability.
•
WAN, LAN & PSTN ports (connections) may have hazardous voltages present regardless of whether the device is powered ON or OFF. PSTN relates to interfaces such as telephone lines, FXS, FXO, DSL, xDSL, T1, E1, ISDN, Voice, etc. These are known as “hazardous network voltages” and to avoid electric shock use caution when working near these ports. When disconnecting cables for these ports, detach the far end connection first.
•
Do not work on the device or connect or disconnect cables during periods of lightning activity
This device contains no user serviceable parts. This device can only be repaired by qualified service personnel.
This device is NOT intended nor approved for connection to the PSTN. It is intended only for connection to customer premise equipment.
In accordance with the requirements of council directive 2002/ 96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate this product from other waste and scrap and deliver to the WEEE collection system in your country for recycling.
11
SmartNode 5200 Getting Started Guide About this guide
Electrostatic Discharge (ESD) can damage equipment and impair electrical cir­cuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Do the following to prevent ESD:
•
Always follow ESD prevention procedures when removing and replacing cards.
•
Wear an ESD-preventive wrist strap, ensuring that it makes good skin con­tact. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground.
•
To properly guard against ESD damage and shocks, the wrist strap and cord must operate effectively. If no wrist strap is available, ground yourself by touching the metal part of the chassis.

General observations

• Clean the case with a soft slightly moist anti-static cloth
• Place the unit on a flat surface and ensure free air circulation
• Avoid exposing the unit to direct sunlight and other heat sources
• Protect the unit from moisture, vapors, and corrosive liquids
12
SmartNode 5200 Getting Started Guide About this guide

Typographical conventions used in this document

This section describes the typographical conventions and terms used in this guide.

General conventions

The procedures described in this manual use the following text conventions:
Table 1. General conventions
Convention Meaning
Garamond blue type
Futura bold type Commands and keywords are in boldface font.
Futura bold-italic type Parts of commands, which are related to elements already named by the user, are
Italicized Futura type Variables for which you supply values are in italic font Futura type Indicates the names of fields or windows. Garamond bold type Indicates the names of command buttons that execute an action. < > Angle brackets indicate function and keyboard keys, such as <SHIFT>, <CTRL>,
[ ] Elements in square brackets are optional. {a | b | c} Alternative but required keywords are grouped in braces ({ }) and are separated
blue screen Information you enter is in blue screen font.
screen Terminal sessions and information the system displays are in screen font.
node The leading IP address or nodename of a SmartNode is substituted with node in
SN The leading SN on a command line represents the nodename of the SmartNode # An hash sign at the beginning of a line indicates a comment line.
Indicates a cross-reference hyperlink that points to a figure, graphic, table, or sec­tion heading. Clicking on the hyperlink jumps you to the reference. When you have finished reviewing the reference, click on the Go to Previous View
button in the Adobe® Acrobat® Reader toolbar to return to your starting point.
in boldface italic font.
<C>, and so on.
by vertical bars ( | )
boldface italic font.
13

Chapter 1 General information

Chapter contents
SmartNode 5200 overview ....................................................................................................................................15
SmartNode 5200 rear panel ............................................................................................................................16
SmartNode 5200 front panel ..........................................................................................................................17
14
SmartNode 5200 Getting Started Guide 1 • General information

SmartNode 5200 overview

The SmartNode 5200 Enterprise Session Border Router (see figure 1) combines Ethernet switching, IP rout­ing, VPN/Security, and Quality of Service with high-quality Voice over IP (VoIP) session control. This combi­nation allows you to leverage low-cost Internet Telephony on existing IP-PBX equipment for complete SoHo and branch office voice and data connectivity.
Figure 1. SmartNode 5200
The SmartNode 5200 is equipped with a 10/100Base-T Ethernet WAN port and an integrated 4-port 10/100Base-T Ethernet switch.
The SmartNode 5200 Enterprise Session Border Router performs the following major functions:
• Standard compliant VoIP in accordance with SIP or H.323 protocols.
• Internet access and IP Routing with IP Quality of Service (QoS) support for mixed voice and data traffic.
• Enable universal SIP trunking for up to 32 SIP sessions
SmartNode 5200 overview 15
SmartNode 5200 Getting Started Guide 1 • General information

SmartNode 5200 rear panel

The SmartNode 5200 is a compact VoIP Gateway Router that supports 32 simultaneous SIP sessions. The SmartNode 5200 rear panel ports are described in table 2.
Model SN5200
Port Description
WAN E TH 0/0
LAN (ETH 0/1) 1–4
5V DC, 1.0A Reset
WAN ETH 0/0 Ethernet port
Figure 2. SmartNode 5200 rear panel
Table 2. Rear panel ports
Auto-MDX Fast-Ethernet port, RJ-45 (see device (for example, a cable modem, DSL modem, or fiber modem).
Switched Auto-MDX Fast-Ethernet ports, RJ-45 (see net LAN (for example, a PC, printer, or wireless bridge).
The Model 5200 has a 5V DC power input (see The reset button (see
•
Restart the unit with the current startup configuration—Press (for less than 1 second) and release the Reset button to restart the unit with the current startup configuration.
•
Restart the unit with factory default configuration—Press the Reset button for 5 seconds until the Power LED (see the unit with factory default configuration.
•
Restart the unit in bootloader mode (to be used only by trained SmartNode tech­nicians)—Starting with the unit powered off, press and hold the Reset button as you apply power to the unit. Release the Reset button when the Power LED starts blinking so the unit will enter bootloader mode.
figure 2
LAN (ETH 0/1)
Ethernet ports 1–4
figure 2
) has three functions:
figure 3
), connects the unit to an Ethernet WAN
figure 2
on page 17) starts blinking to restart
), connect the unit to an Ether-
figure 2
).
SmartNode 5200 overview 16
SmartNode 5200 Getting Started Guide 1 • General information
Figure 3. SmartNode 5200 front panel

SmartNode 5200 front panel

Figure 3 shows SmartNode 5200 LEDs, the LED definitions are listed in table 3.
Table 3. SmartNode 5200 LED definitions
LED Description
Note If an error occurs, all LEDs will flash once per second.
Power When lit, indicates power is applied and the unit is in normal operation. Off indi-
cates no power applied. Flashes once per second during boot (startup).
VoIP Link
Ethernet (LAN 1–4 and WAN)
•
On indicates the gateway is registered to an H.323 gatekeeper/SIP server, or, in the case of direct routing, has at least one active VoIP connection.
•
Off indicates the unit is not configured or registered, or has no active direct­routed VoIP connection.
•
Flashing green indicates that the unit is attempting to register or has failed to register.
•
On when the Ethernet connection on the corresponding port has a link indication.
•
Flashes when data is received or transmitted at the corresponding Ethernet port.
SmartNode 5200 overview 17

Chapter 2 Applications overview

Chapter contents
Introduction..........................................................................................................................................................19
Typical application ................................................................................................................................................19
18
SmartNode 5200 Getting Started Guide 2 • Applications overview

Introduction

Patton’s SmartNode VoIP Enterprise Session Routers deliver the features you need for advanced multiservice voice and data network applications. They combine high quality voice-over-IP with powerful quality of service routing functions to build professional and reliable VoIP and data networks. This chapter describes typical applications for which this SmartNode is uniquely suited.
Note
Detailed configuration information for the applications can be found on the CD-ROM that was included with your SmartNode device or online from the Patton webserver at www.patton.com.

Typical application

The SN5200 enables Universal SIP Trunking and provides a single Integrated Access Device with features like IP Routing, Redundancy, Security and a SIP registrar for survivability. The Enterprise can use a single conduit for both its voice and data traffic thus making the most cost efficient use of its resources. By using two SN5200 with VRRP enabled an Enterprise could connect to two ITSP and provide for failover incase the primary SIP provider trunk has a problem.
Figure 4. Internet telephony IAD application (SN5200 shown)
Broadband network connectivity integrates with any fixed IP, DHCP or PPPoE service. An integrated 10/100 Ethernet LAN switch, with advanced routing features such as NAT, Firewall/ACL, DynDNS as well as optional IPSec VPN, fulfills the requirements of demanding network users.
Quality of Service (QoS) features complete the offering with advanced voice prioritization and traffic manage­ment. Patton’s patent-pending DownStreamQoS™ ensures voice without interruptions even over best-effort Internet connections.
Introduction 19

Chapter 3 SmartNode installation

Chapter contents
Planning the installation ........................................................................................................................................21
Site log ............................................................................................................................................................21
Network information ......................................................................................................................................21
Network Diagram ...........................................................................................................................................21
IP related information .....................................................................................................................................22
Software tools .................................................................................................................................................22
Power source ...................................................................................................................................................22
Location and mounting requirements .............................................................................................................22
Installing the gateway router..................................................................................................................................22
Placing the SmartNode ...................................................................................................................................22
Installing cables ...............................................................................................................................................23
Connecting the 10/100Base-T Ethernet LAN and WAN cables ................................................................23
Connecting the power supply ....................................................................................................................23
20
SmartNode 5200 Getting Started Guide 3 • SmartNode installation

Planning the installation

The mains outlet that is utilized to power the equipment must be within 10 feet (3 meters) of the device and shall be easily accessible.
Before installing the gateway router device, the following tasks should be completed:
• Create a network diagram (see section “Network information” on page 21)
• Gather IP related information (see section “IP related information” on page 22 for more information)
• Install the hardware and software needed to configure the SmartNode. (See section “Software tools” on
page 22)
• Verify power source reliability (see section “Power source” on page 22).
After you have finished preparing for gateway router installation, go to section “Installing the gateway router” on page 22 to install the device.

Site log

Patton recommends that you maintain a site log to record all actions relevant to the system, if you do not already keep such a log. Site log entries should include information such as listed in table 4.
Table 4. Sample site log entries
Entry Description
Installation Make a copy of the installation checklist and insert it into the site log
Upgrades and maintenance Use the site log to record ongoing maintenance and expansion history
Configuration changes Record all changes and the reasons for them
Maintenance Schedules, requirements, and procedures performed
Comments Notes, and problems
Software Changes and updates to SmartWare software

Network information

Network connection considerations that you should take into account for planning are provided for several types of network interfaces are described in the following sections.

Network Diagram

Draw a network overview diagram that displays all neighboring IP nodes, connected elements and telephony components.
Planning the installation 21
SmartNode 5200 Getting Started Guide 3 • SmartNode installation

IP related information

Before you can set up the basic IP connectivity for your SmartNode 5200 you should have the following infor­mation:
• IP addresses used for Ethernet LAN and WAN ports
• Subnet mask used for Ethernet LAN and WAN ports
• IP addresses of central H.323 gatekeeper (if used)
• IP addresses and/or URL of SIP servers or Internet telephony services (if used)
• Login and password for PPPoE
Access
• Login and password for SIP or H.323 based telephony services
• IP addresses of central TFTP server used for configuration upload and download (optional)

Software tools

You will need a PC (or equivalent) with Windows Telnet or a program such as Tera Term Pro Web (included on the SmartNode CD-ROM) to configure the software on your SmartNode router.

Power source

If you suspect that your AC power is not reliable, for example if room lights flicker often or there is machinery with large motors nearby, have a qualified professional test the power. Patton recommends that you include an uninterruptible power supply (UPS) in the installation to ensure that VoIP service is not impaired if the power fails.

Location and mounting requirements

The SmartNode router is intended to be placed on a desktop or similar sturdy, flat surface that offers easy access to the cables. Allow sufficient space at the rear of the chassis for cable connections. Additionally, you should consider the need to access the unit for future upgrades and maintenance.

Installing the gateway router

SmartNode hardware installation consists of the following:
• Placing the device at the desired installation location (see section “Placing the SmartNode”)
• Connecting the interface and power cables (see section “Installing cables” on page 23)
When you finish installing the SmartNode, go to chapter 4, “Initial configuration” on page 25.

Placing the SmartNode

Place the unit on a desktop or similar sturdy, flat surface that offers easy access to the cables. The unit should be installed in a dry environment with sufficient space to allow air circulation for cooling.
Note
For proper ventilation, leave at least 2 inches (5 cm) to the left, right, front, and rear of the unit.
Installing the gateway router 22
SmartNode 5200 Getting Started Guide 3 • SmartNode installation

Installing cables

Do not work on the system or connect or disconnect cables during periods of lightning activity.
Connect the cables in the following order:
1. Connect the 10/100Base-T Ethernet LAN and WAN (see section “Connecting the 10/100Base-T Ether-
net LAN and WAN cables” on page 23)
2. Connect the power supply (see section “Connecting the power supply” on page 23)
Connecting the 10/100Base-T Ethernet LAN and WAN cables
The SmartNode 5200 has automatic MDX (auto-crossover) detection and configuration on all Ethernet ports. Any of the ports can be connected to a host or hub/switch with a straight-through wired cable.
1. Connect port ETH 0/0 to the subscriber port of the broadband access modem (DSL, cable, WLL).
2. Connect Ethernet ports 1 to 4 to your LAN devices (PC, printer, switches, etc.)
For details on the Ethernet port pinout and cables, refer to Appendix C, “Cabling” on page 39 and Appendix
D, “Port pin-outs” on page 41.
Connecting the power supply
Do the following to connect the power supply to the Model 5200:
Note
Do not connect the power cord to the AC power outlet at this time.
1. Insert the barrel-type connector end of the AC power supply into the 5V DC, 1.0A port (see figure 2 on
page 16).
The external router power supply automatically adjusts to accept an input voltage from 100 to 240 VAC (50/60 Hz).
Verify that the proper voltage is present before plugging the power cord into the receptacle. Failure to do so could result in equipment damage.
2. Verify that the AC power cord included with your router is compatible with local standards. If it is not,
refer to “Contacting Patton for assistance” on page 31 to find out how to replace it with a compatible power cord.
3. Connect the male end of the AC power supply power cord to an appropriate AC power outlet.
Installing the gateway router 23
SmartNode 5200 Getting Started Guide 3 • SmartNode installation
Power
LAN ports
1–4 activity
WAN
Figure 5. Router front panel LEDs
4. Verify that the green Power LED is lit (see figure 5).
Congratulations, you have finished installing the SmartNode Gateway Router! Now go to chapter 4, “Initial
configuration” on page 25.
Installing the gateway router 24

Chapter 4 Initial configuration

Chapter contents
Introduction..........................................................................................................................................................26
Connecting the SmartNode to your laptop PC......................................................................................................26
Configuring the desired IP address ........................................................................................................................27
Factory-default IP settings ...............................................................................................................................27
Login ..............................................................................................................................................................27
Changing the WAN IP address .......................................................................................................................27
Connecting the SmartNode to the network...........................................................................................................28
Loading the configuration (optional) .....................................................................................................................29
Additional information..........................................................................................................................................30
25
SmartNode 5200 Getting Started Guide 4 • Initial configuration

Introduction

This chapter leads you through the basic steps to set up a new SmartNode and to download a configuration. Setting up a new SmartNode consists of the following main steps:
Note
If you haven’t already installed the SmartNode, refer to chapter 3,
“SmartNode installation” on page 20.
• Connecting the SmartNode to your laptop PC
• Configuring the desired IP address
• Connecting the SmartNode to the network
• Loading the configuration (optional)
Note
The SmartNode CD-ROM contains a collection of third party software tools (including TFTP servers and Telnet utilities) to help you configure, operate and monitor the SmartNode device.

Connecting the SmartNode to your laptop PC

First the SmartNode must be connected to the mains power supply with the power cable. Wait until the Power LED stops blinking and stays lit constantly. Now the SmartNode is ready.
The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt­age, current, anticipated temperature, flammability, and mechanical serviceability.
The SmartNode 5200 Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through cables for host or hub/switch connections (see figure 6).
Straight-through wired cable
Laptop PC
Figure 6. Connecting the SmartNode to your laptop PC
LAN (ETH 0/1)
The SmartNode comes with a built-in DHCP server to simplify configuration. Therefore, to automatically configure the PC for IP connectivity to the SmartNode, the laptop PC must be configured for DHCP. The SmartNode will provide the PC with an IP address. You can check the connection to the SmartNode by exe­cuting the ping command from the PC command window as follows:
ping 192.168.1.1
Introduction 26
SmartNode 5200 Getting Started Guide 4 • Initial configuration

Configuring the desired IP address

Factory-default IP settings

The factory default configuration for the Ethernet interface IP addresses and network masks are listed in table 5. Both Ethernet interfaces are activated upon power-up. LAN interface ETH 0/1 (LAN) provides a default DHCP server, the WAN interface uses DHCP client to automatically assign the IP address and network mask.
Table 5. Factory default IP address and network mask configuration
IP Address Network Mask
WAN interface Ethernet 0 (ETH 0/0) DHCP DHCP LAN interface Ethernet 1 (ETH 0/1) 192.168.1.1 255.255.255.0 DHCP address range 192.168.1.10–192.168.1.19 255.255.255.0
If these addresses match with those of your network, go to section “Connecting the SmartNode to the net-
work” on page 28. Otherwise, refer to the following sections to change the addresses and network masks.

Login

To access the SmartNode, start the Telnet application. Type the default IP address for the router into the address field: 192.168.1.1. Accessing your SmartNode via a Telnet session displays the login screen. Type the factory default login: administrator and leave the password empty. Press the Enter key after the password prompt.
login:administrator password: <Enter>
192.168.1.1>
After you have successfully logged in you are in the operator execution mode, indicated by > as command line prompt. With the commands enable and configure you enter the configuration mode.
192.168.1.1>enable
192.168.1.1#configure
192.168.1.1(cfg)#

Changing the WAN IP address

Select the context IP mode to configure an IP interface.
192.168.1.1(cfg)#context ip router
192.168.1.1(ctx-ip)[router]#
Configuring the desired IP address 27
SmartNode 5200 Getting Started Guide 4 • Initial configuration
Now you can set your IP address and network mask for the interface ETH 0/0 (WAN). Within this example a network 172.16.1.0/24 address is assumed. The IP address in this example is set to 172.16.1.99 (you should set this the IP address given to you by your network provider).
192.168.1.1(ctx-ip)[router]#interface eth0
192.168.1.1(if-ip)[eth0]#ipaddress 172.16.1.99 255.255.255.0 2002-10-29T00:09:40 : LOGINFO : Link down on interface eth0. 2002-10-29T00:09:40 : LOGINFO : Link up on interface eth0.
172.16.1.99(if-ip)[eth0]#
Copy this modified configuration to your new start-up configuration. This will store your changes in non-vol­atile memory. Upon the next start-up the system will initialize itself using the modified configuration.
172.16.1.99(if-ip)[eth0]#copy running-config startup-config
172.16.1.99(if-ip)[eth0]#
The SmartNode can now be connected to your network.

Connecting the SmartNode to the network

In general, the SmartNode will connect to the network via the WAN (ETH 0/0) port. This enables the Smart­Node to offer routing services to the PC hosts on LAN (ETH 0/1) port. The SmartNode 5200 Series is equipped with Auto-MDX Ethernet ports, so you can use straight-through or crossover cables for host or hub/switch connections (see figure 7).
Network
The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt­age, current, anticipated temperature, flammability, and mechanical serviceability.
LAN
Straight-through wired or crossover cable
WAN (ETH 0/0)
LAN (ETH 0/1)
Figure 7. Connecting the SmartNode to the network
Connecting the SmartNode to the network 28
SmartNode 5200 Getting Started Guide 4 • Initial configuration
You can check the connection with the ping command from the SmartNode to another host on the network.
172.16.1.99(if-ip)[eth0]#ping <IP Address of the host>
Note
If the WAN address is not set to DHCP, to ping a device outside your local LAN you must first configure the default gateway. (For information on con­figuring the default gateway, refer to section “Set IP addresses” in Appendix C, “Command Summary” of the SmartNode Series SmartWare Software Con- figuration Guide.)

Loading the configuration (optional)

Patton provides a collection of configuration templates on the CD-ROM that came with the SmartNode device—and also on the support page at www.patton.com/voip—one of which may be similar enough to your application that you can use it to speed up configuring the SmartNode. Simply download the configuration note that matches your application to your PC. Adapt the configuration as described in the configuration note to your network (remember to modify the IP address) and copy the modified configuration to a TFTP server. The SmartNode can now load its configuration from this server.
Note
Note
Patton regularly adds new configuration templates to the collection at www.patton.com/voip, so if you do not see your application on the CD- ROM, it may have been added to the website.
If your application is unique and not covered by any of Patton’s configura­tion templates, you can manually configure the SmartNode instead of load­ing a configuration file template. In that case, refer to the SmartNode Series SmartWare Software Configuration Guide for information on configuring the SmartNode device.
In this example we assume the TFTP server on the host with the IP address 172.16.1.11 and the configuration named SN.cfg in the root directory of the TFTP server.
172.16.1.99(if-ip)[eth0]#copy tftp://172.16.1.11/SN.cfg startup-config Download...100%
172.16.1.99(if-ip)[eth0]#
After the SmartNode has been rebooted the new startup configuration will be activated.
When you issue the reload command, the SmartNode will ask if you want to copy the running configuration to the startup con­figuration. Since you just downloaded a configuration file to the startup configuration you must answer this question with NO. Otherwise, the downloaded configuration will be overwritten and lost!
Loading the configuration (optional) 29
SmartNode 5200 Getting Started Guide 4 • Initial configuration
172.16.1.99(if-ip)[eth0]#reload Running configuration has been changed. Do you want to copy the 'running-config' to the 'startup-config'? Press 'yes' to store, 'no' to drop changes : no Press 'yes' to restart, 'no' to cancel : yes The system is going down

Additional information

For detailed information about configuring and operating guidance, set up procedures, and troubleshooting, refer to the SmartNode Series SmartWare Software Configuration Guide on the CD-ROM.
Additional information 30

Chapter 5 Contacting Patton for assistance

Chapter contents
Introduction..........................................................................................................................................................32
Contact information..............................................................................................................................................32
Patton support headquarters in the USA .........................................................................................................32
Alternate Patton support for Europe, Middle East, and Africa (EMEA) ..........................................................32
Warranty Service and Returned Merchandise Authorizations (RMAs)...................................................................32
Warranty coverage ..........................................................................................................................................32
Out-of-warranty service .............................................................................................................................33
Returns for credit ......................................................................................................................................33
Return for credit policy .............................................................................................................................33
RMA numbers ................................................................................................................................................33
Shipping instructions ................................................................................................................................33
31
SmartNode 5200 Getting Started Guide 5 • Contacting Patton for assistance

Introduction

This chapter contains the following information:
• “Contact information”—describes how to contact Patton technical support for assistance.
• “Warranty Service and Returned Merchandise Authorizations (RMAs)”—contains information about the
RAS warranty and obtaining a return merchandise authorization (RMA).

Contact information

Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we have gathered together many of the more commonly asked questions and compiled them into a searchable database to help you quickly solve your problems.

Patton support headquarters in the USA

• Online support: available at www.patton.com
• E-mail support: e-mail sent to support@patton.com will be answered within 1 business day
• Telephone support: standard telephone support is available five days a week—from 8:00 am to
5:00 pm EST (1300 to 2200 UTC/GMT)—by calling +1 (301) 975-1007
• Fax: +1 (253) 663-5693

Alternate Patton support for Europe, Middle East, and Africa (EMEA)

• Online support: available at www.patton-inalp.com
• E-mail support: e-mail sent to support@patton-inalp.com will be answered within 1 business day
• Telephone support: standard telephone support is available five days a week—from 8:00 am to
5:00 pm CET (0900 to 1800 UTC/GMT)—by calling +41 (0)31 985 25 55
• Fax: +41 (0)31 985 25 26

Warranty Service and Returned Merchandise Authorizations (RMAs)

Patton Electronics is an ISO-9001 certified manufacturer and our products are carefully tested before ship­ment. All of our products are backed by a comprehensive warranty program.
Note

Warranty coverage

Our products are under warranty to be free from defects, and we will, at our option, repair or replace the prod­uct should it fail within one year from the first date of shipment. Our warranty is limited to defects in work­manship or materials, and does not cover customer damage, lightning or power surge damage, abuse, or unauthorized modification.
If you purchased your equipment from a Patton Electronics reseller, ask your reseller how you should proceed with warranty service. It is often more con­venient for you to work with your local reseller to obtain a replacement. Patton services our products no matter how you acquired them.
Introduction 32
SmartNode 5200 Getting Started Guide 5 • Contacting Patton for assistance
Out-of-warranty service
Patton services what we sell, no matter how you acquired it, including malfunctioning products that are no longer under warranty. Our products have a flat fee for repairs. Units damaged by lightning or other catastro­phes may require replacement.
Returns for credit
Customer satisfaction is important to us, therefore any product may be returned with authorization within 30 days from the shipment date for a full credit of the purchase price. If you have ordered the wrong equipment or you are dissatisfied in any way, please contact us to request an RMA number to accept your return. Patton is not responsible for equipment returned without a Return Authorization.
Return for credit policy
• Less than 30 days: No Charge. Your credit will be issued upon receipt and inspection of the equipment.
• 30 to 60 days: We will add a 20% restocking charge (crediting your account with 80% of the purchase price).
• Over 60 days: Products will be accepted for repairs only.

RMA numbers

RMA numbers are required for all product returns. You can obtain an RMA by doing one of the following:
• Completing a request on the RMA Request page in the Support section at www.patton.com
• By calling +1 (301) 975-1007 and speaking to a Technical Support Engineer
• By sending an e-mail to returns@patton.com
All returned units must have the RMA number clearly visible on the outside of the shipping container. Please use the original packing material that the device came in or pack the unit securely to avoid damage during shipping.
Shipping instructions
The RMA number should be clearly visible on the address label. Our shipping address is as follows:
Patton Electronics Company
RMA#: xxxx 7622 Rickenbacker Dr. Gaithersburg, MD 20879-4773 USA
Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return shipping costs.
Warranty Service and Returned Merchandise Authorizations (RMAs) 33

Appendix A Compliance information

Chapter contents
Compliance ...........................................................................................................................................................35
EMC ...............................................................................................................................................................35
Low-Voltage Directive (Safety) .......................................................................................................................35
PSTN Regulatory ............................................................................................................................................35
CE Declaration of Conformity..............................................................................................................................35
Authorized European Representative.....................................................................................................................35
34
SmartNode 5200 Getting Started Guide A • Compliance information

Compliance

EMC
• EN55022, Class A
• EN55024

Low-Voltage Directive (Safety)

• IEC/EN60950-1, 2nd edition
• AS/NZS60950-1

PSTN Regulatory

• TBR 3:1995 A1
• AS/ACIF S031:2001

CE Declaration of Conformity

This device conforms to the requirements of Council Directive 1999/5/EC on the approximation of the laws of the member states relating to Radio and Telecommunication Terminal Equipment and the mutual recogni­tion of their conformity.
The safety advice in the documentation accompanying this device shall be obeyed. The conformity to the above directive is indicated by CE mark on the device.

Authorized European Representative

D R M Green
European Compliance Services Limited.
Avalon House, Marcham Road
Abingdon,
Oxon OX14 1UD, UK
Compliance 35

Appendix B Specifications

Chapter contents
Data connectivity ..................................................................................................................................................37
Voice signalling .....................................................................................................................................................37
IP services..............................................................................................................................................................37
Management .........................................................................................................................................................37
Operating environment .........................................................................................................................................38
Operating temperature ....................................................................................................................................38
Operating humidity ........................................................................................................................................38
System...................................................................................................................................................................38
Dimensions ...........................................................................................................................................................38
Weight and power dissipation ...............................................................................................................................38
36
SmartNode 5200 Getting Started Guide B • Specifications
Note
Refer to the software feature matrix for the most up-to-date specifications.

Data connectivity

10/100Base-TX Ethernet WAN port
4-port 10/100Base-TX Ethernet LAN switch
All ports full duplex, autosensing, auto-MDX

Voice signalling

SIPv2
H.323v4
SIP call transfer, redirect
Overlap or en-bloc dialing
DTMF in-band, out-of-band
Configurable progress tones

IP services

IPv4 router; RIPv1, v2 (RFC 1058 and 2453)
Programmable static routes
ICMP redirect (RFC 792); Packet fragmentation
DiffServe/ToS set or queue per header bits
Pocket Policing discards excess traffic
802.1p VLAN tagging
IPSEC AH & ESP Modes
Manual Key; IKE optional
AES/DES/3DES Encryption
Note
Note
To use the IPSec VPN capabilities including AES/DES/3DES encryption with the SmartNode 5200, you may need to purchase additional license keys.
The SmartNode 4562 is loaded with the VPN license from the factory.

Management

Industry standard CLI with remote Telnet access
HTTP web management and firmware loading
TFTP configuration & firmware loading
SNMP v1 agent (MIB II and private MIB)
Data connectivity 37
SmartNode 5200 Getting Started Guide B • Specifications
Built-in diagnostic tools (trace, debug)

Operating environment

Operating temperature

32–104°F (0–40°C)

Operating humidity

5–80% (non condensing)

System

CPU Motorola MC875 operating at 66 MHz
Memory:
• 16 Mbytes SDRAM
• 4 Mbytes Flash

Dimensions

7.3W x 1.6H x 6.1D in. (18.5H x 4.1W x 15.5D cm)

Weight and power dissipation

See table 6.
Table 6. SmartNode weight and maximum power specifications
SmartNode model Weight Maximum power dissipation
SN5200 30.5 oz./500 g 5W
Operating environment 38

Appendix C Cabling

Chapter contents
Introduction..........................................................................................................................................................40
Ethernet ................................................................................................................................................................40
39
SmartNode 5200 Getting Started Guide C • Cabling

Introduction

This section provides information on the cables used to connect the SmartNode and the interface cards to the existing network infrastructure and to third party products.

Ethernet

Ethernet devices (10Base-T/100Base-T) are connected to the SmartNode over a cable with RJ-45 plugs. All Ethernet ports on the SN5200 & SN4562 are Auto-MDX and use any straight or crossover cable to connect to hubs, switches, PCs or other devices.
RJ-45, male
1 2 3 6
Figure 8. Typical Ethernet straight-through cable diagram
Hub
Straight-through cable
RJ-45, male
1 2 3 6
Note: Other pins are not used.
Introduction 40

Appendix D Port pin-outs

Chapter contents
Introduction..........................................................................................................................................................42
Ethernet ................................................................................................................................................................42
41
SmartNode 5200 Getting Started Guide D • Port pin-outs

Introduction

This section provides pin-out information for the ports of the SmartNode.

Ethernet

Table 7. RJ-45 socket
Pin Signal
1 TX+ 2 TX­3 RX+ 6 RX-
Note
Pins not listed are not used.
Introduction 42
Appendix E SmartNode 5200 factory
configuration
Chapter contents
Introduction..........................................................................................................................................................44
43
SmartNode 5200 Getting Started Guide E • SmartNode 5200 factory configuration

Introduction

The factory configuration settings for SmartNode 5200 are as follows:
#----------------------------------------------------------------#
# #
# 5200 #
# R3.xx BUILDxxxxx SIP #
# 2005-08-25T00:00:00 #
# Factory configuration file #
# #
#----------------------------------------------------------------#
dns-client server 10.56.128.44 dns-relay webserver port 80 language en sntp-client sntp-client server primary 129.132.2.21 port 123 version 4 system hostname AA1
system
ic voice 0 low-bitrate-codec g729
profile napt NAPT
profile voip default codec 1 g711alaw64k rx-length 20 tx-length 20 codec 2 g711ulaw64k rx-length 20 tx-length 20 dtmf-relay rtp rtp traffic-class local-default
profile pstn default
profile ringing-cadence default play 1 1000 pause 2 4000
profile sip default
profile dhcp-server DHCP network 192.168.1.0 255.255.255.0 include 1 192.168.1.10 192.168.1.99 lease 2 hours
Introduction 44
SmartNode 5200 Getting Started Guide E • SmartNode 5200 factory configuration
default-router 1 192.168.1.1 domain-name-server 1 192.168.1.1
profile aaa default method 1 local method 2 none
context ip router
interface eth0 ipaddress 10.10.10.10 255.255.254.0 use profile napt NAPT tcp adjust-mss rx mtu tcp adjust-mss tx mtu
interface eth1 ipaddress 192.168.1.1 255.255.255.0 tcp adjust-mss rx mtu tcp adjust-mss tx mtu
context ip router dhcp-server use profile DHCP
context cs switch
routing-table called-e164 fromSIPWAN route default dest-service SERVICE-SIP-LAN
routing-table called-e164 fromSIPLAN
route 3.... dest-service SERVICE-SIP-LAN
route default dest-interface SIP-WAN
interface sip SIP-WAN bind context sip-gateway GWSIP-WAN route call dest-table fromSIPWAN remote sip.local.com
interface sip SIP-LAN bind context sip-gateway GWSIP-LAN route call dest-table fromSIPLAN local 10.10.10.10
service sip-location-service SERVICE-SIP-LAN bind location-service LS-LAN
context cs switch no shutdown
authentication-service AUTHSERV username 37060 password qHDk6Ej6cAk= encrypted username 37061 password qHDk6Ej6cAk= encrypted username 37062 password qHDk6Ej6cAk= encrypted username 37063 password qHDk6Ej6cAk= encrypted
Introduction 45
SmartNode 5200 Getting Started Guide E • SmartNode 5200 factory configuration
location-service LS-LAN domain 1 10.10.10.10
identity 37060
authentication outbound authenticate 1 authentication-service AUTHSERV username 37060
authentication inbound authenticate 1 authentication-service AUTHSERV username 37060
registration inbound
identity 37061
authentication outbound authenticate 1 authentication-service AUTHSERV username 37061
authentication inbound authenticate 1 authentication-service AUTHSERV username 37061
registration inbound
identity 37062
authentication outbound authenticate 1 authentication-service AUTHSERV username 37062
authentication inbound authenticate 1 authentication-service AUTHSERV username 37062
registration inbound
identity 37063
authentication outbound authenticate 1 authentication-service AUTHSERV username 37063
authentication inbound authenticate 1 authentication-service AUTHSERV username 37063
registration inbound
location-service LS-WAN domain 1 sip.local.com
identity-group IDENT-GROUP-WAN
authentication outbound authenticate 1 authentication-service AUTHSERV
registration outbound registrar sip.local.com register auto
Introduction 46
SmartNode 5200 Getting Started Guide E • SmartNode 5200 factory configuration
call outbound
call inbound
identity 37060 inherits IDENT-GROUP-WAN
registration outbound
identity 37061 inherits IDENT-GROUP-WAN
registration outbound
identity 37062 inherits IDENT-GROUP-WAN
registration outbound
identity 37063 inherits IDENT-GROUP-WAN
registration outbound
context sip-gateway GWSIP-WAN
interface ifwan bind interface eth0 context router port 5062
context sip-gateway GWSIP-WAN bind location-service LS-WAN no shutdown
context sip-gateway GWSIP-LAN
interface iflan bind interface eth0 context router port 5060
context sip-gateway GWSIP-LAN bind location-service LS-LAN no shutdown
port ethernet 0 0 medium auto encapsulation ip bind interface eth0 router no shutdown
port ethernet 0 1 medium auto encapsulation ip bind interface eth1 router no shutdown
Introduction 47

Appendix F End user license agreement

Chapter contents
End User License Agreement.................................................................................................................................49
1. Definitions ..................................................................................................................................................49
2. Title ............................................................................................................................................................49
3. Term ...........................................................................................................................................................49
4. Grant of License ..........................................................................................................................................49
5. Warranty ....................................................................................................................................................49
6. Termination ................................................................................................................................................50
7. Other licenses .............................................................................................................................................50
48
SmartNode 5200 Getting Started Guide F • End user license agreement

End User License Agreement

By opening this package, operating the Designated Equipment or downloading the Program(s) electronically, the End User agrees to the following conditions:

1. Definitions

A) Effective Date shall mean the earliest date of purchase or download of a product containing the Patton
Electronics Company Program(s) or the Program(s) themselves.
B) Program(s) shall mean all software, software documentation, source code, object code, or executable code.
C) End User shall mean the person or organization which has valid title to the Designated Equipment.
D) Designated Equipment shall mean the hardware on which the Program(s) have been designed and pro-
vided to operate by Patton Electronics Company.

2. Title

Title to the Program(s), all copies of the Program(s), all patent rights, copyrights, trade secrets and proprietary information in the Program(s), worldwide, remains with Patton Electronics Company or its licensors.

3. Term

The term of this Agreement is from the Effective Date until title of the Designated Equipment is transferred by End User or unless the license is terminated earlier as defined in section “6. Termination” on page 50.

4. Grant of License

A) During the term of this Agreement, Patton Electronics Company grants a personal, non-transferable,
non-assignable and non-exclusive license to the End User to use the Program(s) only with the Designated Equipment at a site owned or leased by the End User.
B) The End User may copy licensed Program(s) as necessary for backup purposes only for use with the Des-
ignated Equipment that was first purchased or used or its temporary or permanent replacement.
C) The End User is prohibited from disassembling; decompiling, reverse-engineering or otherwise attempt-
ing to discover or disclose the Program(s), source code, methods or concepts embodied in the Program(s) or having the same done by another party.
D) Should End User transfer title of the Designated Equipment to a third party after entering into this
license agreement, End User is obligated to inform the third party in writing that a separate End User License Agreement from Patton Electronics Company is required to operate the Designated Equipment.

5. Warranty

The Program(s) are provided as is without warranty of any kind. Patton Electronics Company and its licensors disclaim all warranties, either express or implied, including but not limited to the implied warranties of mer­chantability, fitness for a particular purpose or non-infringement. In no event shall Patton Electronics Com­pany or its licensors be liable for any damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information, or other pecuniary loss) arising out of the use of or inability to use the Program(s), even if Patton Electronics Company has been advised of the possibil­ity of such damages. Because some states do not allow the exclusion or limitation of liability for consequential or incidental damages, the above limitation may not apply to you.
End User License Agreement 49
SmartNode 5200 Getting Started Guide F • End user license agreement
If the Program(s) are acquired by or on behalf of a unit or agency of the United States Government, the Gov­ernment agrees that such Program(s) are commercial computer software or computer software documentation and that, absent a written agreement to the contrary, the Government’s rights with respect to such Program(s) are limited by the terms of this Agreement, pursuant to Federal Acquisition Regulations 12.212(a) and/or DEARS
227.7202-1(a) and/or sub-paragraphs (a) through (d) of the “Commercial Computer Software - Restricted Rights” clause at 48 C.F.R. 52.227-19 of the Federal Acquisition Regulations as applicable.

6. Termination

A) The End User may terminate this agreement by returning the Designated Equipment and destroying all
copies of the licensed Program(s).
B) Patton Electronics Company may terminate this Agreement should End User violate any of the provi-
sions of section “4. Grant of License” on page 49.
C) Upon termination for A or B above or the end of the Term, End User is required to destroy all copies of
the licensed Program(s)

7. Other licenses

The Program may be subject to licenses extended by third parties. Accordingly, Patton Electronics Company licenses the Programs subject to the terms and conditions dictated by third parties. Third party software identi­fied to the Programs includes:
• A routing license is included at no charge.
• MGCP and VPN capabilities will require the purchase of an additional license.
• The LGPL (Lesser General Public License) open source license distributed to you pursuant to the LGPL
license terms (http://www.gnu.org/licenses/lgpl.html).
• RedBoot (Red Hat Embedded Debug and Bootstrap) embedded system debug/bootstrap environment
from Red Hat distributed to you pursuant to the eCos license terms (http://ecos.sourceware.org/license- overview.html) and GNU General Public License (GPL) terms (http://www.gnu.org/copyleft/gpl.html). Source code is available upon request.
End User License Agreement 50
